Simplicity 1920, 1918 User Manual

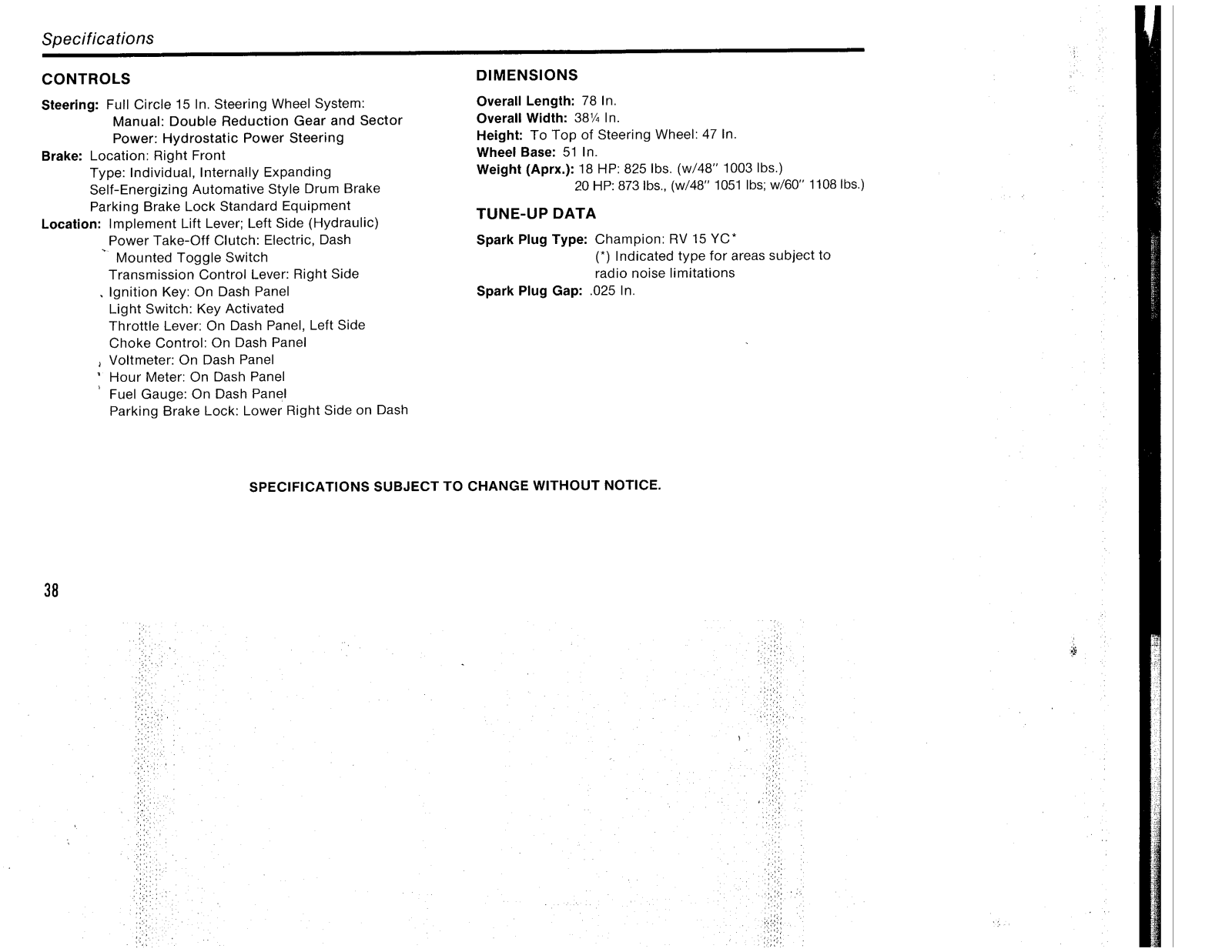

Specifications and Main Features
- Designations: 1918-1691019, 1920-1691020
- Power Plant:
- Manufacturer: Kohler
- Prodct Line: Magnum
- Power Output: 18 HP at 3600 rpm, 20 HP 3600 rpm
- Configuration: Horizontal, Cast
- Oil System: Full Pressure Lubrication System, Pints It operates 18 HP : 3.0, 20 HP : 3.5
- Fuel Tank: 4.2 Gallons Non-Corrosive Polyethylene
- Pre filtration Device: Dual element air filter.
- Gear box:
- Construction Type: Hydrostatic pump and motor assembly
- USA Property: Ford Type F Transmission Oil
- Container Emplacement: Reservoir 6 Quart Capacity.
- Speed Ratio: Always Variable, Forward and Reverse
- 18 HP Engine speed: Forward Speed 0 - 8 MPH Reverse 0 - 4.5 MPH
- 20 HP Engine speed: Forward Speed 0 - 8 Reverse speed 0 - 5.5 - 4.5.
- Sculpture:
- Frame Construction: Side Rail, Heavy Duty Gauge Steel Construction
- Rear Wheel: Pneumatic, Tire dimension measured 23 x 10.50-12
- Front Wheel: Pneumatic, Tire dimension measured 16 x 6.50-8
- Turning radius: Rear Bio-Pedic angle 26 inches.
- Controls:
- Type: Ignition switch.
- Type: Throttle lever is mounted on consignor on the dash panel.
- Type: Parking Brake is required on standard specifications.
- Dimensions:
- Overall Length: 78 Inches.
- Overall Width: 38 inches and ½ inches.
- Overall Height: 47 Inches.
- Weight (Approx.): 18 HP: 825 lbs (with 48” deck), 20 HP: 873 lbs(with 48” deck), 1051 lbs(with 60” deck)
- Safety Features: Safety switches (operates when the operator leaves the seat) and interlock system for the engine shut off.
Frequently Asked Questions

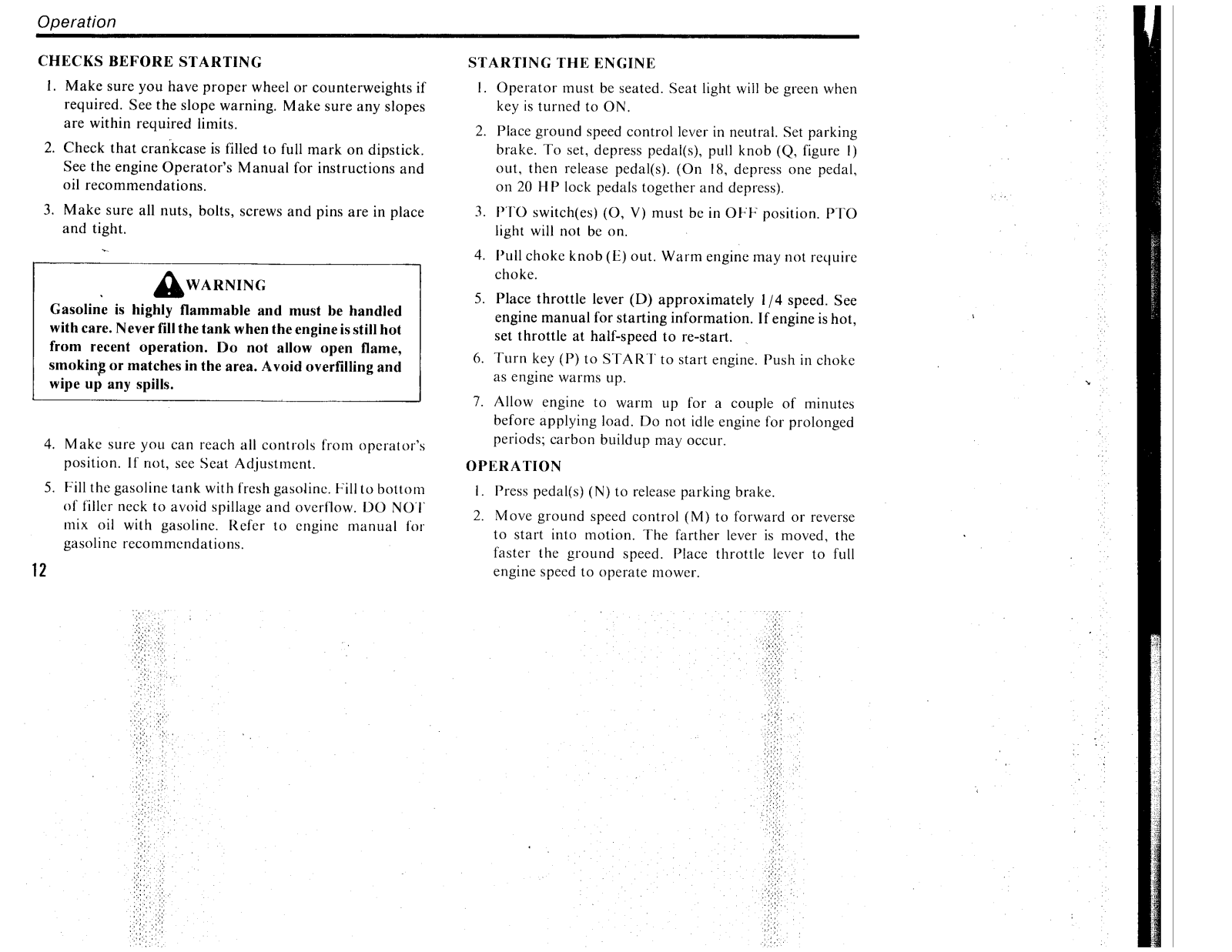

Q: What is the procedure for starting the tractor's engine?
A: Make sure that there is an operator on the tractor, that the ground speed control lever has been set to neutral position, and the PTO switch still remains OFF. After all these checks, turn the ignition switch to the START position.
Q: What safety precautions should be taken before operating the unit?
A: Before starting up the engine check the electrolyte level of the battery, engine oil, hydrastatic and transmission oil levels. After warming the engine check for any possible oil leaks.
Q: What is the recommended Hydraulic fluid type for the tractor?
A: The recommended Hydraulic fluid type for the tractor is Type F Transmission Fluid which is a non-foaming oil to be used in hydralic systems.
Q: What is the procedure for raising or lowering the mower attachment?
A: Mower attachment can be raised or lowered to the required position by working with the hydraulic lift lever.

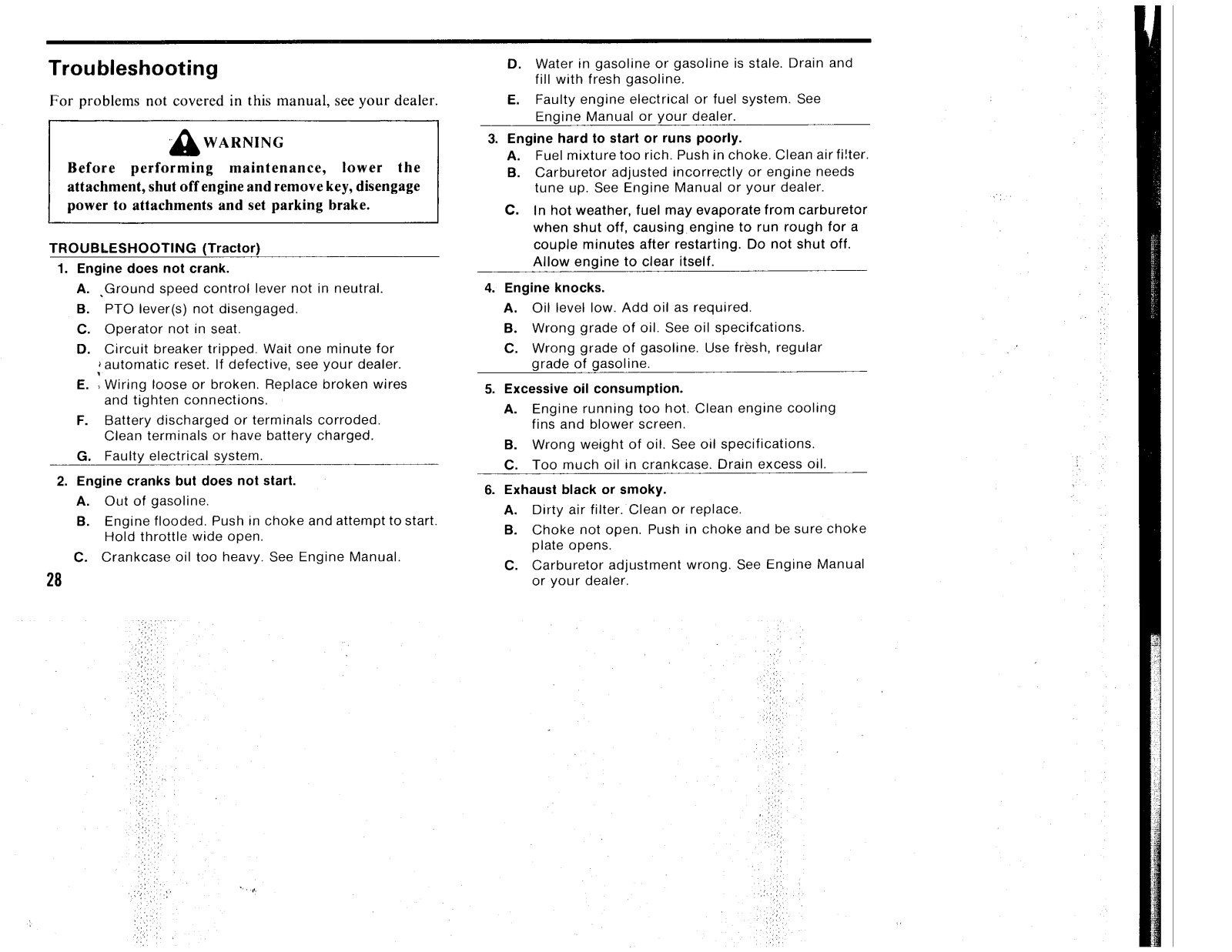

Q: What should I do if the tractor engine does not crank?
A: In this case, firstly check whether the ground speed control lever was returned to the neutral position before trying to start the engine, PTO lever was disengaged and the operator is sitting in correct position. Check to ensure battery power is being supplied by reliable connections at battery terminals.
