Simplicity 1734817, 1695064 User Manual

Attachment

g

Illustrated

Parts List

Attachment

. No. Description

Mf

1695064 Catcher, Turbo Clean Sweep Twin

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.2007

Part No.:

TP 400-4538-00-AT-SMA

Rev.

1734817

04/2007

Table Of Content

s

PRODUCT COMPONENTS PAGES

Cover & Bag Group - Twin ...................................................................................................................................

Front Weight Carrier Group .................................................................................................................................

Mount Group ........................................................................................................................................................

Tube & Hitch Group .............................................................................................................................................

12

Torque Specification Chart ..................................................................... Inside Back Cover

4
6
8

Cover & Bag Group - Twin

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

983952

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

4

TP 400-4538-00-AT-SMA

Cover & Bag Group - Twin

PART NO. DESCRIPTIONREF NO QTY.

TUBE ASSEMBLY Support (Incl. Ref. Nos. 2, 3, 4, 5, 6, 8, 9 & 11) 1 1704615SM 1
RIVET, Pop 2 1960381SM 7
SUPPORT, Tube 3 1704075SM 1
SEAL, Cover 4 1704135SM 1
BRACKET, Seal 5 1704508SM 3
SCREW, Round Head, #8-32 x 7/8 6 1960399SM 1
LOCKNUT, Flange, 1/4-20 7 1930642SM 5
WASHER 8 1960096SM 2
STRAP, Tube Support 9 1704507SM 1
SCREW, Taptite, 1/4-20 x 3/8 10 1929000SM 2
NUT, Hex, Lock, #8-32 11 1960077SM 2
CARRIAGE BOLT, 1/4-20 x 5/8 12 1960252SM 5
CROSS ASSEMBLY 13 1727129ASM 1
CROSS ASSEMBLY 13 1727129ASM 1
CAPSCREW, Hex Head, 3/8-16 x 7/8 14 1921966SM 4
NUT, Hex, Whizlock, 3/8-16 15 1928352SM 4
CLIP, Hairpin 16 1960221SM 2
SCREEN 17 1703700SM 1
NUT, Hex, 5/16-18 18 1917372SM 4
LOCKWASHER, 5/16 19 1917356SM 4
CLAMP 20 1672023ASM 2
HANGER 21 1703807ASM 2
CARRIAGE BOLT, 5/16-18 x 3/4 22 1931333SM 4
HOOP, Bag 23 1703855ASM 2
BAG, Grass 24 1703764SM 2
TUBE CLIP, Grass Bag 25 1675707SM 2
SEAL, Clip 26 1704057SM 1
SCREW, Truss Head, #10-32 x 1/2 27 1930531SM 2
RIVET, Pop 28 1675043SM 4
HANDLE, Latch 29 1703853SM 1
NUT, Hex, #10-32 30 1928919SM 2
PIN, Round Head 31 2860367SM 2
WASHER 32 1910531SM 4
CLIP, Canoe 33 1667248SM 6
DECAL, Safety 34 1732820SM 1
COVER 35 1704056SM 1
WINDOW 36 1704180SM 2
NUT, Speed 37 1933886SM 1
CABLE, Double Loop 38 1705876SM 1
WASHER, 1/4 39 1921319SM 1
SCREW, Self-tapping, #10-12 x 5/8 40 1960400SM 1
COVER ASSEMBLY (Incl. Ref. Nos. 17, 26, 28, 32, 37, 38, 39 & 40) 41 1704056SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

5

TP 400-4538-00-AT-SMA

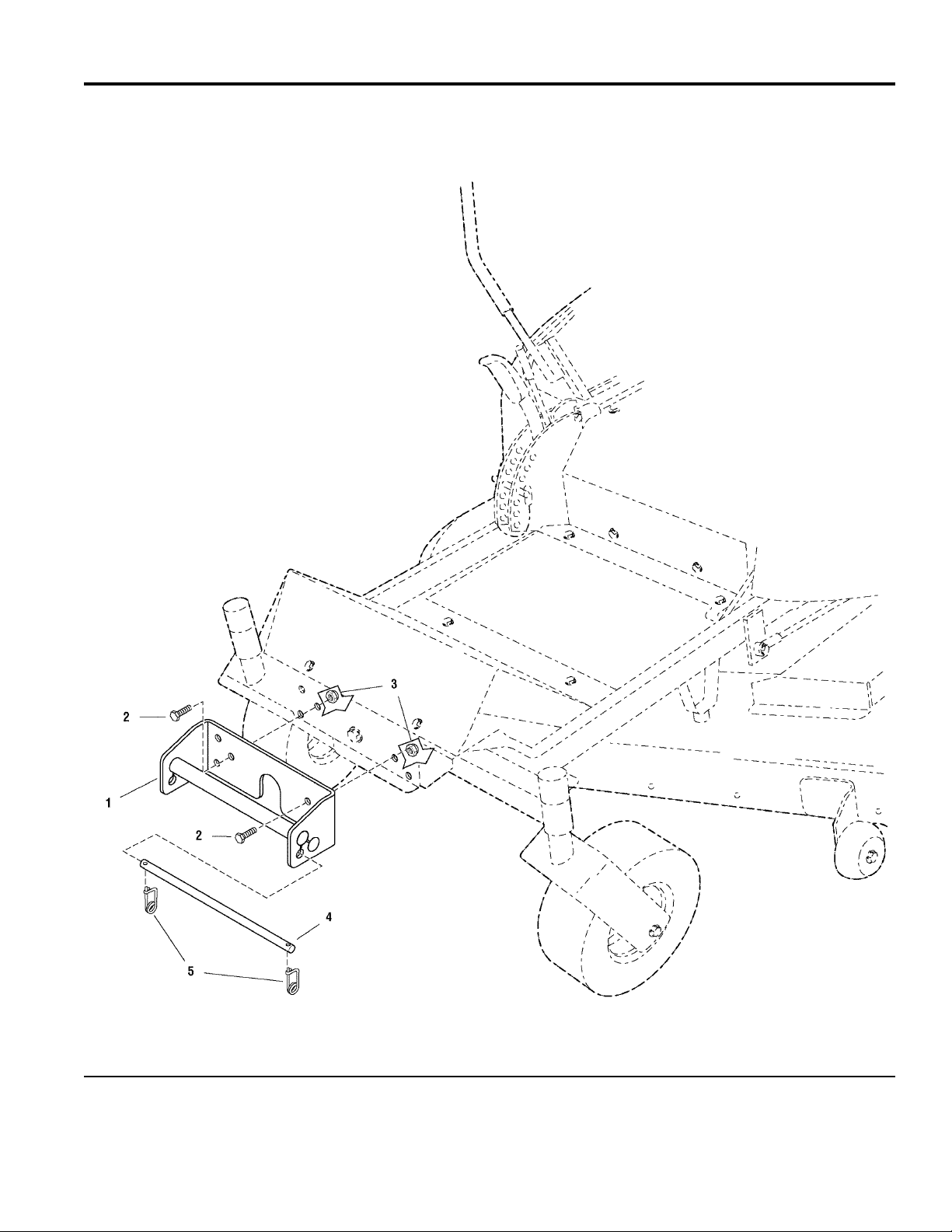

Front Weight Carrier Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

987366

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

6

TP 400-4538-00-AT-SMA

Front Weight Carrier Group

PART NO. DESCRIPTIONREF NO QTY.

HOLDER ASSEMBL, Weight 1 5049082ASM 1
BOLT, 1/2-13 x 1-1/4 2 1921176SM 2
NUT, Hex Nylon Lock 1/2-13 3 1960708SM 2
ROD, Retaining, 1/2 x 13-3/4LG 4 5049143SM 1
RETAINER, Pin, Spring 5 2176012SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

7

TP 400-4538-00-AT-SMA

Mount Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

986508

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

8

TP 400-4538-00-AT-SMA

Mount Group

PART NO. DESCRIPTIONREF NO QTY.

Footnotes

CAPSCREW, Hex Head, 5/16-18 x 1 G5 Black 1 1921333SM 4
WASHER, 5/16 (0.34ID x 0.75OD x .06THK) Black 2 1919326SM 3
SUPPORT, Belt Cover 10GA 1.0WD 3.0LG 3 1718304ASM 1
NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black 4 1933896SM 4
ROD, .375DIA 22.0LG 5 1718295ASM 1
SCREW, Truss Head Phillips, #10-24 x 3/4 Black 6 1960404SM 4
PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50" 7 1722546ASM 1
NUT, Hex Flange Whiz Lock, 5/16-18 Small Black 8 1931277SM 6
NUT, Hex Lock ESNA Light, 5/16-18NC-3B Black 9 1919438SM 1
COVER, Belt 44" 12GA 10 5049171ASM 1
DECAL, WARNING Sheild & Mower Deflector 11 1717291SM 2
COVER, Belt 50" 12GA 12 5049170ASM 1
NUT, Hex 3/8-16 NC-2B Black 13 1916950SM 1
LOCKWASHER, Spring 3/8 14 1916965SM 1
BRACKET, Z .164TH 5.88WD 3.21LG 15 1704768ASM 1
BRACKET, L 12GA 1.24WD 2.24LG 2.28LG 16 1724373ASM 1
WASHER, 3/8 (0.41ID x 0.87OD x .08THK) Black 17 1924940SM 1
CAPSCREW, Hex Head, 3/8-16 x 2 G5 Black 18 1923701SM 1
PULLEY, Idler, 2.75OD 0.380ID 0.50W 19 1714817SM 1
STOP, Belt, .188WIRE 1.750,2.250 Black 20 2172845SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 Black 21 1921221SM 1
LOCKWASHER, Spring 5/16 Black 22 1917356SM 1
SPACER, 0.328ID x 0.499OD x 0.625LG Powdered Metal 23 1710703SM 1
NUT, Sleeve, 9/16-18 x 3/4INT x 1.34LG Black 24 1713523SM 1
WASHER, Bellville, 0.88ID x 1.75OD x .08TH Black 25 1603592SM 1
PULLEY, 04.30OD 1.000ID 0.579 Groove 9GA 26 1709941SM 1
HUB, .79ID x 1.5OD x .73LG Metafusion 27 1713623SM 1
PLATE, Spring Support 10GA 28 5049145ASM 1
SPACER, 0.812ID x 1.75OD x 0.50LG 29 5049088SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5 Flat Black 30 1960318SM 1
WASHER, 5/16 (0.34ID x 1.00OD x .13THK) Black 31 1919381SM 1
SPRING, Latch, .125WIRE 4.3LG Black 32 1705064SM 1
SPACER, 0.390ID x 0.625OD x .265LG 33 2108717SM 1
WASHER, 3/8 (0.41ID x 1.00OD x .13THK) Black 34 1922755SM 1
V-BELT, 3L, 44" Mower Deck 35 1732945SM 1
NUTHex Centerlock, 5/16-18 Black 36 1923362SM 1
NUT & CUP ASSEMBLY, Wing, 5/16-18 E-Coat 37 1679163SM 1
NUT,Hex, 5/16-18 NC-2B Black 38 1917372SM 2
PLATE, Anchor 39 1704982ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 Black 40 1960223SM 1
BRACKET ASSEMBLY, Cutoff, 44" 41 1704880ASM 1
SPACER, 0.385ID x 0.668OD x 0.455LG Powdered Metal Black 42 1666294SM 1
BRACKET, L 12GA 1.00WD 1.98LG 0.62LG 43 1705308ASM 1
CAPSCREW, Hex Head, 5/16-18 x 7/8 G5 Black 44 1923325SM 2

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

9

TP 400-4538-00-AT-SMA

Mount Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

986508

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

10

TP 400-4538-00-AT-SMA

Mount Group

PART NO. DESCRIPTIONREF NO QTY.

BRACKET & PLATE ASSEMBLY, Clamp 48 1704983ASM 1
V-BELT, 3L, 50" Mower Deck 49 1707956SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

11

TP 400-4538-00-AT-SMA

Tube & Hitch Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

987364

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

12

TP 400-4538-00-AT-SMA

Tube & Hitch Group

PART NO. DESCRIPTIONREF NO QTY.

LOWER TUBE 1 5049152SM 1
SCREW, Truss Head, #10 - 24 x 3/4 2 1960404SM 7
WASHER 3 1960096SM 7
NUT, Hex Nylock, #10 - 24 4 1933896SM 7
TUBE, Mid-Section 5 5049151SM 1
TUBE, Upper Section 6 1704283SM 1
NUT, Whiz Lock, 3/8 - 16 7 1928352SM 4
WASHER, 1/2 8 1924361SM 1
MOUNTING PLATE, Bumper 9 1732627ASM 1
ROD, Support 11 5046693SM 1
CLIP, Hairpin 12 1960033SM 1
COVER SUPPORT ASSEMBLY 13 5046687ASM 1
CAPSCREW, 3/8 - 16 x 3/4 14 1921965SM 4
CAPSCREW, Hex Head, 1/2 - 13 x 1-1/4 (Used ONLY on models with Flat Bumpers) 20 1921176SM 4
DECAL, I.D. (Not Serviceable) 38 -- 1
OVERLAY, Mylar (Not Serviceable) 39 -- 1
CLIP, Spring (View Operators Manual for clip position) 42 1705063SM 1
NUT, Hex Whiz Lock Flange, 1/2 - 13 (Used ONLY on models with Flat Bumpers) 43 1960668SM 4
U-BOLT, 3/8 x 1-1/4 (Used ONLY on models with Tube Bumpers) 44 1732617SM 3
NUT, Hex Flange, 3/8 - 16, ESNA (Used ONLY on models with Tube Bumpers) 45 1960687SM 6
OPERATORS MANUAL 46 1732614 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695064 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

13

TP 400-4538-00-AT-SMA

Hardware Identification & Torque Specifications

Common Hardware Types

Hex Head Capscrew

Carriage Bolt

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the

When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

body length

Washer

Lockwasher

Hex Nut

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

(16 in this

of the

The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.

0

1/4 3/4

1/2

Nut, 1/2”

Inside
Diameter

1

1/4 3/4

1/2

Screw, 1/2 x 2

2

1/4 3/4

1/2

3

1/4 3/4

1/2

4

Body

Diameter

Body

Length

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware
Grade

Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.

No

Marks

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

19

2.1

20

2.3

27

3.1

31

3.5

66

7.6 8 10.9 12 16.3

76

8.6 10 13.6 14 19.0

30
31
43
49

NOTES

3.4

3.5

4.9

5.5

in/lbs

41
43
60
68

420 571.2

4.6

4.9

6.8

7.7

Wrench & Fastener Size Guide

1/4

1/4” Bolt or Nut

Wrench—7/16”

5/16

5/16” Bolt or Nut

Wrench—1/2”

3/8

3/8” Bolt or Nut

Wrench—9/16”

7/16
DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

1/2

DIA.

1/2” Bolt or Nut

Wrench—3/4”
