Simplicity 1700 User Manual

Parts Manual

Not for

Reproduction

Conquest / 1700 / 2700

Series Yard Tractors & Mower Decks RMO

20HP Product

Mfg. No. Description

1694746 Conquest, 20HP Hydro RMO 1694747 1720H, 20HP Hydro RMO 1694752 2720H, 20HP Hydro RMO

22HP Product

Mfg. No. Description

1694624 Conquest, 22HP Hydro RMO 1694625 Conquest, 22HP Hydro RMO (CE/Export) 1694626 1722H, 22HP Hydro RMO 1694628 2722H, 22HP Hydro RMO 2690264 Conquest, 22HP Hydro RMO and 54" Mower Deck 2690272 2722H, 22HP Hydro RMO and 54" Mower Deck

23HP Product

Mfg. No. Description

1694816 Conquest, 23HP Hydro RMO (CE/Export) 1694818 1723H, 23HP Hydro RMO 1694819 Conquest, 23HP Hydro RMO 1694820 2723H, 23HP Hydro RMO 2690414 Conquest, 23HP Hydro RMO and 54" Mower Deck 2690415 Conquest, 23HP Hydro RMO and 50" Mower Deck 2690417 2723H, 23HP Hydro RMO and 54" Mower Deck 2690702 Conquest, 23HP Hydro RMO and 50" Mower Deck

Mower Decks

Mfg. No. Description

(CE/Export)

1694038 44" Mower Deck 1694044 44" Mower Deck 1694173 44" Mower Deck (CE/Export) 1694039 50" Mower Deck 1694045 50" Mower Deck 1694174 50" Mower Deck (CE/Export) 1694366 54" Mower Deck 1694367 54" Mower Deck

1731172

Rev.

TP 400-4204-B-CQ-SMA

B

Not for

Reproduction

Table Of Content

s

Not for

Reproduction

PRODUCT COMPONENTS PAGES

Frame Group - Manual Steering ..........................................................................................................................

Steering Group - Manual Steering .......................................................................................................................

Engine & Electric Clutch Group - 20HP Briggs & Stratton ..................................................................................

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin ...........................................................

Transmission Group .............................................................................................................................................

Transmission SERVICE PARTS - Tuff Torq K-66L .............................................................................................

Controls Group .....................................................................................................................................................

Cruise Control Group ...........................................................................................................................................

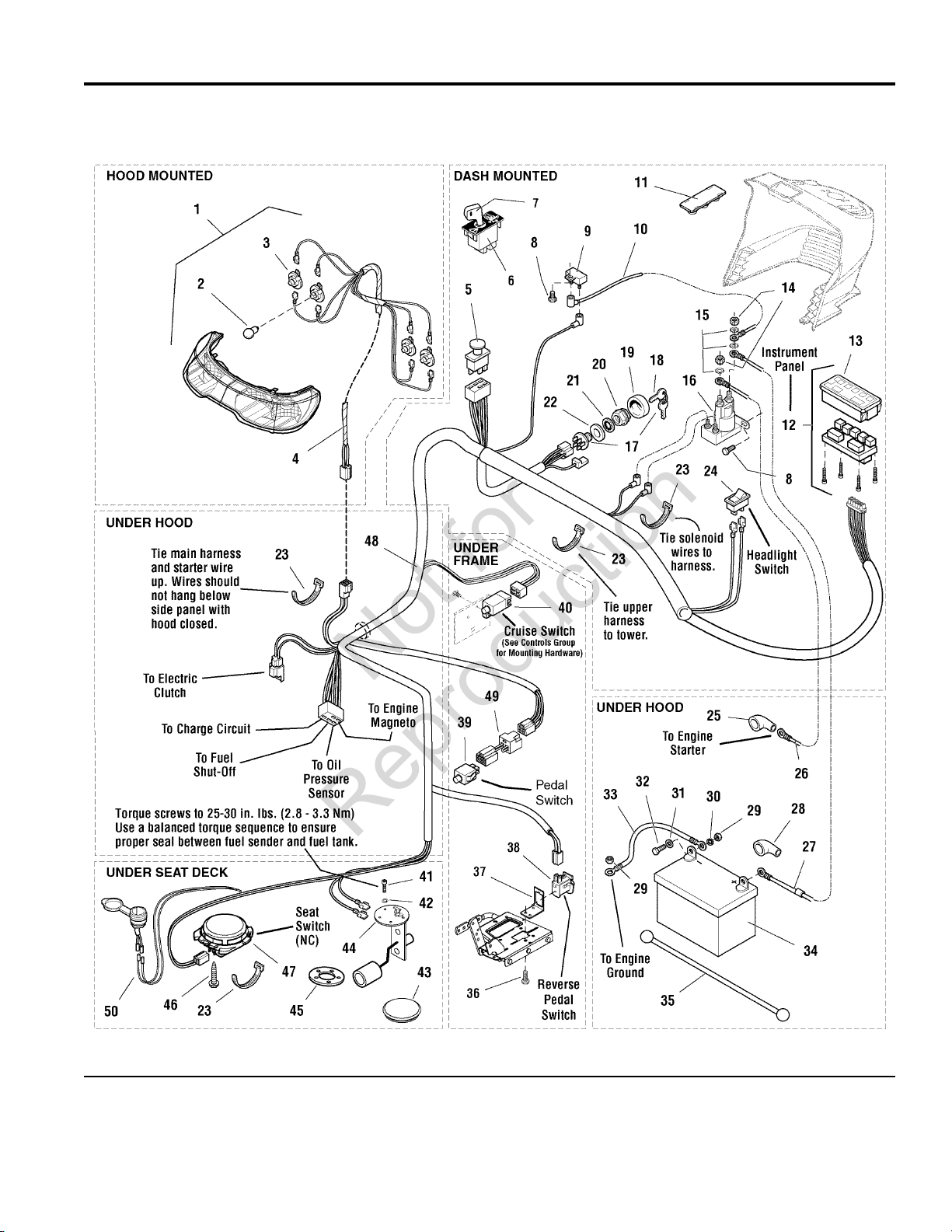

Electrical Group ....................................................................................................................................................

Hood, Grille & Dash Group ..................................................................................................................................

Seat & Seat Deck Group ......................................................................................................................................

Lift Group - Manual Lift .........................................................................................................................................

Wheels & Tires Group ..........................................................................................................................................

Decals Group - Brand & Model ............................................................................................................................

Decals Group - Safety & Common ......................................................................................................................

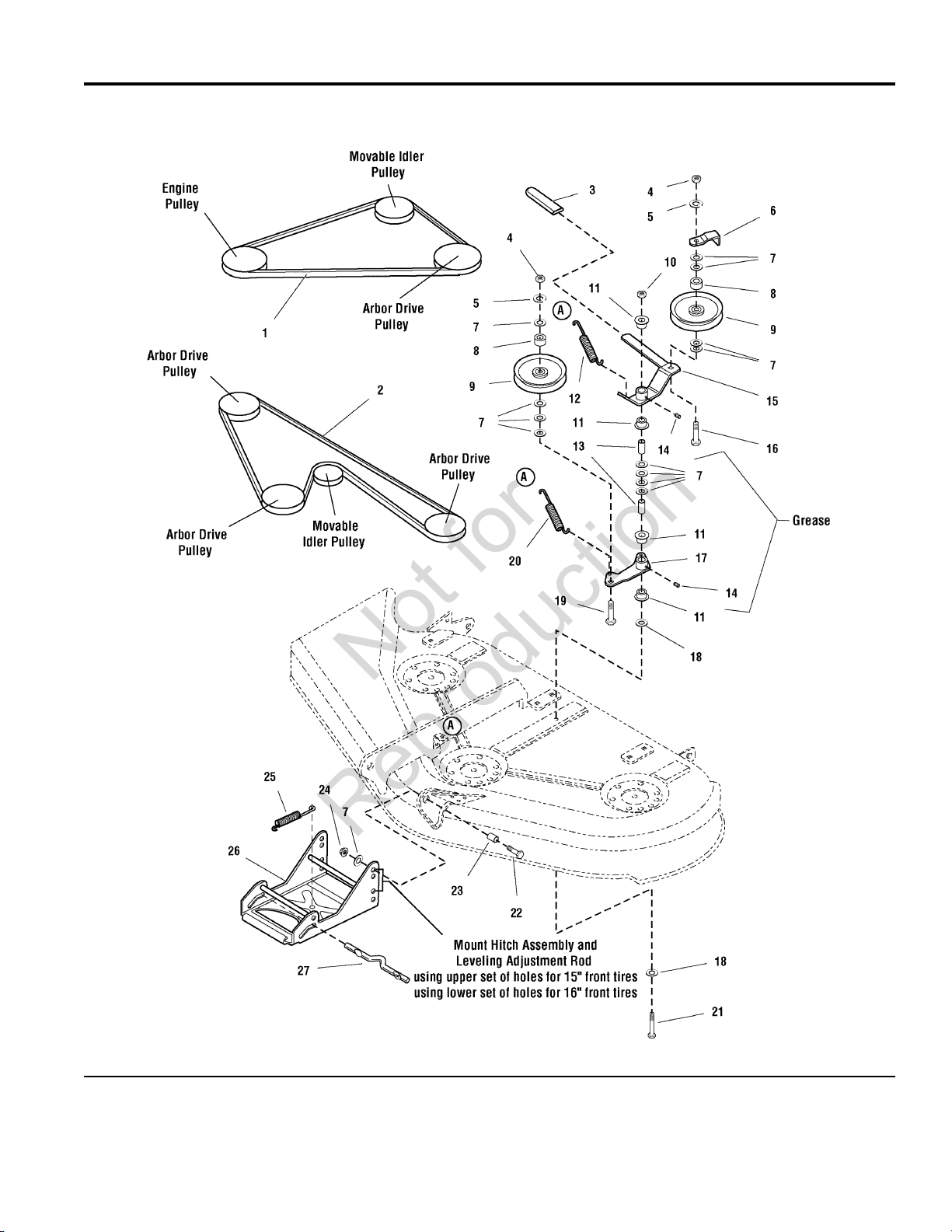

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

44" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

44" Mower Deck - Housing, Arbors & Blades ......................................................................................................

50" Mower Deck - Clutch & Support ....................................................................................................................

50" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

50" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................

54" Mower Deck - Drive Group ............................................................................................................................

54" Mower Deck - Height Adjustment & Roller Bar Group ..................................................................................

54" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................

10 12 14 18 24 28 30 34 36 38 40 42 44 46 48 52 56 58 62 66 68 72

Torque Specification Chart ..................................................................... Inside Back Cover

4 8

Frame Group - Manual Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986747

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

4

TP 400-4204-B-CQ-SMA

Frame Group - Manual Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

TOWER & SUPPORT ASSEMBLY 1 1733139ASM 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 2 1923683SM 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 3 1960541SM 4 SUPPORT, Seat Deck 4 1723528ASM 1 NUT, Hex Flange 3/8-16 Whiz Lock, Large 5 1928352SM 2 NUT, Hex Flange Two-Way Lock, 1/2-13 6 1930644SM 2 BACKPLATE 7 1722602ASM 1 CAPSCREW, Hex Head 1/2-13 x 1, Black 8 1923114SM 2 CAPSCREW, Hex Head 3/8-16 x 1, Black 9 1921210SM 2 FRAME ASSEMBLY, Front & Rear 10 1726989ASM 1 NUT, Hex Flange Two-Way Lock, 3/8-16 11 1930645SM 7 WASHER, 3/8, Black 12 1922755SM 1 WASHER, 3/8, Black 13 1960103SM 2 LINK, Drag 14 1722541SM 1 NUT, Hex Jam 1/2-20 15 1919262SM 1 JOINT, Ball 16 1702779SM 1 SPACER, 3/8 x 1/2 x 5/8 17 1708236SM 1 CARRIAGE BOLT, 3/8-16 x 1 18 1931350SM 2 ROD, Tie 19 1722626ASM 1 AXLE ASSEMBLY w/LH Spindle (Includes Ref. Nos. 22, 24, 41, 42 & 43) 20 1722200ASM 1 SPACER, 25/64 x 5/8 x 5/16, Powder Metal 21 1611705SM 2 BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal 22 1721682SM 6 NUT, Hex Flange Two-Way Lock, 7/16-14 23 1930650SM 2 FITTING, Lube 24 2821133SM 3 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30) 25 1686985SM 1 CAPSCREW, 3/8-16 x 7/8, GR8 26 2823485SM 1 WASHER, Spring, 3/8 27 1663151SM 1 HUB & ARM ASSEMBLY 28 1725112SM 1 KEY, Woodruff 29 2830671SM 1 SPINDLE, LH 30 1724264SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 31 1931352SM 1 SPACER, 11/16 x 21/32 x 2 3/32 32 1721752SM 1 CAPSCREW, Hex Head, 7/16-14 x 2 G8 33 1927531SM 2 HOOK, "J" 34 1721918ASM 1 BUMPER, Black 35 1721805ASM 1 BUMPER, Chrome 35 1723502SM 1 SCREW, Truss Head Torque Drive, 5/16-18 x 7/8 36 1960086SM 4 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4 37 1930591SM 2 PLATE, Axle Wear 38 1724801ASM 1 NUT, Hex Flange Whix Lick, 5/16-18 39 1931277SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

5

TP 400-4204-B-CQ-SMA

Frame Group - Manual Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986747

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

6

TP 400-4204-B-CQ-SMA

Frame Group - Manual Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SPINDLE, RH 40 1722199SM 1 WASHER 41 1919394SM 1 RETAINING RING 42 2832577SM 1 CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4 43 1933260SM 4 FITTING, Grease for Wear Plate 44 2821133SM 2 WASHER, 5/8 45 1960035SM 2 CAPSCREW, Hex Head, 5/8-11 x 3-1/2 46 2860645SM 1 NUT, Hex Flange Two-Way Lock, 5/8-11 47 2860646SM 1 PLATE, Axle 48 1722212ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

7

TP 400-4204-B-CQ-SMA

Steering Group - Manual Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985890

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

8

TP 400-4204-B-CQ-SMA

Steering Group - Manual Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

STEERING WHEEL, Straight, Shaft 1 1722318SM 1 CAP, Steering Wheel, SMI Logo 2 1722319SM 1 CAP, Steering Wheel, Plain 2 1725024SM 1 PIN, Spring, 5/16 x 2-1/2 3 1960540SM 1 COVER, Rubber, Upper Steering Shaft 4 1722749SM 1 WASHER, 3/4 5 1960114SM 5 BUSHING, 15/32 x 7/8 x 7/8, Nylon 6 2176440SM 2 NUT, Hex KEPS 5/6-18 7 1960636SM 2 PLATE, Mounting Steering 8 1721736ASM 1 NUT, Push 9 1933988SM 2 CARRIAGE BOLT, 5/16-18 x 1-1/4 10 1960655SM 2 GEAR & SHAFT ASSEMBLY, Steering 11 1724470ASM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 12 1960032SM 1 NUT, Hex Flange Two-Way Lock, 3/8-16 13 1930645SM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 14 1664847SM 2 SHAFT & PINION ASSEMBLY, Steering Manual 15 1721626SM 1 RING, Clipring Extension 16 1611710SM 1 BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing 17 1722459SM 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal 18 1722461SM 1 NUT, Hex Flange Whiz Lock, 3/8-16, Small 19 1931211SM 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black 20 1933260SM 2 CLIP, Hairpin 21 1960033SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

9

TP 400-4204-B-CQ-SMA

Engine & Electric Clutch Group - 20HP Briggs & Stratton

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985904

The above parts group applies to the following Mfg. Nos.:

1694625 - Conquest 1694746 - Conquest 1694747 - 1720H 1694752 - 2720H

2009

10

TP 400-4204-B-CQ-SMA

Engine & Electric Clutch Group - 20HP Briggs & Stratton

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HOSE, Oil Drain, 10-1/2 Long, 3/8-18 Fittings 1 1723165SM 1 ENGINE, 20HP Briggs & Stratton Vanguard Twin, Model # 358777, Type # 0110-E1 2* 1 SEAL, Circle 3 1722949SM 1 BULKHEAD 4 1722388ASM 1 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black 5 1925003SM 2 CONTROL, Throttle Double, 39" Long, w/Knobs 6 1727223SM 1 TIE, Wire 7 1701011SM 2 CLAMP, Hose Type E 8 2860112SM 2 HOSE, Fuel, 58" Long 9 1718678SM 1 SHIELD, Side 10 1722392ASM 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 11 1929000SM 8 PULLEY & HUB ASSEMBLY 12 1722288SM 1 TIE, Self Locking, 3-5/8 Long 13 2832747SM 1 WASHER, Hex, 7/16, 1/4, Black 14 1708264SM 1 LOCKWASHER, 7/16 15 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2 16 1960649SM 1 CLUTCH, Electric, Ogura 17 1686883SM 1 KEY, HI PRO, 1/4 x 2-1/2 18 1720463SM 1 CAPSCREW, Hex Washer Head Taptite 3/8-16 x 1-1/2 19 2830598SM 4 LOCKWASHER, External Tooth, 3/8 20 2820427SM 1 SHIELD, Muffler Bottom 21 1722414ASM 1 NUT, Speed, 1/4-20, Lug 22 1960368SM 8 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 23 1960295SM 4 NUT, Speed, 1/4-20, Lug 24 1935255SM 2 DUCT, Muffler Top 25 1722389ASM 1 CLIP, Wire 26 2834683SM 2 DUCT, Muffler Extension 27 1722390ASM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black 28 1924856SM 2 MUFFLER, Briggs & Stratton, Vanguard Twin 29 1722625SM 1 GASKET, Briggs & Stratton, Vanguard Twin 30 * 1 LOCKWASHER, 1/4 31 1916964SM 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 32 * 4

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694625 - Conquest 1694746 - Conquest 1694747 - 1720H 1694752 - 2720H

2009

11

TP 400-4204-B-CQ-SMA

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986651

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694626 - 1722H 1694628 - 2722H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest

2009

1694820 - 2723H 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H

12

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

MUFFLER 1 1736543SM 1 MUFFLER (Only used on 20HP Models) 1 1722625SM 1 GASKET 2* 2 LOCKWASHER, 5/16 3 1917356SM 4 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8 4 2860660SM 4 HOSE, Oil Drain 5 1723165SM 1 ENGINE, 22HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E1 6* 1 ENGINE, 23HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E1 6* 1 ENGINE, 21HP Briggs & Stratton VANGUARD Twin, Model 385777, Type 0119-E1 6* 1 ENGINE, 20HP Briggs & Stratton VANGUARD Twin, Model 358777, Type 0110-E1 6* 1 SEAL, Circle 7 1722949SM 1 BULKHEAD 8 1722388ASM 1 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2 9 1925003SM 2 CONTROL, Throttle Double 39" Long w/Knobs (Only used on 20HP Models) 10 1727223SM 1 CONTROL, Throttle Double 10 1734506SM 1 TIE 11 1701011SM 1 CLAMP, Hose Type E 12 2860112SM 2 HOSE, 59" Long 13 1718678SM 1 CLIP, Wire 14 2834683SM 2 SHIELD 15 1722392ASM 2 SCREW, Hex Head Taptite, 1/4-20 x 3/8 16 1927428SM 8 KEY 17 1720463SM 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD 18 1722288SM 1 WASHER, Hex 19 1708264SM 1 LOCKWASHER, 7/16 20 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4 21 1960648SM 1 CLUTCH, Electric, OGURA 22 1686883SM 1 CLUTCH, Electric, Big Brake OGURA 22 1720532SM 1 TIE 23 2832747SM 1 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2 24 2830598SM 4 LOCKWASHER, External Tooth, 3/8 25 2820427SM 1 SHIELD, Muffler Bottom 26 1722414ASM 1 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8 27 1960295SM 8 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 28 1924856SM 2 NUT, Speed, 1/4-20 29 1960368SM 8 NUT, Speed, 5/16-18 30 1935255SM 2 DUCT, Muffler Top 31 1722389ASM 1 DUCT, Muffler Extension 32 1722390ASM 1

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694626 - 1722H 1694628 - 2722H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest

2009

1694820 - 2723H 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H

13

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Transmission Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986602

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

14

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Transmission Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

30 1733941SM 1

30 1733208SM 1

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4 1 1960676SM 2 PAD, Footrest, LH, Differential Lock 2 1722174SM 1 PAD, Footrest, RH 3 1722173SM 1 FASTENER, 11/16" Long, Stem Plastic 5 1704351SM 15 NUT, Hex Flange Whiz Lock, 3/8-16, Large 6 1928352SM 2 NUT, Hex KEPS, 3/8-16 7 1960637SM 6 CARRIAGE BOLT, 3/8-16 x 1 8 1931350SM 6 NUT, Hex Flagne ESNA, 5/16-18 9 1960686SM 8 SUPPORT 10 1721728ASM 2 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal 11 1676148SM 2 WASHER, 3/8 12 1924940SM 3 CAPSCREW, Hex Head, 3/8-16 x 2-1/4 13 1922130SM 1 PIN, Quick 14 1722460SM 7 ROD, Differential Lock, 15-3/16 Long 15 1722151SM 1 WASHER, 7/16 16 1918267SM 3 ROD & TUBE ASSEMBLY, Differential Lock Pedal 17 1721360SM 1 KNOB 18 1716289SM 1 SPACER, 25/64 x 5/8 x 1-1/2, Hardened 19 1669105SM 1 KNOB, 3 Sided Soft 20 1723126SM 1 ROD, Free Wheel, 18-3/16 Long 21 1721622SM 1 CAPSCREW, Hex Head, 3/8-16 x 1, Black 22 1921210SM 1 PIVOT ASSEMBLY, Differential Lock 23 1722903SM 1 WASHER, 5/16, Black 24 1919326SM 2 CAPSCREW, Hex Head, 5/16-18 x 3 26 1960590SM 4 ROD, Differential Latch, 2 Bends, 6-3/16 Long 27 1722152SM 1 CAPSCREW, Hex Head, 5/16-18 x 1 28 1921333SM 1 ARM, Differential Lock 29 1722383SM 1 TRANSMISSION ASSEMBLY, K66L Transmission (Used on models with tranmission

expansion tank, attached or mounted to transmission.) TRANSMISSION ASSEMBLY, K66AC Transmission (Used on models with remote

expansion tank Ref. No. 51) PIN, Cotter, 3/4, Black 31 1918447SM 1 ROD, Brake, 17-27/64 Long 32 1721424SM 1 SPRING, Compression 33 1722684SM 1 SPRING, Compression 34 8191045SM 1 NUT, Hex Flange ESNA, 3/8-16 35 1960687SM 2 SCREW, Whiz 5/8-18 x 1 36 1960667SM 1 SPACER 37 1732088SM 1 ARM & WELD PINS ASSEMBLY, Control K66 38 1732191SM 1 V-BELT 39 1721392SM 1 PULLEY & HUB ASSEMBLY, Transmission 40 1722194SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

15

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Transmission Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986602

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

16

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Transmission Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Flange, M10-1.5, Nylon Insert 41 1719968SM 1 FAN, 5 Blades, 3 Holes 42 1719233SM 1 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1-1/8 43 1933958SM 3 CARRIAGE BOLT, 5/16-18 x 1 44 1931335SM 1 WASHER, 5/16 45 1960141SM 1 STRAP, 4-1/4 Long 46 1721593ASM 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 47 1921719SM 1 ACTUATOR, Switch 48 1727215ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 49 1924856SM 2 CAP, Expansion Tank Plastic (Used on models with tranmission expansion tank.) 50 1722711SM 1 TANK, Oil Natural (Used on models with tranmission expansion tank.) 51 1722430SM 1 CLAMP, Hose Worm Drive #20 1-3/4" (Used on models with tranmission expansion tank.) 52 1723214SM 2 HOSE, Expansion Tank Formed (Used on models with tranmission expansion tank.) 53 1722468SM 1 BOLT, Shoulder, 3/8-16 54 1732129SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

17

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Transmission SERVICE PARTS - Tuff Torq K-66L

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1721952

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest

18

2690417 - 2723H

TP 400-4204-B-CQ-SMA

Transmission SERVICE PARTS - Tuff Torq K-66L

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

STAY 2 1724704SM 1 HOUSING, UPPER 4 1724692SM 1 HOUSING, LOWER 5 1724694SM 1 CAP, M20B 6 1724696SM 1 BOLT, 8 x 75 7 1718226SM 5 FILTER (25) 8 1720761SM 1 MAGNET 9 1718065SM 1 WASHER, SEAL 11 1720796SM 2 BUSHING, 25.4 12 1724693SM 2 RING 35 12 1708650SM 1 O-RING, P18 13 1707786SM 2 SEAL 14 1708651SM 1 BOLT 10 x 12 16 1720788SM 1 SCREW, TAPPING 17 1707789SM 5 CASE, CENTER 18 1724697SM 1 PACKING 20 1708691SM 2 PIN 3 x 9.8 21 1718070SM 1 FILTER (25) 22 1725633SM 1 BOLT, 10 x 65 23 1724698SM 3 CYLINDER BLOCK 24 1718079SM 2 SHAFT, PUMP 25 1724699SM 1 RING 15 26 1708672SM 4 BEARING 6202UC3 27 1718083SM 1 HOUSING 28 1724700SM 1 BEARING, THRUST 29 1708675SM 1 WASHER 12 x 24 x 1 31 1718084SM 1 SHAFT, MOTOR 32 1724701SM 1 BEARING, 6302UC3 36 1724702SM 1 THRUST METAL 38 1718089SM 2 PLATE, SWASH 39 1724703SM 1 BEARING K81106 40 1718237SM 1 THRUST PLATE A 41 1721267SM 1 THRUST PLATE B 42 1718239SM 1 SPRING 43 1725730SM 1 SHAFT (BYPASS) 44 1720838SM 1 LEVER, BYPASS 45 1720418SM 1 RING 46 1718061SM 1 PIN 3.0A x 20 47 1707839SM 1 SHOCK ABSORBER 48 1718039SM 1 PIN 50 1724705SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest

19

2690417 - 2723H

TP 400-4204-B-CQ-SMA

Transmission SERVICE PARTS - Tuff Torq K-66L

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1721952

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest

20

2690417 - 2723H

TP 400-4204-B-CQ-SMA

Transmission SERVICE PARTS - Tuff Torq K-66L

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

LEVER, CONTROL 51 1724706SM 1 PIN, 3.5 x 25 52 1724707SM 1 PIN 6.0A x 4.0 54 1718100SM 2 SPRING, CHARGE PUMP 56 1724730SM 1 SEAL TC162606 59 1718120SM 1 FULCRUM, ECCENTRICIT 61 1724711SM 1 WASHER 62 1708689SM 1 PACKING 63 1707879SM 2 NUT 12 64 1708692SM 1 DIFFERENTIAL GEAR KIT 66 1718262SM 1 GEAR, FINAL 68 1724713SM 1 SHAFT, FINAL PINION 69 1724714SM 1 WASHER, 15 x 32 x 3.2 70 1724715SM 2 GEAR, REDUCTION 71 1724716SM 1 PINION, FINAL 72 1724717SM 1 SHAFT, AXLE LH #1 76 1724718SM 1 RING 77 1720859SM 2 SHAFT, AXLE RH #1 78 1724719SM 1 BUSHING 79 1720860SM 2 COLLAR, 25.4 80 1724720SM 1 SEAL S25.4 x 42 x 8 81 1718264SM 2 THRUST WASHER 82 1720858SM 2 ARM, BRAKE 85 1724721SM 1 SPRING, BRAKE 86 1724722SM 1 DISC, BRAKE 87 1724723SM 1 SHOE, BRAKE 88 1724724SM 1 SHIM SET 89 1724725SM 1 ACTUATOR, BRAKE 90 1724726SM 1 SHAFT, BRAKE HL #10 91 1724727SM 1 WASHER, 16 x 23 x 1.6 92 1724728SM 1 PACKING 93 1708690SM 1 RING 100 1707912SM 2 CAP (M40) 103 1720807SM 1 PACKING 1A 2040 104 1720808SM 1 PUMP SPRING 107 1708669SM 1 PIN 3 x 13.8 113 1722223SM 1 RING E15 119 1718076SM 1 FORK, DIFF LOCK 121 1724731SM 1 ARM, DIFF LOCK 122 1724732SM 1 FORK, PIVOT 123 1724733SM 1 HOOK, SPRING 124 1724734SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest

21

2690417 - 2723H

TP 400-4204-B-CQ-SMA

Transmission SERVICE PARTS - Tuff Torq K-66L

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1721952

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest

22

2690417 - 2723H

TP 400-4204-B-CQ-SMA

Transmission SERVICE PARTS - Tuff Torq K-66L

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

PLATE, ARM 125 1724735SM 1 SLIDER, DIFF LOCK 126 1724736SM 1 PIN, DIFF LOCK 127 1724737SM 8 PLATE, DIFF LOCK 128 1724738SM 1 PACKING, 1AG25 129 1724739SM 2 PIN, 4 x 28 131 1724712SM 1 PUMP, CHARGE 132 1724729SM 1 VALVE, VENT 15 137 1724740SM 1 TANK, RESERVOIR 138 1724742SM 1 PIPE, 8 139 1724743SM 1 BRACKET, TANK 140 1724744SM 1 SCREW, TAPPING 141 1707890SM 3 BOLT, 8 x 20 143 1724695SM 1 FITTING 144 1724746SM 1 SEAL, 8 145 1724745SM 1 ARM, CONTROL 146 1724708SM 1 SPRING, TORSION 147 1724709SM 1 COLLAR, CONTROL 148 1721181SM 1 SHAFT, CONTROL 149 1724710SM 1 PIN 6.0A x 25 150 1718097SM 1 WASHER 17 x 30 x 1 152 1721966SM 1 SPRING, RETURN 153 1724741SM 1 FILTER SPACER 157 1725751SM 1 SEAL KIT (Includes Ref. #11, 13, 14, 20, 22, 59, 63, 81, 93, 104, 129) 200 1727538 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690415 - Conquest

23

2690417 - 2723H

TP 400-4204-B-CQ-SMA

Controls Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986599

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

24

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Controls Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

ROD, Brake Lock 1 1721353SM 1 KNOB, Push On, Red Plastic "P" 2 1721891SM 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 3 1930591SM 1 WASHER, 5/16, Black 4 1919326SM 2 ROD, Brake 5 1721476SM 1 CARRIAGE BOLT, 3/8-16 x 1 3/4 6 1931353SM 2 BUSHING, 5/8 x 3/4 x 3/4, Nylon 7 1663114SM 2 FITTING, Lube, 1/4 8 2821133SM 1 SPRING, Extension 9 1725250SM 1 PIN, Quick 10 1722460SM 3 ARM & HUB ASSEMBLY, Idler 11 1724917SM 1 WASHER, 5/8 12 1960020SM 1 RING, Clipring Extension 13 1704420SM 1 PULLEY, w/Bearing 14 1721134SM 1 WASHER, 3/8 15 1924940SM 1 NUT, Hex Flange ESNA, 3/8-16 16 1960687SM 2 PULLEY, Idler 17 1721133SM 1 BUSHING, 1 x 1-1/8 x 5/8, Nylon 18 1723237SM 2 ARM, Brake 19 1722513SM 1 PEDAL ASSEMBLY, Foot 20 1726763SM 1 CARRIAGE BOLT, 1/4-20 x 1-1/4 21 1931320SM 1 PIN, Cotter, Black 22 1918447SM 1 LATCH, Brake 23 1721354ASM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 24 1664847SM 3 NUT, Hex Lock ESNA Light, 5/16-18 25 1919438SM 1 WASHER, 5/16, Black 26 1919381SM 1 NUT, Hex Flange Whiz Lock Large, 5/16-18 27 1927557SM 2 PEDAL, Brake 28 1722535ASM 1 PAD, Brake Pedal 29 1721577SM 1 CARRIAGE BOLT, 5/16-18 x 7/8 30 1931334SM 4 CAPSCREW, 5/16-18 x 1 31 1921333SM 2 ACTUATOR, Switch 2.53" Long 32 1722083ASM 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 33 1923683SM 1 PEDAL, Forward 34 1722070ASM 1 NUT, Hex KEPS, 5/16-18 35 1960636SM 4 PAD, Foot Pedal Forward 36 1721675SM 1 PEDAL, Reverse 37 1722071ASM 1 PAD, Foot Pedal Reverse 38 1721674SM 1 NUT, Hex Lock ESNA Light, 1/4-20 39 1920397SM 1 CAM, Roller 40 1686612SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

25

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Controls Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986599

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

26

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Controls Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SPRING, Extension 41 1721995SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

27

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Cruise Control Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985883

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

28

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Cruise Control Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

COVER, w/Cruise Icon 1 1722314SM 1 SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8 2 1960666SM 1 KNOB, Cruise 3 1722303SM 1 NUT, Hex Lock ESNA Light, 1/4-20 4 1920397SM 1 LEVER & BRACKET ASSEMBLY, Cruise 5 1722003SM 1 WASHER, 3/8, Black 6 1960103SM 2 CARRIAGE BOLT, 5/16-18 x 3/4 7 1931333SM 1 WASHER, 1/2 8 1924361SM 2 SPACER, w/Flange, 11/32 x 15/32 x 3/4 9 1709043SM 1 CARRIAGE BOLT, 5/16-18 x 2-3/4 10 1931342SM 1 CARRIAGE BOLT, 5/16-18 x 2-1/4 11 1960273SM 1 PIN, Quick 12 1722460SM 2 ROD, Cruise 13 1722117SM 1 ROD, Return 14 1733719SM 1 SPRING, Cruise Return to Frame 15 2159106SM 1 NUT, Hex KEPS, 5/16-18 16 1960636SM 2 CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8 17 1960001SM 2 SWITCH, Push, Neutral Start, Gray 18 1717050SM 1 SPACER, 11/32 x 5/8 x 1-13/32 19 1722080SM 1 WASHER, 5/16, Black 20 1919326SM 1 WASHER, 5/16, Black 21 1919381SM 1 NUT, Hex Lock ESNA Light, 5/16-18 22 1919438SM 1 SPRING, Compression 23 1677746SM 1 PIN, Cotter 24 1918447SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

29

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Electrical Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986605

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

30

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Electrical Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HEADLIGHT ASSEMBLY, 4 Bulb (Includes Ref. Nos. 2 & 3) 1 1721810SM 1 BULB, Headlight, 12.8V 2 1677371SM 4 SOCKET ASSEMBLY, Headlight, Sealed 3 1723451SM 4 HARNESS, Headlight 4 1722669SM 1 SWITCH, PTO Push/Pull Symbols 5 1722887SM 1 MODULE, RMO (Includes Ref. No. 7) 6 1726556SM 1 KEY, RMO Module Plastic 7 1726557SM 1 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black 8 1925003SM 2 BREAKER, Circuit, 12 Volt 20 Amps 9 1665238SM 1 WIRE, 12GA 5-15/16 Long, Red 10 1665237SM 1 PLUG, Hole, Square 11 1722611SM 1 PANEL, Instrument w/ Fuel Gage & Hour Meter (Includes Ref. No. 13) 12 1725074SM 1 COVER, Instrument Panel 13 1724865SM 1 NUT, Hex, 5/16-24 14 2820263SM 2 NUT, KEPS Lock 5/16-24 (CE/Export) (Used only on RMO/ACS Models) 14 2860750SM 2 LOCKWASHER, External Tooth, 5/16 15 2820426SM 3 SOLENOID 16 1722739SM 1 SOLENOID (CE/Export) (Used only on RMO/ACS Models) 16 1728963SM 1 SWITCH ASSEMBLY, Ignition, 6 Pin INDAK (Includes Ref. Nos. 18, 19, 20, 21 & 22) 17 1686734SM 1 KEYS, Set of 2 18 1717163SM 1 COVER, For Ignition Switch, Plastic 19 1717550SM 1 NUT, Hex Flange, 5/8-32, Ignition Switch 20 1717549SM 1 LOCKWASHER, Internal Tooth, 5/8, Thin 21 1960547SM 1 WASHER, Shim 22 2101025SM 1 TIE, Strap, 7-5/16 Long 23 1701011SM 3 TIE, Strap, 7-5/16 Long (CE/Export) (Used only on RMO/ACS Models) 23 2825094SM 4 SWITCH, Headlights , 2 Terminal 24 1716951SM 1 BOOT, Insulator Cable Terminal, 1-15/16 Long, Red 25 1713535SM 1 CABLE, #6 x 25" Long, Ring Terminals 26 1721830SM 1 CABLE, #6 x 8" Long, Ring Terminals 27 1603618SM 1 BOOT, Insulator Battery Terminal 28 1677296SM 1 NUT, Hex, 1/4-20 29 2816622SM 3 LOCKWASHER, 1/4 30 2816964SM 2 WASHER, 1/4 31 2821319SM 2 CAPSCREW, Hex Head, 1/4-20 x 3/4 32 2823341SM 2 CABLE, #6 x 26 Long, Ring Terminal 33 1713163SM 1 BATTERY, 12 Volt 34 1685215SM 1 STRAP, Battery, 14 Long, Rubber 35 1722009SM 1 CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8 36 1929000SM 2 BRACKET, Switch Mount 37 1726810ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

31

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Electrical Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986605

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

32

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Electrical Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

49 1734025SM 1

SWITCH, Reverse Pedal 38 1732004SM 1 SWITCH, Reverse Pedal (CE/Export) (Used only on RMO/ACS Models) 38 1704379SM 1 SWITCH, Push Button, Foot Pedal 39 1732006SM 1 SWITCH, Cruise Control, Grey, NO (Used on all models except CE/Export) 40 1717050SM 1 SCREW, Pan Head Torx, #10-32 x 1/2 41 2860665SM 5 LOCKWASHER, 3/16 #10 42 1917365SM 5 PLUG, Hole 3", Round 43 1722309SM 1 SENDER, Fuel Tank (Includes Ref. 45) 44 1686921SM 1 GASKET 45 1685303SM 1 CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2 46 1960536SM 2 SWITCH, Seat, Grey, NC 47 1716368SM 1 SWITCH, Seat, Grey, NC (CE/Export) (Used only on RMO/ACS Models) 47 1718981SM 1 HARNESS, Wiring 48 1730192SM 1 HARNESS, Wiring (CE/Export) (Used only on RMO/ACS Models) 48 1733220SM 1 WIRING ASSEMBLY, All Conditions Shutdown (CE/Export) (Used only on RMO/ACS

Models) 12-VOLT OUTLET (CE/Export) (Used only on RMO/ACS Models) 50 1725302SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

33

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Hood, Grille & Dash Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986608

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

34

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Hood, Grille & Dash Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

PANEL, RH Side 1 1721804CSM 1 PANEL, RH Side, Red 1 1721804DSM 1 HOOD, with Scoop, Red 2 1728031DSM 1 HOOD, with Louvers 3 1722110CSM 1 CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8 4 1960295SM 12 SCREW, Phillips Head, #10-24 x 1/2 5 1960392SM 1 DASHBOARD, RMO, Black 6 1687054SM 1 DASHBOARD, RMO with Hydra Lift Slot, Black 6 1687055SM 1 NUT, Hex Nylock,#10-24 7 1933896SM 1 ROD, Dash Support 8 1723123SM 1 NUT, Hex Flange Lock, 1/4-20 9 1930641SM 12 PANEL, LH Side 10 1721803CSM 1 PANEL, LH Side, Red 10 1721803DSM 1 HINGE, LH 11 1721808ASM 1 DUCT, Air Inlet 12 1733457ASM 1 GRILLE 13 1721802CSM 1 GRILLE, Red 13 1721802DSM 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 15 & 16) 14 1721810SM 1 BULB, Headlight 15 1677371SM 4 SOCKET, Headlight 16 1723451SM 4 HINGE, RH 17 1721809ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

35

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Seat & Seat Deck Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985909

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

36

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Seat & Seat Deck Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BRACKET, 1-5/8 x 1-3/4 1 1722129ASM 1 SEAT, 18" Back 2 1687199SM 1 SUPPORT, Seat 3 1722128ASM 1 CLIP, Wire 4 2172434SM 1 WASHER, Spring, 5/16 x 1-1/4 5 1709256SM 2 SPRING, Compression 6 1714263SM 2 NUT, Hex Lock, ESNA Light, 5/16-18 7 1919438SM 10 SPRING, Compression 8 1717051SM 2 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 9 1930591SM 8 CARRIAGE BOLT, 5/16-18 x 2 10 1931339SM 2 CARRIAGE BOLT, 3/8-16 x 1 11 1931350SM 2 SLIDE, Seat 12 1722356SM 1 NUT, Speed, 5/16-18, Lug Type 13 1935255SM 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8 14 1930601SM 4 PLUG, Plastic 15 1722309SM 2 POD, with Cup Holder, LH 16 1729711SM 1 CAPSCREW, Hex Washer Head, 1/4-20 x 5/8 17 2860664SM 8 NUT, Hex Flange Whiz Lock, 5/16-18 18 1931277SM 4 CAP, Gas 19 1715917SM 1 TUBE & ELBOW ASSEMBLY 20 1722340SM 1 BUSHING, 3/8 x 9/16 x 5/8, Rubber 21 1654930SM 1 TANK, Fuel 22 1722432SM 1 NUT, Hex KEPS, 5/16-18 23 1960636SM 8 DECK, Seat, Orange 24 1722106CSM 1 DECK, Seat, Red 24 1722106DSM 1 POD, RH with 2 Slots 25 1722108SM 1 TUNNEL, Orange 26 1722105CSM 1 TUNNEL, Red 26 1722105DSM 1 SCREW, Hex Flange Whiz Lock, 5/16-18 x 1 27 1960667SM 4 SPACER, 25/64 x 5/8 x 3/16, Hardened 28 1663752SM 2 NUT, Hex Flange Two-Way Lock, 3/8-16 29 1930645SM 2 WASHER, 3/8 30 1924940SM 2 SCREW, Taptite 5/16-18 x 1-1/4 31 1930595SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

37

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Lift Group - Manual Lift

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985894

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

38

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Lift Group - Manual Lift

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Whiz Lock Flange, 5/16-18, Large, Black 1 1927557SM 2 CARRIAGE BOLT, 5/16-18 x 3/4 2 1931333SM 4 GRIP, Lift Lever 3 1722291SM 1 BUTTON, Red Nylon, for 1/4 Rod 4 1723124SM 1 NUT, Push 5 1960674SM 1 SPRING, Compression, Lift Lever 6 1723321SM 1 QUADRANT, Lift, Powdered Metal 7 1721581SM 1 CAPSCREW, Hex Head, 5/16-18 x 1, G8, Black 8 1926149SM 2 LEVER ASSEMBLY, Lift 9 1721712ASM 1 NUT, Hex KEPS, 5/16-18 10 1960636SM 5 ROD, Latch 11 1722482SM 1 LOCK, Lift, Powdered Metal 12 1722112SM 1 SPRING, Extension 13 2156302SM 1 SPACER, 1/2 x 3/4 x 23/32 14 1723163SM 1 BAR, Lift, 9-7/8 Long 15 1723795ASM 1 WASHER, 5/16, Black 16 1919381SM 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/4 17 1921160SM 1 PIN, Flat Head Drilled, 1/2 x 2-1/8 Long 18 1722819SM 1 CLIP, Hair Pin, 2-9/16 Long 19 1960033SM 1 SHAFT ASSEMBLY, Lift 20 1727436ASM 1 NUT, Speed, 5/16-18, Lug 21 1935255SM 1 SPRING, Compression 22 1675232SM 1 RETAINER, Spring Flat 23 1723499SM 1 CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2 24 1722357SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

39

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Wheels & Tires Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

W986613

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

40

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Wheels & Tires Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5 & 6) 1 1722305SM 2 TIRE, 16 x 6-1/2 - 8 Super Turf, Front 2 1722833SM 2 TUBE, Tire 16 x 6-1/2 - 8, Front 3 2164247SM 2 BEARING, Ball 4 1717056SM 4 WHEEL, 5 3/8 x 7-15/16, Front 5 1722834SM 2 VALVE STEM & CAP ASSEMBLY 6 2172353SM 4 WASHER, Special, 1 x 2-1/2 7 1722726SM 8 WASHER 8 1919394SM 4 RING, Shaft 9 2832577SM 6 CAP, Hub Grey, 2-23/64 10 1722676SM 4 KEY, HI PRO, 1/4 x 2 11 2105337SM 2 WASHER 12 2860200SM 4 SPACER, 1-1/16 x 1-1/2 x 1-23/32, Black 13 1723112SM 2 PLATE & HUB ASSEMBLY, Rear Wheel w/Studs 14 1721400SM 2 WHEEL & TIRE ASSEMBLY, Rear 23" (Includes Ref. Nos. 6, 16, 17 & 18) 15 1722766SM 2 TIRE, 23 x 10-1/2 - 12 Super Turf, Rear 16 1722830SM 2 TUBE, Tire 23 x 10-1/2 - 12, Rear 17 2157638SM 2 WHEEL, 7 x 12, Rear 18 1722831SM 2 RING, Shaft 19 2834712SM 2 NUT, Hex 7/16-20, For Wheel Bolt 20 2177725SM 10

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

41

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Decals Group - Brand & Model

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

B986613

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

42

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Decals Group - Brand & Model

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

DECAL, ICON Simplicity, Orange 1 1717692SM 2 DECAL, ICON Simplicity, Orange 1 1731418SM 1 DECAL, Simplicity, Silver & Blue w/Icon 2 1722551SM 3 DECAL, Conquest, Silver & Blue 3 1722820SM 1 DECAL, 16HP, Silver On Clear 4 1722549SM 1 DECAL, 18HP, Silver 4 1722779SM 1 DECAL, 20HP, Silver 4 1722780SM 1 DECAL, 21HP, Silver 4 1730206SM 1 DECAL, 23HP 4 1722781SM 1 DECAL, Hood Stripe, RH, Simplicity, Blue & Silver 5 1722773SM 1 DECAL, Hood Stripe, LH, Simplicity, Blue & Silver 5 1722774SM 1 DECAL, AGCO, Logo Black, Chrome, Orange 6 1708926SM 1 DECAL, 1716, Gray, AGCO 7 1722795SM 2 DECAL, 1718, Gray, AGCO 7 1722796SM 2 DECAL, 1720, Gray, AGCO 7 1722797SM 2 DECAL, 1721, AGCO 7 1730209SM 1 DECAL, Hood Stripe, LH, AGCO 8 1722817SM 1 DECAL, Hood Stripe, RH, AGCO 8 1722818SM 1 DECAL, Massey Ferguson Logo, 3 Triangles 9 1714363SM 1 DECAL, 2716, Black, Massey Ferguson 10 1722801SM 2 DECAL, 2718, Black, Massey Ferguson 10 1722802SM 2 DECAL, 2720, Black, Massey Ferguson 10 1722803SM 2 DECAL, 2721, Massey Ferguson 10 1730207SM 2 DECAL, 2723, Massey Ferguson 10 1728113SM 2 DECAL, Hood Stripe, LH, Massey Ferguson 11 1722815SM 1 DECAL, Hood Stripe, RH, Massey Ferguson 11 1722816SM 1 DECAL, Hood Stripe, LH, Massey Ferguson 11 1727783SM 1 DECAL, Hood Stripe, RH, Massey Ferguson 11 1727784SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

43

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Decals Group - Safety & Common

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

C986613

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

44

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

Decals Group - Safety & Common

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

DECAL, Ignition Switch Symbols, White/Black 1 1722806SM 1 DECAL, Automatic Control Traction 2 1718025SM 1 DECAL, Tunnel Cover, Danger Slopes/Blades 3 1722814SM 1 DECAL, Tunnel Cover, Danger Slopes/Blades, (Export) 3 1734027SM 1 DECAL, Tunnel Cover 3 1726923SM 1 DECAL, Lift Lever Symbols 4 1723143SM 1 DECAL, Drive Belts, Mower Blades (38 Tooth Sprocket Mower) 5 1725158SM 1 DECAL, Drive Belts, Mower Blades 5 1727014SM 1 DECAL, Touch Up Paint, Deep Orange 6 1720454SM 1 DECAL, Touch-Up Paint, Red 6 1725072SM 1 DECAL, Protective Sticker 7 1723296SM 2 LABEL, Decibel, Power Mass 8* 1 DECAL, I.D. Plate 9* 1 DECAL, Patent 10 * 1 DECAL, USA Logo Stars & Stripe 11 1708927SM 1 DECAL, Transmission Release Valve 12 1723160SM 1 DECAL, I.D. Plate 13 * 1 DECAL, Danger Do Not Put Hands/Feet in Mower 14 1704276SM 1 DECAL, Free Floating Mower, Silver 15 1722771SM 1 DECAL, OPEI Certified 16 * 1 DECAL, 44", Silver on Black with Stripe 17 1722789SM 1 DECAL, 50", Silver on Black with Stripe 17 1722790SM 1 DECAL, 54", Silver on Black with Stripe 17 1722791SM 1 DECAL, Danger Do Not Operate without Deflector 18 1704277SM 1 DECAL, Height of Cut 19 1721197SM 1

Footnotes

Note* Not a service part.

The above parts group applies to the following Mfg. Nos.:

1694624 - Conquest 1694625 - Conquest 1694626 - 1722H 1694628 - 2722H 1694746 - Conquest 1694747 - 1720H

2009

1694752 - 2720H 1694816 - Conquest 1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 2690264 - Conquest

45

2690272 - 2722H 2690414 - Conquest 2690415 - Conquest 2690417 - 2723H 2690702 - Conquest

TP 400-4204-B-CQ-SMA

44" Mower Deck - Belt, Idler Arm & Hitch

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986945

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

46

TP 400-4204-B-CQ-SMA

44" Mower Deck - Belt, Idler Arm & Hitch

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

V-BELT, Mower Drive 1 1601672SM 1 V-BELT, Arbor Drive 2 1721532SM 1 GRIP, Lever 3 1665835 1 NUT, Hex, 3/8-16 4 1916950SM 2 WASHER, Lock, 3/8 5 1916965SM 2 BELT STOP, Idler 6 1677135ASM 1 WASHER, 3/8 7 1924940SM 14 SPACER, 25/64 x 21/32 x 7/16, Powder Metal 8 1666294SM 2 PULLEY, Idler (Includes Ref. No. 8) 9 1685150SM 2 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black 10 1960339SM 1 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal 11 1676148SM 4 SPRING 12 1715435SM 1 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened 13 1674669SM 2 GREASE FITTING 14 2812808SM 2 LEVER ASSEMBLY, Idler (Includes Ref. Nos. 3, 11 & 14) 15 1704658SM 1 CARRIAGE BOLT, 3/8-16 x 2 16 1960315SM 1 LEVER ASSEMBLY, Idler Arm (Includes Ref. Nos. 11 & 14) 17 1718561SM 1 WASHER, 3/8, Black 18 1924356SM 2 CARRIAGE BOLT, 3/8-16 x 1-1/2 19 1931352SM 1 SPRING 20 1656936SM 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2 21 1923938SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/8 22 1921968SM 2 SPACER, 3/8 x 3/4 x 1/2 23 2157081SM 2 NUT, Hex Toplock Spiralock Flange, 3/8-16 24 2860681SM 2 SPRING 25 2156302SM 1 HITCH ASSEMBLY 26 1707432ASM 1 ROD, Latch 27 1715759SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

47

TP 400-4204-B-CQ-SMA

44" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

B985974

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

48

TP 400-4204-B-CQ-SMA

44" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SHAFT ASSEMBLY, Roller, 44", (Includes Ref. Nos. 7 & 9) 1 1685443SM 1 NUT, Adjuster 2 1704082SM 1 NUT, Hex Aluminum Insert Lock, 3/8-16 3 2860681SM 3 SLIDE 4 1677507SM 1 WASHER, Plain, 1/2 5 1924361SM 1 BOLT, Shoulder, 3/8-16 6 2172622SM 1 SPACER, 25/64 x 13/16 x 13/16, Steel, Black 7 1602946SM 2 ROLLER, Rounded, 2-1/2 Long 8 1722036SM 2 NUT, Push 9 1960520SM 2 WASHER, Plain, 1-1/4 10 1924366SM 10 ROLLER 11 1668513SM 7 BAR, Roller 12 1704074ASM 1 NUT, Hex, Flange, Lock, 1/2-13 13 1930644SM 2 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4 14 1664847SM 5 WASHER, 3/8 15 1924940SM 5 UP-STOP, 6-1/4 High, Black 16 1722747SM 1 STRAP, Mower Arm Assembly 17 1665374SM 3 CARRIAGE BOLT, 3/8-16 x 1-1/2 18 1931352SM 1 ARM ASSEMBLY, Mower 19 1733521ASM 1 WASHER, 5/16, Black 21 1919381SM 1 ROD, Adjustment 24 1704093SM 1 SPACER, 3/8 x 3/4 x 15/16 25 1706644SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 26 1922606SM 1 BRACKET, Up-Stop, 6" Long 27 1722748ASM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4, Black 29 1664847SM 2 PLATE, Mower Support 30 1704080ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 31 1931202SM 2 INDICATOR, Cutting Height 32 1704114SM 1 WASHER, Detent 33 1704097SM 1 TRUNNION 34 1704086SM 1 PIN, Roll, 1 35 2816001SM 1 TRUNNION 36 1704081ASM 1 NUT, Hex, Jam, 1/2-13 37 1913744SM 2 WASHER, 33/64 38 1960170SM 3 PIN, Clevis 39 2118053SM 1 CLIP, Hair Pin 40 1960074SM 3 NUT, Whiz Lock 5/16-18 41 1931277SM 2 BRACKET, Cutting Height 43 1704116ASM 1 ARM, Rear, Mower, RH 44 1704083ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 45 1921977SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

49

TP 400-4204-B-CQ-SMA

44" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

B985974

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

50

TP 400-4204-B-CQ-SMA

44" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

TRUNNION, Threaded 46 1704087SM 1 CRANK, Cutting Height 47 1719901SM 1 KNOB, Height Crank 48 1714084SM 1 PAL NUT 49 1960093SM 1 CHAIN, 2-Link 54 1731383ASM 1 ROD, Height Adjustment 55 1731384SM 1 NUT, Hex Jam 56 1920161SM 1 TRUNNION 57 1731382SM 1 CLIP, Hair Pin 58 1960074SM 1 WASHER, 3/8 59 1924940SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

51

TP 400-4204-B-CQ-SMA

44" Mower Deck - Housing, Arbors & Blades

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985971

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

52

TP 400-4204-B-CQ-SMA

44" Mower Deck - Housing, Arbors & Blades

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Flange, 9/16-18 1 1714419SM 3 WASHER, Bellevilled, 9/16 2 1713675SM 6 PULLEY, 4-1/2 O.D. 3 1713161SM 1 PULLEY, 5 O.D. 3 1713091SM 1 HUB, Double Pulley 4 1713158SM 1 PULLEY 5 1713098SM 3 HUB, Double Pulley 6 1713533SM 1 COVER, Arbor Housing 7 1655729ASM 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8 8 2108202SM 3 SPACER, 21/32 x 3/4 x 5/8 9 1715724SM 3 SPACER, 11/16 x 5/32 x 2-11/16 10 1732544SM 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32 11 1705897SM 3 GASKET, Foam 12 1707335SM 3 HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting (Includes Ref. No. 14) 13 1713338ASM 3 FITTING, Grease 14 1704314SM 3 COVER, Arbor 15 1720560ASM 1 COVER, Arbor without Ribs 15 1732200ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 16 1664847SM 29 NUT, Hex Flange, 5/16, 18 1931277SM 1 WASHER, Bellevilled, 9/16, Black 19 1713619SM 3 SHAFT, Arbor (LH) 20 1713612SM 1 SHIELD, Grass, Lower 21 1713196SM 3 BLADE, Mower, 16-1/8 (For 44" Deck) 22 1704100ASM 3 WASHER, Hex, 11/16 x 2 23 1713089SM 3 WASHER, Spring 15/32, Black 24 1656916SM 3 CAPSCREW, Hex Head, 7/16-14 x 1 25 2823471SM 3 SHAFT, Arbor (Center & RH) 26 1713195SM 2 MOWER HOUSING ASSEMBLY, 44" Mower (Orange) 27 1685411SM 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red) 27 1687154SM 1 COVER, Arbor 28 1715673SM 1 CARRIAGE BOLT, 1/4-20 x 7/8 29 1931318SM 2 PLUG, Hole 30 1705115SM 1 NUT, Push 31 1960518SM 2 WASHER, 1/4, Black 32 1960353SM 2 CLAMP 33 1704873SM 1 WASHER, 5/16, Black 34 1919326SM 1 SPRING 35 7101082SM 1 NUT, ESNA 1/4-20 37 1920397SM 2 ROD, Deflector, Front 38 1706709SM 1 DEFLECTOR, Plastic 39 1705449SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

53

TP 400-4204-B-CQ-SMA

44" Mower Deck - Housing, Arbors & Blades

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985971

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

54

TP 400-4204-B-CQ-SMA

44" Mower Deck - Housing, Arbors & Blades

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HUB, Pulley, Center & RH 40 1713197SM 2 BAFFLE, Anti-Blowout, LH (CE/Export) 41 1716879ASM 1 CARRIAGE BOLT, 5/16-18 x 3/4, Black (CE/Export) 42 1931333SM 2/8/1 NUT, Hex Flange Whiz Lock, 5/16-18, Black (CE/Export) 43 1927557SM 2/8/1 BAFFLE, Anti-Blowout, RH (CE/Export) 44 1716878ASM 1 BAFFLE, Blowout, 44" & 50" 45 1724538ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694038 - 44" Mower 1694044 - 44" Mower 1694173 - 44" Mower

2009

55

TP 400-4204-B-CQ-SMA

50" Mower Deck - Clutch & Support

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

984271C

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

56

TP 400-4204-B-CQ-SMA

50" Mower Deck - Clutch & Support

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

V-BELT, Mower Drive 1 1707740SM 1 V-BELT, Arbor Drive 2 1703836SM 1 GRIP, Lever 3 1665835 1 NUT, Hex, 3/8-16 4 1916950SM 2 WASHER, Lock, 3/8 5 1916965SM 2 BELT STOP, Idler 6 1677135ASM 1 WASHER, 3/8 7 1924940SM 14 HUB, 25/64 x 3/4 x 63/64, Powder Metal 8 1716553SM 1 PULLEY, Idler (Includes Ref. No. 8) 9 1685150SM 2 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black 10 1960339SM 1 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal 11 1676148SM 4 SPRING 12 1715435SM 1 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened 13 1674669SM 2 GREASE FITTING 14 2812808SM 2 LEVER ASSEMBLY, Idler (Includes Ref. Nos. 11 & 14) 15 1704658SM 1 CARRIAGE BOLT, 3/8-16 x 2 16 1960315SM 1 LEVER ASSEMBLY, Idler Arm (Includes Ref. Nos. 11 & 14) 17 1718561SM 1 WASHER, 3/8, Black 18 1924356SM 2 CARRIAGE BOLT, 3/8-16 x 1-1/2 19 1931352SM 1 SPRING 20 1656936SM 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2 21 1923938SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/8 22 1921968SM 2 SPACER, 3/8 x 3/4 x 1/2 23 2157081SM 2 NUT, Hex Aluminum Insert Lock, 3/8-16 24 2860681SM 2 SPRING 25 2156302SM 1 HITCH ASSEMBLY 26 1707432ASM 1 ROD, Latch 27 1715759SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

57

TP 400-4204-B-CQ-SMA

50" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986020

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

58

TP 400-4204-B-CQ-SMA

50" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SHAFT ASSEMBLY, Roller, 50", (Includes Ref. No. 10) 1 1686687SM 1 NUT, Adjuster 2 1704082SM 1 NUT, Hex Aluminum Insert Lock, 3/8-16 3 2860681SM 3 SLIDE 4 1677507SM 1 WASHER, Plain, 1/2 5 1924361SM 1 BOLT, Shoulder, 3/8-16 6 2172622SM 1 WASHER, Plain, 1 1/4 7 1924366SM 8 SPACER, 21/32 x 5/32 x 5/8 8 1709195SM 3 ROLLER, Rounded End 9 1722036SM 2 NUT, Push 10 1960520SM 2 ROLLER 11 1668513SM 8 BAR, Roller 12 1704074ASM 1 NUT, Hex Flange, 2 Way Lock, 1/2-13 13 1930644SM 2 STRAP, Mower Arm Assembly 14 1665374SM 3 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4 15 1664847SM 6 CARRIAGE BOLT, 3/8-16 x 1-1/2 16 1931352SM 1 ARM ASSEMBLY, Mower 17 1718828ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G8, 1/2 Thread 18 1930570SM 2 WASHER, 5/16, Black 19 1919381SM 5 CHAIN, 4 Link, 6 3/32 Long 20 1708088ASM 2 NUT, Hex Lock ESNA Light, 5/16-18, Black 21 1919438SM 2 ROD, Adjustment 22 1722995SM 1 SPACER, 3/8 x 3/4 x 15/16 23 1706644SM 1 WASHER, 3/8 24 1924940SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 25 1922606SM 1 PLATE, Mower Support 26 1704080ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 27 1931202SM 2 INDICATOR, Cutting Height 28 1704114SM 1 WASHER, Detent 29 1704097SM 1 TRUNNION 30 1704086SM 1 PIN, Roll, 1 31 2816001SM 1 TRUNNION 32 1706645ASM 1 NUT, Hex, Jam, 1/2-13 33 1915726SM 2 WASHER, 11/32 34 1960170SM 1 PIN, Clevis 35 2118053SM 1 CLIP, Hair Pin 36 1960074SM 1 NUT, Whiz Lock, 5/16-18 37 1931277SM 2 BRACKET, Cutting Height 39 1704116ASM 1 ARM, Rear, Mower, RH 40 1704083ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 41 1921977SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

59

TP 400-4204-B-CQ-SMA

50" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986020

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

60

TP 400-4204-B-CQ-SMA

50" Mower Deck - Height Adjustment & Roller Bar

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

TRUNNION, Threaded 42 1704087SM 1 CRANK, Cutting Height 43 1719901SM 1 KNOB, Height Crank 44 1714084SM 1 PAL NUT 45 1960093SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

61

TP 400-4204-B-CQ-SMA

50" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985972

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

62

TP 400-4204-B-CQ-SMA

50" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Flange, 9/16-18 1 1714419SM 3 WASHER, Bellevilled, 9/16 2 1713675SM 6 PULLEY 3 1713161SM 1 HUB, Double Pulley 4 1713158SM 1 PULLEY 5 1713098SM 3 HUB, Double Pulley 6 1713533SM 1 COVER, Arbor Housing 7 1655729ASM 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8 8 2108202SM 3 SPACER, 21/32 x 3/4 x 5/8 9 1715724SM 3 SPACER, 11/16 x 5/32 x 2-11/16 10 1732544SM 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32 11 1705897SM 3 GASKET, Foam 12 1707335SM 3 HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting (Includes Ref. No. 14) 13 1713338ASM 3 FITTING, Grease 14 1704314SM 3 COVER, Arbor 15 1720560ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 16 1664847SM 26 WASHER, Bellevilled, 9/16, Black 17 1713619SM 3 SHAFT, Arbor (LH) 18 1713612SM 1 SHIELD, Grass, Lower 19 1713196SM 3 BLADE, Mower, 18-1/8 20 1708229ASM 3 WASHER, Hex, 11/16 x 2 21 1713089SM 3 WASHER, Spring 15/32, Black 22 1656916SM 3 CAPSCREW, Hex Head, 7/16-14 x 1 23 2823471SM 3 SHAFT, Arbor (Center & RH) 24 1713195SM 2 MOWER HOUSING ASSEMBLY, 50" Mower (Orange) 25 1685495SM 1 MOWER HOUSING ASSEMBLY, 50" Mower (Red) 25 1687155SM 1 COVER, Arbor 26 1715673SM 1 CARRIAGE BOLT, 1/4-20 x 7/8 27 1931318SM 2 PLUG, Hole 28 1705115SM 1 BAFFLE, Anti-Blowout, LH (CE/Export) 29 1716870ASM 1 CARRIAGE BOLT, 5/16-18 x 3/4 30 1931333SM 2/11 NUT, Hex, Whizlock, 5/16-18 31 1927557SM 2/11 NUT, Push 32 1960518SM 2 WASHER, 1/4, Black 33 1960353SM 2 CLAMP 34 1704873SM 1 WASHER, 5/16, Black 35 1919326SM 1 SPRING 36 7101082SM 1 CAP, Spring End 37 1723323SM 1 NUT, Hex, 1/4-20 ESNA 39 1920397SM 2 ROD, Deflector, Front 40 1706709SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

63

TP 400-4204-B-CQ-SMA

50" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985972

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

64

TP 400-4204-B-CQ-SMA

50" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

DEFLECTOR, Plastic 41 1705449SM 1 HUB, Pulley, Center & RH 42 1713197SM 2 BAFFLE, Anti-Blowout, RH (CE/Export) 43 1716869ASM 1 UPSTOP 45 1719929SM 1 BAFFLE, Anit-Blowout 44 1724538ASM 1 WASHER 46 1924940SM 2 CAPSCREW, Taptite 5/16-18 x 3/4 47 1664847SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694039 - 50" Mower 1694045 - 50" Mower 1694174 - 50" Mower 2690415 - Conquest 2690702 - Conquest

2009

65

TP 400-4204-B-CQ-SMA

54" Mower Deck - Drive Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985632

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

66

TP 400-4204-B-CQ-SMA

54" Mower Deck - Drive Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

V-BELT, Engine PTO 1 1722039SM 1 V-BELT, 54 Mower Deck 2 1671076SM 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 3 1921977SM 1 WASHER, Lock, 5/16 4 1917356SM 1 NUT, Hex, 5/16-18 5 1917372SM 1 SPRING 6 1715435SM 1 SPACER, 25/64 x 5/8 x 1-55/64 7 1657242SM 1 WASHER, 3/8 8 1924940SM 7 CAPSCREW, Hex Head, 3/8-16 x 4-1/2 9 1960246SM 1 NUT, Hex, 3/8-16 10 1916950SM 2 WASHER, Lock, 3/8 11 1916965SM 2 HUB, 25/64 x 3/4 x 63/64, Powder Metal 12 1716553SM 2 PULLEY, Idler (Includes Ref. No. 12) 13 1685150SM 2 SPACER 14 2157081SM 1 ASSEMBLY, Lever 15 1720379SM 1 CARRIAGE BOLT, 3/8-16 x 2 16 1960315SM 1 SPACER 17 1674669SM 1 WASHER, 3/8 18 1924356SM 3 NUT, Hex Centerlock, 5/16-18, Black 19 1923362SM 1 SPRING, Extension, 4" Long 20 1656936SM 1 LEVER ASSEMBLY, (Includes Ref. No. 23) 21 1718561SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 22 1931352SM 1 FITTING, Lube 23 2812808SM 1 NUT, Hex Flange, 3/8-16 24 1930645SM 1 PULLEY ASSEMBLY, R.H. 25 1720182ASM 1 PULLEY ASSEMBLY, Center 26 1679161ASM 1 PULLEY ASSEMBLY, L.H. 27 1720183ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

67

TP 400-4204-B-CQ-SMA

54" Mower Deck - Height Adjustment & Roller Bar Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985975

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

68

TP 400-4204-B-CQ-SMA

54" Mower Deck - Height Adjustment & Roller Bar Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex, Adjusting 1 1704082SM 1 NUT, Hex Aluminum Insert Lock, 3/8-16 2 2860681SM 2 SHAFT & BAR ASSEMBLY, Roller 3 1723008ASM 1 SLIDE 4 1677507SM 1 WASHER, 1/2 5 1924361SM 1 BOLT, Shoulder, 3/8-16 x 1-5/16 6 2172622SM 1 SPACER 7 1701873SM 6 WASHER 8 2860626SM 14 ROLLER, 1 x 2-3/4 x 2, Black 9 1720159SM 2 ROLLER, Half Rounded 10 1678043SM 2 PIN, Cotter, 1/8 x 1-1/2, Black 11 1918459SM 2 ROLLER, with Bushings, Full 12 1678043SM 8 BAR 13 1723009ASM 1 NUT, Hex Flange, 1/2-13 14 1930644SM 2 NUT, Hex, 5/8-11 19 1915726SM 4 WASHER, 5/8 20 1924366SM 4 CARRIAGE BOLT, 3/8-16 x 1-1/2 21 1931352SM 1 ASSEMBLY, Rocker Shaft 22 1733523ASM 1 PIN, Round Head, 3/8 x 2 23 2118053SM 2 TRUNNION 24 1706645ASM 2 CLIP, Hair Pin 25 1960074SM 2 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4 26 1664847SM 11 WASHER, 5/8 27 1924940SM 2 UP-STOP, Wire 28 1719929SM 1 STRAP 29 1720147ASM 4 ROD, 5/8 x 29-5/8 Long 30 1722995SM 2 PIN, Yoke, 1/2 31 1960116SM 2 PIN, Bow Tie 32 1722320SM 2 PIN, Roll 33 2816001SM 1 WASHER, Detent, 1/2 34 1704097SM 1 SUPPORT, Trunnion 35 1720142ASM 1 WASHER, 1/2 36 1960170SM 1 TRUNNION 37 1704086SM 1 INDICATOR, Height 38 1720643ASM 1 SCREW, Taptight 5/16-18 x 1 1/14 39 1931202SM 1 NUT, Hex, 5/16-18 Whiz Lock 40 1931277SM 2 TRUNNION, Threaded 42 1704087SM 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 43 1921977SM 2 BRACKET, Height of Cut 44 1704116ASM 1 ARM 45 1720637ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

69

TP 400-4204-B-CQ-SMA

54" Mower Deck - Height Adjustment & Roller Bar Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985975

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

70

TP 400-4204-B-CQ-SMA

54" Mower Deck - Height Adjustment & Roller Bar Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CRANK, Height Adjust 46 1719901SM 1 KNOB, Spinner 47 1714084SM 1 PUSHNUT, 3/8 48 1960093SM 1 ASSEMBLY, Hitch Pin 49 1734011SM 1 PIN, Click 50 1709189SM 1 SPRING 51 2156302SM 1 ROD, Latch 52 1715759SM 1 ASSEMBLY, Hitch 53 1722997ASM 1 CHAIN 2-Link 54 1731383ASM 1 ROD, Height Adjust 55 1731384SM 1 NUT, Hex Jam 56 1920161SM 1 TRUNION 57 1731382SM 1 CLIP, Hair Pin 58 1960074SM 1 WASHER, 3/8 59 1924940SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

71

TP 400-4204-B-CQ-SMA

54" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986820

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

72

TP 400-4204-B-CQ-SMA

54" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

DEFLECTOR, Plastic 1 1705449SM 1 WASHER, Plain, 1/4 2 1960353SM 2 NUT, 1/4-20 4 1920397SM 2 ROD, Deflector, Front 5 1706709SM 1 COVER, Arbor, RH (Red) 6 1720184DSM 1 COVER, Arbor, RH (Orange) 6 1720184CSM 1 CLIP, Spring 7 1720623SM 4 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 8 1929000SM 4 WASHER, Lock, 7/16 11 1918199SM 2 WASHER, 7/16 12 1933263SM 2 SHIELD, Bearing Upper, Arbor 14 1657969SM 3 HOUSING, Arbor, Top 15 1655729ASM 3 ARBOR SHAFT & BEARING ASSEMBLY (Includes Ref. Nos. 17 & 18) 16 1676278SM 2 BEARING, Ball, 3/4 x 1-3/4 x 5/8 17 2108202SM 6 ARBOR SHAFT 18 1676277SM 3 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, G8 19 2823471SM 5 ASSEMBLY, Arbor Shaft and Bearing (Includes Ref. Nos. 17 & 21) 20 1726825SM 1 SHAFT, Arbor 21 1725812SM 1 HOUSING ASSEMBLY, Mower Housing, 54" (Orange) 22 1687012SM 1 HOUSING ASSEMBLY, Mower Housing, 54" (Red) 22 1687311SM 1 GASKET, Foam 23 1707335SM 3 ASSEMBLY, Housing, Bottom (Includes Ref. No. 25) 24 1703273ASM 3 FITTING, Lube 25 1704314SM 3 WASHER, Shim 26 1700230SM 3 BLADE, Mower, 20-1/2 (1" Diameter Center Hole in Blade) 27 1725921SM 2 WASHER, Splined (1" Diameter Center Hole in Blade) 28 1679711SM 3 WASHER, Spring 29 1656916SM 3 RING, Self Locking 30 1657528SM 3 ADAPTER, Blade 31 1655777SM 3 SHIELD, Grass 32 1700229SM 3 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 33 1664847SM 18 NUT, Hex, Nylon Lock, 5/16-18 34 1960684SM 3 BAFFLE, Front, Anti-Blowout 35 1720962ASM 1 CARRIAGE BOLT, 5/16-18 x 3/4, (1 Needed for Rear Baffle) 36 1931333SM 3 BLADE, Mower, 16 (1" Diameter Center Hole in Blade) 37 1725922SM 1 NUT, Hex Lock, 3/8-16 38 1930645SM 2 POST, Anti Scalp 39 7035835SM 2 WHEEL, Gauge 40 1700184SM 2 BOLT, Sholder, 41 7029265SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

73

TP 400-4204-B-CQ-SMA

54" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986820

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

74

TP 400-4204-B-CQ-SMA

54" Mower Deck - Housing, Arbors & Blades Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, 3/8-16 x 1-1/4 42 1920415SM 2 NUT, Wing, 3/8-16 43 7091049SM 2 CARRIAGE BOLT, 1/4-20 x 1 44 1960698SM 2 NUT, Push 45 1960518SM 2 BAFFLE, Discharge 46 1724976ASM 1 CLAMP, Wire 47 1704873SM 1 WASHER, Plain, 5/16 48 1919326SM 1 SPRING 49 7101082SM 1 CAP, Spring End 50 1723323SM 2 COVER, Arbor L.H. 51 1720621DSM 1 COVER, Arbor L.H. 51 1720621CSM 1 NUT, Hex Flange 9/16-18 Yellow 52 1714419SM 1 WASHER, Belleville .56ID x 1.34 OD x .05T 53 1713675SM 2 WASHER, .050 .56ID x 1.37OD x .11T 54 1918431SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694366 - 54" Mower 1694367 - 54" Mower 2690264 - Conquest 2690272 - 2722H 2690414 - Conquest 2690417 - 2723H

2009

75

TP 400-4204-B-CQ-SMA

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

Hardware Identification & Torque Specifications

No

Marks

0

1/4 3/4

1/2

21

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

4

Not for

Reproduction

Torque Specification Chart

FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)

Property Class

Size Of Hardware

M3 M4 M5 M6 7.3 10.3 12.1 M7 12.1 16.9 19.9 M8 17.7 M10 35 50 M12 61 86.2 103 140 M14 M16 147 210 250 340 M18 202 287 346 470 M20 290 405 486 660 M22 390 559 656 890 M24 497 M27 733 1032 1239 1680 M30 995 1401 1681 2280 M33 M36 1740 2441 M39 2249 3163

The guides and ruler furnished below are designed to

help you select the appropriate hardware.

010

Nut, M8

Thread Diameter (mm)

Inside Diameter (in)

Nut, 1/2-16

Class 5.6

in/lbs

ft/lbs

5.88

13.44

26.4

44.64

5.2

7.7 15 26 42 64 89

126 169 217 320

435 590 759 988

20

5.6

Nm. Nm. Nm.

.56

1.28

2.50

4.3

7.1

10.5 21

36 58 88

121 171

230 295 435 590

800 1030 1340

30

8.8

Class 8.8

in/lbs

ft/lbs

13.44 1.80

30.72 43.44 52.56

60.96

Class 10.9

in/lbs

ft/lbs

19.2 22.92

1.28

2.90

5.97 7.15

5.75

9.9

16.5 24 48 83

101

136 162 220

132 200 275 390 530

708

375 995

1350

1349

1902 2278 3090

1830 2360 3050

50

60

Body Length

40

Screw, M8- 1.25 x 25

Thread Diameter (mm)

Threads per inch

Body Diameter

Screw, 1/2- 16 x 2

10.9

4.10

8.10 14 23

25

34

67 117 185 285 390 550 745 960

1400 1900 2580 3310 4290

80

Diameter

Distance between threads (mm)

Threads per inch

3

12.9

Class 12.9

in/lbs

ft/lbs

29 59

840 1140

2935 3980 3798

Body

Nm.

2.15

4.95

9.7

16.5 27 40 81

5150

90 10070

Body Length (mm)

Body Length (in)

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware Grade

Size Of Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32 8-36 10-24 10-32 1/4-20 1/4-28 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 29 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 420 571.2 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

b. for flange whizlock nuts and screws - use 135% of

3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.

Common Hardware Types

Hex Head Capscrew

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

19

2.1

20

2.3

27

3.1

31

3.5

66

7.6 8 10.9 12 16.3

76

8.6 10 13.6 14 19.0

30 31 43 49

in/lbs

3.4

3.5

4.9

5.5

NOTES

torques.

grade 5 torques.

41 43 60 68

Washer

4.6

4.9

6.8

7.7

Standard Hardware Sizing

When a washer or nut is identified as 1/2” (M8), this is

Nominal size

the

, meaning the

inside diameter

is 1/2 inch (8mm metric thread diameter); if a second number is present it represents the

threads per inch

(distance between threads).

When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ), this means the

Nominal size

metric thread diameter), the second number,16, represents the

threads per inch, (1.25 thread diameter).

body length of the bolt or screw, 2 inches (50mm).

, or body diameter is 1/2 inch (8mm

The final number is the

Carriage Bolt

Wrench & Fastener Size Guide

1/4” Bolt or Nut

Wrench—7/16”

M6 Bolt or Nut

Wrench—10mm

5/16” Bolt or Nut

Wrench—1/2”

M8 Bolt or Nut

Wrench—13mm

3/8” Bolt or Nut

Wrench—9/16”

M10 Bolt or Nut

Wrench—17mm

7/16” Bolt or Nut

Wrench (Bolt)—5/8” Wrench (Nut)—11/16”

M12 Bolt or Nut

Wrench—19mm

Lockwasher

Hex Nut

1/2” Bolt or Nut

Wrench—3/4”

M14 Bolt or Nut

Wrench—22 mm

IT IS THE POLICY OF BRIGGS & STRATTON CORP. TO IMPROVE ITS PRODUCTS

Not for

Reproduction

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO

MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS.

Briggs & Stratton Yard Power Products Group

3515 N. 124 Street / PO Box 702 Wauwatosa, WI 53222 USA

www.simplicitymfg.com

2009

Simplicity 1700 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
