Simplicity 16HP V-Twin User Manual

sziip.iifg

OPERATOR’S

MANUAL

Broadmoor Series

14HP Tractors

Mfg.

No.

Description 1693052 1693068

1693351 1693358 Broadmoor,

Broadmoor, 14HP Hydro

Broadmoor, 14HP Hydra (Export)

Broadmoor, 14HP Hydra

14HP

Hydra (Export)

16HP Tractors

Mfg.

No.

Description 1693054 Broadmoor, 16HP

1693070 1693353 Broadmoor, 16HP Hydra 1693360 Broadmoor, 16HP Hydra (Export)

Broadmoor, 16HP Hydra (Export)

Hydra

16HP V-Twin Tractors

Mfg. No. De‘scription 1693056

1693072

1693355 1693362 Broadmoor,

Broadmoor, 16HP V Hydra

Broadmoor, Broadmoor, 16HP V Hydra

16HP

V Hydra (Export)

16HP V Hydra (Export)

16HP V-Twin Tractors Mfg.

1693275 1693261

Description

No.

Broadmoor, 18HP V Hydra Broadmoor, 18HP V Hydra (Export)

36” Mower Decks

Mfg. No.

1692682 38” Mower Deck

1693170 38” Mower Deck (Export)

Description

44” Mower Decks

Mfg.

No.

Description

1692684 44” Mower Deck

1693171

44” Mower Deck (Export)

50” Mower Decks

Mfg. No. Description 1693267

1693283 50” Mower Deck (Export)

50” Mower Deck

Simplicify

MANUFACTURING, INC. 500 N Spring Street I PO Box 997 Port Washington, WI 53074-0997

www.simplicitymfg.com

Inc,

AGCO ALLIS

OPERATOR’S

MANUAL

1600 Series

14HP Tractors

Mfg.

No.

Description 1693058 1614H, 14HP Hydra 1693365 1614H, 14HP Hydro

16HP Tractors

Mfg. No. Description 1693060 1616H, 16HP Hydro 1693367

16HP V-Twin Tractors

Mfg. No. Description

1693062 1693369

18HP V-Twin Tractors

Mfg. No.

1693277

1616H, 16HP Hydra

‘1616VH, 16HP V-Twin Hydro

1616VH, 16HP V-Twin

Description

1618H,

18HP V-Twin

Hydra

38” Mower Decks

Mfg. No. Description

1692683

38”

Mower Deck

44” Mower Decks

Mfg. No. Description 1692685

44”

Mower Deck

50” Mower Deqks

Mfg. No. Description 1693284

50”

Mower Deck

AGCO

AGCO-Allis Lawn &Garden Equipment 500 N. Spring Street \ P.O. Box 997

Port

Washington, WI 53074.0997 USA

www.allislawn.com

ALLIS

MASSEY FERGUSON

LAWN & GARDEN EQUIPMENT

OPERATOR’S

MANUAL

2600 Series

16HP Tractors

Mfg. No.

1693064 2616H, 16HP

1693372

16HP V-Twin Tractors

Mfg.

1693066

1693374

18HP V-Twin Tractors

Mfg. No. Description

1693279

Description

2615H,

Description

No.

2616VH, 16HP V-Twin 2616VH, 16HP V-Twin

‘2616H. 18HP V-Twin

Hydra

16HP Hydro

Hydra Hydra

Hydra

38” Mower Decks

Mfg. No.

1692663

Description

38” Mower Deck

44” Mower Decks

Mfg. No. 1692685

Description

44” Mower Deck

50” Mower Decks

Mfg. No.

1693284

Descriptih

50” Mower Deck

MASSEY FERGUSON LAWN a

GIRDEN EWIPIEM

Massey is Manufactured and Distributed by Simplicity Manufacturing, Inc.

500 N. Spring Street * P.O. Box 997 *

Ferguson

lawn &Garden Equipment

Port

Washington, WI 53074.0997 USA

Table of Contents

Identification Numbers ......................................

Safety Rules&Information

Features&Controls

Control Functions ....................................................

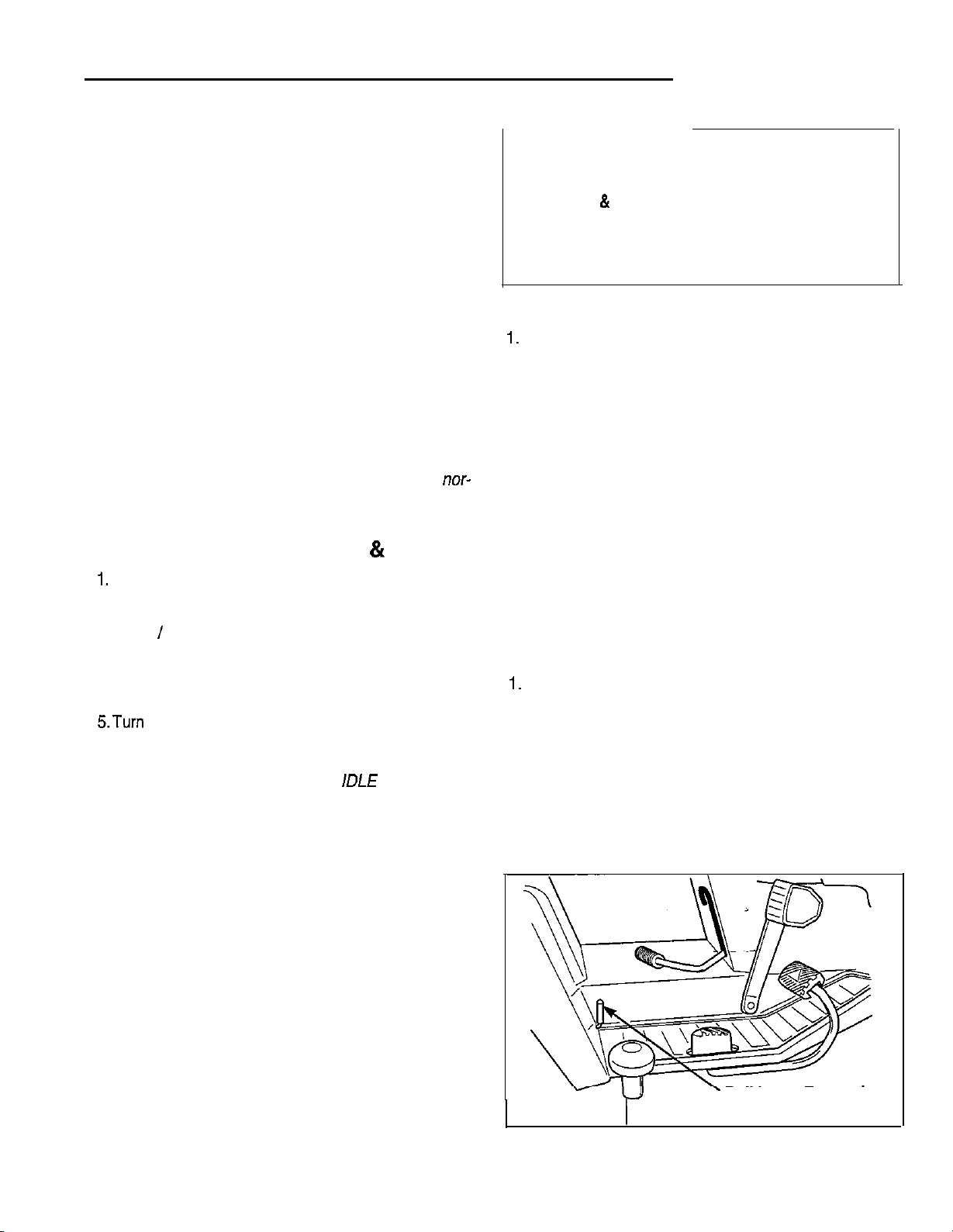

Parking Brake / Cruise Control Knob Functions Dashboard

Safety Interlock System

Display

........................................... .6

Functions ................................ .8

Operating the Tractor.. .....................................

General Checks Starting the Engine Stopping the Tractor & Engine Driving the

Mowing.. ...............................................................

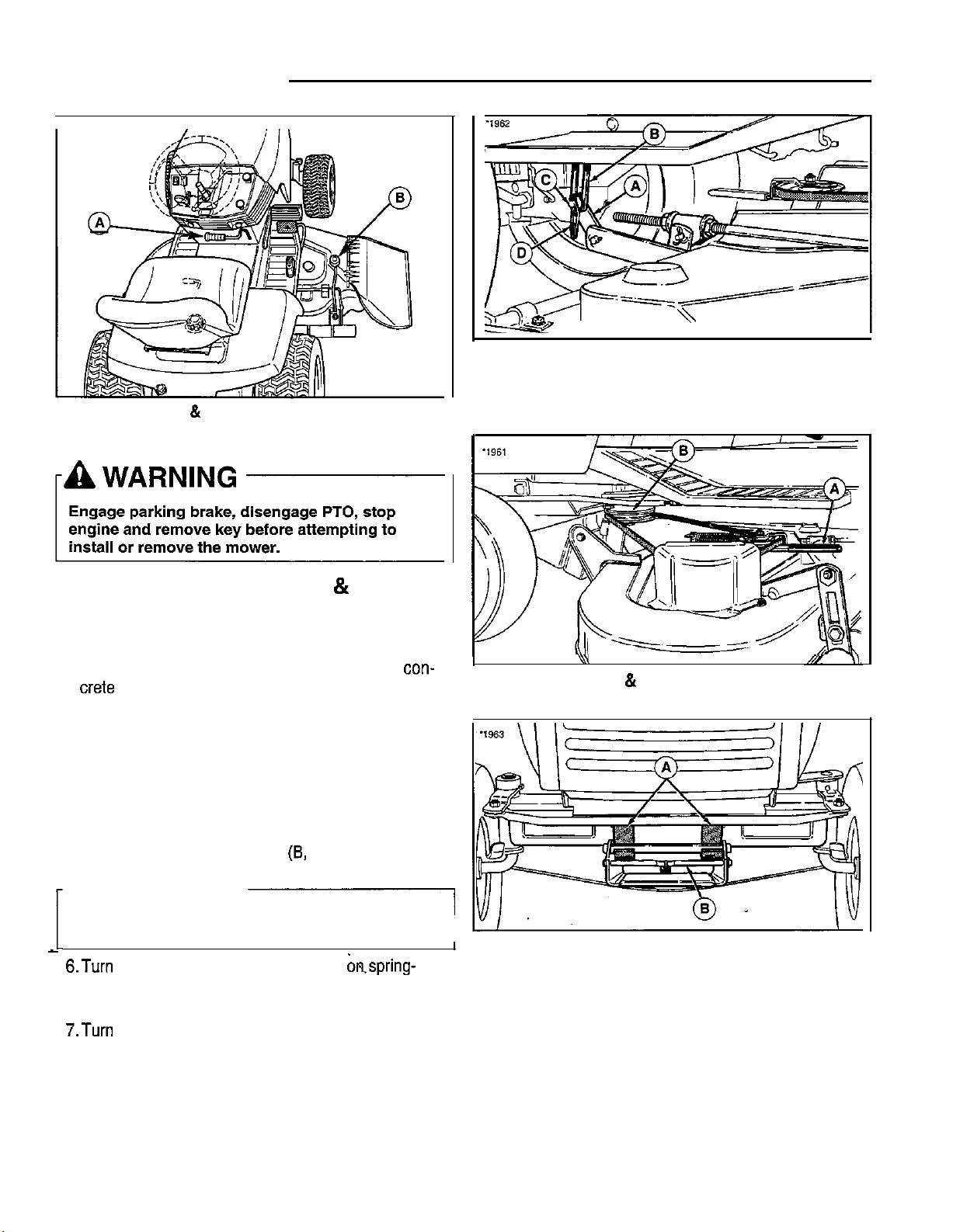

Pushing the Tractor by Hand Mower Deck Removal & Installation

Storage ................................................................

.................................................................

Before

Starting..

...............................................

Tractor ............................................... .I1

...............................

.....

..........................................

.10

.......................................

..............................

................................

..................... 12

11 11

.ll

.I4

Regular Maintenance ....................................... .15

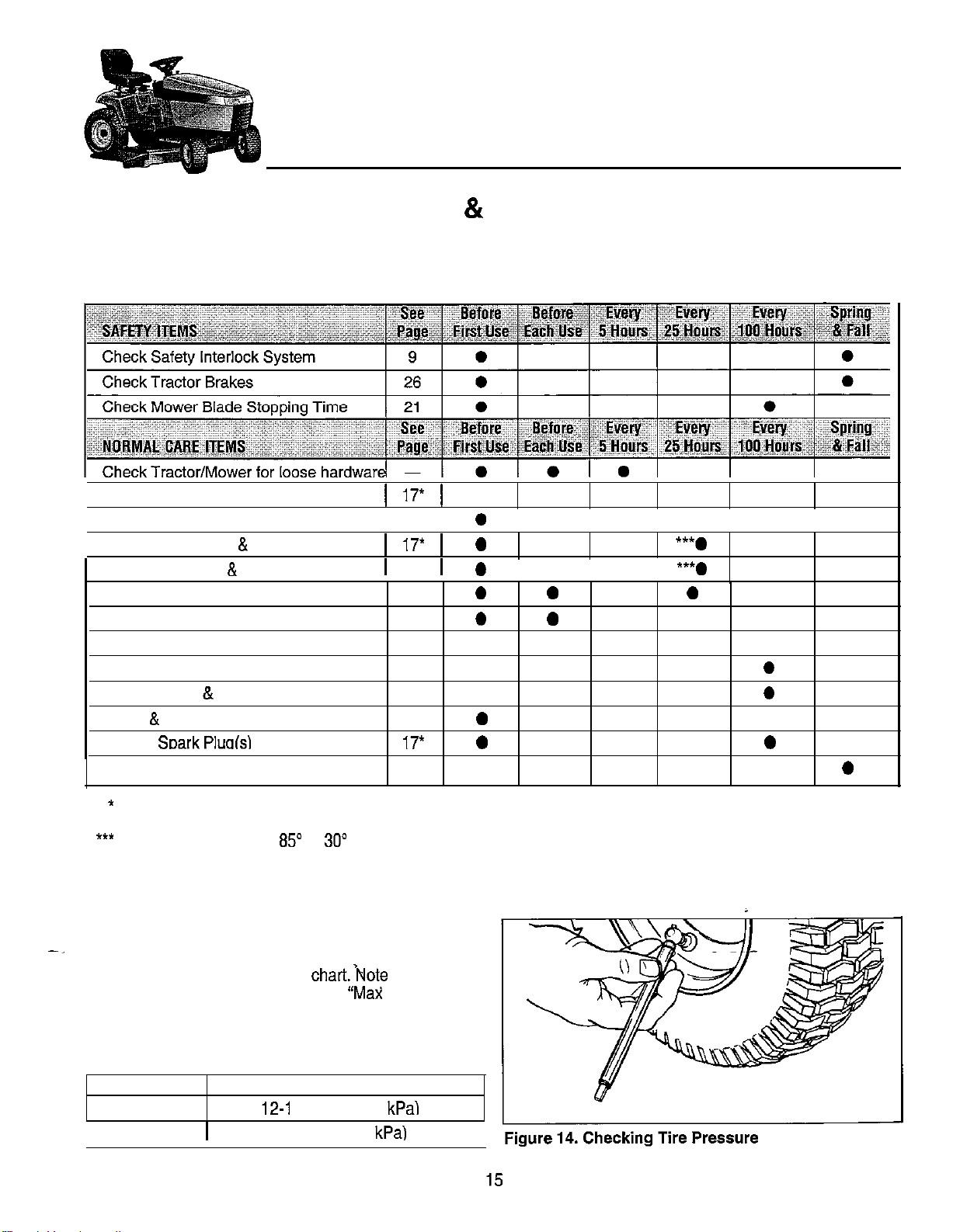

Maintenance Schedule Checking Tire Pressures Checking/Adding Check / Change Transmission Oil Accessing the Engine Compartment

Fuel Filter

Oil

& Filter

Check/Change Air

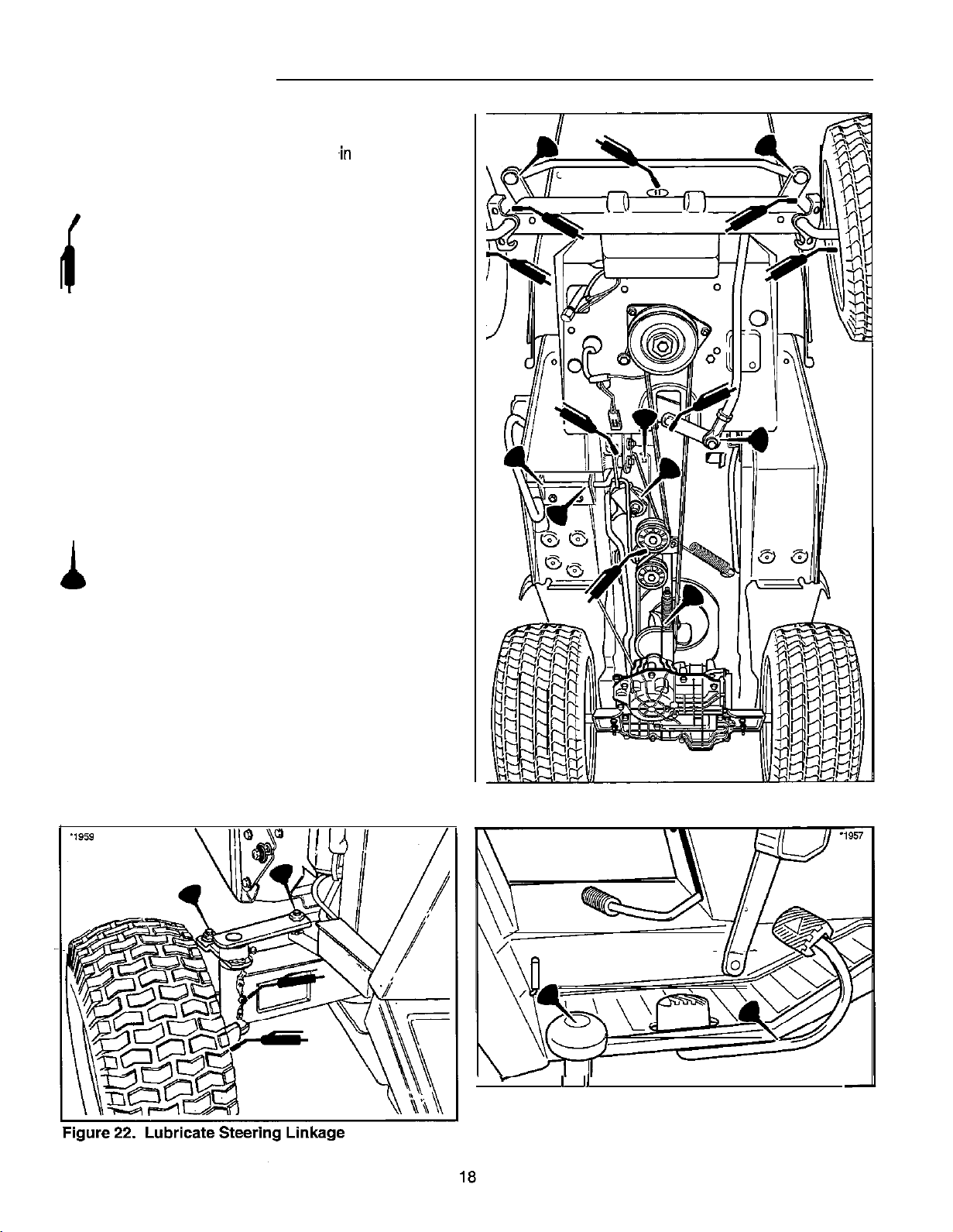

Lubrication ............................................................

Lubricate Battery

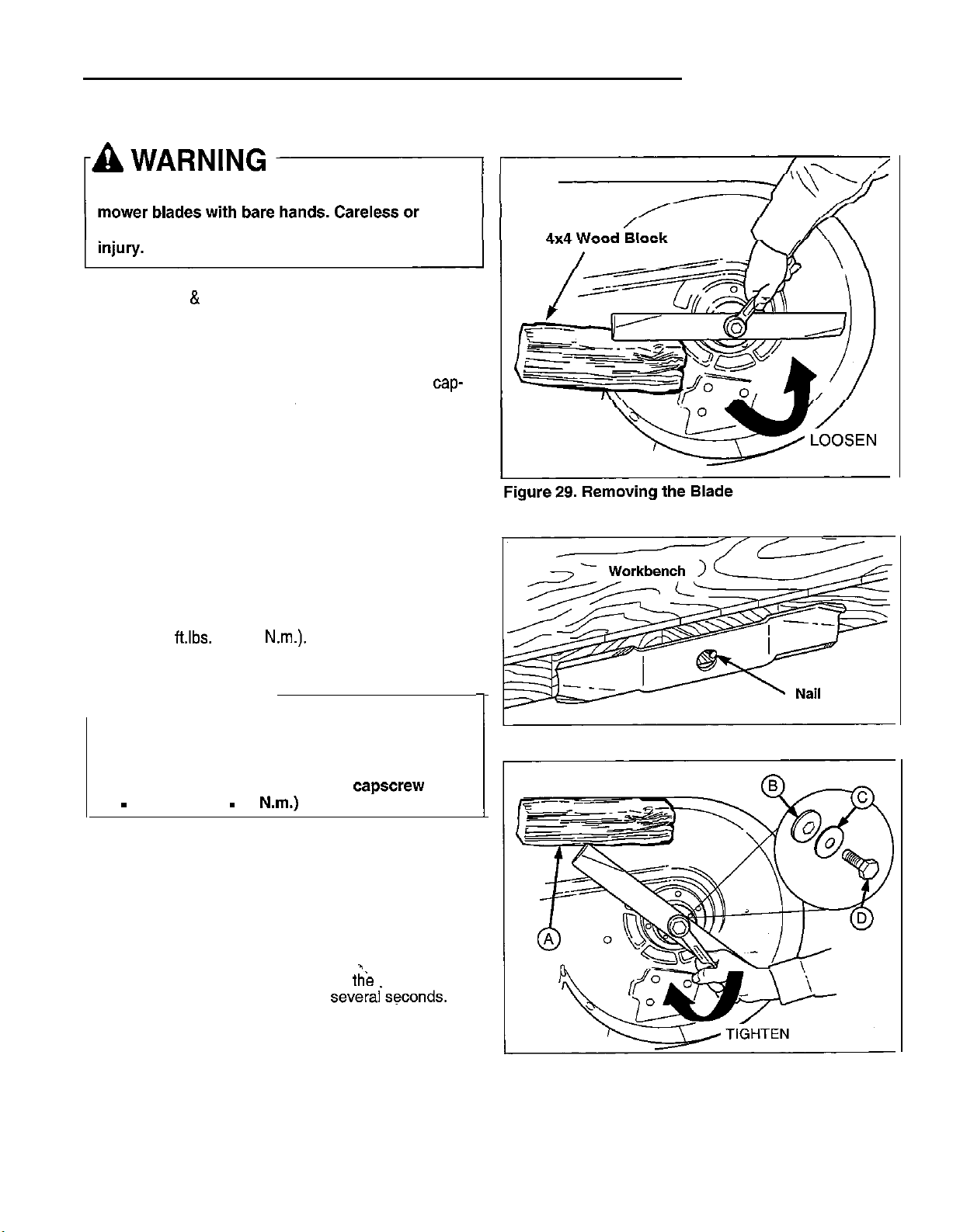

Servicing the Mower Blades Blade

Replacement..

Change..

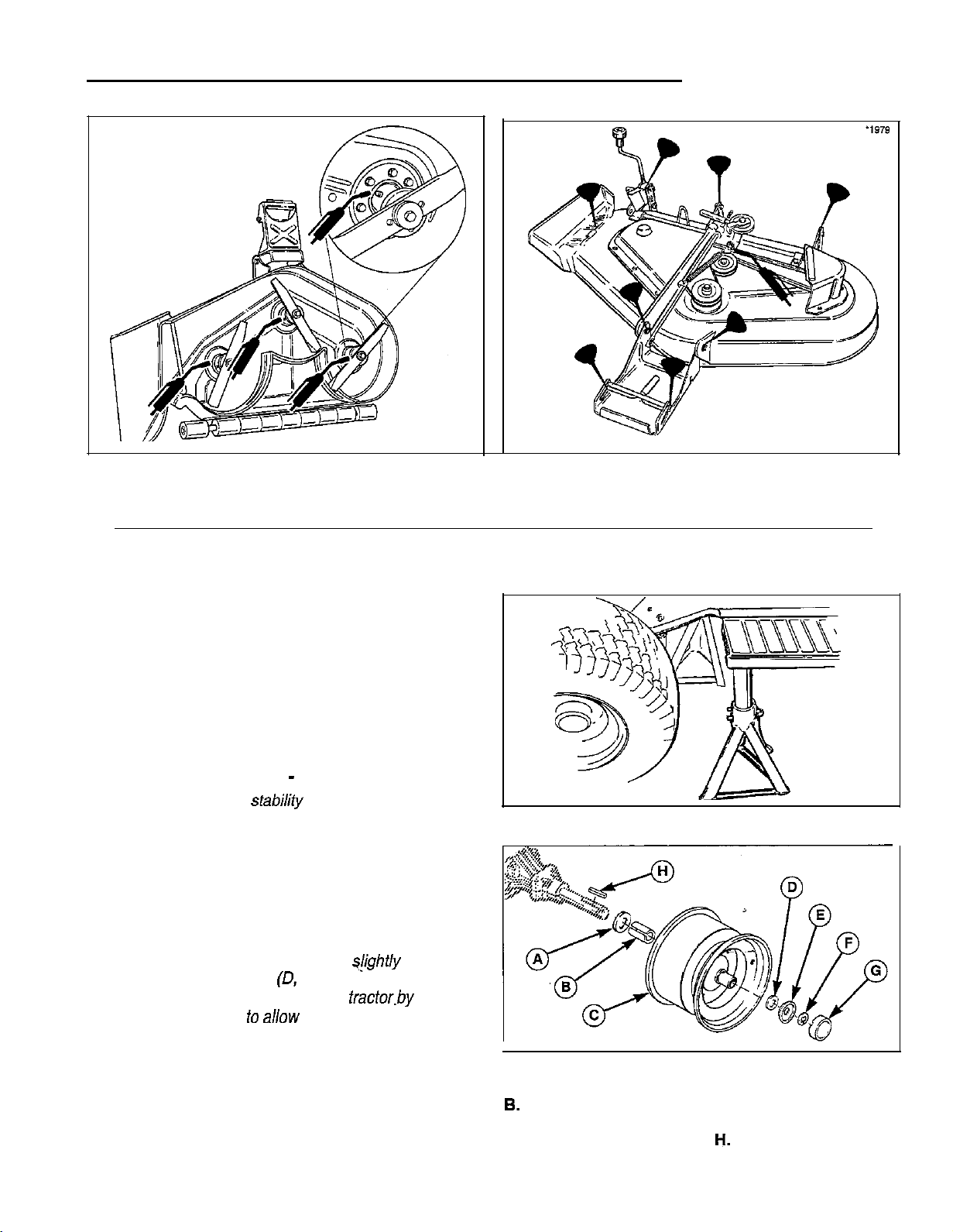

Rear Axes

Maintenance Checking Battery Fluid Cleaning the

Brake

Check..

........................................

.......................................15

Fuel.. ........................................

........................ 16

..................... 17

......................................17

.............................................

Filter ...................................... 17

............................................ .19

.............................................

.................................. 20

Battery and Cables..

.................................

............................................

............... .20

.15

.I6

.I7

.21

.2 .3

6 .

Troubleshooting, Adjustments & Service..

Troubleshooting Troubleshooting

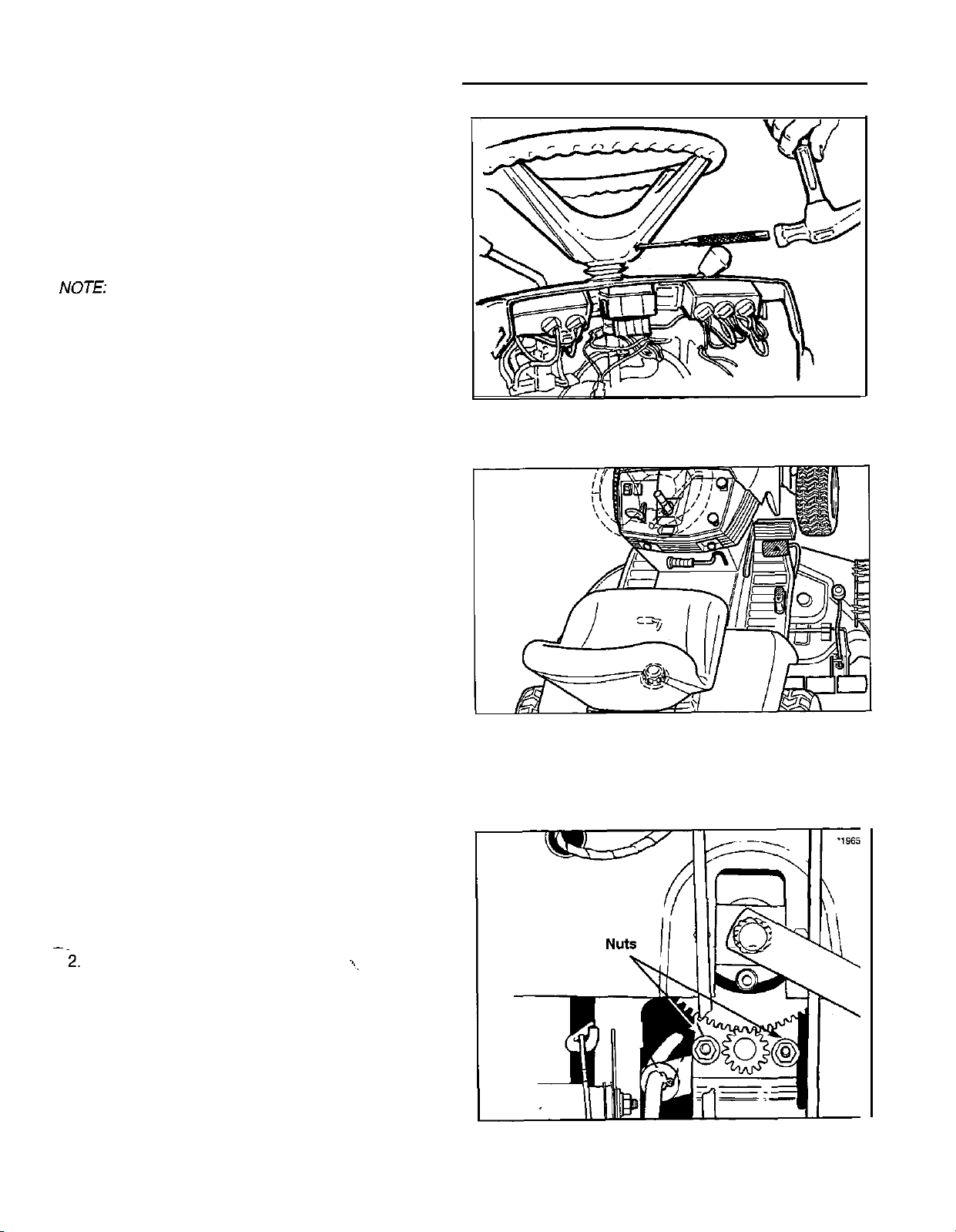

Steering Wheel Adjustment Seat Adjustment.. Steering

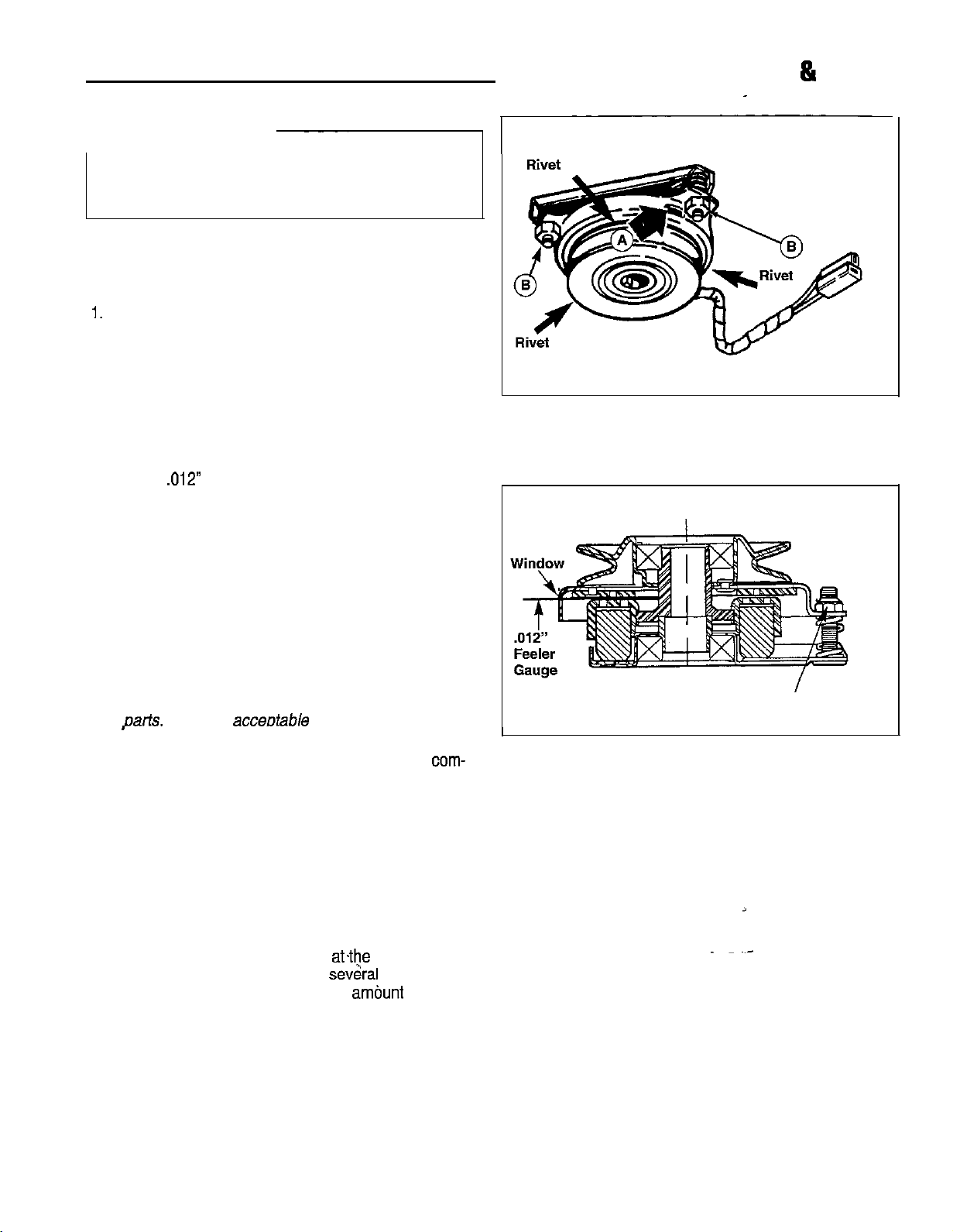

PTOClutch

Brake Mower Adjustments

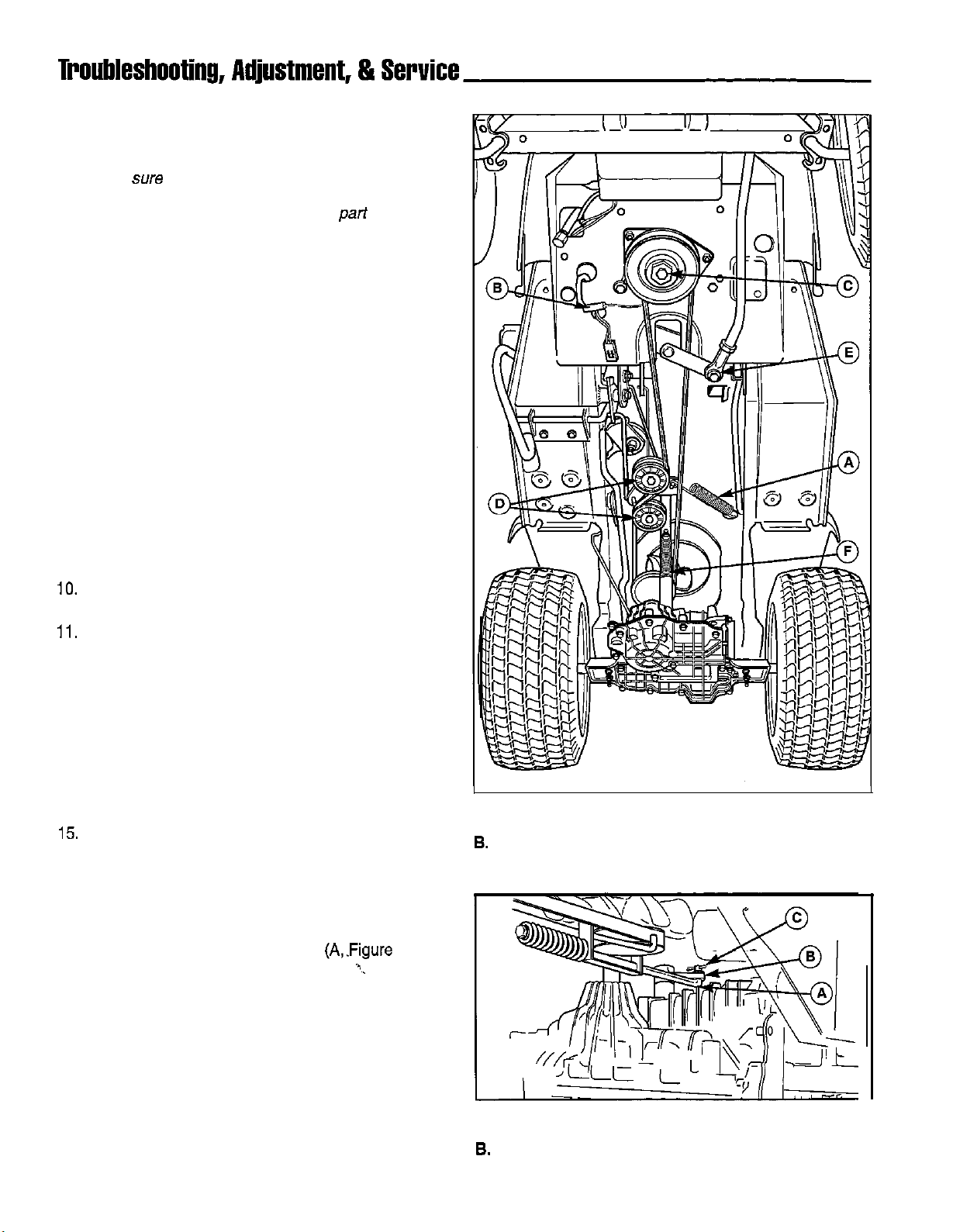

Transmission Drive Belt Replacement

Mower

Battery

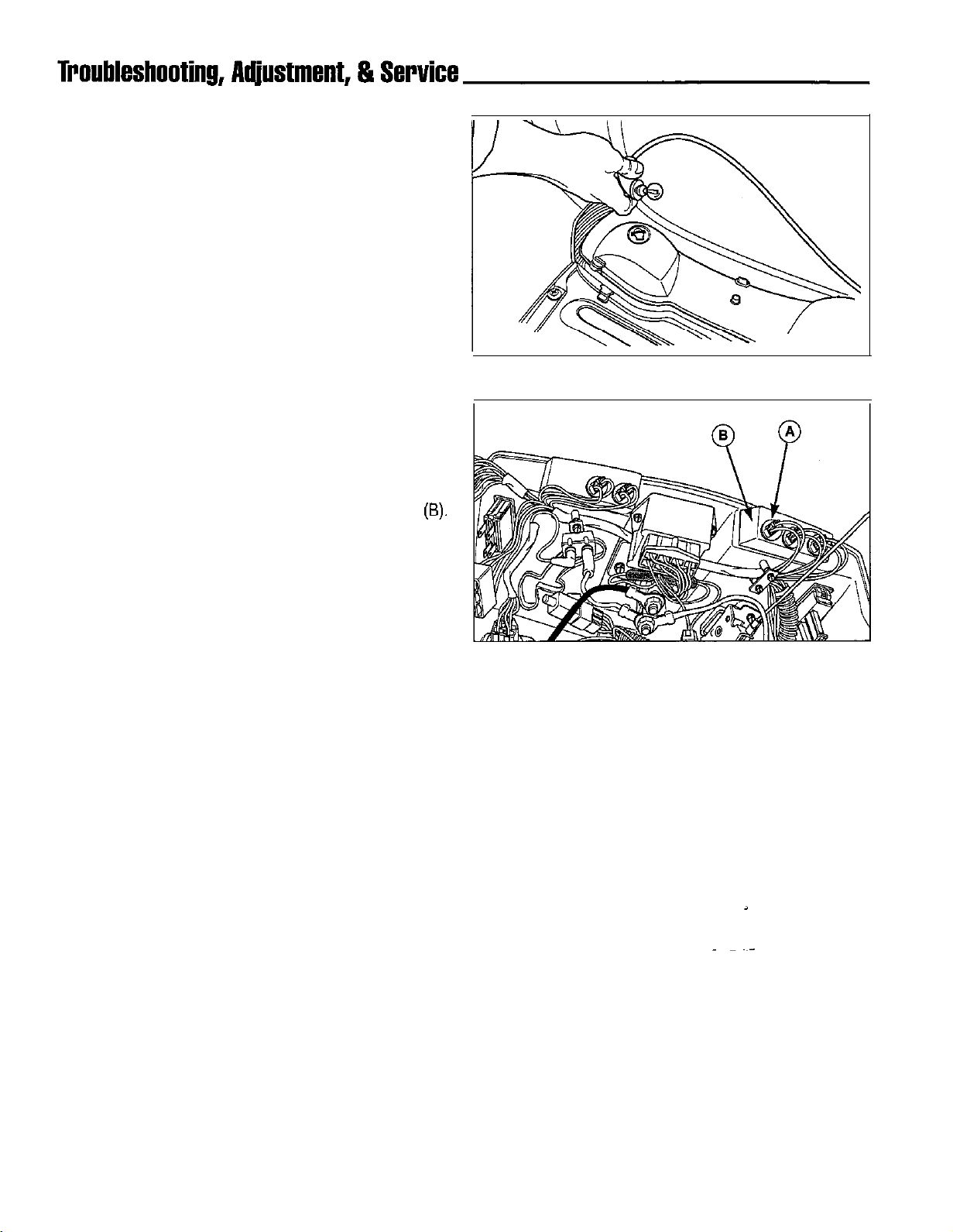

Headlight Replacement.. Dashlight Replacement

Gear Adjustment..

Blade Brake Check

Adjustment..

Cutting Leveling the Mower

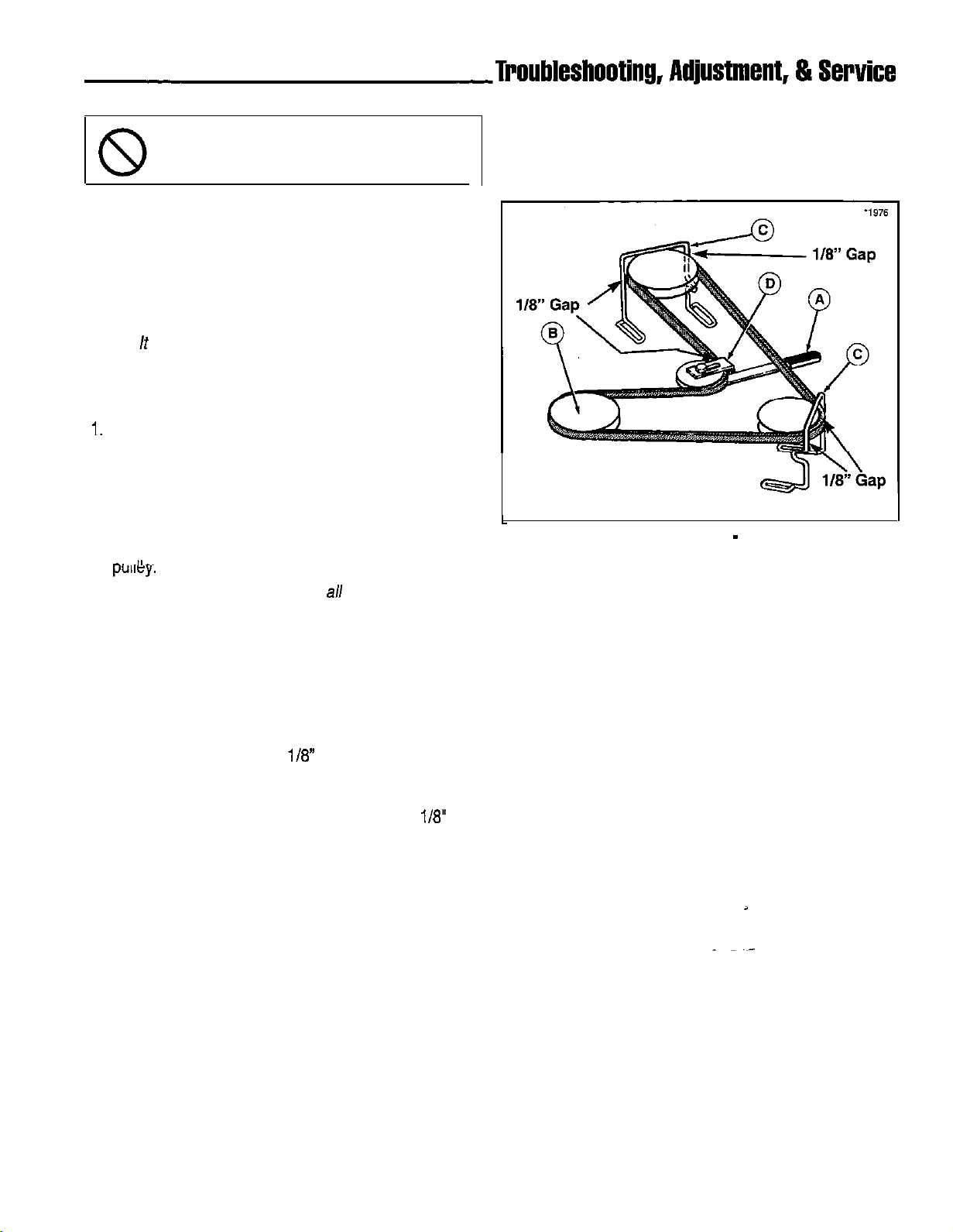

Belt 38” Mower Drive Belt Replacement 44” &

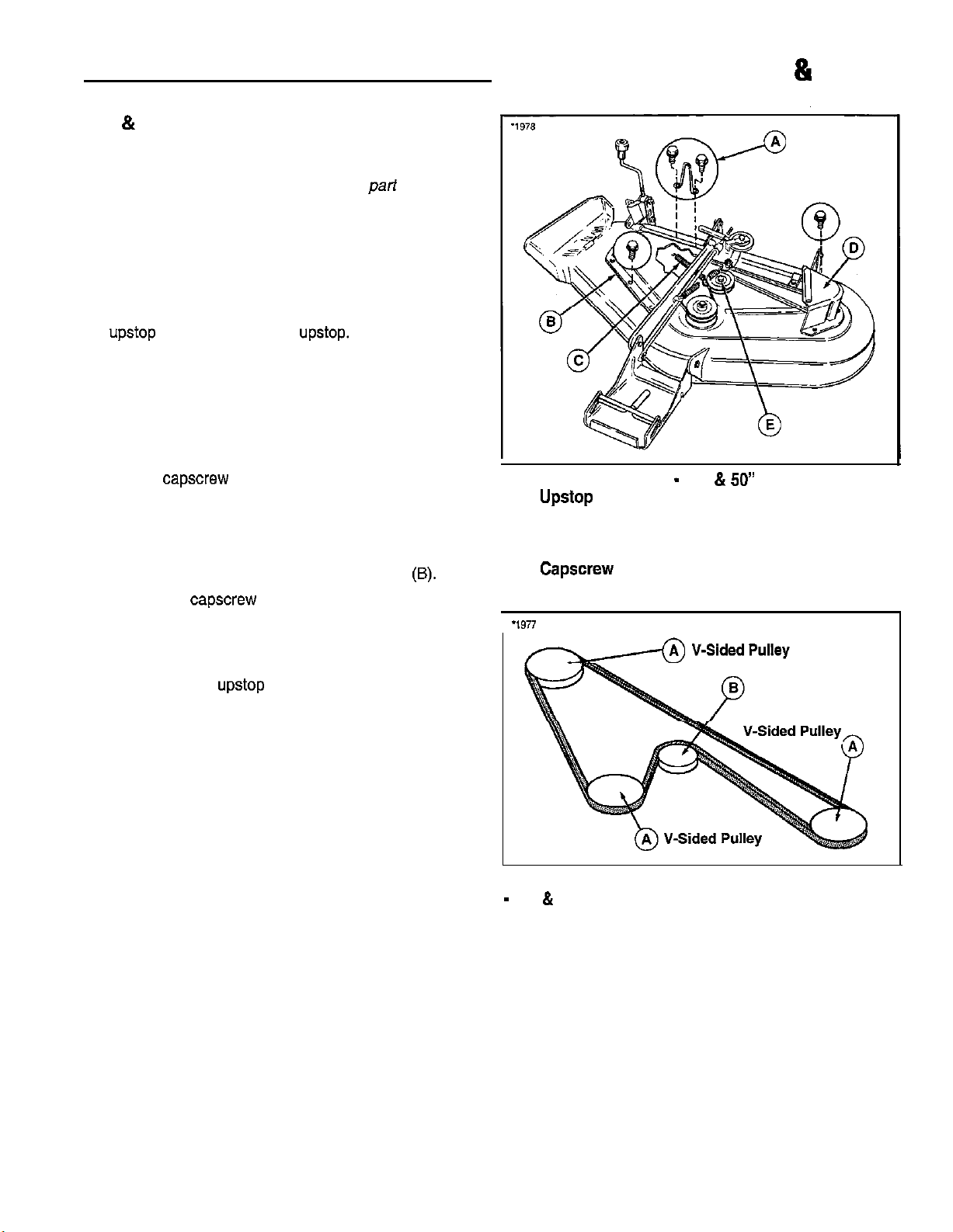

44” & 50” Arbor Drive Belt Replacement.......3 1

Service.. ...................................................

Checking Charging Jump Starting with

Specifications

the Tractor.. the Mower

..................................................

Adjustment

...............................................

..............................................26

Height Adjustment

Replacement..

50”

PTO Belt Replacement

the

Battery Voltage

A Discharged

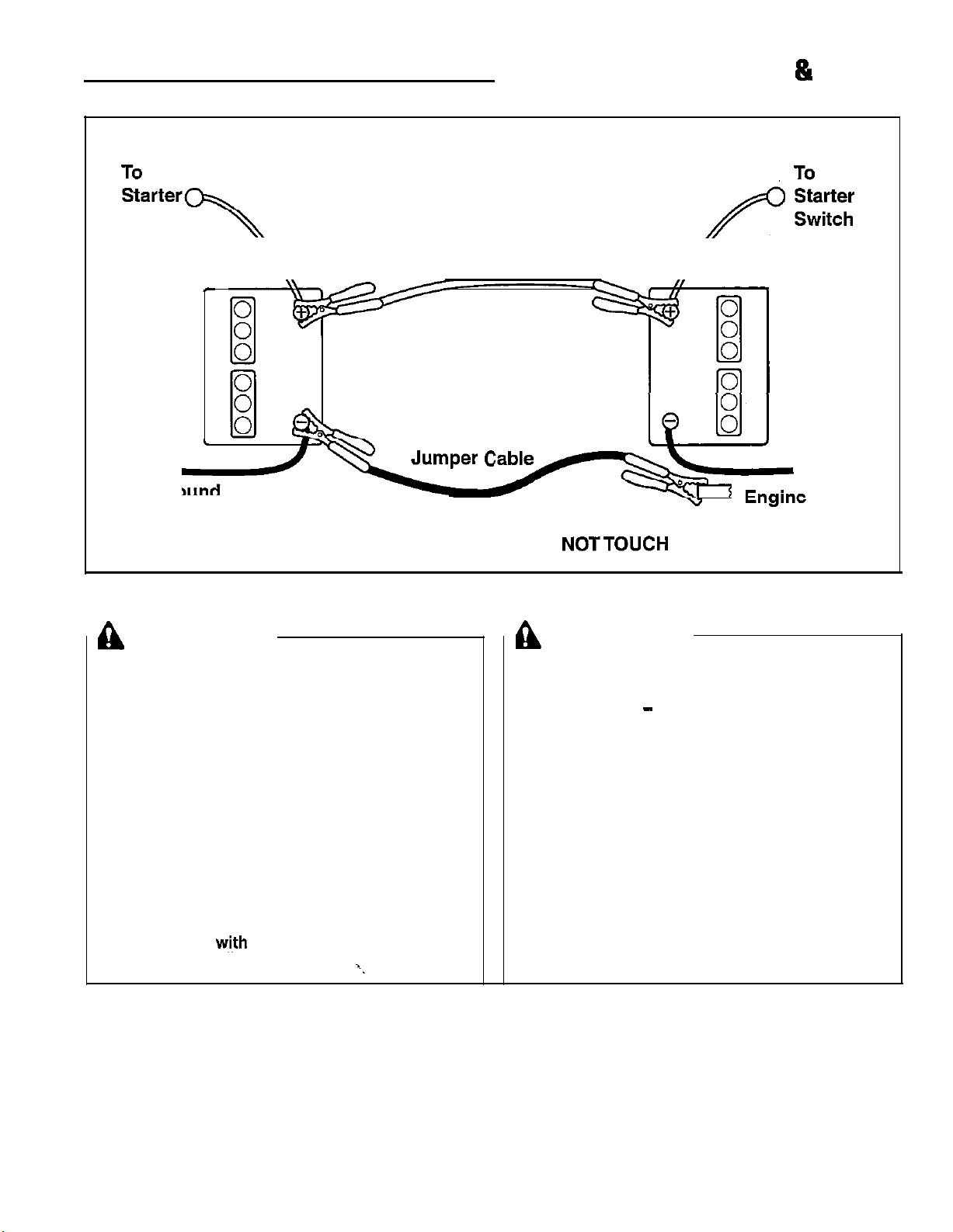

an Auxiliary Battery

............................... .22

................................. .23

..................................

.......................................

.......................................25

...........................

....................................... 27

.................. 28

................................... .29

............. .29

................

.......................... .32

Battery .......................

........... .32

......................................

.........................................

................................................... .35

Common Replacement Parts ..........................

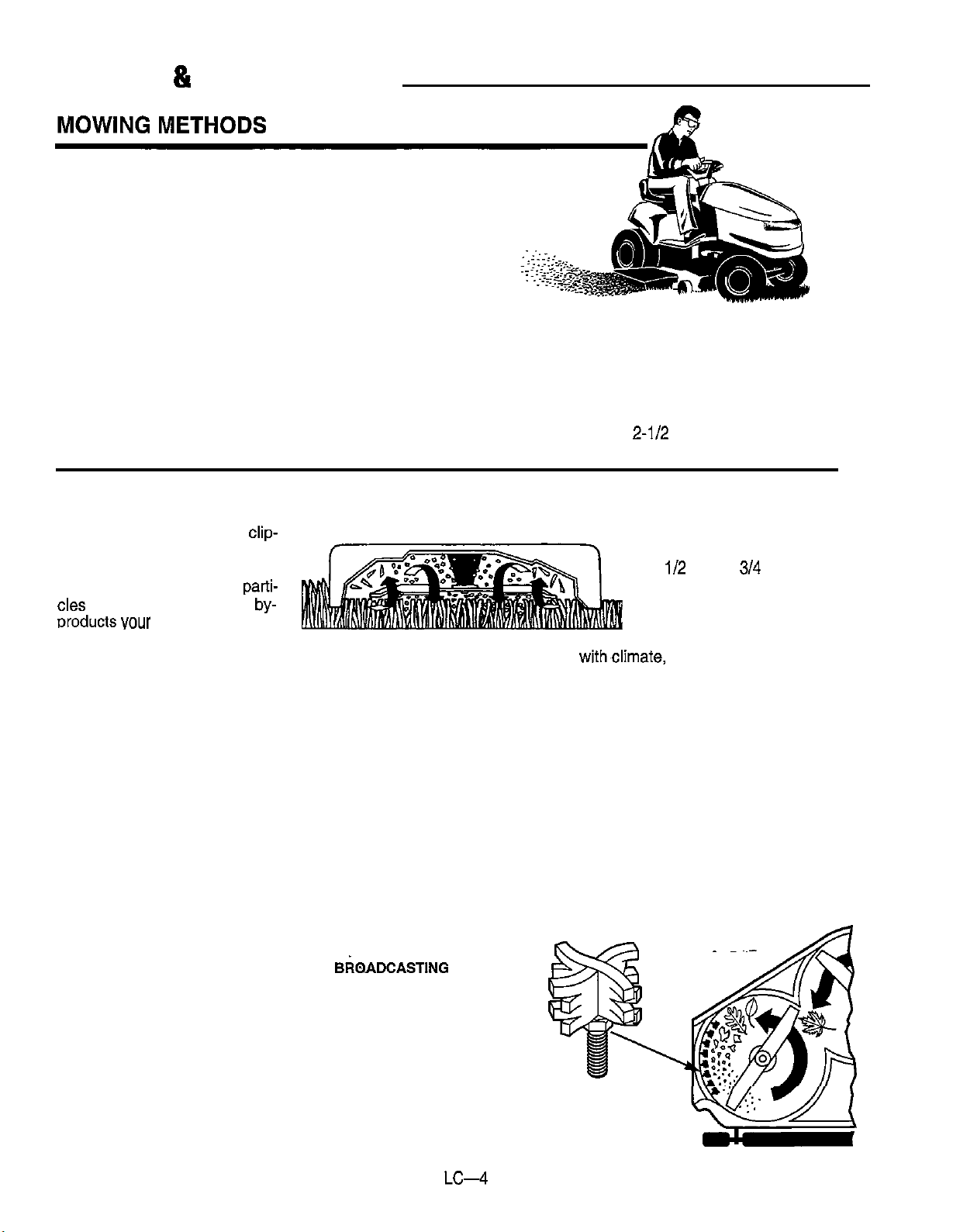

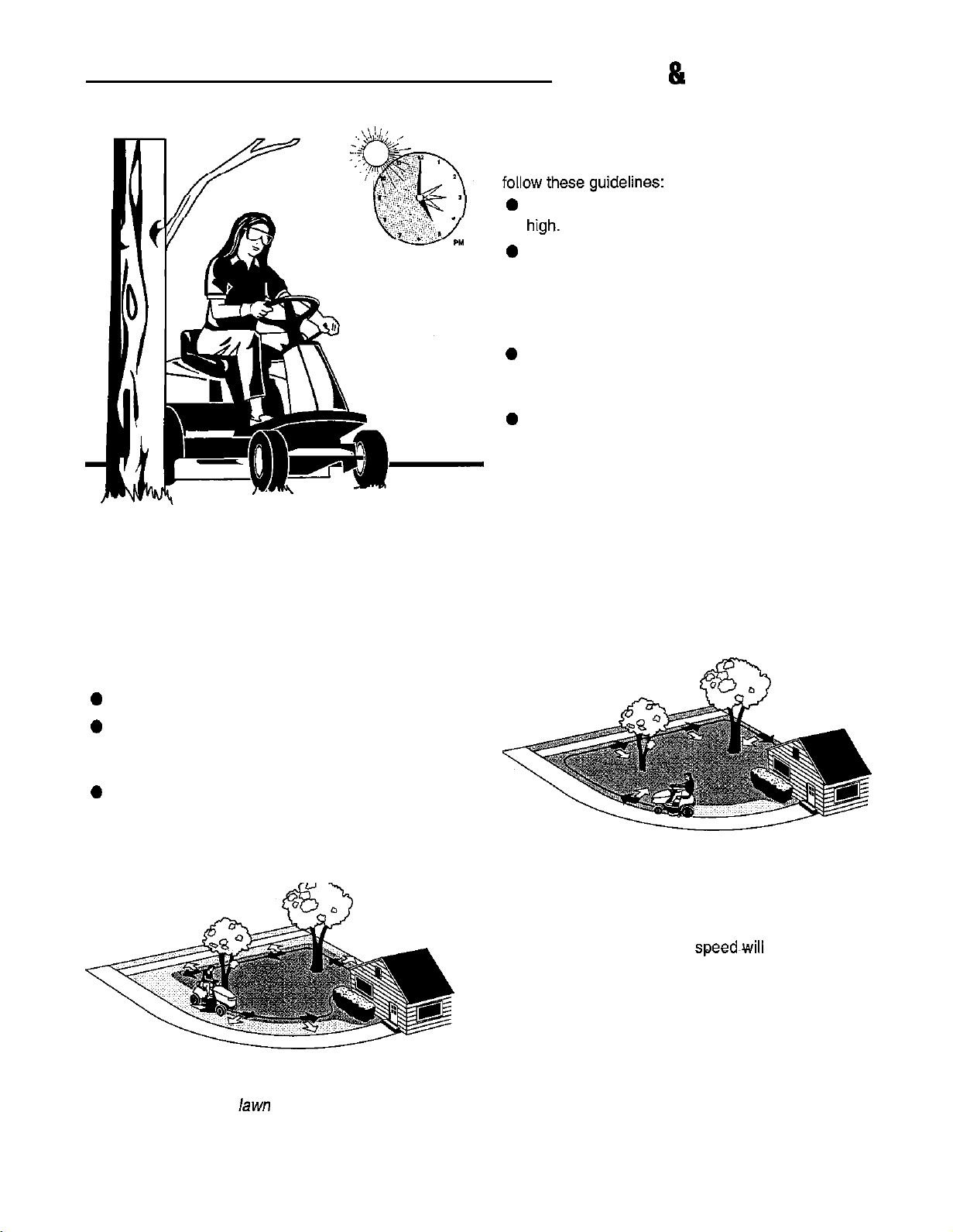

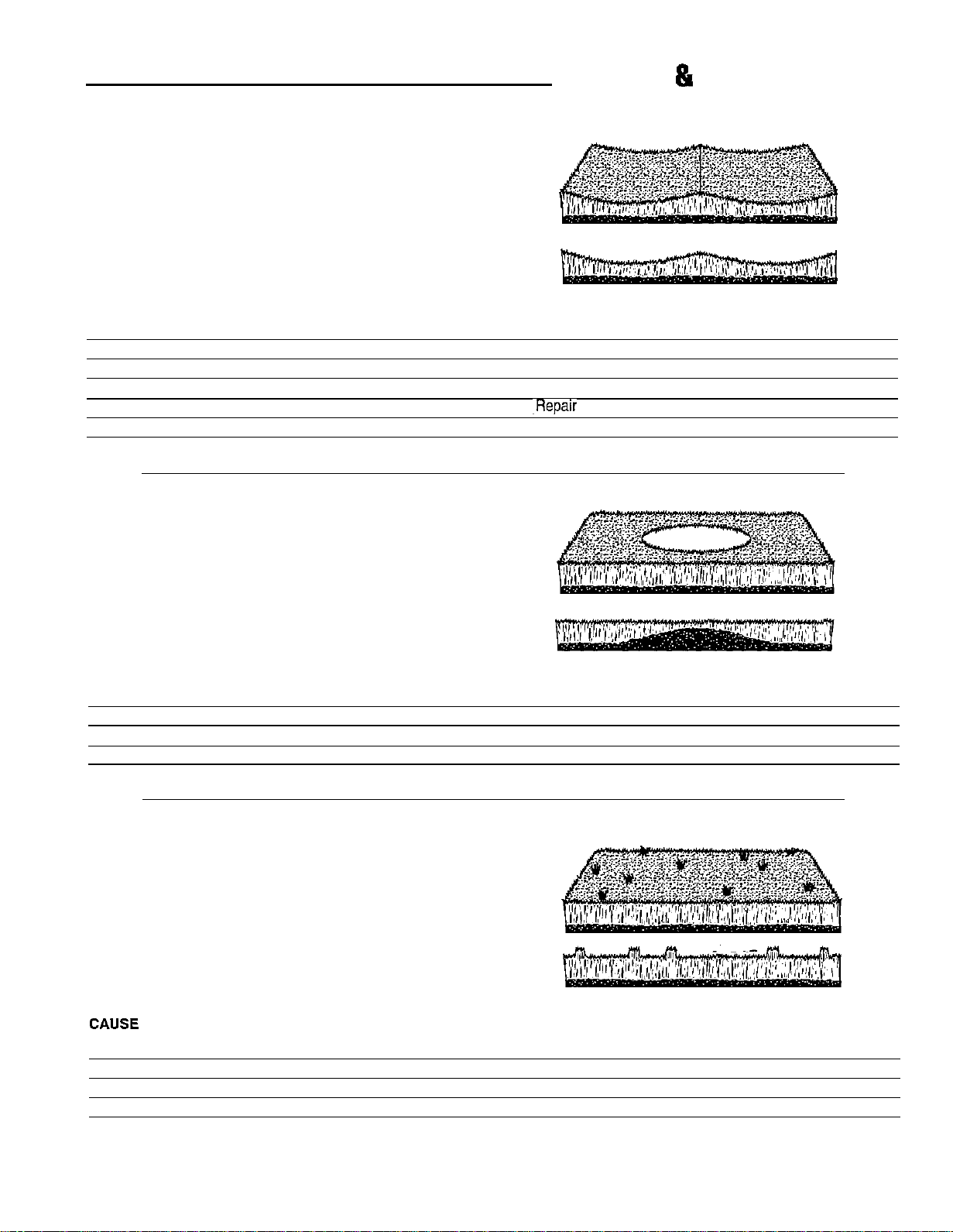

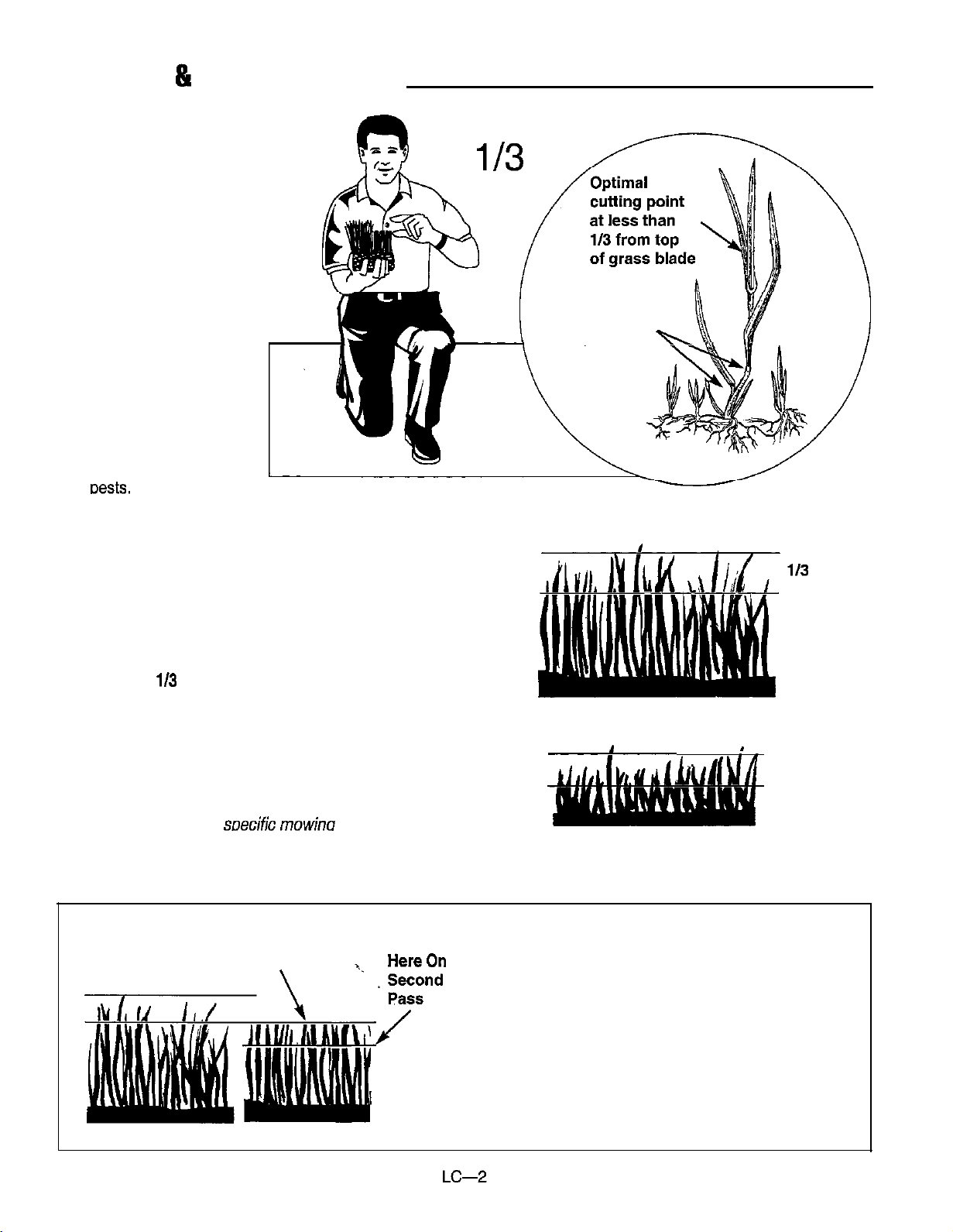

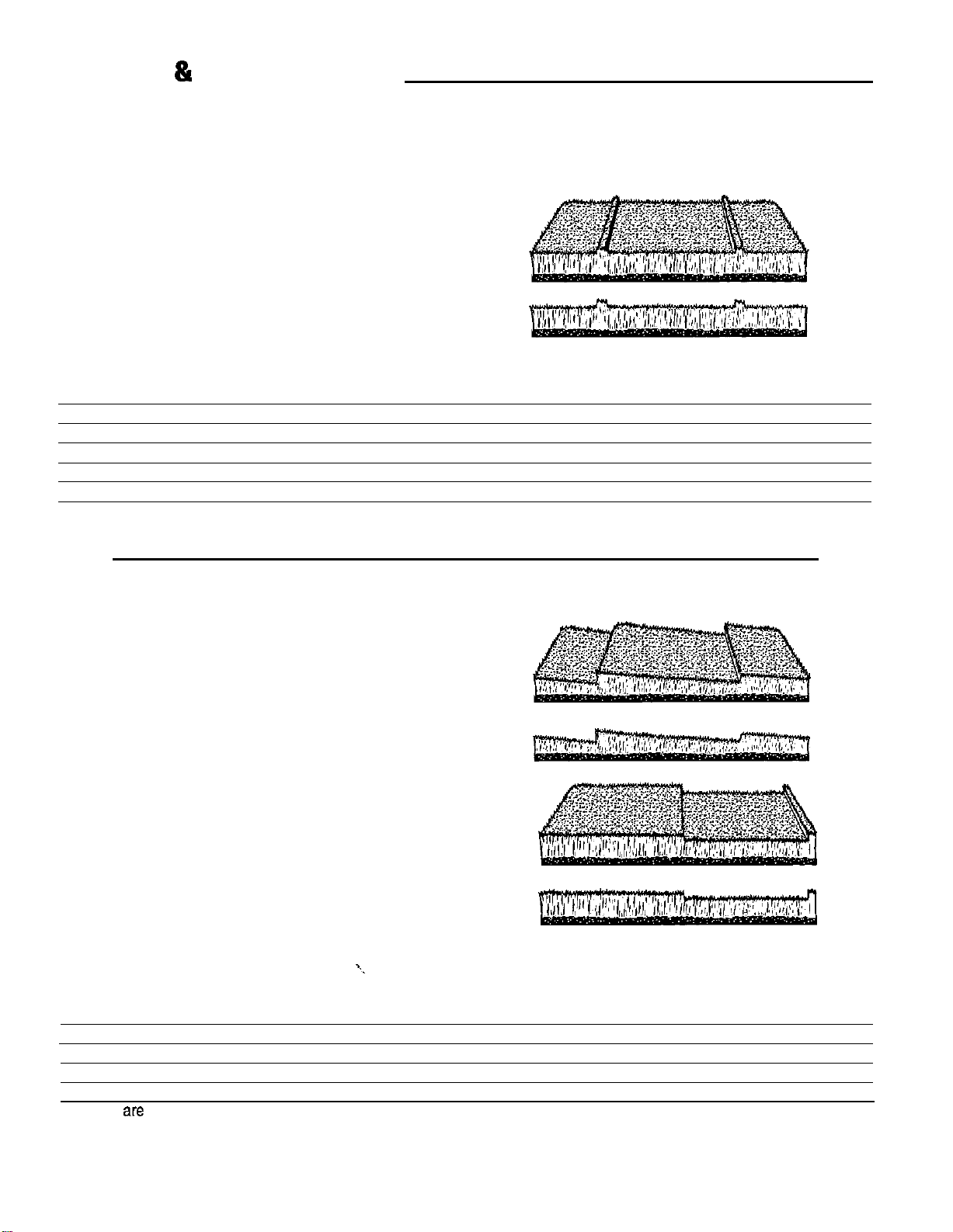

Lawn Care &Mowing Information.. ...........

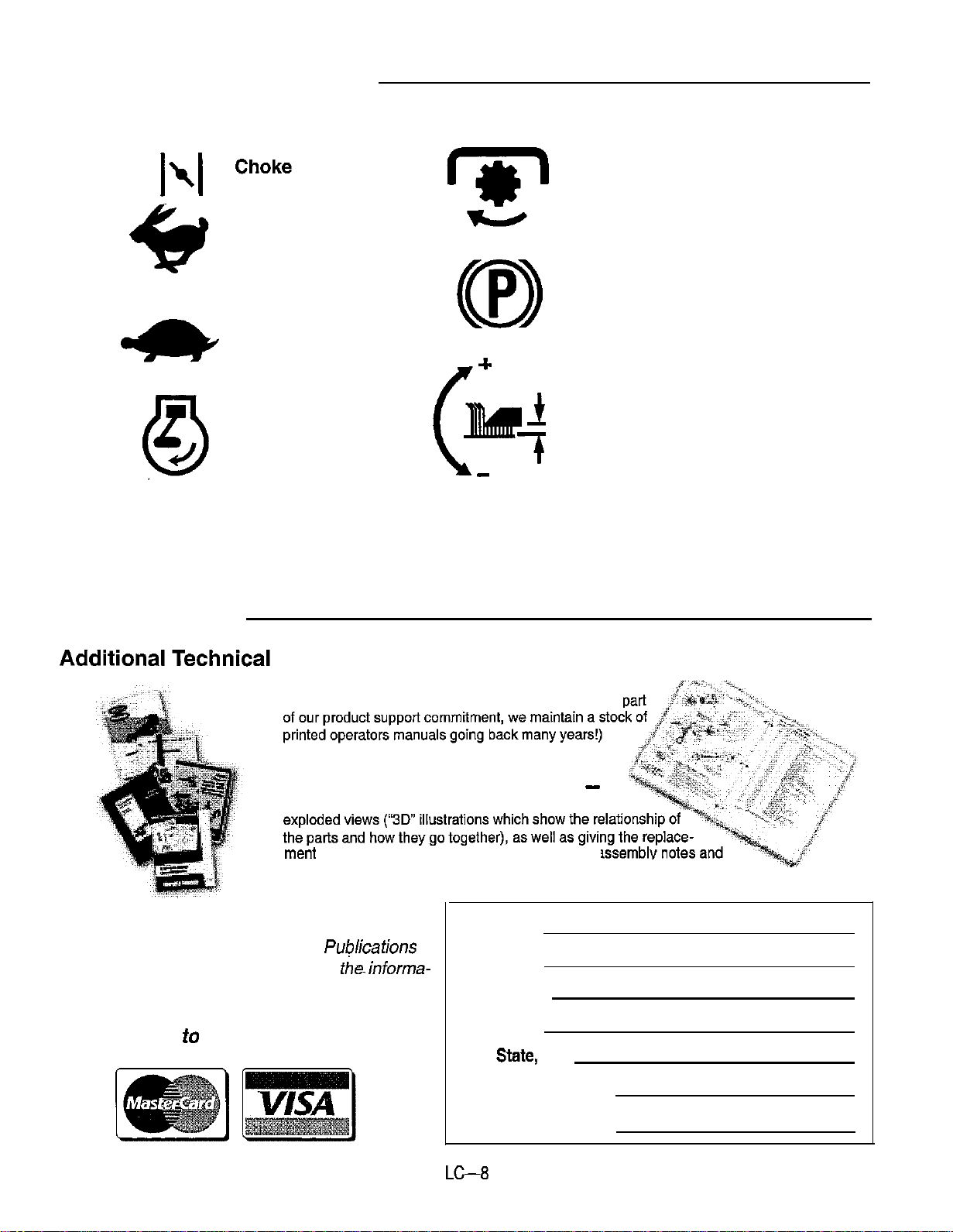

International Symbols ................................

Technical

Manuals ...................................... LC-8

... ..2 2

.24 .25

.26

.30 .32

.32

.34

.36

LC-1

LC-8

Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects, or other reproductive harm.

TP 100-2L05-02-B”-z”l

NOTE:

.seen

In this

manual, “/eft”and “right” are referred to as

from the operating position.

Identification Numbers

When contacting your Authorized

Dealer for replacement parts, service, or information YOU MUST HAVE THESE NUMBERS.

WI 53074-0997

IDENTIFICATION NUMBERS

Record your model name/number, unit and mower deck manufacturer numbers and engine serial number in the space provided for easy reference.

The Unit I.D. tag is located on the left-side, of the frame, as shown below.

The Mower Deck I.D. tag is also on the left side, on

top of the mower deck.

For location of Engine Owner’s Manual.

Be sure to fill out and return the Warranty Registration

Card supplied with your unit.

Engine Serial Number,

refer to the

Unit

Identification Tag

Mower Deck

Identification Tag

Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This

ina

deck is

fies important cautions or warnings which must be followed.

caoable

of amoutatina hands and feet and throwina

obiects.

Safety Rules

Information

The triangle

in text signi-

mow-

GENERAL OPERATION

l Read, understand, and follow all instructions in the

manual and on the unit before starting.

l Only allow responsible adults, who are familiar with

the instructions, to operate the unit.

l Clear the area of objects such as rocks, toys, wire,

etc., which could be picked up and thrown by the blade(s).

l Be sure the area is clear of other people before mow-

ing. Stop

l Never carry passengers. l Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while elling in reverse.

l Be aware of the mower discharge direction and do

not point it at anyone. Do not operate the mower without either the entire grass catcher or the deflector in place.

l Slow down before turning.

Never leave a running unit unattended. Always

disengage the PTO, set parking brake, stop engine, and remove keys before dismounting.

l Turn off the PTO switch to disengage the blades

when not mowing.

l Stop engine before removing grass catcher or

unclogging chute.

l Mow only in daylight or good artificial light. l Do not operate the unit while under the influence of

alcohol or drugs.

l Watch for traffic when operating near or crossing

roadways.

l Use extra care when loading or unl;ading the unit

into a trailer or truck.

Ynit

if anyone enters the area.

trav-

SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not drive on it.

-A WARNING

Never operate on slopes greater than 30 percent (16.7”) which is a rise of three feet vertically in 10

feet horizontally.

When operating on slopes that are greater than 15

percent (8.5”) but less than 30 percent use additional

wheel weights or counterweights when available and

applicable (see your dealer to determine which weights -if any-are available and appropriate for

your unit). Select slow ground speed before driving onto slope.

In addition to front and rear weights, use extra caution when operating on slopes with rear-mounted grass catcher.

Mow UP and DOWN the slope, never across the face, use caution when changing directions and

DO NOT START OR STOP ON SLOPE.

l See your authorized dealer for recommendations of

available weights to improve stability.

l Mow up and down slopes, not across. l Remove obstacles such as rocks, tree limbs, etc. l Watch for holes, ruts, or bumps. Uneven terrain could

overturn the unit. Tall grass can hide obstacles.

l Use slow speed. Choose a low gear so that you will

not have to stop or shift while on the slope.

l Use extra care with grass catchers or other attach-

ments. These can change the stability of the unit.

l Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction.

Do Not

l Do

notstart or stop on a slope.‘lf tires lose traction,

disengage the blade(s) and proceed slowly straight

down the slope.

l Do

notturn on slopes unless necessary, and then,

turn slowly and gradually uphill, if possible.

l Do not mow near drop-offs, ditches, or embank-

ments. The mower could suddenly turn over if a

wheel is over the edge of a cliff or ditch, or if an edge

caves in.

l Do not mow on wet grass. Reduced traction could

cause sliding.

l Do

nottry to stabilize the unit by putting your foot on

the ground.

l Do not use grass catcher on steep slopes.

Safety Rules & Information

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and the mowing activity. Never assume that chil-

dren will remain where you last saw them.

l Keep children out of the mowing area and under the

watchful care of another responsible adult.

l Be alert and turn unit off if children enter the area. l Before and during reverse operation, look behind and

down for small children.

l Never carry children. They may fall off and be seri-

ously injured or interfere with safe unit operation.

l Never allow children to operate the unit.

l Use extra care when approaching blind comers, shrubs,

trees, or other objects that may obscure vision.

TRANSPORTING AND STORAGE

l Always observe safe refueling and fuel handling prac-

tices when refueling the unit after transportation or storage.

l Always follow the engine manual instructions for

storage preparations before storing the unit for both short and long term periods.

l Always follow the engine manual instructions for

proper start-up procedures when returning the unit to

service.

l Never store the unit or fuel container inside where

there is an open flame or pilot light, such as in a water heater. Allow unit to cool before storing.

SERVICE AND MAINTENANCE

l Use extra care in handling gasoline and other fuels.

They are flammable and vapors are explosive.

a) Use only an approved container.

b) Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not smoke.

c) Never refuel the unit indoors.

l Never run a unit in an enclosed area. l Keep nuts and bolts, especially blade attachment

bolts, tight and keep equipment in good condition.

l Never tamper with safety devices. Check their proper

operation regularly.

l Keep unit free of grass, leaves, or other debris build-

up. Clean up oil or fuel spillage.

l Stop and inspect the equipment if you strike an

object. Repair, if necessary, before restarting.

l Never make adjustments or repairs with the engine

running unless specified otherwise in the engine manufacturer’s manual.

l Grass catcher components are subject to wear, dam-

age, and deterioration, which could expose moving

parts or allow objects to be thrown. Frequently check

components and replace with manufacturer’s recom-

mended parts, when necessary.

l Mower blades are sharp and can cut. Wrap the

blade(s) or wear gloves, and use extra caution when

servicing them.

l Check brake operation frequently. Adjust and service

as required.

l Use only factory authorized replacement parts when

making repairs.

l Always comply with factory specifications on all

settings and adjustments.

l Only authorized service locations should be utilized

for major service and repair requirements.

l Never attempt to make major repairs on this unit

unless you have been properly trained. Improper ser-

vice procedures can result in hazardous operation,

equipment damage and voiding of manufacturer’s

warranty.

WARNING

Never place hands near the hydro pump cooling

fan when the unit is running.

located on top of transaxle.

Cooli?g fan is

Safety Rules 81 Information

SAFETY DECALS

This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment

manufacturing. Although reading this manual and the safety instructions

it contains will provide you with the necessary basic knowledge to operate this equipment safely

tively, we have placed several safety labels on the unit to

remind you of this important information while you are operating your unit.

and~effec-

All DANGER, WARNING, CAUTION and instructional

messages on your rider and mower should be carefully

read and obeyed. Personal bodily injury can result when these instructions are not followed. The information is for your safety and it is important! The safety decals below

are on your rider and mower.

If any of these decals are lost or damaged, replace them

at once. See your local dealer for replacements.

These labels are easily applied and will act as a constant

visual reminder to you, and others who may use the

equipment, to follow the safety instructions necessary for

safe, effective operation.

Decal - Danger

Part No. 1704278

Decal

Operating Instructions Bottom Panel

Part

No. 1718209

Decal - Danger

Part No. 1704277

Features

Controls

Please take a moment and familiarize yourself with the name, location, and

function of these controls so that you will

better understand the safety and operating instructions provided in this manual.

Figure 1. Tractor & Mower Controls

A. Choke (Twin Cylinder Models Only)

B. Throttle/Choke C. Light Switch D. Dashboard Display Lights

E. PTO Switch F.

Parking Brake I Cruise Control

G. Ignition Switch

H. Brake Pedal

Forward Ground Speed Pedal J. Mower Height of Cut Adjust Knob K. Reverse

L. Mower

M. Seat Adjustment Lever

Gas Cap / Gas Gauge

0. Transmission Oil Reservoir P. Hour Meter

Q. Steering Wheel

Ground Speed Pedal

Liff

Lever

CONTROL FUNCTIONS

The information below brief/y describes the function of individual controls. require the combined use of several controls of controls to use for various tasks see the OPERATION section.

A. Choke (Twin Cylinder Models Only)

Pulling the choke control OUT closes the choke for cold

starting. A warm engine may not require choking.

B. Throttle / Choke Control

The throttle controls engine speed. Move the throttle for-

ward to increase engine speed, and back to decrease engine speed. Always operate at FULL throttle. On sin-

-tile cylinder models, ward closes the choke. A warm engine may not require

choking.

moving

the throttle co”,t’ol fully for-

C. Light Switch

The light switch turns the tractor lights on and off.

Dashboard Display Lights

The dashboard display lights show a variety of engine

operation and control status information. See page 8 for

more detailed information.

appJied

in specific sequences. To learn what combination and sequence

E. PTO Switch

The PTO (Power Take-Off) switch engages and disengages attachments that use the front PTO. To engage

the PTO, pull UP on the switch. Push DOWN to disen-

gage. Note

tractor seat for the PTO to function.

F. Parking Brake I Cruise Control Knob

The parking brake /cruise control knob is used to lock the parking brake when the tractor is stopped AND to

lock the cruise control when the tractor is in motion. Fully depressing the brake pedal and pulling up on the

knob engages the parking brake.

Pulling up on the knob while depressing the forward ground speed pedal engages the cruise control.

Refer to page cruise control functions.

Starting, stopping, driving, and mowing

that

the

operator must be seated firm/y in the

for a full explanation of parking brake!

Features & Controls

G. Ignition Switch

The ignition switch starts and stops the engine, it has three positions:

OFF

RUN Allows the engine to run and powers the

START Cranks the engine for starting.

NOTE: Never leave the ignition switch in the RUN position with the engine stoppe6this drains the battery.

Stops the engine and shuts off the

electrical system.

H. Brake Pedal

Depressing the brake pedal applies the tractor brake.

Forward Ground Speed Pedal

The tractor’s forward ground speed is controlled by the forward ground speed control pedal.

Depress the pedal to increase FORWARD ground

speed. Note that the further down the pedal is

depressed, the faster the tractor will travel.

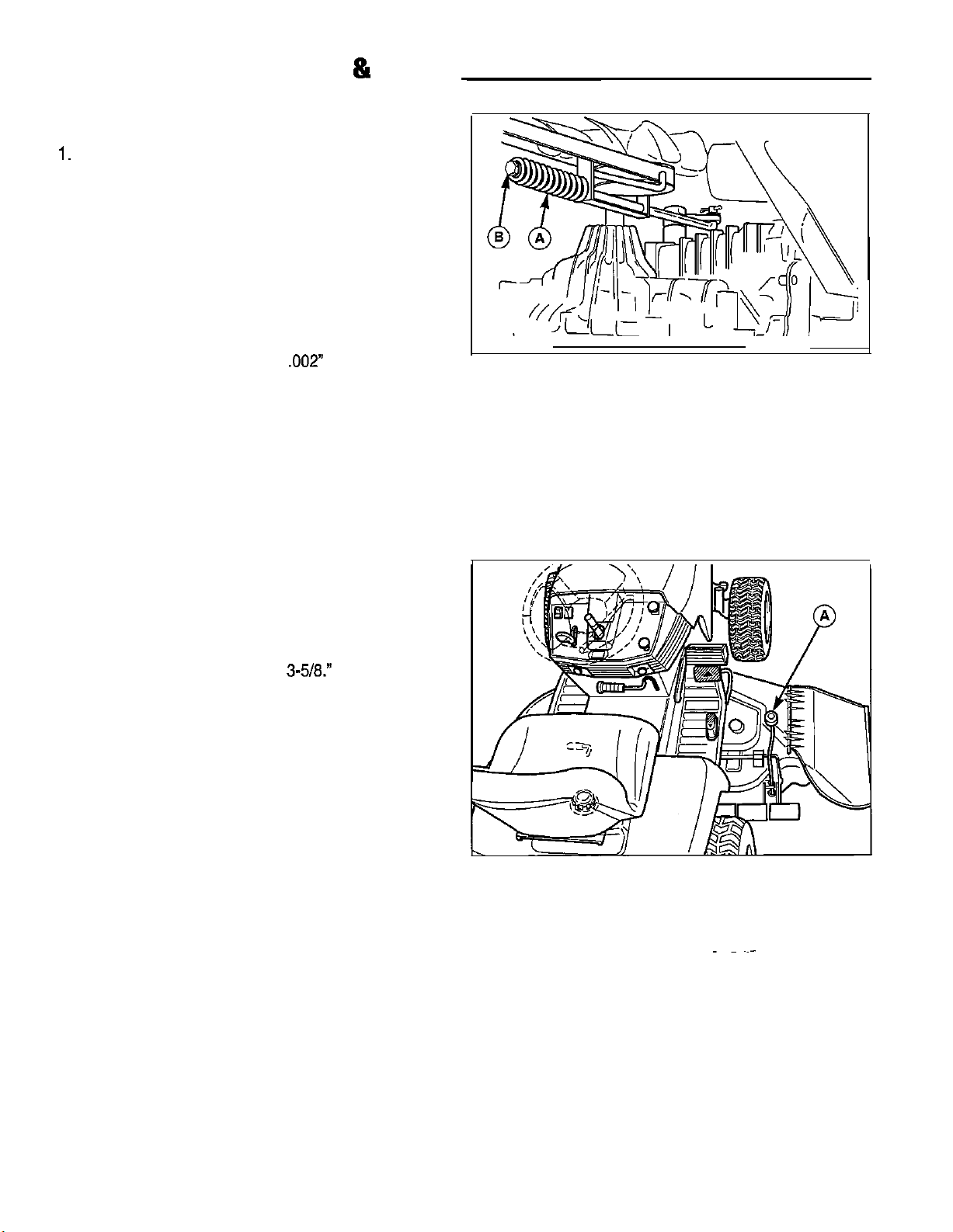

J. Mower Cut of Height Adjustment Knob

The cutting height adjustment knob controls the mower cutting height. The cutting height is infinitely adjustable

between

1”

and 3-5/K”

K. Reverse Ground Speed Pedal

The tractor’s reverse ground speed is controlled by the

reverse ground speed control pedal (I, Figure 1).

L. Mower Lift Lever

The mower lift lever raises the mower deck off the ground for transporting. DO NOT cut with the lift lever in the raised position.

M. Seat Adjustment Lever

The seat can be adjusted forward and back. Move the

lever, position the seat as desired, and release the lever

to lock the seat into position.

N. Gas Cap

The combination gas cap/gas gauge shows the amount of fuel in the tank. To remove the cap, turn counterclockwise.

I Gas Gauge

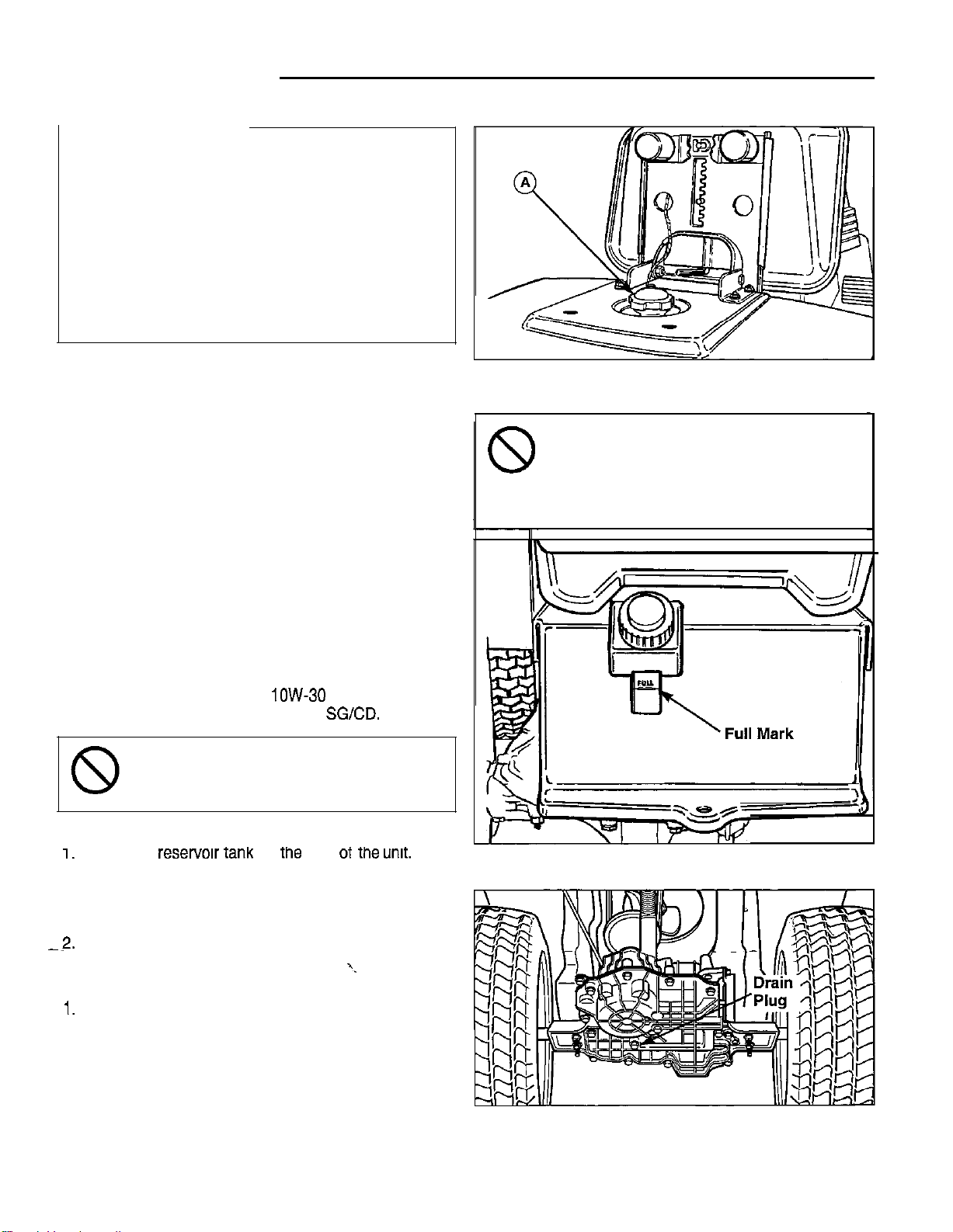

0. Transmission Oil Reservoir

The transmission oil reservoir holds “extra” oil for the transmission. The oil level can be checked by looking at the reservoir just beneath the fill cap.

P. Hour Meter

The hour meter shows the number of hours the key has

been in the RUN position. Models equipped with digital hour meters:

Digital hour meters flash maintenance icons at factory-

set intervals for lubrication and oil changes.

Q. Adjustable Steering Wheel

The tractor is equipped with a two position steering column See Adjustments section for adjustment procedure.

Depress the REAR pedal to increase REVERSE ground

,speed.

Note that the further down the pedal is

depressed, the faster the tractor will travel.

Features 81 Controls

PARKING BRAKE / CRUISE CONTROL KNOB FUNCTIONS

Applying the Parking Brake - See Figure 2. To lock

the parking brake, release the ground speed pedals (A), fully depress the brake pedal (B), pull UP on the parking

brake /cruise control knob (C), and then release brake pedal.

Releasing the Parking Brake - See Figure 2. To

release the parking brake, fully depress the brake pedal (B) and push the parking brake /cruise control knob (C) DOWN.

Applying the Cruise Control

the cruise control, depress the forward ground speed

pedal (A) until the desired speed is achieved. Then pull up on the parking brake/cruise control knob (B) and release the forward ground speed pedal (A).

Releasing the Cruise Control

cruise control can be released three ways:

1. Tap the forward ground speed pedal (A).

2. Push the parking brake /cruise control knob (C) DOWN.

3. Depress the brake pedal (B).

In the event you need to stop quickly, fully depressing the brake pedal (I, Figure 1) will automatically release the cruise control and stop the tractor.

For normal operation, it is recommended that you manually disengage the cruise control by tapping the forward ground speed pedal or pushing the parking brake/cruise control knob down.

DASHBOARD DISPLAY FUNCTIONS

Refer to Figure 4.

See Figure 3. To apply

See Figure 3. The

Figure 2. Engaging the Parking Brake

A. Ground Speed Pedals

Brake Pedal

C. Parking Brake I Cruise Control Knob

Figure 3. Cruise Control Function

A. Forward Ground Speed Pedal

B. Brake Pedal

C. Parking Brake I Cruise Control Knob

A. Headlight Indicator Light

Indicates that the headlights are on.

B. Low Oil Pressure Light

Indicates that the engine oil pressure is low.

C. Operator Seated Light

-Indicates that the operator present seat switch has been activated. This light must be lit for the

engihe

to start.

D. Parking Brake I Cruise Control Likht

Indicates that the parking brake or cruise control is

engaged.

E. PTO Light

Indicates the PTO switch is in the ON position.

F. Hour Meter

Shows the number of hours the key has been in the ON position.

Figure 4. Dashboard Display

SAFETY

Features %I Controls

his unit is equipped with safety interlock switches

other safety devices. These safety systems are resent for your safety, do not attempt to bypass

afety svices.

bperational

our unit is equipped with a seat switch safety sys-

!m.

Check the seat switch operation every fall and

xing with the following tests.

est 1 -Engine should NOT crank if:

l PTO switch is engaged, OR l Brake pedal is not fully depressed (or parking

brake is not engaged), OR

l There is no operator in the seat.

est 2 -Engine SHOULD crank if:

l PTO switch is NOT engaged, AND

l Brake pedal is fully depressed (or parking brake

is engaged), AND

l An operator is sitting in the seat.

est 3

l Operator rises off seat with PTO engaged, OR l Operator rises off seat with brake pedal NOT

fully depressed (or parking brake disengaged).

est 4 -Blade Brake Check

lower blades and mower drive belt should come to

complete stop within five seconds after electric

‘TO

switch is turned off (or operator rises off seat).

mower drive belt does not stop within five

nds, see your dealer.

INTERLOCK SYSTEM

switches, and never tamper with safety

Check their operation regularly.

SAFETY Checks

Engine should SHUT OFF if:

sec-

IOTE:

Once the engine has stopped, the PTO

witch must be turned off after the operator returns

the seat in order to start the engine.

WARNING

If the unit does not pass a safety test, do not

operate it. See your authorized dealer. Under

no circumstance should you attempt to defeat the purpose of the safety interlock system.

‘.
