Parts Manual
g
Large Frame Two-Stage
Series Snowthrowers
26" Auger Path
. No. Description
Mf
1695326 L1226E, 11.0GT 26" Snowthrower
1695327 L1226E, 11.0GT 26" Snowthrower (CE/Export)
28" Auger Path
Mfg. No. Description
1695330 L1428E, 13.5GT 28" Snowthrower
1695331 L1428EX, 13.5GT 28" Snowthrower (CE/Export)
30" Auger Path
Mfg. No. Description
1695334 L1530E, 14.5GT 30" Snowthrower
1695335 L1530EX, 14.5GT 30" Snowthrower (CE/Export)
32" Auger Path
Mfg. No. Description
1695338 L1632E, 15.5GT 32" Snowthrower
Rev.
1735346
08/2007
Part No.:
TP 400-4726-00-LW-S
Table Of Content
s
PRODUCT COMPONENTS PAGES
Handle & Controls Group .....................................................................................................................................
Engine & Frame Group ........................................................................................................................................
Auger Drive Group ...............................................................................................................................................
Auger Housing & Chute Group ............................................................................................................................

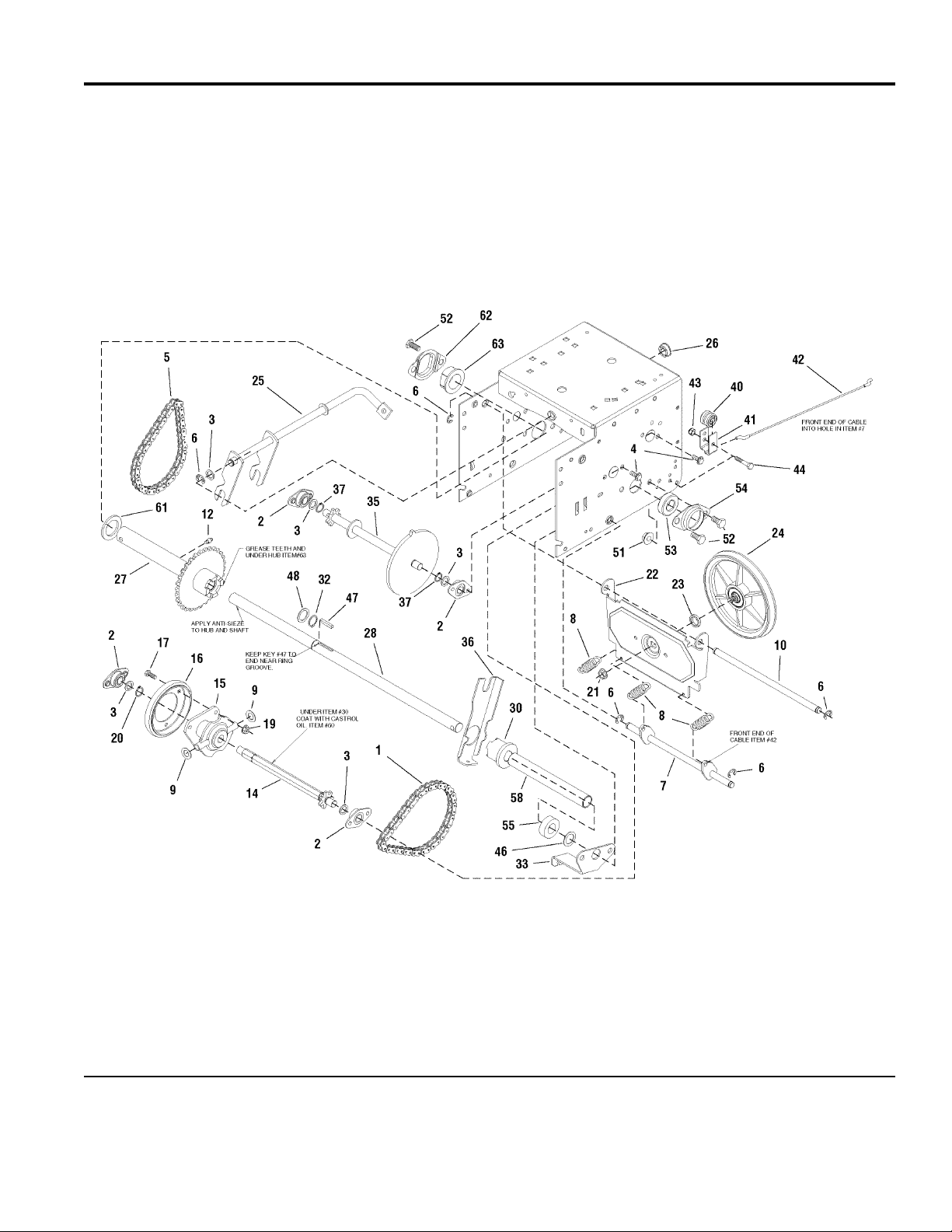

Traction Drive Group - EZ Turn ...........................................................................................................................
Traction Drive Group - Standard ..........................................................................................................................
Wheel & Tire Group .............................................................................................................................................

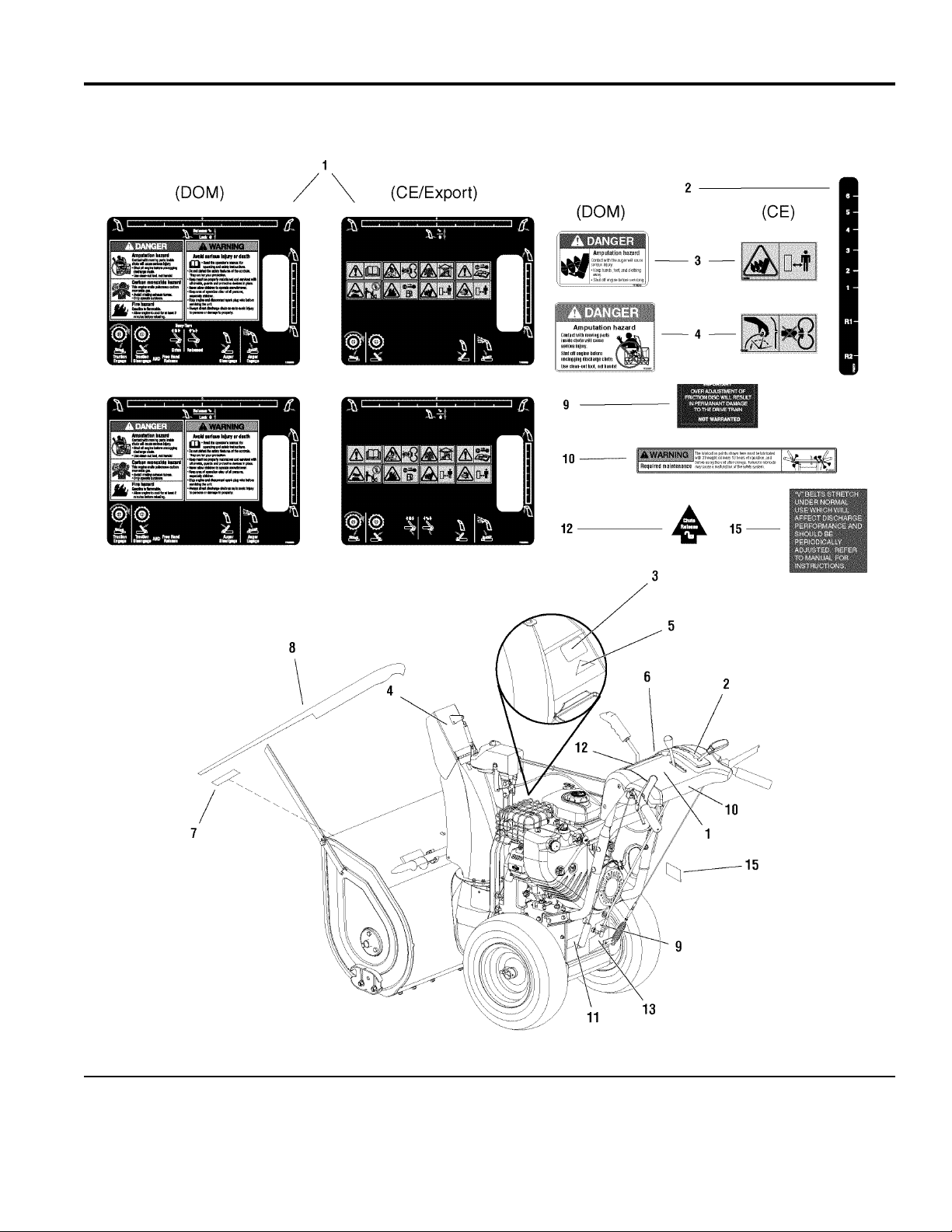

Decal Group .........................................................................................................................................................
12
14
18
22
24
26

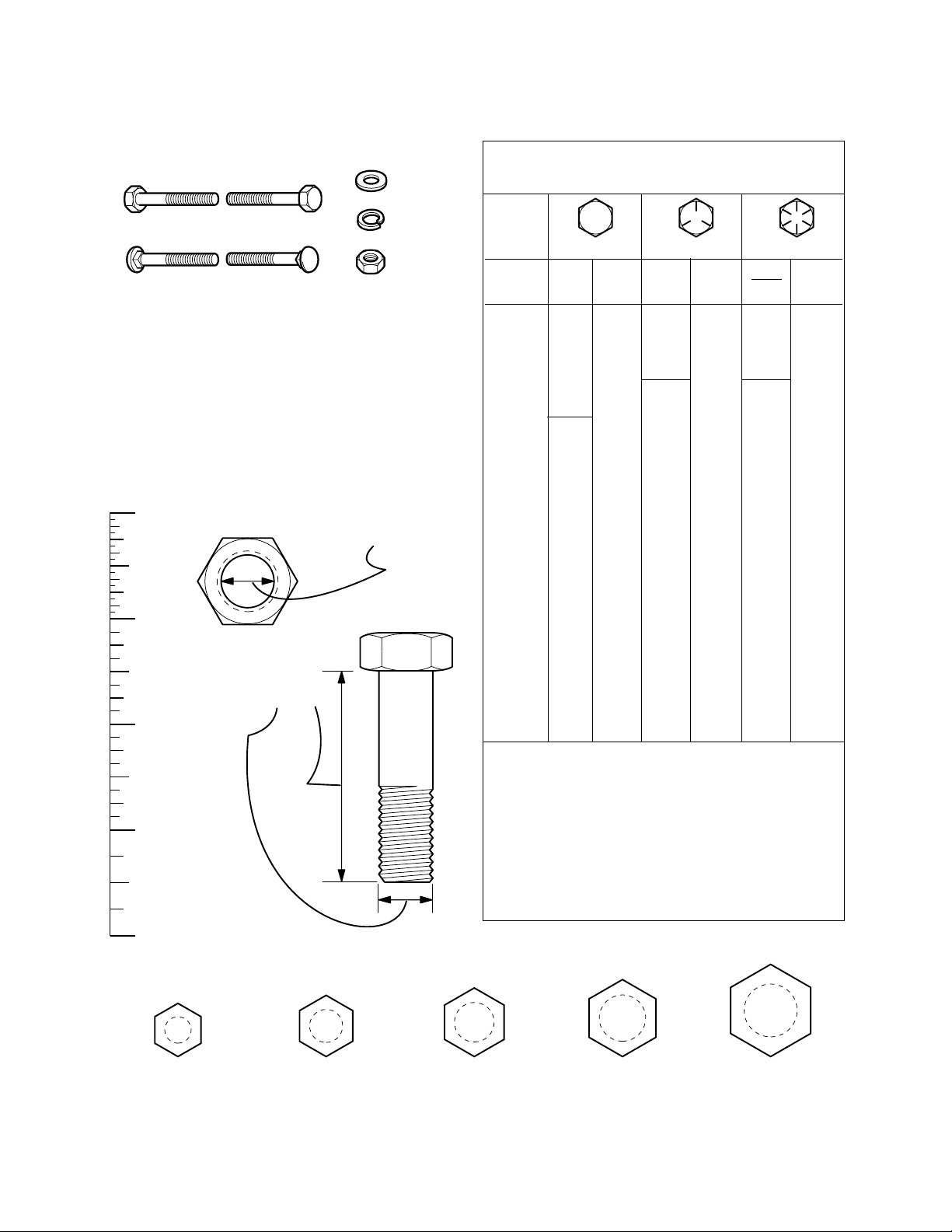

Torque Specification Chart ..................................................................... Inside Back Cover
4
8
Handle & Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987755
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
4
TP 400-4726-00-LW-S
Handle & Controls Group
PART NO. DESCRIPTIONREF NO QTY.
CAPSCREW, Hex Head 3/8-16 x 2 G5 1 1923701SM 2
KNOB, Interior Thread 3/8-16 2 1732470SM 1
ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute 3 1732427SM 1
WASHER, 3/8 4 1924356SM 1
SPRING 5 50786MA 2
WASHER, 3/8 6 1918266SM 2
NUT, Hex Lock ESNA Light 3/8-16 7 1919439SM 2
HANDLE, Clutch L.H. 8 1722667SM 1
KNOB, Slot Speed 9 1733192SM 1
ROD & PLATE ASSEMBLY, Speed Control 10 1733205SM 1
CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5 11 1923282SM 1
CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5 12 1921962SM 3
BRACKET, Trac & Deflector Control 13 1733045ASM 1
ROD 14 1734354SM 1
NUT, Hex Flange 5/16-18, Whiz Lock Small 15 1931277SM 3
CABLE, Deflector Control 16 1732971SM 1
NUT, Hex 5/16-24 17 2820263SM 2
NUT, Hex Flange 1/4-20 Centerlock Large 18 1960608SM 1
BALLJOINT, Steel 19 50782MA 1
LOCKWASHER, Spring 5/16 20 1917356SM 1
SPRING, Extension 21 1732970SM 1
TUBE & BRACKET ASSEMBLY, Cable Support 22 1732365SM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 23 1924856SM 4
SUPPORT, Chute Control 14GA 25 1732364SM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 5/8 26 1927429SM 4
BOLT, Shoulder 1/4-20 27 1732944SM 1
BRACKET, Support Quick Turn 28 1733142SM 1
ROD, Chute 29 1732369SM 1
NUT, Hex Lock ESNA Light 1/4-20 30 1920397SM 8
NUT, Hex Jam 3/8-16 31 1917421SM 1
GRIP, Lever 32 306689MA 1
COVER, Panel 33 1733777CSM 1
SCREW, Truss Head Torx Drive 1/4-20 x 3/4 34 1960715SM 4
BELLOWS, Black Rubber Quick Turn 35 1733204SM 1
CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5 36 1922837SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G5 37 1931333SM 3
SUPPORT, Dash Panel Cover 39 1732064ASM 1
CABLE & SPRING ASSEMBLY, Auger Drive R.H. 40 1732471SM 1
HANDLE, Clutch R.H. 41 1722638SM 1
NUT, Hex Centerlock 1/4-20 42 1923358SM 2
GRIP 43 1726317SM 2
SPACER 44 1715655SM 2
SPACER 45 1678392SM 2
HANDLE, Upper R.H. 47 1734587ASM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
5
TP 400-4726-00-LW-S
Handle & Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987755
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
6
TP 400-4726-00-LW-S
Handle & Controls Group
PART NO. DESCRIPTIONREF NO QTY.
HANDLE, Upper L.H. 48 1734586ASM 1
CARRIAGE BOLT, 5/16-18 x 2-1/4 G5 49 1960723SM 4
HANDLE, Lower 50 1732781ASM 1
NUT, Hex Flange 5/16-18 51 1960686SM 4
NUT, Hex Flange 5/16-18 Two-Way Lock 52 1935048SM 2
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 53 1664847SM 2
BRACKET, Cable Adjusting 54 313441MA 1
BOOT, Spring End Cover 55 308146MA 1
CABLE, 56 1502113MA 1
CAPSCREW, Hex Head 5/16-18 x 1 G5 57 1921333SM 2
SPACER, Powdered Metal 58 1679166SM 1
BRACKET, Free Hand Control 12GA 59 1733505ASM 1
SPACER, Powdered Metal 60 1733095SM 1
ROD & SPRING ASSEMBLY, w/Pin 61 1733509SM 1
WASHER, 1/2 62 1960027SM 4
SPRING, Compression 63 2108360SM 1
WASHER, 1/4 64 1960353SM 1
ROD, Hold Down E-Coat 65 1722630SM 1
HEADLIGHT ASSEMBLY, Oval Amber (Only used on models w/light) 66 1732321SM 1
FASTENER, Panel 67 1704351SM 5
SCREW, Pan Head Torx #10 x 1/2 Thick Cut (Only used on models w/EZ-Turn) 69 1725702SM 1
SPOOL CABLE, Auger Control 70 579860MA 1
SCREW, Round Head Phillips #10-24 x 3/4 72 1960589SM 1
NUT, Hex Lock 10-24 w/Nylon Insert 73 1933896SM 1
CABLE & HANDLE ASSEMBLY (Only used on models w/EZ-Turn) 74 1718791SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
7
TP 400-4726-00-LW-S

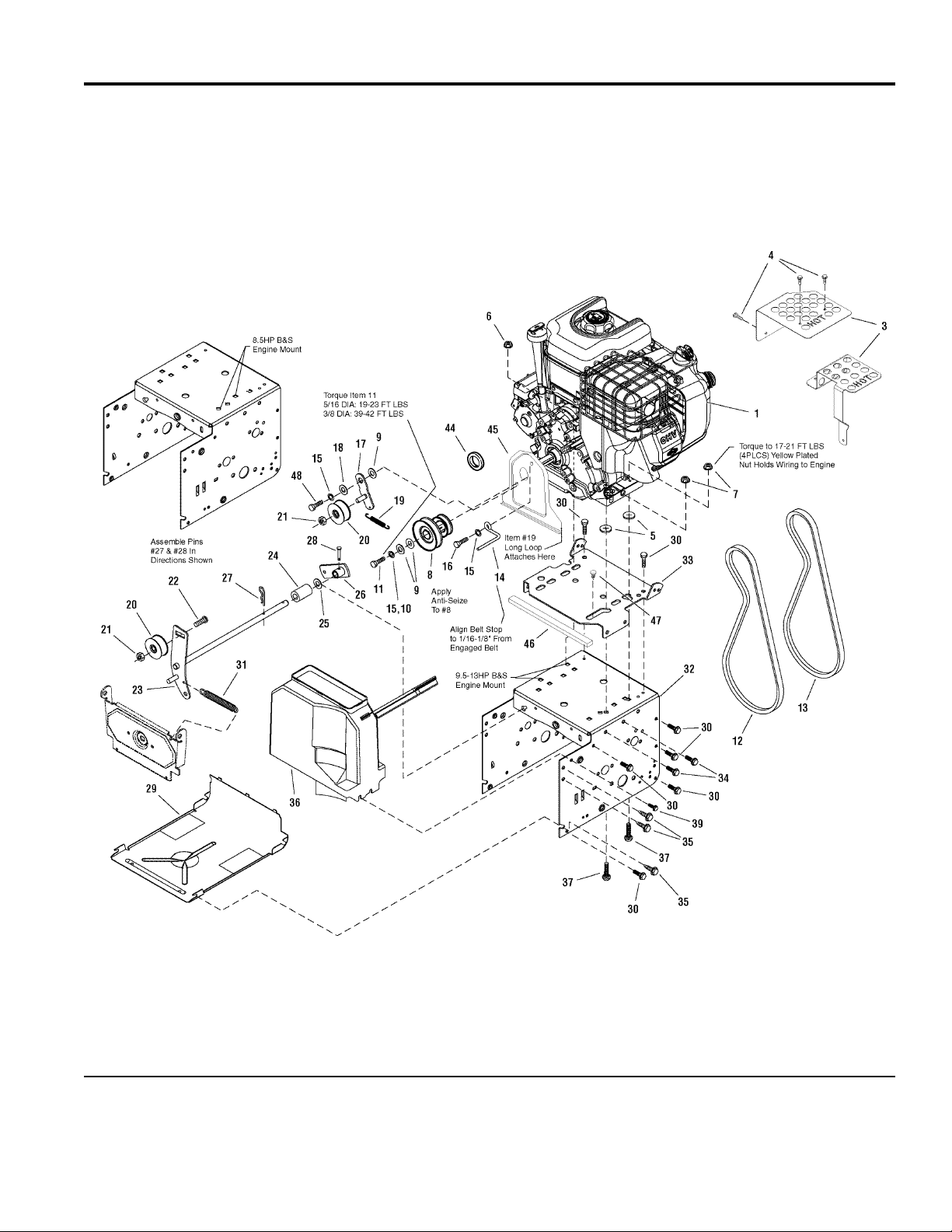

Engine & Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987791
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
8
TP 400-4726-00-LW-S
Engine & Frame Group
PART NO. DESCRIPTIONREF NO QTY.
ENGINE, 11.5HP B&S - Model #21C2140132E1 1* 1
ENGINE, 10.5HP B&S - Model #20E2140118E1 1* 1
ENGINE, 9.5HP B&S - Model #20A4140117E1 1* 1
ENGINE, 8.5HP B&S - Model #15C1140112E1 1* 1
ENGINE, 8.5HP B&S - Model #15C1140111E1 (CE/Export) 1* 1
ENGINE, 9.5HP B&S - Model #20A4140119E1 (CE/Export) 1* 1
ENGINE, 10.5HP B&S - Model #20E2140113E1 (CE/Export) 1* 1
CORD, Electric Start (Only used on Domestic Models) 2 1724064SM 1
GUARD, Muffler (Only used on 9.5, 10.5, 11.5HP Domestic Models) 3 1734698SM 1
GUARD, Muffler (Only used on 8.5HP Domestic Models) 3 1734732SM 1
SCREW, Hex Washer Head Taptite #10 x 1/2 (Only used on Domestic Models) 4 1929477SM 3
NUT, Push for 1/4 Diameter Thread 5028X76MA4
NUT, Hex Flange 5/16-18 Whiz Lock Small 6 2831277SM 1
NUT, Hex Flange 5/16-18 Esna 7 1960686SM 3
PULLEY, Engine 8 1501109MA 1
WASHER, 3/8 (Used on all models except 8.5HP) 9 1922755SM 2
WASHER, 5/16 (Quantity 3 used on 8.5HP Models) 9 1919381SM 1/3
LOCKWASHER, Spring 3/8 (Used on all models except 8.5HP) 10 1916965SM 1
CAPSCREW, Hex Head 3/8-24 x 1-1/4 G8 (Used on all models except 8.5HP) 11 1960428SM 1
CAPSCREW, Hex Head 5/16-24 x 1-1/4 G8 (Only used on 8.5HP Models) 11 1921982SM 1
V-BELT, 3L, 33.13 Drive 12 1733324SM 1
V-BELT, 4L, 38.5 Auger (Only used on 10.5HP & 11.5HP Models) 13 1733507SM 1
V-BELT, 4L, 36.5 Auger (Only used on 8.5HP & 9.5HP Models) 13 1733051SM 1
STOP, Belt 14 1733014SM 1
LOCKWASHER, Spring 5/16 (8.5HP Models use Quantity 4) 15 1917356SM 3
CAPSCREW, Hex Head 5/16-24 x 3/4 G5 16 1921515SM 2
BRACKET & WELD PIN ASSEMBLY, Idler 17 1501112YZMA 1
BUSHING, Idler Bracket 18 1501065MA 1
SPRING, Extension Idler 19 53704MA 1
IDLER, Plastic Ball Bearing 20 1502120MA 2
NUT, Hex Centerlock Jaam 3/8-16 21 1960251SM 2
CARRIAGE BOLT, 3/8-16 x 1-1/4 G5 22 585781MA 1
IDLER, Auger Assembly (Only used on 10.5HP & 11.5HP Models) 23 1501226YZMA 1
IDLER, Auger Assembly (Only used on 8.5HP & 9.5HP Models) 23 1733055SM 1
SPACER 24 1501200MA 1
WASHER, 1/2 25 1960027SM 1
ARM, Control Powdered Metal 26 1733451SM 1
PIN, Hair 27 711682MA 1
PIN, Clevis 28 1735135SM 1
PANEL, Bottom 29 1740906ASM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 5/8 30 1927429SM 12
SPRING, Extension Auger Idler 31 165X159MA 1
FRAME, EZ Turn Axle (Used on all models except 8.5HP) 32 1733154CSM 1
Footnotes
Note* See your local Briggs & Stratton distributor for parts & service.
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
9
TP 400-4726-00-LW-S
Engine & Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987791
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
10
TP 400-4726-00-LW-S
Engine & Frame Group
PART NO. DESCRIPTIONREF NO QTY.
FRAME, 7.5-8.5HP B&S (Only used on 8.5HP Models) 32 1501050E701MA1
PLATE, Engine Mount 11GA 33 1733583CSM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 34 1924856SM 4
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 35 1664847SM 6
COVER, Belt w/Toolbox B&S 36 1733923SM 1
CARRIAGE BOLT, 5/16-18 x 1-1/2 37 002X97MA 4
SCREW, 1/4-AB x 3/4 Hex YZ w/Extension Tooth Washer 39 26X306MA 2
SEAL, Foam 44 1733898SM 1
PLATE, Seal 45 1733868ASM 1
SEAL, Foam 46 1733897SM 1
CLIP, Pine Tree (Used on all models except 8.5HP) 47 1733924SM 1
BOLT, Hex 5/16-24 x 1 48 910828MA 1
Footnotes
Note* See your local Briggs & Stratton distributor for parts & service.
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
11
TP 400-4726-00-LW-S
Auger Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987861
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
12
TP 400-4726-00-LW-S
Auger Drive Group
PART NO. DESCRIPTIONREF NO QTY.
PIN, SHEAR 1 1668344SM 2
COTTER PIN, 1/4" Self Locking 2 7023590SM 2
IMPELLER ASSEMBLY, Large Frame Snow 3 1612187ASM 1
SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8 4 1960474SM 1
PULLEY, w/Hub 5 1732185SM 1
AUGER ASSEMBLY, 24" & 26" R.H. 6 1734674ASM 1
AUGER ASSEMBLY, 28" & 30" R.H. 6 1734676ASM 1
AUGER ASSEMBLY, 32" R.H. 6 1734678ASM 1
AUGER ASSEMBLY, 24" & 26" L.H. 7 1734673ASM 1
AUGER ASSEMBLY, 24" & 30" L.H. 7 1734675ASM 1
AUGER ASSEMBLY, 32" L.H. 7 1734677ASM 1
GEAR BOX ASSEMBLY 8 1732303SM 1
SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8 9 1928721SM 2
KEY, Woodruff 10 2818312SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G5 11 1931333SM 1
NUT, Hex Flange Whiz Lock, 5/16-18HEX FLANGE 5/16-18 12 1931277SM 1
TUBE 13 1733406SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
13
TP 400-4726-00-LW-S
Auger Housing & Chute Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987768
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
14
TP 400-4726-00-LW-S
Auger Housing & Chute Group
PART NO. DESCRIPTIONREF NO QTY.
HOUSING ASSEMBLY, 26" 1 1734555CSM 1
HOUSING ASSEMBLY, 28" 1 1734556CSM 1
HOUSING ASSEMBLY, 30" 1 1734557CSM 1
HOUSING ASSEMBLY, 32" 1 1734558CSM 1
BLADE, Scraper 26" 2 1732384ASM 1
BLADE, Scraper 28" 2 1709947ASM 1
BLADE, Scraper 30" 2 1732385ASM 1
BLADE, Scraper 32" 2 1709948ASM 1
CARRIAGE BOLT, 5/16-18 x 5/8 G5 3 1960699SM 5/7
NUT, Hex Flange 5/16-18 Two-Way Lock 4 1935048SM 5/7
SKID, Shoe Reversible 5 1727854ASM 2
CARRIAGE BOLT 3/8-16 x 3/4 G5 6 1960711SM 4
NUT, Hex Flange 3/8-16 ESNA 7 1960687SM 4
BEARING, Flange 8 1733103SM 2
BEARING, Retainer 9 1665982ASM 1
RETAINER, Nut, 5/16-18 10 1930659SM 3
SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4 11 1960738SM 3
BEARING 12 2108202SM 1
NUT, Hex Flange 5/16-18, Whiz Lock 16 1931277SM 1
STICK, Cleanout w/Brush 17 1733209SM 1
CLIP, Retainer 18 1501672MA 2
SCREW, Hex Washer Head Slot #10C x 1-1/4 G2 19 2860604SM 2
NUT, Hex Lock 10-24 w/Nylon Insert 20 1933896SM 2
BLOCK, Universal Pivot 21 578063MA 2
CUTTER, Drift 12GA w/Tabs (Only used on 30" & 32" Models) 22 1733102ASM 2
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 (Only used on 30" & 32" Models) 23 1664847SM 2
GEAR, 13 Tooth 24 1732608SM 1
NUT, Hex Keps 5/16-18 Conical Washer 25 1960684SM 2
BOLT, Shoulder 5/16-18 x 3/5 G5 26 1732412SM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 1/2 27 1925003SM 1
GEAR, Sector 34 Tooth Powdered Metal 28 1732607SM 1
SUPPORT, Driver Gear 12GA 29 1732602ASM 1
TUBE, Square 1-1/4 30 1734414ASM 1
BRACKET, Gears Support 12GA 31 1732606ASM 1
CARRIAGE BOLT, 3/8-16 x 1-3/4 33 1731353SM 2
WASHER 34 1733026SM 1
CABLE, Chute Brake 40" Long 35 1732238SM 1
CHUTE ASSEMBLY, Remote Deflector 36 1734658CSM 1
BRACKET, Brake 12GA 37 1732837ASM 1
ARM & PAD ASSEMBLY, Brake 38 1732308SM 1
SPRING, Extension 39 1679554SM 1
CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5 40 1923282SM 1
CAPSCREW, Hex Head 5/16-18 x 2 G5 41 1922127SM 2
NUT, Hex Centerlock 1/4-20 42 1923358SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
15
TP 400-4726-00-LW-S
Auger Housing & Chute Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987768
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
16
TP 400-4726-00-LW-S
Auger Housing & Chute Group
PART NO. DESCRIPTIONREF NO QTY.
ROD, Hex, Chute 43 1732231SM 1
PIN, Quick 44 1722460SM 2
COVER, Chute 45 1732241SM 1
WASHER, Nylon 53 2860210SM 1
CARRIAGE BOLT, 5/16-18 x 3/4 G5 54 1931333SM 1
NUT, Hex Flange 5/16-18 ESNA 55 1960686SM 1
SPRING, Extension 56 1733455SM 1
KNOB & SCREW ASSEMBLY, 10-24 x 3/5 58 696239SM 1
NUT, Push Pal 3/8 59 1931942SM 2
NUT, Push 60 1932718SM 1
NUT, Retainer Speed #10-24 w/Extrusion 61 1960593SM 1
NUT, Hex Keps Conical Washer 3/8-16 62 1960680SM 2
DECAL, Orange Strip For Chute Hinge 64 1706085SM 2
BRACKET, Chute Support 65 1734205SM 1
SCREW, Pan Head Self Tap Torx 5/16 x 1/2 66 7091542 3
SCREW, Hex Washer Head Taptite 5j/16-18 x 1-1/4 67 1931202SM 6
COVER, Bushing 68 1734932ASM 2
GUARD, Chute (Only used on CE/Export Models) 73 1612455SM 1
NUT, Push Capped (Only used on CE/Export Models) 75 1960126SM 2
WASHER (Only used on CE/Export Models) 76 1678366SM 2
CAP (Only used on CE/Export Models) 77 1733647SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
17
TP 400-4726-00-LW-S
Traction Drive Group - EZ Turn
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987330
The above parts group applies to the following Mfg. Nos.:
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
1695335 - L1530EX
1695338 - L1632E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
18
TP 400-4726-00-LW-S
Traction Drive Group - EZ Turn
PART NO. DESCRIPTIONREF NO QTY.
CHAIN, Roller 1 579851MA 1
RETAINER & BUSHING ASSEMBLY 2 334163MA 4
WASHER 3 579858MA 5
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 4 1924856SM 8
CHAIN, Roller 5 579868MA 1
RETAINER, Ring 7/16 611X30MA 5
SPRING LINK ASSEMBLY 7 1502105YZMA 1
SPRING, Extension 8165X112MA3
WASHER, 1/2 9 1960027SM 2
AXLE, Swing Plate 10 1501092YZMA 1
FITTING, Lube 12 2812808SM 1
HEX SHAFT & SPROCKET ASSEMBLY 14 1501100MA 1
HUB, Friction Wheel & Bearing 15 337029MA 1
WHEEL, Friction 16 1501435MA 1
CAPSCREW, Hex Head 1/4-20 x 5/8 G5 17 1921959SM 3
NUT, Hex KEPS 1/4-20 19 2828372SM 3
RING, Retaining Extension 20 579859MA 1
NUT, 3/8-24 Flange Lock 21 15X114MA 1
PLATE, Swinging 22 1501057YZMA 1
SPACER, Friction Pulley 23 1501158MA 1
FRICTION PULLEY ASSEMBLY 24 1501115MA 1
SPEED SELECT ASSEMBLY 25 1501110YZMA 1
BEARING, Flange 26 579944MA 1
SPROCKET & HUB ASSEMBLY, W/Bushings 27 1733085SM 1
AXLE 28 1732381SM 1
GEAR, Clutching Powedered Metal 30 1732382SM 1
RING, Retaining Extension 32 2827732SM 1
SUPPORT, Clutch Cable 33 1732948ASM 1
SPROCKET & SHAFT ASSEMBLY 35 1732389SM 1
ARM, Clutch 36 1732383ASM 1
RING, Retaining Extension 37 2860386SM 2
SPOOL CABLE, Auger Control 40 579860MA 1
BRACKET, Cable Spool 41 1501059YZMA 1
CABLE, Front Drive Lower All 42 1501122MA 1
NUT, Hex Lock ESNA Light 1/4-20 43 1920397SM 1
CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5 44 1922837SM 1
WASHER, Flat 46 712120MA 1
KEY, Hi Pro 47 1667622SM 1
WASHER, 3/4 48 1960114SM 4
NUT, Hex Flange 3/8-16 Whiz Lock 51 1928352SM 4
CAPSCREW, Hex Head 3/8-16 x 3/4 G5 52 1921965SM 4
BEARING, Ball 53 53263MA 1
RETAINER, Bearing 54 50648MA 1
COLLAR, Locking 55 1501620MA 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
1695335 - L1530EX
1695338 - L1632E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
19
TP 400-4726-00-LW-S
Traction Drive Group - EZ Turn
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987330
The above parts group applies to the following Mfg. Nos.:
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
1695335 - L1530EX
1695338 - L1632E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
20
TP 400-4726-00-LW-S
Traction Drive Group - EZ Turn
PART NO. DESCRIPTIONREF NO QTY.
SPRING, Compression 58 1720298SM 1
WASHER, 1-3/16 61 2860169SM 1
RETAINER, Bushing 62 1733101SM 1
BUSHING 63 1720305SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
1695335 - L1530EX
1695338 - L1632E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
21
TP 400-4726-00-LW-S
Traction Drive Group - Standard
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987249
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
22
TP 400-4726-00-LW-S
Traction Drive Group - Standard
PART NO. DESCRIPTIONREF NO QTY.
CHAIN, Roller 1 579851MA 1
RETAINER & BUSHING ASSEMBLY 2 334163MA 4
WASHER 3 579858MA 5
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 4 1924856SM 8
CHAIN, Roller 5 579868MA 1
RETAINER, Ring 7/16 611X30MA 5
SPRING LINK ASSEMBLY STANDARD 7 1502105YZMA 3
SPRING, Extension 8165X112MA1
SPROCKET, Set 9 1501090MA 2
WASHER, 1/2 10 1960027SM 1
AXLE, Swing Plate 11 1501092YZMA 1
AXLE 12 1501563MA 1
BOLT, Hex 1/4-20 x 1-3/4 13 01X193MA 1
SPROCKET, Axle 16 1501089MA 2
BEARING, Axle D-Hole 17 1501114MA 1
HEX SHAFT & SPROCKET ASSEMBLY 18 1501100MA 1
HUB, Friction Wheel & Bearing 19 337029MA 1
WHEEL, Friction 20 1501435MA 3
CAPSCREW, Hex Head 1/4-20 x 5/8 G5 21 1921959SM 3
NUT, Hex KEPS 1/4-20 22 2828372SM 1
RING, Retaining, Extension 23 579859MA 1
NUT, FlangeLock 38-24 24 15X114MA 1
PLATE, Swining 25 1501057YZMA 1
SPACER, Friction Pulley 26 1501158MA 1
FRICTION PULLEY ASSEMBLY 27 1501115MA 1
SPEED SELECT ASSEMBLY 28 1501110YZMA 1
BEARING, Flange 29 579944MA 2
NUT, Hex Lock ESNA Light 1/4-20 30 1920397SM 1
CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5 31 1922837SM 1
SPOOL CABLE, Auger Control 32 579860MA 1
BRACKET, Cable Spool 33 1501059YZMA 1
CABLE, Front Drive Lower All 34 1501122MA 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
23
TP 400-4726-00-LW-S
Wheel & Tire Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987260
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
24
TP 400-4726-00-LW-S
Wheel & Tire Group
PART NO. DESCRIPTIONREF NO QTY.
PIN, Klik .313 x 1.97 (Used on 26" Models) 1 1731186SM 2
PIN, Klik 1/4 x 1-3/4 (Used on 28", 30" & 32" Models) 1 1679697SM 2
WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H. (Used on 26" Models) 2 1732935SM 2
WHEEL & TIRE ASSEMBLY, 15 x 5 L.H. (Used on 28" Models) 2 1723169SM 1
WHEEL & TIRE ASSEMBLY, 16 x 4.8 L.H. (Used on 30" & 32" Models) 2 1714235SM 1
WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H. (Used on 26" Models) 3 1732935SM 2
WHEEL & TIRE ASSEMBLY, 15 x 5 R.H. (Used on 28" Models) 3 1733089SM 1
WHEEL & TIRE ASSEMBLY, 16 x 4.8 R.H. (Used on 30" & 32" Models) 3 1720306SM 1
TUBE, Tire 4.10/3.50-6 L.H. (Used on 28" Models) 4 1664090SM 1
TUBE, Tire 4.80/4.00 L.H. & R.H. (Used on 30" & 32" Models) 4 2153038SM 1
TIRE, 15 x 5.00-6, 2 PLY, KENDA L.H. (Used on 28" Models) 5 1723287SM 1
TIRE, 4.80/4.00-8 L.H. & R.H. (Used on 30" & 32" Models) 5 1612000SM 1
RETAINING RING, Extension, #75 3/4 Self Lock (Used on 26" Models) 6 1657528SM 2
VALVE STEM & CAP (Used on All Models) 7 2172353SM 1
WASHER, Flat (Used on 26" Models) 8 712120MA 2
HUB, Wheel L.H. (Used on 28" Models) 9 1723286SM 1
HUB, Wheel R.H., 3-3/4 Wide 8 Diameter 3/4 ID (Used on 30" & 32" Models) 9 1714242SM 1
HUB, Wheel 3.75 Wide 8. R.H. (Used on 30" & 32" Models) 9 1720307SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
25
TP 400-4726-00-LW-S
Decal Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987820
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
26
TP 400-4726-00-LW-S
Decal Group
PART NO. DESCRIPTIONREF NO QTY.
DECAL, Dashboard Standard Drive (Domestic Only) 1 1733056SM 1
DECAL, Dashboard EZ Turn (Domestic Only) 1 1733033SM 1
DECAL, Dashboard Standard Drive (CE/Export Only) 1 1733059SM 1
DECAL, Dashboard EZ Turn (CE/Export Only) 1 1733060SM 1
DECAL, Shift 1,2,3,4,5,6 R1 R2 2 1733772SM 1
DECAL, Danger Avoid Injury From Auger (Domestic Only) 3 1716532SM 1
DECAL, Impeller Warning (CE/Export Only) 3 1727208SM 1
DECAL, Danger Amputation Hazard (Domestic Only) 4 1733057SM 1
DECAL, Chute Warning (CE/Export Only) 4 1727207SM 1
DECAL, Opei Certified ANSI (Domestic Only) 5* 1
DECAL, SMI Dash Swoosh 6 1733199SM 1
DECAL, SMI 1428L 7 1734637SM 1
DECAL, SMI 1226L 7 1734636SM 1
DECAL, SMI 1530L 7 1734638SM 1
DECAL, SMI 1632L 7 1734639SM 1
DECAL, SMI Stripe 27.07 Long 8 1733246SM 1
DECAL, SMI Stripe 25.09 Long 8 1733247SM 1
DECAL, SMI Stripe 29.00 Long 8 1733245SM 1
DECAL, SMI Stripe 31.00 Long 8 1733244SM 1
DECAL, Over Adjustment of Friction Disc (Domestic Only) 9 7859MA 1
DECAL, Warning Lubrication (Domestic Only) 10 1733526SM 1
DECAL, Touch Up Paint Orange, Black, Red 11 1720454SM 1
DECAL, Chute Release Arrow 12 1733443SM 1
STICKER, Serial w/Bar Code 13 * 1
DECAL, Belt Stretch & Adjustment (Domestic Only) 15 7390MA 1
Footnotes
Note* Not a serviceable part.
The above parts group applies to the following Mfg. Nos.:
1695326 - L1226E
1695327 - L1226E
1695330 - L1428E
1695331 - L1428EX
1695334 - L1530E
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
1695335 - L1530EX
1695338 - L1632E
27
TP 400-4726-00-LW-S
Hardware Identification & Torque Specifications
Common Hardware Types
Hex Head Capscrew
Carriage Bolt
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
second number is present it represent the
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).
, meaning the
Nominal size
inside diameter
, or
body diameter
threads per inch
body length
Washer
Lockwasher
Hex Nut
is 1/2 inch; if a
threads per inch
is 1/2 inch; the
(16 in this
of the
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
Nut, 1/2”
Inside
Diameter
1
1/4 3/4
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
No
Marks
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
NOTES
3.4
3.5
4.9
5.5
in/lbs
41
43
60
68
420 571.2
4.6
4.9
6.8
7.7
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench—7/16”
5/16
5/16” Bolt or Nut
Wrench—1/2”
3/8
3/8” Bolt or Nut
Wrench—9/16”
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
1/2
DIA.
1/2” Bolt or Nut
Wrench—3/4”
MANUFACTURING, INC.
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
Loading...
