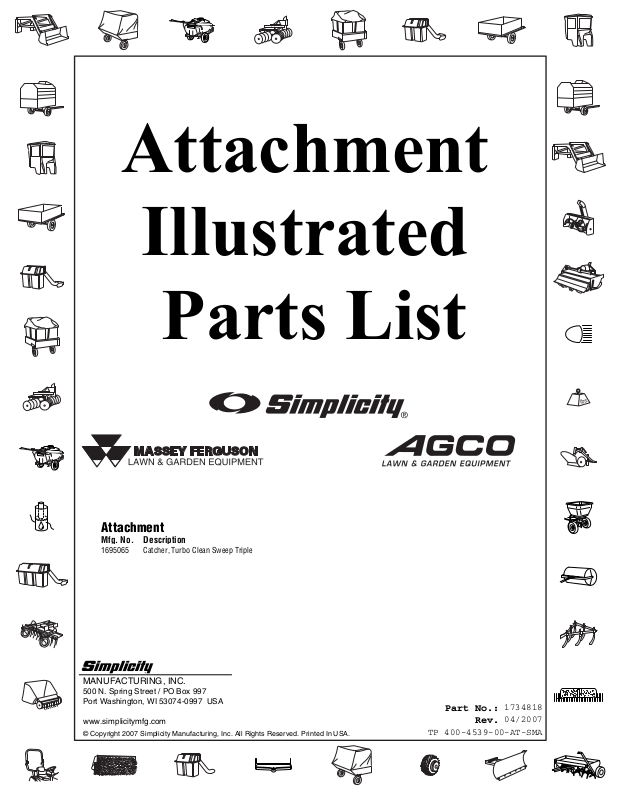

Simplicity 1695065 User Manual

Attachment

g

Illustrated

Parts List

Attachment

. No. Description

Mf

1695065 Catcher, Turbo Clean Sweep Triple

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.2007

Part No.:

TP 400-4539-00-AT-SMA

Rev.

1734818

04/2007

Table Of Content

s

PRODUCT COMPONENTS PAGES

Cover & Bag Group - Triple .................................................................................................................................

Front Weight Carrier Group .................................................................................................................................

Mount Group ........................................................................................................................................................

Tube & Hitch Assembly ........................................................................................................................................

12

Torque Specification Chart ..................................................................... Inside Back Cover

4
6
8

Cover & Bag Group - Triple

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

986509

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

4

TP 400-4539-00-AT-SMA

Cover & Bag Group - Triple

PART NO. DESCRIPTIONREF NO QTY.

1 1717025SM 1

COVER & SCREEN ASSEMBLY, Grass Collector Complete (Incl. Ref. Nos. 2, 3, 4, 5, 6, 7, 8,
9, 10, 11, 12 & 13)

COVER, Grass Catcher Black Plastic 2 1717025SM 1
RIVET, Pop, .25OD .500L Steal,Steal Stem .50HD Black 3 1960241SM 9
PLATE & TUBE ASSEMBLY, Hinge 4 1717067ASM 3
RIVET, Pop, .188D .527L Steal,Steal Stem .37HD Dia. 5 2825160SM 25
WASHER, Rivet, .188 (0.20ID x 0.50OD x .05TH) Black 6 1910531SM 16
CLIP, Canoe .437LG .375DIA 7 1667248SM 6
DECAL, WARNING Do Not Open Cover 8 1704405SM 1
CLAMP, Screen 16GA 40.0LG 9 1716970ASM 1
SCREEN, Black Poly, 19.5 x 45.0 10 1717041SM 1
CLAMP, Seal, .060THK .75WD 48.00LG 11 1717524SM 1
SEAL, Black Rubber, .075 x 3.00 x 48.0 12 1716968SM 1
ANGLE, Screen, 14GA 48"LG 13 1716972ASM 1
CHUTE, Grass Collector Upper, 5.76ID 21.7L Scribed 14 1719807SM 1
CAPSCREW, Hex Head, 5/16-18 x 1 G5 Black 15 1921333SM 4
WASHER, 5/16 (0.34ID x 0.75OD x .06THK) Black 16 1919326SM 12
CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2 Black 17 1925003SM 3
NUT, Hex Lock ESNA Light, 5/16-18NC-3B Black 18 1919438SM 8
DEFLECTOR, Black Plastic Grass Collector 19 1717039SM 1
CHANNEL & BRACKET ASSEMBLY, Support 20 1716973ASM 1
PLATE & BRACES ASSEMBLY, 3 Bag Grass Catcher 21 1716966ASM 1
COVER, Inlet, .125THK 8.12 x 8.12 Plexiglass 22 1725969SM 1
DUCT, Inlet Black Plastic Grass Collector 23 1717038SM 1
BRACKET, Hinge 3 Bag, 12GA 6.00LG with Point 24 1720875ASM 2
BRACKET, Hinge 3 Bag, 12GA 2.75LG 25 1720945ASM 1
PIN, Round Head Drilled, 3/8 x 2-3/4 Black 26 1672344SM 3
RIVET, Pop, .188D .277L AL, AL Stem .37HD Black 27 1928707SM 16
CLIP, Hair Pin, .093DIA Spring Wire 1.625LG Black 28 1960074SM 3
CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 Black 29 1921332SM 4
BAG, Grass, 15.4 x 16 x 22.5 White Poly Cloth 30 1703764SM 1
CARRIAGE BOLT, 5/16-18 x 3/4 G5 Black 31 1931333SM 2
HANGER, Grass Bag Hoop 32 1703807ASM 1
NUT, Hex 5/16-18 NC-2B Black 33 1917372SM 2
LOCKWASHER, Spring 3/8 Black 34 1917356SM 2
CLAMP, Wire Diameter 1/2 (2), .344 Holes (3) 35 1672023ASM 1
HOOP, 1/2 ROD 16.12 x 16.75 36 1703855ASM 1
EDGING, 13.50LG PVC Tube White 37 1675707SM 1
SEAL, Black Plastic 73" 38 1717082SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

5

TP 400-4539-00-AT-SMA

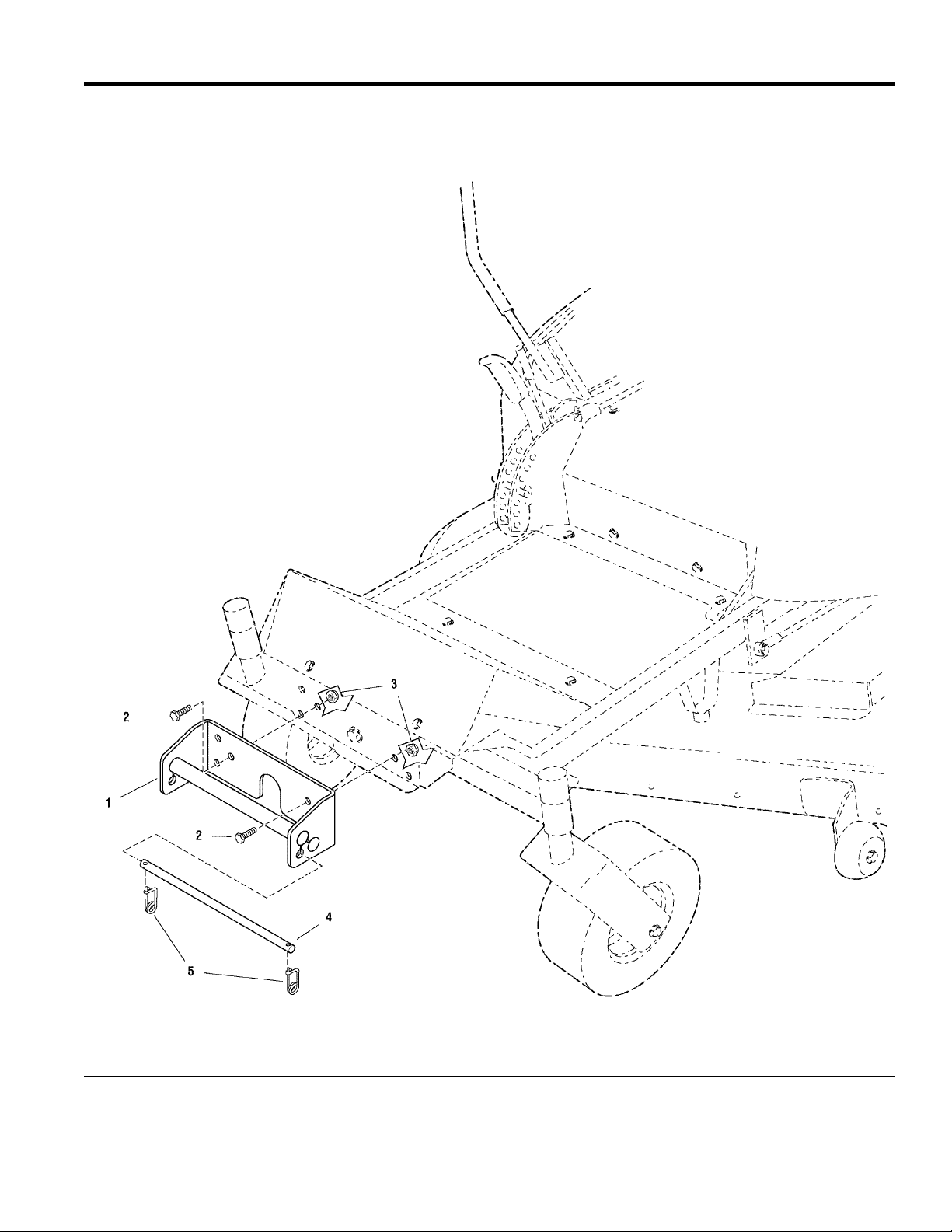

Front Weight Carrier Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

987366

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

6

TP 400-4539-00-AT-SMA

Front Weight Carrier Group

PART NO. DESCRIPTIONREF NO QTY.

HOLDER ASSEMBL, Weight 1 5049082ASM 1
BOLT, 1/2-13 x 1-1/4 2 1921176SM 2
NUT, Hex Nylon Lock 1/2-13 3 1960708SM 2
ROD, Retaining, 1/2 x 13-3/4LG 4 5049143SM 1
RETAINER, Pin, Spring 5 2176012SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

7

TP 400-4539-00-AT-SMA

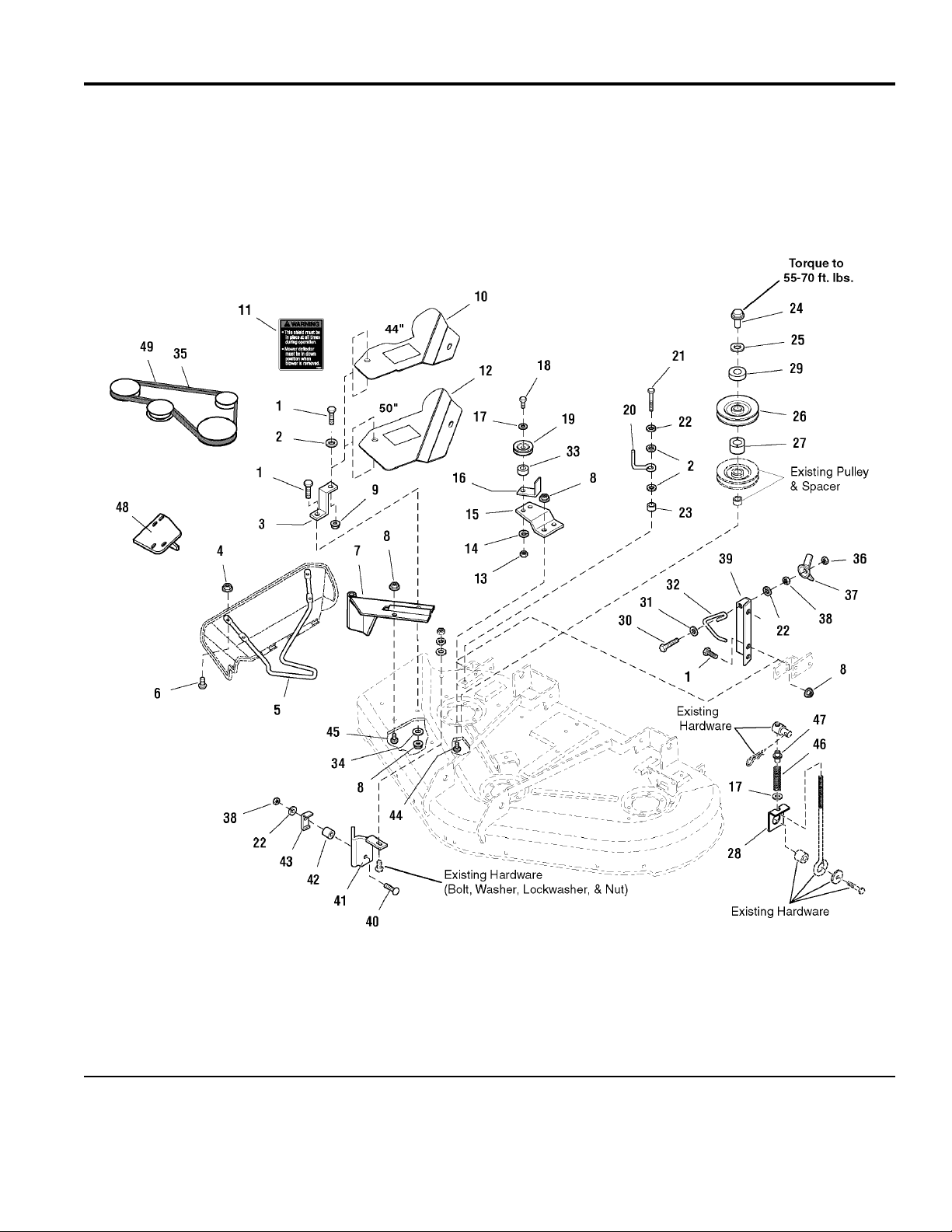

Mount Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

986508

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

8

TP 400-4539-00-AT-SMA

Mount Group

PART NO. DESCRIPTIONREF NO QTY.

Footnotes

CAPSCREW, Hex Head, 5/16-18 x 1 G5 Black 1 1921333SM 4
WASHER, 5/16 (0.34ID x 0.75OD x .06THK) Black 2 1919326SM 3
SUPPORT, Belt Cover 10GA 1.0WD 3.0LG 3 1718304ASM 1
NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black 4 1933896SM 4
ROD, .375DIA 22.0LG 5 1718295ASM 1
SCREW, Truss Head Phillips, #10-24 x 3/4 Black 6 1960404SM 4
PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50" 7 1722546ASM 1
NUT, Hex Flange Whiz Lock, 5/16-18 Small Black 8 1931277SM 6
NUT, Hex Lock ESNA Light, 5/16-18NC-3B Black 9 1919438SM 1
COVER, Belt 44" 12GA 10 5049171ASM 1
DECAL, WARNING Sheild & Mower Deflector 11 1717291SM 2
COVER, Belt 50" 12GA 12 5049170ASM 1
NUT, Hex 3/8-16 NC-2B Black 13 1916950SM 1
LOCKWASHER, Spring 3/8 14 1916965SM 1
BRACKET, Z .164TH 5.88WD 3.21LG 15 1704768ASM 1
BRACKET, L 12GA 1.24WD 2.24LG 2.28LG 16 1724373ASM 1
WASHER, 3/8 (0.41ID x 0.87OD x .08THK) Black 17 1924940SM 1
CAPSCREW, Hex Head, 3/8-16 x 2 G5 Black 18 1923701SM 1
PULLEY, Idler, 2.75OD 0.380ID 0.50W 19 1714817SM 1
STOP, Belt, .188WIRE 1.750,2.250 Black 20 2172845SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 Black 21 1921221SM 1
LOCKWASHER, Spring 5/16 Black 22 1917356SM 1
SPACER, 0.328ID x 0.499OD x 0.625LG Powdered Metal 23 1710703SM 1
NUT, Sleeve, 9/16-18 x 3/4INT x 1.34LG Black 24 1713523SM 1
WASHER, Bellville, 0.88ID x 1.75OD x .08TH Black 25 1603592SM 1
PULLEY, 04.30OD 1.000ID 0.579 Groove 9GA 26 1709941SM 1
HUB, .79ID x 1.5OD x .73LG Metafusion 27 1713623SM 1
PLATE, Spring Support 10GA 28 5049145ASM 1
SPACER, 0.812ID x 1.75OD x 0.50LG 29 5049088SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5 Flat Black 30 1960318SM 1
WASHER, 5/16 (0.34ID x 1.00OD x .13THK) Black 31 1919381SM 1
SPRING, Latch, .125WIRE 4.3LG Black 32 1705064SM 1
SPACER, 0.390ID x 0.625OD x .265LG 33 2108717SM 1
WASHER, 3/8 (0.41ID x 1.00OD x .13THK) Black 34 1922755SM 1
V-BELT, 3L, 44" Mower Deck 35 1732945SM 1
NUTHex Centerlock, 5/16-18 Black 36 1923362SM 1
NUT & CUP ASSEMBLY, Wing, 5/16-18 E-Coat 37 1679163SM 1
NUT,Hex, 5/16-18 NC-2B Black 38 1917372SM 2
PLATE, Anchor 39 1704982ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 Black 40 1960223SM 1
BRACKET ASSEMBLY, Cutoff, 44" 41 1704880ASM 1
SPACER, 0.385ID x 0.668OD x 0.455LG Powdered Metal Black 42 1666294SM 1
BRACKET, L 12GA 1.00WD 1.98LG 0.62LG 43 1705308ASM 1
CAPSCREW, Hex Head, 5/16-18 x 7/8 G5 Black 44 1923325SM 2

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

9

TP 400-4539-00-AT-SMA

Mount Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

986508

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

10

TP 400-4539-00-AT-SMA

Mount Group

PART NO. DESCRIPTIONREF NO QTY.

BRACKET & PLATE ASSEMBLY, Clamp 48 1704983ASM 1
V-BELT, 3L, 50" Mower Deck 49 1707956SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

11

TP 400-4539-00-AT-SMA

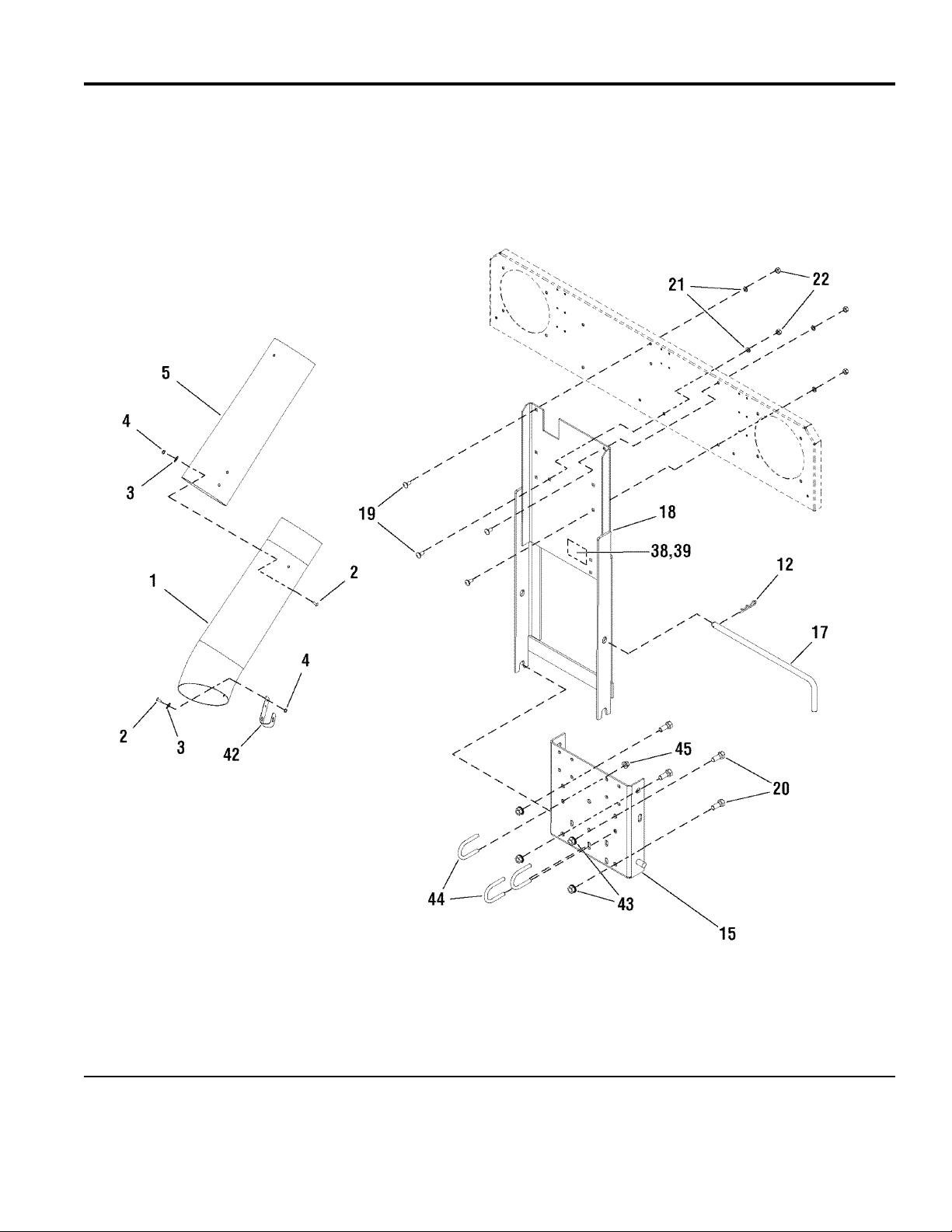

Tube & Hitch Assembly

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

987365

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

12

TP 400-4539-00-AT-SMA

Tube & Hitch Assembly

PART NO. DESCRIPTIONREF NO QTY.

LOWER TUBE 1 5049152SM 1
SCREW, Truss Head, #10 - 24 x 3/4 2 1960404SM 5
WASHER 3 1960096SM 5
NUT, Hex Nylock, #10 - 24 4 1933896SM 5
TUBE, Mid-Section 5 5049151SM 1
CLIP, Hairpin 12 1960033SM 1
HITCH PLATE ASSEMBLY 15 1732625ASM 1
HITCH ROD 17 1717085SM 1
SUPPORT ASSEMBLY 18 1723437ASM 1
BOLT, Carriage, 5/16 - 18 x 1 19 1931335SM 4
CAPSCREW, Hex Head, 1/2 - 13 x 1-1/4 (Used ONLY on models with Flat Bumpers) 20 1921176SM 4
LOCKWASHER, 5/16 21 1917356SM 4
NUT, Hex, 5/16 - 18 22 1917372SM 4
DECAL I.D. (Not serviceable) 38 -- 1
OVERLAY, Mylar (Not serviceable) 39 -- 1
CLIP, Spring 42 1705063SM 1
NUT, Hex Whiz Lock Flange, 1/2 - 13 (Used ONLY on models with Flat Bumpers) 43 1960668SM 4
U-BOLT, 3/8 x 1-1/4 (Used ONLY on models with Tube Bumpers) 44 1732617SM 3
NUT, Hex Flange, 3/8 - 16, ESNA (Used ONLY on models with Tube Bumpers) 45 1960687SM 6
OPERATORS MANUAL 46 1732613 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695065 - Catcher

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

13

TP 400-4539-00-AT-SMA

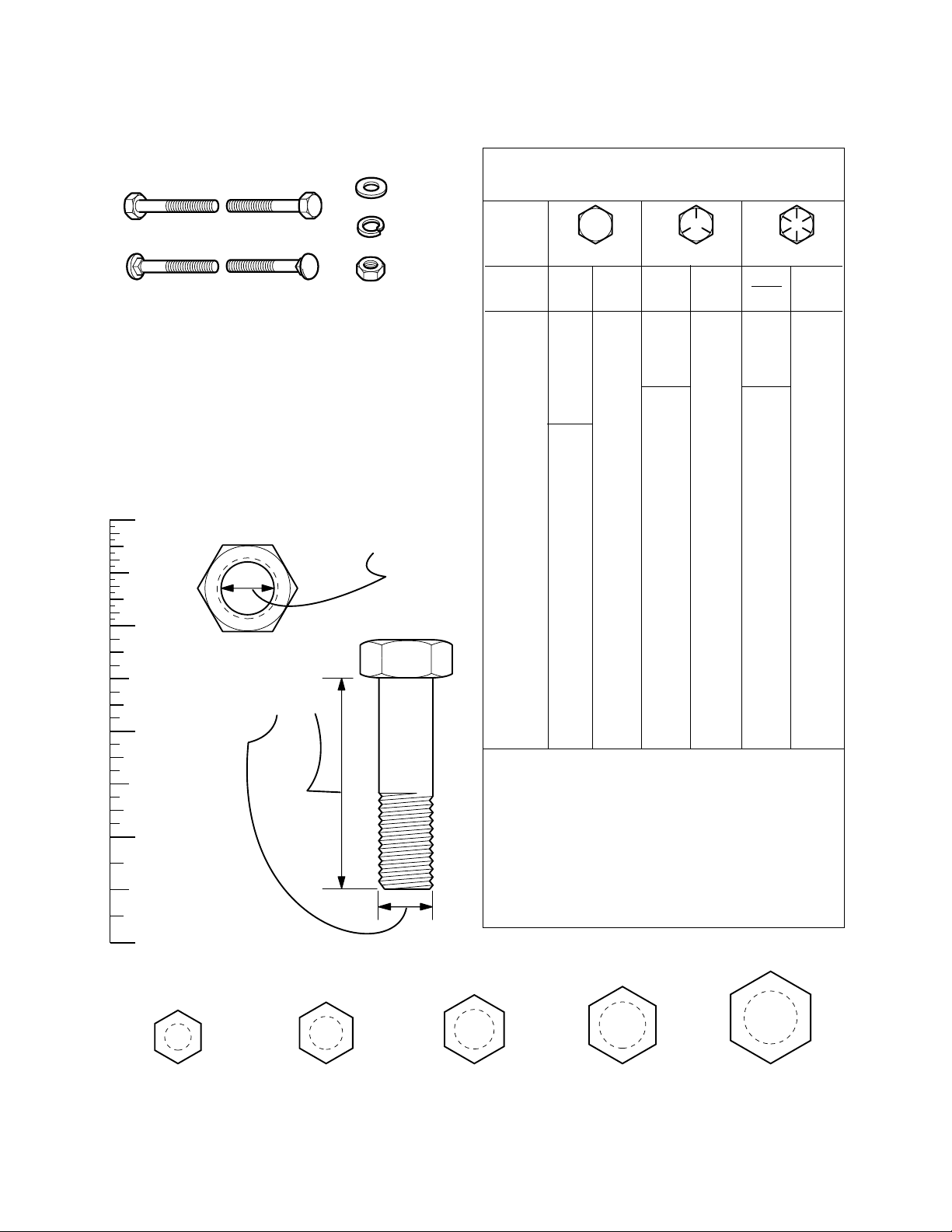

Hardware Identification & Torque Specifications

Common Hardware Types

Hex Head Capscrew

Carriage Bolt

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the

When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

body length

Washer

Lockwasher

Hex Nut

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

(16 in this

of the

The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.

0

1/4 3/4

1/2

Nut, 1/2”

Inside
Diameter

1

1/4 3/4

1/2

Screw, 1/2 x 2

2

1/4 3/4

1/2

3

1/4 3/4

1/2

4

Body

Diameter

Body

Length

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware
Grade

Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.

No

Marks

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

19

2.1

20

2.3

27

3.1

31

3.5

66

7.6 8 10.9 12 16.3

76

8.6 10 13.6 14 19.0

30
31
43
49

NOTES

3.4

3.5

4.9

5.5

in/lbs

41
43
60
68

420 571.2

4.6

4.9

6.8

7.7

Wrench & Fastener Size Guide

1/4

1/4” Bolt or Nut

Wrench—7/16”

5/16

5/16” Bolt or Nut

Wrench—1/2”

3/8

3/8” Bolt or Nut

Wrench—9/16”

7/16
DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

1/2

DIA.

1/2” Bolt or Nut

Wrench—3/4”
