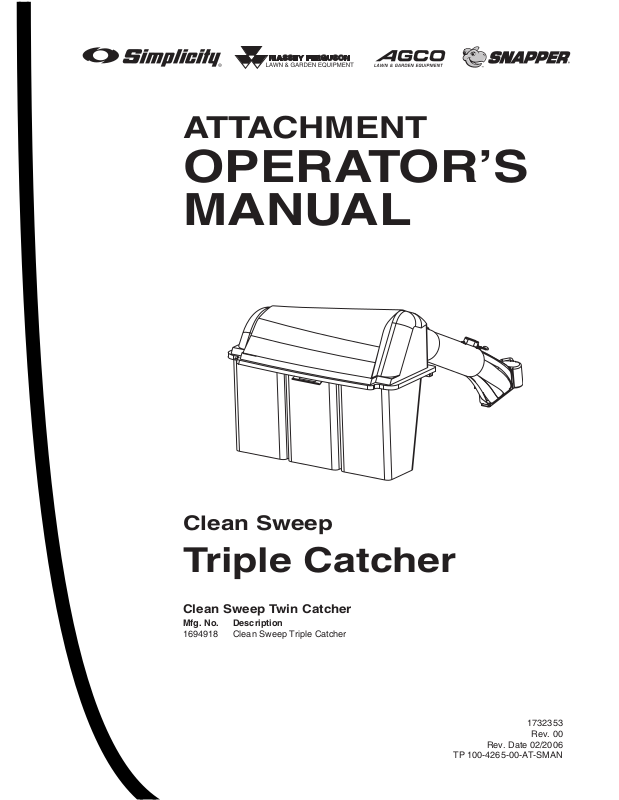

Simplicity 1694918 User Manual
ATTACHMENT
OPERATOR’S
MANUAL
Clean Sweep Twin Catcher
Mfg. No. Description
1694918 Clean Sweep Triple Catcher
1732353
Rev. 00
Rev. Date 02/2006
TP 100-4265-00-AT-SMAN
Clean Sweep
Triple Catcher
1
Normal Removal & Installation
Collector Installation ......................................10
Collector Removal .........................................11
NOTE: In these instructions, “left” and “right” are
referred to as seen from the operating position.
Safety Rules & Information
General Warnings............................................2
Safety Decals ..................................................2
Storing the Grass Catcher ...............................3
General Operating Information
Before Operation .............................................3
Mowing with the Catcher .................................3
Required Accessories......................................3
After Operation ................................................3
Storing the Grass Catcher ...............................3
Initial Installation

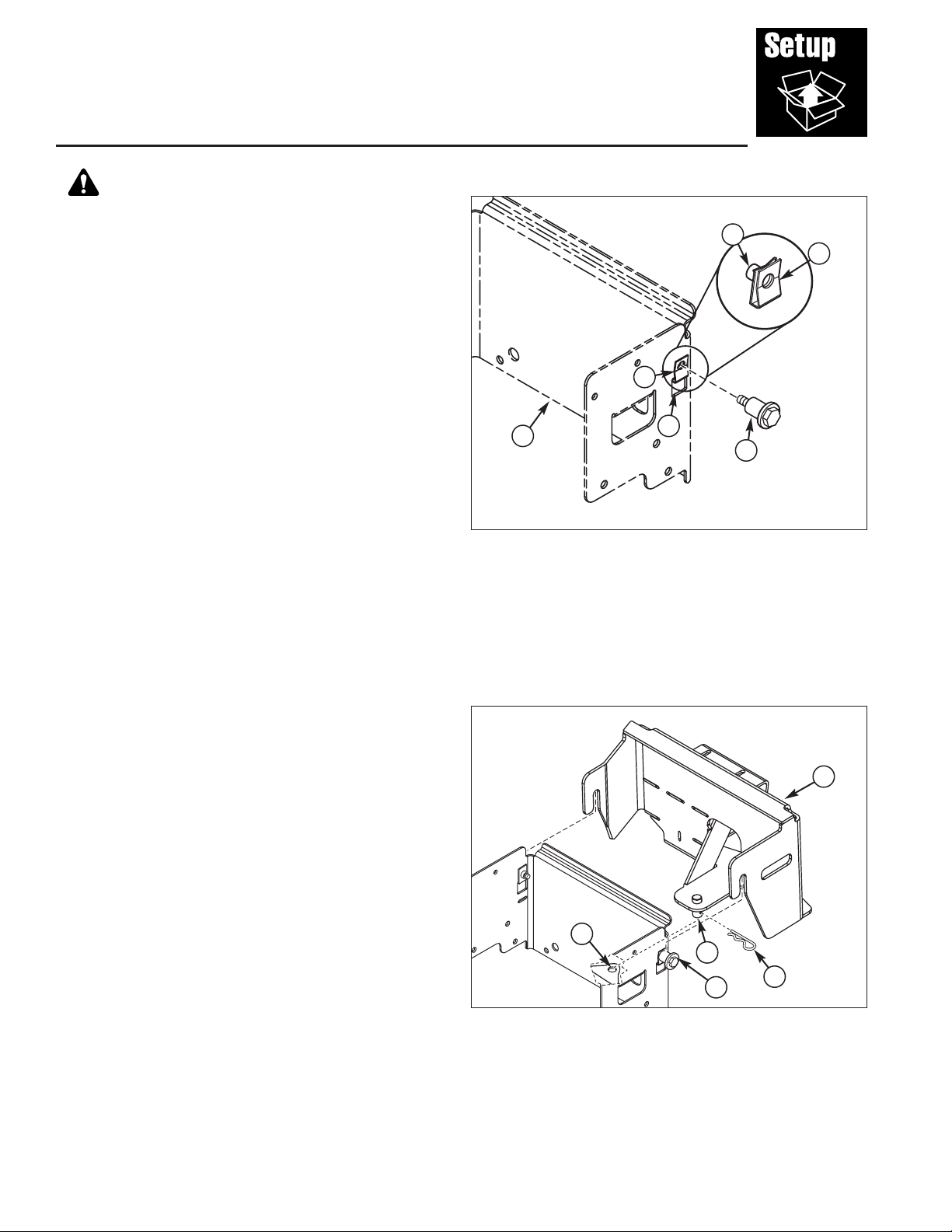

Hitch Installation ....................................................4
Baffle Installation

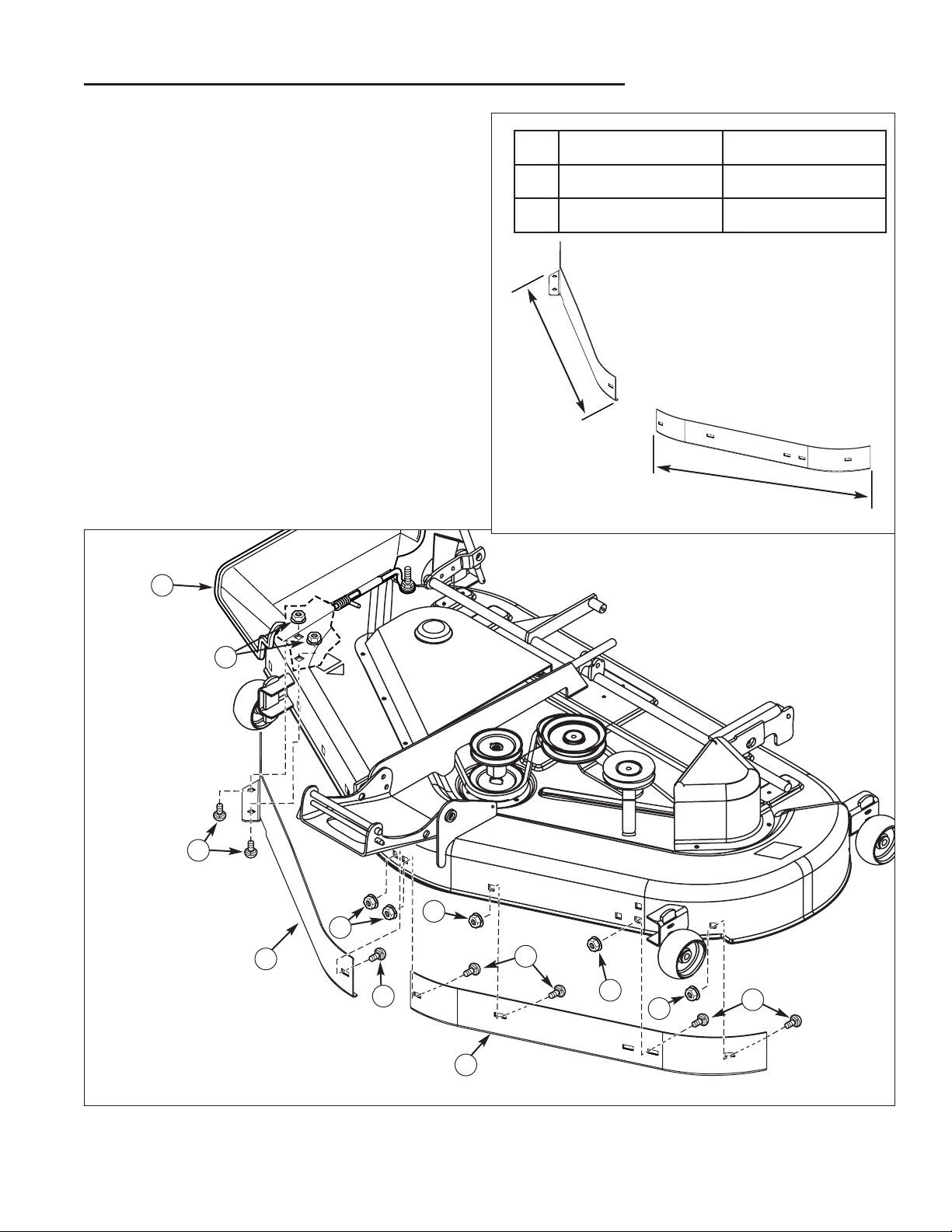

Baffle Installation ...................................................5
Component Installation
Component Installation..........................................6
Bag and Tube Installation
Bag and Tube Installation ......................................8
Table of Contents
2
Safety Rules
& Information
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of
unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cautions or warnings which must be followed.
SAFETY DECALS
This unit has been designed and manufactured to provide you with the safety and reliability you would expect
from an industry leader in outdoor power equipment
manufacturing.
Although reading this manual and the safety instructions
it contains will provide you with the necessary basic
knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to
remind you of this important information while you are
operating your unit.
All DANGER, WARNING, CAUTION and instructional
messages on your rider, attachments and mower should
be carefully read and obeyed. Personal bodily injury can
result when these instructions are not followed. The
information is for your safety and it is important! The
safety decals below are on your product.
If any decals are lost or damaged, replace them at once.
See your local dealer for replacements.
• Know the unit’s controls and how to stop quickly.
READ THE OPERATOR’S MANUALS.
• Read and obey all safety decals.
• Only allow responsible adults, who are familiar with
the instructions, to operate the unit.
• Disengage the PTO. Shut off the engine and wait for
all moving parts to stop before attaching, adjusting,
or disconnecting any part of the collection system.
• Check the collection system to make sure it is bolted
tightly to the unit.
• DO NOT operate the unit without either the entire
grass catcher or the deflector in place.
• Turn off the PTO to disengage the blades when not
mowing.
• DO NOT mow in reverse unless absolutely necessary. Always look down and behind before and while
travelling in reverse.
• DO NOT turn sharply when travelling alongside a
building or any object. Slow down before turning.
• DO NOT carry passengers.
• When collection system is removed from the mower
deck, the deflector must be properly installed.
• Collector bags are subject to deterioration and wear
during normal use. Inspect the bag periodically for
tears, holes, or weak spots and replace with a new
bag that meets manufacturer’s durability standards.
• If the mower stalls or the collector chute plugs:
1. Disengage the PTO;
2. Stop the engine and remove the key;
3. Set the parking brake, and wait for all moving
parts to stop.
4. Remove the foreign object or clear the chute
with a piece of wood before restarting the engine.
NEVER place hands into COLLECTOR OR
MOWER housing to clear jammed objects.
Blower OR MOWER may rotate when object is
removed.
• For added stability and to prevent tipping or loss of
control:
a. Use reduced speed on uneven ground and
when turning corners.
b. Reduce loads on hillsides. It is recommended
that the collection system be kept only half full
when negotiating any slopes. Start mowing on
slopes when the collection system is empty.
c. Mow up and down the face of slopes; never
across the face of any slope.
• Never operate on slopes greater than 17.6%
(10°).
GENERAL WARNINGS
TP 600-2562-01-AT-SMA
Attachment Decal
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective operation.
Decal - WARNING
Thrown Objects Hazard
Part Number 1732819
Read and obey all operation and warning decals.
WARNING
Thrown objects hazard
• Objects thrown by the mower can seriously
injure or kill you.
• Do not open the hopper while the mower blades
are turning.
• Do not operate the mower without the complete
catcher in place.
1732819
Before Operation
Clear the lawn of all sticks, stones, wire and other debris
which may be caught or thrown by the mower blades.
Check grass condition. If wet, wait until later in the day.
If grass is wet, the grass catcher is likely to become
plugged.
For efficient bagging, air circulation under the
mower deck, through the chute and into the bag is
very important.
For this reason, BEFORE YOU BEGIN MOWING you
should make certain the underside of the mower and
the underside of the catcher lid are free from grass and
debris.
Make sure that there is a snug fit between mower deck,
blower housing, tubes, and grass catcher cover.
Mowing with the Catcher
Always operate with throttle at full speed when mowing.
Grass should be cut often, and not too short. If grass is
too long or lush it may be necessary to keep ground
speed to a minimum or to cut only half the width of the
mower to prevent clogging. If grass is long, operate with
mower in high cutting position for first pass, cutting again
in a lower position on a second pass.
Do not open the cover with mower engaged.
If a large amount of cut grass is spilling out from under
deck, the tube may be plugged or the bags may be full—
discontinue mowing, stop the unit, disengage the PTO,
shut off the engine and then empty the catcher or clear
the tube.
General
Operating Instructions
WARNING
ALWAYS shut off the tractor. Disengage the PTO,
and allow all moving parts to stop BEFORE
disconnecting or clearing tube, or emptying
catcher.
Before leaving the operator’s position for any
reason, engage the parking brake, disengage the
PTO, stop the engine and remove the key.
To reduce fire hazard, keep the engine, rider and
mower free of grass, leaves and excess grease.
Do not stop or park rider over dry leaves, grass or
combustible materials.
Never operate on slopes greater than 17.6% (10°).
After Operation
Remove any debris from the the screen on the underside
of the lid.
The blower housing and tube should be removed for
cleaning.
Inspect the grass bags for wear or damage. Make sure
that there is a snug fit between mower deck, blower
housing, tubes, and grass catcher cover.
Storing The Grass Catcher
Clean the grass catcher thoroughly using a mild detergent (other products may damage the tube). Remove
any debris from the the screen on the underside of the
lid.
If paint has been scratched on metal parts, touch up with
paint, or apply a thin film of oil to prevent corrosion.
Store in a dry area. Dry thoroughly before storing for a
long period of time. Always store away from moisture.
Do not leave grass in bagger containers. Empty
containers after each use and before storing.
Failure to do so may result in spontaneous
combustion which could develop into a fire.
CAUTION
CAUTION
Before you begin operating the unit be certain
you have read all of the safety and operational
information of this instruction sheet, as well as
the Operator’s Manual for the tractor and any
other attachments.
3
