Simplicity 1694405 User Manual
Specifications and Main Features
- Model: 50 hp Tiller PTO Mounted 1694405
- Head Shaft Type: 540 RPM
- Transmission: PTO
- Maximum Tilling Depth: Adjustable through side skids
- Tilling Width: 50 Inches
- Side Shift Capability: Permits tillage alongside trees, shrubs, etc
- Blade Construction: Solid heavy-duty parts
- Gearbox Design: Speed reduction type
- Gearbox Oil: SA 90
- Recommended Grease: GP Grease
- Shear Bolt Specification: 6mm x 40 Grade 5
- Shear Bolt Specification: 6mm x 40 Grade 5
- Weight: Not provided
- Bolt Torque Specifications:
- M8 25N.m / 18lbf
- M10 50N.m / 37lbf
- M12 90N.m / 66lbf
- M14 140N.m / 103lbf
- M16 215N.m / 155lbf
- M18 295N.m / 217lbf
- M20 420N.m / 302lbf
Frequently Asked Questions
- What model of tractor works best with the tiller?
The tiller can work with an average tractor with a standard PTO positioned on the rear and a CAT O three point hitch with no difficulties at all.
- What should I do if the tiller won't penetrate the ground?
If the tiller does not penetrate the ground with ease, then it could be too dry, hard or its compacted form may be intact. Change the depth and check that the blades are properly fitted.

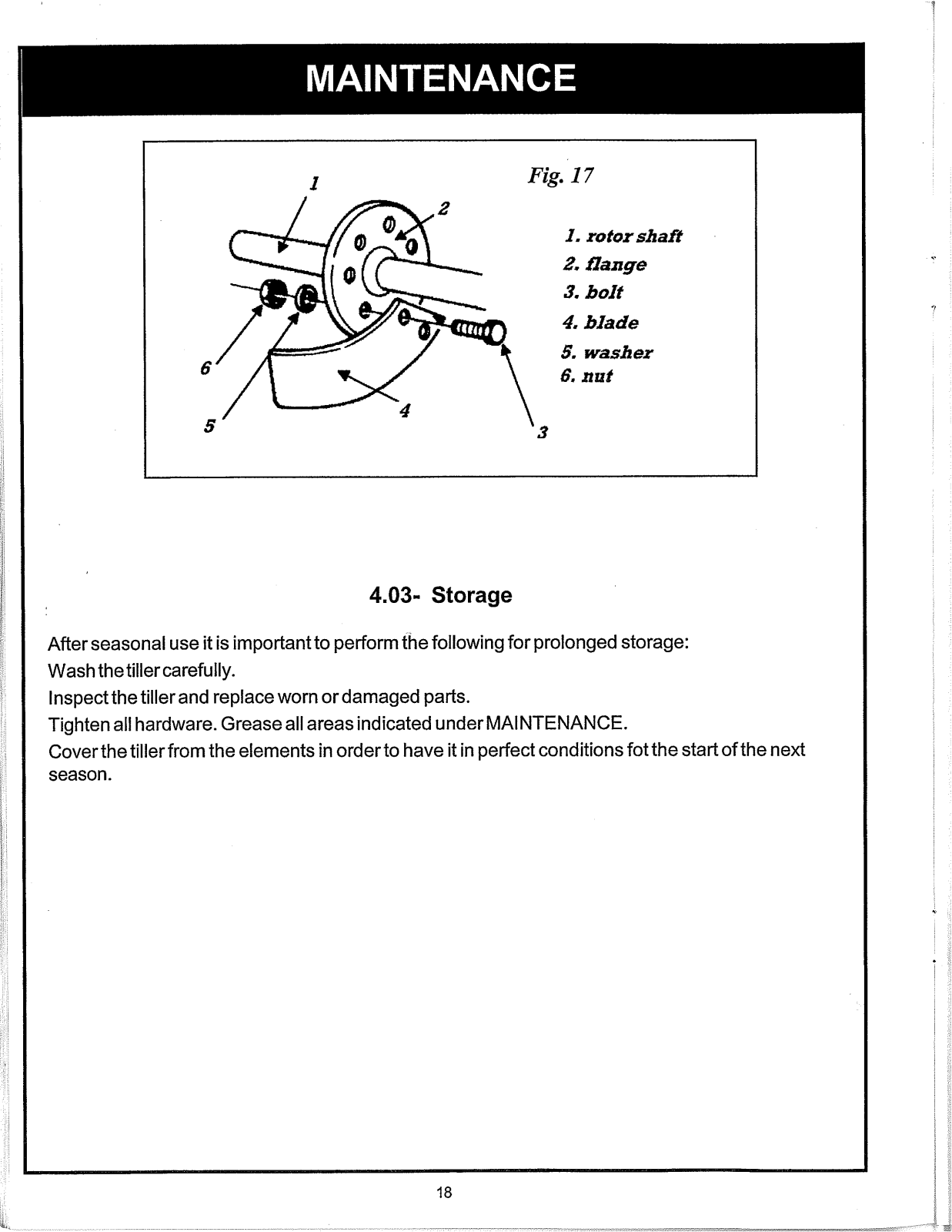

- When do I need to change the blades?
Blades must be replaced after they have been shortened from the original size between 1 and 1.25 inches.
- How do I lubricate the tiller?
Be sure to grease the rotor support, drive line cross efficiently and bearings teat and frequently inspect oil levels of the gearbox.

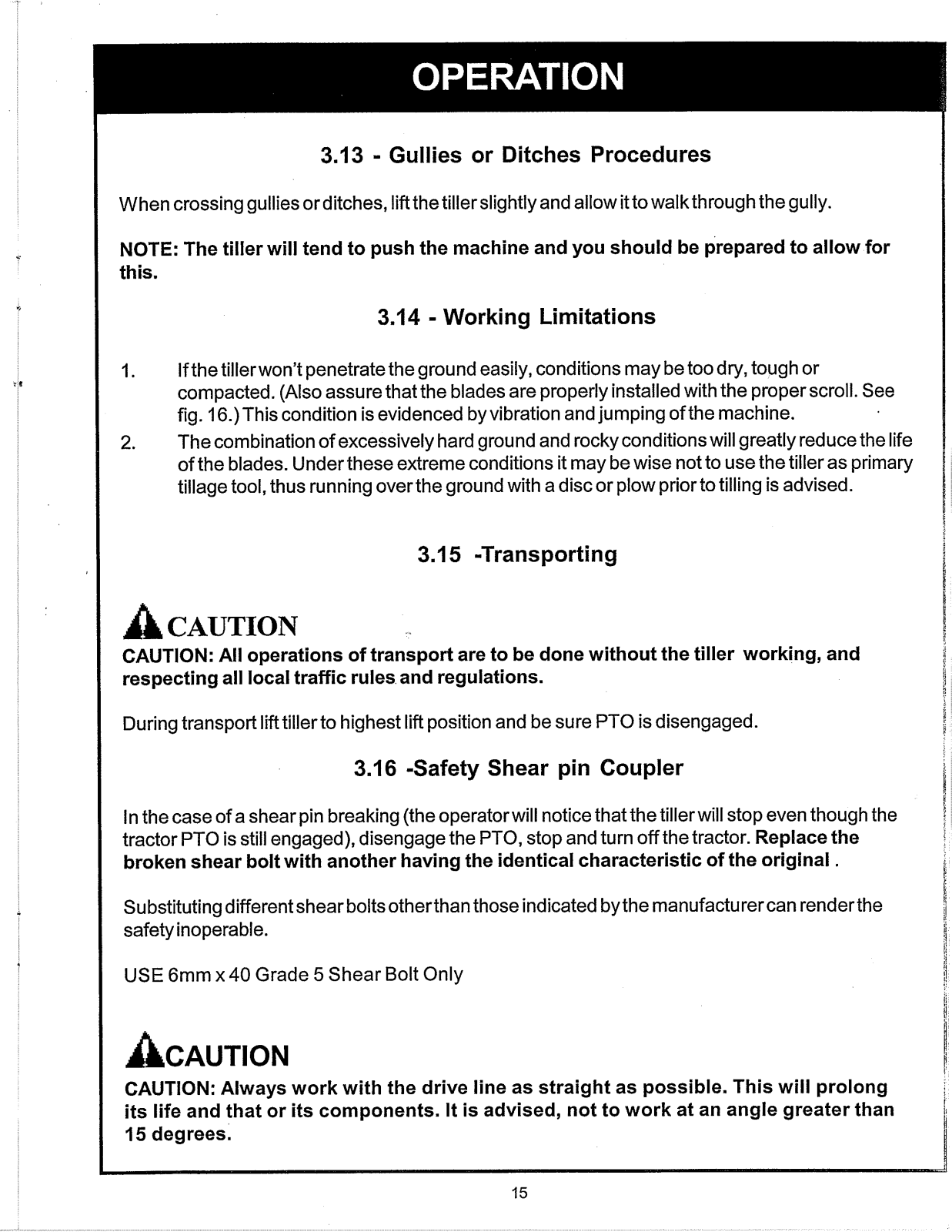

- What does breaking of a shear pin entail?
In case one takes over an fractured shear, one has fracture pin one has to deactivate P.T.0 and put off the tractor and reverse the replacements made before.
- What should be the method recommended while piece moving?
While moving piece of in transit, put the tiller on the highest point and also make sure that P.T.O. engages while making sure that local traffic laws and regulations are observed.
