Simplicity 1694401 User Manual

Attachment

g

Illustrated

Parts List

Attachment

. No. Description

Mf

1694401 Deluxe Hard Snow Cab

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.2007

Part No.:

TP 400-4281-00-AT-SMA

Rev.

1731934

01/2007

Table Of Content

s

PRODUCT COMPONENTS PAGES

Additive Parts Group ............................................................................................................................................

Electrical Controls Group .....................................................................................................................................

Frame Group ........................................................................................................................................................

Front Windshield Group .......................................................................................................................................

Glass Door Group ................................................................................................................................................

Rear Windshield Group ........................................................................................................................................

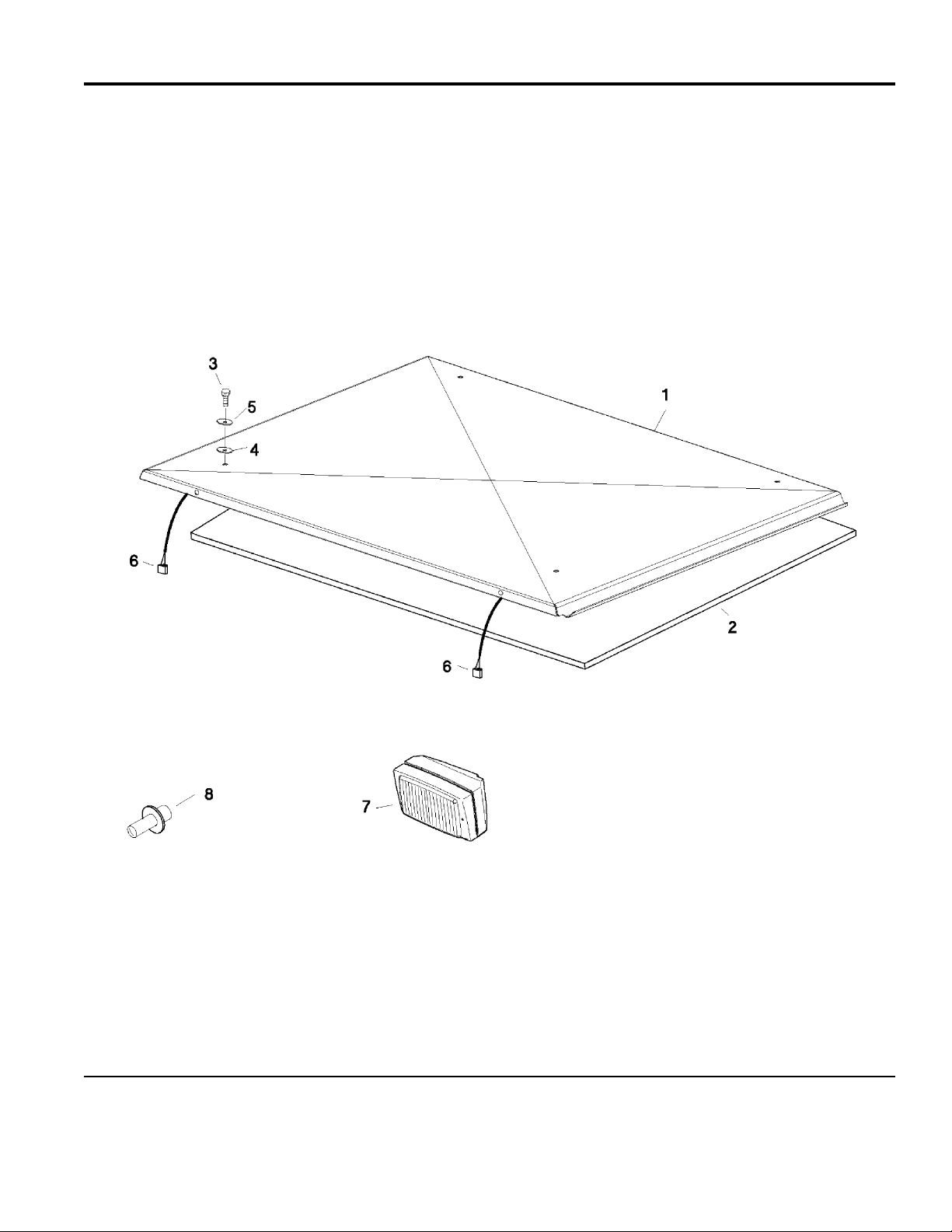

Roof Group ...........................................................................................................................................................

10
12
14
16

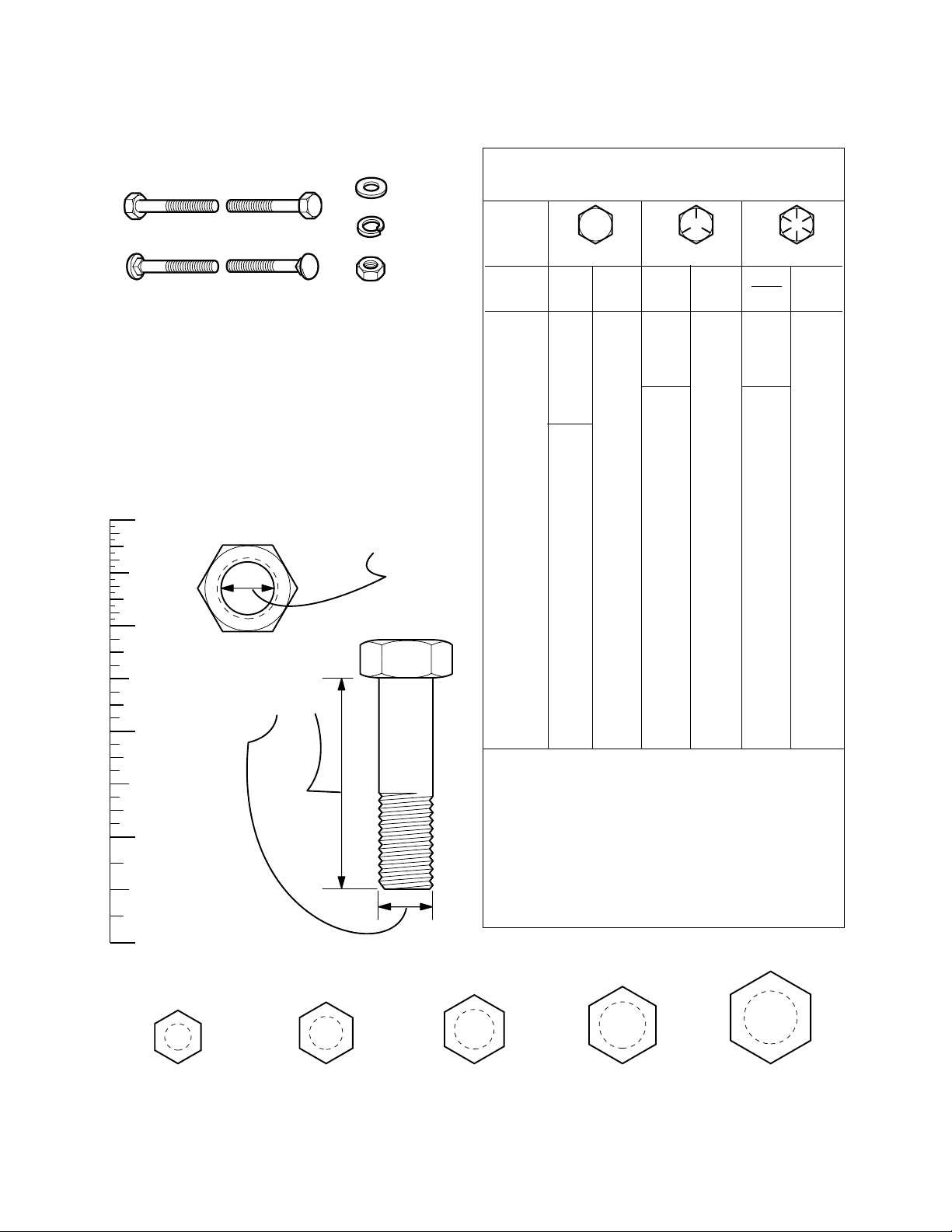

Torque Specification Chart ..................................................................... Inside Back Cover

4
6
8

Additive Parts Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281apg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

4

TP 400-4281-00-AT-SMA

Additive Parts Group

PART NO. DESCRIPTIONREF NO QTY.

Strut right 1 1732678SM 1
Strut left 2 1732677SM 1
Cross-stay below 3 1732690SM 1
Hexagon head screw M10x30 4 1732639SM 8
Shim disk M10 5 1732657SM 16
Stop nut M10 6 1732649SM 8
Shim disk M8 7 1732656SM 8
Retainer ring M8 8 1732661SM 8
Hexagon head screw M8x25 9 1732638SM 8
Hexagon head screw M12x45 10 1732631SM 6
Shim disk M12 11 1732658SM 36
Stop nut M12 12 1732650SM 18
Spoiler right 13 1732680SM 1
Spoiler left 14 1732679SM 1
Shim disk M6 15 1732655SM 4
Stop nut M6 16 1732647SM 2
Hexagon head screw M6x16 17 1732635SM 2
Sticker 18 1732682SM 1
Stop nut M5 19 1732646SM 8
Shim disk M5 20 1732654SM 16
Hexagon head screw M5x20 21 1732634SM 8
Tube profile 22 1721316SM 0.3m
Edge-protection small 23 1732713SM 1m
Blind rivet 4x12 24 1732663SM 4
Sheet metal screw 4.8x16 25 1721415SM 2
Brake pedal cover 26 1732692SM 1
Strip 27 1732686SM 1
Screw-on plate 28 1732685SM 1
Attachment bracket 29 1732681SM 1
Spacer 30 1732709SM 2
Hexagon head screw M12x40 31 1732633SM 8
Hexagon head screw M12x100 32 1732632SM 4
Bracket front left 33 1732675SM 1
Bracket front right 34 1732676SM 1
Mounting fuse box 35 1732687SM 1
Fuse box 36 1732707SM 1
Cable loom 37 1732683SM 1
Safety belt fastening 38 1732691SM 2
Mounting front-loader locking device 39 1732688SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

5

TP 400-4281-00-AT-SMA

Electrical Controls Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281ecg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

6

TP 400-4281-00-AT-SMA

Electrical Controls Group

PART NO. DESCRIPTIONREF NO QTY.

Frame cover panel front top 1 1732684SM 1
Cable loom 2 1732683SM 1
Switch wiper-washer system 3 1732708SM 1
Blind cover 4 1732715SM 2
Blind plug 12mm 5 1721319SM 3
Sun blind 6 1732599SM 1
Nipple with screw 7 1721438SM 1
Cap nut M4 8 1721437SM 1
Oval countersunk head screw M4x15 9 1732641SM 2
Shim disk M4 10 1732653SM 2
Nut M4 11 1732645SM 2
Sheet metal screw 4.8x16 12 1721415SM 10
Frame cover panel rear top 13 1732666SM 1
Sheet metal screw 3.5x16 14 1732643SM 2
Switch (13.350) 1-stage 15 1732714SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

7

TP 400-4281-00-AT-SMA

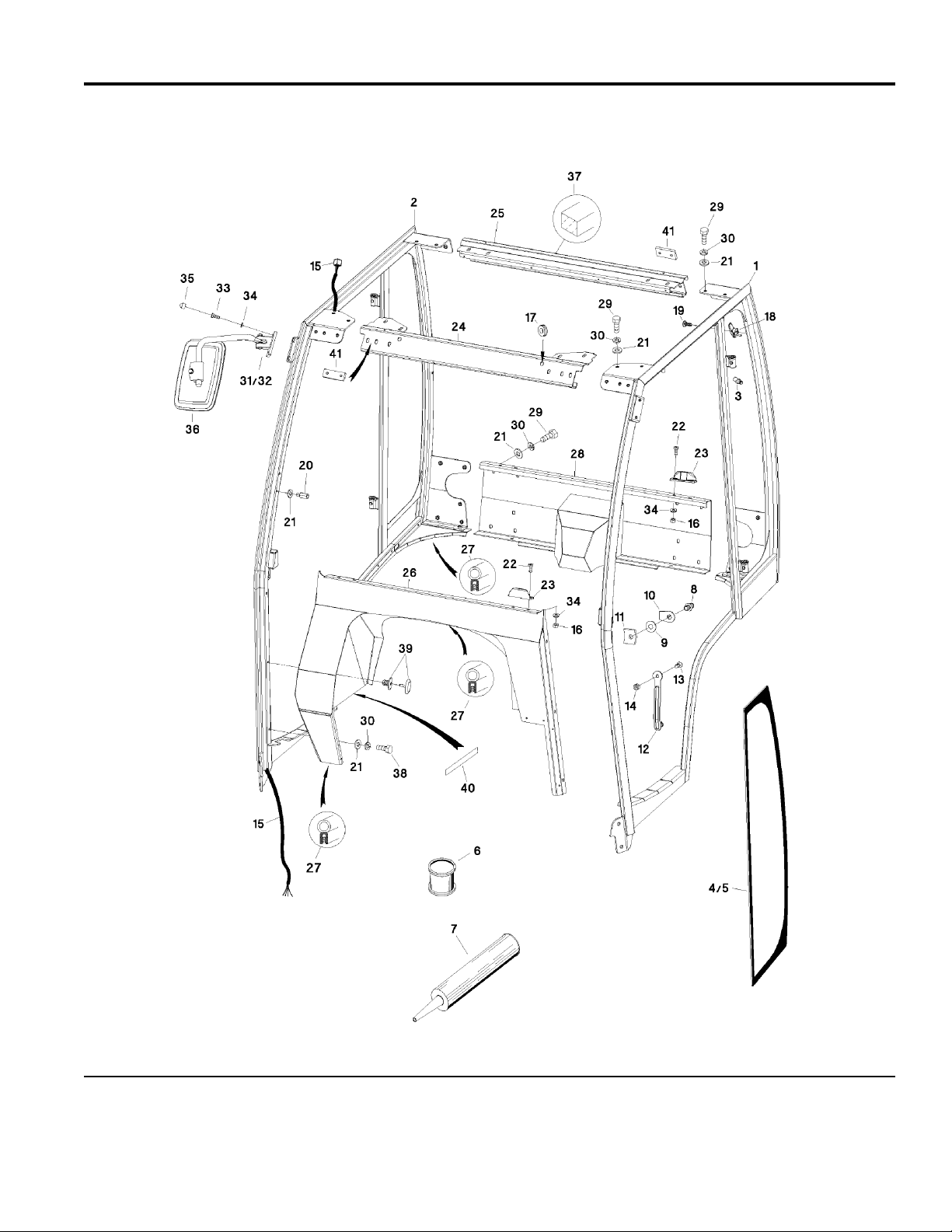

Frame Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281fg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

8

TP 400-4281-00-AT-SMA

Frame Group

PART NO. DESCRIPTIONREF NO QTY.

Side frame left 1 1732671SM 1
Side frame right 2 1722672 1
Impact nipple H1 d=6mm 3 1732662SM 4
Glass SH left 4 1732703SM 1
Glass SH right 5 1732689SM 1
Activator 30ml 6* 1
Adhesive for panel (Sikadrive) 7* 1
Locking pin 13mm 8 1721434SM 2
Washer 9 1732597SM 2
Slide-off strap 10 1732696SM 2
Threaded plate 11 1732695SM 2
Door push-out 12 1721391SM 2
Countersunk head screw M8x20 13 1732640SM 2
Stop nut M8 14 1732648SM 2
Cable loom 15 1732683SM 1
Stop nut M6 16 1732647SM 8
Blind plug 18mm 17 1732664SM 4
Coat hook 18 1732700SM 1
Sheet metal screw 3.9x13 19 1732642SM 1
Pneumatic spring sleeve l=22mm / 2x M8 20 1721313SM 2
Shim disk M8 21 1732656SM 25
Oval head screw M6x16 cross-recessed 22 1732644SM 8
Locking device 23 1732710SM 4
Cross-strut front above 24 1732669SM 1
Cross-strut rear above 25 1732670SM 1
Front panel 26 1732673SM 1
Tube profile 27 1721316SM 3.9m
Rear panel 28 1732674SM 1
Hexagon head screw M8x20 29 1732637SM 18
Retainer ring 30 1732661SM 23
Mirror left complete 602001 (Includes Ref. No. 36) 31 1732699SM 1
Mirror left complete 602001 (Includes Ref. No. 36) 32 1732698SM 1
Hexagon head screw M6x16 33 1732635SM 6
Shim disk M6 34 1732655SM 10
Cover cap d=6mm 35 1732717SM 4
Mirror 36 ** 1
Compriband A20/15 37 1721323SM 3.4m
Hexagon head screw M8x12 38 1732636SM 5
Expansion rivet 39 1732712SM 1
Velour band 40 1732665SM 0.3m
Distance plate hinge t=8mm 41 1732711SM 8

Footnotes

NOTE* Not a serviceable part.
NOTE* Not a serviceable part.

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

9

TP 400-4281-00-AT-SMA

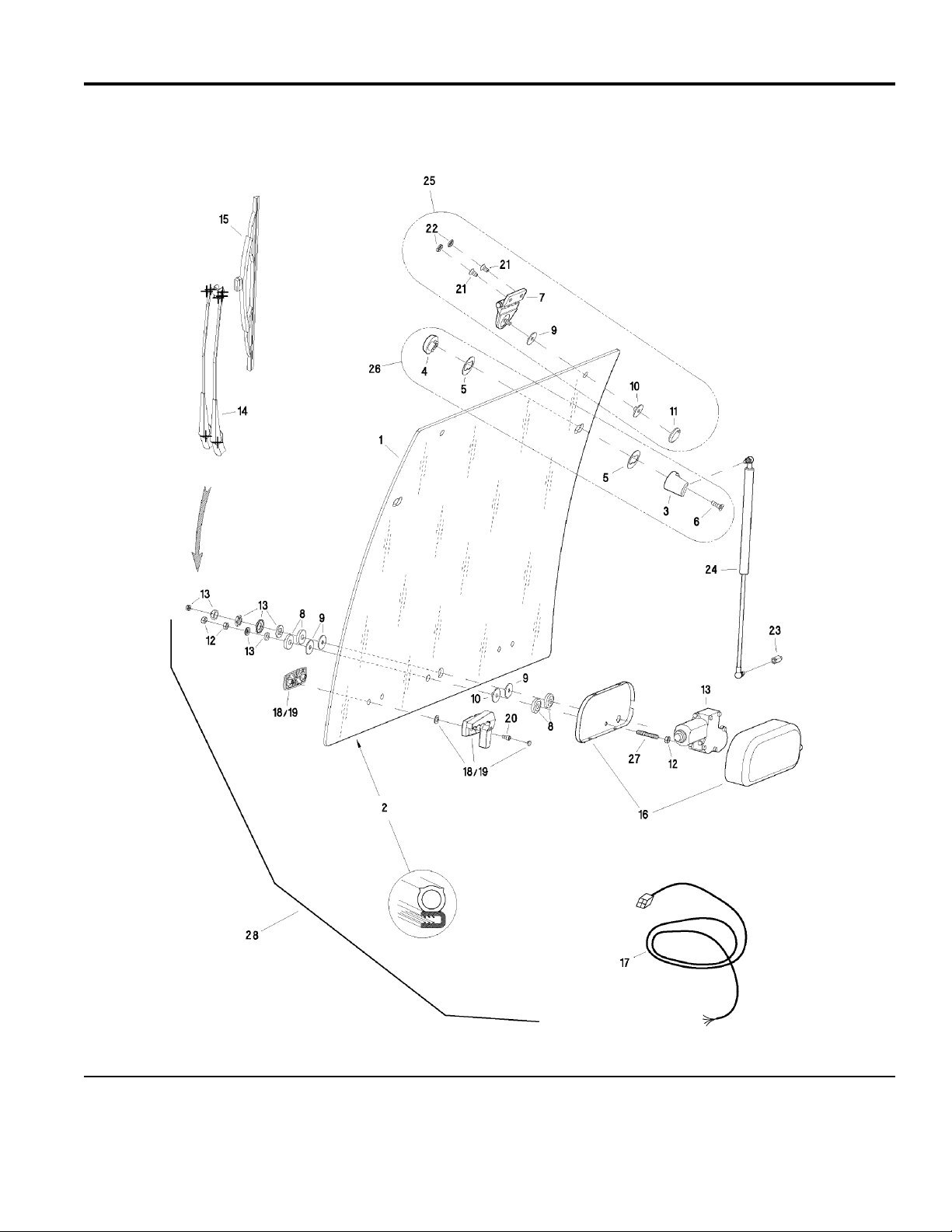

Front Windshield Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281fwg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

10

TP 400-4281-00-AT-SMA

Front Windshield Group

PART NO. DESCRIPTIONREF NO QTY.

Glass WS 1* 1
Sealing tube profile 2 1721325SM 4 lfm
Pneumatic spring mounting inside 3* 2
Pneumatic spring mounting outside 4 1721335SM 2
Rubber washer 5 1721431SM 4
Countersunk head screw M8x25 6* 2
PVC hinge complete 7 1721336SM 2
PVC-disk 8 1721432SM 4
Rubber washer 9 1721427SM 5
Rubber washer with neck 10 1721428SM 3
PA - disk M8 11 1721429SM 2
Nut M8 12 1732648SM 3
Wiper motor 85 degrees / 12V 13 1732721SM 1
Wiper arm 400-500mm lg. 14 1732719SM 1
Wiper blade 450mm lg. 15 1732718SM 1
Cover wiper motor 16 1732720SM 1
Cable harness wiper motor 17 1732702SM 1
Locking device handle left 18 1732705SM 1
Locking device handle right 19 1732706SM 1
Socket head screw (hexagon socket)M6x12 20 * 4
Countersunk head screw M8x35 21 * 4
Cover cap countersunk head screw 22 1721433SM 4
Pneumatic spring sleeve l=22mm 2x M8 23 1721313SM 2
Pneumatic spring 320mm 150N 24 1732598SM 2
Set of hinges 25 1721348SM 2
Set of pneumatic spring mounting 26 1721349SM 2
M8 threaded rod l=75mm 27 1732701SM 1
Windshield complete (Includes all ref. nos. except ref. nos. 21 & 22) 28 1732697SM 1

Footnotes

NOTE* Not a serviceable part, must order complete windshield.

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

11

TP 400-4281-00-AT-SMA

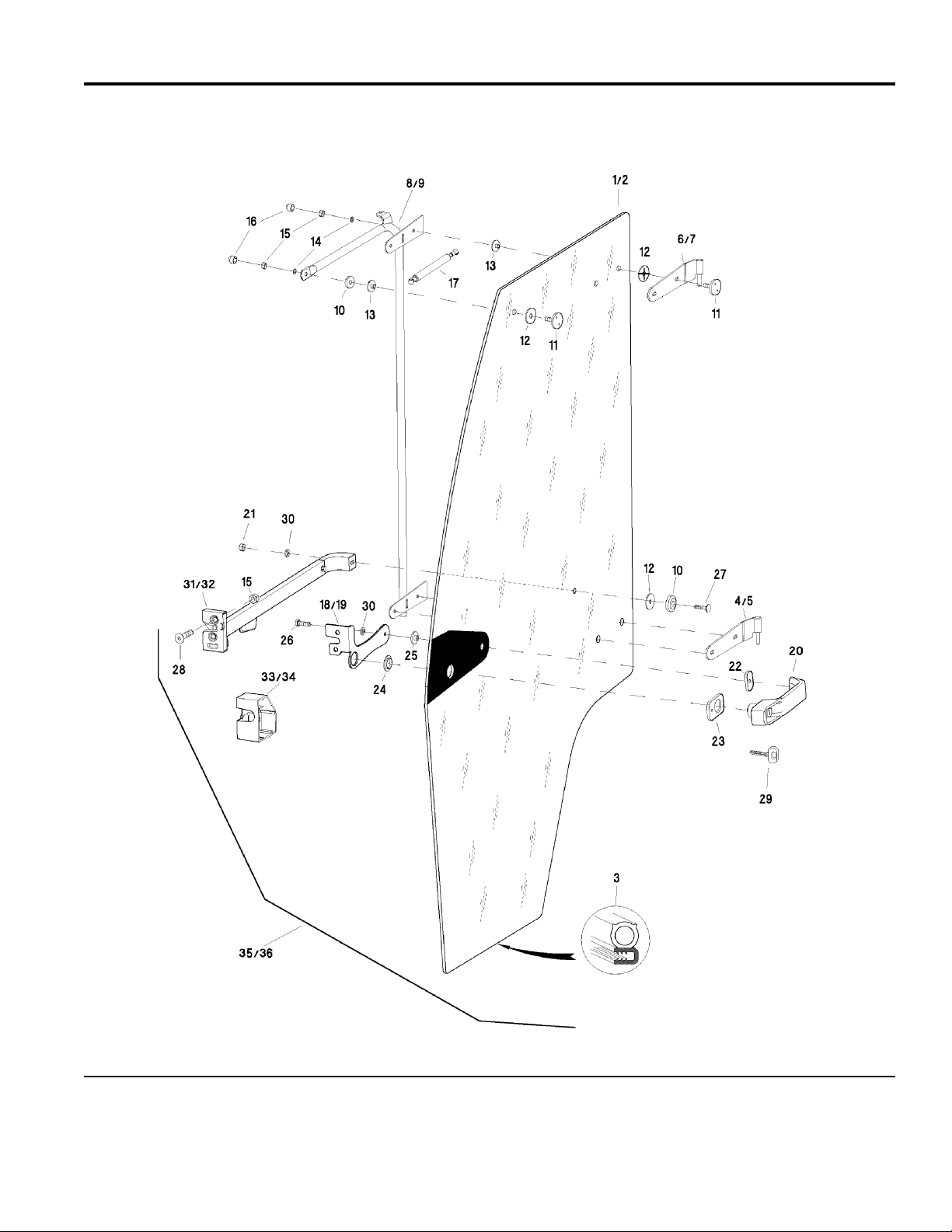

Glass Door Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281gdg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

12

TP 400-4281-00-AT-SMA

Glass Door Group

PART NO. DESCRIPTIONREF NO QTY.

Door window glass left 1* 1
Door window glass right 2* 1
Sealing tube profile 3 1721325SM 4.4m
Door hingle bottom left 4* 1
Door hinge bottom right 5* 1
Door hinge top left 6* 1
Door hinge top right 7* 1
Door strap left 8* 1
Door strap right 9* 1
PVC - disk 10 1721432SM 1
PVC - disk with screw M8x30 11 1721435SM 5
Rubber washer 12 1721427SM 5
Rubber washer with neck 13 1721428SM 5
Shim disk M8 14 1732656SM 5
Stop nut M8 15 1732648SM 6
Cover cap dm8 16 1721402SM 6
Pneumatic spring 320mm300N w/end-damp 17 1721376SM 1
Lock plate for complete glass door left 18 1721374SM 1
Lock plate for complete glass door right 19 1721375SM 1
Door handle with lockable latch 20 1721377SM 1
Stop nut M6 21 1732647SM 1
Rubber shim medium 22 1721378SM 1
Rubber shim large 23 1721379SM 1
Rubber washer with neck large 24 1721380SM 1
Rubber washer with neck small 25 1721381SM 1
Hexagon head screw M6x20 26 * 1
Hinge plate screw M6x30 27 * 1
Countersunk head screw M8x40 28 * 1
Key 29 1721387SM 1
Shim disk M6 30 1732655SM 2
Turn-catch lock left with cross arm 31 1721382SM 1
Turn-catch lock right with cross arm 32 1721384SM 1
Lock cover left 33 1721383SM 1
Lock cover right 34 1721385SM 1
Door left complete (Includes all ref. nos. except ref. nos. 2, 5, 7, 9, 19, 32 & 34) 35 1732693SM 1
Door right complete (Includes all ref. nos. except ref. nos. 1, 4, 6, 8, 18, 31 & 33) 36 1732694SM 1

Footnotes

NOTE* Not a serviceable part, must order complete door.

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

13

TP 400-4281-00-AT-SMA

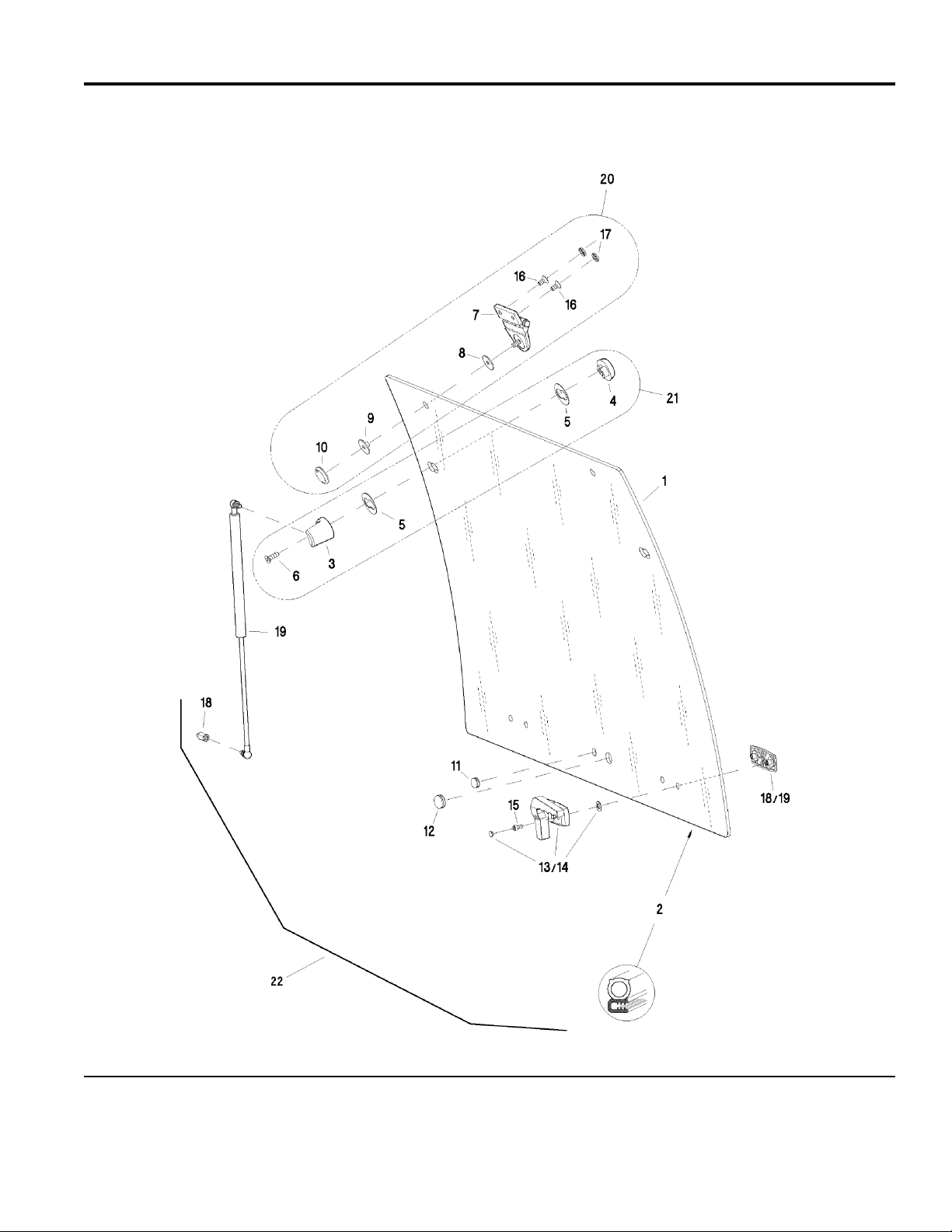

Rear Windshield Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281rwg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

14

TP 400-4281-00-AT-SMA

Rear Windshield Group

PART NO. DESCRIPTIONREF NO QTY.

Rear glass identical to glass WS 1* 1
Sealing tube profile 2 1721325SM 4 lfm
Pneumatic spring mounting inside 3* 2
Pneumatic spring mounting outside 4 1721335SM 2
Rubber washer 5 1721431SM 4
Countersunk head screw M8x25 6* 2
PVC hinge complete 7 1721336SM 2
Rubber washer 8 1721427SM 5
Rubber washer with neck 9 1721428SM 3
PA - disk M8 10 1721429SM 2
Blind plug 18mm 11 1732664SM 1
Rubber stopper D=20mm 12 1721373SM 1
Locking device handle left 13 1732705SM 1
Locking device handle right 14 1732706SM 1
Socket head screw (hexagon socket)M6x12 15 * 4
Countersunk head screw M8x35 16 * 4
Cover cap countersunk head screw 17 1721433SM 4
Pneumatic spring sleeve l=22mm 2x M8 18 1721313SM 2
Pneumatic spring 320mm / 150N 19 1732598SM 2
Set of hinges 20 1721348SM 2
Set of pneumatic spring mounting 21 1721349SM 2
Rear glass complete (Includes all ref nos. except ref. nos. 16 & 17) 22 1732596SM 1

Footnotes

NOTE* Not a serviceable part, must order complete rear glass

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

15

TP 400-4281-00-AT-SMA

Roof Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1\4281rg

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

16

TP 400-4281-00-AT-SMA

Roof Group

PART NO. DESCRIPTIONREF NO QTY.

Flat roof 1 1732667SM 1
Material lining fareb 201 2 1732716SM 1
Hexagon head screw M6x16 3 1732635SM 4
Rubber washer 5x20x2 4 1732660SM 4
Auto body washer 6x20x1.5 5 1732659SM 4
Cable loom 6 1732683SM 1
Headlamp H3 7 1732723SM 2
Halogen lamp H3 8 1732704SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694401 - Deluxe Hard Snow Cab

Briggs and Stratton Yard Power Products Group

2007Copyright © by Briggs and Stratton Corporation

Milwaukee, WI, USA. All rights reserved

17

TP 400-4281-00-AT-SMA

Hardware Identification & Torque Specifications

Common Hardware Types

Hex Head Capscrew

Carriage Bolt

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the

When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

body length

Washer

Lockwasher

Hex Nut

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

(16 in this

of the

The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.

0

1/4 3/4

1/2

Nut, 1/2”

Inside
Diameter

1

1/4 3/4

1/2

Screw, 1/2 x 2

2

1/4 3/4

1/2

3

1/4 3/4

1/2

4

Body

Diameter

Body

Length

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware
Grade

Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.

No

Marks

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

19

2.1

20

2.3

27

3.1

31

3.5

66

7.6 8 10.9 12 16.3

76

8.6 10 13.6 14 19.0

30
31
43
49

NOTES

3.4

3.5

4.9

5.5

in/lbs

41
43
60
68

420 571.2

4.6

4.9

6.8

7.7

Wrench & Fastener Size Guide

1/4

1/4” Bolt or Nut

Wrench—7/16”

5/16

5/16” Bolt or Nut

Wrench—1/2”

3/8

3/8” Bolt or Nut

Wrench—9/16”

7/16
DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

1/2

DIA.

1/2” Bolt or Nut

Wrench—3/4”
