Simplicity 1694287, 1694895, 2690447, 5100117, 5900630 User Manual

...

Download

Parts Manual

Series Transaxle Drive Walk-Behind Mower

15HP Product

. No. Description

1694895 Pacer, 15HP B&S Walk-Behind 2690447 Pacer, 15HP B&S w/34" Deck

17.5HP Product

Mfg. No. Description

5900630 Pacer, 17.5HP B&S w/34" Deck 5900766 Pacer, 17.5HP B&S w/32" Deck

Mower Decks

Mfg. No. Description

1694287 34" Mower Deck

Pacer

Rev.

5100117 11/2008

Part No.:

TP 400-7226-H-PA-S

Table Of Content

PRODUCT COMPONENTS PAGES

Engine Frame & Handle Bars Group ...................................................................................................................

Engine & PTO Group ...........................................................................................................................................

Transaxle - SERVICE PARTS .............................................................................................................................

Transaxle, Mount & Drive Idler Group .................................................................................................................

Motion Control, Parking Brake & Operator Presence Group ...............................................................................

Fuel Supply Hose & Tank Replacement Parts Group .........................................................................................

Fuel Tank & Mount Group (S/N: 2012825357 & Below) ......................................................................................

Fuel Tank & Mount Group (S/N: 2012825358 & Above) .....................................................................................

Electrical Group (S/N: 2013136020 & Below) ......................................................................................................

Electrical Group (S/N: 2013136021 & Above) .....................................................................................................

Wheel & Tire Group .............................................................................................................................................

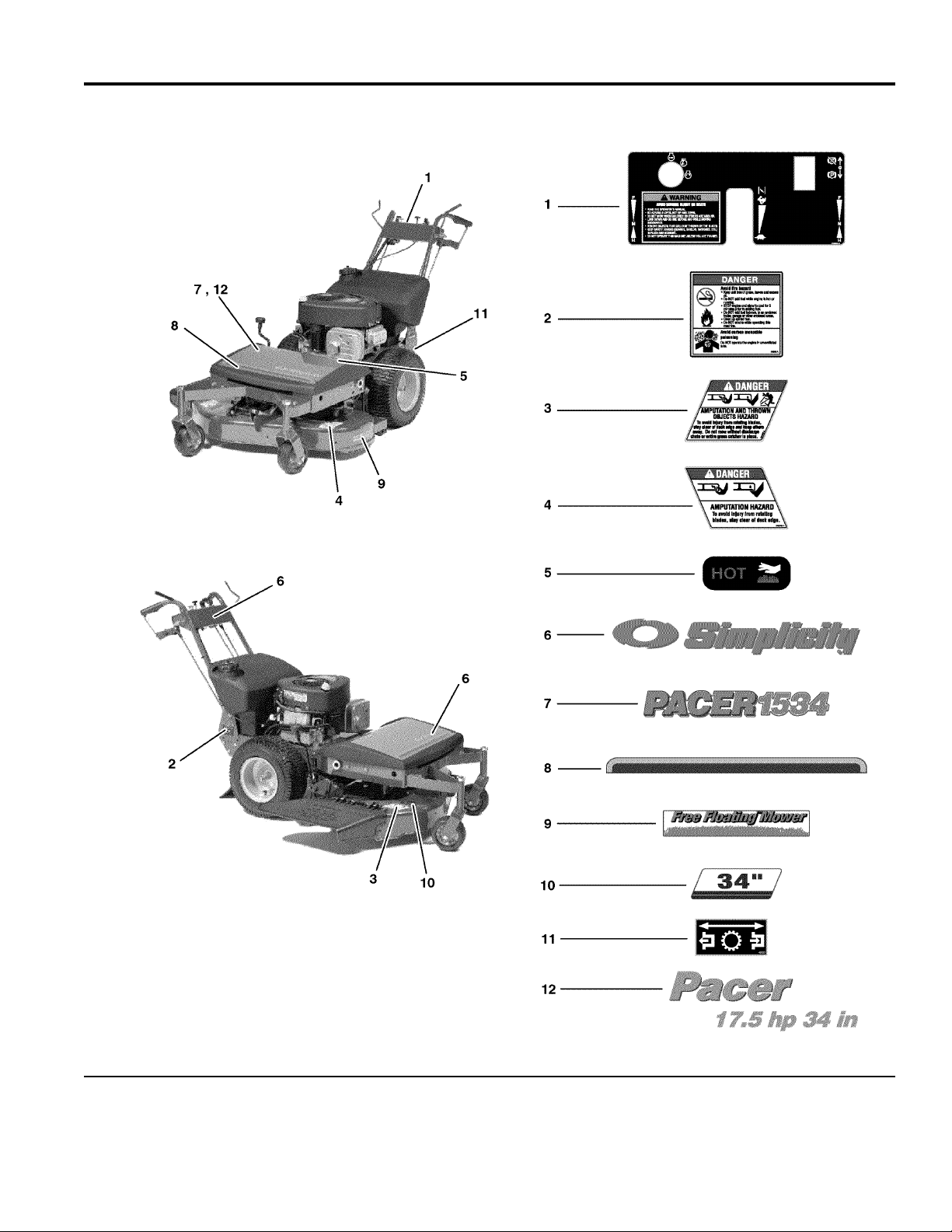

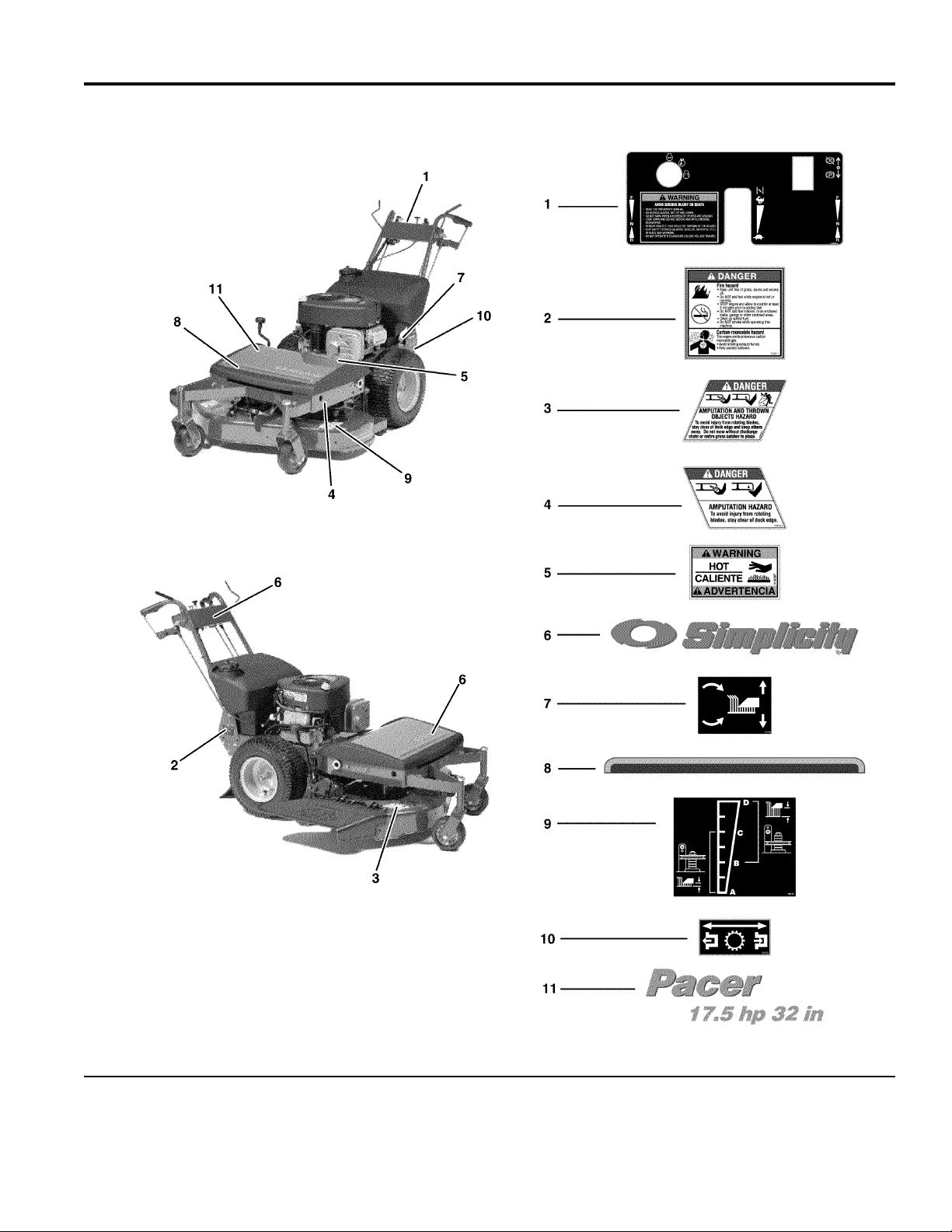

Decal Group .........................................................................................................................................................

32" Mower Deck - Frame, Caster & Shield ..........................................................................................................

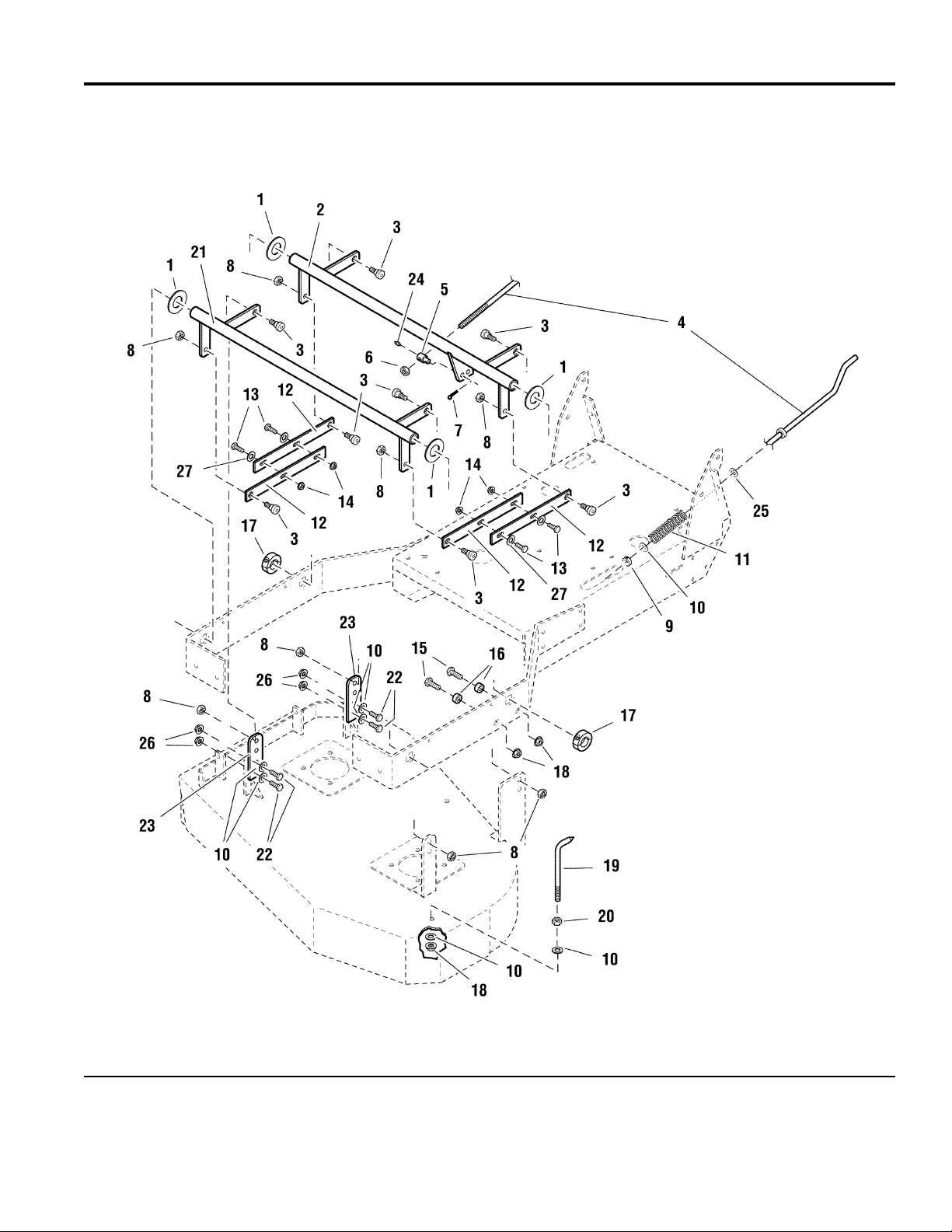

32" Mower Deck - Height Adjustment ..................................................................................................................

32" Mower Deck - Housing, Spindles, Blades & Pulleys .....................................................................................

34" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

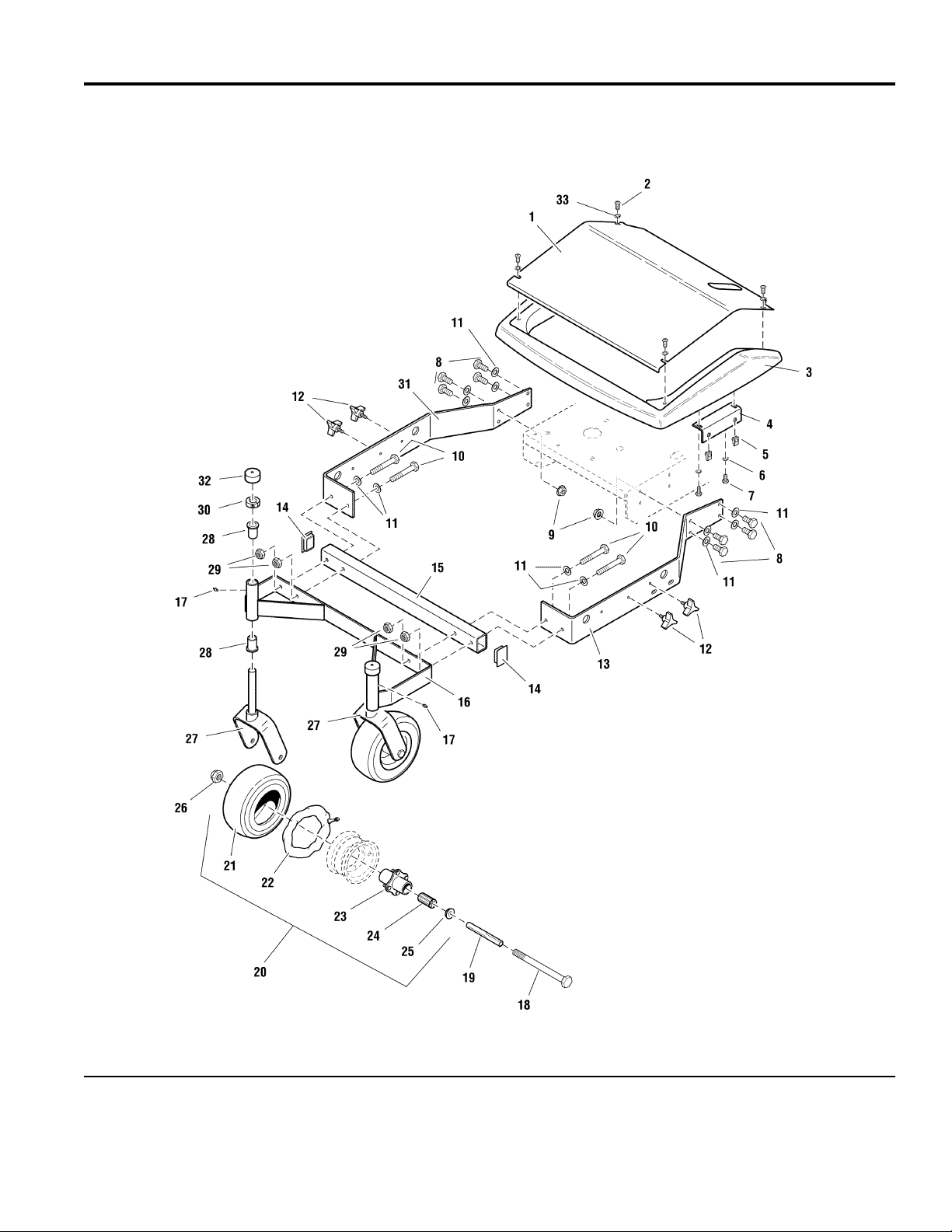

34" Mower Deck - Frame, Caster & Shield ..........................................................................................................

34" Mower Deck - Grass Mulcher ........................................................................................................................

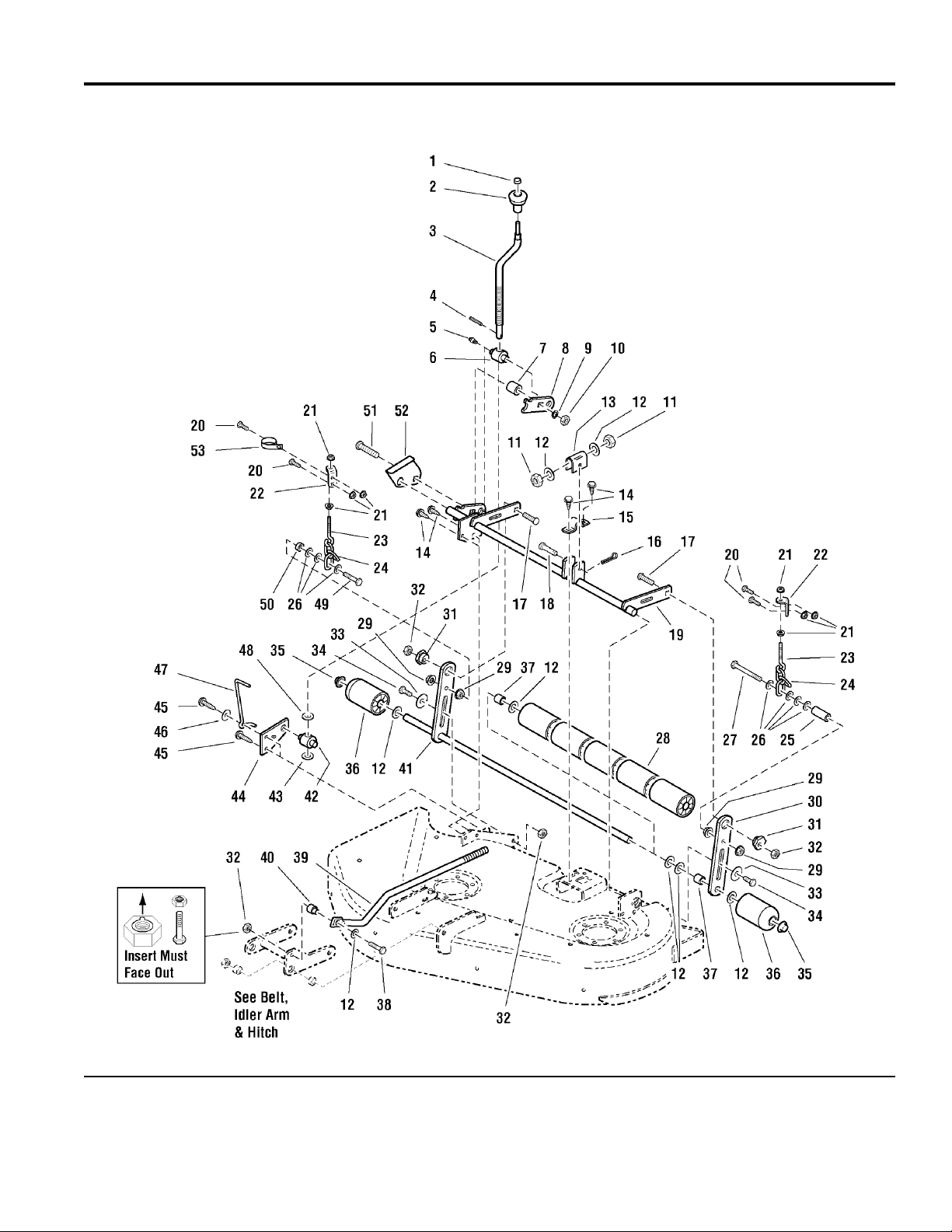

34" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

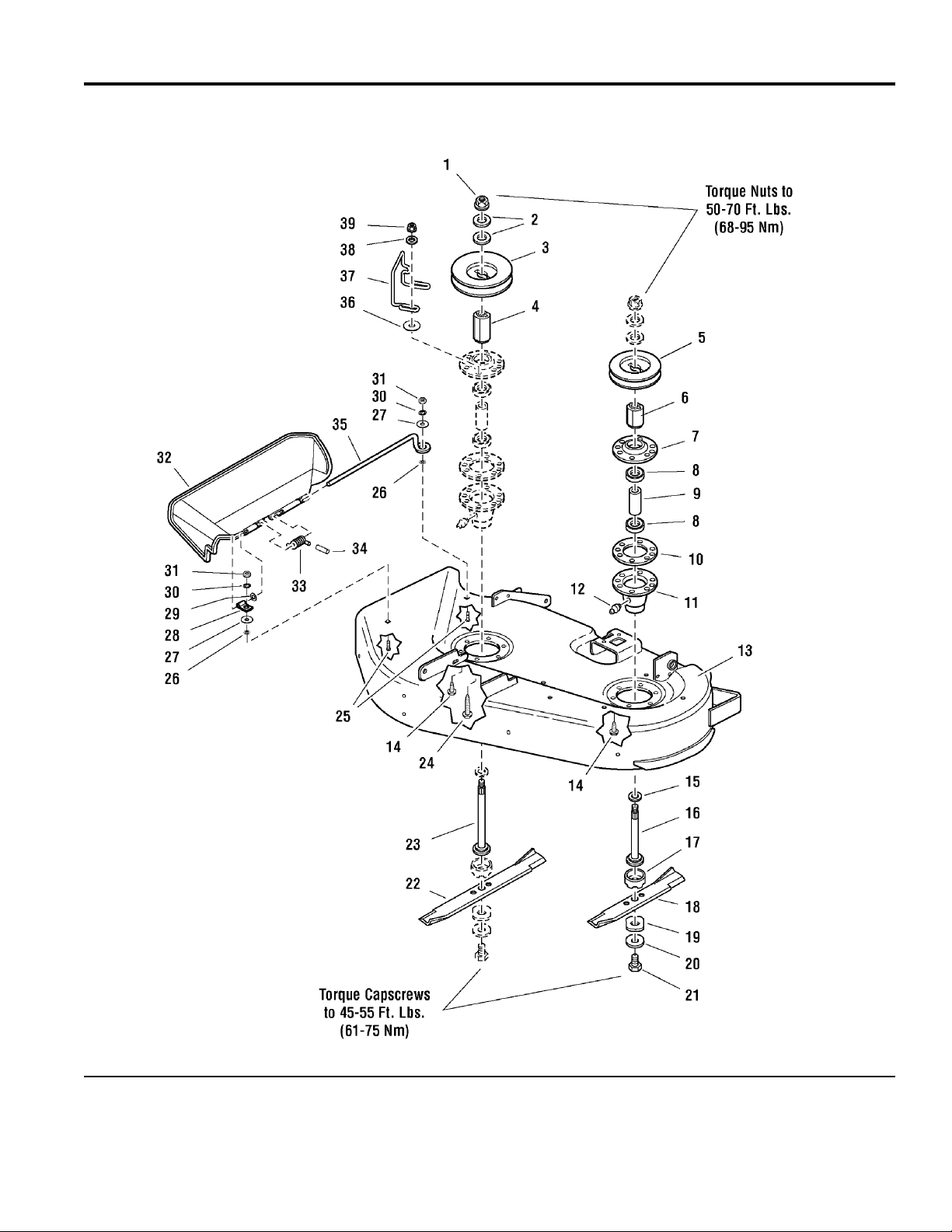

34" Mower Deck - Housing, Arbors & Blades ......................................................................................................

10 12 14 16 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 54

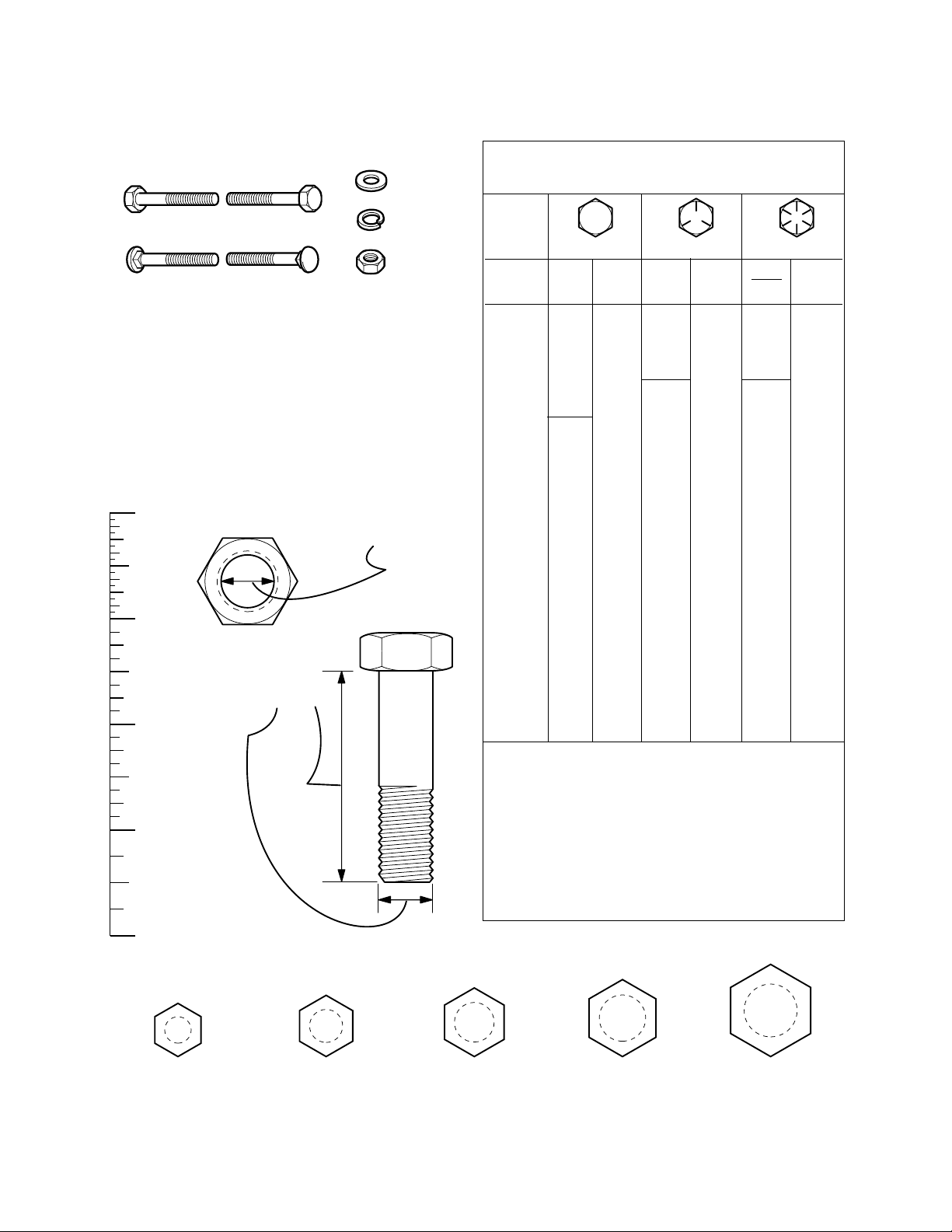

Torque Specification Chart ..................................................................... Inside Back Cover

4 6 8

Engine Frame & Handle Bars Group (17/32 Model)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5301452

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine Frame & Handle Bars Group (17/32 Model)

PART NO. DESCRIPTIONREF NO. QTY.

SWITCH, BLADE ENGAGEMENT 1 5022180 1 RING, SWITCH RETAINER 2 5022222 1 WELD, ENGINE DECK, HC36 - ORG 3 5049229C 1 NUT, 1/4-20 HEX SERR. FLANGE ( For Battery Terminals - Not Shown) 4 5025126 2 BOLT, 1/4-20 X 3/4 GD5 YZ (2 For Battery Terminals - Not Shown) 5 5025010X6 2 SWITCH, IGNITION, 6 POST (Includes Ref. No. 7-9) 6 5020927 1 KEY, IGNITION, MOLDED SET 7 5022789 1 COVER, PLASTIC SNAP ON 8 5022790 1 NUT, PLASTIC 9 5022791 1 CABLE, THROTTLE CONTROL, 40" 10 5048231 1 GRIP, FOAM, .940 X 5 X .187 11 5021841 2 NUT, 1/4-20 HEX NYLOCK FLANGE 12 5025391 2 WELD, HANDLE BAR 13 5061279C 1 NUT, #10-24 HEX NYLON LOCK 14 5025271 2 STRAP, RUBBER 15 5021670 1 SCREW, #10-24 X 1 RS, CZ 16 5025270 2 BATTERY BOX, W/ DRAIN HOLE 17 5100688 1 BATTERY, WET ( BCIU1, 340 CCA) 18 - 1 CLIP, BODY , 5/16-18 FOR 7 GA. 19 5022308 4 SHIELD, REAR 20 5047735C 1 BOLT, 5/16-18 X 1 GD5 YZ 21 5025011X8 4 WASHER, 5/16 SAE 22 5025155 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine Frame & Handle Bars Group (226hbre0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226hbre0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine Frame & Handle Bars Group (226hbre0)

PART NO. DESCRIPTIONREF NO. QTY.

SWITCH, PTO 1 1722887SM 1 SWITCH RETAINER RING 2 5022222SM 1 NUT, 3/8-24 Hex 3 5025035SM 1 CABLE, Choke Control, 47" 4 5046501SM 1 BOLT, 1/4-20 x 3/4 5 5025010X6SM 2 SWITCH, Ignition, Complete 6 1686734SM 1 KEY, Ignition, Molded Set 7 1717163SM 1 COVER 8 1704346SM 1 PLASTIC NUT 9 5022791SM 1 CABLE, Throttle Control, 46" 10 5047629SM 1 GRIP, Foam 11 5021841SM 2 NUT, 1/4-20 Hex Nylon Lock 12 5025095SM 2 HANDLE BAR ASSEMBLY 13 5061279CSM 1 NUT, #10-24 Hex Nylon Lock 14 5025271SM 2 RUBBER STRAP 15 5021670SM 1 SCREW, #10-24 x 1 16 5025270SM 2 BATTERY BOX 17 5046188SM 1 BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA) 18 - 1 BODY CLIP, 5/16-18 19 5022308SM 4 REAR SHIELD 20 5047735CSM 1 BOLT, 5/16-18 x 3/4 21 5025011X6SM 4 WASHER, 5/16" SAE 22 5025155SM 4 ENGINE DECK ASSEMBLY 23 5049229C 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine & PTO Group (17/32 Model)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5301446

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine & PTO Group (17/32 Model)

PART NO. DESCRIPTIONREF NO. QTY.

ENGINE, 17.5HP ELS, B&S#31F777-0118-G1 1- 1 GROMMET, 7/8 2 5021379SM 1 GROMMET, 1/2 3 5021077SM 1 BOLT, 5/16-18 X 1-1/2 GD5 YZ 4 5025011X12SM 5 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE) 5 5025139SM 3 BUSHING, BRASS, 3/4 X 1 X 1 6 5020876CSM 2 IDLER WELDMENT, ENGINE DECK 7 5047661CSM 1 WASHER, 3/4 SAE 8 5025160SM 1 C-CLIP, 3/4 SHAFT 9 5020863SM 1 PULLEY, IDLER 10 5021369SM 1 WASHER, 1/2 SAE 11 5025158SM 1 BOLT, 1/2-13 X 2-3/4 GD5 12 5025017X22SM 1 NUT, 1/2-13 HEX NYLON LOCK 13 5025056SM 1 BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ 14 5047632SM 1 SPACER, .45 X 1.62 X .37 15 5042132SM 1 CLUTCH,#504586, ELECTRIC, OGURA JD-11 16 1717664SM 1 KEY, 1/4" SQ. X 2.00 17 5050407X16SM 1 BOLT, 5/16-18 X 2-1/4 GD5 YZ 18 5025011X18SM 1 WASHER, 5/16 SAE 19 5025155SM 4 SPRING, EXTENSION 20 5021103SM 1 WASHER, 5/16 INT. TOOTH LOCK 21 5025188SM 1 BOLT, 5/16-18 X 3/4 GD5 22 5025011X6SM 1 CLAMP, HOSE, 1.000 DIA. (2 Not Shown) 23 5023173SM 3 HOSE, OIL DRAIN 24 5048681SM 1 NUT, 5/16-18 HEX NYLON LOCK 25 5025057SM 4 NUT, 5/16-18 HEX NYLOCK FLANGE 26 5025392SM 2 WASHER, 5/16 USS 27 5025337SM 2 SPACER, .52 X 1.00 X .38 28 5044609SM 1 ARRESTOR-SPARK (Not Shown) 29 392390 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine & PTO Group (226eng0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226eng0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Engine & PTO Group (226eng0)

PART NO. DESCRIPTIONREF NO. QTY.

ENGINE, 15HP Briggs & Stratton, Model 28 (15HP Model Only) 1* 1 FUEL FILTER 2 5021178X3SM 1 OIL FILTER (492932) 2* 1 FOAM PRE-CLEANER (697015) 2* 1 AIR FILTER (697634) 2* 1 SPARK PLUG (691043) 2* 1 MUFFLER (697349) 2* 1 EXHAUST MANIFOLD (496750) 2* 1 EXHAUST DEFLECTOR (396903) 2* 1 EXHAUST MANIFOLD GASKET (692236) 2* 2 GROMMET 3 5021379SM 1 CRANKSHAFT BOLT, 7/16 x 2-3/4 4 5047632SM 1 CLUTCH RETAINER 5 5042132SM 1 ELECTRIC CLUTCH 6 1686880SM 1 KEY, 1/4 Sq. x 2 7 5050407X3SM 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 8 5025011X20SM 1 WASHER, 5/16 9 5025155SM 5 OIL DRAIN HOSE 10 5048681SM 1 NUT, Hex Nylon Lock, 5/16-18 11 5025057SM 4 WASHER, 5/16" Internal Tooth Lock 12 5025188SM 2 ENGINE, 17HP Briggs & Stratton (17HP Model Only) 13 * 1 ARRESTOR-SPARK (NOT SHOWN) 14 392390SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Transaxle - SERVICE PARTS (226tsp0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226TSP0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Transaxle - SERVICE PARTS (226tsp0)

PART NO. DESCRIPTIONREF NO. QTY.

SEALANT 6 5022905X1SM 10.5 SHAFT, INPUT 9 5022905X2SM 1 RING - RETAINING 10 5022905X3SM 1 SPACER 11 5022905X4SM 1 RING - RETAINING 12 5022905X5SM 3 SEAL, Lip, .67 x 1.58 x .276 13 5022905X16SM 1 BALL BEARING 14 5022905X6SM 1 OUTBOARD SLEEVE BEARING 32 5022905X7SM 2 LIP SEAL, Axle Seal 34 5022905X17SM 2 AXLE SHAFT - RH 35 5022905X8SM 1 AXLE SHAFT - LH 36 5022905X9SM 1 SPRING - HELICAL COMPRESSION 55 5022905X10SSM 1 WASHER 56 5022905X11SM 1 20W-50 OIL 57 5022905X12 78.8 HYDRO RETURN SPRING 101 5022967SM 1 FAN, 6", 10 BLADE 119 5022905X13SM 1 EXPANSION TANK KIT 128 5022905X14SM 1 FAN/PULLEY KIT 130 5022905X15SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Transaxle, Mount & Drive Idler Group (226trn0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226trn0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Transaxle, Mount & Drive Idler Group (226trn0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Hex Nylon Lock, 3/8-16 (34" Models Only) 1 5025096SM 1 NUT, Hex Nylon Lock, 5/16-18 2 5025057SM 6 WASHER, 5/16 3 5025155SM 12 TRANSAXLE BRACE 4 5047582CSM 1 CAPSCREW, Hex Head, Self-Tapping, 5/16-18 x 3/4 5 5025059X6SM 2 CAPSCREW, Hex Head, 5/16-18 x 3/4 6 5025011X6SM 2 RUBBER FLAP 7 5047736SM 1 SKID PLATE 8 5048312CSM 1 HYDRO RETURN SPRING 9 5022967SM 1 CAPSCREW, Hex Head, 5/16-18 x 3 10 5025011X24SM 4 HYDROSTATIC TRANSAXLE 11 5022905SM 1 BELT 12 5022968SM 1 SPRING, Extension (34" Models Only) 13 5020807SM 1 NUT, Hex, Side Lock, 3/8-16 (34" Models Only) 14 5025100SM 2 CAPSCREW, Hex Head, 3/8-16 x 3 (34" Models Only) 15 5025013X24SM 1 WASHER, Fender, 3/8 (34" Models Only) 16 5025165SM 2 SPACER (34" Models Only) 17 5047716SM 1 BUSHING, Brass (34" Models Only) 18 5020876BSM 2 TRANSAXLE IDLER ARM (34" Models Only) 19 5047717CSM 1 IDLER PULLEY ASSEMBLY (34" Models Only) 20 5043627SM 1 WASHER, 3/8 (34" Models Only) 21 5025156SM 1 CAPSCREW, Hex Head, 3/8-16 x 2 (34" Models Only) 22 5025013X16SM 1 TRANSAXLE DRIVE PULLEY 23 5047626SM 1 BOLT, 3/8 - 16 X 1 24 5025013X8SM 3 BOLT, 3/8 - 16, HEX NYLON FLANGE 25 5025394SM 3 WASHER, 3/8 SAE 26 5025156SM 3

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

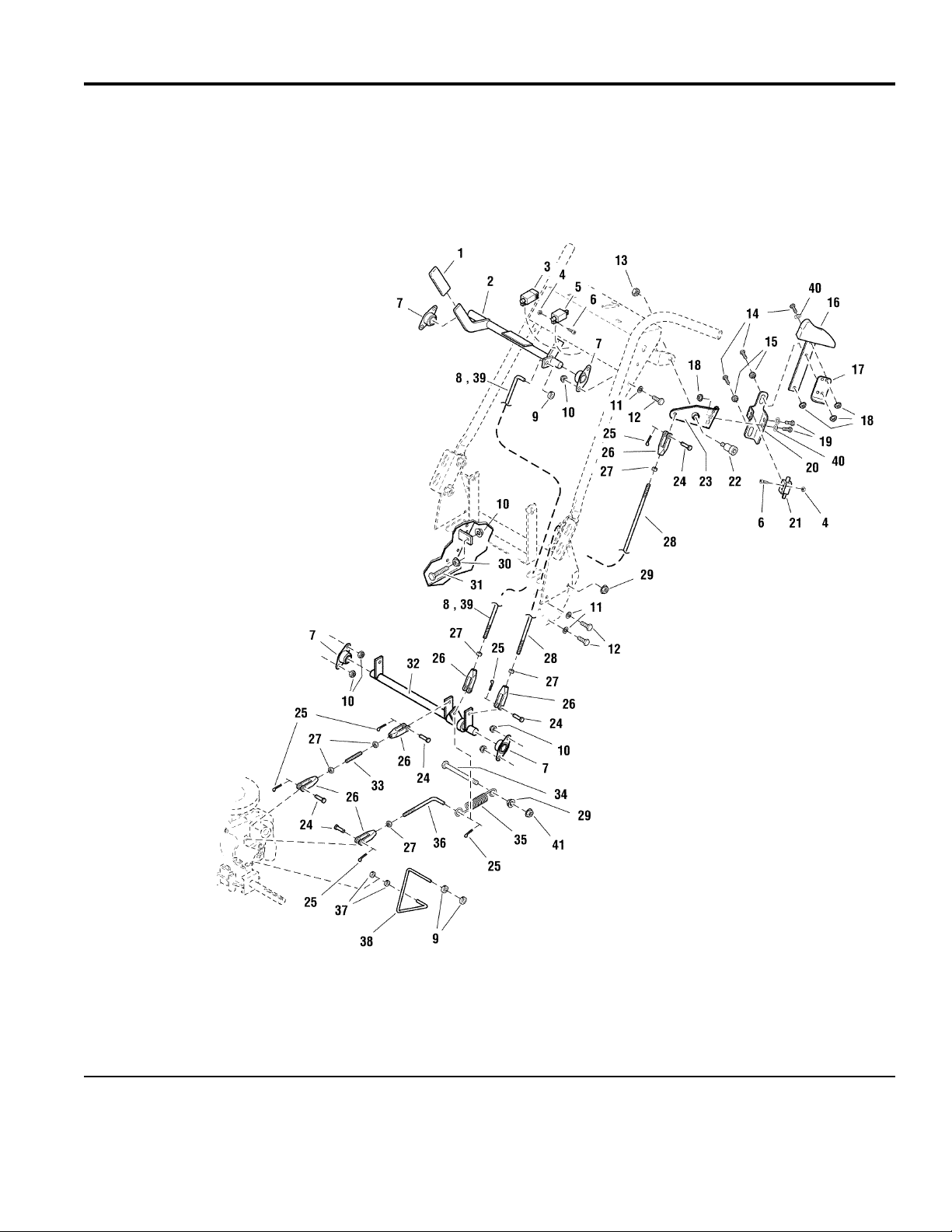

Motion Control, Parking Brake & Operator Presence Group (17/32 Model)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5300480

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (17/32 Model)

PART NO. DESCRIPTIONREF NO. QTY.

GRIP, FOAM, 1/4" X 1 1 5025510 1 WELD, BRAKE CONTROL 2 5061278B 1 SWITCH, Plunger, NO/NO (Parking brake) 3 5022438 1 NUT, #10-24 HEX (S/N: 2013136020 & Below use Qty.8) 4 5025029 6 SWITCH, Plunger, NC (S/N: 2013136020 & Below use Qty.3) (Operator Presence) 5 5021769 1 SCREW, #10-24 X 1/2" ROUND PHILLIPS (S/N: 2013136020 & Below use Qty.8) 6 5025179X4 6 BEARING, BRONZE FLANGE, 3/4 7 5021098 4 ROD, PARKING BRAKE LINKAGE 8 5061495 1 COLLAR, 5/16" SET 9 5020047 3 NUT, 5/16-18 HEX NYLOCK FLANGE 10 5025392 5 WASHER, 5/16" SAE 11 5025155 4 BOLT, 5/16-18 X 3/4" GD5 12 5025011X6 8 NUT, 3/8-16 HEX TOP LOCK 13 5025046 2 BOLT, 1/4-20 X 1", GD5 (S/N: 2013136020 & Below) 14 5025010X8 6 SPRING, COMPRESSION (S/N: 2013136021 & Above) 15 5020637 1 HANDLE, RUBBER HYDROCUT - LH 16 5061691 1 HANDLE, RUBBER HYDROCUT - RH (Not Shown) 17 5061702 1 NUT, 1/4-20 HEX NYLOCK FLANGE (S/N: 2013136021 & Above) 18 5025391 1 NUT, 1/4-20 HEX SERR. FLANGE 19 5025126 4 BOLT, 1/4-20 X 3/4" GD5 YZ 20 5025010X6 8 MOUNT, MOTION CONTROLS, LH - BLACK (S/N: 2013136021 & Above) 21 5404461A 1

22 5404462A 1

Footnotes

MOUNT, MOTION CONTROLS, RH - BLACK (S/N: 2013136021 & Above) (Not Shown)

BOLT, 1/4-20 X 3, GD5 (S/N: 2013136021 & Above) 23 5025010X24 1 BOLT, 3/8-16 X 1.0", 1/2" SHOULDER 24 5025223 2 WELD, ARM CONTROL, LH 25 5061683B 1 WELD, ARM CONTROL, RH (Not Shown) 26 5061685B 1 PIN, CLEVIS, 5/16" X 1 27 5025213X8 7 PIN, COTTER, 3/32" X 3/4 28 5025201X6 7 CLEVIS, 5/16-24, PLASTIC 29 5020979 10 NUT, 5/16-24 HEX 30 5025033 8 ROD, THUMB CONTROL LINKAGE 31 5047642 2 NUT, 3/8-16 HEX SERRATED FLANGE 32 5025128 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE) 33 5025139 1 BOLT, 5/16-18 X 1 1/2" FLANGE 34 5023157 1 WELD, CONTROL SHAFT 35 5047697B 1 LINK, STUD 36 5047740 1 BOLT, 3/8-16 X 4" GD5 YZ 37 5025013X32 1 SPRING, EXT, 3.875 X .70 LOOP 38 5049352 1 LINK, PARKING BRAKE LOWER 39 5048328 1 COLLAR, 1/4" SET 40 5022481 2 LEVER, DUMP VALVE 41 5047732 1 NUT, 1/4-20 HEX NYLOCK FLANGE 42 5025391 4 NUT, 3/8-16 HEX NYLOCK FLANGE 43 5025394 1 WASHER, 1/4" SAE 44 5025154 6

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (17/32 Model)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5300480

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (17/32 Model)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, 3/8"-16 HEX NYLOCK FLANGE 45 5025394 4 WASHER, 3/8" SAE 46 5025156 4 BOLT, 3/8-16 X 3/4" GD5 47 5025013X6 4 ROD, OPC SWITCH, PACER (S/N: 2013136021 & Above) 48 5101679 1 SPACER, SHOULDER (S/N: 2013136021 & Above) 49 5045943 2 ADJUSTER, LINKAGE (S/N: 2013136021 & Above) 50 5043417 2 NUT, 3/8-16 HEX (S/N: 2013136021 & Above) 51 5025034 2 GRIP, VINYL, 1/2 X 4 (S/N: 2013136021 & Above) 52 5021490 2 WELD, OPERATOR PRESENCE, LH - RED (S/N: 2013136021 & Above) 53 5449175B 1 WELD, OPERATOR PRESENCE, RH - RED (S/N: 2013136021 & Above) 54 5449176B 1 MOUNT, MOTION CONTROLS, LH (S/N: 2013136020 & Below) 55 5061689 1 MOUNT, MOTION CONTROLS, RH (S/N: 2013136020 & Below) (Not Shown) 56 5061692 1 SPACER, SLIDE (S/N: 2013136020 & Below) 57 5061693 4 ACTUATOR, SWITCH (S/N: 2013136020 & Below) 58 5061713B 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (226mcge0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226mcge0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Motion Control, Parking Brake & Operator Presence Group (226mcge0)

PART NO. DESCRIPTIONREF NO. QTY.

FOAM GRIP 1 5025510SM 1 BRAKE HANDLE SHAFT ASSEMBLY 2 5061278CSM 1 SWITCH, Plunger, NO/NO 3 5022438SM 1 NUT, #10-24 Hex 4 5025029SM 8 SWITCH, Plunger, NC 5 5021769SM 1 SCREW, #10-24 x 1/2 6 5025179X4SM 8 BEARING, Flange 7 5021098SM 4 BRAKE ROD (S/N: 2012825357 & Below) 8 5061495SM 1 COLLAR, 5/16" Set 9 5020047SM 3 NUT, 5/16-18 Hex Nylon Lock 10 5025057SM 8 WASHER, 5/16" SAE 11 5025155SM 8 BOLT, 5/16-18 x 3/4 12 5025011X6SM 8 NUT, 3/8-16 Hex Side Lock 13 5025100SM 2 BOLT, 1/4-20 x 1 14 5025010X8SM 6 SLIDE SPACER 15 5061693SM 4 CONTROL HANDLE, LH 16 5061691SM 1 CONTROL HANDLE, RH 16 5061702SM 1 SWITCH ACTUATOR 17 5061713CSM 2 NUT, 1/4-20 Hex Serrated Flange 18 5025126SM 10 BOLT, 1/4-20 x 3/4 19 5025010X6SM 4 HANDLE MOUNT, LH 20 5061689SM 1 HANDLE MOUNT, RH 20 5061692SM 1 SWITCH, Plunger, NC 21 5021769SM 2 SHOULDER BOLT, 1/2 x 1 22 5025223SM 2 PIVOT CONTROL, LH 23 5061683CSM 1 PIVOT CONTROL, RH 23 5061685CSM 1 CLEVIS PIN, 5/16 x 1 24 5025213X8SM 7 COTTER PIN, 3/32" x 3/4" 25 5025201X6SM 8 CLEVIS, 5/16-24, Plastic 26 5020979SM 8 NUT, 5/16-24 Hex 27 5025033SM 8 THUMB CONTROL ROD 28 5047642SM 2 NUT, 3/8-16 Hex Serrated Flange 29 5025128SM 2 NUT, 5/16-18 Hex Small Serrated Flange 30 1931277SM 2 BOLT, 5/16-18 x 1-3/4 TFL 31 5025055X14SM 1 CONTROL SHAFT ASSEMBLY 32 5047697CSM 1 LINK STUD 33 5047740SM 1 BOLT, 3/8-16 x 4 34 5025013X32SM 1 SPRING, Extension 35 5049352SM 1 BRAKE LINKAGE ROD 36 5048328SM 1 COLLAR, Set, 1/4" 37 5022481SM 2 DUMP VALVE ROD 38 5047732SM 1 ROD, PARKING BRAKE LINKAGE (S/N: 2012825358 & Above) 39 5101513CSM 1 WASHER, 1/4 SAE 40 5025154SM 1 NUT, 3/8-16 HEX NYLOCK FLANGE 41 5025394SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

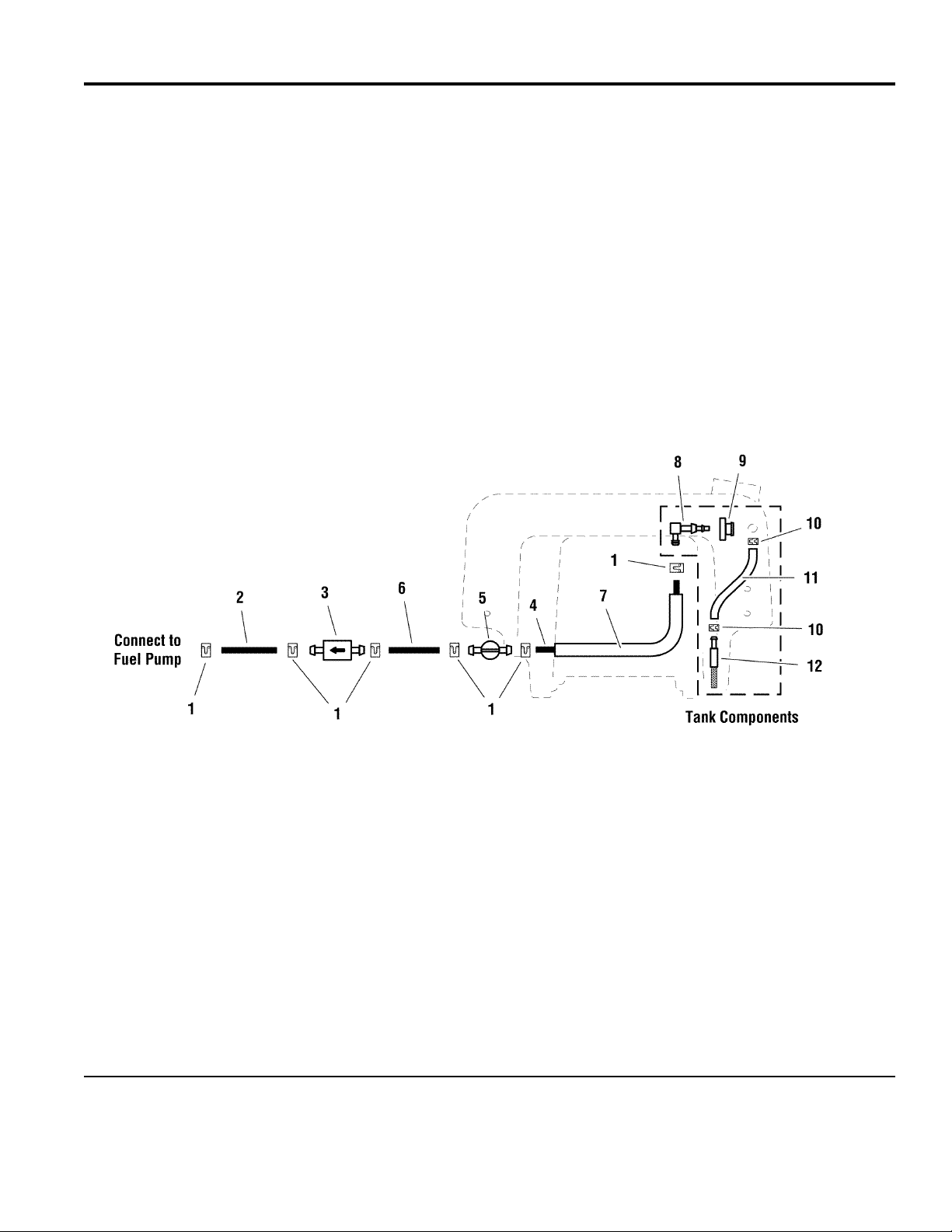

Fuel Supply Hose & Tank Replacement Parts Group (226fsh0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226fsh0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Fuel Supply Hose & Tank Replacement Parts Group (226fsh0)

PART NO. DESCRIPTIONREF NO. QTY.

CLAMP, Hose 1 5020835SM 6 HOSE, 5” (supplied with engine) 2 5050831X5SM 1 FUEL FILTER 3 5021178X3SM 1 HOSE, 4” 4 5050831X4SM 1 VALVE, Fuel Shut-Off 5 5021235SM 1 HOSE, 15” 6 5050831X15SM 1 WIRE LOOM, 1/2 ID 14” LONG 7 5050833X14 1 ELBOW FITTING 8 5023061SM 1 GROMMET 9 1654930SM 1 HOSE CLAMP 10 5020835SM 2 HOSE, 20” 11 5050925X20SM 1 SCREEN FITTING 12 5023067SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

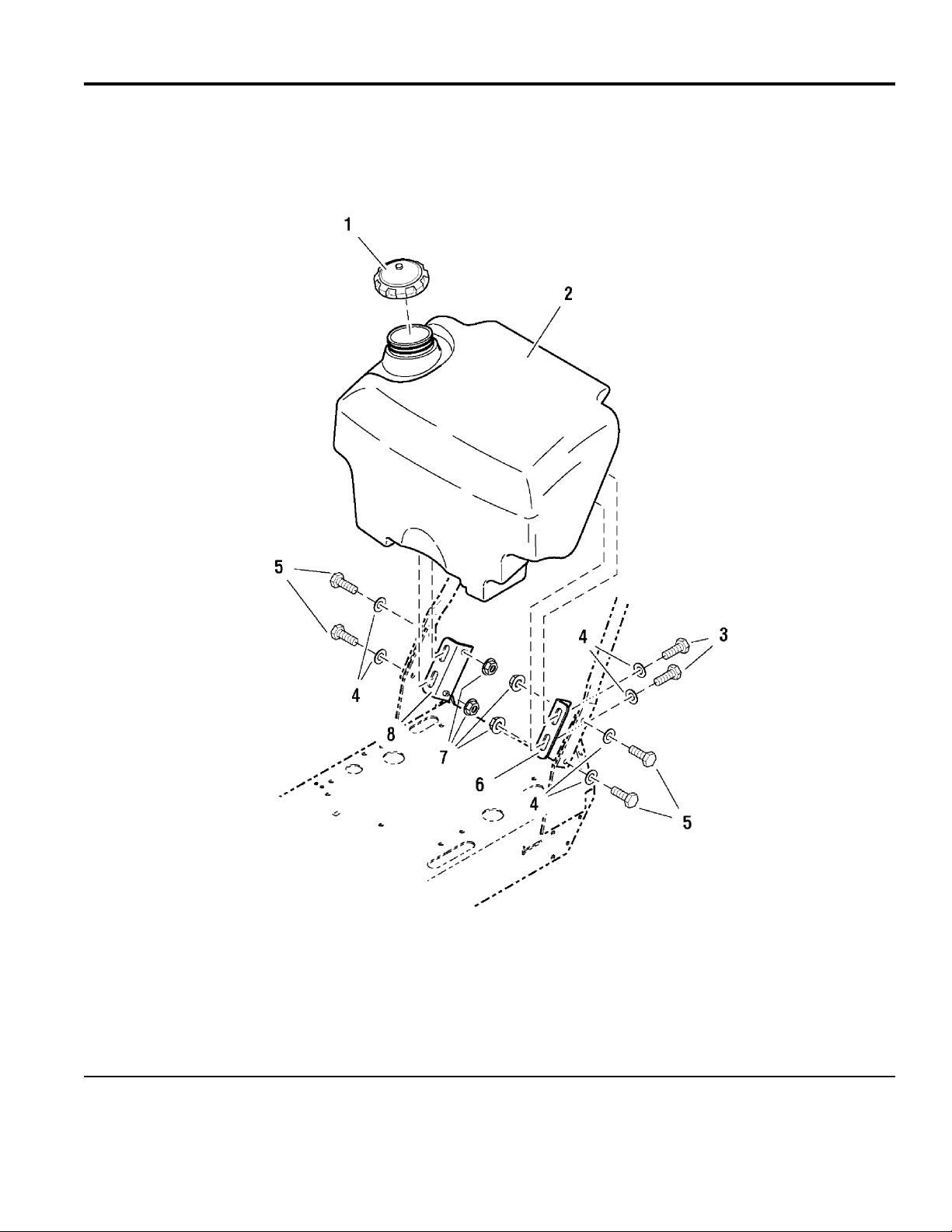

Fuel Tank & Mount Group (S/N: 2012825357 & Below) (226tnk0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226tnk0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Fuel Tank & Mount Group (S/N: 2012825357 & Below) (226tnk0)

PART NO. DESCRIPTIONREF NO. QTY.

FUEL TANK CAP 1 5022158SM 1 FUEL TANK 2 5048149SM 1 CAPSCREW, Hex Head, 3/8-16 x 3/4 3 5025013X6SM 4 WASHER, 3/8 4 5025156SM 8 CAPSCREW, Hex Head, 3/8-16 x 1-1/4 5 5025013X10SM 4 FUEL TANK MOUNT - LH 6 5048342CSM 1 NUT, Hex Serrated Flange, 3/8-16 7 5025128SM 4 FUEL TANK MOUNT - RH 8 5048343CSM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Fuel Tank & Mount Group (S/N: 2012825358 & Above) (226tnk1)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226tnk1

The above parts group applies to the following Mfg. Nos.:

5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Fuel Tank & Mount Group (S/N: 2012825358 & Above) (226tnk1)

PART NO. DESCRIPTIONREF NO. QTY.

FUEL TANK CAP 1 5022158SM 1 FUEL TANK 2 5048149SM 1 BOLT, 3/8-16 X 3/4", ALLEN BUTTON 3 5025075X6SM 4 WASHER, 3/8 4 5025156SM 8 CAPSCREW, Hex Head, 3/8-16 x 1-1/4 5 5025013X10SM 4 FUEL TANK MOUNT - LH 6 5404028CSM 1 NUT, 3/8-16 HEX NYLOCK FLANGE 7 5025394SM 4 FUEL TANK MOUNT - RH 8 5404027CSM 1 WASHER, 5/16 LOCK YZ 9 5025170SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Electrical Group (S/N: 2013136020 & Below) (226egwe0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226egwe0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Electrical Group (S/N: 2013136020 & Below) (226egwe0)

PART NO. DESCRIPTIONREF NO. QTY.

SWITCH, NC 1 5021769SM 2 SWITCH, PTO 2 1722887SM 1 SWITCH, Ignition, Complete 3 1686734SM 1 KEY, Ignition, Molded Set 4 1717163SM 1 COVER 5 1704346SM 1 PLASTIC NUT 6 5022791SM 1 WIRE HARNESS 7 5401037SM 1 SWITCH, Plunger, NO/NO 8 5022438SM 1 SWITCH, Plunger, NC 9 5021769SM 1 POSITIVE (+) BATTERY CABLE, 22" 10 5021405SM 1 NUT, 1/4-20 Hex Serrated Flange 11 5025126SM 4 BOLT, 1/4-20 x 3/4 12 5025010X6SM 4 NEGATIVE (-) BATTERY CABLE, 22" 13 5021406SM 1 BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA) 14 - 1 NUT, Hex Jam, 5/16-24 15 2820438SM 2 WASHER, Light Lock, 5/16 16 5023217SM 2 SOLENOID 17 1686981SM 1 POSITIVE (+) BATTERY CABLE, 30" 18 5021542SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Electrical Group (S/N: 2013136021 & Above) (226egwe1)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226egwe1

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Electrical Group (S/N: 2013136021 & Above) (226egwe1)

PART NO. DESCRIPTIONREF NO. QTY.

SWITCH, PLUNGER NC (OPERATOR PRESENCE) 1 5021769 1 SWITCH, BLADE ENGAGEMENT (PTO SWITCH) 2 5022180 1 SWITCH, IGNITION 6-POST (IGNITION SWITCH) 3 5020927 1 KEY, IGNITION, MOLDED SET (SV) 4 5022789 1 COVER, PLASTIC SNAP ON (SV) 5 5022790 1 NUT, PLASTIC (SV) 6 5022791 1 WIRE HARNESS, MAIN HYDROCUT/PACER 7 5404464 1 NUT, 1/4-20 HEX SERRATED FLANGE 8 5025126 4 SWITCH, PLUNGER, NO/NC (PARKING BRAKE) 9 5022095 1 BATTERY CABLE, POSITIVE, 22" (BATTERY TO SOLENOID) 10 5021405 1 WIRE HARNESS, PACER 1732, JUMPER 11 5404471 1 BOLT, 1/4-20 X 3/4 12 5025010X6 4 BATTERY CABLE, NEGATIVE, 22" 13 5021406 1 BATTERY, WET ( BCIU1, 340 CCA) 14 - 1 NUT, HEX JAM 5/16-24 (SV) 15 5023216 2 WASHER, LIGHT LOCK, 5/16 (SV) 16 5023217 2 SOLENOID-4 POLE 12 VOLT DC (TROMBETTA) 17 1724815 1 BATTERY CABLE, POSITIVE, 35" 18 5048729 1 WIRE LOOM, 3/8" ID X 23 IN LONG 19 5050927X23 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

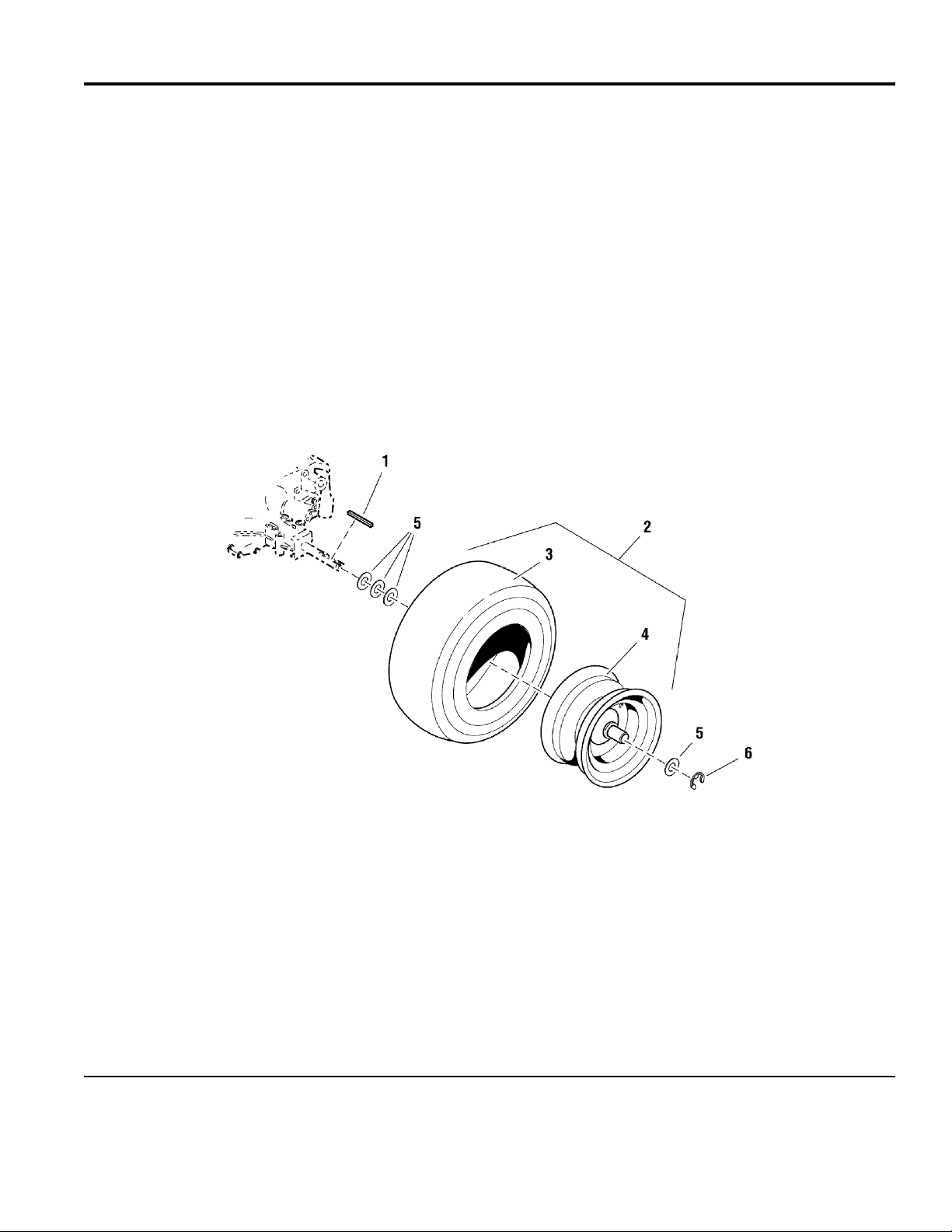

Wheel & Tire Group (226whl0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226whl0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Wheel & Tire Group (226whl0)

PART NO. DESCRIPTIONREF NO. QTY.

KEY, 3/16 1 5048409SM 2 WHEEL & TIRE ASSEMBLY, 16 x 6.5 x 8, Complete (Includes Ref. No. 3 & 4) 2 5022913SM 2 TIRE, 16. x 6.5 x 8 3 5022913X2SM 2 WHEEL ASSEMBLY, 8 x 5.38 4 5022913X1SM 2 SHIM 5 5025520X3SM 8 C-CLIP 6 5020863SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer 5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Decal Group (17/32 Model)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5301447

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Decal Group (17/32 Model)

PART NO. DESCRIPTIONREF NO. QTY.

DECAL, CONTROL PANEL 1 5100066SM 1 DECAL, DANGER 2 5100711SM 1 DECAL, DANGER, MOWER DISCHARGE 3 5100137SM 1 DECAL, DANGER, MOWER 4 5100136SM 1 DECAL, WARNING, HOT 5 5100387SM 1 DECAL-SIMPLICITY SILVER & BLUE W/ICON 6 1722551SM 2 DECAL-CUT HEIGHT ADJUST HYDRO CUT 7 5047778SM 1 DECAL, STRIPE, SILVER & BLUE 8 5048482SM 1 DECAL, HEIGHT OF CUT 9 5049318SM 1 DECAL, HYDRO RELEASE 10 5049320SM 1 DECAL, PACER 1732 11 5101596SM 1 MODEL/SERIAL TAG 12 * 1 DECAL, OPEI 13 * 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Decal Group (226dcl0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226dcl0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Decal Group (226dcl0)

PART NO. DESCRIPTIONREF NO. QTY.

DECAL, Control Panel 1 5100066SM 1 DECAL, Danger 2 5049658SM 1 DECAL, Danger, Mower Discharge 3 5100137SM 1 DECAL, Danger, Mower 4 5100136SM 1 DECAL, Hot 5 1704473SM 1 DECAL, Simplicity, Silver & Blue, W/Icon 6 1722551SM 2 DECAL, Pacer 1534 (15HP Models Only) 7 5061480SM 1 DECAL, Stripe, Blue & Silver 8 5048482SM 1 DECAL, Free Floating 9 1722771SM 1 DECAL, 34" 10 1722786SM 1 DECAL, HYDRO RELEASE 11 5049320SM 1 DECAL, PACER 1734 (17HP Models Only) 12 5100693SM 1 MODEL/SERIAL TAG 13 * 1 DECAL, OPEI 14 * 1

Footnotes

Note* Not a serviceable part.

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

32" Mower Deck - Frame, Caster & Shield

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5301448

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

32" Mower Deck - Frame, Caster & Shield

PART NO. DESCRIPTIONREF NO. QTY.

GUARD, INSERT (BRIGGS) 1 5048181CSM 1 SCREW, 1/4-20 X 1/2 ALLEN BH 2 5025299X4SM 4 GUARD, MOWER DECK 3 5048150SM 1 BRACKET, GUARD 4 5048353CSM 2 CLIP, BODY , 5/16-18 FOR 7 GA. 5 5022308SM 4 WASHER, 1/4 LOCK 6 5025169SM 4 BOLT, 1/4-20 X 3/4 GD5 YZ 7 5025010X6SM 4 BOLT, 3/8-16 X 1 GD5 YZ 8 5025013X8SM 8 NUT, 3/8-16 HEX SERRATED FLANGE 9 5025128SM 8 BOLT, 3/8-16 X 2-1/2 GD5 YZ 10 5025013X20SM 4 WASHER, 3/8 SAE 11 5025156SM 12 KNOB, PLASTIC, 5/16-18 X 3/4 12 5022319SM 4 RAIL, DECK FRAME - LEFT 13 5047648CSM 1 CAP, 1-1/2 X 2 X 11GA, PLASTIC 14 5022098SM 2 TUBE, CROSS 15 5048194CSM 1 WELD, CASTER MOUNT 16 5047677CSM 1 GREASE FITTING, 1/4-28 STRAIGHT 17 5020095SM 4 BOLT, 1/2-13 X 5-1/2 GD5 YZ 18 5025017X44SM 2 AXLE, CASTER WHEEL 19 5041657SM 2 TIRE ASSM, 9 X 3.5 X 4, SILVER (Includes Ref No. 21-25) 20 5021181SSM 2 TIRE, FRONT, 9 X 3.5 X 4, TIRE ONLY 21 5021181X1SM 2 9X350-4 TUBE ONLY 22 5021181X2SM 2 4 BOLT HUB W/ BEARING - SILVER (Includes Ref No. 24 & 25) 23 5021181SX3SM 2 BEARING, ROLLER (1 per Tire) 24 5021182SM 2 RETAINER, BEARING (2 per Tire) 25 5021043SM 4 NUT, 1/2-13 HEX NYLON LOCK 26 5025056SM 2 WELD, CASTER YOKE 27 5048172CSM 2 BUSHING, FLANGE, 3/4 X 1+69878956 28 5020823SM 4 NUT, 3/8-16 HEX NYLOCK FLANGE 29 5025394SM 4 COLLAR, 3/4 SPLIT 30 5010114SM 2 RAIL, DECK FRAME - RIGHT 31 5047649CSM 1 CAP,VINYL, 1.375 X 1 32 5023274SM 2 WASHER, 1/4 SAE 33 5025154SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

32" Mower Deck - Height Adjustment

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5301453

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

32" Mower Deck - Height Adjustment

PART NO. DESCRIPTIONREF NO. QTY.

WASHER-1.00 HYDRO CUT 1 5025162SM 4 WELD, DECK PIVOT, REAR 2 5047682CSM 1 BOLT, 3/8-16 X 3/8, 1/2 SHOULDER 3 5025356SM 8 ROD CUTTER DECK HEIGHT CONTROL 4 5047655SM 1 LINKAGE, ADJUSTER 5 5048526SM 1 NUT, 3/8-16 HEX SIDE LOCK 6 5025100SM 1 PIN, COTTER, 3/32 X 3/4 7 5025201X6SM 1 NUT, 3/8-16, HEX TOP LOCK 8 5025046SM 8 COLLAR, 3/8 SET 9 5010546SM 1 WASHER, 3/8 SAE 10 5025156SM 7 SPRING, REVERSE RETURN 11 5022645SM 1 LINK, DECK ADJUST. 12 5047710CSM 4 BOLT, 5/16-18 X 1 GD5 YZ 13 5025011X8SM 4 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE) 14 5025139SM 4 BOLT, 3/8-16 X 1-1/4 GD5 15 5025013X10SM 2 SPACER, .39 X .75 X .38 16 5044933SM 2 COLLAR, 1" DOUBLE SPLIT 17 5048549SM 2 NUT, 3/8-16 HEX SERRATED FLANGE 18 5025128SM 3 POINTER, CUT HEIGHT 19 5047737SM 1 NUT, 3/8-16 HEX 20 5025034SM 1 DECK PIVOT WELDMENT, FRONT 21 5047681CSM 1 BOLT, 3/8-16 X 1 GD5 YZ 22 5025013X8SM 4 HANGER, DECK 23 5048439CSM 2 GREASE FITTING, 1/4-28 STRAIGHT 24 5020095SM 1 WASHER, 3/8" NYLON HYDRO CUT 25 5048548SM 1 NUT, 3/8-16 HEX NYLOCK FLANGE 26 5025394SM 4 WASHER, 5/16 GD.9 FLAT 27 5025292SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

32" Mower Deck - Housing, Spindles, Blades & Pulleys

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

5301454

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

32" Mower Deck - Housing, Spindles, Blades & Pulleys

PART NO. DESCRIPTIONREF NO. QTY.

BELT, #7-7169 1 5022918SM 1 KEY, 1/4 SQ. X 1.00 2 5050407X8SM 2 PULLEY, SPINDLE 3 5047638SM 2 SPACER, 1.02 X 1.56 X .50 4 5041476SM 8 BOLT, 3/8-16 X 1 GD5 YZ 5 5025013X8SM 1 WELD, BELT GUIDE - ORG 6 5047777CSM 1 NUT, 1/4-20 HEX SERR. FLANGE 7 5025126SM 1 NUT, 5/16-18 HEX NYLOCK FLANGE 8 5025392SM 8 ASSM, SPINDLE, LONG SHAFT (Includes Ref No. 10-18) 9 5061096SM 2 GREASE FITTING 10 5023329SM 2 NUT, 3/4-16 HEX 11 5025405SM 2 WASHER, 3/4 BELLEVILLE 12 5025406SM 2 SHIELD, TRASH 13 5049793SM 4 BEARING, .98 X 2.44 X .67 14 5023330SM 4 FITTING, RELIEF, 1-5 PSI 15 5023296SM 2 HOUSING, SPINDLE 16 5061097SM 2 SPACER 17 5061099SM 2 SHAFT, SPINDLE 18 5061100SM 2 BOLT, 5/16-18 X 1 1/4 FLANGE 19 5023156SM 8 BLADE, 16.25 20 5020843SM 2 WASHER, 5/8 GRADE 8, YZ 21 5025477SM 2 BOLT, 5/8-11 X 1-3/4 GD8 22 5025320X14SM 2 WELD, MOWER DECK, 32" - ORG 23 5047576CSM 1 BRACKET, CHUTE SUPPORT - ORG 24 5404258CSM 1 WELD, CHUTE BRACKET - ORG 25 5404257CSM 1 SPRING-TORSION CHUTE 44/50" BLK 26 7101082SM 1 CAP, PROTECTOR, .120 ID 27 5023489SM 1 RUBBER DISCHARGE CHUTE, S50X-36 OFFSET 28 5101597SM 1 ROD, CHUTE PIVOT 29 5045914SM 1 BOLT, 3/8-16 X 1-1/2 GD5 YZ 30 5025013X12SM 3 NUT, 3/8-16 HEX NYLOCK FLANGE 31 5025394SM 3 WASHER, 5/16 SAE 32 5025155SM 2 NUT, 5/16-24 HEX NYLON LOCK 33 5025045SM 2 WASHER, .390 X 1.50 X .109, YZ 34 5100548SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900766 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Belt, Idler Arm & Hitch (2264pb0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264pb0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Belt, Idler Arm & Hitch (2264pb0)

PART NO. DESCRIPTIONREF NO. QTY.

BELT 1 1723391SM 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 2 5025013X22SM 2 WASHER, 3/8 3 1924940SM 2 SPACER 4 1667811SM 2 PULLEY, Idler 5 1704926SM 1 SPACER 6 1667812SM 1 SPRING, Extension 7 2164213SM 1 LOCKWASHER, 3/8 8 5025171SM 1 NUT, Hex, 3/8-16 9 1916950SM 1 BUSHING 10 1663114SM 2 FITTING, Lube 11 2812808SM 1 LEVER & ARM ASSEMBLY, Complete (Includes Ref. No. 10 & 11) 12 1724535SM 1 GRIP 13 1665835 1 SPACER 14 1657242SM 1 WASHER, 3/8 15 1924356SM 2 NUT, Hex Serrated Flange, 3/8-16 16 5025128SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2 17 5025013X12SM 2 SPACER 18 1667811SM 2 HITCH 19 1724357ASM 1 SPACER 20 2157081SM 2 NUT, Hex Lock, Aluminum Insert, 3/8-16 21 2860681SM 2 PIN 22 1724430SM 1 PIN, Cotter 23 1918452SM 2 WASHER, 1/2 24 5025158SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Frame, Caster & Shield (2264fr0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264fr0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Frame, Caster & Shield (2264fr0)

PART NO. DESCRIPTIONREF NO. QTY.

SHIELD INSERT 1 5048181CSM 1 SCREW, Allen Head, 1/4-20 x 1/2 2 5025299X4SM 4 GUARD, Mower Deck 3 5048150SM 1 SHIELD MOUNT BRACKET 4 5048353CSM 2 BODY CLIP, 5/16-18 5 5022308SM 4 LOCKWASHER, 1/4 6 5025169SM 4 CAPSCREW, Hex Head, 1/4-20 x 3/4 7 5025010X6SM 4 CAPSCREW, Hex Head, 3/8-16 x 1 8 5025013X8SM 8 COLLAR, Double Split, 1 9 5048549SM 4 SHAFT 10 5047678CSM 1 NUT, Hex Serrated Flange, 3/8-16 11 5025128SM 8 CAPSCREW, Hex Head, 3/8-16 x 2-1/2 12 5025013X20SM 4 WASHER, 3/8 13 5025156SM 4 HITCH TUBE 14 5048196CSM 1 CAPSCREW, Hex Head, 5/16-18 x 1 15 5025010X8SM 4 WASHER, 5/16 16 5025155SM 4 FRAME RAIL - LH 17 5047648CSM 1 CASTER MOUNT FRAME 18 5047825CSM 1 GREASE FITTING, 1/4-28 19 5020095SM 2 NUT, Hex Nylon Lock, 3/8-16 20 5025096SM 4 CAPSCREW, Hex Head, 1/2-13 x 5-1/2 21 5025017X44SM 2 CASTER TIRE 22 1722951SM 2 SPACER 23 5041657SM 2 NUT, Hex Nylon Lock, 1/2-13 24 5025056SM 2 CASTER YOKE 25 5047929CSM 2 BUSHING, Flange 26 5020823SM 4 COLLAR, Split, 3/4 27 5010114SM 2 FRAME RAIL - RH 28 5047649CSM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Grass Mulcher (2264mlc0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264mlc0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Grass Mulcher (2264mlc0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Hex Lock, 5/16-18 1 7091575SM 1 WING NUT 2 1679163SM 1 MULCH PLATE 3 1724832ASM 1 J-BOLT 4 1724475SM 1 NUT, Hex Serrated Flange, 5/16-18 5 5025127SM 5 CARRIAGE BOLT, 5/16-18 x 3/4 6 5025145X6SM 5 34” BAFFLE ASSEMBLY 7 1724457ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264ha0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Push, 3/8, Black 1 1960093SM 1 KNOB, Spinner 2 1714084SM 1 CRANK, Height Adjustment, Black 3 1719901SM 1 PIN, Spring 4 2816001SM 1 FITTING, Lube 5 1704314SM 1 TRUNNION 6 1715892SM 1 SPACER 7 1679166SM 1 ARM, Height Adjust 8 1722978ASM 1 LOCKWASHER, 1/2 9 5025331SM 1 NUT, Hex, 1/2-13 10 5025038SM 1 NUT, Hex, 5/8-18 11 5025040SM 2 WASHER, 5/8 12 5025281SM 7 TRUNNION 13 1706645ASM 1 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black 14 1664847SM 4 STRAP 15 1665374SM 1 PIN, Cotter 16 1918452SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 17 1931352SM 2 PIN, Clevis 18 2118053SM 1 SHAFT ASSEMBLY 19 1724362ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1 20 5025011X8SM 4 NUT, Hex Serrated Flange, 5/16-18 21 5025127SM 8 BRACKET, Rear Roller 22 1724619ASM 2 EYEBOLT 23 2107121SM 2 CHAIN, 3 Links 24 1707514ASM 2 SPACER 25 1719868SM 1 WASHER, 3/8 26 5025156SM 8 CAPSCREW, Hex Head, 3/8-16 x 3-3/4, Black 27 1960653SM 1 ROLLER 28 1668513SM 5 NUT, Hex Serrated Flange, 3/8-16 29 5025128SM 4 BAR, Roller 30 1724394ASM 1 CAM, Eccentric 31 1704082SM 2 NUT, Hex Lock, Aluminum Insert, 3/8-16 32 2860681SM 5 WASHER, 1/2 33 1924361SM 2 SHOULDER BOLT 34 2172622SM 2 NUT, Push, 5/8, Black 35 1960520SM 2 ROLLER, End 36 1722036SM 2 SPACER 37 1602946SM 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 38 5025013X14SM 1 ROD, Pitch 39 1724425SM 1 SPACER 40 1706644SM 1 SHAFT & BAR ASSEMBLY 41 1724396ASM 1 TRUNNION 42 1724009SM 1 WASHER, Detent, Black 43 1704097SM 1 PLATE 44 1704080ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264ha0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

PART NO. DESCRIPTIONREF NO. QTY.

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4, Black 45 1931202SM 2 WASHER, 5/16, Black 46 1919381SM 1 ROD, Height of Cut 47 1704114SM 1 WASHER, 1/2, Black 48 5025158SM 1 CAPSCREW, Hex Head, 3/8-16 x 2 49 5025013X16SM 1 SPACER 50 1667811SM 1 CARRIAGE BOLT, 1/2-13 x 2-1/2, Black 51 1960489SM 1 BRACKET, Height of Cut 52 1724512ASM 1 CLAMP 53 5023173SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Housing, Arbors & Blades (2264hc0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264hc0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

34" Mower Deck - Housing, Arbors & Blades (2264hc0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Hex Flange, 9/16-18 1 1714419SM 2 WASHER, Belleville 2 1713675SM 4 PULLEY 3 1713091SM 1 HUB 4 1713616SM 1 PULLEY 5 1713090SM 1 HUB 6 1713614SM 1 COVER, Arbor Housing 7 1713199ASM 2 BEARING 8 1705897SM 4 SPACER 9 1732543SM 2 GASKET, Foam 10 1707335SM 2 HOUSING, Arbor, Bottom (Includes Ref. No. 12) 11 1713338ASM 2 FITTING, Lube 12 1704314SM 2 DECK SHELL W/ DECALS, 34” Pacer 13 5600253 1 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black 14 1664847SM 10 WASHER 15 1713619SM 2 SHAFT, Arbor 16 1713610SM 1 SHIELD, Grass 17 1713196SM 2 BLADE, Mower, 14.42 18 1706737ASM 1 WASHER, Hex, Special 19 1713089SM 2 WASHER, Spring 20 1656916SM 2 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black 21 2823471SM 2 BLADE, Mower, 19.90 22 1706738ASM 1 SHAFT, Arbor 23 1713612SM 1 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2, Black 24 1930600SM 2 CARRIAGE BOLT, 1/4-20 x 7/8, Black 25 1931318SM 2 NUT, Push, 1/4, Black 26 1960518SM 2 WASHER, 1/4, Black 27 1960353SM 2 CLAMP 28 1704873SM 1 WASHER, 5/16, Black 29 1919326SM 1 LOCKWASHER, 1/4, Black 30 5025169SM 2 NUT, Hex, 1/4-20, Black 31 5025287SM 2 DEFLECTOR, Plastic 32 1705449SM 1 SPRING, Torsion 33 7101082SM 1 CAP, Spring End 34 1723323SM 1 ROD, Deflector, Front 35 5049245SM 1 WASHER, 5/16, Black 36 5025305SM 2 BELT GUIDE 37 1704099SM 1 WASHER, 5/16, Black 38 1919381SM 2 NUT, Hex Flange, 5/16-18 39 5025139SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-H-PA-S

Hardware Identification & Torque Specifications

Common Hardware Types

Hex Head Capscrew

Carriage Bolt

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the

When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the second number represents the example, and the final number is the bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

body length

Washer

Lockwasher

Hex Nut

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

(16 in this

of the

The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.

1/4 3/4

1/2

Nut, 1/2”

Inside Diameter

1/4 3/4

1/2

Screw, 1/2 x 2

1/4 3/4

1/2

1/4 3/4

1/2

Body

Diameter

Body

Length

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware Grade

Size Of Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32 8-36 10-24 10-32 1/4-20 1/4-28 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 27 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.

Marks

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

2.1

2.3

3.1

3.5

7.6 8 10.9 12 16.3

8.6 10 13.6 14 19.0

30 31 43 49

NOTES

3.4

3.5

4.9

5.5

in/lbs

41 43 60 68

420 571.2

4.6

4.9

6.8

7.7

Wrench & Fastener Size Guide

1/4

1/4” Bolt or Nut

Wrench—7/16”

5/16

5/16” Bolt or Nut

Wrench—1/2”

3/8

3/8” Bolt or Nut

Wrench—9/16”

7/16 DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

1/2

DIA.

1/2” Bolt or Nut

Wrench—3/4”

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

Briggs and Stratton Yard Power Products Group

Simplicity 1694287, 1694895, 2690447, 5100117, 5900630 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
