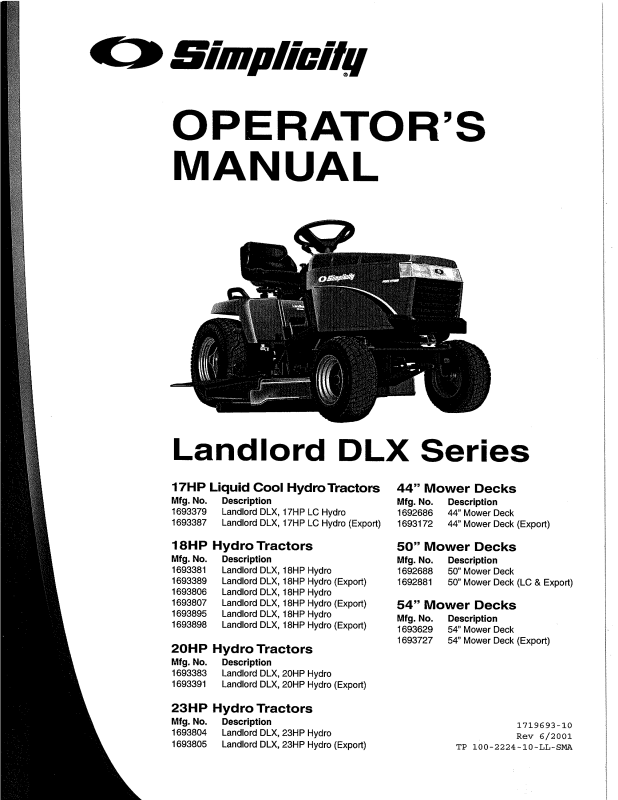

Simplicity 1693727, 1693629, 1693383, 1692688, 1693895 User Manual
...Specifications and Main Features
- Engines:
- 23HP Kohler: CV23S engine with 2 cylinders. It has 3.15 inch bore, 2.64 inch stroke and has the volume of 41.1 cubic inches.
- 20 HP Briggs & Stratton Vanguard: has 2 cylindrical units designed to have a 2.83 inch bore, stroke measuring about 2.75 in and having around 34.75cu in volume.
- 18 HP Briggs & Stratton Vanguard: Powered by 2 cylinders with a torque rate of 3.03 inches and stroke measuring 2.64 inches and having a displacement of 38 cubic inches.
- 17 HP Kawasaki: A 2 cylinder FD 501V model designed with a 2.64 inch bore, a stroke of 2.44 inches and a displacent of 26.7 cubic inches.
- Transmission Mechanism:
- Model: K71 Tuff Torq
- Speed Capacity: Forward 0 – 6.6, Reverse 0 – 3.1
- Du Couplings: 3 everyone with 2 kilo duty ratings of continuous torque of 405 foot pounds each.
- Pulling Capacity: 440lbs
- Physical Measurements:
Overall Length: 75.25 inches
Overall width: 39 inches
Wheelbase: 52.25 inches
Height frame: 42.5 inches above the steering wheel.
- Mower Decks:
- Construction 54 ": Its made 10 GA thick, has an effective cutting width of 54 inches and weighs around 180 pounds.
- Construction 50": Made from 12 GA. has an effective cutting widthof 50 inches and weighs 125 pounds.
- Construction 44": Made from 12 GA with an effective cutting width of 44 and weighing approximately about 112pounds.
- Components:
- Steering: 15” steering device with power steering option-
- Parking Brake: combination clutch/brake pedal-
- PTO Clutch: pneumatically operated, dash console mounting-
- Throttle Lever: On dash panel-
Frequently Asked Questions
- Q: What kinds of motors do you have for the Landlord DLX Series?
- A: Kohler, Briggs & Stratton and Kawasaki engines are available on the Landlord DLX Series with a Horsepower of between 17 hp to 23 hp.
- Q: What is the maximum forward speed of the tractor?
- A: The Tractor is capable of a maximum forward speed of 6.6 mph.
- Q: Which type of transmission is applied in this tractor?
- A: K71 Tuff Torq transmission is applied on the tractor.
- Q: After how long do I change the engine oil?
- A: Special precaution lhas to be taken in serving engines. The engine oil change interval that is recommended in the manufacturer’s owner manual should be observed.
- Q: Are there any construction differences in mower decks?
- A: Yes, Mower decks are made of different gauges in certain applications; 10 Ga. for the 54” deck and 12 Ga. For the 50” and 44” decks, constructed with a minimal wall thickness of .205 inches and .124 respectively.
- Q: Could you guide me on what to do if the engine does not turn on?
- A: You should check that the battery terminals are connected properly and clean, the PTO switch is OFF and the brake pedal is pressed down.
- Q: What is the fuel storage unit capacity for this tractor?
- A: This tractor supports almost 4.25 gallons or 16.7 liters fuel storage capacity.
- Q: What is a process to adjust the cutting height of the mower?
- A: Using the height adjustment knob embedded on the mower deck should allow you to change the cutting height.
