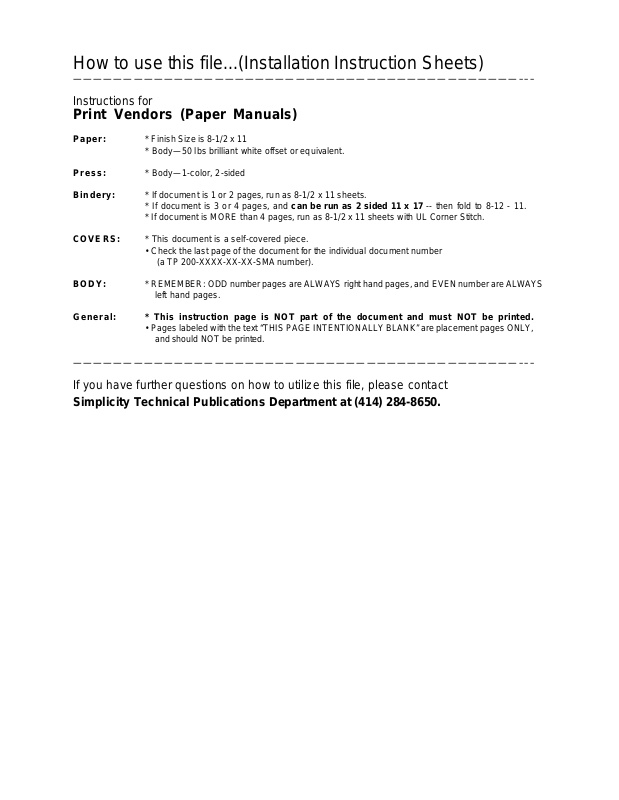

How to use this file...(Installation Instruction Sheets)
————————————————————————————————————————————–––
Instructions for
Print Vendors (Paper Manuals)
Paper: * Finish Size is 8-1/2 x 11
* Body—50 lbs brilliant white offset or equivalent.
Press: * Body—1-color, 2-sided
Bindery: * If document is 1 or 2 pages, run as 8-1/2 x 11 sheets.
* If document is 3 or 4 pages, and can be run as 2 sided 11 x 17 -- then fold to 8-12 - 11.
* If document is MORE than 4 pages, run as 8-1/2 x 11 sheets with UL Corner Stitch.
COVERS: * This document is a self-covered piece.
• Check the last page of the document for the individual document number
(a TP 200-XXXX-XX-XX-SMA number).
BODY: * REMEMBER: ODD number pages are ALWAYS right hand pages, and EVEN number are ALWAYS
left hand pages.
General: * This instruction page is NOT part of the document and must NOT be printed.
• Pages labeled with the text “THIS PAGE INTENTIONALLY BLANK” are placement pages ONLY,
and should NOT be printed.
————————————————————————————————————————————–––
If you have further questions on how to utilize this file, please contact
Simplicity Technical Publications Department at (414) 284-8650.
Page 2
THIS PAGE INTENTIONALLY BLANK
Page 3
ATTACHMENT
OPERATOR’S
MANUAL
Mfg. No. Description
1692924 60” Snow/Dozer Blade
(for use with Legacy / 2000 / 2900 Series)
1717570-01
Rev 2/1998
TP-100-2101-01-AT-SMA
Snow/Dozer Blade
Page 4
MANUFACTURING, INC.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997
www.simplicitymfg.com
© Copyright 1998 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
Page 5
1

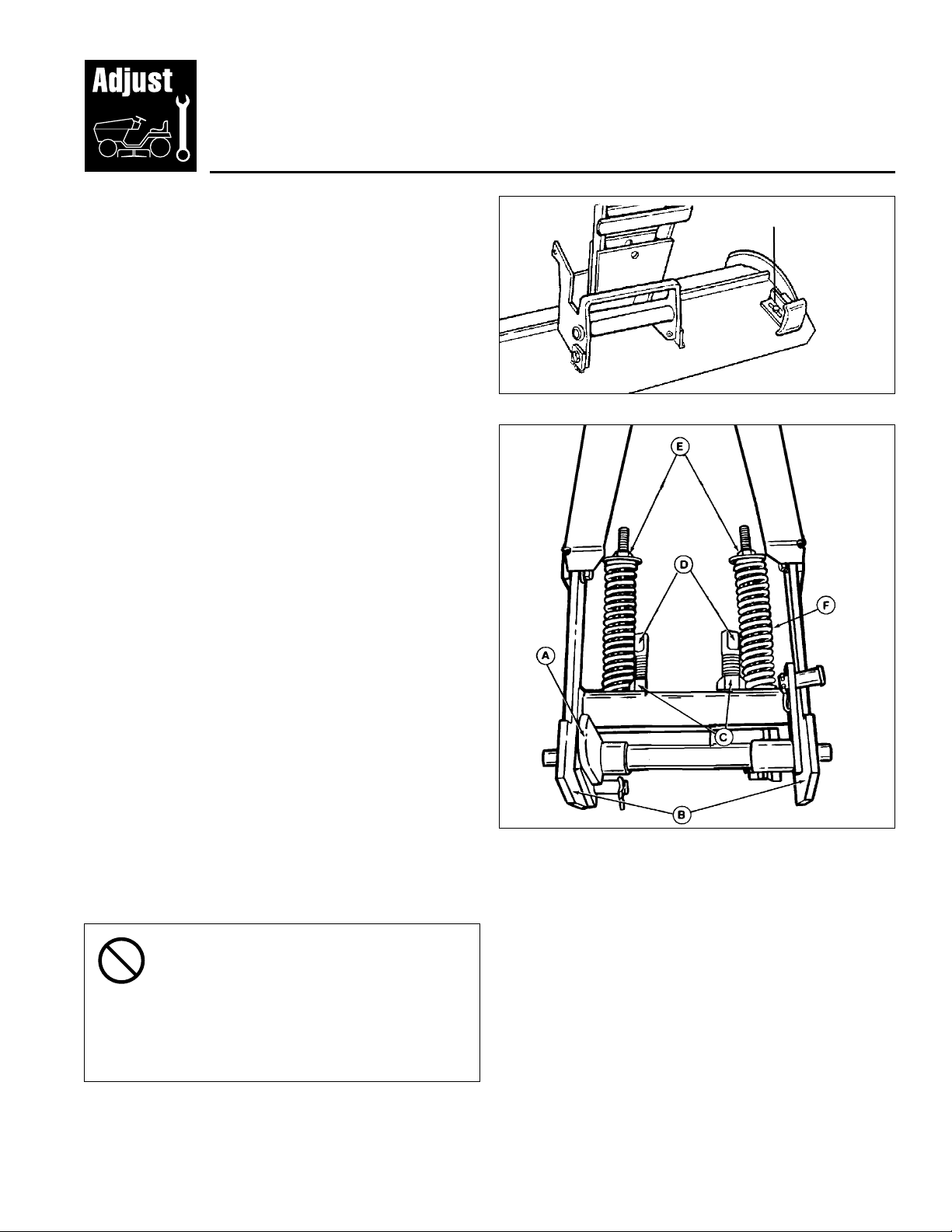

Adjustments.........................................................7
Skid Shoe Adjustment.....................................7
Lift Height Adjustment .....................................7
Downward Pressure Adjustment.....................7

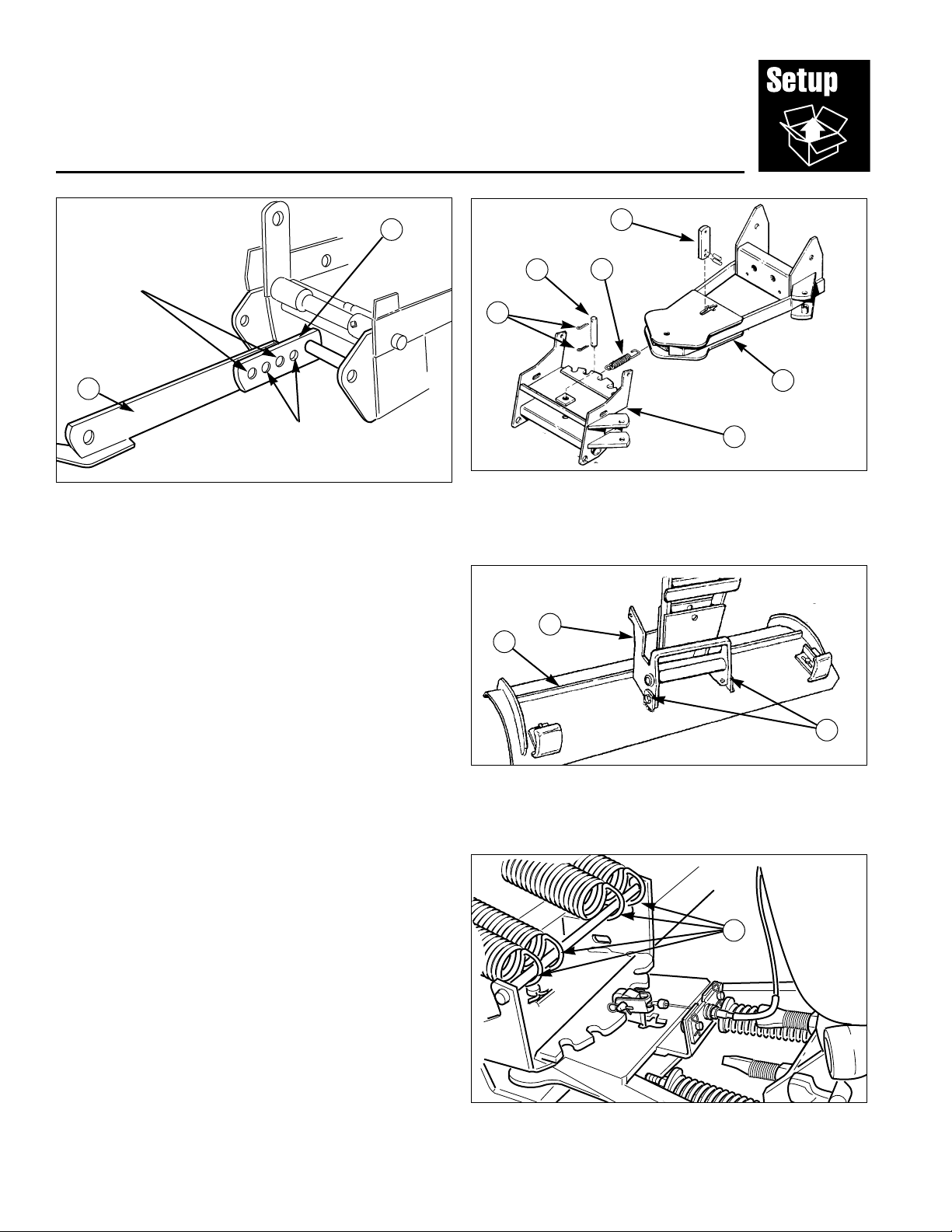

Initial Setup & Assembly
Attach Dozer Lift Arm ......................................8
Assemble Dozer Blade....................................8

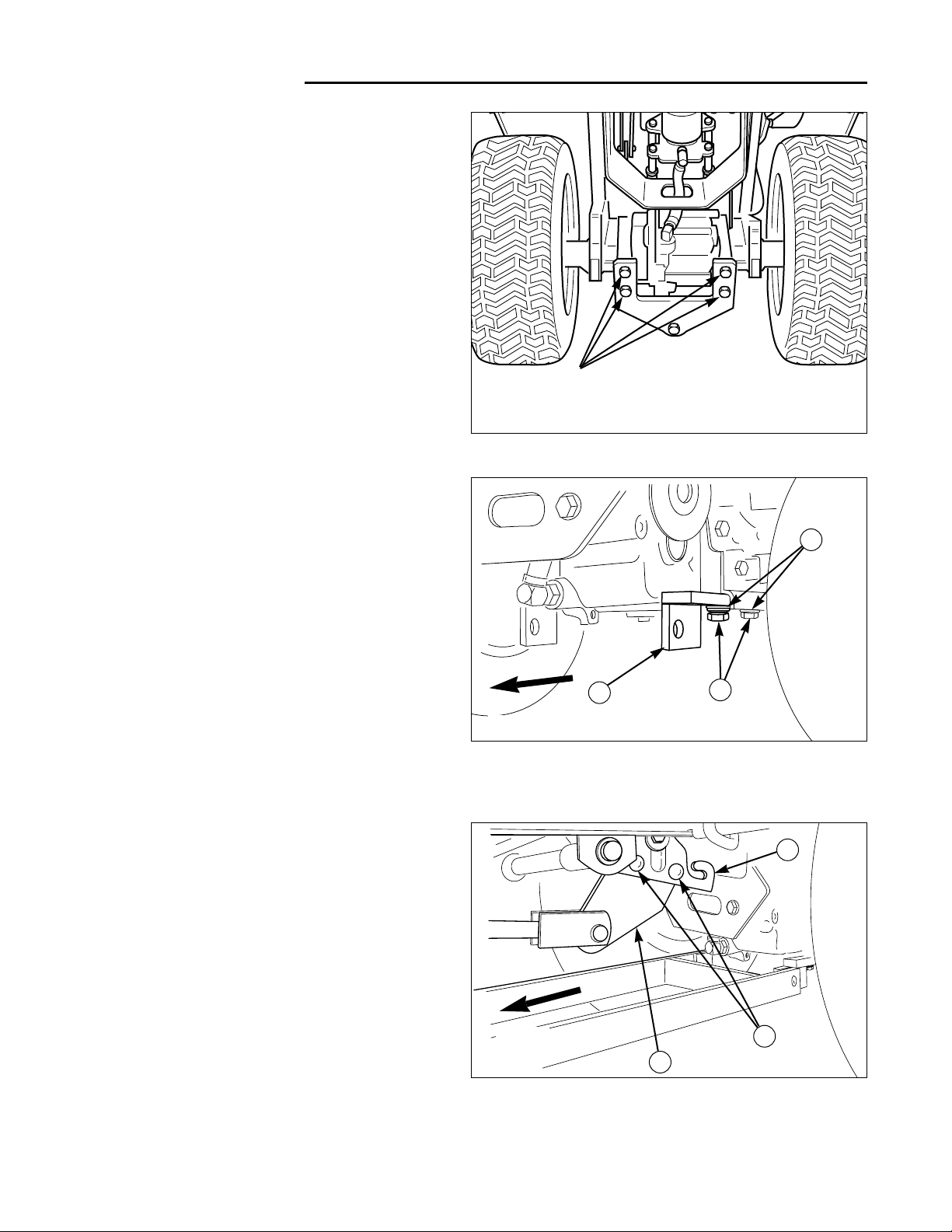

Install Front Hitch Mounting Brackets
& Angling Rod Support Arm ............................9

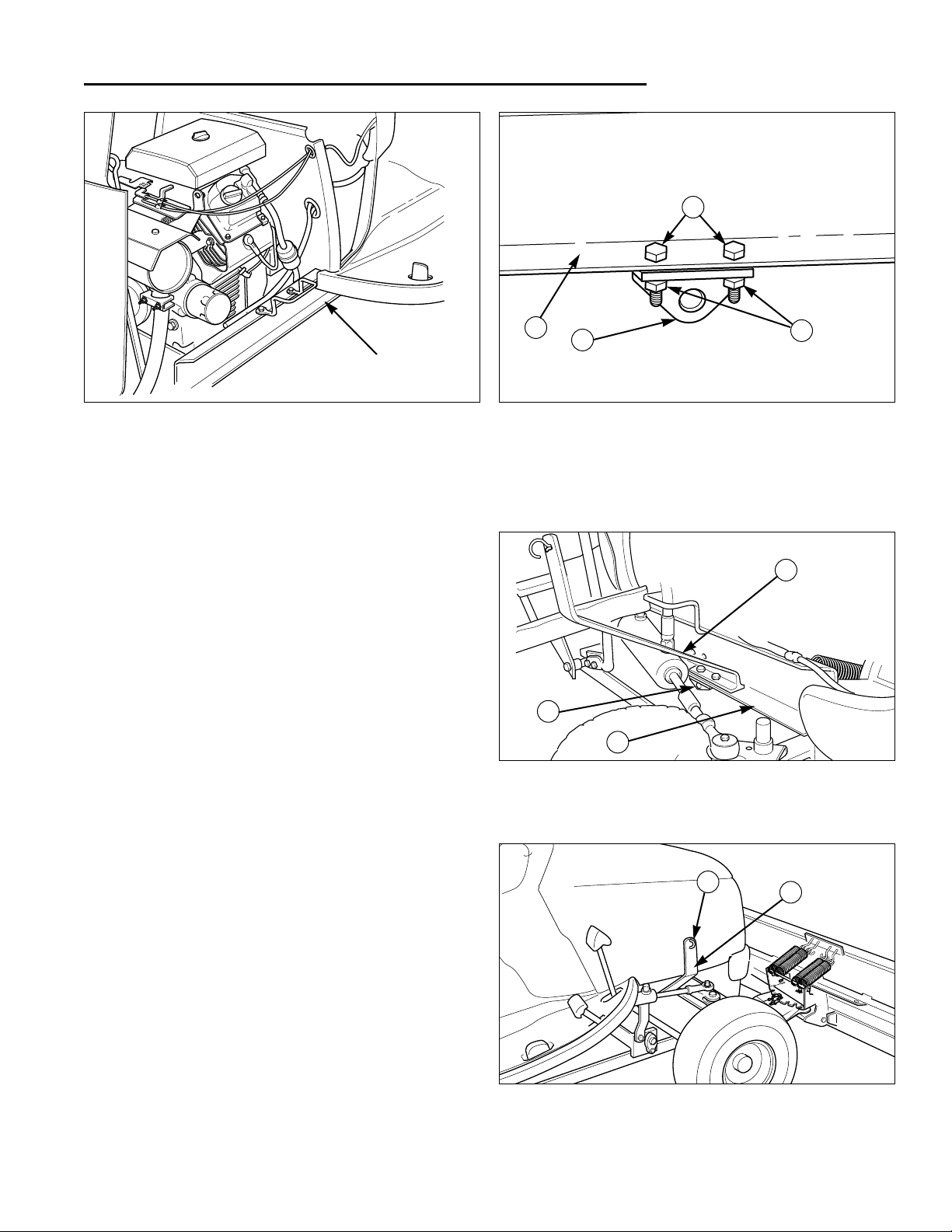

Install Rear Hitch Mounting Brackets ............10
Install Attachment lift Extension.....................10
Attaching & Removing the Hitch & Blade
Attach Hitch onto Tractor...............................11
Attach Lift Rod...............................................11
Attaching Dozer Blade...................................12
Removing Dozer & Hitch...............................13

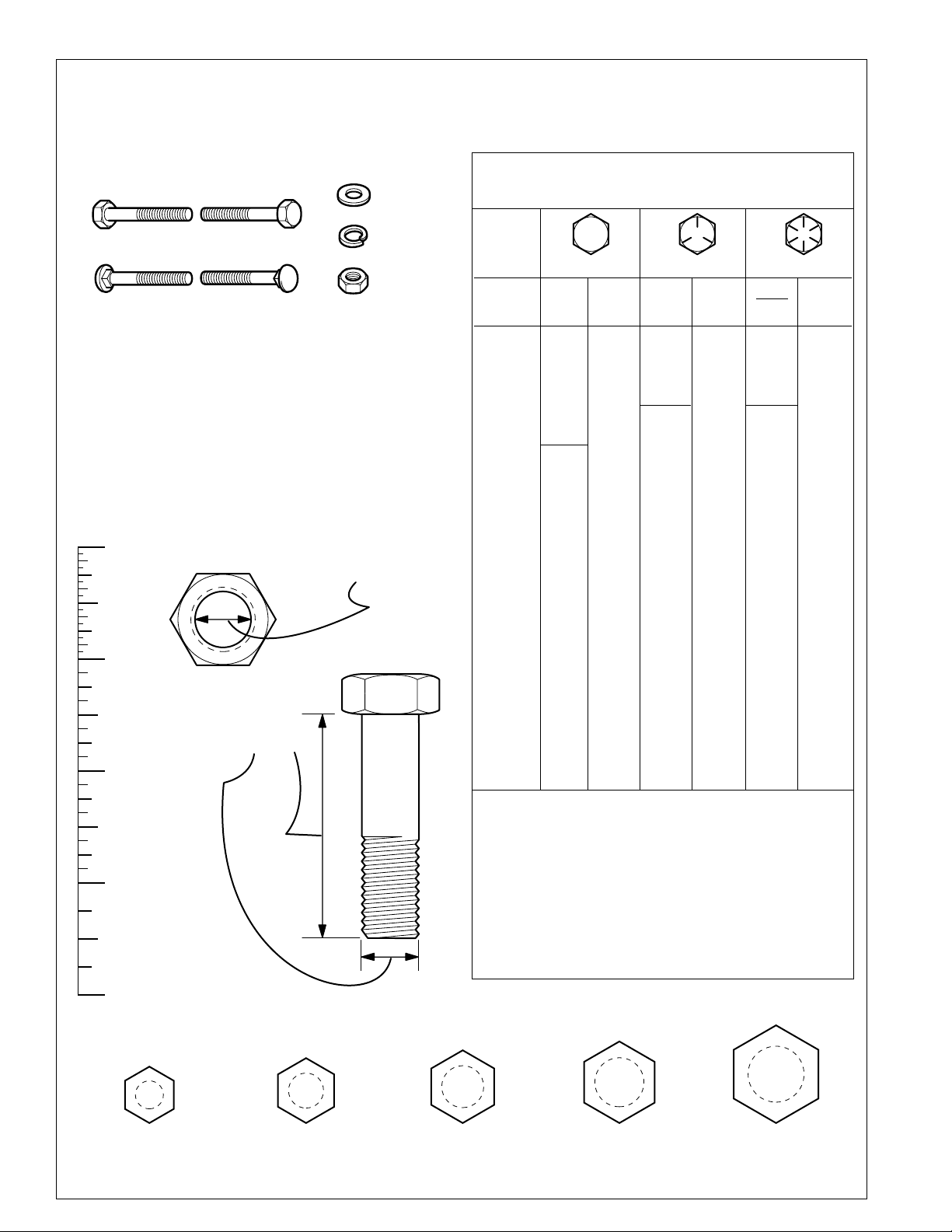

Hardware Identification
& Torque Specifications......................................8
NOTE: In these instructions, “left” and “right” are
referred to as seen from the operating position.
© Copyright 1998 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
TP 100-2101-01-AT-SMA
Recommended Accessories ..............................1
Safety Rules & Information
General Warnings............................................2
Preparation......................................................2
Operating Safety..............................................2
Features & Controls............................................3
General Operating Information
Checks Before Starting....................................4
Engine & Ground Speed Selection..................4
Transporting.....................................................4
Starting & Stopping..........................................4
Changing Angle of the Blade...........................5
Snow Plowing Tips..........................................5
Dozing Tips......................................................5
Storage.................................................................5
Maintenance & Normal Care Schedule..............6
Schedule for Normal Care...............................6

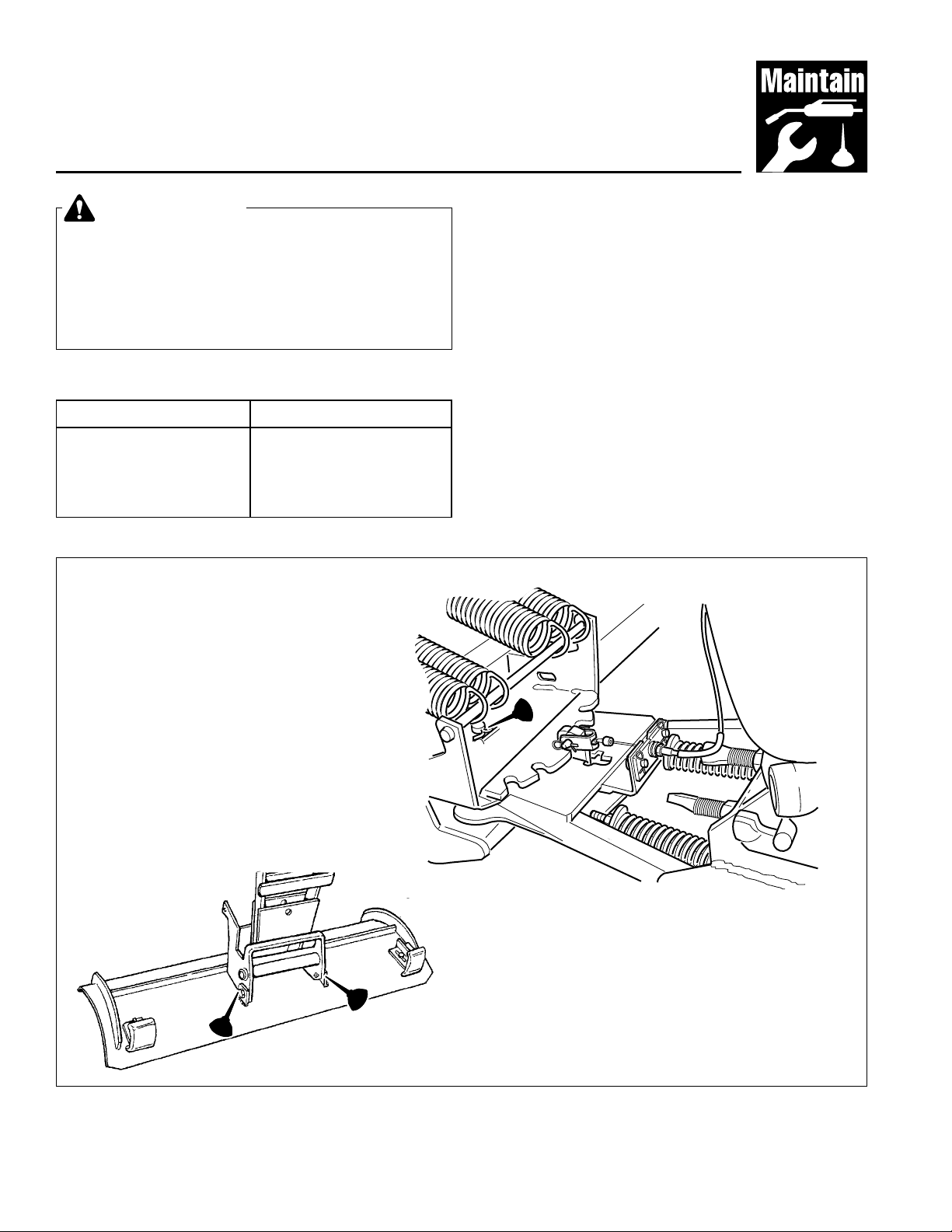

Lubricate the Dozer Blade...............................6
Table of Contents
Recommended Accessories
Tire chains and Simplicity Quick Tach weights are recommended when installing this attachment on your tractor.
Quick Tach weights are an easy way to improve traction and stability making your dozer more efficient. Quick
Tach weights are easy to install and remove, and can be added in 50 lb. increments (maximum of 300 lbs). To
purchase tire chains, Quick Tach weights, or wheel weights, see you Simplicity Dealer.
For operation on slopes greater than 15% (8.5°), Quick Tach Weights, tire chains, and wheel weights are recommended. Never operate on slopes greater than 30% (16.7°).
Page 6
OPERATING SAFETY
● Always clear snow up and down the face of slopes,
never across the face. Exercise extreme caution
when changing direction on slopes. Do not attempt to
clear steep slopes.
● Exercise extreme caution when operating on, or
crossing, gravel drives, walks or roads. Stay alert for
hidden hazards or traffic.
● After striking an object or if unit starts to vibrate
abnormally, stop the engine and remove the key.
Check for the cause and any damage before restarting. Before any inspection, make sure all moving
parts have stopped.
● Take all possible precautions before leaving operator’s position. Lower the attachment, set the parking
brake, stop the engine and remove the key.
● Never operate the dozer blade near glass enclosures, automobiles, window wells, dropoffs, etc.
● Do not put hands or feet near or under the dozer
blade. Keep clear of the dozer blade at all times.
● Do not overload machine capacity by attempting to
plow too much material at too fast a rate.
● Never operate unit at high transport speeds on slippery surfaces. Use care when travelling in reverse.
● Never operate the dozer blade without good visibility
or light. Always be sure your feet are properly placed
on the footrests and keep a firm hold on the steering
wheel.
● Do not run the engine indoors.
● Never allow anyone in front of the unit.
2
Safety Rules
& Information
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control
of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.
The triangle in text signifies important cautions or warnings which must be followed.
GENERAL WARNINGS
● Know the tractor controls and how to stop quickly.
READ THE TRACTOR OPERATOR’S MANUAL.
● Read this manual and the tractor Operator’s Manual
carefully. Be thoroughly familiar with the controls and
the proper use of the equipment.
● Never allow children to operate the machine. Do not
allow adults to operate it without proper instruction.
● Do not carry passengers.
● Use only attachments or accessories designed for
your machine. See your dealer for a complete list of
recommended attachments or accessories.
● Keep the area of operation clear of all persons, particularly small children, and pets.
● Never direct discharge towards bystanders.
● Make sure all hardware is secure and that dozer
blade is in good operating condition.
● Check to be sure all safety devices and shields are in
place.
● Check that all adjustments are correct before using
this unit.
● Gasoline is highly flammable. Follow all precautions
listed in your tractor’s operator’s manual.
● Always wear eye protection while operating and performing adjustments to protect eyes from debris
thrown by the dozer.
● When cleaning, repairing, or inspecting the unit make
sure all moving parts have stopped. Disconnect and
secure the spark plug wires and remove the key to
prevent accidental starting.
PREPARATION
● Disengage the PTO before making any adjustments.
● Never attempt to make any adjustments while engine
is running.
● Thoroughly inspect the area where the dozer is to be
operated and remove all foreign objects.
● Adjust the skid shoe height to clear gravel or crushed
stone surface. See the Adjustments section for procedure.
DANGER
OPERATING ON SLOPES
CAN BE DANGEROUS
For operation on slopes greater than 15% (8.5°),
weight box, tire chains, and wheel weights are
recommended. NEVER OPERATE ON SLOPES
GREATER THAN 30% (16.7°).
Page 7
3
TRACTOR CONTROLS
Before you begin operating the tractor with the dozer
blade attachment, make certain you have:
• Read and understood the instructions in the
tractor Operator’s Manual.
• Become thoroughly familiar with all of the
tractor controls and their operation, including
how to safely and properly start and stop the
unit.
• Practiced driving in an open area—without
dozing—to become accustomed to the unit.
Features
& Controls
A. Blade Angle Release Lever
The blade angle release lever controls a spring-loaded
tab which locks the blade at specific angles.
Squeezing on this lever pulls the locking tab out of it’s
locked position, and allows the blade to be angled.
Releasing the lever allows the locking tab to lock into an
adjustment slot.
B. Angling Control Lever
The angling control lever is used (with the blade angle
release lever) to manually change the blade angle.
C. Attachment Lift
The attachment lift pedals (see inset above) raise and
lower attachments such as the dozer blade.
To RAISE an attachment, depress the REAR attachment
lift pedal. To LOWER an attachment, depress the
FRONT attachment lift pedal.
D. Two-Speed Control
The two-speed control allows the operator to switch the
transmission into high or low-speeds, and to disengage the
transmission into a NEUTRAL (free-wheeling) position.
Select the low-speed for all Dozing work and highspeed for travelling to and from work areas. DO NOT
SHIFT WHILE MOVING. See the Tractor Operator’s
Manual for more details.
A
B
D
C
Please Take a moment and familiarize
yourself with the name, location, and
function of these controls so that you will
better understand the safety and operating
instructions provided in this manual.
CONTROL FUNCTIONS
The information below briefly describes the function of individual controls. Operating the tractor and dozer require the
combined use of these controls and additional controls whose operation is described in the tractor Operator’s Manual.

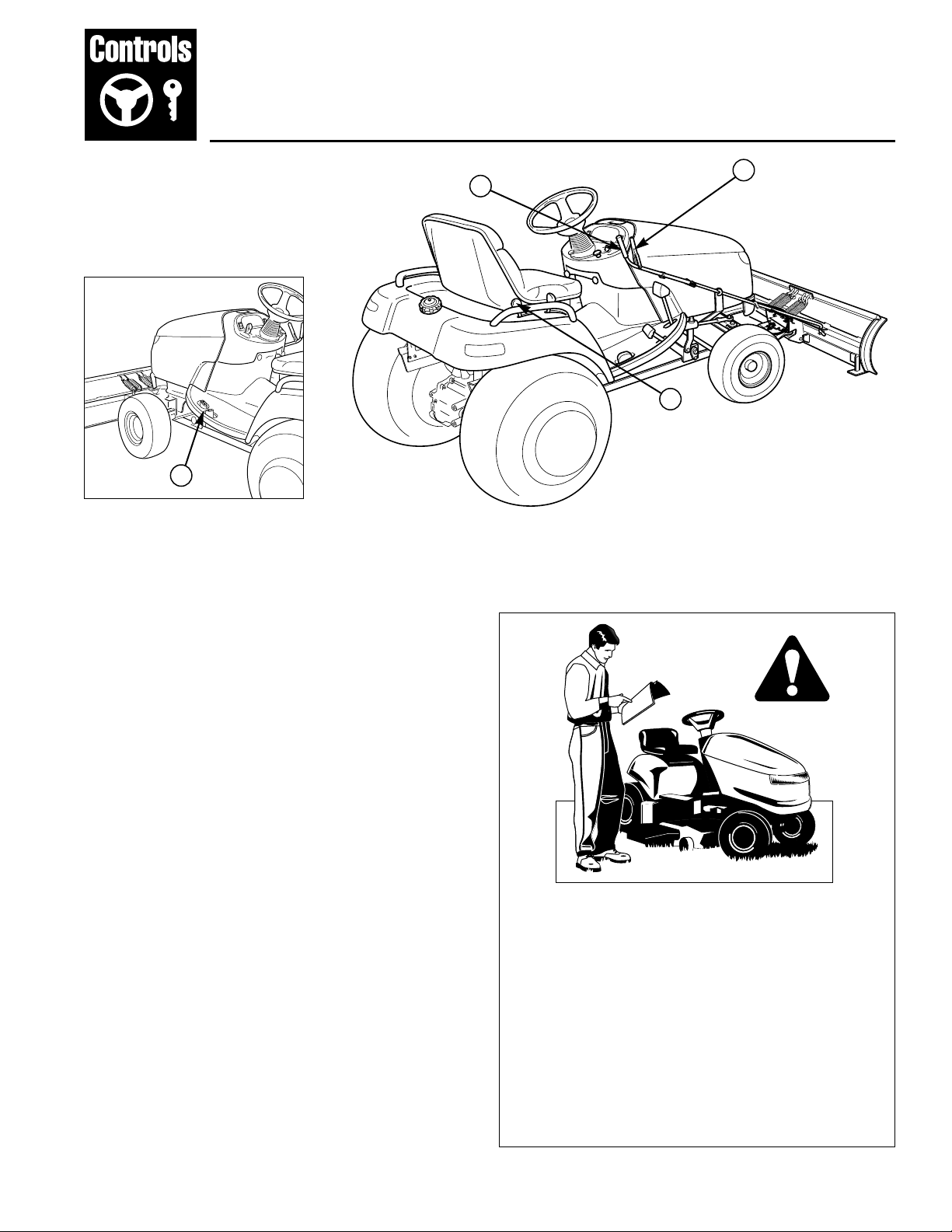

Figure 1. Dozer Blade Controls
A. Blade Angle Release Lever
B. Angling Control Lever
C. Attachment Lift Pedals
D. Two-Speed Control
Page 8
4
Checks Before Starting
1. Refer to the Maintenance & Adjustments sections of
this manual and perform any needed service. Also,
refer to the tractor Operator’s Manual and perform
any required service.
2. Remove any objects from the work area which might
interfere with plowing activity.
3. Adjust the skid shoes to desired height. See Skid
Shoe Adjustment.
4. Make sure all hardware is present and secure.
Engine & Ground Speed Selection
Always run the engine at full throttle.
Normally, a slow ground speed is best for plowing. The
heavier the material, the slower the recommended
ground speed. When plowing always set the 2-Speed
control to LOW.

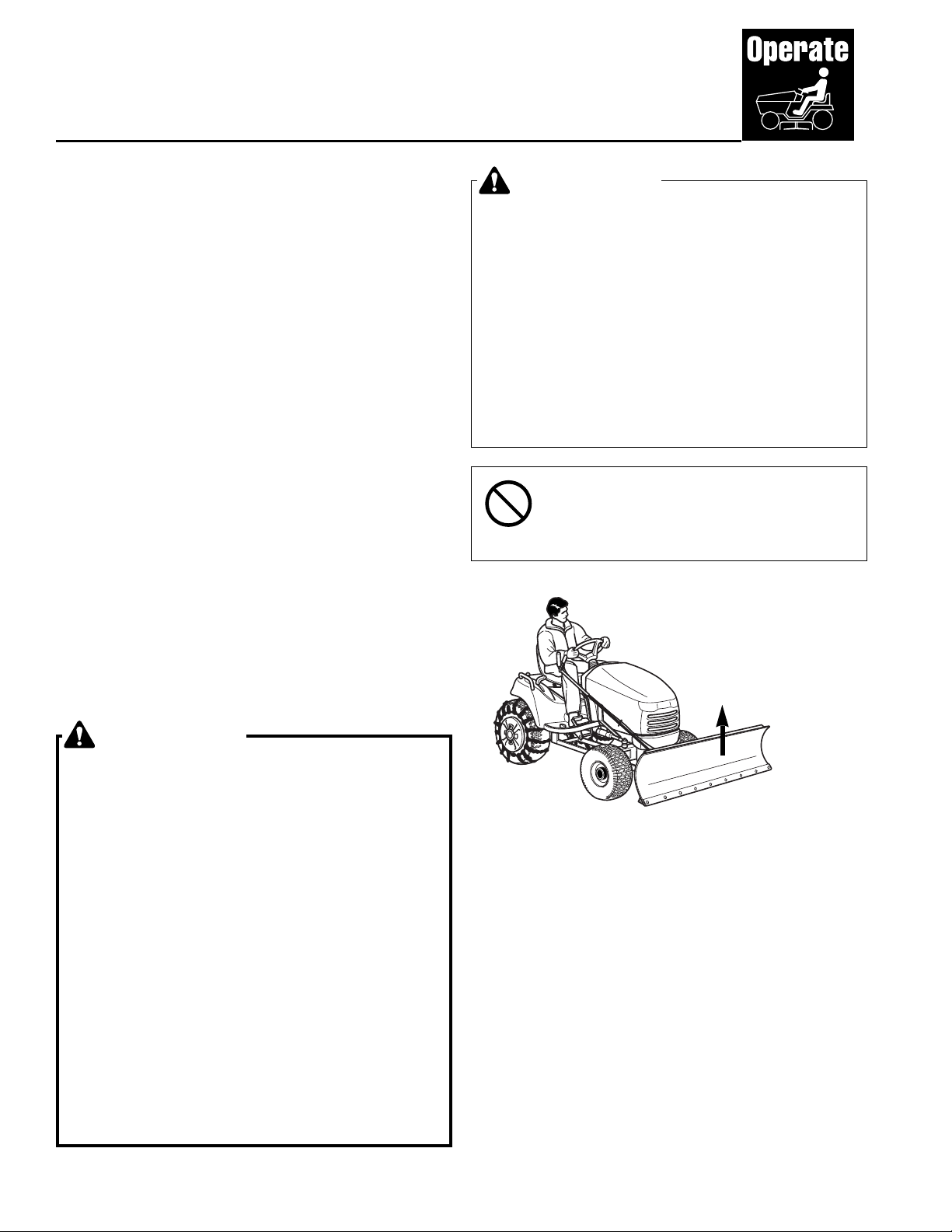

Transporting
1. Use the attachment lift to raise the dozer blade.
2. Adjust ground speed according to surface conditions.
Select a slow ground speed when transporting on a
slippery surface.
General
Operating Instructions
WARNING
Perform the Safety System Interlock test found in
your tractor Operator’s Manual. If tractor does not
pass the test, do not operate the tractor. See your
authorized dealer. Under no circumstances
should you attempt to defeat the safety system.
Use caution when plowing a snow covered area.
Snow can cover objects such as curbs, drop-offs,
and other obstacles. Be familiar with the area you
are plowing.
To prevent an explosion or fire, never store the
tractor with fuel in the tank inside a building
where an ignition source is present.
Starting & Stopping
1. Start the tractor engine. Set engine throttle to full.
2. Raise the attachment lift and travel to the work site.
3. Stop the tractor and set the Two-Speed control to
LOW.
4. Set the angling control to the desired angle.
5. Lower the attachment lift and depress the forward
ground speed pedal to plow.
6. Raise the plow before backing up.
7. To stop the tractor, release the ground speed control
pedals. Before leaving the seat, stop the engine, set
the parking brake, remove the key, and wait for all
moving parts to stop.
DANGER
OPERATING ON SLOPES
CAN BE DANGEROUS
Never operate on slopes greater than 30 percent
(16.7°) which is a rise of three feet vertically in 10
feet horizontally.
Operate the unit at a slow ground speed when
driving onto slope. Avoid using brakes to control
ground speed.
When operating on slopes that are greater than
15 percent (8.5°) but less than 30 percent, use
additional wheel weights or counterweights.
In addition to counterweights, use extra caution
when operating on slopes. Drive UP and DOWN
the slope, never across the face, use caution
when changing directions and DO NOT START
OR STOP ON SLOPE.
IMPORTANT NOTE
To prevent damage to the unit, always
raise the dozer blade BEFORE turning or
backing up.
RAISE dozer blade
before transporting,
turning or backing up!
Page 9
5
Daily Storage
1. Allow tractor engine to cool before storing in any
enclosure.
2. After dozing or plowing jobs are completed, hose or
brush down the blade to remove excess dirt.
3. Lightly oil all pivot points. Coat bare metal surfaces to
prevent corrosion.
IMPORTANT NOTE
Refer to Tractor Operator’s Manual for
important information concerning safely
storing your tractor.
General Operating Instructions
Changing Angle of the Blade:
See Figure 1 on page 3 for location of Controls.
1. Fully raise the attachment lift by depressing the
REAR attachment lift pedal (C, Figure 1).
2. Squeeze the blade angle release lever (A) to release
the locking tab and allow the blade to pivot.
3. Push or pull on the angling control lever (B) to
change the angle of the dozer blade as desired.
4. Stop squeezing the blade angle release lever (A) and
make certain the blade is locked into position by
pushing or pulling slightly on the angling control lever
until the tab locks into one of the slots.
Dozing Tips
• Determine the best dozing pattern before beginning.
• When land contour permits, it is best to travel in the
longest direction to minimize turning.
• In very deep or gravel, it may be necessary to make
the first pass with dozer blade partially raised, then
repeat each pass with the blade lowered to clear the
material left on the surface. Also, it may be necessary
to clear less than the full width of the dozer blade or
reduce ground speed.
• When dozing, push the dirt to the desired location,
then drag the blade backwards for final leveling. Pack
down the dirt or gravel by driving the tractor over the
leveled area.
• Use any slight grade to your advantage, doze downhill, and set the blade angle so that the plowed material is moving downhill as it leaves the blade.
Snow Plowing Tips
• Determine the best snow removal pattern before
beginning.
• Plan the pattern so that you avoid pushing snow onto
cleared areas.
• When land contour permits, it is best to travel in the
longest direction to minimize turning.
• In very deep or heavy snow, it may be necessary to
make the first pass with dozer blade partially raised,
then repeat each pass with the blade lowered to clear
the material left on the surface. Also, it may be necessary to clear less than the full width of the dozer
blade or reduce ground speed.
• Snow tends to freeze into solid banks when plowed
off a driveway or other large area. Because of this
you may want to plow snow several feet past the
edge of the drive to allow space for future plowing to
build up.
• If pushing snow past the edges of driveways or sidewalks, be careful not to tear up the grass buried
under snow next to the drive or sidewalk. Lift the
blade several inches off the ground to avoid damaging the grass.
Storage
Off-Season Storage
1. Remove dozer blade from the tractor. Hitch can
remain installed if other front mounted attachments
are to be used.
2. Use water pressure or a brush to thoroughly clean
the dozer blade.
3. Paint, or lightly coat with oil, any area where paint
has been worn or chipped away.
4. Lubricate the dozer blade.
5. Store the dozer blade and hitch in a dry place.
Page 10
6
Maintenance
Schedule For Normal Care
Care Required Schedule
Clean debris from After each use.
dozer blade.
Lubricate dozer blade. Every 10 hours or at
least once a year.
Lubricate Dozer Blade
Lubricate the dozer blade as shown in Figure 2. Where
an oil can is shown, wipe the area clean, apply a few
drops of oil (SAE 30), then wipe up drips or spills.
In general, linkage connections and other parts that have
partial rotational or sliding movement should be lubricated periodically with SAE 30 weight oil. Avoid applying
excessive amounts of oil since this may cause a build-up
of dirt around the lubricated area, making subsequent
lubrication more difficult to accomplish.
WARNING
To avoid serious injury, perform maintenance on
the tractor or dozer blade only when the engine is
stopped, parking brake is set and all moving parts
have stopped. Always remove the ignition key
before beginning maintenance or adjustments to
prevent accidental starting of the engine.
Figure 2. Lubrication Points
Page 11
7
Adjustments
Figure 3. Adjusting Skid Shoes
Figure 4. Lift Adjustment
A. Lift Bar D. Lift Height Bolts
B. Hitch E. Nuts
C. Nuts F. Springs
Skid Shoe
Nuts
ADJUSTMENTS
Skid Shoe Adjustment
On smooth surfaces such as concrete or asphalt, the
scraper bar should scrape the surface. On surfaces
such as gravel, the scraper bar should be set high
enough so that it will not pick up debris.
1. Loosen the nuts securing the skid shoes (see
Figure 3).
2. Raise or lower the scraper bar to the desired height.
Use wood blocks to hold the blade in position.
3. Set the skid shoes so that they are in contact with the
ground and tighten the skid shoe nuts.
Lift Height Adjustment
To adjust the lift height:
1. Fully raise the attachment lift and shut off the engine.
Set the parking brake and remove the key.
2. Loosen the nuts (C, Figure 4).
3. Turn the lift height bolts (D) until the dozer blade is at
the desired height and level.
4. Hold the lift height bolts (D) in position and lock in
place with the nuts (C).
Downward Pressure Adjustment
1. Fully lower the attachment lift and shut off the engine.
Set the parking brake and remove the key.
2. Turn the nuts (E) evenly until the desired downward
force is achieved.
Do not “lock-up” the springs. The springs should
have some flex.
IMPORTANT NOTE
DO NOT OVER-COMPRESS THE SPRINGS.
In addition to providing downward pressure,
the springs are an elastic medium that
absorbs shocks caused by bumps and
cracks in ground surfaces. Over-compressing the springs defeats this and may cause
damage to the unit.
Page 12
8
Initial
Setup & Assembly
Figure 8. Install Return Springs
A. Return Spring & Eye Bolt
Figure 5. Assemble Dozer Lift Arm
A. Dozer Hitch
B. Dozer Lift Arm
A
B
Tractors
Equipped with 161/2” Front TIres,
Use These Holes
Tractors Equipped with 18”
Front TIres, Use These Holes
Attach Dozer Lift Arm
1. See Figure 5. Assemble the dozer lift arm (B) to the
dozer hitch (A) using two 1/2-13 x 1-3/4” capscrews,
lockwashers, and nuts. Insert the capscrews from
left to right in the holes shown.
Assemble Dozer Blade
NOTE: Once assembled, the dozer blade and hitch pivot
assembly need not be separated.
1. Slide the front and back hitch pivot assemblies (A
and B, Figure 6) together.
2. Install the pivot pin (C, Figure 6) and secure with two
cotter pins (D).
3. Install the locking tab (E, Figure 6) and locking tab
spring (F). The spring connects the locking tab (E) to
the pivot pin (C).
4. Next mount the hitch assembly (A, Figure 7) to the
dozer blade (C). Secure using two 1/2-13 x 1-1/2
capscrews, spacers, and nuts (B).
5. Attach the return springs and eye bolts (A, Figure 8)
to the blade and hitch.
A
B
C
F
E
Figure 7. Assembly Dozer Blade to Hitch
A. Hitch
B. 1/2-13 x 1-1/2 Capscrew, Spacer, and Nut
C. Dozer Blade
A
C
B
Figure 6. Assemble Hitch Pivot Assembly
A. Front Hitch Assy. D. Cotter Pin
B. Back Hitch Assy. E. Locking Tab
C. Pivot Pin F. Locking Tab Spring
A
D
Page 13
9
Initial Setup & Assembly
Install Front Hitch Mounting Brackets &
Angling Rod Support Arm
NOTE: Once installed, the front and rear hitch mounting
brackets need not be removed.
1. Attach the left front hitch mounting bracket (A Figure
10) to the pre-drilled holes in the frame using 5/16-18
x 1-1/4” bolts, lockwashers, and nuts.
See Figure 9 for hole location.
2. See Figure 11. Attach the right front hitch mounting
bracket (A) and angling rod support arm (C) to the
frame using 5/16-18 x 1-1/4” bolts, lockwashers, and
nuts.
3. Install the support arm eye bolt (A, Figure 12) and
secure with a hex nut.
Figure 10. Front Hitch Mounting Brackets
A. Hitch Bracket
B. Frame
C. Capscrews, 5/16-18 x 1-1/4”
D. Nut & Lockwasher
A
D
B
C
Figure 9. Front Hitch Bracket Mounting Holes
Bracket Mounting
Holes Located Here
Figure 11. Front Hitch Mounting Brackets
A. Hitch Bracket
B. Frame
C. Support Arm
A
B
C
Figure 12. Install Angling Arm
A. Support Arm Eye Bolt
B. Support Arm
A
B
Page 14
10
Figure 13. Drawbar Bolts & Washers
Capscrews &
Washers
Figure 14. Rear Hitch Brackets
A. Bracket
B. Washer, 5/8
C. Capscrew, 5/8-11 x 2”
Figure 15. Attachment Lift Extension
A. Lift Arm
B. Lift Extension
C. Carriage Bolt, 3/8-16x1”
A
B
C
A
B
C
Front
Front
Install Rear Hitch Mounting Brackets
1. Remove the front four capscrews and washers securing the drawbar to the transmission (see Figure 13).
2. Attach the rear hitch brackets (A, Figure 14) to the
drawbar and transmission with the 5/8-11 x 2” capscrews (C) and washers (B) provided.
NOTE: During initial installation do not tighten the capscrews (C, Figure 14) securing the rear hitch mounting
brackets until the attachment is completely installed.
Install Attachment Lift Extension
NOTE: The attachment lift extension (B, Figure 15) must
be removed when using mower.
1. Install the attachment lift extension (B, Figure 15) on
the left attachment lift arm (A) using two 3/8-16 x 1”
carriage bolts (C), lockwashers, and nuts as shown.
Initial Setup & Assembly
Page 15
11
Attaching &
Removing the Hitch & Blade

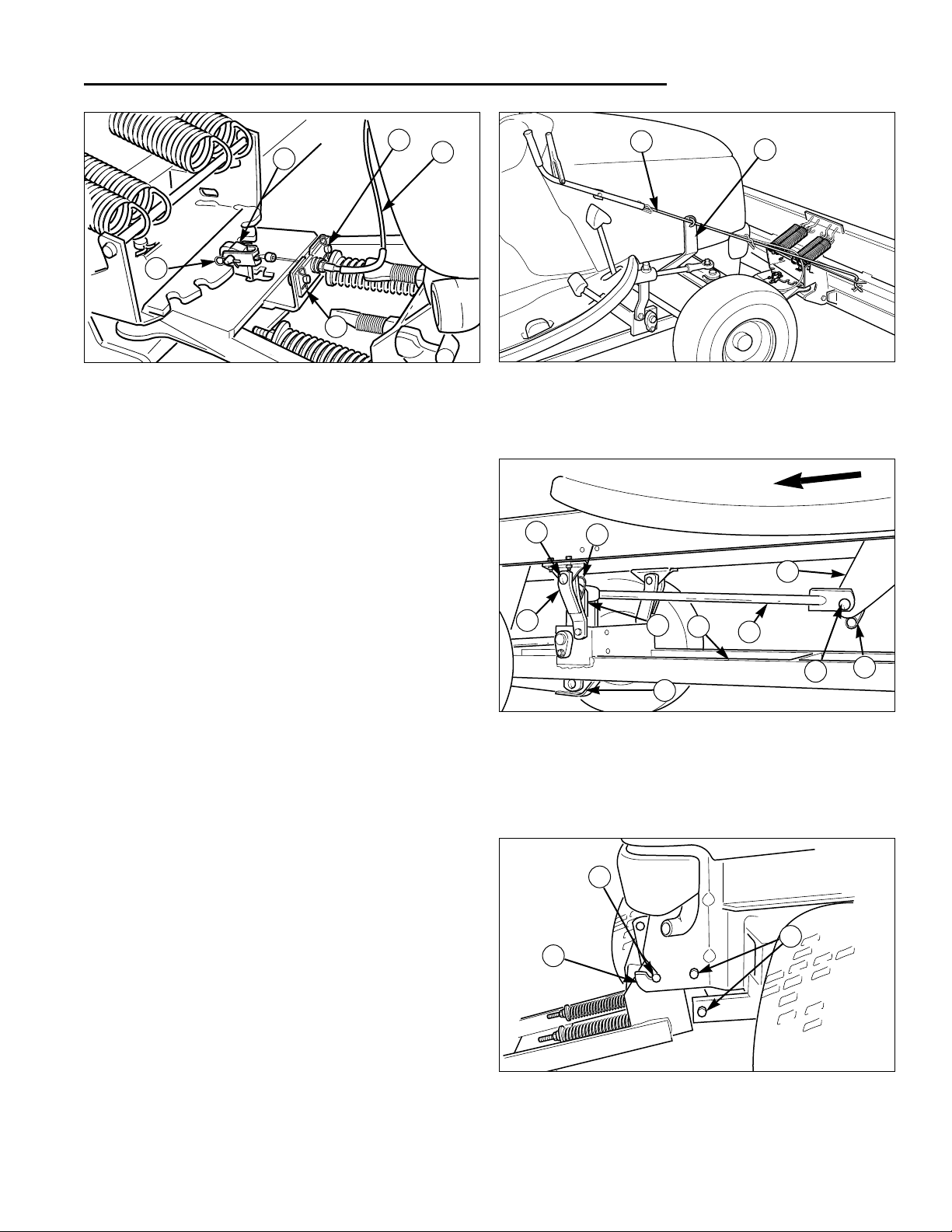

Figure 16. Rear Brackets & Lift Extension
A. Rear Hitch Brackets
B. Ladder Hitch
C. Clevis Pin
D. Lift Rod
E. Lift Extension
A
E
D
C
B
Figure 17. Lift Rod
A. Clevis Pin
B. Dozer Lift Arm
C. Safety Clip
D. Ladder Hitch
E. Hitch Lift Arm
F. Lift Rod
G. Front Hitch Bracket
H. Lift Extension
A
C
D
E
F
G
H
B
A
C
Front
Front

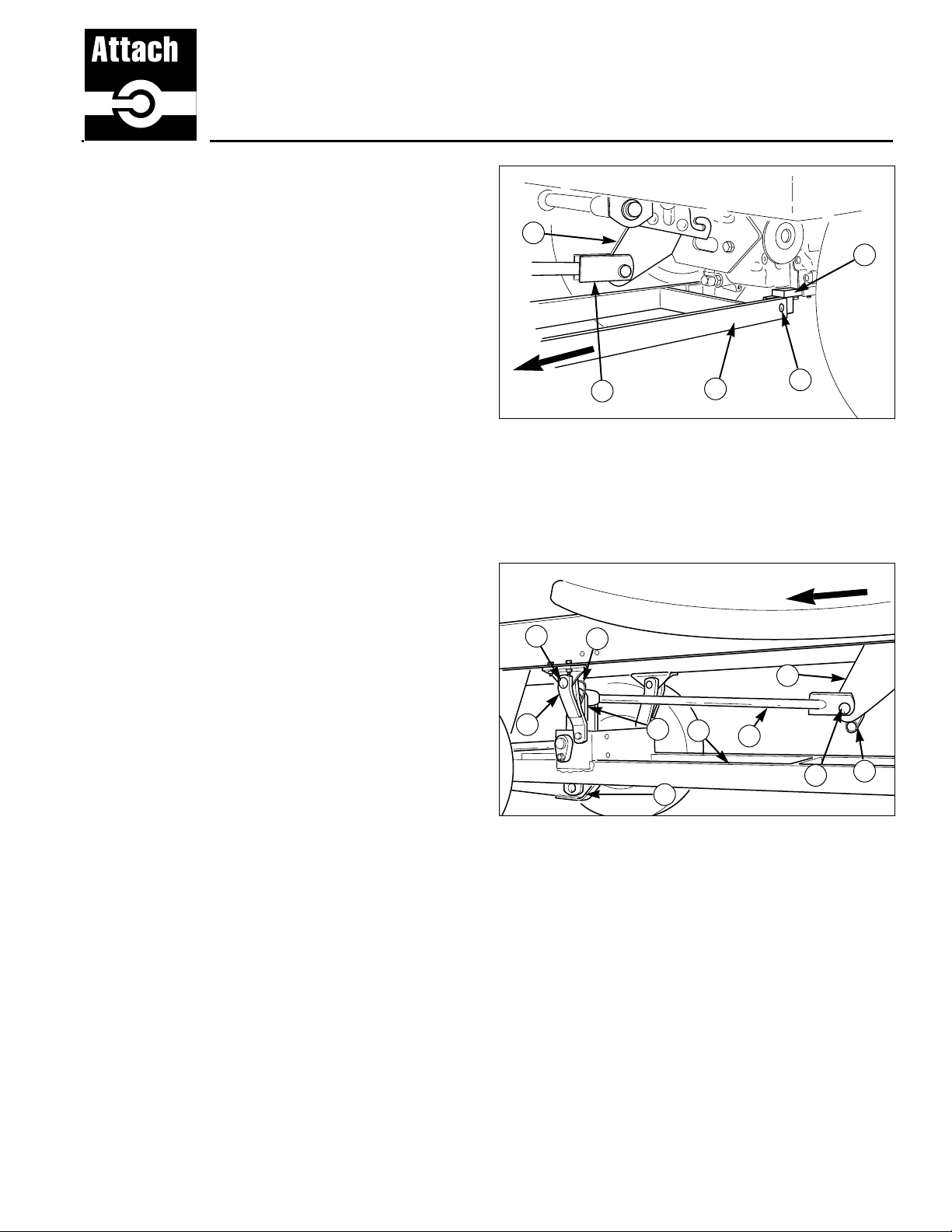

Attach Hitch Onto Tractor
1. Slide the hitch and lift rod assembly under the tractor.
2. Attach the rear end of the ladder hitch (B, Figure 16)
the to the rear hitch brackets (A) using clevis pins (C)
and safety clips.
3. Attach the front end of the ladder hitch (D, Figure 17)
to the front hitch brackets (G) using clevis pins (A)
and safety clips (C).
Attach Lift Rod
1. Attach the lift rod (F, Figure 17) to the hitch lift arm
(E) using a clevis pin and safety clip.
2. Attach the lift rod (F, Figure 17) to the attachment lift
extension (H) using a clevis pin (A) and safety clip (C).
Page 16
12
Attaching & Removing

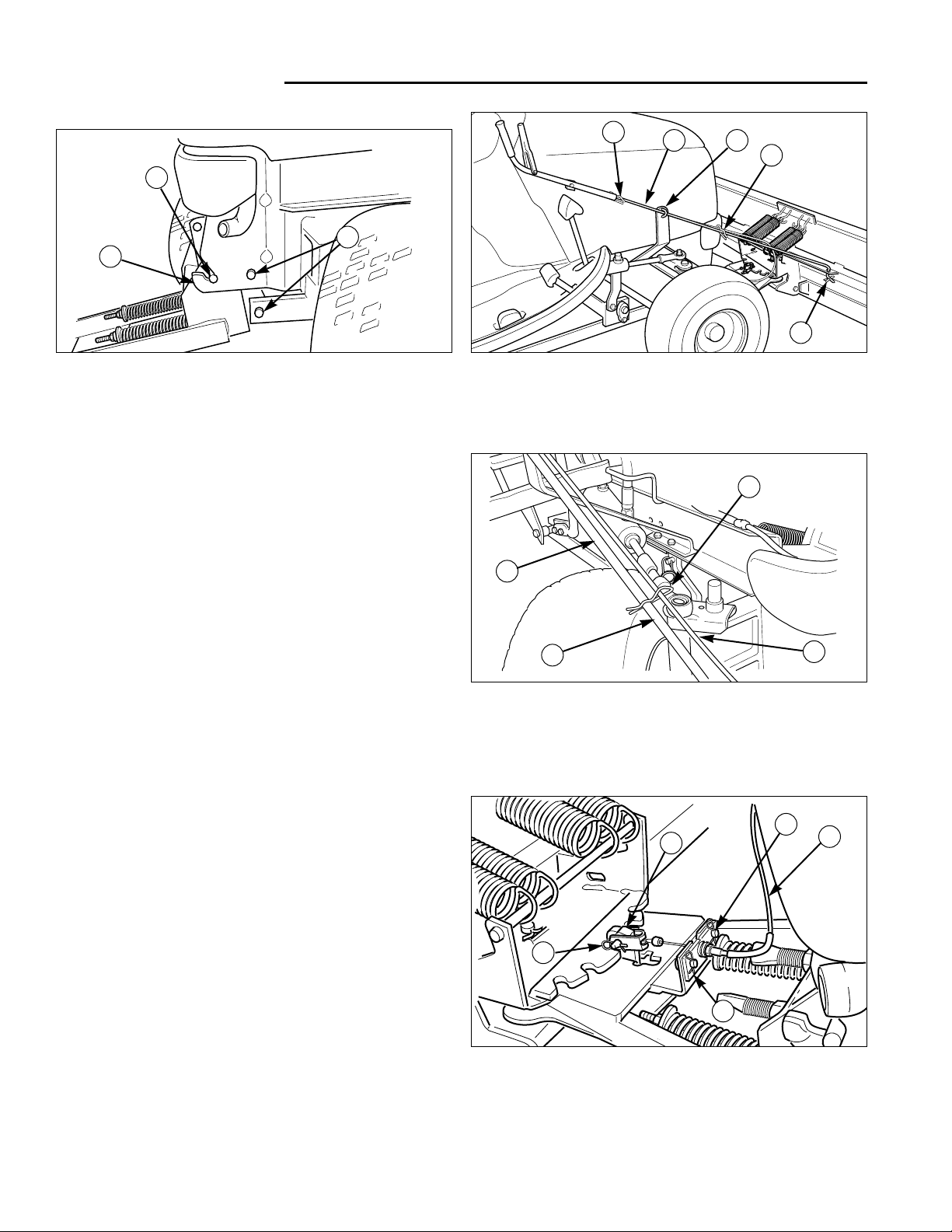

Figure 18. Attach Dozer
A. Dozer Pins
B. Clevis Pin
C. Attachment Hooks
A
B
C
Figure 19. Install Angling Arm
A. Hair Pin Clip
B. Support Arm Eye Bolt
C. Angling Rod
A
A
C
A
B
Figure 21. Angling Cable Adjustment
A. Hair Pin Clips
B. Locking Tab
C. Clevis Pin & Hair Pin
D. Angling Cable
A
A
C
D
B
Figure 20. Front Hitch Mounting Brackets
A. Upper Rod
B. Lower Rod
C. Hairpin Clip
D. Angling Cable
A
D
B
C
Attaching Dozer Blade
1. Install the lift arm extension if not already done (see
Install Lift Extension under INITIAL SETUP).
2. Fully lower the attachment lift.
3. See Figure 18. Attach the dozer to the tractor by
resting the dozer pins (A) on the front attachment
hooks (C).
4. See Figure 18. Install two clevis pins (B) on both
sides and secure with safety clips.
5. See Figure 17. Attach the dozer lift arm (B) to the
hitch lift arm (E) using a clevis pin and safety clip.
NOTE: At this point during initial installation tighten the
capscrews (C, Figure 14) securing the rear hitch mounting brackets. This is only necessary when installing the
attachment for the first time.
6. See Figure 19. Separate the angling rod (C) and
insert it through the support arm eye bolt (B).
7. See Figure 20. Assemble the upper angling rod (A)
and lower angling rod (B). Insert a hairpin clip (C)
through the rod to secure. Be sure to route the cable
(D) through the hairpin as shown in Figure 20.
8. See Figure 19. Attach the angling rod to the back of
the dozer blade using a hair pin clip (A).
9. See Figure 21. Attach the cable (D) to the dozer
using hair pin clips (E) as shown.
10.See Figure 21. Attach the end of the angling cable to
the locking tab (B) using a clevis pin and hair pin clip
(C).
11.Lubricate the dozer as shown in the Maintenance
section.
12.Perform all adjustments as shown in the Adjustments
section.
Page 17
13
Attaching & Removing
Removing Dozer & Hitch
NOTE: Whenever removed, install clevis pins, hitch pins,
clips and hardware into dozer and hitch for storage.
1. Fully lower the attachment lift.
2. See Figure 22. Remove the hairpin clip and clevis
pin (C) securing the angling cable (D) to the locking
tab (B).
3. Remove the hair pin clips (A, Figure 22) attaching the
adjustment plate to the dozer blade and remove the
plate from the dozer.
4. See Figure 23. Separate the angling rod (A) and
remove it from the support arm (B) and dozer.
NOTE: The support arm (B, Figure 23) can remain
attached to the tractor.
5. See Figure 24. Disconnect the dozer lift arm (B) from
the hitch lift arm (E).
6. See Figure 25. Remove the 4 safety clips and clevis
pins (B) securing the dozer to the tractor and lift the
dozer off the attachment hooks (C).
7. See Figure 24. Disconnect the lift rod (F) from the lift
extension (H).
8. See Figure 24. Remove the clevis pins (A) attaching
the front and rear of the hitch to the tractor. Remove
the hitch.
9. If the mower deck is being installed, remove the lift
extension (H, Figure 24).
Figure 22. Angling Cable Adjustment
A. Hair Pin Clips
B. Locking Tab
C. Clevis Pin & Hair Pin
D. Angling Cable
A
A
C
D
B
Figure 24. Lift Rod
A. Clevis Pin
B. Dozer Lift Arm
C. Safety Clip
D. Ladder Hitch
E. Hitch Lift Arm
F. Lift Rod
G. Front Hitch Bracket
H. Lift Extension
A
C
D
E
F
G
H
B
A
C
Front
Figure 23. Install Angling Arm
A. Angling Rod
B. Support Arm
A
B
Figure 25. Attach Dozer
A. Dozer Pins
B. Clevis Pin
C. Attachment Hooks
A
B
C
Page 18
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of
in/lbs in/lbs
in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
19
2.1
30
3.4
41
4.6
8-36
20
2.3
31
3.5
43
4.9
10-24
27
3.1
43
4.9
60
6.8
10-32
31
3.5
49
5.5
68
7.7
1/4-20
66
7.6 8 10.9 12 16.3
1/4-28
76
8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
DIA.
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
, meaning the
inside diameter
is 1/2 inch; if a
second number is present it represent the
threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
Nominal size
, or
body diameter
is 1/2 inch; the
second number represents the
threads per inch
(16 in this
example, and the final number is the
body length
of the
bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
1
1/4 3/4
1/2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Hex Head Capscrew
Carriage Bolt
Washer
Lockwasher
Hex Nut
Page 19
15
NOTES
Page 20
16
NOTES
Loading...
