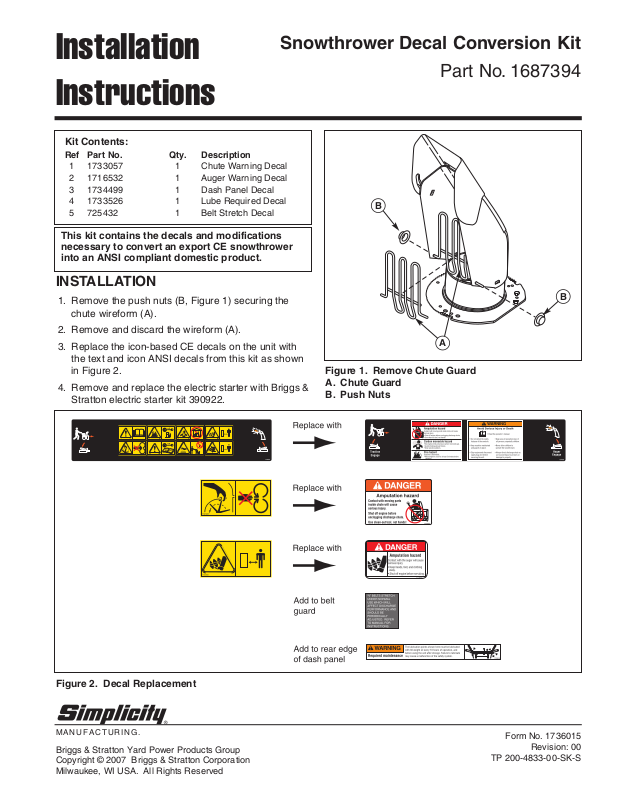

Simplicity 1687394 User Manual

Installation
Instructions

Snowthrower Decal Conversion Kit

Part No. 1687394

INSTALLATION

1. Remove the push nuts (B, Figure 1) securing the
chute wireform (A).

2. Remove and discard the wireform (A).

3. Replace the icon-based CE decals on the unit with
the text and icon ANSI decals from this kit as shown
in Figure 2.

4. Remove and replace the electric starter with Briggs &
Stratton electric starter kit 390922.

Figure 1. Remove Chute Guard
A. Chute Guard
B. Push Nuts

Figure 2. Decal Replacement

Kit Contents:

Ref Part No. Qty. Description

1 1733057 1 Chute Warning Decal
2 1716532 1 Auger Warning Decal
3 1734499 1 Dash Panel Decal
4 1733526 1 Lube Required Decal
5 725432 1 Belt Stretch Decal

This kit contains the decals and modifications
necessary to convert an export CE snowthrower
into an ANSI compliant domestic product.

B

B

A

MANUFACTURING.

Briggs & Stratton Yard Power Products Group
Copyright © 2007 Briggs & Stratton Corporation
Milwaukee, WI USA. All Rights Reserved

Form No. 1736015

Revision: 00

TP 200-4833-00-SK-S
