Specifications and Main Features
- Riders’ Model Availability:
- 8 HP Riders (Mfg. No. 1691111, 1691552)
- 10 HP Riders (Mfg. No. 1691113, 1691995,1691539)
- Mower Decks Availability:
- 30” Mowers (Mting No. 1691992)

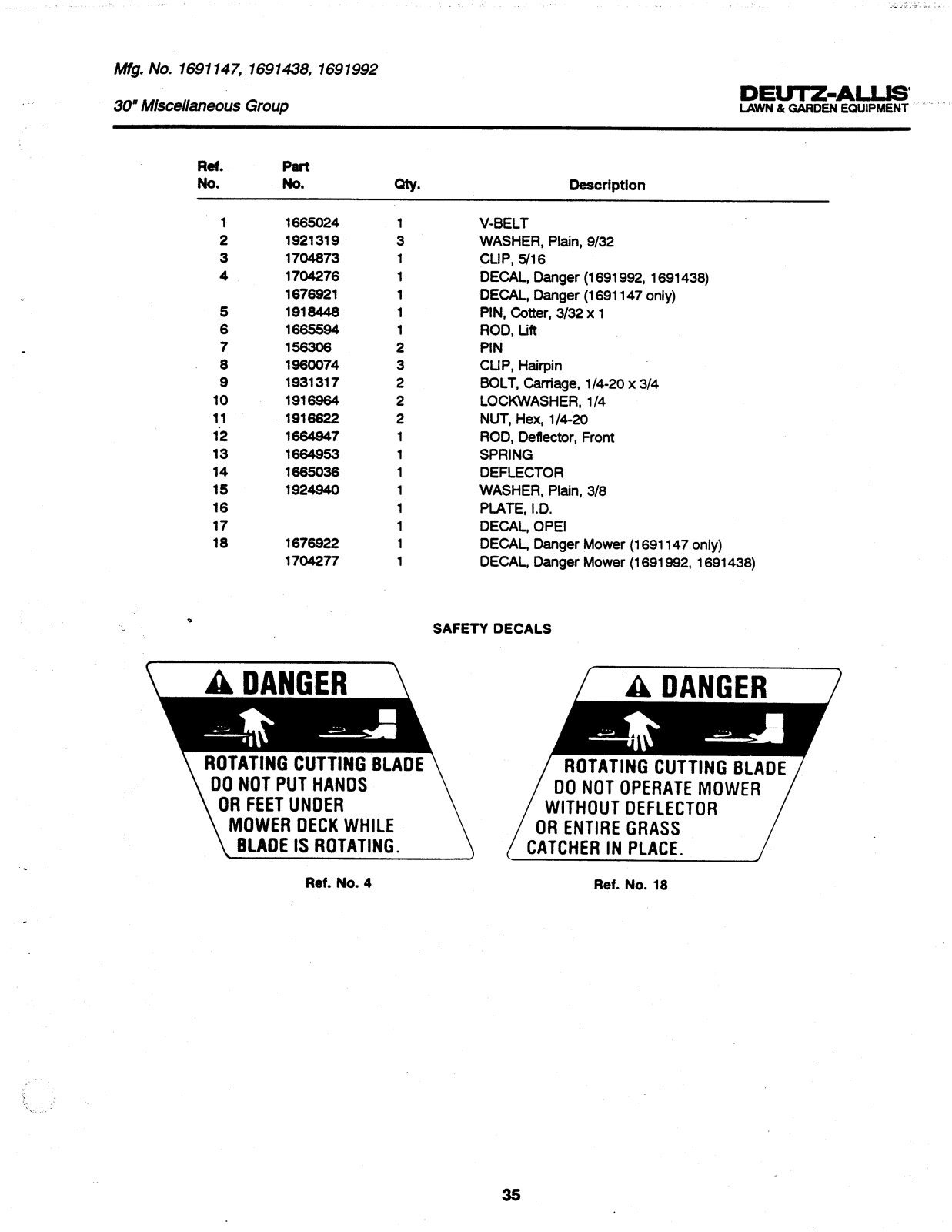

- 30” Mowers (Mting No. 1691147, Mfg No. 1691438)

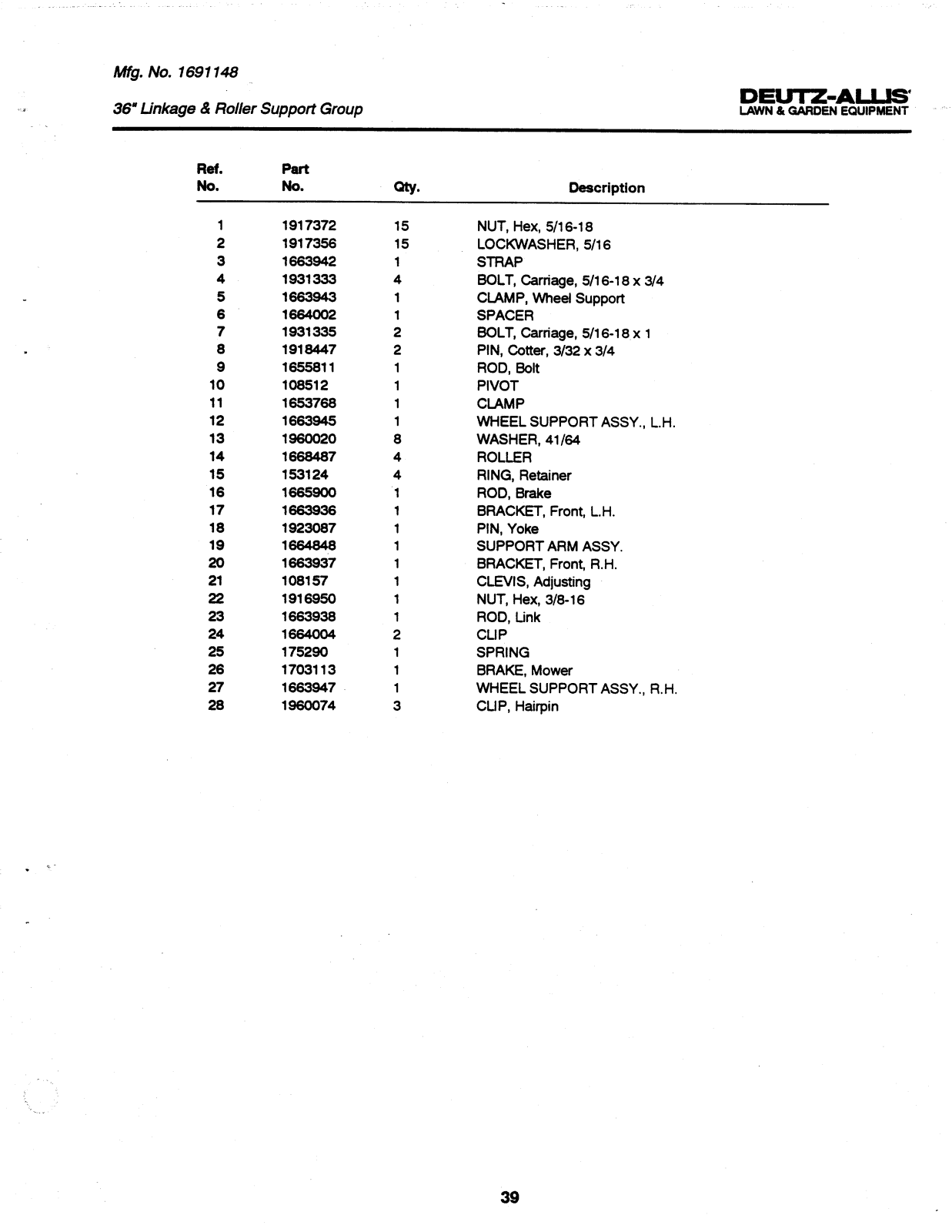

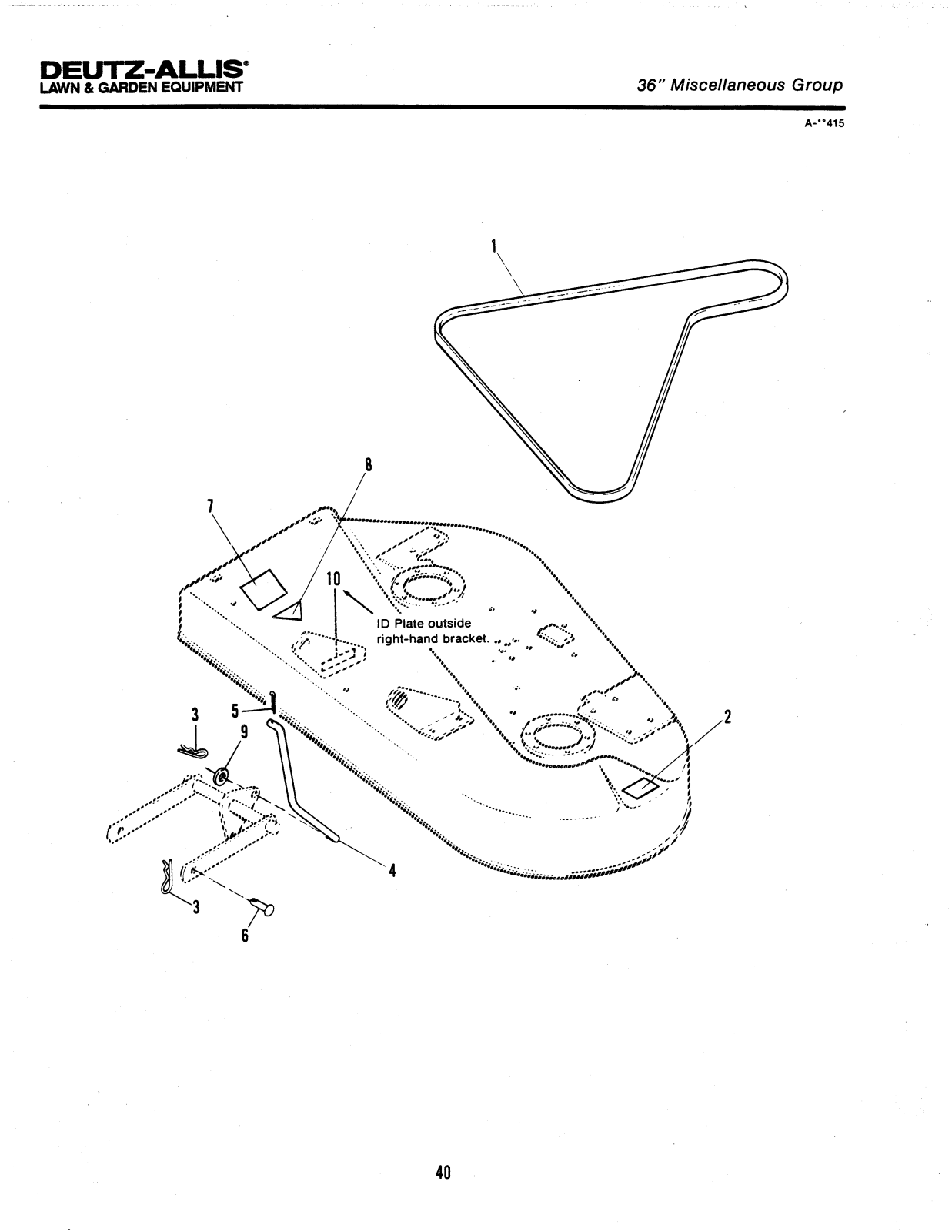

- 36” Mowers (Mfg No. 1691148)
- Attachments & Accessories :
- Mulching Mowers for 36” Mowers(Kit No1663808)
- Grass Catcher,Dual (30')( Kit No1670488)
- Grass Catcher,Dual (36')(Kit No1669521)
- Dump Cart

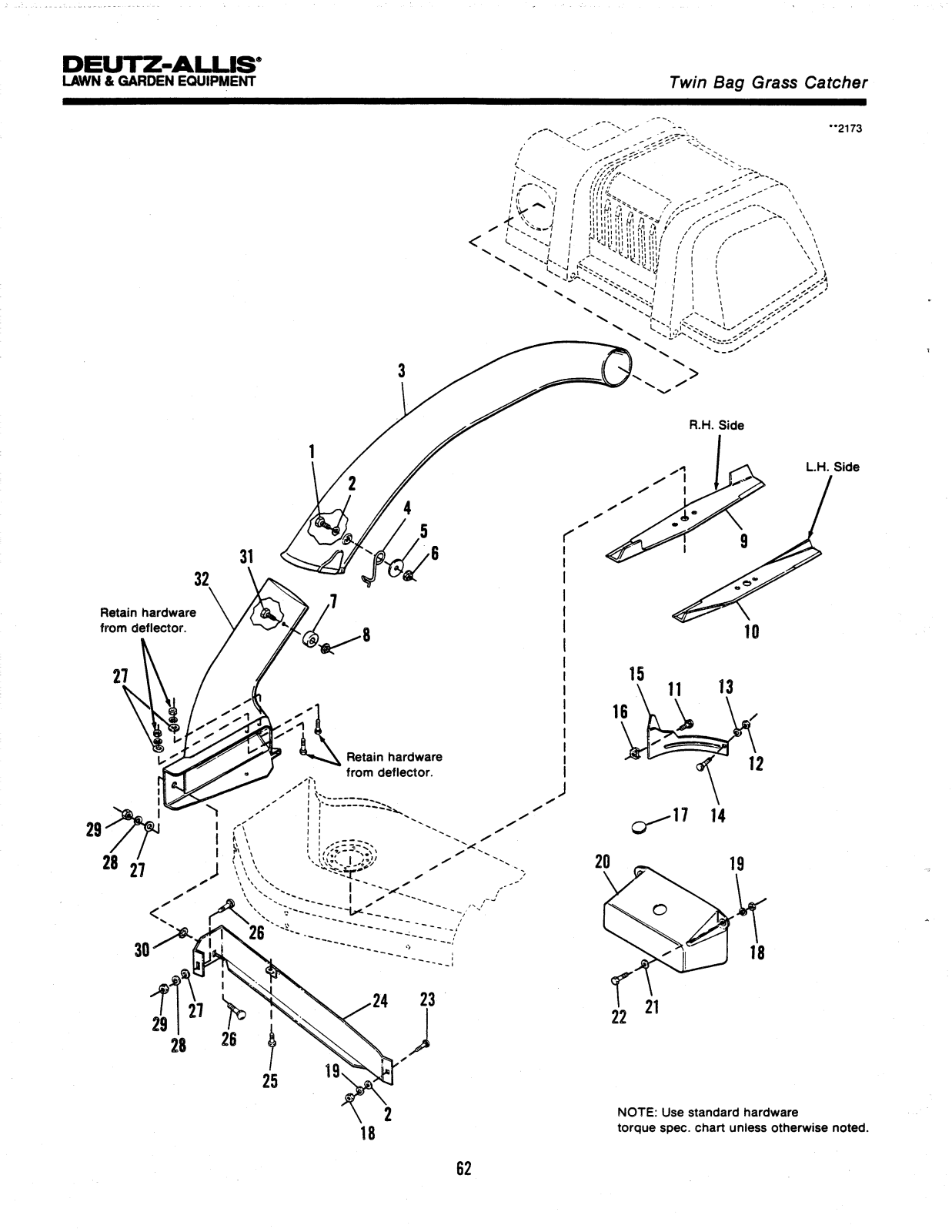

- Grass Catcher,Double Bag (30’)(Kit No16689229)
- Grass Catcher,Double Bag (36’)(Kit No16689230)
- Información General:
- Motores: Electricoline Start de 8 CV y 10 CV

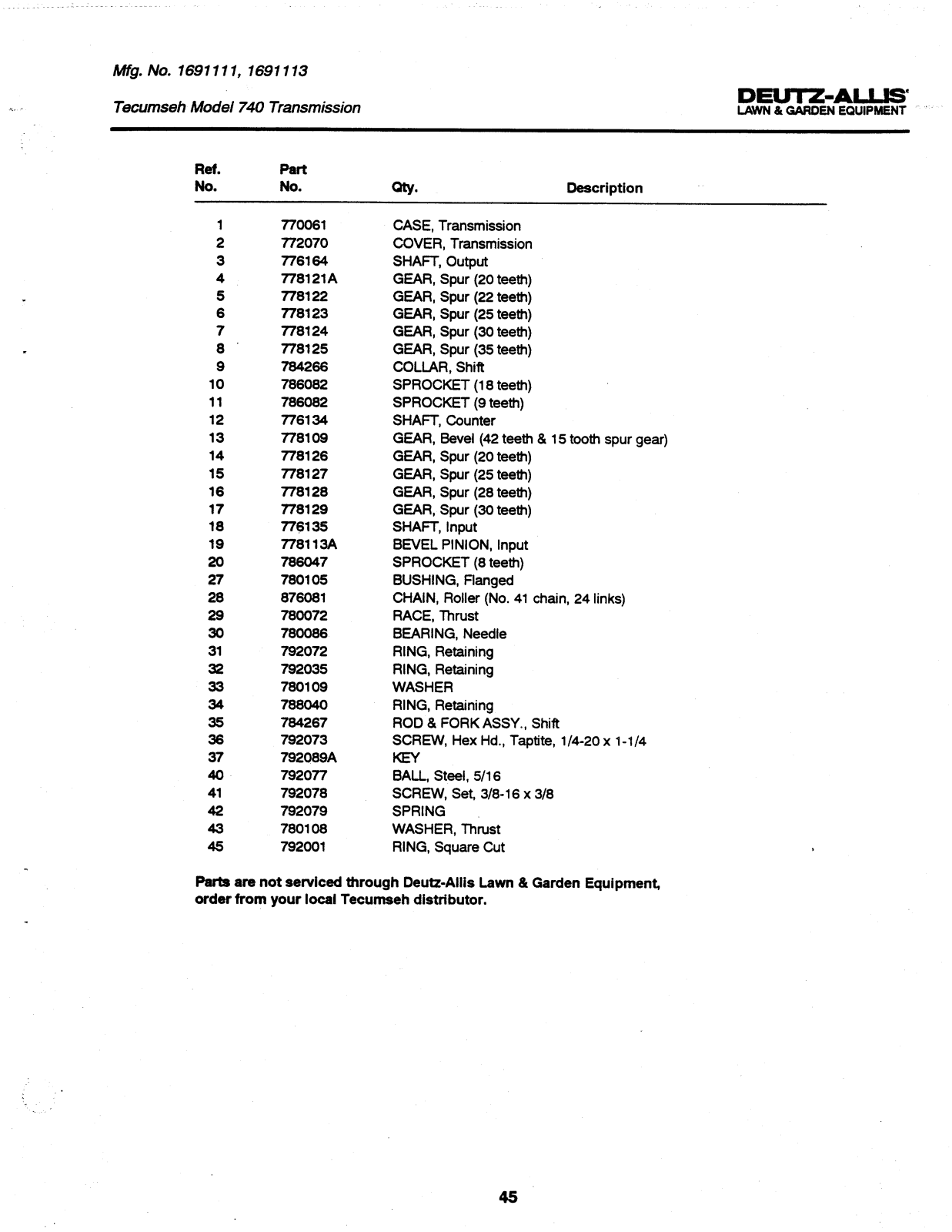

- . Ta Transmission: Tecumseh 740 model

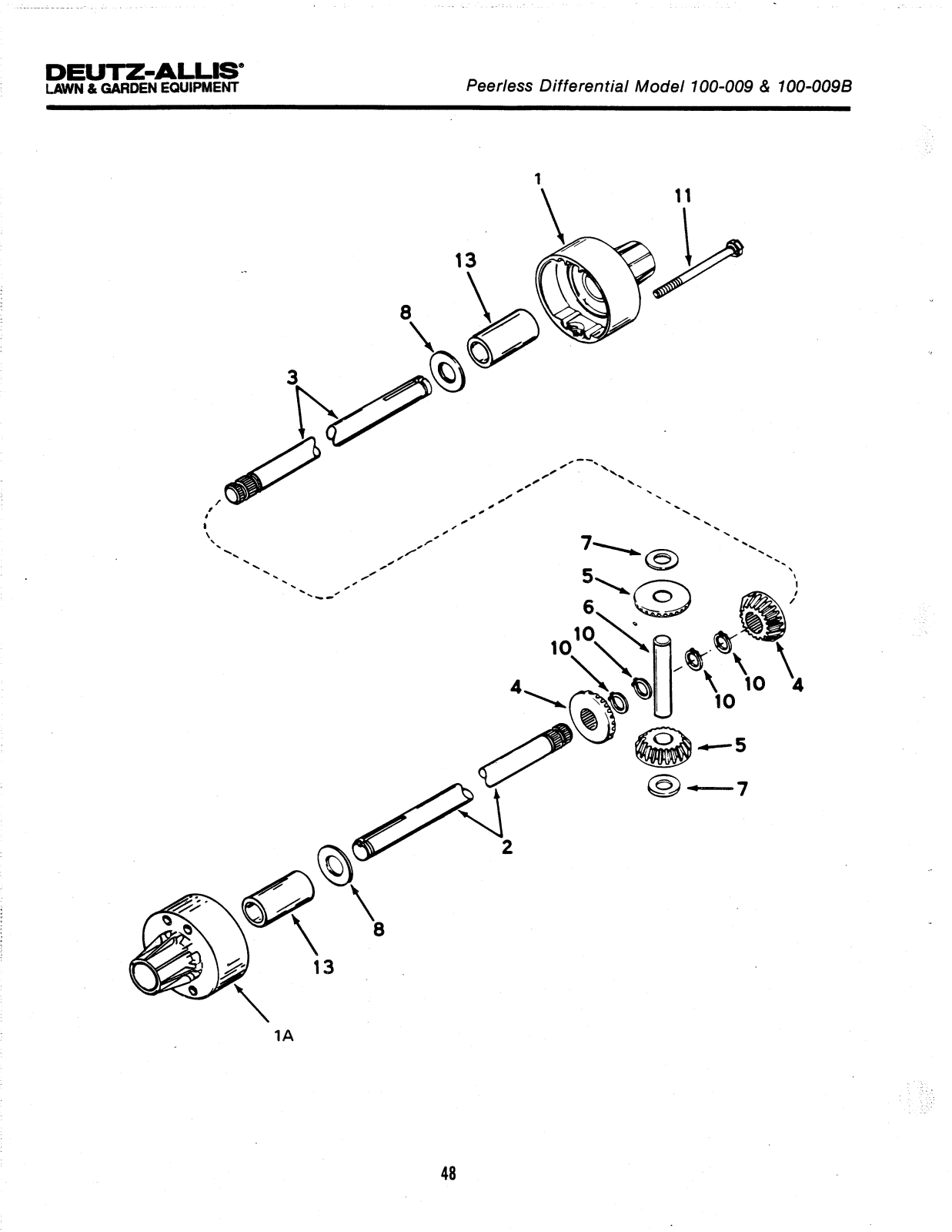

- Diferencial: Peerless Diferencial Mdel1000
- Group Electric:
- Includes wiring harness, battery, solenoid, circuit breaker, and PTO interlock switch,

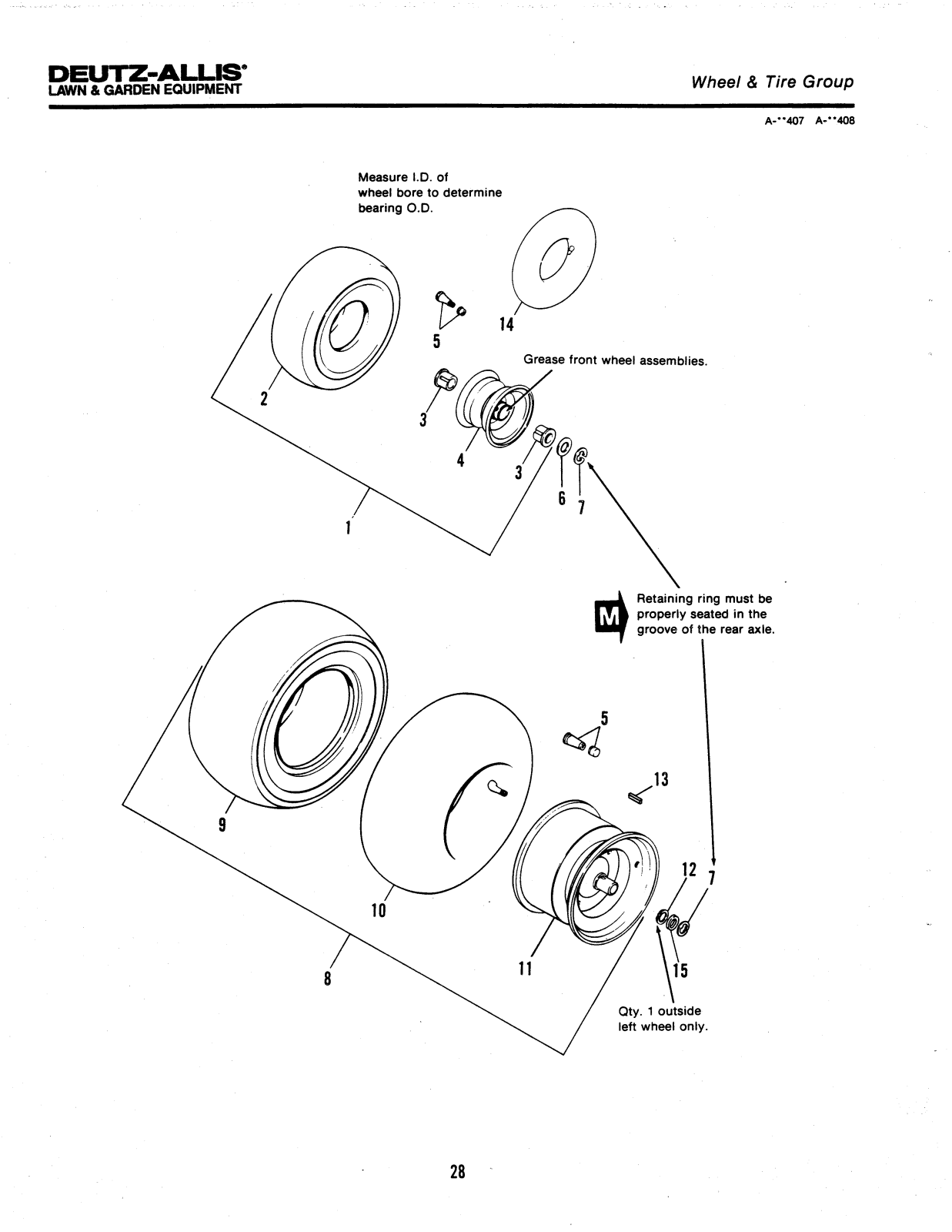

- Contenedor: Ruedas y llantas-
- Ensambles en ruedas y llantas para la parte trasera y delantera
- Clothes And Brake Group
- Brake arm, brake band, brake rod and pedal assembly.
Frequently Asked Questions
- Q: What kinds of riders are present?
A: 8 HP and 10 HP riders are there.
- Q: What size mower decks can be attached?
A: There are two types of mower decks that can be attached: the 30 inch and a 36 inch deck.
- Q: Does the mower come with options for mulching?
A: There is a 30 inch mulching mower available.
- Q: What are the different engine types provided?
A: The riders come in two engine variants those being an 8 HP and a 10 HP electric ignition engine.
- Q: How can I obtain the replacement parts if required?
A: By contacting an authorized Tecumseh branch or a dealership, one can get the replacement parts.
