R

NFPA 72 requires that
the device is not
less than 80 in. (203.2 cm)
and not greater than
96 in. (243.8 cm) above
the finished floor.

Single gang, double gang, or
4 in. (101.6 mm) square electrical box

Backplate

Appliance cover

Building wire

Screws: Use 8-32 screws for a 4 in. (101.6 mm) square electrical box
Use 6-32 screws for a single or a double gang electrical box

Appliance

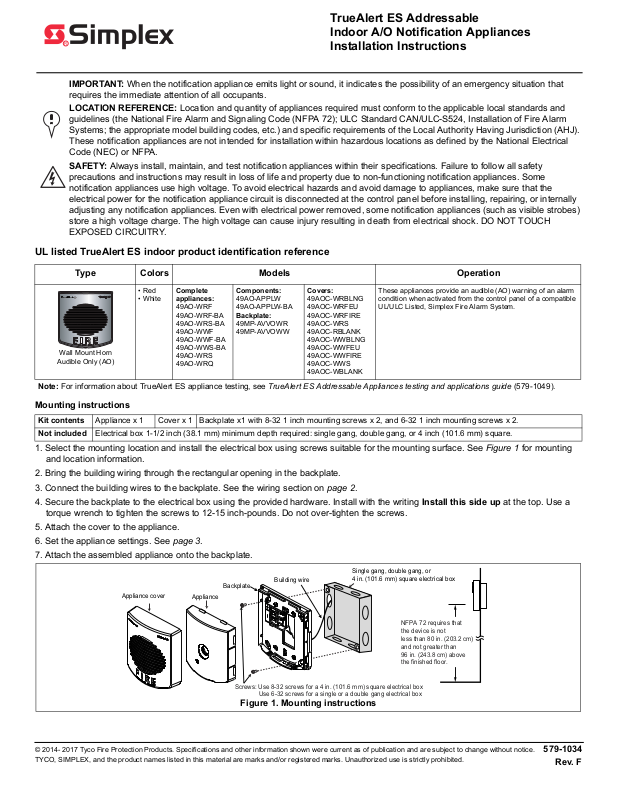

TrueAlert ES Addressable
Indoor A/O Notification Appliances
Installation Instructions

IMPORTANT: When the notification appliance emits light or sound, it indicates the possibility of an emergency situation that

requires the immediate attention of all occupants.
LOCATION REFERENCE: Location and quantity of appliances required must conform to the applicable local standards and

guidelines (the National Fire Alarm and Signaling Code (NFPA 72); ULC Standard CAN/ULC-S524, Installation of Fire Alarm
Systems; the appropriate model building codes, etc.) and specific requirements of the Local Authority Having Jurisdiction (AHJ).
These notification appliances are not intended for installation within hazardous locations as defined by the National Electrical
Code (NEC) or NFPA.

SAFETY: Always install, maintain, and test notification appliances within their specifications. Failure to follow all safety
precautions and instructions may result in loss of life and property due to non-functioning notification appliances. Some
notification appliances use high voltage. To avoid electrical hazards and avoid damage to appliances, make sure that the
electrical power for the notification appliance circuit is disconnected at the control panel before installing, repairing, or internally
adjusting any notification appliances. Even with electrical power removed, some notification appliances (such as visible strobes)
store a high voltage charge. The high voltage can cause injury resulting in death from electrical shock. DO NOT TOUCH
EXPOSED CIRCUITRY.

UL listed TrueAlert ES indoor product identification reference

Type Colors Models Operation

• Red

• White

Wall M oun t Ho rn

Audible Only (AO)

Note: For information about TrueAlert ES appliance testing, see TrueAlert ES Addressable Appliances testing and applications guide (579-1049).

Complete
appliances:

49AO-WRF
49AO-WRF-BA
49AO-WRS-BA
49AO-WWF
49AO-WWF-BA
49AO-WWS-BA
49AO-WRS
49AO-WRQ

Components:

49AO-APPLW
49AO-APPLW-BA

Backplate:

49MP-AVVOWR
49MP-AVVOWW

Covers:
49AOC-WRBLNG
49AOC-WRFEU
49AOC-WRFIRE
49AOC-WRS
49AOC-RBLANK
49AOC-WWBLNG
49AOC-WWFEU
49AOC-WWFIRE
49AOC-WWS
49AOC-WBLANK

These appliances provide an audible (AO) warning of an alarm
condition when activated from the control panel of a compatible
UL/ULC Listed, Simplex Fire Alarm System.

Mounting instructions

Kit contents Appliance x 1 Cover x 1 Backplate x1 with 8-32 1 inch mounting screws x 2, and 6-32 1 inch mounting screws x 2.

Not included Electrical box 1-1/2 inch (38.1 mm) minimum depth required: single gang, double gang, or 4 inch (101.6 mm) square.

1. Select the mounting location and install the electrical box using screws suitable for the mounting surface. See Figure 1 for mounting

2. Bring the building wiring through the rectangular opening in the backplate.

3. Connect the building wires to the backplate. See the wiring section on page 2.

4. Secure the backplate to the electrical box using the provided hardware. Install with the writing Install this side up at the top. Use a

5. Attach the cover to the appliance.

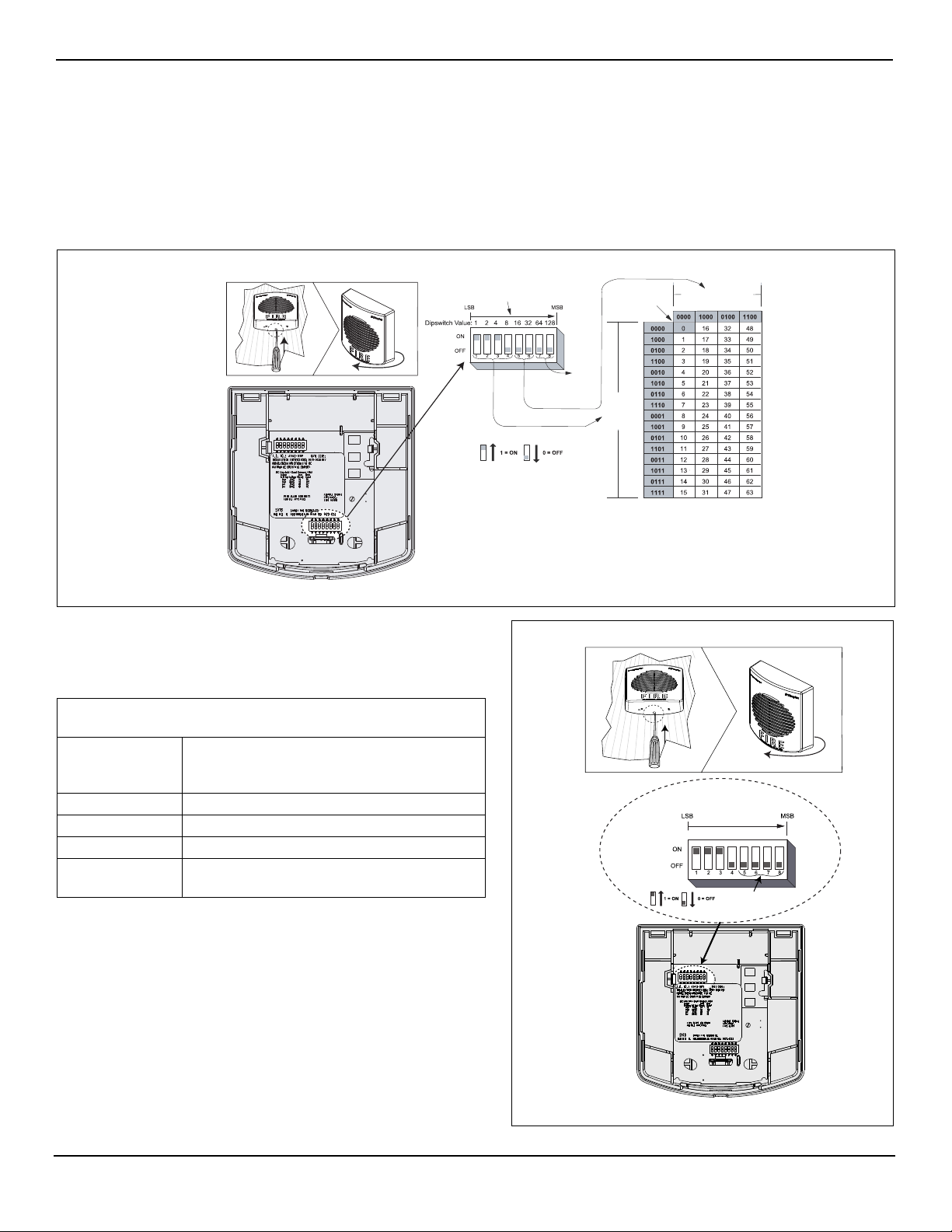

6. Set the appliance settings. See page 3.

7. Attach the assembled appliance onto the backplate.

and location information.

torque wrench to tighten the screws to 12-15 inch-pounds. Do not over-tighten the screws.

Figure 1. Mounting instructions

© 2014- 2017 Tyco Fire Protection Products. Specifications and other information shown were current as of publication and are subject to change without notice.
TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.

579-1034

Rev. F

579-1034

!

Appliance backplate

From a compatible
SLC controller,
see notes

Terminal 2
CKT+

Terminal 1
CKT-

(T-tapping example)

A/O

A/O A/O

A/O

A/O A/O

A/O

From a compatible
SLC controller,
see notes

Class A wiring, see notes

Class B wiring, see notes

To the next appliance
or compatible SLC
controller, see notes

Wiring instructions

WARNING: Make sure that all power is disconnected before starting the installation.

1. At the electrical box, connect the building wiring to the CKT + and CKT - terminals on the backplate.

2. To ensure proper continuity, use a torque wrench to tighten the terminal block screws to 12-15 inch-pounds.

3. Ensure that correct polarity is maintained for each unit.

4. Signaling Line Circuit (SLC) wiring must be twisted pair (TWP). CKT terminals accept two wires: 12-18 American Wire Gauge (AWG)
TWP .

IMPORTANT: Do not bring the conduit through the rear of the electrical box. Strip the lead insulation to 7/16 inch

maximum.

Figure 2. Wiring instructions

Wiring notes

• The maximum number of appliances on a circuit is 63. The maximum wire resistance between appliances is 26 ohms. See the field wiring diagrams

for the driving compatible fire alarm control panel for further instructions.

• Notification appliances are rated using an individual module label.

• Maintain the correct polarity on the terminal connections.

• Terminals 1 and 2 can each accommodate two wires, one wire going in and one wire going out to the next appliance.

• TrueAlert SLC wiring connections are supervised and power-limited.

• These appliances are rated to the operating voltage limits of 17-31 VDC. The appliance may fail to operate as intended, and cause permanent

damage to this equipment if it operates outside of these limits.

• Only operate the TrueAlert ES AO appliances using a compatible power supply.

• T-tapping is not permitted on Class A wiring.
