Zeus
IOPS
Fibre Channel
3.5-Inch Solid State Drive
Product Manual
61000-04522-101: Revision 1.0
Export Administration Regulation
This document may contain technical data controlled by the U.S. Export Administration Regulations, and
may be subject to the approval of the U.S. Department of Commerce prior to export. Any export, directly or
indirectly, in contravention of the U.S. Export Administration Regulations is prohibited.
The information provided may be subject to United States Export Controls. Such information should not be
downloaded or exported (i), into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran,
Syria, or any other country to which the United States has embargoed goods; or given to (ii) anyone on the
United States Treasury Department’s list of Specially Designated Nationals or the U.S. Commerce
Department’s Table of Deny Orders. By using the information, you represent and warrant that you are not
located in under the control of, or a national or resident of any such country or on any such list.
Trademark Information
The STEC name, logo and design are trademarks of STEC, Inc. No right, license, or interest to such
trademarks is granted hereunder, and you agree that no such right, license, or interest shall be asserted by
you with respect to such trademark. Other product and corporate names mentioned in this document are
used for identification purposes only and may be trademarks or registered trademarks of their respective
companies.
Disclaimer of Liability
The performance information and specifications furnished in this document reflect STEC’s engineering
development objectives and should be used for comparative analysis and reference purposes. The content
of this document is accurate as of the date of this publication; however, the information contained herein,
including but not limited to any instructions, descriptions and product specifications, is subject to change
without prior notice.
STEC, INC. (STEC) PROVIDES NO WARRANTY WITH REGARD TO THIS DOCUMENT OR
ANY OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO ANY OF THE FOREGOING. STEC ASSUMES
NO LIABILITY FOR ANY DAMAGES INCURRED DIRECTLY OR INDIRECTLY FROM ANY
TECHNICAL OR TYPOGRAPHICAL ERRORS OR OMMISSIONS CONTAINED HEREIN. IN
NO EVENT SHALL STEC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL,
OR EXEMPLARY DAMAGES, WHETHER BASED ON TORT, CONTRACT OR OTHERWISE,
ARISING OUT OF OR IN CONNECTION WITH THIS DOCUMENT OR ANY OTHER
INFORMATION CONTAINED HEREIN OR THE USE THEREOF.
Copyright Notice
Copyright © 2006 by STEC™, Inc. All rights reserved. Information contained in this document, including
but not limited to any instructions, descriptions and product specifications, is company private to
SimpleTech and shall not be modified, used, copied, reproduced or disclosed in whole or in part, in any form
or by any means, electronic or mechanical, for any purpose, without the written consent of STEC Inc.
ii
MANUAL CONVENTIONS
The following icons are used throughout this document to identify additional information of which the
reader should be aware.
SHOCK HAZARD: This icon indicates the danger of an
electrical shock that may harm or otherwise prove
fatal to the user.
CAUTION: This icon indicates the existence of a
hazard that could result in equipment or property
damage or equipment failure if the safety instruction
is not observed.
NOTE: This icon identifies information that relates to
the safe operation of the equipment or related items.
TIP: This icon identifies helpful hints and tips.
ELECTROSTATIC DISCHARGE: This icon indicates
the possible presence of Electrostatic Discharge
(ESD or “static electricity”) that may harm the internal
electronic components. The user is advised to handle
the device only after discharging any possible
electrostatic buildup that may be present.
ZEUS
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 iii
iv ZEUS
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
REVISION HISTORY
Revision Status Summary Sheet
Revision Date Sheet(s) Affected
0.1 11/30/2006 All. Initial release.
1.0 02/16/2007 Official release.
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 v
vi Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
TABLE OF CONTENTS
Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xv
Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Manual Overview.............................................................................................................................17
Product Identification Codes............................................................................................................17
Audience..........................................................................................................................................18
Standards and Reference Documents.....................................................................................18
Standard Features...................................................................................................................18
Product Description..................................................................................................................18
Performance Characteristics....................................................................................................18
Electrical Specifications...........................................................................................................18
Interface Specifications............................................................................................................18
FC-AL Features.......................................................................................................................19
Fibre Channel Standard...........................................................................................................19
Installation................................................................................................................................19
Regulatory Compliance............................................................................................................19
Standards and Reference Documents.....................................................................................19
Electromagnetic Susceptibility.........................................................................................19
Reference Documents.....................................................................................................20
Standard Features...................................................................................................................20
Interface Standard...........................................................................................................20
Performance....................................................................................................................21
Physical Characteristics...................................................................................................21
Media Characteristics......................................................................................................21
Firmware Upgrades.........................................................................................................21
Unformatted Capacities...................................................................................................21
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 vii
Reliability.........................................................................................................................21
Environmental Characteristics......................................................................................... 22
Power...............................................................................................................................22
Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General Description.................................................................................................................23
Fibre Channel Interface........................................................................................................... 23
Drive Capacities ......................................................................................................................23
Performance............................................................................................................................23
Data Security........................................................................................................................... 23
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Endurance...............................................................................................................................24
Wear-Leveling Algorithm.........................................................................................................24
Bad-Block Management..........................................................................................................24
Data Retention.........................................................................................................................24
Error Detection and Correction................................................................................................24
Reliability.........................................................................................................................24
Mount Time......................................................................................................................25
Access Time....................................................................................................................25
Data Transfer Rates........................................................................................................ 25
Erase Times.....................................................................................................................26
Sanitize............................................................................................................................26
Cache Operations............................................................................................................27
Hot Plugging....................................................................................................................27
Repairs............................................................................................................................27
Preventative Maintenance...............................................................................................27
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Power Supply ..........................................................................................................................28
Power Requirements...............................................................................................................28
Power Consumption................................................................................................................28
Grounding................................................................................................................................29
Fault LED Out Signal...............................................................................................................29
viii Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
Ready LED Out Signal.............................................................................................................29
-Parallel ESI and SEL_n/P_ESI_n...........................................................................................29
SEL_ID Function......................................................................................................................30
P_ESI_n Function....................................................................................................................31
SFF-8045 Enclosure Service Interface....................................................................................31
-ENBL_BYP CH1 and -ENBL_BYP_CH2................................................................................31
Start_n Mated..........................................................................................................................31
-Drive Present..........................................................................................................................32
Dev_Ctrl_Code_x.....................................................................................................................32
Interface Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
SSD Operation.........................................................................................................................33
SCSI Interface Block........................................................................................................34

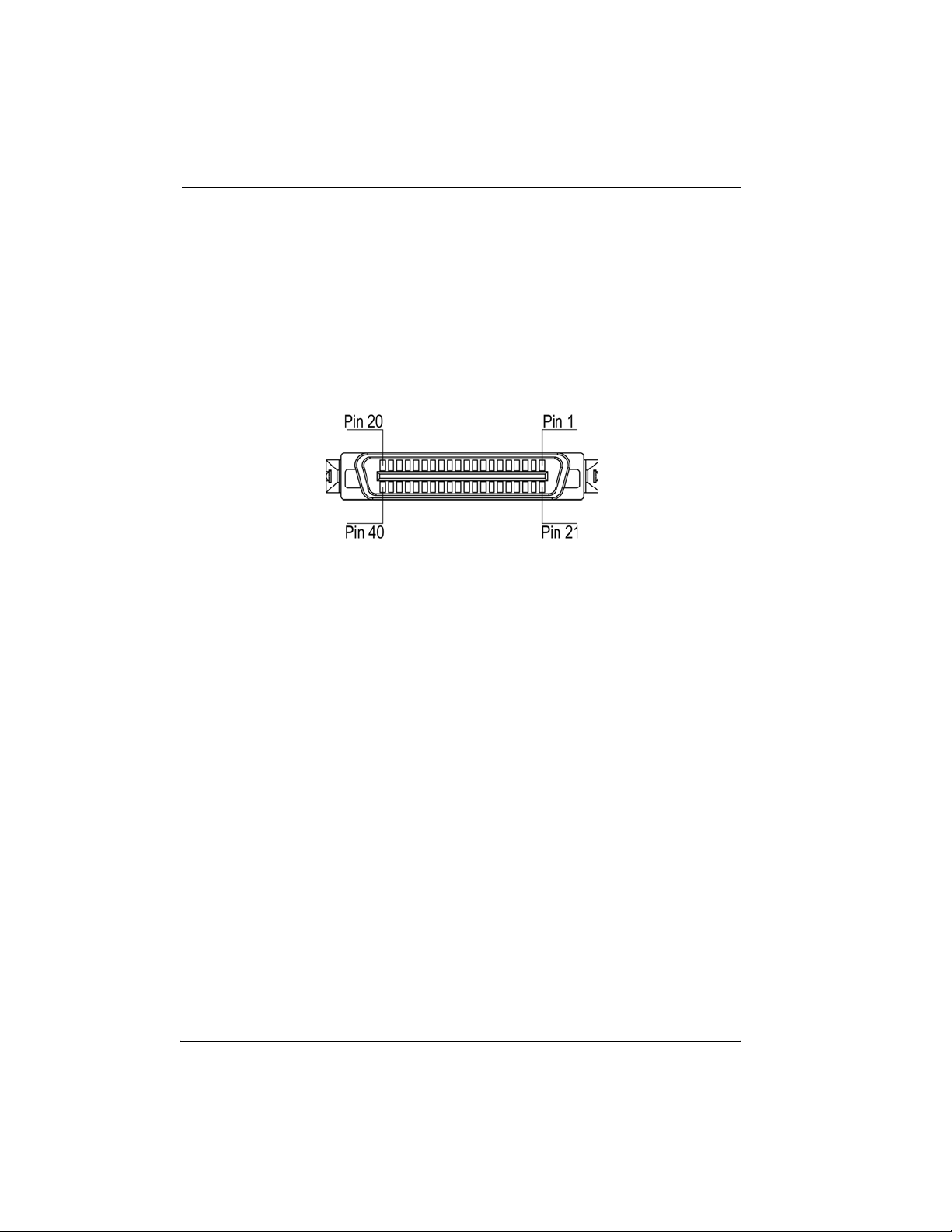

SCA-2 Interface Connector..............................................................................................34

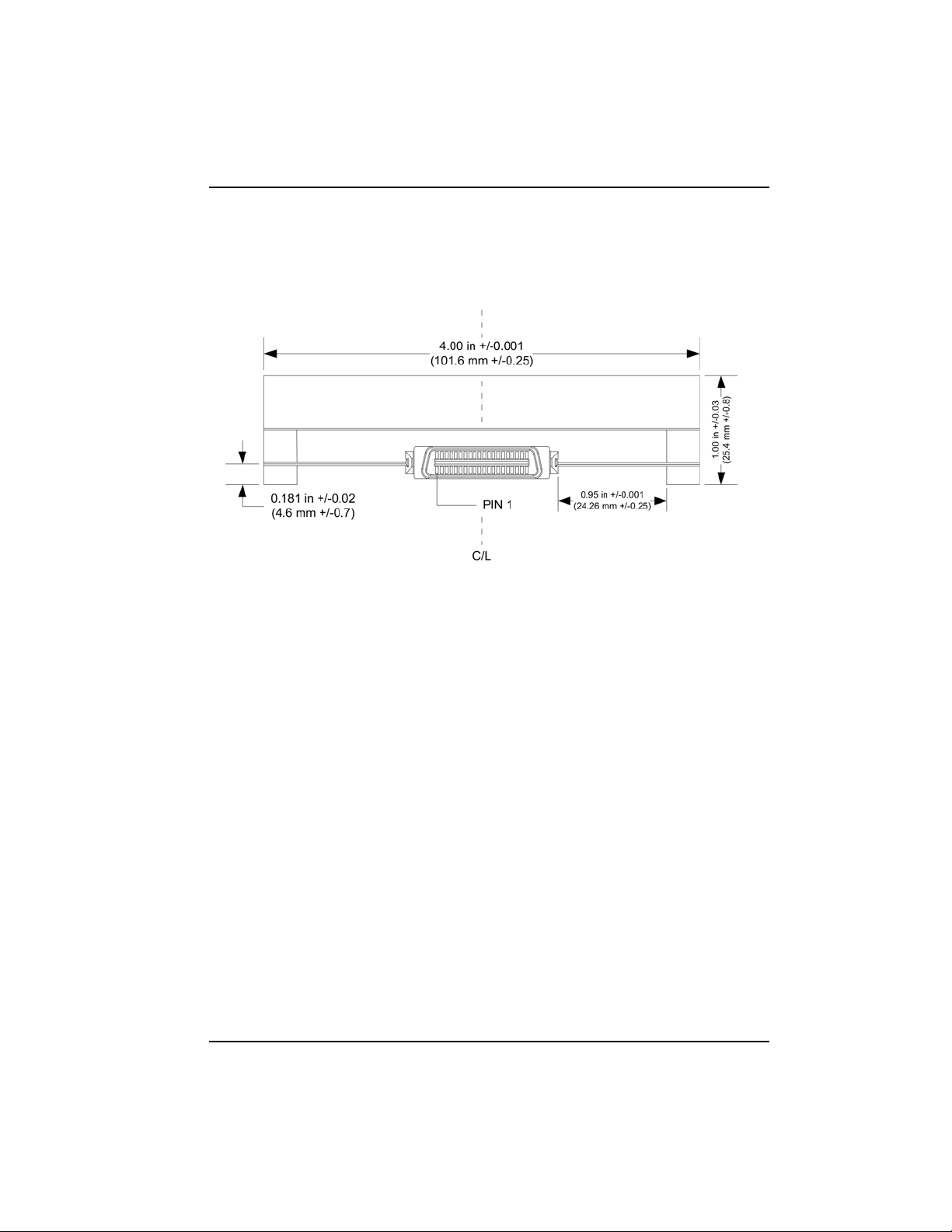

Connector Location..........................................................................................................35
Connector Pinout.............................................................................................................36
Voltage and Ground Signals....................................................................................................36
FC-AL Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

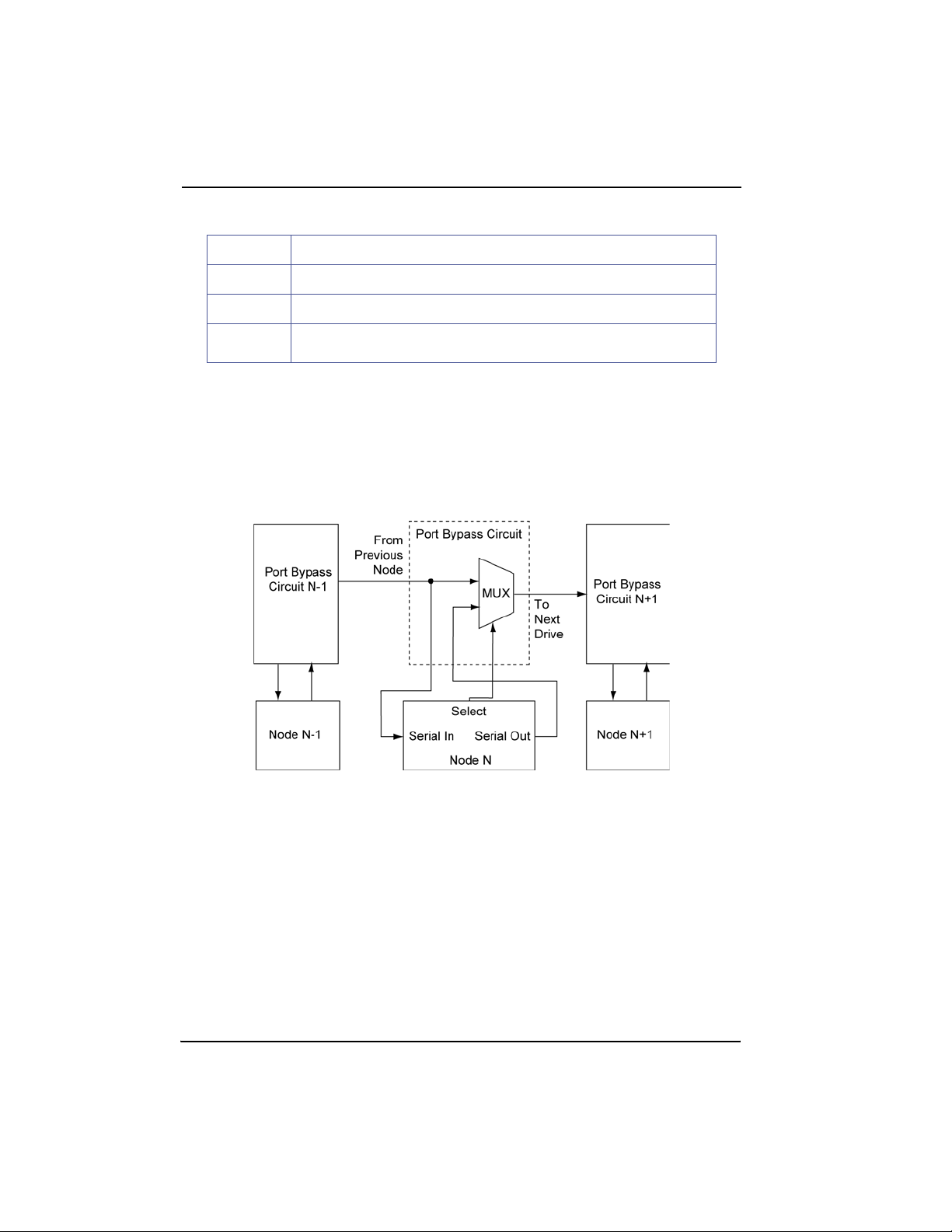

Loop Connections....................................................................................................................37
FCP-SCSI Commands.............................................................................................................38
Supported SCSI Commands............................................................................................38
Report Luns (A0h)................................................................................................... 39
Test Unit Ready Command (00h)........................................................................... 40
Read (6) Command (08h)....................................................................................... 40
Write (6) Command (0Ah)....................................................................................... 41
Inquiry Command (12h).......................................................................................... 41
Mode Sense (6) Command (1Ah)........................................................................... 43
Send Diagnostic Page(1Dh).................................................................................... 44
Log Sense Command (4Dh)................................................................................... 45
Read Capacity (25h)............................................................................................... 46
Read Extended (10) (28h)....................................................................................... 47
Write Extended (10) (2Ah)...................................................................................... 48
Write and Verify (10) (2Eh)..................................................................................... 48
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 ix
Verify (10) (2Fh)...................................................................................................... 48
Write Buffer Command (3Bh).................................................................................. 49
Synchronize Cache (10) (35h)................................................................................ 49
Mode Sense (10) Command (5Ah)......................................................................... 50
Persistent Reserve In (5Eh) Command.................................................................. 51
Persistent Reserve Out (5Fh) Command................................................................ 51
Unsupported Commands................................................................................................. 52
Fibre Channel Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

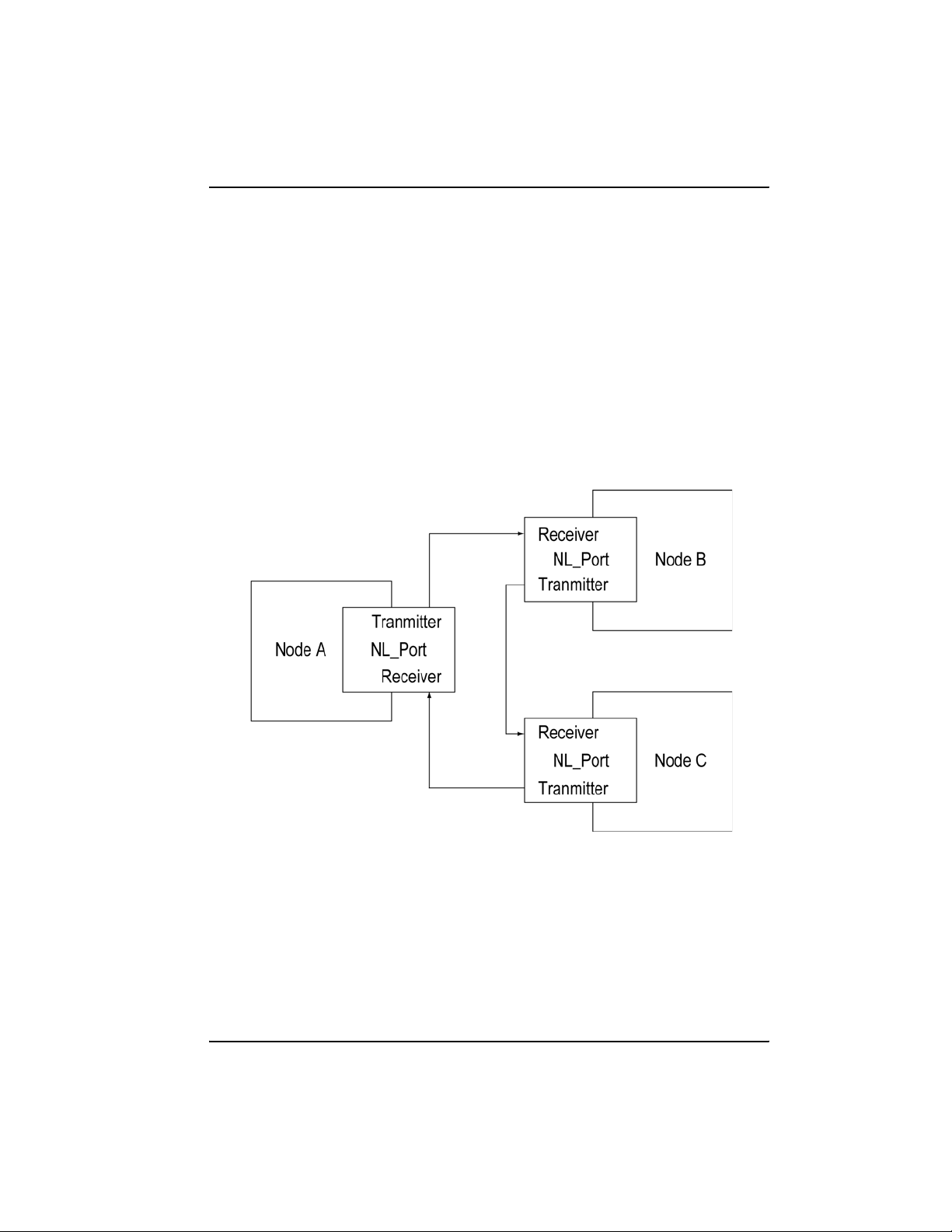

Fibre Channel Arbitrated Loop ................................................................................................53

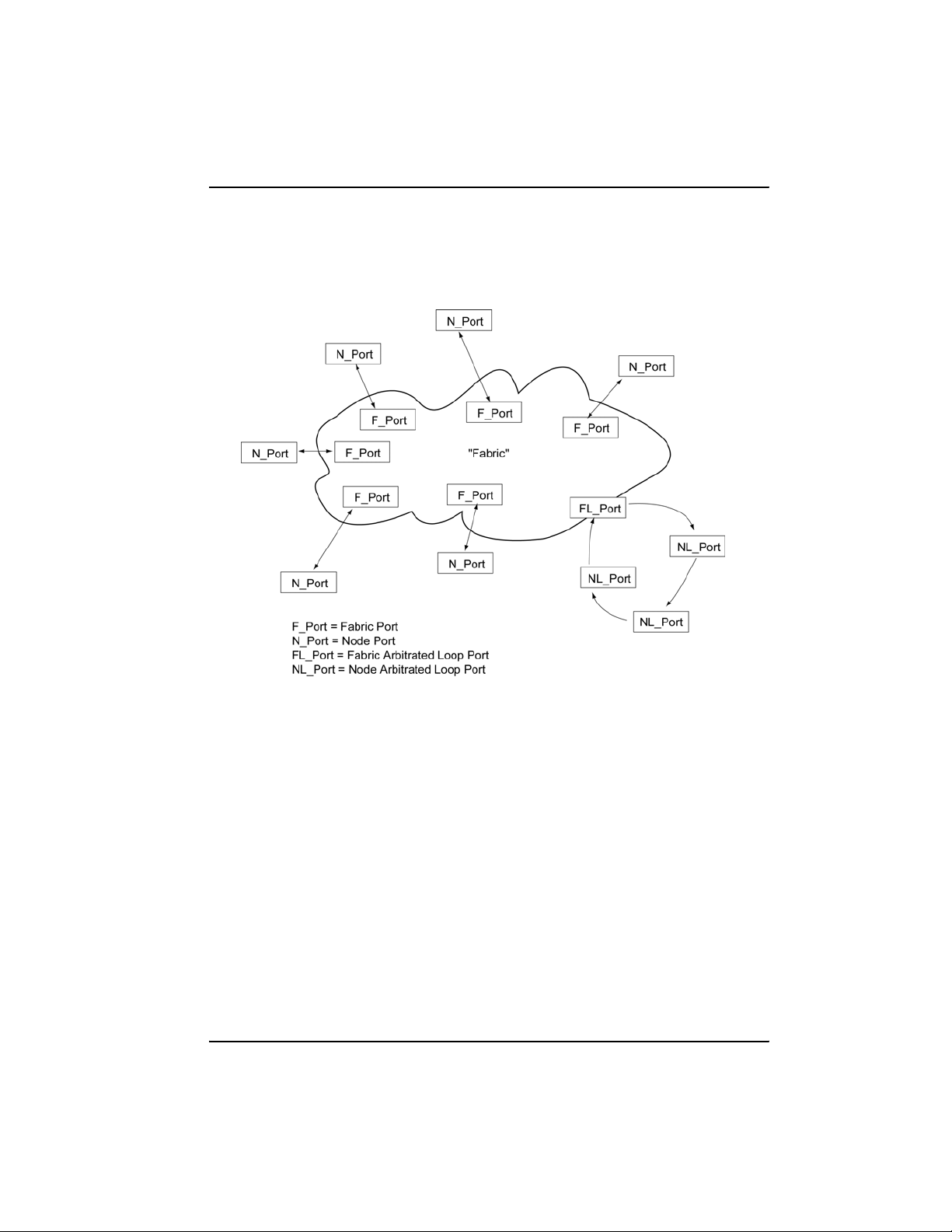

Fabric Node Connection..........................................................................................................55
Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
General Physical Characteristics.............................................................................................58
Materials..........................................................................................................................58
Drive Assembly Weight....................................................................................................58
Storage Capacities.......................................................................................................... 58
Exterior Dimensions.........................................................................................................59
Environmental Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Overview..................................................................................................................................60
Temperature Conditions..........................................................................................................60
Operating Temperatures..................................................................................................60
Storage Temperatures.....................................................................................................60
Maximum Component Temperatures..............................................................................61
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
System Requirements.............................................................................................................62
SCSI Connections........................................................................................................... 62
Single Channel Operation................................................................................................62
Drive Configuration..........................................................................................................63
Fault Signals....................................................................................................................63
Power-On Fault Conditions..................................................................................... 64
Operational Fault Codes......................................................................................... 65
Single Channel Mode for Early Revision Drives..............................................................66
x Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
Drive Orientation..............................................................................................................67
Cooling Requirements.....................................................................................................68
Mounting Hole Dimensions..............................................................................................69
Drive Installation..............................................................................................................70
Grounding Requirements.................................................................................................70
Operating System Specifications.............................................................................................71
Microsoft OS Compatibility.......................................................................................................71
Alternative Operating Systems ........................................................................................71
System POST, Boot and Resume Times.........................................................................71
SSD Management Utility..........................................................................................................72
NAND Flash Support...............................................................................................................73
Diagnostic Software.........................................................................................................73
Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Marking, Approvals and Supporting Documentation................................................................74
Restriction of Hazardous Materials..........................................................................................74
FCC Declaration of Conformity................................................................................................74
Radio Frequency Emissions....................................................................................................75
Radio Frequency Immunity Requirements...............................................................................75
EMI Test Site Correlation.........................................................................................................75
Verification Samples................................................................................................................75
Verification Testing..................................................................................................................75
Electrostatic Discharge (ESD).................................................................................................76
Acceptance Criteria Definitions................................................................................................76
Contact and Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Contact Information..................................................................................................................77
Ordering Information................................................................................................................77
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Certification and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 xi
xii Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
LIST OF TABLES
1. Product ID Codes .........................................................................................17
2. Data Transfer Rates .....................................................................................25
3. Erase Times.................................................................................................. 26
4. Sanitize Times and Standards......................................................................26
5. ZeusIOPS 3.5-Inch SSD Power Requirements............................................ 28
6. ZeusIOPS Fibre Channel SSD Typical Power Consumption .......................28
7. SEL_ID to AL_PA Translation ......................................................................30
8. SEL_N/P_ESI_N Signal Definitions.............................................................. 31
9. DEV_CTRL_CODE_N Signal Definitions..................................................... 32
10. 40-Pin SCA-2 Connector Pinout................................................................... 36
11. FC-AL Supported Options ............................................................................37
12. Supported SCSI Commands ........................................................................38
13. Report Luns Command................................................................................. 39
14. Test Unit Ready CDB ...................................................................................40
15. Read (6) CDB............................................................................................... 40
16. Write (6) CDB ...............................................................................................41
17. Inquiry CDB ..................................................................................................41
18. Standard Inquiry Data Format ......................................................................42
19. Mode Sense CDB......................................................................................... 43
20. Page Code Field Descriptions...................................................................... 43
21. Send Diagnostics CDB................................................................................. 44
22. Log Sense Command................................................................................... 45
23. Read Capacity CDB...................................................................................... 46
24. Read Extended (10) CDB............................................................................. 47
25. Write Extended (10) (2Ah) CDB ...................................................................48
26. Write Buffer Command (3Bh) .......................................................................49
27. Mode Sense (10) Command (5Ah)............................................................... 50
28. Page Code Field Descriptions for Mode Sense (10) ....................................50
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev 1.0 xiii
29. Persistent Reserve In....................................................................................51
30. Persistent Reserve Out .................................................................................51
31. Unsupported Mandatory Commands.............................................................52
32. FCP Function Levels.....................................................................................57
33. Formatted Capacities....................................................................................58
34. Operating Temperatures...............................................................................60
35. Storage Temperatures...................................................................................60
36. Maximum Component Temperatures............................................................61
37. Power-On Fault Codes..................................................................................64
38. Operational Fault Codes................................................................................65
39. SELECT_ID Configurations...........................................................................66
40. ZeusIOPS Management Utility Requirements...............................................72
41. Regulatory Marks and Documentation..........................................................74
42. EMI Specification Limits ................................................................................75
43. ESD Requirements........................................................................................76
44. Acceptance Criteria Definitions .....................................................................76
xiv Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
LIST OF FIGURES
1. The ZeusIOPS 3.5-Inch Fibre Channel Solid State Drive.............................................17
2. SCA-2 Interface Connector...........................................................................................34
3. Relative SCA-2 Connector Location.............................................................................35
4. Arbitrated Loop Topology Connection..........................................................................53
5. Fabric Node Connection...............................................................................................55
6. Typical Backplane Bypass Circuit.................................................................................56

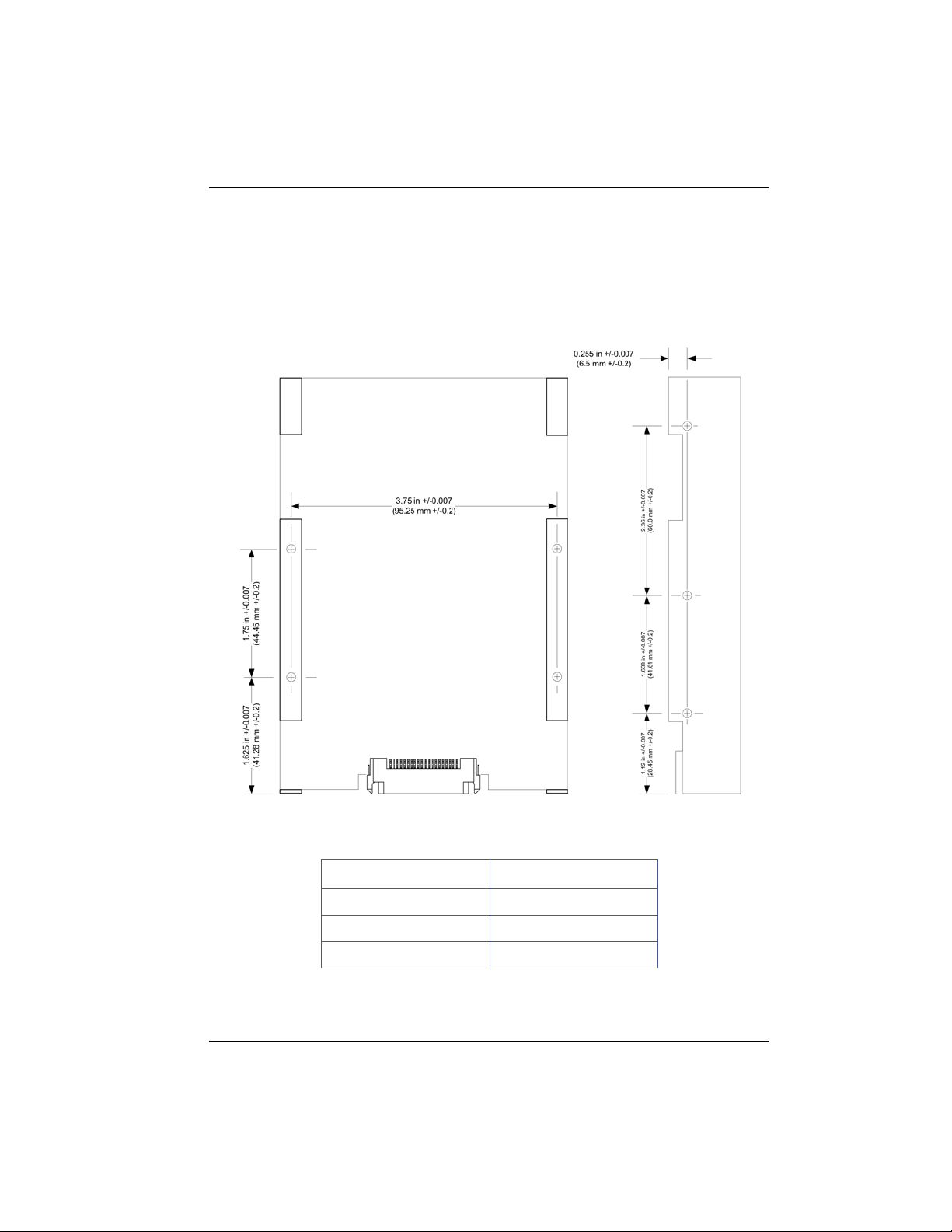

7. ZeusIOPS 3.5-Inch Dimensions ...................................................................................59

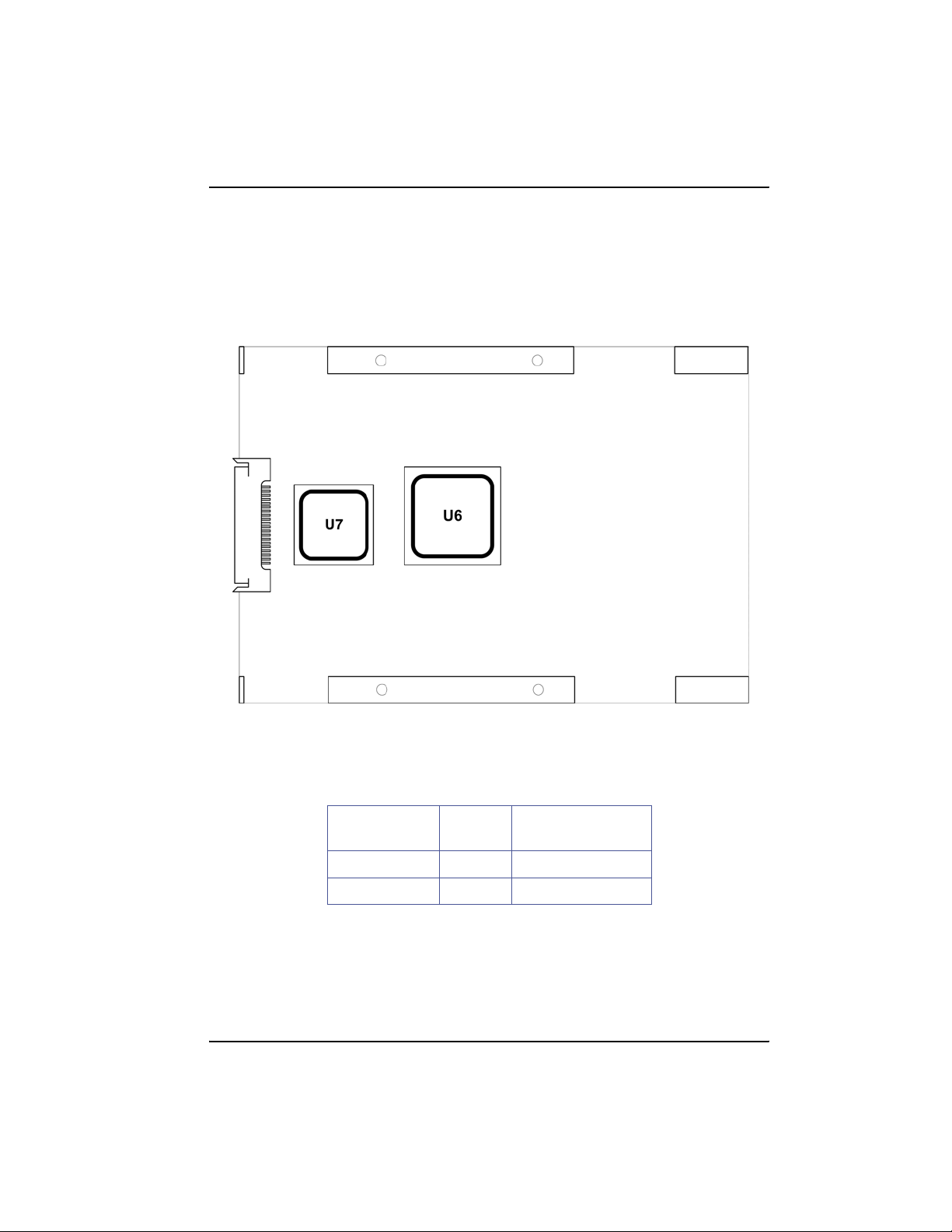

8. Component Locations...................................................................................................61
9. Possible Drive Orientations ..........................................................................................67
10. Suggested Air Flow Patterns for Cooling......................................................................68
11. Exterior Mounting Specifications ..................................................................................69
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 xv
xvi Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
SCOPE
Figure 1. The Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive
MANUAL OVERVIEW
This product manual describes the applications, specifications, and installation of the 3.5-inch
IOPS
Zeus
can be quickly ascertained by reviewing the abstracts described under the Scope section.
Fibre Channel Solid State Drive (SSD). See Figure 1. The contents of this product manual
PRODUCT IDENTIFICATION CODES
The Zeus
code (Product ID) associated with it. Table 1 lists the product ID code of each drive and the
approximate capacity.
IOPS
Fibre Channel SSD is available in four models. Each model has a product identification
Table 1. Product ID Codes
Product ID Code Capacity (Approximate)
Z16F318C 18 Gigabytes
Z16F336C 36 Gigabytes
Z16F373C 73 Gigabytes
Z16F3146C 146 Gigabytes
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 17
AUDIENCE
This manual is intended for system engineers or system designers employed by an Original
Equipment Manufacturer (OEM). This product manual was therefore written specifically for a
technically advanced audience; it is not intended for end-users that will eventually purchase the
commercially available product. The user, as referenced throughout this manual, is primarily
concerned with industrial, commercial or military applications.
CAUTION: This device can be damaged by Electrostatic
Discharge (ESD). When handling the device, always wear a
grounded wrist strap and use a static dissipative surface.
Any damage to the drive that occurs after its removal from the
shipping package and ESD protective bag is the
responsibility of the user.
STANDARDS AND REFERENCE DOCUMENTS
This section discusses the formal standards that may apply to the Zeus
IOPS
3.5-inch Fibre Channel
SSD, including electrical product standards. In addition, this section lists reference documents
relevant to the FC-AL and FCP-SCSI protocols used for the Zeus
IOPS
3.5-inch Fibre Channel SSD.
STANDARD FEATURES
This section lists the standard features of the Zeus
IOPS
3.5-inch Fibre Channel SSD.
PRODUCT DESCRIPTION
This section provides a general description of the Zeus
includes media, performance, reliability and capacity information.
IOPS
3.5-inch Fibre Channel SSD, and
PERFORMANCE CHARACTERISTICS
This section describes the internal characteristics of the SSD and includes information on the access
execution times.
ELECTRICAL SPECIFICATIONS
This section describes the power requirements and power consumption parameters of the Zeus
3.5-inch SSD.
IOPS
INTERFACE SPECIFICATIONS
This section provides a table of the connector pinout and tables of the electrical characteristics for
the pin signals. In addition, this section describes how the drive uses the pin signals when interacting
with the host system.
18 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
FC-AL FEATURES
This section discusses issues related to the FC-AL ports and loop addressing of the Zeus
inch Fibre Channel SSD. This section also provides a table of the SCSI commands
the Zeus
IOPS
3.5-inch Fibre Channel SSD, followed by subtopic discussing the use of each
command.
IOPS
3.5-
implemented on
FIBRE CHANNEL STANDARD
This section discusses the implementation of the Fibre Channel Arbitrated Loop (FC-AL) specific to
the Zeus
IOPS
3.5-inch Fibre Channel SSD.
INSTALLATION
This section discusses issues relating to the installation of the SSD in a server or other enclosure,
including cooling and grounding.
REGULATORY COMPLIANCE
This section provides an overview of the marking, approval, documentation and reporting
conventions for the Zeus
IOPS
3.5-inch Fibre Channel SSD.
STANDARDS AND REFERENCE DOCUMENTS
This section discusses various standards for electronic products, and how those standards apply to
the Zeus
ELECTROMAGNETIC SUSCEPTIBILITY
The Zeus
enclosure, i.e., a server or alternate enclosure. The enclosure must be designed so that the use of
the drive does not impair nearby electronic equipment within the same enclosure and external to the
enclosure.
IOPS
3.5-inch Fibre Channel SSD.
IOPS
3.5-inch Fibre Channel SSD is intended for installation by the user in an appropriate
The user is responsible for choosing, designing and testing the enclosure so that it is appropriate as
previously defined, and complies to related regulations, such as Subpart B of Part 15 of FCC Rules
and Regulations, and the Radio Interference Regulations of the Canadian Department of
Communications.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 19
REFERENCE DOCUMENTS
The following list of ANSI Fibre Channel documents relate to the Zeus
IOPS
3.5-inch SSD:
• X3.230-1994 FC Physical and Signaling Interface (FC-PH)
• X3.297.1997 FC-PH-2 Fibre Channel Physical and Signaling Interface-2
• X3.303.1998 FC-PH-3 Fibre Channel Physical and Signaling Interface-3
• X3.272-1996 FC Arbitrated Loop (FC-AL)
• X3.269-1996 Fibre Channel Protocol for SCSI (FCP)
• NCITS TR-19 Private Loop SCSI Direct Attach (PLDA)
• NCITS TR-20 Fabric Loop Attachment (FC-FLA)
• SFF-8045 Specification for 40-pin SCA-2 Connector with Parallel Selection
• SFF-8067 Specification for 40-pin SCA-2 Connector with Bidirectional Enclosure Services
Interface
The following list of ANSI SCSI documents relate to the Zeus
IOPS
3.5-inch Fibre Channel SSD:
• X3.131-1994 SCSI-2
• X3.270-1996(SCSI-3) Architecture Model
• NCITS 305-199X (SCSI-3) Enclosure Services
STANDARD FEATURES
INTERFACE STANDARD
• 40-pin SCA-2 connector (Level 4 Hot Swap) for copper cable
• Dual 2.1250/1.0625 Gb/s Fibre Channel Arbitrated Loop-2 host interfaces
• Dual-ported operation support
• Full-duplex operation support
• Unique worldwide name for connection to a fabric
• FCP-SCSI protocol
• “Hot plugging” support
20 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
PERFORMANCE
• Maximum Read of 200 Mbytes/sec
• Maximum Write of 100 Mbytes/sec
• Cache of 512MBytes
• Command queuing of up to 512 commands
(256 commands per port)
• Background processing of queue
PHYSICAL CHARACTERISTICS
• 3.5-inch standard form factor
5.787 inch x 4.004 inch x 1.00 inch (146.0 mm x 101.6 mm x 25.4 mm)
• Light-weight aluminum alloy case, less than 0.947 lbs. (430 grams)
MEDIA CHARACTERISTICS
• Single Level Cell (SLC) flash memory
• Wear-leveling algorithm
• ECC correction
FIRMWARE UPGRADES
• Download upgrades via the Fibre Channel interface
UNFORMATTED CAPACITIES
• 18, 36, 73 and 146 Gigabytes
RELIABILITY
• Data Retention of 10 years
• Bad Block mapping
• Patented wear-leveling algorithm
• 16-bit CRC for added data security and error prevention
• EDC/ECC algorithms
• Solid-state design (no electromechanical failures)
• Rugged aluminum alloy case
• 5 year warranty
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 21
ENVIRONMENTAL CHARACTERISTICS
• Operating Temperature Range
– Commercial range of 0°C to 55°C
• 0dB Noise Amplitude
POWER
• Input Voltage: +12 V DC ± 10%
• Typical consumption:
– Idle/Standby of 5.4W
– Read of 8.4W
– Write of 8.1W
22 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
GENERAL DESCRIPTION
PRODUCT DESCRIPTION
The Zeus
Cell (SLC) NAND flash memory technology to deliver a state-of-the-art, non-volatile mass storage
device. The interface is fully SCSI compliant and conforms to the same mechanical and mounting
requirements as a standard rotating disk drive. The SSD is an easy-to-install, drop-in replacement for
standard SCSI-compliant hard disk drives (HDDs). No additional device drivers are required to fully
support the drive as a boot or data storage device.
IOPS
3.5-inch Fibre Channel Solid State Drive (SSD) incorporates advanced Single-Level
FIBRE CHANNEL INTERFACE
The SSD can be installed in any operating system environment that supports FCP-4 devices. The
Fibre Channel Protocol (FCP) is a method for transmitting SCSI commands and data over FC-FS-2
Exchanges and Information Units. It is a high-speed serial architecture that allows for connections
over optical or electrical cable. It also supports fabric-switched and arbitrated-loop network
topologies.
DRIVE CAPACITIES
IOPS
Zeus
gigabytes. The SSDs are ideal for applications that require high reliability and high tolerance to
shock, vibration, humidity, altitude and temperature. Since there are no moving parts, the SSDs are
completely maintenance-free.
3.5-inch SSDs are available with unformatted memory capacities of 18, 36, 73 and 146
PERFORMANCE
The SSDs can operate at sustained data transfer rates of up to 200 megabytes per second. The
drives are capable of performing 50,000 random operations per second. Power consumption is kept
to a minimum; the SSDs can be powered from a single 12-volt source. The solid state design
eliminates electromechanical noise and delay inherent in traditional magnetic rotating media. The
wear-leveling and bad-block mapping algorithms ensure consistency, accuracy, and integrity of user
data. Superior data reliability is achieved through embedded Error Detection Code and Cyclic
Redundancy Checking (EDC/CRC).
DATA SECURITY
IOPS
Zeus
capacity of the drive. The drive can also be “sanitized”, thereby making data recovery impossible. See
Erase Times and Sanitize on page 10.
Zeus
SSDs offer erase and data sanitization (purge) features. Erase times vary according to the
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 23
PERFORMANCE CHARACTERISTICS
ENDURANCE
The useful life of the flash media is limited by the number of write/erase operations that can be
performed on the media. Typically, the write/erase cycles for flash media ranges between 100,000
and 300,000. To extend the life of the SSD, special Wear-Leveling and Bad-Block Mapping
algorithms are integrated into the firmware, increasing the overall endurance rating of the drive to
2,000,000 Write/Erase cycles.
WEAR-LEVELING ALGORITHM
The dynamic wear-leveling algorithm guarantees that erase/write cycles are evenly distributed
across all the flash memory block locations. Wear-leveling eliminates repeated writes to the same
physical flash memory location, thereby preventing blocks from premature wear.
BAD-BLOCK MANAGEMENT
The bad-block management scheme will detect faulty blocks during operation. Bad blocks are
flagged in a defect list. Blocks within the defect list are excluded and are never used for data storage.
DATA RETENTION
Data stored on Zeus
The unit can be stored at temperatures between -40
occurrence of data degradation.
ERROR DETECTION AND CORRECTION
IOPS
SSDs will remain valid for ten (10) years without requiring power support.
o
C and 70oC for extended periods without any
The Error Detection Code and Error Correcting Code (EDC/ECC) algorithm helps maintain data
integrity by allowing single or multiple bit corrections to the data stored in the flash array. If the data
in the flash array is corrupted due to aging or during the programming process EDC/ECC will
compensate for the errors to ensure the delivery of accurate data to the host computer. The EDC/
ECC engine on the drive is capable of correcting 8 random or 12 sequential bytes in 1,024 bytes. The
possibility of undetected errors or incorrect correction is eliminated with additional CRC.
RELIABILITY
• DC power is maintained as specified in the product manual.
• Errors caused by host are excluded from rates.
• Errors from the same causes are counted as 1 block.
• Data stream is assumed random.
24 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
MOUNT TIME
The amount of time required to initialize and mount a Zeus
system (Windows®, Linux®, etc.) and the storage capacity of the drive.
IOPS
SSD varies according to the operating
ACCESS TIME
Unlike a magnetic rotating disk, the Zeus
access time ranges from 20μsec to 120μsec. The actual access time may be affected by the
operating system and the storage capacity of the drive.
IOPS
SSD has no moving read/write head or platter. The
DATA TRANSFER RATES
The data transfer rates of the SSD are outlined in Table 2. Access times are measured under nominal
temperature and voltages from a representative sample of the drive. The access times are measured
from receipt of last byte of the Command Descriptor Block (CDB) to the request for a Status Byte
Transfer to the Initiator, excluding Connect/Disconnect.
Table 2. Data Transfer Rates
Parameter Value Units
Average Access 20 - 120 μsec
Average Latency 0 m/sec
Sustained Read 200 Megabytes/sec
Sustained Write 100 Megabytes/sec
Duplex Burst Read 400 Megabytes/sec
Duplex Burst Write 400 Megabytes/sec
Minimum Sector Interleave 1:1
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 25
ERASE TIMES
The time required to erase a Zeus
Erase utility will erase every physical memory storage location that can be accessed by the host
interface. It will also destroy any saved messages. Once initiated, the SSD will be offline and the host
will be unable to access the drive. Once the erase operation is completed the SSD will be restarted.
If power ceases during this operation, the operation will be restarted when power is restored. See
Table 3.
IOPS
SSD varies according to the total capacity of the drive. The
Table 3. Erase Times
Capacity Erase Time
18 GB 30 sec
36 GB 60 sec
73 GB 120 sec
146 GB 240 sec
SANITIZE
For sensitive data that requires more stringent security measures, the SSDs are designed to comply
with industry-standard data protection methods. The SSDs support the sanitize standards as detailed
in DoD 5220.22-M, AFSSI 5020 and NSA 130-2. The Sanitize feature will erase every physical
memory storage location and then will write data patterns to all possible NAND locations that are
accessible to the host system. It will also destroy any saved messages. The time required to sanitize
IOPS
a Zeus
requires different levels of erase/write cycles. If power is lost during this operation, the operation will
be restarted when power is restored. See Table 4.
SSD varies according to the drive capacity and the sanitize type. Each sanitize type
Table 4. Sanitize Times and Standards
Standard DoD 522.22-M AFSSI 5020 NSA 130-2
Capacity Minutes Minutes Minutes
18 GB 6 6 18
36 GB 12 12 36
73 GB 24 24 72
146 GB 48 48 144
26 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
CACHE OPERATIONS
The Zeus
the Synchronize Cache command.
IOPS
SSD is configured with 512 MB of cache. Write data can be flushed to the cache with
HOT PLUGGING
The Zeus
IOPS
3.5-inch Fibre Channel SSD can be inserted or removed from a loop during operation.
This capability is known as “hot plugging”. Fibre Channel error recovery procedures will recover from
any errors introduced by hot plugging. Whenever a drive is hot plugged, sync is detected lost due to
the removal or insertion of the drive into the loop.
The loop will recover as follows:
1 If a bypass circuit is used, the loop will re-synchronize and is operational while
the user waits for the drive to power up and become ready. If a bypass circuit is
not used, the loop loses synchronization and is not operational during this time.
2 When the drive becomes ready, and the bypass circuit (if used) is disabled, the
drive will re-synchronize with the loop. It will synchronize with the device that is
currently transmitting data to the SSD. All devices then go through loop
initialization.
3 After the loop initializes, the loop is in monitoring state and arbitration of
ownership can occur.
REPAIRS
A defective SSD should be replaced. There are no parts, assemblies or subassemblies that can be
repaired by the user. Please see the section titled Certification and Warranty on the inside of the
back cover page. Unauthorized repairs to the SSD will void the warranty.
PREVENTATIVE MAINTENANCE
No preventative maintenance is required. The SSD unit is sealed at the factory, and there are no
parts, assemblies or subassemblies that require preventative maintenance on behalf of the user.
Please see the section titled Certification and Warranty on the inside of the back cover page.
Unauthorized maintenance to the SSD will void the warranty.
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 27
ELECTRICAL SPECIFICATIONS
POWER SUPPLY
The following voltage specification applies to the drive power connector. Connections to the drive
should be made in a safety extra low voltage (SELV) circuit.
The drive does not use the +5V supply input pins available on a typical 40-Pin SCA-2 connector.
The drive uses the +12V supply input. The 5V ground pins are connected to the common ground
plane within the unit.
Adequate secondary over-current protection must be incorporated in the host system (drive
enclosure, backplane, etc.). A 10 amp limit is required for safety purposes.
CAUTION: To avoid damage to the drive, power
supply voltage transients must not exceed 16
volts.
POWER REQUIREMENTS
The Zeus
IOPS
3.5-inch Fibre Channel SSD requires a 12V +/-10% DC power source. If a power
failure occurs, the drive design ensures that the data contained in the storage memory is preserved.
Data loss or corruption does not occur.
Table 5. Zeus
Item Requirement
Input Voltage 12V +/-10%
Minimum Voltage 10.8
Maximum Voltage 13.2
IOPS
3.5-Inch SSD Power Requirements
POWER CONSUMPTION
Table 6. Zeus
Activity Average Current (mA) Average Power (W)
Startup 1,200 14.4
Idle 450 5.4
Max Read @ 200MB/sec 700 8.4
Max Write @ 100MB/sec 675 8.1
Read, 1 Block Random I/O @ > 50,000 525 6.3
Write, 1 Block Random I/O @ > 18,000 660 7.9
IOPS
Fibre Channel SSD Typical Power Consumption
28 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
GROUNDING
Signal and chassis ground are not connected together in the drive. To ensure minimal EM emissions,
the user should provide maximum surface contact area when connecting the drive to chassis ground.
FAULT LED OUT SIGNAL
The Fault LED Out signal is driven by an open collector driver capable of sinking 30mA. It is driven
low when an internal fault is detected along with both Enable Bypass signals.
READY LED OUT SIGNAL
The Ready LED Out signal is driven by an open collector driver capable of sinking 30mA. It will
typically be connected to the cathode of an LED in the enclosure. The Ready LED function is nearly
identical to the SFF-8045 specification for hot-plugging implementations; however, since the drive
has no motor, it behaves as follows:
• Drive not mated:
The signal is de-asserted (i.e., High). The LED is off.
• Drive mated, power-up diagnostics in progress:
The signal is asserted for 1/3 of a second and de-asserted for 2/3 of a second. This
represents a 1Hz Short flash.
• Drive mated, firmware running, drive in progress of becoming ready:
The signal is asserted for one-half second and de-asserted for one-half second. This
represents a 1Hz Normal flash.
• Drive mated, firmware running and drive ready:
The signal is asserted when either of the loops is brought up. The signal will de-assert when
the drive is active on either of the fibre loops.
-PARALLEL ESI AND SEL_n/P_ESI_n
SEL_n/P_ESI_n are a set of dual purpose pins that are used to convey either a Loop Identifier
address or Enclosure Service Information (where this is supported by the backplane) to the SSD.
-Parallel ESI determines the function of Sel_n/-P_ESI_n. It is a TTL open-drain output from the SSD.
When -Parallel ESI is de-asserted (high), the backplane must present SEL_ID information on SEL_n/
P_ESI_n. See SEL_ID Function.
When -Parallel ESI is asserted (low), the backplane must present Enclosure Service Information (if
supported) on SEL_n/P_ESI_n. See SEL_ID Function on page 16.
Note: The maximum response time to a change in state of -Parallel ESI is 1μS.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 29
SEL_ID FUNCTION
The SEL_n (TTL compatible) inputs (defined when -Parallel ESI is de-asserted) provide a binary
value of a loop identifier to the drive. These seven (7) signals define 128 possible values and are
directly translated into an 8 bit hard Arbitrated Loop Physical Address (AL_PA). Only AL_PAs with
neutral disparity are valid values. The drive will attempt to acquire this hard AL_PA during the LIHA
phase of the Loop Initialization Process (LIP). Table 7 lists the SEL_ID/AL_PA translation in
hexadecimal format.
NOTE: An AL PA value of 0x00 is not valid for an NL_Port. A SEL_ID
of 0x7F will force the SSD to obtain a soft address.
Table 7. SEL_ID to AL_PA Translation
SEL_ID AL_PA SEL_ID AL_PA SEL_ID AL_PA SEL_ID AL_PA
00 EF 20 B2 40 72 60 3A
01 E8 21 B1 41 71 61 39
02 E4 22 AE 42 6E 62 36
03 E2 23 AD 43 6D 63 35
04 E1 24 AC 44 6C 64 34
05 E0 25 AB 45 6B 65 33
06 DC 26 AA 46 61 66 32
07 DA 27 A9 47 69 67 31
08 D9 28 A7 48 67 68 2E
09 D6 29 A6 49 66 69 2D
AD52AA54A656A2C
BD42BA34B636B2B
C D32C9F4C5C6C2A
DD22D9E4D5A6D29
ED12E9D4E596E27
FCE2F9B4F566F26
10 CD 30 98 50 55 70 25
11 CC 31 97 51 54 71 23
12 CB 32 90 52 53 72 1F
13 CA 33 8F 53 52 73 1E
14 C9 34 88 54 51 74 1D
15 C7 35 84 55 4E 75 1B
16 C6 36 82 56 4D 76 18
30 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
17 C5 37 81 57 4C 77 17
18 C3 38 80 58 4B 78 10
19 BC 39 7C 59 4A 79 F
1A BA 3A 7A 5A 49 7A 8
1B B9 3B 79 5B 47 7B 4
1C B6 3C 76 5C 46 7C 2
1D B5 3D 75 5D 45 7D 1
1E B4 3E 74 5E 43 7E NA
1F B3 3F 73 5F 3C 7F SOFT
P_ESI_n FUNCTION
The SEL_N (TTL compatible) inputs and outputs (defined when -Parallel ESI is asserted) provide an
interface between the enclosure and the drive. Table 8 summarizes the signals.
Table 8. SEL_N/P_ESI_N Signal Definitions
-Parallel ESI (High) -Parallel ESI (Low)
Sel_0 (Input) P_ESI_0 (Input)
Sel_1 (Input) P_ESI_1 (Input)
Sel_2 (Input) P_ESI_2 (Input)
Sel_3 (Input) P_ESI_3 (Input)
Sel_4 (Input) P_ESI_4 (Input)
Sel_5 (Input) P_ESI_5 (Input)
Sel_6 (Input) -EFW (Input)
SFF-8045 ENCLOSURE SERVICE INTERFACE
The SFF-8045 Enclosure Service Interface defines 7 bits of enclosure status. This status is read by
the drive, and presented to the Initiator, upon receipt of appropriate Receive Diagnostic command.
The definitions of the status bits are vendor specific. The drive will not interpret the status. The drive
assumes -EFW is status and treats it as if does the other P_ESI_n signals.
-ENBL_BYP CH1 AND -ENBL_BYP_CH2
These two signals are TTL outputs from the drive and provide 4mA of sink capability. The signals are
intended to control the state of the loop port bypass circuit on the backplane. The drive powers up
with these signals turned off. It is assumed that the backplane will provide a 1K ohm pull-down
resistor that will ensure the drive is bypassed on the loop when it is not present, or when it is powering
up. The drive will attempt to enable itself on both loops after a successful power up.
START_n MATED
These signals are used to control the motor spin on rotating media drives. Because the Zeus
SSD is a solid-state device and has no motor, these signals are ignored by the drive.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 31
IOPS
-DRIVE PRESENT
This signal is connected to the ground plane of the drive. The backplane can use this signal to detect
the presence of the drive.
DEV_CTRL_CODE_X
The DEV_CTRL_CODE_2 through DEV_CTRL_CODE_0 signals provide a binary code to the drive
to control functions such as FC link rate, Power Failure Warning (PFW) and Hard Reset. The control
function is either identified by a code or a sequence of codes on the DEV_CTRL_CODE signals.
Table 9 lists the functions and the associated codes that use a decode value on the
DEV_CTRL_CODE signals.
The Hard Reset function uses a sequence of values on the DEV_CTRL_CODE signals. The
sequence is 5, 1, 3, 2, 3, 1 and 5. A drive detecting a valid Hard Reset sequence shall perform the
equivalent of a power-on reset.
4.7K ohm pull-up resistors to 3.3V are provided on the drive for both DEV_CTRL_CODE_2,
DEV_CTRL_CODE_1 and DEV_CTRL_CODE_0 to ensure that each signal is maintained in its high
state unless a low is provided from the backplane.
Note: Please refer to the SFF-8045 Specification for more information.
Table 9. DEV_CTRL_CODE_N Signal Definitions
DEV_CTRL_CODE_N
Link Rate CODE_2 CODE_1 CODE_0
1.0625 GHz 1 1 1
2.1250 GHz 1 1 0
Reserved 101
Reserved 100
Reserved 011
Reserved 010
Reserved 001
Power Failure Warning 0 0 0
32 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
INTERFACE SPECIFICATIONS
SSD OPERATION
The Zeus
2 interface connector, a Host FPGA, which contains a processor, NAND FPGA, NAND flash memory,
and DRAM.
Read/write data transfer requests are initiated by the host via the SCSI bus interface. Once received,
the Host FPGA controller, under the direction of the microcontroller, processes the request.
The FPGA NAND flash controller interfaces with the NAND flash chips and sequences the data flow
between the DRAM and flash.
Read and Write commands have dedicated hardware functions that do not require firmware support,
thereby increasing performance. Some commands may require the host controller to use external
circuitry that do not involve the flash memory controller.
IOPS
Fibre Channel SSD is comprised of the following primary functional blocks: the SCA-
It is the microcontroller that will initiate and monitor all
activity within the controller, including the execution of the
bad-block mapping and wear-leveling algorithms.
The controller will decode an incoming host command, and
will configure the appropriate interrupts and status for the
local microprocessor to handle various SCSI commands. For
read and write transfer commands, there are hardware
functions that minimize firmware overhead to enhance
performance.
When a Read or Write operation is requested, the integrated DMA controllers transfer the Fibre
Channel frames to and from the SSD DRAM.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 33
SCSI INTERFACE BLOCK
This section provides information on the SCA-2 connector of the Zeus
IOPS
Fibre Channel SSD.
SCA-2 INTERFACE CONNECTOR
The 3.5-inch SSD is equipped with a 40-pin SCA-2 bus connector. The connector is located on the
underside of the drive. DC power and bus traffic is supplied through a non-shielded 40-conductor I/
O cable. Figure 2 shows the location of Pins 1, 20, 21 and 40 relative to the connector housing. See
Connector Pinout on page 19.
Figure 2. SCA-2 Interface Connector
34 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
CONNECTOR LOCATION
Figure 3 shows the relative location of the SCA-2 connector on the rear of the SSD. Please note the
location of Pin 1 relative to the connector.
Figure 3. Relative SCA-2 Connector Location
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 35
CONNECTOR PINOUT
This section provides the pinout of the 40-pin SCA-2 connector, the pinout signal characteristics, and
the use of the pinout signals with respect to the SSD. Refer to Table 10 for the 40-pin SCA-2
connector pin-out.
Table 10. 40-Pin SCA-2 Connector Pinout
Pin Signal Name Signal Type Pin Signal Name Signal Type
1 -ENBL BYP CH1 Low Voltage TTL Output 21 12V Charge
2 12 Volts 22 12V Ground GND
3 12 Volts 23 12V Ground GND
4 12 Volts 24 +Port 1_In Differential
5 -Parallel ESI 25 -Port 1_In
6 -Drive Present GND 26 12V Ground GND
7 Ready LED Out Open Collector Out 27 +Port 2_In Differential
8 Power Control 28 -Port 2_In
9 Start_1/Mated TTL Input 29 12V Ground GND
10 Start_2/Mated TTL Input 30 +Port 1_Out Differential
11 -ENBL BYP CH1 Low Voltage TTL Output 31 -Port 1_Out
12 SEL_6/-EFW TTL Input/Output 32 5V Ground GND
13 SEL_5/-P_ESI_5 TTL Input/Output 33 +Port 2_Out Differential
14 SEL_4/-P_ESI_4 TTL Input 34 -Port 2_Out
15 SEL_3/-P_ESI_3 TTL Input/Output 35 5V Ground GND
16 Fault LED Out Open Collector Out 36 SEL_2/-P_ESI_2 TTL Input/Output
17 DEV_CTRL_CODE_2 TTL Input 37 SEL_1/-P_ESI_1 TTL Input/Output
18 DEV_CTRL_CODE_1 TTL Input 38 SEL_0/-P_ESI_0 TTL Input/Output
19 5 Volts 39 DEV_CTRL_CODE_0 TTL Input
20 5 Volts 40 5 Volts Charge
PECL Input Pair
PECL Input Pair
PECL Output Pair
PECL Output Pair
VOLTAGE AND GROUND SIGNALS
The 12V contacts provide all the power required by the drive. The 5V Charge and 5 Volt contacts are
not used. All 5V ground and 12V ground contacts are connected to the drive ground plane.
36 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
FC-AL FEATURES
LOOP CONNECTIONS
The Zeus
be connected in different loops or the same loop. In addition, the drive can send transfers while
receiving frames on both ports. This capability is called “full-duplex”.
Table 11 summarizes the FC-AL options supported by the drive.
IOPS
3.5-inch Fibre Channel SSD features two independent FC-AL ports. These ports may
If the ports are 1) connected in different loops, 2) hard addressing is used, and 3) the drive
interface address is selected through the interface connector, then both ports will seek the
same loop address. If there are no duplicate addresses on the different loops, both ports
will use the same address.
If the ports are 1) connected in the same loop and 2) hard addressing is used, the drive
reads the settings from the connector. If the SCA connector is configured for a hard
address, only one of the ports will be seen on the loop; only one port can acquire the ID.
If the drive has 1) its ports connected to different loops, and 2) buffer availability, then the
drive is able to receive transfers on both ports at the same time. This capability is called
“concurrent port transfers”.
Table 11. FC-AL Supported Options
Option Support
OPEN Half Duplex Accepted from another device
OPEN Full Duplex Sent to open another device; accepted from another device
Private Loop Supported
Public Loop Supported
Old Port State Not supported
Loop Position Supported
Loop Position Report Supported
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 37
FCP-SCSI COMMANDS
SUPPORTED SCSI COMMANDS
Table 12 summarizes the SCSI commands supported by the Zeus
supported with all tag types (Head of Queue, Ordered Queue and Simple Queue). A maximum of 256
commands may be queued against each fibre channel port. This section only provides an overview
of the SCSI commands supported by the Zeus
IOPS
SSD. For more information, please consult the
SCSI specification, Fibre Channel Protocol - 3 (FCP-3), Project T10/1560D, ANSI INCITS 416-2006.
NOTE: Linked SCSI commands are not supported. NACA
does not apply to the Fibre Channel standard. As a result,
all the Control bytes of all the commands are ignored.
Table 12. Supported SCSI Commands
Command Code Command Name
A0h Report Luns
00h Test Unit Ready
08h Read (6)
0Ah Write (6)
12h Inquiry
Vital Product Data Page (00h)
Unit Serial Number Page (80h)
Device Identification Page (83h)
16h Reserve (6). Obsolete, but supported.
17h Release (6). Obsolete, but supported.
1Ah Mode Sense (6)
1Dh Send Diagnostics Page
4Dh Log Sense
25h Read Capacity
28h Read Extended (10)
2Ah Write Extended (10)
2Eh Write and Verify (10)
2Fh Verify (10)
3Bh Write Buffer
35h Synchronize Cache (10)
5Ah Mode Sense (10)
IOPS
SSD. Command queuing is
38 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
56h Reserve (10). Obsolete, but supported.
57h Release (10). Obsolete, but supported.
5Eh Persistent Reserve In
5Fh Persistent Reserve Out
REPORT LUNS (A0h)
The REPORT LUNS command will request that the peripheral device logical unit inventory
accessible to the I_T nexus be sent to the application client. The logical unit inventory is a list that
shall include the logical unit numbers of all logical units having a Peripheral Qualifier value of 000b.
Logical unit numbers for logical units with Peripheral Qualifier values other than 000b and 011b may
be included in the logical unit inventory. Logical unit numbers for logical units with a Peripheral
Qualifier value of 011b are excluded from the logical unit inventory. The Zeus
IOPS
SSD only appears
as a single LUN (Logical Unit Number). Byte 2 and Byte 11 are ignored.
Table 13. Report Luns Command
Bit
Byte
76543210
0 Operation Code (A0h)
1 Reserved
2 Select Report
3
Reserved
5
6(MSB)
Allocation Length
9(LSB)
10 Reserved
11 Control
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 39
TEST UNIT READY COMMAND (00h)
The TEST UNIT READY command provides a method to check if the logical unit is ready. This is
not a request for a self-test. If the logical unit would accept an appropriate medium-access command
without returning CHECK CONDITION status, this command shall return a GOOD status. If the
logical unit cannot become operational or is in a state such that an initiator action is required to make
the unit ready, the target shall return CHECK CONDITION status with a sense key of NOT READY.
Byte 5 is ignored..
Table 14. Test Unit Ready CDB
Bit
Byte
0 Operation Code (00h)
1 Reserved Reserved
2 Reserved
3 Reserved
4 Reserved
5 Control
R
EAD (6) COMMAND (08h)
7 6 5 4 3 2 1 0
The READ (6) command requests that the drive transfer data to the initiator. The most recent data
value written in the addressed logical block shall be returned
.The logical block address field specifies
the logical block at which the read operation shall begin. The transfer length field specifies the
number of contiguous logical blocks of data to be transferred. A transfer length of zero indicates that
256 logical blocks shall be transferred. Any othe r value ind ica tes t he num be r of logi ca l blocks th at
shall be transferred. Byte 5 is ignored.
Table 15. Read (6) CDB
Bit
Byte
0 Operation Code (08h)
I Logical Unit Number (RSVD) (MSB)
2
3 (LSB)
4 Transfer Length
5 Control
40 Zeus
7 6 5 4 3 2 1 0
Logical Block Address
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
WRITE (6) COMMAND (0Ah)
The WRITE (6) command requests that the target write the data transferred by the initiator to the
medium
. The logical block address field specifies the logical block at which the write operation shall
begin . The transfer length field specifies the number of contiguous logical blocks of data to tr ansfe r.
A transfer length of zero indicates that 256 logical blocks shall be transferred. Any other value
indicates the number of logical blocks that shall be transferred
. Byte 5 is ignored.
Table 16. Write (6) CDB
Bit
Byte
0 Operation Code (0Ah)
1 Logical Unit Number (RSVD) (MSB)
2
3 (LSB)
4 Transfer Length
5 Control
7 6 5 4 3 2 1 0
Logical Block Address
INQUIRY COMMAND (12h)
The INQUIRY command requests that information regarding parameters of the drive b e s ent to th e
initiator. Byte 5 is ignored. See Tables 17 and 18.
Table 17. Inquiry CDB
Bit
Byte
0 Operation Code (12h)
1 Logical Unit Number (RSVD) Reserved EVPD
2 Page Code
3 Reserved
7 6 5 4 3 2 1 0
4 Allocation Length
5 Control
An Enable Vital Product Data (EVPD) bit of one specifies that the drive return the optional vital
product data specified by the page code field. If any optional fields in the CDB are set that the drive
does not support, it will return a CHECK CONDITION status with the sense key set to ILLEGAL
REQUEST and an additional sense code of INVALID FIELD IN CDB.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 41
An EVPD bit of zero specifies that the drive return the standard INQUIRY data. If the page code field
is not zero, the target shall return CHECK CONDITION status with the sense key set to ILLEGAL
REQUEST and an additional sense code of INVALID FIELD IN CDB. The page code field sp ecifies
which page of vital product data information the drive returns.
The INQUIRY command shall return CHECK CONDITION status only when the target cannot return
the requested INQUIRY data. The IN QUIRY data sho uld be retu rne d even though the peripheral
device may not be ready for other commands. If an INQUIRY command is received from an initiator
with a pending unit attention condition, the drive will perform the INQUIRY command and not clear
the unit attention condition.
Note: Please refer to the SCSI specification for further details on the vital product data pages and
formats.
Table 18. Standard Inquiry Data Format
Bit
Byte
0 Peripheral Qualifier Peripheral Device Type
1 RME Device-Type Modifier
2 ISO Version ECMA Version ANSI-approved Version
3 AEHC TrmlOP Reserved Response Data Format
4 Additional Length (n-4)
5 Reserved
6 Reserved
7 RelAdr Wbus32 Wb16 Sync Linked Reserve CmdQu SftRe
8 (MSB)
15 (LSB)
16 (MSB)
31 (LSB)
32 (MSB)
35 (LSB)
36
55
56
95
96
n
7 6 5 4 3 2 1 0
Vendor Identification
Product Identification
Product Revision Level
Vendor-Specific
Reserved
Vendor-Specific Parameters
Vendor-Specific
42 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
MODE SENSE (6) COMMAND (1Ah)
The MODE SENSE (6) command provides a means for a target to report parameters to the initiator.
It is a complementary to the MODE SELECT (6) command. See Tables 19 and 20.
Table 19. Mode Sense CDB
Bit
Byte
0
1
2
3
4
5 Control
7 6 5 4 3 2 1 0
Operation Code (1Ah)
Logical Unit Number (RSVD)
PC Page Code
Reserve
Allocation Length
DBD Reserved
Reserved
A Disable Block Descriptors (DBD) bit of zero indicates that the target may return zero or more block
descriptors in the returned MODE SENSE data, at the target's discretion. A DBD bit of one specifies
that the target shall not return any block descriptors in the returned MODE SENSE data. The page
control (PC) field defines the type of mode parameter values to be returned in the mode pages. The
page code specifies which mode page to return.
Table 20. Page Code Field Descriptions
Page Code Description Subclause
00h
01h - 1Fh
Vendor-specific (does not require page format)
See specific device-types
Zeus
20h - 3Eh
3Fh
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 43
Vendor-specific (page format required)
Return all mode pages
SEND DIAGNOSTIC PAGE(1Dh)
The SEND DIAGNOSTIC command is a six byte CDB. The Parameter List Length is two bytes
(Bytes 2 and 4). Bytes 1 through 5 are ignored.
Table 21. Send Diagnostics CDB
Bit
Byte
0
1
2
3
4
7 6 5 4 3 2 1 0
Operation Code (1Dh)
Logical Unit Number (RSVD) PF
Reserved
(MSB)
Parameter List Length
5
6 Control
Reserve
SelfTest DevOfL UnitOfL
(LSB)
44 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
LOG SENSE COMMAND (4Dh)
The LOG SENSE command provides a method for the application client to retrieve statistical or other
operational information maintained by the SCSI target device about the SCSI target device or its
logical units. The command is complementary to the LOG SELECT command. The only LOG SENSE
page code supported is 0x00. The PPC and SP bits (Bits 1 and 0 of CDB Byte 1) must be zero and
the PC bits must select the cumulative values (CDB Byte 1 must be set to 0x40). Bytes 1, and 5
through 8, are not supported. The Drive will return a CHECK condition if non-zero. Byte 2 must be
0x40, as only cumulative values are supported.
Table 22. Log Sense Command
Bit
Byte
0 Operation Code (4Dh)
1 Reserved PPC SP
2 PC Page Code
3
4
76543210
Reserved
5(MSB)
6(LSB)
7(MSB)
8(LSB)
Parameter Pointer
Allocation Length
Control
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 45
READ CAPACITY (25h)
The READ CAPACITY command provides a means for the initiator to r equest information regarding
the capacity of the logical unit. Bytes 1 through 9 are ignored. If a Byte 8 is a non-zero, Illegal
command will be returned.
Table 23. Read Capacity CDB
Bit
Byte
0 Operation Code (25h)
1 Logical Unit Number (RSVD) Reserved RelAdr
2 (MSB)
3
4
5 (LSB)
6 Reserved
7 Reserved
8 Reserved PMI
9 Control
7 6 5 4 3 2 1 0
Logical Block Address
46 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
READ EXTENDED (10) (28h)
The READ (10) EXTENDED (28h) command requests that the target transfer data to the initiator. The
most recent data value written in the addressed logical block is returned. Byte 1 and Byte 9 are
ignored.
Table 24. Read Extended (10) CDB
Bit
Byte
0 Operation Code (28h)
1 Logical Unit number (RSVD) DPO FUA Reserved RelAdr
2 (MSB)
3
4
5 (LSB)
6 Reserved
7 (MSB)
8 (LSB)
9 Control
7 6 5 4 3 2 1 0
Logical Block Address
Transfer Length
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 47
WRITE EXTENDED (10) (2Ah)
The WRITE (10) EXTENDED (2Ah) command requests that the drive write the data transferred by
the initiator to the medium. Bytes 1 and 9 are ignored.
Table 25. Write Extended (10) (2Ah) CDB
Bit
Byte
0 Operation Code (2Ah)
1 Logical Unit Number (RSVD) DPO FUA Reserve Reserve RelAdr
2 (MSB)
3
4
5 (LSB)
6 Reserved
7 (MSB)
8 (LSB)
9 Control
W
RITE AND VERIFY (10) (2Eh)
7 6 5 4 3 2 1 0
Logical Block Address
Transfer Length
The WRPROTECT field and DPO and BYTCHK bits in CDB Byte 1 are all ignored.
V
ERIFY (10) (2Fh)
The VRPROTECT field in Byte 1 is ignored. If the DPO and BYTCHK bits in CDB Byte 1 are not both
zero, or the GROUP NUMBER field in Byte 6 is non-zero, the command is rejected. If any bit in Byte
1 is set other than LUN, or if any bits in Bytes 6 and 9, an Invalid field in the CDB is reported.
48 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
WRITE BUFFER COMMAND (3Bh)
The WRITE BUFFER command is complementary to the READ BUFFER command as a diagnostic
function for testing logical unit memory in the SCSI target device and the integrity of the service
delivery subsystem.
Table 26. Write Buffer Command (3Bh)
Bit
Byte
0 Operation Code (3Bh)
1 Reserved Mode
2 Buffer ID
76543210
3(MSB)
5(LSB)
6(MSB)
8(LSB)
9 Control
Buffer Offset
Parameter List Length
The only mode fields supported are:
Mode Value Description
5 05h Down load microcode and save.
7 07h Download microcode with offsets and save.
S
YNCHRONIZE CACHE (10) (35h)
The Logical Block Address and Number of Blocks fields are checked to ensure that the fields are in
range, but are then ignored and considered set to zero. All outstanding data is written out to the nonvolatile memory. The SYNC_NV and IMMED bits in CDB Byte 1 are ignored.
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 49
MODE SENSE (10) COMMAND (5Ah)
The MODE SENSE (10) command provides a means for a target to report parameters to the initiator.
It is complementary to the MODE SELECT (10) command. Byte 9 is ignored.
Table 27. Mode Sense (10) Command (5Ah)
Bit
Byte
0 Operation Code (5Ah)
1
2 PCF Page Code
3 Reserved
4 Reserved
5 Reserved
6 Reserved
7(MSB)
8(LSB)
9 Control
765 4 3210
000
Reserved
Reserved DBD Reserved
Allocation Length
A Disable Block Descriptors (DBD) bit of zero indicates that the target may return zero or more block
descriptors in the returned MODE SENSE data, at the target's discretion. A DBD bit of one specifies
that the target shall not return any block descriptors in the returned MODE SENSE data. The page
control (PC) field defines the type of mode parameter values to be returned in the mode pages. The
page code specifies which mode page to return.
Table 28. Page Code Field Descriptions for Mode Sense (10)
Page Code Description Subclause
00h Vendor-specific (does not require page format)
01h - 1Fh See specific device types
20h - 3Eh Vendor-specific (page format required)
3Fh Return all mode pages
50 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
PERSISTENT RESERVE IN (5Eh) COMMAND
The PERSISTENT RESERVE IN (5Eh) command will obtain information about persistent
reservations and reservation keys that are active within the device server. The command is
complementary to the PERSISTENT RESERVE OUT (5Fh) command. Byte 9 is ignored for both
commands.
Table 29. Persistent Reserve In
Bit
Byte
0 Operation Code (5Eh)
1 Reserved Service Action
76543210
2
6
7(MSB)
8(LSB)
9 Control
P
ERSISTENT RESERVE OUT (5Fh) COMMAND
Allocation Length
Table 30. Persistent Reserve Out
Bit
Byte
0 Operation Code (5Fh)
1 Reserved Service Action
2
6
7(MSB)
8(LSB)
9 Control
76543210
Parameter List Length
Reserved
Reserved
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 51
UNSUPPORTED COMMANDS
Table 31 lists the mandatory commands that are not supported by the Zeus
Table 31. Unsupported Mandatory Commands
Command Command Code Description
Request Sense 03h Device returns sense data with every failed command
as part of response information.
Format Unit 04h The device must be formatted using provided utility.
IOPS
drive.
52 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
FIBRE CHANNEL STANDARD
The Fibre Channel standard has coined various terms that are important to know when using the
IOPS
Zeus
understanding of the Fibre Channel interface.
FIBRE CHANNEL ARBITRATED LOOP
SSD. This section will present the basic terms in context to help provide an intuitive
The “Fibre” or “link” refers to the copper or optical cable that connects two Fibre Channel devices via
their ports. A device, known as a “node”, can have more than one port. For example, the Zeus
SSD is a node with two ports that is linked with a copper cable, or fibre.
Nodes are connected in a “topology”. The SSD may be connected to an “Arbitrated Loop” (AL), where
the nodes of the loop are connected in a circle. See Figure 4.
IOPS
Zeus
Figure 4. Arbitrated Loop Topology Connection
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 53
An Arbitrated Loop has certain rules:
1 Each port on the loop has an Arbitrated Loop Physical Address (AL-PA) that is set on the
“backplane” or the board to where the device is connected. Once set, the port attached to
the backplane inherits the AL-PA.
2 The AL-PA must have “neutral disparity”, i.e., the number of binary 0s and 1s in the AL-PA
are equal when 10-bit encoded. Out of the 127 addresses, one is reserved on the loop for
the fabric switch, leaving 126 possible AL-PAs.
3 There may be more than 126 ports physically attached to the on a loop, but only 126 will
be functional, with the remaining unable to obtain valid addresses.
4 If the AL-PA of a device is not unique on the loop, the device will not participate on the loop.
The user must choose another “hard address”, i.e., an AL-PA. If a unique hard address
cannot be set, the user can set the backplane to an AL-PA so that the loop will assign a
“soft address” to the device.
5 The lower the AL-PA, the higher priority the device has on the loop while keeping “fairness”.
Fairness means that every device on the loop has a chance to own the loop once before
another device owns it twice.
54 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
FABRIC NODE CONNECTION
The Zeus
any other node in the fabric. See Figure 5.
IOPS
SSD can also be connected to a “fabric” where any node on the fabric can connect to
Zeus
Figure 5. Fabric Node Connection
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 55
An Arbitrated Loop has the following states:
Monitoring Each port acts as a repeater while listening for further instructions.
Arbitration The port requests to own the loop.
Open The port wins arbitration and connects to another device.
Closed
The port relinquishes control of the loop and the loop is in the process of returning
to a monitoring state.
A node can be “hot plugged” where it is inserted or removed from the loop. When hot plugged, the
loop loses “sync” and must “reinitialize”. The loop will be able to recover any lost communications
during the hot plugging. Typically, a backplane may have a “bypass” circuit. See Figure 6. When
enabled, the bypass circuit will remove the device from the loop while keeping the loop connected.
The loop will remain operational while the device is connected, performs its POSTs, and becomes
ready.
Figure 6. Typical Backplane Bypass Circuit
56 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
The Fibre Channel standard is structured into FCP Function Levels, where “FCP” is “Fibre Channel
Protocol”. There is a hierarchy of function levels, written FC-0 to FC-4, and on top of those lies the
Upper Level Protocols or ULP. Table 32 summarizes each FCP level.
Table 32. FCP Function Levels
FCP Level Description
FC-0
FC-1
FC-2
FC-3
FC-4
ULP
This level defines the cable, transceivers, and connector. For example, the Zeus
3.5-inch Fibre Channel SSD uses copper cable and a 40-Pin SCA-2 connector.
This level defines the 8B/10B encoding of the basic word in the data stream. This
encoding consists of four characters. A word contains data or contains an ordered set
that serves as control information.
This level defines how the words are structured in frames, sequences, exchanges and
packets.
This level defines the common services. All communication through a node passes
through the common service protocol level, allowing networking features such as
“stripping” data, and “multicasting” to many nodes.
Maps the lower protocols to the ULPs.
This is the protocol that is transported by the Fibre Channel. For example, the
IOPS
Zeus
SSD has FCP-SCSI as its ULP.
IOPS
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 57
PHYSICAL CHARACTERISTICS
GENERAL PHYSICAL CHARACTERISTICS
MATERIALS
All acceptable enclosure materials have been independently tested by an NRTL and are certified to
comply with the following standards:
• ANSI/UL60950-1-2002
• CAN/CSA-C22.2 No.60950-1-03
DRIVE ASSEMBLY WEIGHT
The weight of a Zeus
drive. The following characteristics must be considered to determine the exact weight of the drive:
• Storage capacity
• IC stacking technology
• Case material (aluminum alloy or plastic)
• Flash controller/memory configuration
STORAGE CAPACITIES
IOPS
SSD varies according to the specific set of design characteristics of the
Table 33 lists the available formatted capacities, total data bytes, and corresponding total logical data
blocks in hexadecimal values of the Zeus
IOPS
SSDs.
Table 33. Formatted Capacities
Model
Z16F318C 18 GB 18,253,611,008 35,651,584
Z16F336C 36 GB 36,507,222,016 71,303,168
Z16F373C 73 GB 73,014,444,032 142,606,336
Z16F3146C 146 GB 146,028,888,064 285,212,672
58 Zeus
Formatted
Capacity
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
Total
Data Bytes
Total Logical
Data Blocks
(2200000 Hex)
(4400000 Hex)
(8800000 Hex)
(11000000 Hex)

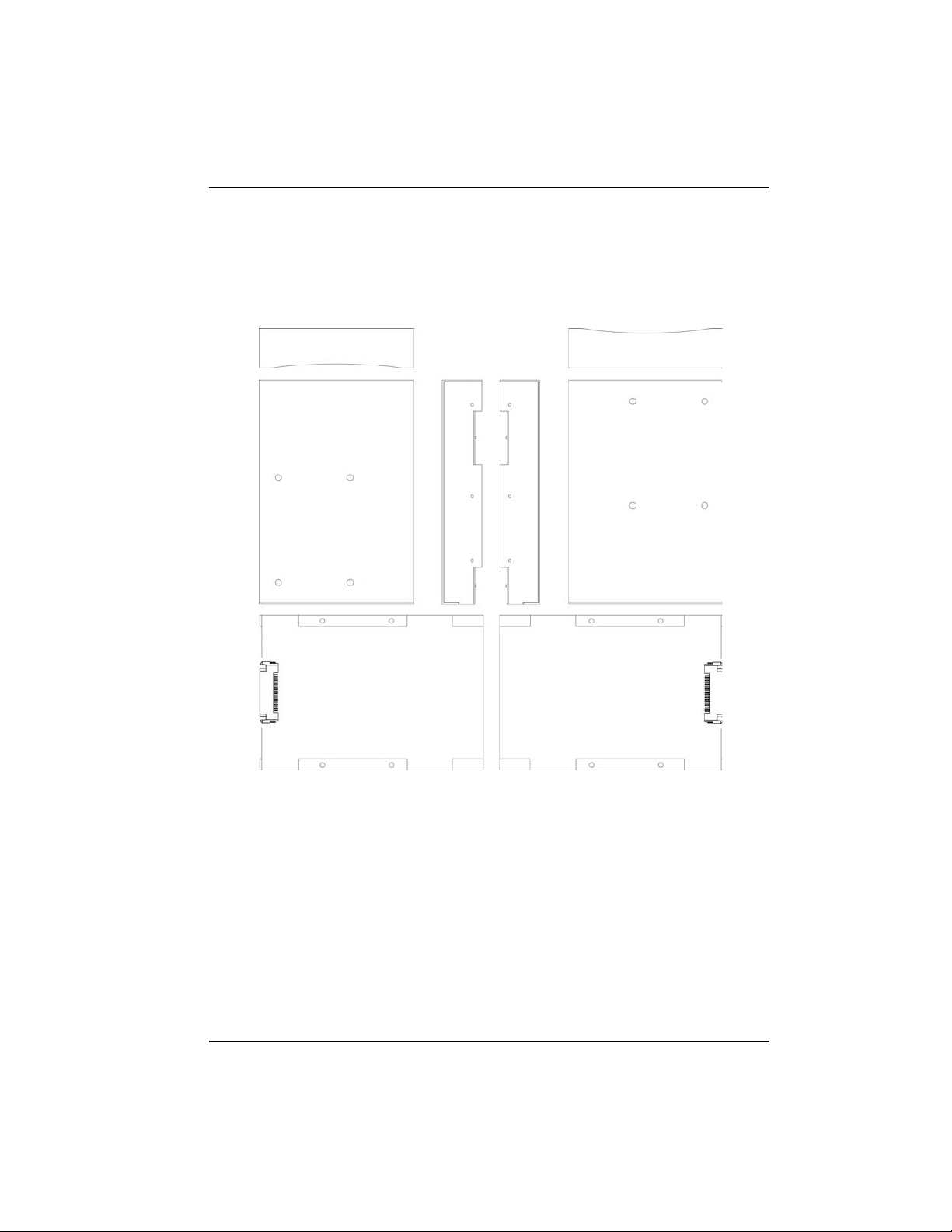

EXTERIOR DIMENSIONS
IOPS
Zeus
enclosures. The overall dimensions for the 3.5-inch form factor are illustrated in Figure 7.
SSD internal components are housed within precision machined aluminum alloy
Zeus
Figure 7. Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 59
IOPS
3.5-Inch Dimensions
ENVIRONMENTAL CHARACTERISTICS
OVERVIEW
IOPS
Zeus
suitability of the SSDs for operation in harsh and mobile conditions. The SSDs operate without
degradation within the ambient temperature, relative humidity and altitude ranges as specified in the
following sections.
TEMPERATURE CONDITIONS
Temperature parameters for the SSDs are divided into Operating, Storage and Case Temperature
Conditions.
OPERATING TEMPERATURES
Note: For the operating temperature, the ambient air temperature is that of the inlet air for the
equipment. See Table 34.
SSDs are subjected to a series of environmental tests to validate the portability and
Table 34. Operating Temperatures
Operating Requirement Criteria
Case Temperature
Commercial
Industrial TBA
Maximum Temperature Gradient TBA
o
C to 55oC
0
STORAGE TEMPERATURES
Note: Non-operating conditions include shipment and storage environments. See Table 35.
Table 35. Storage Temperatures
Storage Requirement Criteria
Temperature Range
Maximum Temperature Gradient TBA
Short Duration Temperature TBA
60 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
-40
o
C to 70oC
MAXIMUM COMPONENT TEMPERATURES
Critical drive component temperatures must be kept within certain limits to prevent damage to the
SSD. The approximate component locations within the drive are illustrated in Figure 8. Table 36 lists
the maximum component temperatures. Forced air cooling will be required in most applications to
ensure optimal conditions.
Zeus
Figure 8. Component Locations
Table 36. Maximum Component Temperatures
Component Designator
Processor U7
Flash Controller U6
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 61
Maximum Package
Temperature
o
C
95
o
C
80
INSTALLATION
SYSTEM REQUIREMENTS
There is a risk of electrocution! Use extreme caution when
handling the solid state drive and while connecting it to a
power source. Observe all applicable electrical safety rules
while installing the solid state drive. Make sure to read and
thoroughly understand this section before attempting to
install the drive.
SCSI CONNECTIONS
The Zeus
supports SCSI-3 or greater devices (the SSDs are intended to be compliant to future SCSI-4
standards). If the system does not have a Fibre Channel AL-Port, the user will need to supply and
install an adapter before proceeding with the installation. If the system fails to recognize the drive,
make sure the most recent drivers for the host adapter are installed. If the drive is connected to the
motherboard, the drivers are provided by the motherboard manufacturer. Changes to the operating
system are not required.
Make sure the following is on hand before installing the SSD:
IOPS
3.5-inch Fibre Channel SSD can be installed in an operating system environment that
• Phillips screwdriver
• Six M3 machine screws
• A cable suitable to connect the backplane or tailgate card to the HBA
• An available tailgate card or backplane connection.
• Available 12V power source
SINGLE CHANNEL OPERATION
The Zeus
This allows the drive to be used on systems that have multi-pathing software, also known as
“Dynamic Multi-Pathing” or DMP. The DMP software allows for two completely separate paths from
the one host machine to access the same drive; the two separate paths are recognized as being
logically connected together. This allows for some redundancy to be incorporated into the system.
Systems that support DMP typically send commands to the drive down both channels, using the
channel that is the least busy. If one channel fails for any reason then all commands are automatically
switched to use the remaining active channel.
62 Zeus
IOPS
SSD is dual-ported and can be accessed simultaneously down both ports or channels.
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
For host systems that are not DMP capable, having two paths from the same host machine to the
same drive can cause problems. For example, if the two channels are connected to the same host
machine when running an operating system that does not support DMP, two separate disks will be
reported by the operating system even though both reported disks are the same physical storage.
This can cause corruption to occur if the drive is subsequently accessed down both channels. See
Single Channel Mode for Early Revision Drives on page 66.
DRIVE CONFIGURATION
To accommodate both DMP and non-DMP capable systems, the SSD can be configured so that it
only operates (and is only visible) down one of the two channels. This feature is most likely to be used
on systems that do not support DMP but where the drives in the same JBOD chassis are to be
mirrored. Enabling just the A channel for the main drive and the B channel on the mirror drive will
cause both drives to be visible via separate host channels, thereby preventing any single point of
failure.
The feature is enabled by inserting a 2mm option jumper onto the two pins marked as JP1 on the
underside of the drive. Please note that jumper JP1 is located on the 10-way right-angled connector
that also serves as a test connector during manufacture. The drive will require power cycling after
JP1 is installed or removed. When this feature is enabled, the LSB of the SELECT_ID determines the
port that the drive will use. If the SELECT_ID is even, then port A is used. If the SELECT_ID is odd,
then port B is used.
WARNING: Only insert a jumper across the pins clearly labeled as JP1
on the PCB silk-screen. If JP1 is not marked, then please read the
following for information regarding early revision drives.
FAULT SIGNALS
Under certain conditions, the SSD will drive the Fault LED Out (fault signal) on the SCA-2 interface.
In most system configurations, this will normally be connected to an LED on the chassis that is visible
to the user.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 63
POWER-ON FAULT CONDITIONS
The fault codes listed in Table 37 indicate that a fault has been detected during the power-on
sequence. As a result, the unit is in a non-operational state and remedial action is required to replace
the unit.
Power-on fault codes are indicated as a series of flashes. The fault light will illuminate for 0.25
seconds (250mS), then turn off for 0.25 seconds (250mS), followed by a 2 second off interval. The
number of flashes between each 2 second off period is used to indicate the different fault conditions.
Table 37. Power-On Fault Codes
Flash Series Condition
1 Flash Memory strobe adjustment failure.
2 Flashes Memory address failure.
3 Flashes Memory data failure.
4 Flashes ECC error encountered during memory test.
5 Flashes ECC detection/correction circuit failure.
The fault code should be noted (along with the drive serial number if possible), and either the supplier
of the SSD unit or technical support should be contacted.
64 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
OPERATIONAL FAULT CODES
The following codes indicate that a fault has been detected during drive operation. The drive will
remain operational despite the fault. The drive should be replaced at the earliest possible opportunity.
Operational fault codes are indicated as a series of flashes. The fault light will illuminate for 1 second,
then off for 1 second, followed by a 10 second off delay. The number of 1 second flashes between
each 10 second delay period are used to indicate the different fault conditions: 5, 7 or 9 flashes.
Table 38. Operational Fault Codes
Code Condition Description
5 Flashes Power Backup Device Fa ulty The power backup circuit has failed. The power backup
7 Flashes NAND Flash Write Protect Error A write protect error was returned when the unit attempted
9 Flashes NAND Busy Error The BUSY pin from a NAND flash chip was asserted for too
circuit supplies power to the drive for a short period in the
event of a power failure. The backup power allows the
firmware to ensure that any active writes are completed. It
also allows information to be saved so that the drive
becomes ready promptly (< 30 seconds) when po wer is
restored. If this fault code is active and power is
unexpectedly lost, the drive may require several minutes to
come ready when the power is restored. If this occurs, only
the data blocks that were most recently written by the host
will be lost. If those same data blocks are read when power
is restored, the prior contents (prior to the lost write) will be
returned. No data wi ll be permanently lost. When this
fault code is active the drive will save all information and
prepare for power loss if a SYNCHRONIZE CACHE (10)
command (Opcode 0x35) is received via the host SCSI
interface. Most operating systems (Windows, Solaris,
Linux, etc.) will issue this command automatically when
shut down by the user. This will alleviate the potential
problems associated with this fault condition.
to write to the flash media. The most likely cause is a faulty
connection or voltage converter. If this error occurs
continuously then access from the host machine will be
locked out.
long. The most likely cause is a faulty co nnection. If this
error occurs continuously then access from the host
machine will be locked out.
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 65
SINGLE CHANNEL MODE FOR EARLY REVISION DRIVES
On early revisions of the drive, JP1 did not exist. These drives are identified by having a serial number
of “50” or less and only have an 8-way right-angled manufacturing connector. For this revision of
drive, the feature is enabled by setting bit 6 of the LOOP_ID to “1”. The LOOP_ID is set using the
SELECT_ID pins on the SCA-2 connector within the chassis to which the SSD is connected. See the
SEL_ID Function on page 30.
The SELECT_ID bits are normally configured by jumpers or a switch that allows the ID of the drive
to be set using the backplane of the SCA-2 connector. Table 39 lists the various configurations of the
SELECT_ID function.
Table 39. SELECT_ID Configurations
Bit 6 Bits 5 -1 Bit 0 Configuration Result
0 XXXXX X Loop ID 0 - 63
Drive operates down both channels.
1 XXXXX 0 Loop ID 64 - 126 and even
Drive operates down channel A only.
1 XXXXX 1 Loop ID 65 - 127 and odd
Drive operates down channel B only.
66 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
DRIVE ORIENTATION
The SSD can be installed in any number of orientations within the enclosure. The drive will operate
and meet all the requirements as outlined in this specification regardless of the mounting orientation.
See Figure 9.
Zeus
Figure 9. Possible Drive Orientations
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 67
COOLING REQUIREMENTS
If necessary to maintain the required operating temperature range, the host enclosure may remove
heat by conduction, convection, or other forced air flow. The suggested air flow patterns are shown
in Figure 10.
Figure 10. Suggested Air Flow Patterns for Cooling
68 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
MOUNTING HOLE DIMENSIONS
Figure 11 shows relative locations of the mounting holes. Careful attention should be made to the
length of the mounting screws and the recommended torque to prevent damage to the enclosure; the
maximum screw penetration is 5 mm. The mounting screw threads are M3 and the recommended
torque is 0.5 Nm to 0.8 Nm.
Zeus
Figure 11. Exterior Mounting Specifications
Underside Mounting Holes Side Mounting Holes
(4x) M3 Screws (6x) M3 Screws
Maximum Depth: 5.0mm Maximum Depth: 5.0mm
Maximum Torque: 0.8 Nm Maximum Torque: 0.8 Nm
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 69
DRIVE INSTALLATION
Electro Static Discharge or ESD can seriously damage the
electronic components of the host system and solid state
drive. It is very important to discharge any static electricity
before you begin the installation procedure. You can touch an
unpainted, grounded metallic surface to discharge any static
charges that may be present on your body or clothing. As an
alternative, you can also use an ESD protective wrist strap.
You can minimize the possibility of damage due to ESD by
avoiding physical contact with the electronic components.
To install the SDD in a server or host system:
1 Power down the computer/host system.
2 Remove the access cover.
3 Position the SSD in an available drive bay or choose a suitable mounting location.
4 Connect the SSD to the backplane or tailgate card. The connector on the drive is keyed to
ensure that the signal and power connections to the drive are correctly oriented.
5 Secure the SSD within the drive bay or to the mounting surface using M3 machine screws.
Apply sufficient torque to ensure that the drive is secure.
Note: Be aware of the depth of the drive’s mounting holes. The maximum penetration
depth of the drive’s mounting holes is indicated in Figure 15 on page 60. The user may
mount the drive using the side or underside mounting holes. Four (4) M3 screws will be
required to mount the drive from the bottom; six (6) M3 screws to mount the drive using the
side holes. It is recommended that the user secure the drive with at least four screws. To
avoid damaging the drive, consider the thickness of the mounting surface when deciding
on the screw length to use.
6 Replace the access cover and power on the computer/host system.
GROUNDING REQUIREMENTS
No special grounding circuitry is required. The signal and chassis grounds are not connected
together in the drive. The user should provide maximum surface contact area when connecting the
drive to the chassis ground to ensure minimal electromagnetic (EM) emissions.
70 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
OPERATING SYSTEM SPECIFICATIONS
The Zeus
The SSDs are low-level formatted at the factory. However, the SSDs must be partitioned and highlevel formatted. The SSDs can be formatted as boot drives or data storage drives using any standard
disk partitioning and formatting utility.
IOPS
SSDs are compatible with Microsoft Windows® and alternative operating systems.
MICROSOFT OS COMPATIBILITY
The SSDs are fully compatible with the following Microsoft operating systems, using the native
drivers supplied with the OS:
• Windows 2000, Service Packs 2, 3 and 4
• Windows 2000 Server, Advanced Server
• Windows XP Home and Windows XP Professional, Service Packs 1 and 2
• Windows XP, 64-Bit Extended
• Windows 2003 Standard, Enterprise, 64-bit, Web, Datacenter, Small Business Server
• MS-DOS
• Windows Pre-boot Environment (WinPE)
The drives are compatible with the current version of MS-DOS real-mode drivers bundled with any of
the Microsoft operating systems for reading files from optical media.
ALTERNATIVE OPERATING SYSTEMS
The drives are fully compatible with the following operating systems, using the native drivers supplied
with the OS:
• Linux Distributions (with Fibre Channel support)
• Sun Microsystems Solaris 8 and 10
• SGI IRIX
• HPUX
SYSTEM POST, BOOT AND RESUME TIMES
The time required for the drive to become ready varies according to the capacity. The average time
is 30 seconds. The total boot time will vary depending on the state of the capacitor-based power
backup module. Under normal operation, the module will remain in a state where it holds enough of
a charge to that the charging causes no delay to the boot-up. When the drive is new or remains
without power for many hours, the capacitors on the power backup module will be discharged. If the
capacitors are fully discharged the drive will take longer to start. For example: 18GB, fully discharged
35 seconds, charged 11 seconds; 146GB fully discharged 45 seconds, charged 23 seconds.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 71
SSD MANAGEMENT UTILITY
The firmware and hardware on a Zeus
IOPS
SSD can be upgraded in the field. The drive management
utility, “Giddy”, uses signed Java applet technology and the Java native interface to maintain the
SSD. Table 40 lists the supported operating systems, Java Runtime Environments (JREs) and
compatible web browsers. The documentation for the Management utility is found at http://
www.gnutek.co.uk/giddy.pdf.
Notes:
1 The end user is required to have administrator rights to execute the management utility.
2 The utility is capable of updating the firmware or the programmable gate arrays (“hardware
upgrade”).
3 The SSD will log internal events during normal operation. These “messages” are transparent to
the host. In the event of an error, the utility is capable of extracting these messages that can be
sent to the manufacturer for diagnostic purposes.
4 The user can choose to erase or sanitize the drive.
5 The utility will not permit updating the device with firmware intended for another model or
version of the device.
Table 40. Zeus
Operating System JRE Web Browser
Windows 2003 1.5.0
Windows 2000 1.5.0
Windows XP 1.5.0
Windows ME 1.5.0
Linux 1.5.0
Solaris 1.5.0 Netscape Navig ator 7.0+
IOPS
Management Utility Requirements
Internet Explorer 6.0+
Mozilla Firefox 1.4+
Netscape Navigator 7.0+
Internet Explorer 6.0+
Mozilla Firefox 1.4+
Netscape Navigator 7.0+
Internet Explorer 6.0+
Mozilla Firefox 1.4+
Netscape Navigator 7.0+
Internet Explorer 6.0+
Mozilla Firefox 1.4+
Netscape Navigator 7.0+
Mozilla Firefox 1.4+
Netscape Navigator 7.0+
72 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
NAND FLASH SUPPORT
The device will support multiple mutually agreed upon and approved NAND flash memory vendors
prior to release to manufacturing for proposed capacities in the design without changes to the
hardware or firmware. STEC develops firmware to support a wide range of NAND flash versions and
vendors. Please contact STEC for a list of supported flash and flash vendors.
DIAGNOSTIC SOFTWARE
The computer or system manufacturer is responsible for providing any diagnostic software or utilities.
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 73
REGULATORY COMPLIANCE
MARKING, APPROVALS AND SUPPORTING DOCUMENTATION
The SSDs will have the following marks, approvals and documentation as outlined in Table 41.
Table 41. Regulatory Marks and Documentation
Mark/Approval Documentation Mark
CE Electrical equipment sold in the European Economic Area
(EEA) will comply with the requirements of CAN/CSAC22.2 No. 60950-1-03 and be marked (CE) accordingly.
FCC Federal Communications Commission Declaration of
Conformity
RESTRICTION OF HAZARDOUS MATERIALS
STEC, Inc., has adopted the RoHS Directive, also known as the Restriction of Hazardous
Substances directive. The SSDs are compliant with the European Parliament and Council Directive,
i.e., assembled with Pb-free or lead-free components.
FCC DECLARATION OF CONFORMITY
The FCC (Federal Communications Commission) Declaration of Conformity (DoC) will contain the
following:
Yes
Yes
• Product type and model number
• Marks and countries (e.g., CE, FCC)
• The appropriate technical statement(s) required by the respective regulatory agencies
• Gnutek name and address
• Gnutek signature
• List of all applicable standards to which the drive conforms
74 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
RADIO FREQUENCY EMISSIONS
The Zeus
margin of 4dB below the EN55022 radiated emissions limits in all applicable customer platforms,
without any required changes to the system platforms.
Emissions testing in a 3 meter chamber for over 1GHz per the FCC limit for Class B was performed
up to 2GHz with the -4dB margin relative to the FCC Class B limit.
In preparation for the new CISPR 22 standard change that may go into effect in the year 2007, the
drives will pass EMI tests up to the higher frequency of either 6GHz or the fifth harmonic of the highest
signal on the drive. This requirement is applicable to all products being qualified after this version is
released. The specification limits are listed in Table 42.
IOPS
SSD has passed radiated emissions testing (10 meter chamber) with a minimum
Table 42. EMI Specification Limits
Class B 1 to 3 GHz is 50dB (uV/m) @ 3 m
Class B 3 to 6 GHz is 54dB (uV/m) @ 3 m
RADIO FREQUENCY IMMUNITY REQUIREMENTS
This specification is targeted as part of the design for quality and reliability expectations and is not
part of the regulatory requirements. The SSDs meet the following radio frequency immunity
requirements:
• 3 V/m over frequency range of 80 MHz to 1 GHz
• The signal will be amplitude modulated with a 1KHz sine wave to a depth of 80%
• Failure criteria:
• More than 10% throughput degradation
• Test setup will follow the procedures in the customer’s HDD Radio Frequency
Immunity Characterization Requirements
EMI TEST SITE CORRELATION
STEC Inc. will only use EMI test sites that are currently correlated with the customer’s test facilities.
STEC Inc. will contact the customer’s engineering staff for the list of approved laboratories.
VERIFICATION SAMPLES
STEC Inc. will submit the three worst-case drives used to obtain the emissions test data previously
obtained from the customer’s test facilities for verification testing. The Regulator Engineer will use
these drive samples, and others among those submitted for qualification, for emissions verification in
the customer’s systems.
VERIFICATION TESTING
Verification testing will be performed by the customer’s Compliance Peripheral Group.
IOPS
Zeus
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 75
ELECTROSTATIC DISCHARGE (ESD)
The SSDs will meet the ESD limits specified in the 61000-4-2 guidelines and the customer’s
enhanced ESD procedure. The specification will determine whether the contact or air discharge
method should be used. Performance degradation is defined as a decreased throughput rate. No
data errors are allowed. Table 43 lists the ESD requirements.
Table 43. ESD Requirements
Climatic Conditions
Ambient Temperature 15
Relative Humidity 30% to 60%
Atmospheric Pressure 86kPa (860 millibar) to 106 kPa (1,060 millibar)
Voltage Level Discharge Type Pass/Fail Performance Criteria
+/-2 kV Contact A
+/-4 kV Contact B
+/-6 kV Contact B
+/-8 kV Contact C
+/-2 kV Air A
+/-4 kV Air A
+/-8 kV Air B
+/-12 kV Air B
+/-15 kV Air C
o
C to 35oC
ACCEPTANCE CRITERIA DEFINITIONS
The following table lists the acceptance criteria definitions for the ESD limits.
Table 44. Acceptance Criteria Definitions
The apparatus will continue to operate as intended, i.e., normal unit operation with no
A
degradation of performance.
The apparatus will continue to operate as intended after completion of the test. However,
B
during the test, some degradation of performance is allowed, provided there is no data lost
or operator intervention to restore apparatus function.
Temporary loss of function is allowed. Operator intervention is acceptable to restore
C
apparatus function.
Note: Hardware failures are not acceptable for any level of the above performance criteria.
76 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
CONTACT AND ORDERING INFORMATION
Contact Information
For more information on Zeus
IOPS
Solid State Drives, contact the STEC Solid State Drive Team.
Telephone: 800-796-4645 (Toll free; U.S. and Canada only)
All Others: (949) 260-8345
Fax: (949) 851-2756
E-mail: ssd@stec-inc.com
Ordering Information
Part Number Description
Z ## F 3 ### (T) (U) (C)(Z)(P)(M) (XXX) (Example: Z16F3146C)
Customer Identifier
Optional Features
RoHS Compliance
Temperature
Capacity
Form Factor
Interface
Number of Channels
Product Family
Contact STEC
U = Lead-free product
Blank = Non-compliant
C = Commercial
I = Industrial
18 = 18 Gigabytes
36 = 36 Gigabytes
73 = 73 Gigabytes
146 = 146 Gigabytes
3 = 3.5-inch
F = Fibre Channel
Contact STEC
IOPS
Z = Zeus
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0 77
78 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
INDEX
A
Arbitrated Loop
Arbitration ....................................... 56
Bypass Circuit ........................ ........ 56
Closed ............................................. 56
Monitoring ........................ ............... 56
Open ...................... .......................... 56
Audience
system designers ........................ .. . 18
system engineers .......................... 18
C
Compliance
FCC DoC ........................................ 81
Contact Information .................. ...... 77
Copyright Notice ...................... ......... . ii
D
Disclaimer of Liability ...................... . ii
E
Electrical Specifications
Dev_Ctrl_Code_x .......................... 32
-Drive Present ................................ 32
-ENBL_BYP CH1 .......................... . 31
-ENBL_BYP_CH2 ......................... 31
Fault LED Out Signal .................... 29
Grounding ...................... ................. 29
P_ESI_n ........................... ............... 29
P_ESI_n Function ......................... 31
-Parallel ESI ................................... 29
Power Consumption ..................... . 28
Power Requirements .................... 28
Power Supply ....................... .......... 28
Ready LED Out Signal ................. 29
SEL_ID Function ........................... 30
SEL_ID-AL_PA translation ........... 30
SEL_n ......................... ........... .......... 29
SFF-8045 Enclosure ............... .......31
Start_n Mated ................................. 31
Environmental Characteristics
Component Temperatures ............61
Operating Temperatures ...............60
Overview ................. ............... ..........60
Storage Temperatures ..................60
Temperature Conditions ...............60
Export Administration Regulations ii
F
FC-AL Features
different loops .................................37
full-duplex ...................... ..................37
Loop Connections ................... .......37
same loop ............................ ............ 37
FCP-SCSI Commands
Supported SCSI Commands ........38
Unsupported SCSI Commands ...52
Fibre Channel
Arbitrated Loop ..................... ..........53
Arbitrated Loop Physical Address 54
Fabric Node Connection ............... 55
FCP Function Levels .....................57
I
Installation
Cooling Requirements ...................68
Diagnostic Software ...................... .73
Drive Configuration ................... .....63
Drive Installation ...................... ....... 70
Drive Orientation ............................67
Early Revision Drives ....................66
Fault Signals ................................... 63
Grounding Requirements ..............70
Mounting Dimensions ................... .69
NAND Flash Support .................. ...73
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev 1.0 77
Operating System Specifications .71
Operational Fault Codes ...............65
Power-On Fault Conditions ...........64
SCSI Connections ....................... ...62
Single Channel Operation ............ .62
SSD Management Utility ...............72
Interface Specifications
Connector Pinout .................... ........3 6
Ground Signals ..................... ..........36
SCA-2 Interface Connector ...........34
SSD Operation ............................. ...33
Voltage Signals ....................... ........36
M
Manual Conventions
CAUTION ................................. ..... .. . iii
ESD .................................................. iii
NOTE ............................................... iii
SHOCK HAZARD .......................... . iii
TIP .................................................... iii
Manual Overview
Electrical Characteristics ...............18
FC-AL Features ..............................19
Fibre Channel Standard ........ ........19
Installation .......................................19
Interface Specifications .................18
Introduction .............................. ........ 17
Performance Characteristics ........18
Product Description ..................... ...18
Reference Documents ................... 18
Regulatory Compliance .................19
SCSI Commands ......................... ...19
Standard Features .........................18
Standards ........................................18
O
Ordering Information .................... ... 77
P
Performance Characteristics
Access Time ............................ ........2 5
Bad-Block Management ................24
Cache Operations ...................... ....27
Data Retention .......................... .. ....24
Data Transfer Rates ...................... 25
Endurance .......................... ............. 24
Erase Times ............................ ........ 26
Error Correction ...... ........................24
Error Detection ...............................24
Hot Plugging ...................................27
Mount Time ..................................... 25
Reliability ......................................... 24
Sanitize ......................... ................... 26
Wear-Leveling Algorithm ..............24
Physical Characteristics
Assembly Weight ...........................58
Exterior Dimensions ......................59
General ...................... ...................... 58
Materials ................ .......................... 58
Storage Capacities ........................58
Preventative Maintenance ............ 27
Product Description
Data Security .................................. 23
Drive Capacities ............................. 23
Fibre Channel Interface ................23
General Description ................... .... 23
Performance ...................................23
R
Regulatory Compliance
CE Marking .....................................74
Declaration of Conformity ............. 74
Electrostatic Discharge ................. 76
EMI Test Site .................................. 75
FCC ........................ .......................... 74
Radio Frequency Emissions ........75
RoHS Directive ........................... ....74
Verification Samples ......................75
Verification Testing ........................ 75
Repairs .......................... .................. ....27
78 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
S
Scope
Audience ........................ ................. 18
Manual Overview ..................... ...... 17
Product ID Codes .......................... 17
SCSI Commands
Inquiry Command (12h) ................ 41
Log Sense (4Dh) ........................... 45
Mode Sense (10) Command (5Ah) 50
Mode Sense (6) Command (1Ah) 43
Persistent Reserve In (5Eh) ......... 51
Persistent Reserve Out (5Fh) ...... 51
Read (6) (08h) ........................ ........ 40
Read Capacity (25h) ............... ...... 46
Read Extended (10) (28h) ........... 47
Release (10) Command (57h) ..... 50
Release (6) Command (17h) ....... 43
Report Luns (A0h) ................... 38, 39
Send Diagnostic Page (1Dh) ....... 44
Synchronize Cache (10) (35h) .... 49
Test Unit Ready ..................... ........ 40
Unsupported Commands ............. 52
Verify (10) (2Fh) ..................... ..... .. . 48
Write (6) Command (0Ah) ............ 41
Write and Verify (10) (2Eh) .......... 48
Write Buffer (3Bh) .......................... 49
Write Extended (10) (2Ah) ........... 48
Standard Features
Environmental ................................ 22
Firmware Upgrades ............... .. ..... . 21
Interface Standard ............... .......... 20
Introduction .................. ................... 20
Media ........................ .................... ... 21
Performance ....................... ............ 21
Physical ........................ ................... 21
Power .............................................. 22
Reliability .................... .... .. ..... .. ..... .. . 21
Unformatted Capacities ................ 21
T
Trademark Information ....................ii
U
Unsupported SCSI Commands
Format Unit .....................................52
Request Sense ........................ .......52
W
Warranty
Limited .............................................81
Modifications ................. ..................81
Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev 1.0 79
80 Zeus
IOPS
3.5-Inch Fibre Channel Solid State Drive Product Manual Rev. 1.0
CERTIFICATION AND WARRANTY
FCC Declaration of Conformity
IOPS
Zeus
Solid State Drives carry the FCC-Mark in accordance with related Federal Communications
Commission (FCC)–USA directives. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interfe rence to radio or televi sion reception, wh ich can be
determined by turning the equipment off and on, the user is en couraged to try to correct the interference b y
one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/television technician for help.
Modifications made to this device that are not approved by STEC Inc. may v oid the authority grant ed to the
user by the FCC to operate this equipment.
Limited Warranty
STEC Inc., Solid State Drives are warranted against de fects in material and workmanship, and will operate in substantial
conformance with their respective specifications under normal use and service for a period of five (5) years from the
date of shipment. Subject to the conditions and limitations set forth below, STEC will, at its own option, either repair or
replace any defective SSD Product that proves to be defective by reasons of improper workmanship or materials, if
buyer notifies STEC of such failure within the stated warranty period. Produ cts repaired or replaced during the applicable
warranty period shall be covered by the foregoing warranties fo r the remainder of the original warranty period or ninety
(90) days from the date of reshipment, whichever is longer. Part s used to repair pro ducts or repla cement prod ucts may
be provided by STEC on an exchange basis, and will be either new or refurbished to be functionally equivalent to new.
STEC INC. DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
WITH RESPECT TO ITS PRODUCTS AND ANY ACCOMPANYING WRITTEN MATERIALS. FURTHER, STEC INC.
DOES NOT WARRANT THAT SOFTWARE WILL BE FREE FROM DEFECTS OR THAT ITS USE WILL BE
UNINTERRUPTED OR REGARDING THE USE, OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS
OF CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE.
STEC Inc. is not responsible for updates or functionality of third-party software. Software is provided with notices and/
or licenses from third parties which govern your use.
Modifications
Any changes or modifications made to this device that are not expressly approved by STEC Inc. will void the user’s
warranty. All wiring external to the product should follow the provisions of the current edition of the National Electrical
Code.
81
61000-04522-101: Revision 1.0
STEC Inc.
World Headquarters
3001 Daimler Street
Santa Ana, CA 92705 USA
Tel: 949.260.8345
Fax: 949.417.1335
Web: www.stec-inc.com
Loading...
