1-866-4SIMONIZ (1-866-474-6664
1-800-544-2444 (KOHLER® Engine)
Congratulations on the purchase of your new
pressure washer. In order to ensure you have the best
possible experience please read through the following
instructions. If you require any help please contact the
customer service department at:
Use and Care Guide
GAS PRESSURE WASHER
039-8582-6
Table of Contents
1. Safety Advice..............................................................................................................3
1.1 Definitions..............................................................................................................3
1.2 Safety Warnings.....................................................................................................3
1.3 Intended Application..............................................................................................7

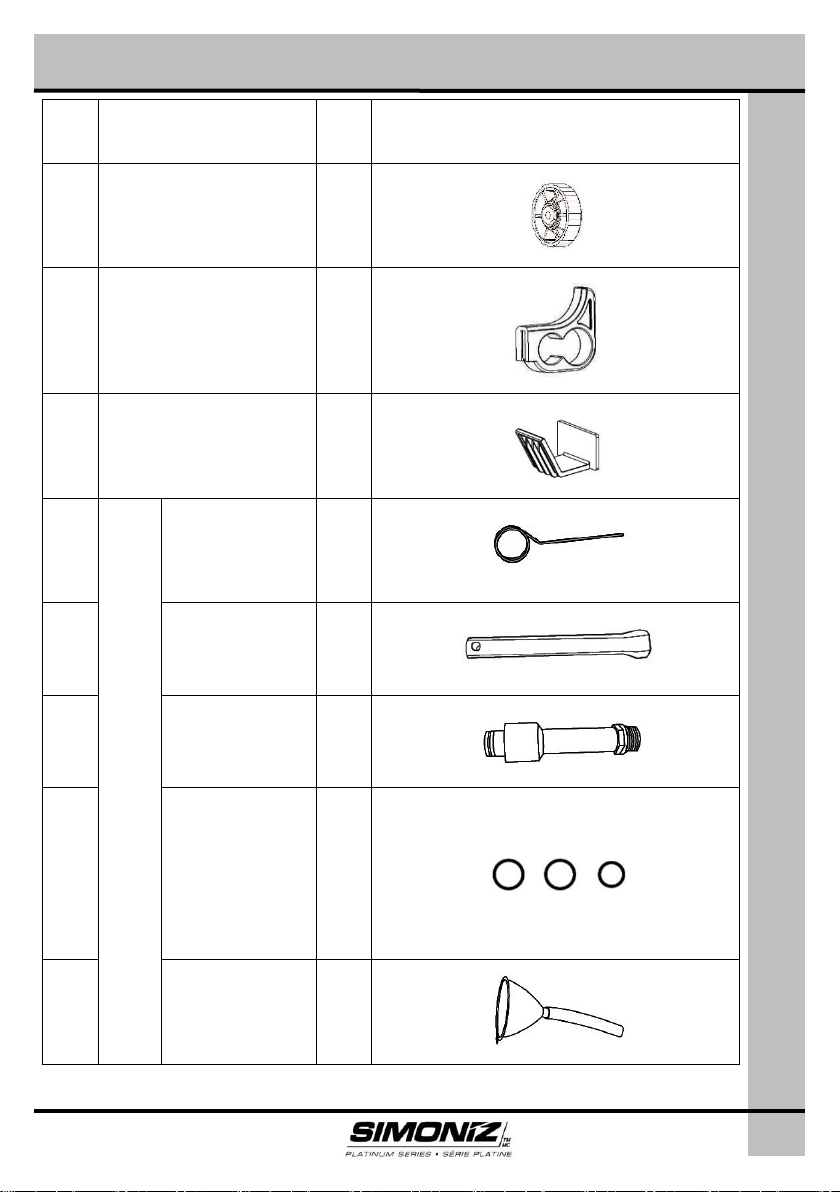

2. Parts List....................................................................................................................8

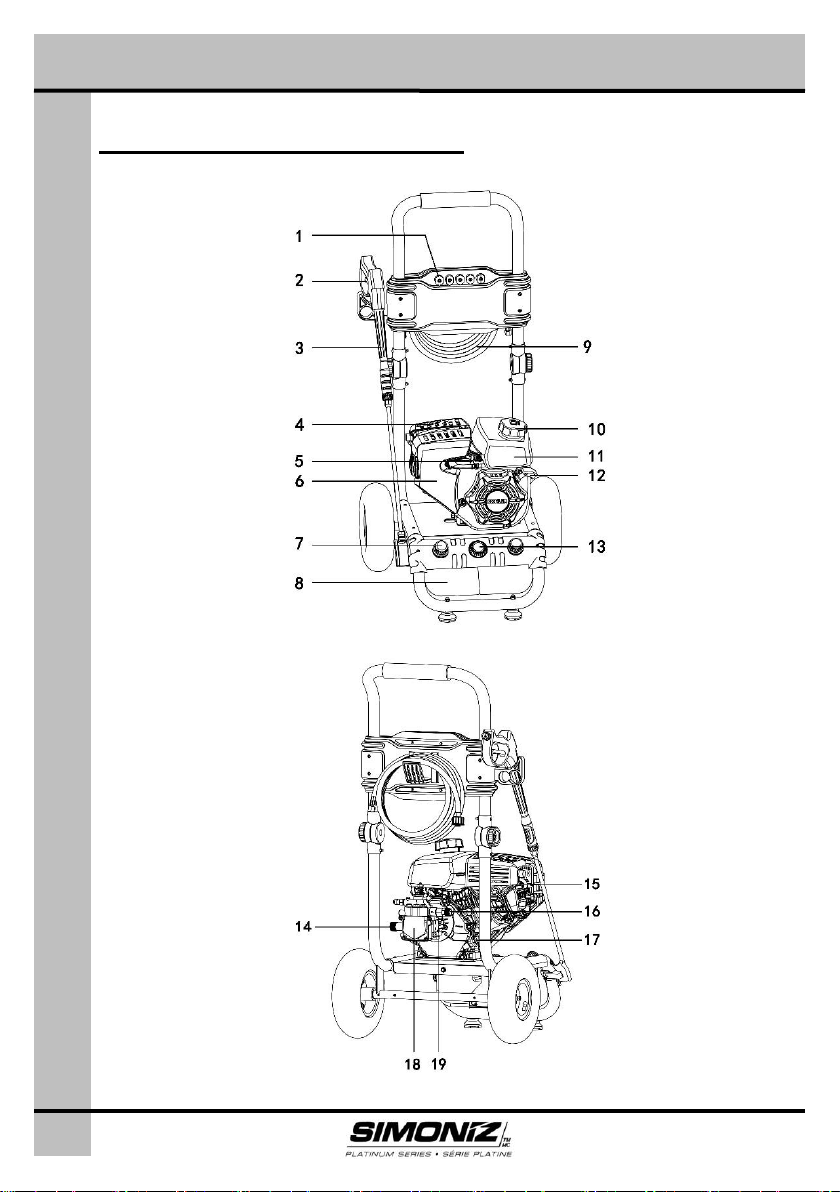

3. Assembled Model Diagram......................................................................................10

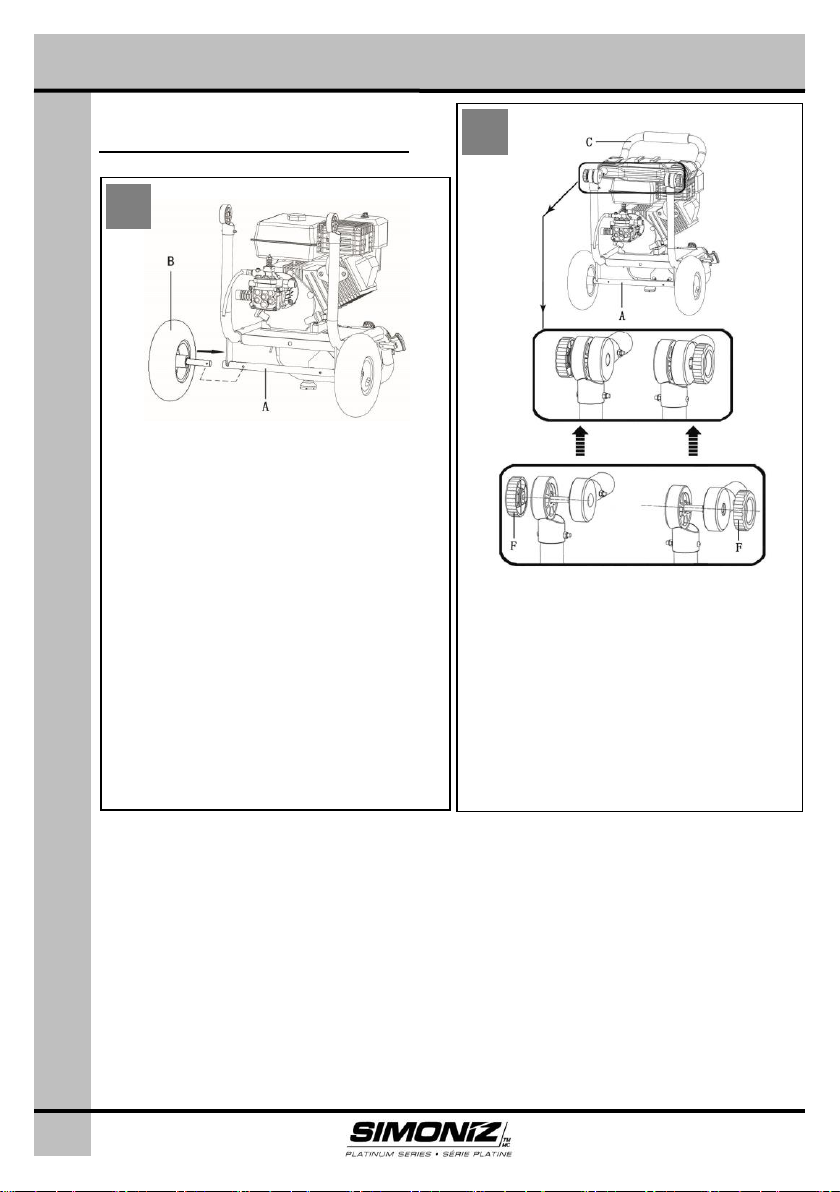

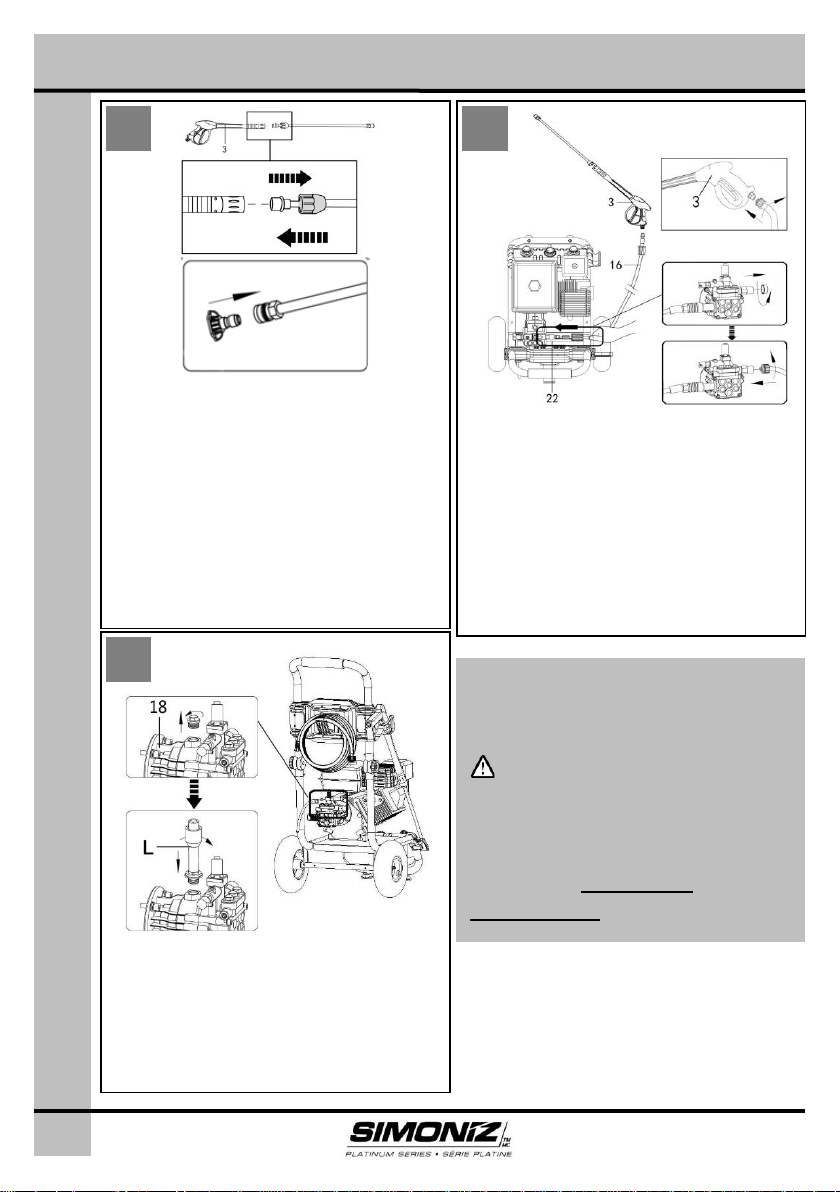

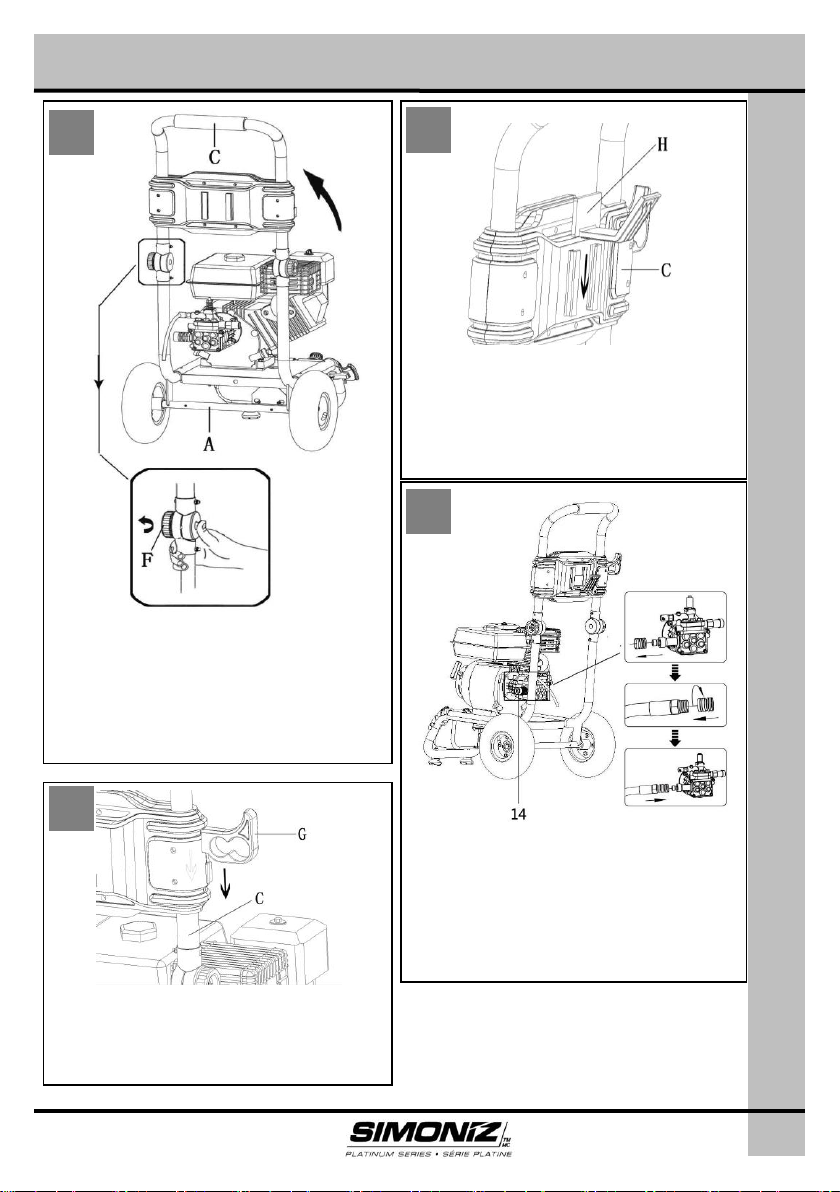

4. Assembly Instructions..............................................................................................12
5. Operating Instructions..............................................................................................15

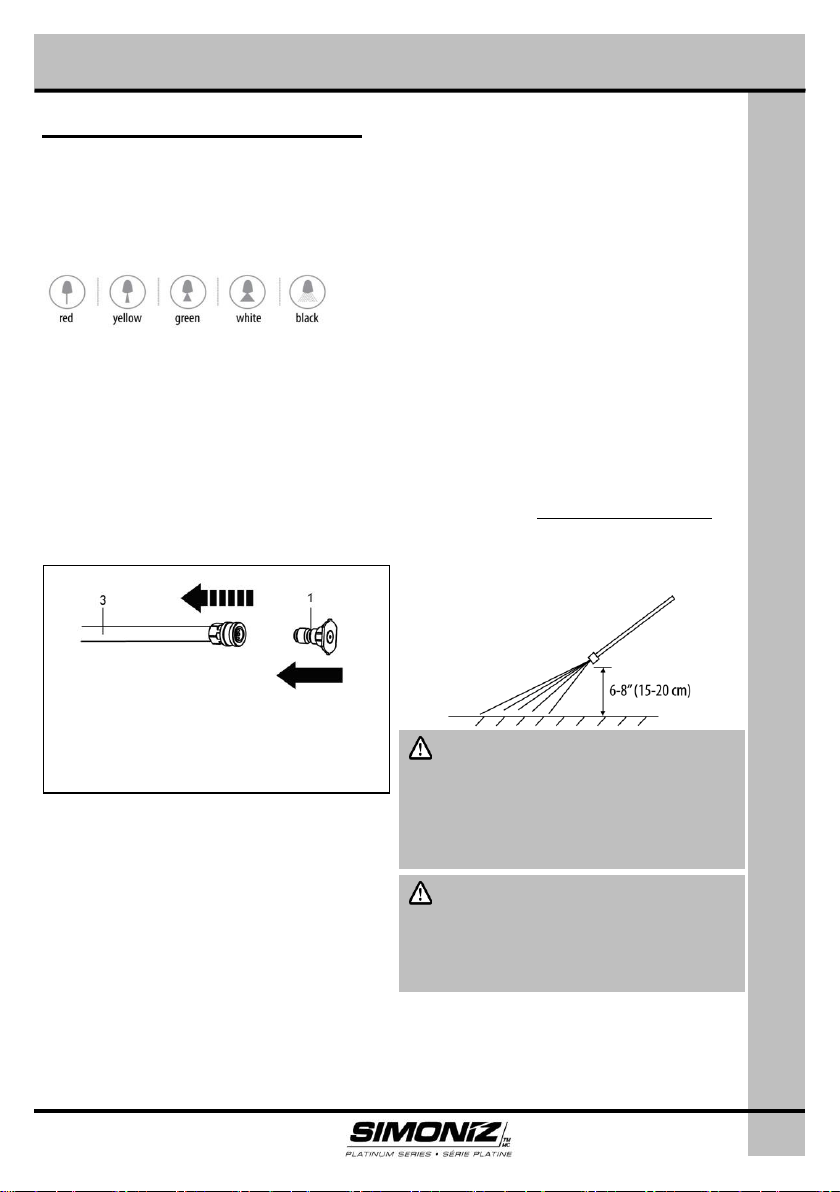

5.1 Using Spray Nozzle.............................................................................................15
5.2 Water Supply (Cold Water Only)..........................................................................15

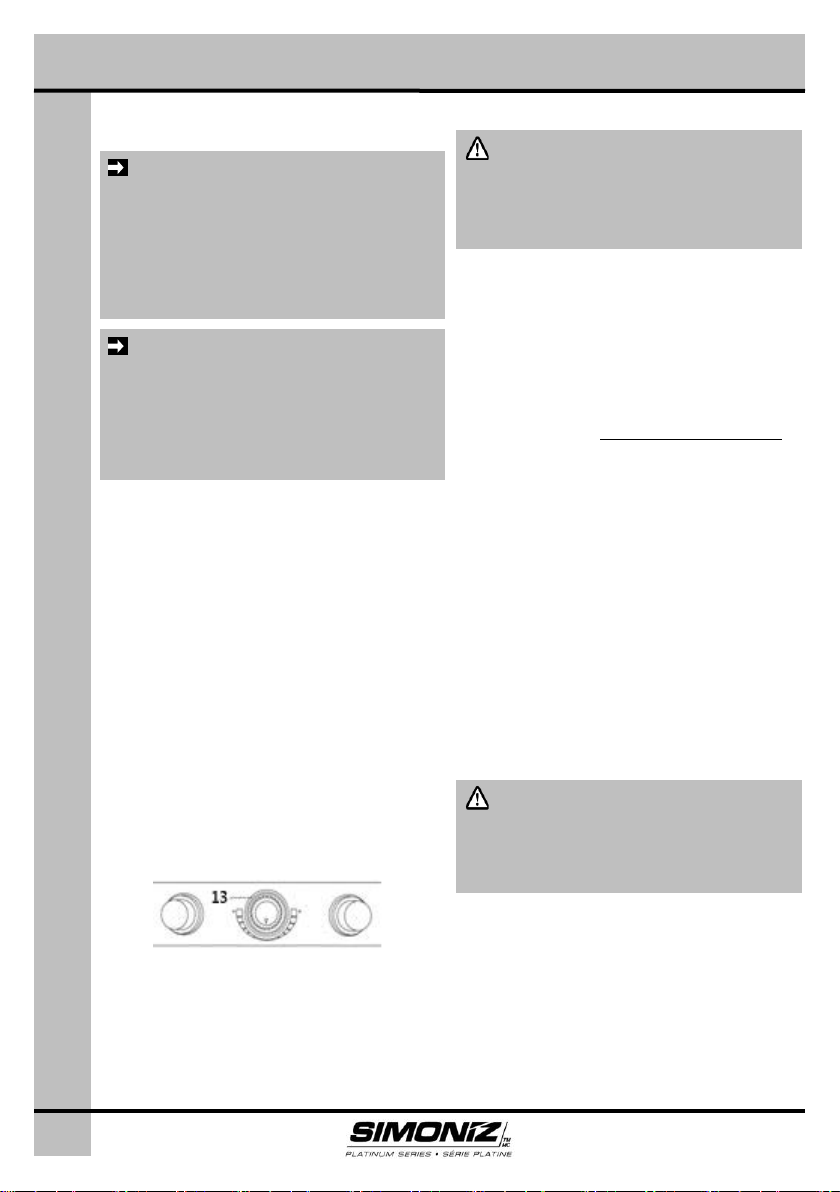

5.3 Adjusting Water Pressure....................................................................................15
5.4 Starting Pressure Washer....................................................................................15
5.5 Cleaning with Detergents.....................................................................................16
5.6 Shutting Down and Cleaning Up..........................................................................16
6. Engine Operation.....................................................................................................17

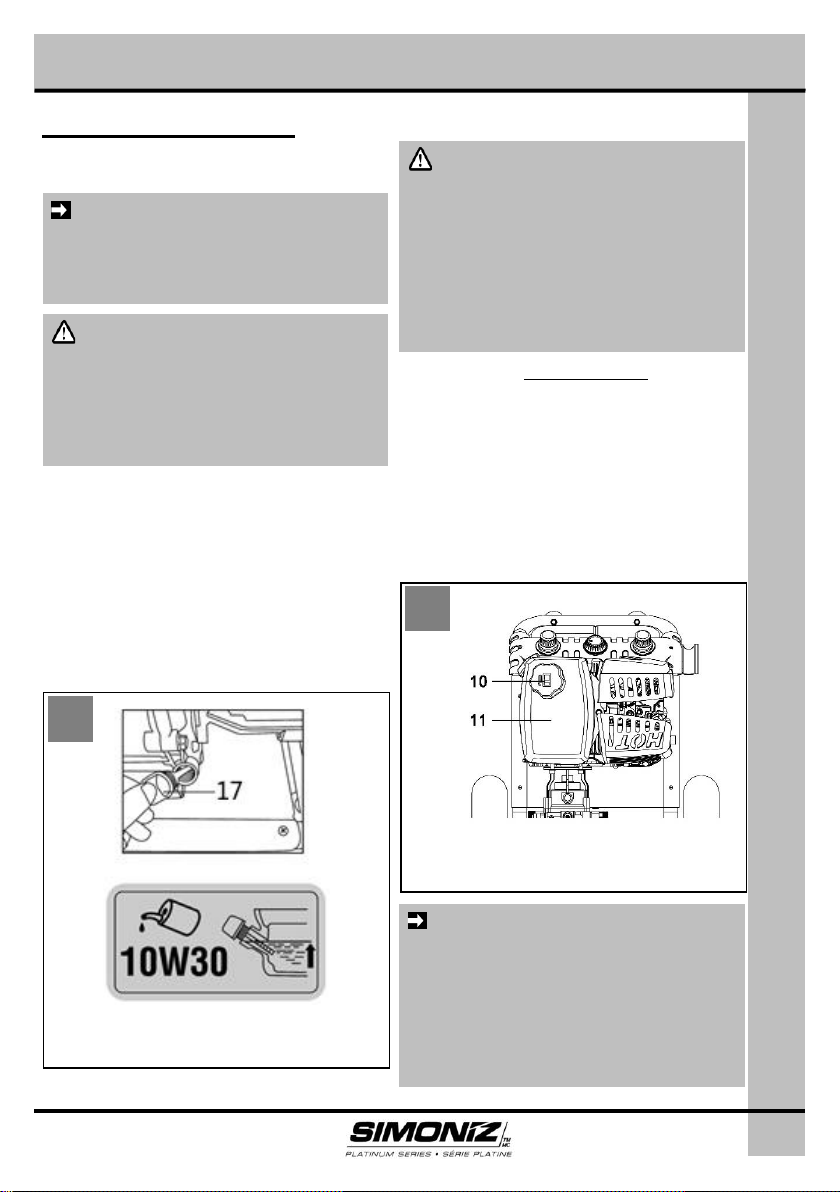

6.1 Adding/Checking Oil............................................................................................17
6.2 Adding Fuel..........................................................................................................17
6.3 Starting Engine....................................................................................................18
6.4 Stopping Engine..................................................................................................18
7. Cleaning and Maintenance......................................................................................18
7.1 Cleaning Water Inlet Filter....................................................................................18

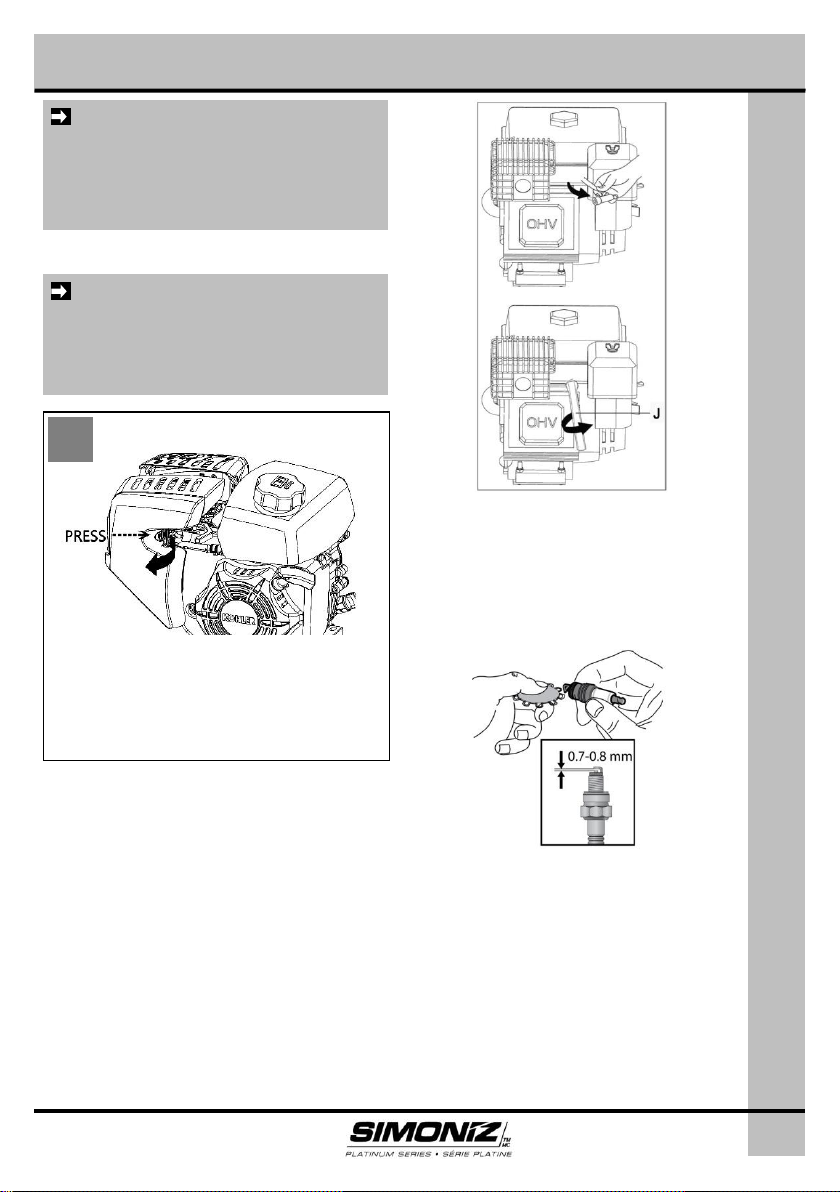

7.2 Engine Maintenance............................................................................................18

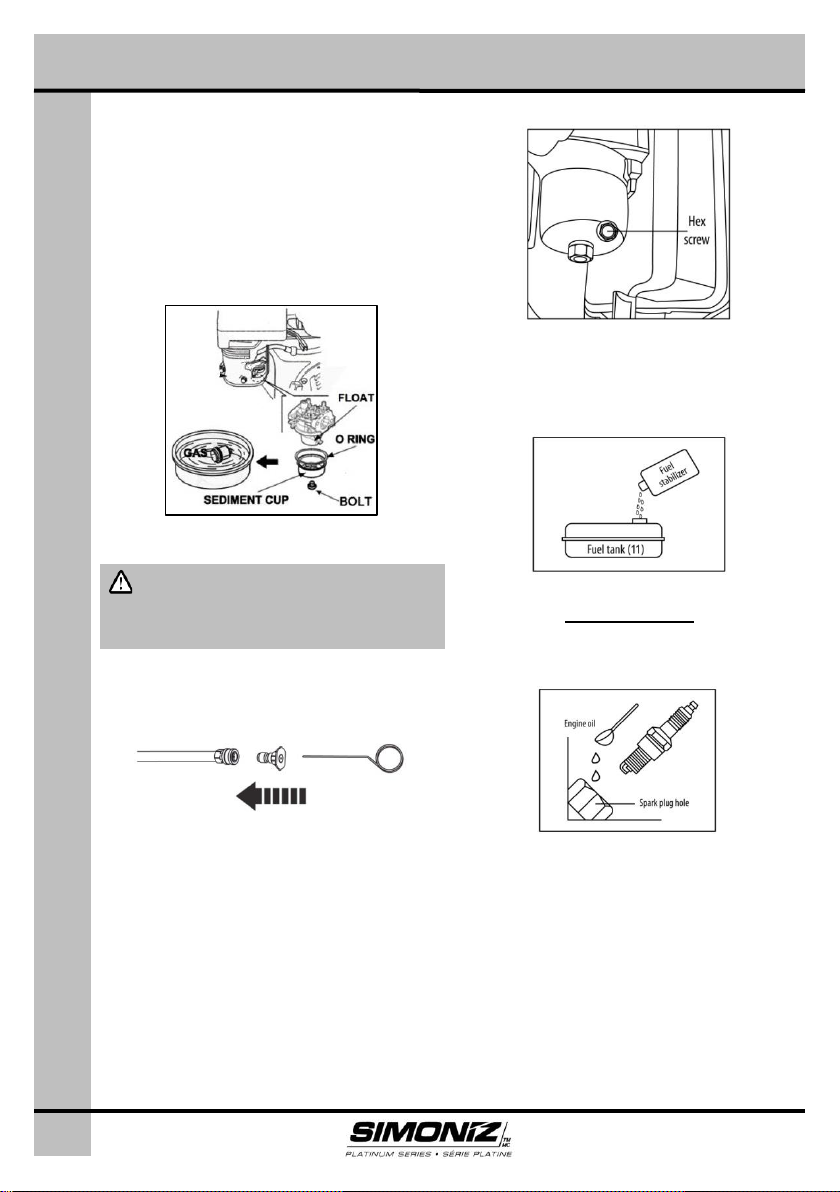

7.3 Cleaning Carburetor.............................................................................................20
7.4 Cleaning the Spray Tips.......................................................................................20
7.5 Storing.................................................................................................................20

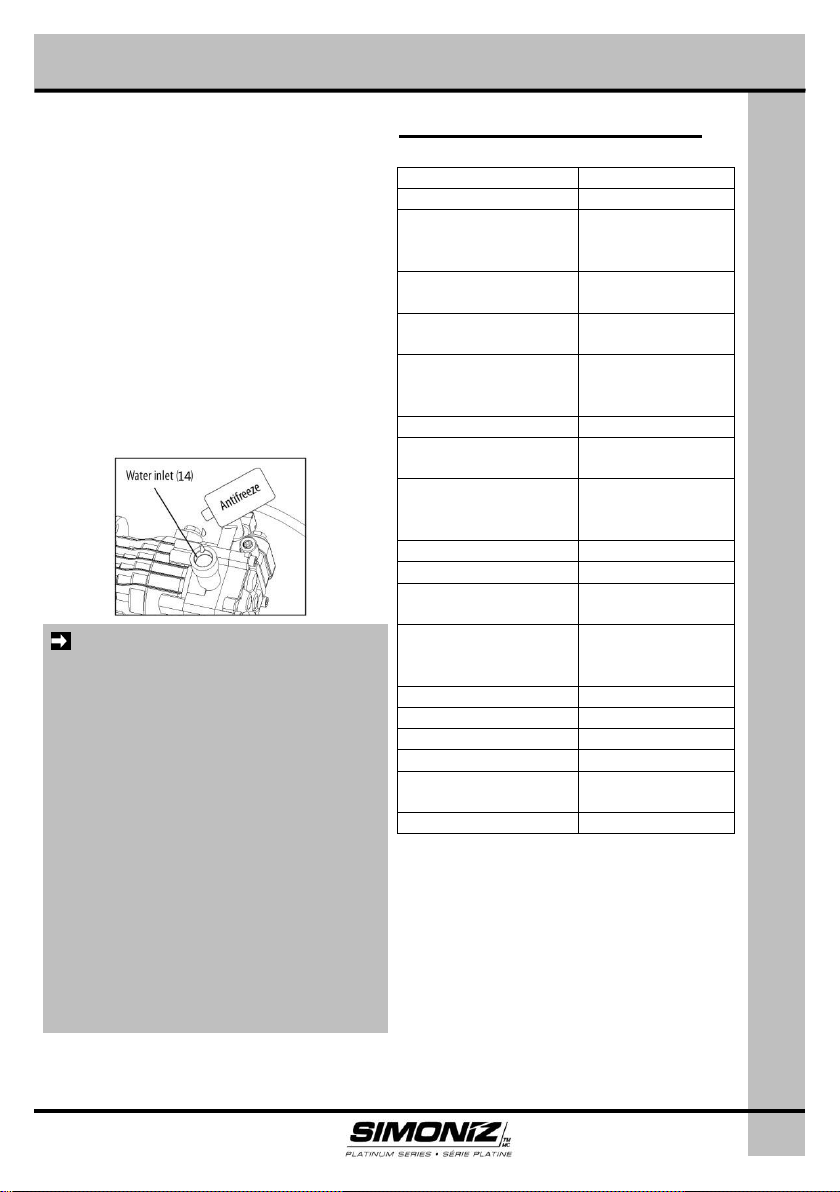

7.6 Winterizing Procedures........................................................................................21
8. Technical Specifications..........................................................................................21
9. Troubleshooting......................................................................................................22
10. Limited Warranty...................................................................................................24

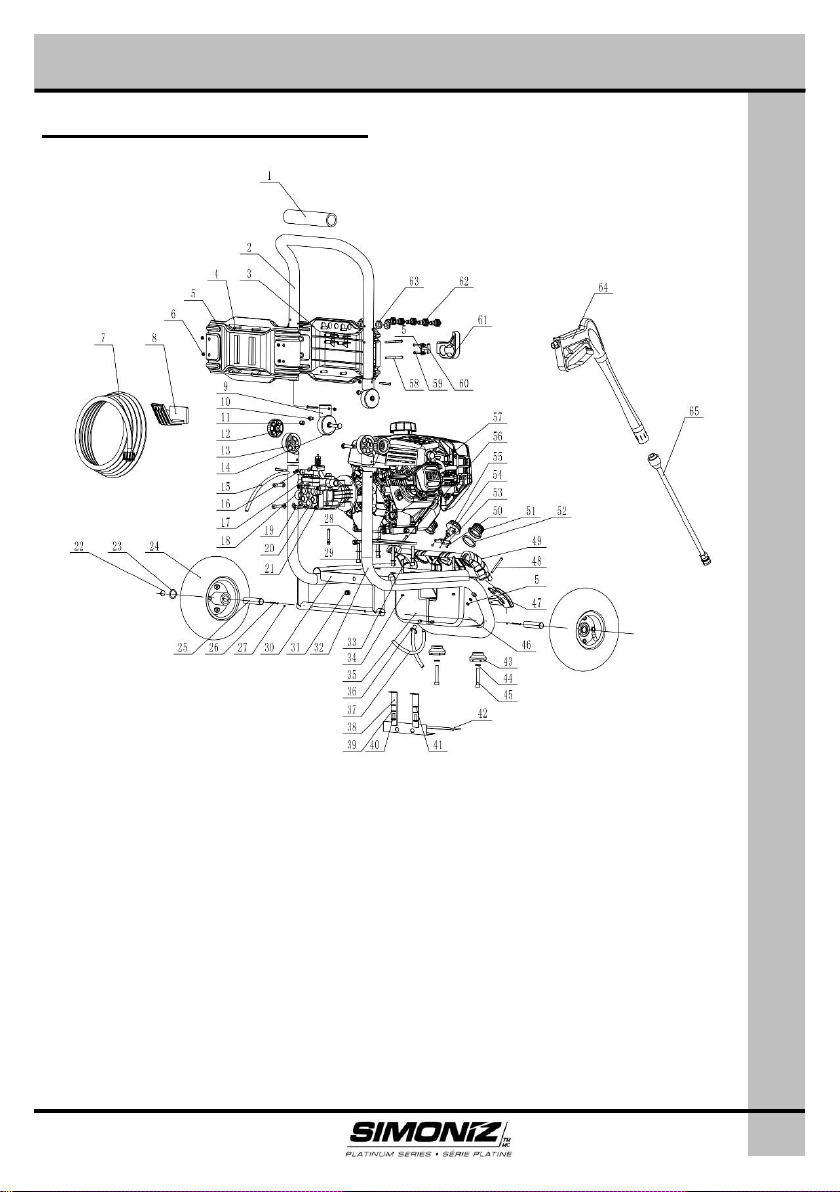

11. Exploded Parts Diagram.......................................................................................25
Safety Advice
3
DANGER
Read all safety warnings and all
instructions. Failure to follow the
warnings and instructions may result in
fire and/or serious injury.
IMPORTANT
Never operate this product under the
following conditions:
•If a noticeable change occurs in the
engine speed
•If the engine misfires
•If there are flames or smoke in the area
•If there are excessive vibrations
IMPORTANT
Installation, operation, or maintenance
information which is important but not
hazard-related.
POISONOUS
Alerts against materials/gases which are
very poisonous and can cause serious
bodily harm or even death.
FLAMMABLE AND
COMBUSTIBLE MATERIALS
Alerts against the presence of
materials/gases which can be extremely
flammable.
TOXIC GASES
Alerts against possible toxic gases which
can be harmful to your health or deadly if
you are exposed to them.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, could result in minor
or moderate injury.
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will result
in death or serious injury.
1. S
AFETY ADVICE
IMPORTANT: RETAIN FOR FUTURE
REFERENCE AND READ
CAREFULLY!
Do not attempt to install or operate this product
until you have read the safety instructions in
this manual. Safety items throughout this
manual are labeled
Caution
Read and understand the operating manual
and labels on the product. Familiarize yourself
with the product application and limitations and
the specific potential hazards. Know the
controls and their proper use. It is important to
know how to stop the product and disengage
the controls quickly.
depending on the risk type.
Danger, Warning
, or
1.1 Definitions
This is the safety alert symbol. It is used
to alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
1.2 Safety Warnings
Safety Advice
4
WARNING – PERSONAL SAFETY
• Stay alert, watch what you are doing, and use
common sense when operating a pressure washer.
Do not use a pressure washer while you are tired or
under the influence of drugs, alcohol, or medication.
A moment of inattention while operating a pressure
washer may result in serious personal injury.
• Use safety equipment. Always wear eye
protection. Protective equipment such as a dust
mask, non-skid safety shoes, a hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
• Do not use the product if the engine’s switch does
not turn it on or off. Any gasoline powered product
that cannot be controlled with the engine switch is
dangerous and must be repaired.
• Remove any adjusting key or wrench before
starting the pressure washer. A wrench or a key left
attached to a rotating part of the pressure washer
may result in personal injury.
• Do not overreach. Do not operate the product while
barefoot or when wearing sandals or similar
lightweight footwear. Wear protective footwear that
will protect your feet and improve your footing on
slippery surfaces. Do not stand on the product.
Keep proper footing and balance at all times. This
enables better control of the product in unexpected
situations.
• Avoid accidental starting. Be sure the engine’s
switch is off before transporting the product or
performing any maintenance or service on the unit.
Transporting or performing maintenance or service
on a product with its switch on invites accidents.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewellery, or long
hair can get caught in moving parts.
• Do not place your hands or feet near moving parts.
• Do not use while on a ladder.
CAUTION – HOT ENGINE AND
MUFFLER
THE ENGINE AND MUFFLER
BECOME VERY HOT DURING
AND AFTER USE. AVOID
TOUCHING THE ENGINE OR THE
MUFFLER DURING OR AFTER
USE.
WARNING – INADEQUATE
VENTILATION
• Materials placed against or near the product,
or operating the product in areas where the
ambient temperature exceeds 40 °C (104 °F)
(such as storage rooms or garages) can
interfere with its proper ventilation features,
causing overheating and possible ignition of
the materials or buildings.
• Operate the product in a clean, dry, and
well-ventilated area at least 2 m away from
any buildings, objects, or walls.
• NEVER OPERATE THIS PRODUCT
INDOORS OR IN POORLY VENTILATED
AREAS.
DANGER – WORK AREA SAFETY
AND EXHAUST FUMES
• Keep work area clean and well lit. Cluttered
and dark areas invite accidents.
• Operate the product in a clean, dry and
well-ventilated area.
• Do not operate the product in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
• Never operate the product on a steep slope.
• Keep children, pets, and bystanders away
from the operating area. Breathing exhaust
fumes can cause serious injury or even death.
• Never start or run the engine indoors. The
exhaust fumes are dangerous, containing
carbon monoxide, an odorless and deadly
gas. Operate this product only in a
well-ventilated outdoor area
GASOLINE ENGINE PRODUCE TOXIC
CARBON MONOXIDE EXHAUST
FUMES.
BREATHING CARBON MONOXIDE CAN
CAUSE NAUSEA, FAINTING, ORDEA
TH.
1.2 Safety Warnings
Safety Advice
5
CAUTION – ENGINE SAFETY
• Certain components in this product and its related
accessories contain chemicals which are known to
cause cancer, birth defects, or other reproductive
harm. Wash hands after handling.
• The engine exhaust from this product contains
chemicals which are known to cause cancer, birth
defects, or other reproductive harm.
• Check fuel lines, tank, cap, and fittings frequently
for cracks or leaks. Replace if necessary.
• This engine was shipped without oil. Before you
start the engine, make sure you add oil according to
the instructions in this manual. If you start the
engine without oil, it will be damaged beyond repair
and will not be covered under the warranty.
• When starting engine ensure that spark plug,
muffler, fuel cap and air filter are in place and
secured.
• Do not crank engine with spark plug removed.
• If engine floods, move the throttle control to fast
position and crank until engine starts.
• When operating the engine do not tip engine or
equipment at an angle that will cause fuel to spill.
• Do not choke the carburetor to stop the engine.
• Never start or run the engine with the air cleaner
assembly or the air filter removed.
• Transport or move the product only with empty fuel
tank.
• Rapid retraction of starter cord (kickback) will pull
hand and arm towards engine faster than you can
let go. Risk of injury – broken bones, fractures,
bruises, or sprains could result.
• Keep the engine and muffler free of grass, leaves,
excessive grease, or carbon build-up to reduce the
chance of a fire hazard.
• Do not tamper with any part of the engine to
increase its speed.
• If the product makes an unusual noise or vibration,
immediately shut off the engine, disconnect the
spark plug wire, and check for the cause. Unusual
noise or vibration is generally a sign of a problem.
• Use only attachments and accessories approved
by the manufacturer. Failure to do so can result in
personal injury.
FLAMMABLE AND POISONOUS
MATERIALS
• Gasoline is highly flammable and its vapours can
explode if ignited. Take precautions when using fuel
to reduce the chance of serious personal injury.
• When refilling or draining the fuel tank, use an
approved fuel storage container while in a clean,
well-ventilated outdoor area.
• Do not smoke or allow sparks, open flames, or
other sources of ignition near the area while adding
fuel or operating the product. Never fill fuel tank
indoors.
• Equip the operating area with a fire extinguisher
certified to handle gasoline or fuel fires.
• Keep grounded conductive objects, such as tools,
away from exposed, live electrical parts and
connections to avoid sparking or arcing. These
events could ignite fumes or vapours.
• Always stop the engine and allow it to cool before
filling the fuel tank. Never remove the cap of the fuel
tank or add fuel while the engine is running or when
the engine is hot. Do not operate the product with
known leaks in the fuel system.
• Loosen the fuel tank cap slowly to relieve any
pressure in the tank.
• Replace fuel tank and container caps securely and
wipe up spilled fuel. Never operate the product
without both caps securely in place.
• Avoid creating a source of ignition for spilled fuel. If
fuel is spilled, do not attempt to start the engine near
spill. Move the product away from the area of
spillage and avoid creating any source of ignition
until fuel vapours have dissipated.
• Store fuel in containers specifically designed and
approved for this purpose.
• Store fuel in a cool, well-ventilated area, safely
away from sparks, open flames, or other sources of
ignition.
• Never store fuel or product with fuel in the tank
inside a building where fumes may reach a spark,
open flame, or any other source of ignition, such as
a water heater, furnace, clothes dryer, or the like.
Allow the engine to cool before storing indoors.
1.2 Safety Warnings
Safety Advice
6
CAUTION – WATER
CONNECTIONS
•For use with fresh and clean water only. Do not use
this product with other liquids.
•To minimize the amount of water spraying back on
the pressure washer, the device should be placed
as far as possible from the cleaning site during use.
•The water supply system must be protected against
backflow.
•Never use this product with water contaminated
with solvents (e.g. paint thinners, gasoline, oil, etc.).
•Always prevent debris from being drawn into the
product by using a clean water source and an
additional water filter, if required.
•If this device is connected to a potable water
system, the system must be protected against
backflow.
•Suitable water temperature: 5
℃
(41℉) to 40℃(104
℉
).
CAUTION – DETERGENTS
• This product has been designed for use with
detergents that are specifically approved for
pressure washer use. The use of other cleaning
detergents may affect the operation
CAUTION – SPRAY GUN
•The spray gun kicks back, so hold it with both
hands.
•The trigger gun safety lock prevents the trigger
from being engaged accidentally and it should be
placed in locked position when not in use.
WARNING – INJECTION
HAZARD
•Equipment can cause serious injury if the spray
penetrates the skin. Do not point the gun at anyone
or any part of the body. In case of penetration, seek
medical aid immediately.
CAUTION – SPECIFIC SAFETY
ADVICE
•This product is capable of producing high pressure
as rated in the
Technical Specifications.
To avoid
rupture and injury, do not operate this product with
components rated less than the unit itself (including
but not limited to spray guns, hose, and hose
connections).
CAUTION – SPECIFIC SAFETY
ADVICE
• Avoid dangerous conditions. Always operate this
product on dry, solid and level ground.
• Never operate this product on slippery, wet,
muddy, or icy surfaces. The operating area should
be free from any obstructions. There should be
plenty of room for handling, and the operator should
stay alert at all times.
• Do not use this product in wet or damp areas or
expose it to rain. Do not use it in areas where fumes
from paint, solvents or flammable liquids pose a
potential hazard.
• Inspect this product. Check before turning it on.
Keep guards in place and in working order. Form a
habit of checking to see that keys and adjusting
wrenches are removed from tool area before turning
it on.
• Replace damaged, missing or failed parts before
using it. Make sure all nuts, bolts, screws, hydraulic
fittings, hose clamps, etc. are securely tightened.
Always check the oil level in the oil tank. Never
operate this product when it needs to be repaired or
when it is in poor mechanical condition.
• Never move or pull this product while spraying.
• Do not run the engine at a high speed when you
are not using the product.
• Risk of electric shock!
The water spray
must never be directed towards any electric
wiring, devices, or directly towards the
pressure washer itself, or fatal electric shock
may occur.
• Risk of injury!
Do not direct the discharge
stream at people. The high-pressure jet can
be dangerous if misused, and therefore must
not be directed at people, animals, electrical
devices or the unit itself.
• Risk of explosion!
When a combustible liquid is
sprayed, there can be danger of fire or explosion,
especially in a closed area. Therefore, do not spray
flammable liquids. Do not use acids and solvents
with this product either. These products can cause
physical injuries to the operator and irreversible
damage to the product.
• Learn how to stop the product and release the
pressure quickly. Familiarize yourself with the
controls.
1.2 Safety Warnings
Safety Advice
7
IMPORTANT – APPLICATIONS
IMPORTANT – STORAGE
•Store the product in a well-ventilated area, with an
empty fuel tank. Fuel should never be stored or
placed near the product.
•When storing the product for winter, ensure that it
is stored indoors (at room temperature), in a dry
location away from any heat or ignition sources.
•If the product is to be stored with fuel in the fuel
tank, add a fuel stabilizer (Product # 38-0907-6) to
keep the gas from breaking down.
•To protect and extend the life of the product when
storing it, use an antifreeze agent (Product #
039-8602) for the pump, which can be found at your
local Canadian Tire store.
CAUTION – PREVENT PUMP
DAMAGE
•Do not run the engine for more than 5 minutes
without pressing the wand trigger or damage to the
pump might occur.
•Never let the engine run unless the product is
connected to a water supply. Ensure water is
running through the pressure washer before
attempting to start the engine.
•Never run caustic fluids or acid through this
product.
IMPORTANT – SAFETY
FEATURES
•
Thermal Relief Valve:
Protects the pump from
overheating in case the nozzle gets clogged. This
system should not be abused. Make sure the pump
does not overheat.
•
Low-Oil Auto Shut-Off:
Protects the engine and
prevents operating without proper lubrication. If the
engine oil level goes below the recommended level,
the pressure washer will shut off automatically.
IMPORTANT – COLD WEATHER
START
•Do not operate this pressure washer in
temperatures below 5℃. Operating pressure
washer below 5℃ may cause damage to the pump
and other pressure washer parts.
CAUTION – SERVICE
•Before cleaning, repairing, inspecting, or adjusting,
shut off the engine and make sure that all moving
parts have stopped.
•Have your product serviced by certified repair
personnel using only identical replacement parts.
This ensures the safety of the product is maintained.
•Ensure proper maintenance. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
product’s operation. If damaged, have the product
repaired before use. Many accidents are caused by
poorly maintained equipment.
1.2 Safety Warnings
1.3 Intended Application
This product is designed for specific
residential applications. Do not modify or
use this product for any application other
than the one it was designed for. Doing so
will void the warranty.
This equipment was not designed for
industrial use. Please refer to the icons
below for suggested applications. For
questions regarding other uses, please
refer to our website at www.simoniz.ca or
call us at 1-866-4SIMONIZ
(1-866-474-6664).
Parts List
8
Ref.
Description
Qty.
Visual
A
Main frame
1
B
Wheel with axle
2
C
Handle & panel with five
nozzles
1
D
Spray gun with metal
wand
1
E
High-pressure hose 30’
(9 m)
1
2. P
ARTS LIST
Parts List
9
Ref.
Description
Qty.
Visual
F
Knob
2
G
Gun holster
1
H
Hose hook
1
I
Accessory Kit
Spray tip
cleaner
1
J
Spark plug
wrench
1
K
Pump breather
1
L
Spare O-rings
(two for
high-pressure
hose, one for
quick-connector)
3
M
Oil funnel
1
Assembled Model Diagram
10
3. A
SSEMBLED MODEL DIAGRAM
Assembled Model Diagram
11
Ref.
Description
Ref.
Description
1
Spray nozzles(x5)
11
Fuel tank
2
Trigger safety lock
12
Start cord handle
3
Spray gun with wand
13
Detergent dial
4
Muffler
14
Pump fresh water inlet 3/4”
(2 cm)
5
3 in 1 switch
15
Spark plug
6
Air filter
16
Water outlet for pressure
hose
7
Detergent tank caps
17
Oil tank with dipstick
8
Detergent tank
18
Pump unit
9
Pressure hose30′(9m)
19
Pump detergent inlet
10
Fuel tank cap
3. A
SSEMBLED MODEL DIAGRAM
Note: Engine oil is not included. Always use oil type SAE 10W-30.
Assembly Instructions
12
Frame Assembly
Place the handle assembly (C) flat
onto the main frame (A). Attach
handle assembly to frame through
square neck bolt. Screw the knob
(F) on from outside of the frame.
DO NOT tighten the knob.
Wheel Assembly
NOTE: Make sure that there is
enough air in wheel before
assembly.
Lift the frame (A) with one hand and
attach one of the wheels (B) by
pressing the wheel’s pin and
inserting the wheel shaft into the
main frame (A). Align the pin with
the hole on the frame (A) until it
snaps in. Repeat it for the opposite
side.
1
2
4. A
SSEMBLY INSTRUCTIONS
Assembly Instructions
13
Hose Connections
Detach the quick connector from
pump water inlet and screw it to a
garden hose. Then attach them to
the pump water inlet.
Hose Hook Assembly
Attach the hose hook (H) to the
back of the panel until it slides into
place.
Gun Holster Assembly
Attach the gun holster (G) to the
frame side, slide down till in place.
Frame Assembly
Rotate handle assembly (C) upright
and screw the knob (F) tightly.
Repeat this procedure for the
opposite side.
3 4 5
6
Assembly Instructions
14
Now your pressure washer is
fully assembled.
CAUTION
Do not operate the product
before you read and fully
understand the next
chapter→ Operating
Instructions.
Gun & Hose Connections
Take out air shield from pump
outlet. Connect one end of the high
pressure hose to pump outlet, and
secure the plastic nut. Connect the
other end the pressure gun, and
fasten the plastic nut.

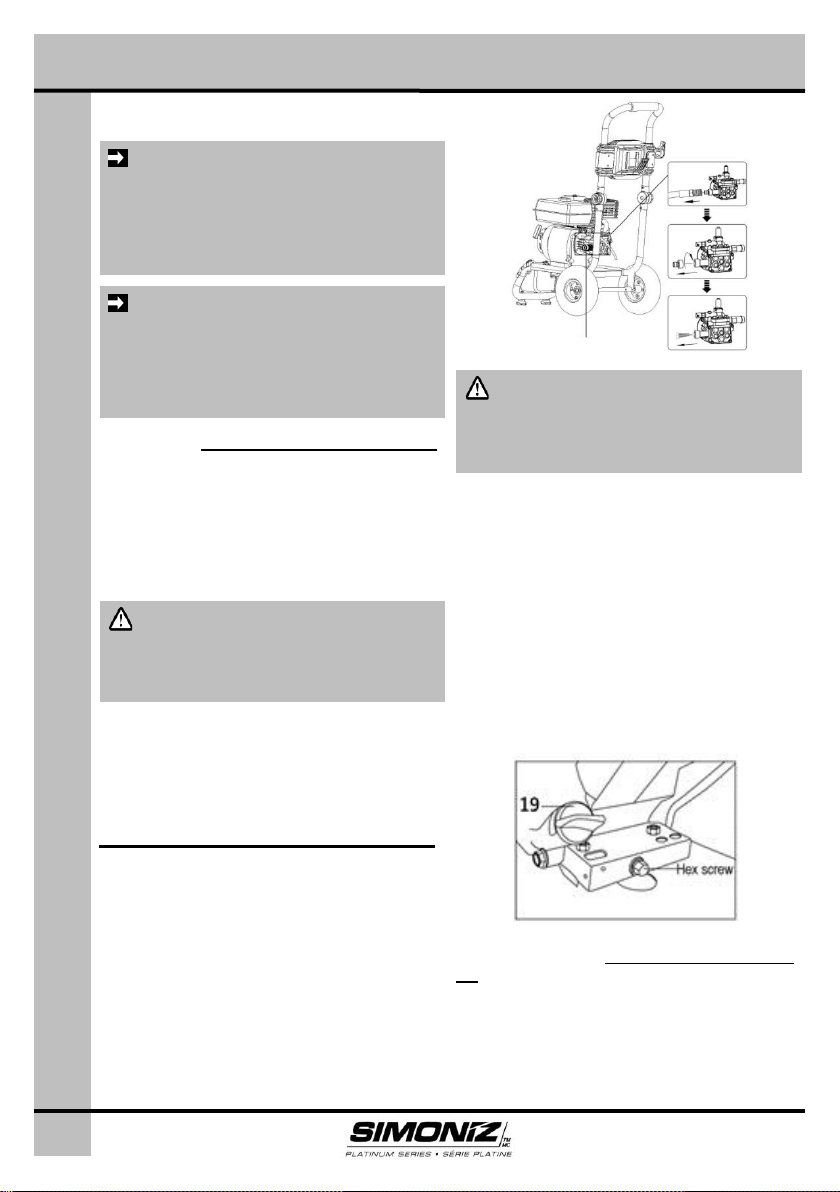

Pump Preparation
Use a wrench (not included) to
unscrew the hex screw on the pump
unit and screw the pump breather
(K) in.
Gun & Wand Assembly
Assemble the spray gun with the
metal wand. Pull back the rubber
piece to expose the threaded fitting.
Then, screw the two pieces
together and move the rubber piece
back.
Insert the desired tip to the gun tip
connector.
7 8 9
Operating Instructions
15
WARNING – DEPRESSURIZE
• After cleaning is completed, turn off the water
supply and pull the trigger to depressurize the unit.
Failure to do so might result in personal injury due
to discharge of high-pressure water.
WARNING – INJECTION
HAZARD
• Pressure washer can cause serious injury if the
spray penetrates the skin. Do not point the gun at
anyone or any part of the body. In case of
penetration, seek medical aid immediately.
Pull the coupler ring back and insert
the desired nozzle (1).
Release the coupler ring to lock it
back in place.
5. O
PERATING INSTRUCTIONS
5.1 Using Spray Nozzle
This pressure washer comes with five different
nozzles (1) that can be installed on the metal wand
(3).
The spray pattern is adjusted by installing the
appropriate spray nozzle.
0° (red):
Thin and powerful stream of water for difficult
stains and debris removal
15° (yellow):
25° (green):
cleaning
40° (white):
applications
Detergent (black):
together with a cleaning detergent at a low pressure.
Use only this nozzle when using a detergent.
Installing spray nozzle to the quick-connect
coupler:
Thin-angled spray for detailed cleaning
Medium-angled spray for detailed
Large pattern for wider cleaning
This nozzle must be used
5.3 Adjusting Water Pressure
•The water pressure can be adjusted using the 3 in 1
switch (5)
• Move the switch to
engine speed, thus increasing the water pressure.
Move it towards
engine speed, thus decreasing the water pressure.
FAST
position to increase the
SLOW
position to decrease the
5.4 Starting Pressure Washer
• Detach the quick connector from the pump water
inlet and screw it to a garden hose. Then attach them
to pump water inlet
Attach the other end of the garden hose to a water
source.
• Turn on the water tap. The water flow rate must not
fall below 18 litres per minute (4 gallons per minute),
or the pump might be damaged.
• Release the trigger safety lock (2) if it is locked.
Purge the air by squeezing the trigger on the gun until
there is a steady stream of water.
• Install appropriate spray nozzle.
• Start the engine. (→Section 6.3 Starting Engine)
• Position the tip of the wand 6-8〞(15-20 cm) away
from the surface to be cleaned, at an angle
appropriate to the spray nozzle used
40°)
(0°, 15°, 25° or
5.2 Water Supply (Cold Water
Only)
• The unit must be used with cold water supply only.
The water hose must be at least ½" (13 mm) in
diameter.
• The water flow rate must not fall below 18 litres per
minute (LPM) (4 gallons per minute (GPM)), or the
pump might be damaged. The flow rate can be
determined by running water for one minute into an
empty container.
• The water supply temperature must not exceed 40
(104℉).
℃
Operating Instructions
16
WARNING
Turn off the water supply and pull the trigger to de
pressurize the unit. Failure to do so might result in
personal injury due to discharge of pressurized
water.
WARNING
Damage may occur to painted surfaces if chemicals
(detergents) are allowed to dry on them. Wash and
rinse a small section at a time. Avoid working on hot
surfaces or under direct sunlight.
IMPORTANT
Working with a detergent ensures quick soaking of
the dirt, and allows the high-pressure water to
penetrate and remove the dirt more effectively.
Always spray detergent on a
dry
surface, do not
presoak the area. Soaking the surface dilutes the
detergent and reduces its cleaning ability.
IMPORTANT
This pressure washer is intended for use with
special pressure washer detergents only. Do not
use powdered soaps, which clog the injection
system. Follow the detergent manufacturer’s
directions or call the Simoniz toll-free number at
1-866-4SIMONIZ
(1-866-474-6664) if you have any
questions or concerns.
5.5 Cleaning with Detergents
• When using detergent, always use the black
detergent nozzle.
• When applying detergents, always operate the unit
at a low water pressure 3 in 1 switch (5) set to
position).This provides a gentle application of the
detergent, with the water pressure equivalent to a
garden hose. Always test the detergent in a concealed
area before use.
• Pour two types of detergents into separate detergent
tanks (8). It is recommended to have one detergent
tank filled with all-purpose detergent, and the other
filled with a more specific cleaning detergent,
depending on the surface to be cleaned.
• The liquid detergent will be mixed with water
automatically, and discharged through the detergent
nozzle at a low pressure.
• Use the detergent dial (13) to control the type and
amount of detergent used using the scale as
reference.
• Set the detergent dial to OFF position in order to
shutoff detergent supply.
SLOW
5.6 Shutting Down and Cleaning
Up
1. Skip step 2 if you are not using detergent.
2. After cleaning with detergent, fill the detergent tank
with clean water. Spray water at a low pressure for
one minute, so that all detergent is flushed out of the
system.
3. Stop the engine (→ Section 6.4 Stopping Engine).
4. Turn off the water supply and disconnect the water
supply from the water inlet (14).
5. Point spray gun in safe direction, push trigger lock,
and squeeze spray gun trigger to relieve retained high
water pressure. Engage the trigger safety lock (2) on
the spray gun
6. Disconnect the garden hose from the pump.
7. Disconnect the pressure hose from the pump and
pressure gun for storage. For long-term storage
instructions, see Instruction Manual.
8. Rewind the pressure hose and attach it to the hose
hook.
9. Disconnect the gun and wand, then insert them into
the upper gun holder.
10. Fold the handle and store.
NOTE：
After turning off the machine, wait for 20
minutes to prevent plastic parts from being burned by
muffler, then fold the handle.
• Allow detergent to remain on the surface for a short
time before rinsing. Do not allow detergent to dry on
the surface.
Engine Operation
17
IMPORTANT
• Keep fuel away from sparks, open flames, pilot
lights, heat, and other ignition sources.
• Check fuel hoses, tank, caps, and fittings
frequently for cracks or leaks. Replace if necessary.
• If fuel spills, wait until it evaporates before starting
engine.
• Fill the fuel tank outdoors or in well-ventilated
areas.
FUEL TANK CAPACITY: 2.2 L
WARNING
•Make sure there is enough fuel in the fuel tank
before operating the pressure washer.
• Use only clean, fresh, unleaded fuel. Use a
minimum of 87octane/87 AKI (91 RON).
• Do not use old gas, and do not mix oil with
gasoline.
• Fuel and its vapours are extremely flammable and
explosive. Fire or explosion can cause severe burns
or death.
OIL TANK CAPACITY: 0.6L
WARNING
• Always check the oil level before starting the
engine, making sure the pressure washer is on a
level surface.
• Always use oil type
SAE 10W-30
, which can be
found at your local
Canadian Tire
store (Product #
28-9301-6).
IMPORTANT
Oil has been drained for shipping. Failure to fill
engine with oil before starting engine will result in
permanent damage and will void engine warranty.
Add oil according to the instructions.
10
11
6. E
NGINE OPERATION
6.1 Adding/Checking Oil
1. Remove oil tank dipstick (17) and wipe it with a
clean cloth.
2. Replace and retighten the dipstick.
3. Remove the dipstick again and check the oil level. It
should be at the top of the full indicator on the dipstick.
4. If low, add oil slowly into the oil tank. Do not overfill.
After adding oil, wait one minute and then recheck the
oil level.
5. Replace and retighten the dipstick.
Tip:
When adding oil, use oil funnel (M) provided.
6.2 Adding Fuel
1. Stop the engine (→ Stopping Engine) and let it cool
at least two minutes before removing the fuel tank cap
(10).
2. Clean the fuel cap area of dirt and debris. Remove
the fuel tank cap and make sure the fuel filter is in
place.
3. Fill the fuel tank (11) with fuel. Never overfill the fuel
tank. Fill tank to no more than ½″ (13 mm) below the
bottom of the filler neck to provide space for
expansion caused by the engine heat.
4. Replace the fuel tank cap.
Engine Operation/Cleaning and Maintenance
18
CAUTION
DO NOT
operate this pressure washer without the
water inlet filter in place, as deposits could build up
internally and affect the functioning of the unit.
CAUTION
Return the starter cord handle (12) gently to its
starting position to prevent damage to the starter or
the housing.
IMPORTANT
Before each use:
• Check the oil and fuel level and fill if necessary.
• Make sure that spark plug, muffler, fuel cap, and
air filter are in place and secured.
• Do not crank engine with spark plug removed.
IMPORTANT
If you have problems starting the pressure washer.
Call the Simoniz toll-free number at
1-866-4SIMONIZ
(1-866-474-6664) and one of our
customer service representatives will be glad to
assist you.
14
6.3 Starting Engine
See Section 5.4 Starting Pressure Washer
to start the pressure washer.
1. Turn 3 in 1 switch to the “
2. Locate recoil cord and pull slowly until resistance
is felt. At this point, pull rapidly to start engine.
3. Once engine starts, turn the 3 in 1 switch back to
“
FAST
” position.
Choke
” position.
6.4 Stopping Engine
1. Turn 3 in 1 switch to the “
STOP
” position quickly.
7.2 Engine Maintenance
Draining Engine Oil
The engine oil should be replaced after the first 20
hours of operation, or after the first month of use. After
that, it should be replaced every 100 hours or every
six months.
To drain the engine oil:
1. Loosen the oil tank dipstick (17).
2. Place an oil container underneath the opening on
the mainframe.
3. Remove the hex screw and drain the oil.
4. Once the oil has been completely drained, retighten
the hex screw and oil tank dipstick.
7.
C
LEANNING AND MAINTENANCE
7.1 Cleaning Water Inlet Filter
• This pressure washer is equipped with a water inlet
filter.
• The water inlet filter must be kept clean at all times,
otherwise it can restrict the water flow to the pump unit
and damage it.
• Remove the quick-connect coupler from the water
inlet, then remove and clean the water inlet filter.
Recommended Engine Oil
Add oil as described in Section 6.1 Adding/Checking
Oil.
Cleaning and Maintenance
19
Press the right side of air cleaner housing and
take it down. Take the air filter down and use
water to clean. After cleaning, soak it into
kerosene. Then put back the air filter to air
cleaner, and fix the air cleaner housing.
IMPORTANT
Clean air filter (6) element after every 50 hours of
use (every 10 hours under dusty conditions). Wash
in high flashpoint solvent, squeeze dry, dip in clean
engine oil, and squeeze out excess oil.
IMPORTANT
Used oil is a hazardous waste product and must be
disposed of properly. Do not discard with household
waste. Check with your local authorities, service
centre, or
Canadian Tire
for safe disposal/recycling
facilities.
12
Checking Air Filter
3. Check the gap with a wire gauge. If necessary,
reset the gap to 0.7-0.8 mm. Install and tighten the
spark plug to the recommended torque – 180 lb.·in
(20 Nm).
4. Reinstall the spark plug wire and protection cage
in reverse order.
Inspecting, Replacing or Cleaning the
Spark Plug
The spark plug should be checked after every 100
hours of operation or every six months.
To replace or clean the spark plug:
1. Disconnect the spark plug wire by pulling it off the
spark plug.
2. Using provided spark plug wrench (J), remove the
spark plug by turning it counter-clockwise. If there
is a carbon sediment build-up, remove it. If there is
too much carbon sediment, replace the spark plug.
NOTE:
In some areas, local law requires using a
resistor spark plug to suppress ignition signals. If this
engine was originally equipped with a resistor spark
plug, use the same type for replacement.
Cleaning and Maintenance
20
WARNING
Clogging of the spray tip increases the water
pressure and might damage the pump unit (18).
7.3 Cleaning the Carburetor
1. Screw down the bolt on the bottom of carburetor
with wrench.
2. Push the float up four to five times, then clean
sediment cup with gas.
NOTE:
Put the sediment cup back. Be careful not to
miss the O ring.
7.4 Cleaning the Spray Tips
Clean the spray tip by carefully inserting the provided
spray tip cleaner (I), or a thin, sharp object (e.g., paper
clip) into the tip to remove deposits.
fuel has been completely drained.
2. Add fuel stabilizer
• If you do not wish to drain the fuel tank (11), add a
fuel stabilizer into the fuel tank. Run the engine at
least five minutes after adding the stabilizer to
distribute it inside the fuel system.
3. Drain oil
• Drain the oil (→Draining Engine Oil).
• Remove the spark plug.
• Pour one tablespoon (14 ml) of 10W-30 oil through
the spark plug hole.
7.5 Storing
Store idle product out of the reach of children and do
not allow anyone unfamiliar with the product or these
instructions to operate it. This product is dangerous in
the hands of untrained users. Cover and store indoors,
in a dry, well-ventilated area, such as a toolshed.
Long term storage of the pressure washer requires
additional preventive measures to protect it against
deterioration.
1. Drain fuel
• Remove the hex screw from the carburetor. Then,
drain the fuel from the tank, carburetor, and hose.
Screw the carburetor drain hex screw back once the
• Make sure the 3 in 1 switch (5) is set to
position. Slowly pull the starter cord handle (13) until
you feel tension, which indicates the piston is on its
compression stroke and leave it in this position.
• Replace the spark plug.
STOP
Cleaning and Maintenance/Technical Specifications
21
Maximum Pressure
3000 PSI
Rated Water Pressure
2200 PSI
Maximum Water Flow
9 litres per minute
LPM (2.3 gallons
per minute GPM)
Minimum Inlet
Pressure
30 PSI
Maximum Inlet
Pressure
100 PSI
Pump Type
Heavy-duty
maintenance free
axial
Thermal Relief Valve
Included
Detergent Tank
(Volume)
0.32 G each (1.3
L)
Maximum
Temperature of
Pumped Water
104°F (40°C)
Engine Power (OHV)
6.5 HP
No Load Speed
3600 RPM
High Pressure Hose
Length
30' (9 m)
Inlet & Discharge
Ports
¾" (13 mm)
standard garden
hose connector
Displacement
196 (cc)
Net Weight
66 lb.2 oz. (30 kg)
Oil Type
SAE 10W-30
Oil Capacity
0.6 L
Fuel Type
Unleaded
Gasoline
Fuel Tank
2.2 L
IMPORTANT
• If the pressure washer is to be stored with
gasoline in the fuel tank and carburetor, it is
important to reduce the hazard of gasoline vapour
ignition.
• Select a well-ventilated storage comma area away
from any appliance that operates with a flame, such
as a furnace, water heater, or clothes dryer. Also
avoid any area with a spark-producing electric
motor, or where power tools are operated.
• If possible, avoid storage areas with high humidity,
because that promotes rust and corrosion.
• Place the pressure washer on a level surface.
Tilting can cause fuel or oil leakage.
• Do not use plastic sheets as a dust cover. A
nonporous cover will trap moisture around the
pressure washer, promoting rust and corrosion.
7.6 Winterizing Procedure
• Pressure washer might be damaged if subjected to
freezing temperatures. This type of damage is not
covered by the limited warranty. To avoid possible
damages, use a small amount of antifreeze.
• Place the pressure washer on its side, with the
water inlet (14) facing upwards, and pour ¼ cup (60
ml) of antifreeze into the water inlet.
• Make sure the engine 3 in 1 switch (5) is set to
STOP
position and pull the starter cord handle
several times to distribute the antifreeze inside the
pump system.
• When taking the pressure washer out of storage,
run water through the system until it runs clear.
8.
T
ECHNICAL SPECIFICATIONS
Troubleshooting
22
PROBLEM
POSSIBLE CAUSE
SOLUTION
Engine
Engine
doesn’t start
or is difficult
to start
The 3 in 1 switch is not in
“choke” position.
Set 3 in 1 switch to “choke” position.
No fuel
Fill the fuel tank with regular gasoline
Excess water pressure in pump
or hose
Release water pressure by squeezing
trigger on gun
Clogged carburetor
Clean the carburetor. Refer to the
instruction manual
Carbon build-up on spark plug
Clean the spark plug. Refer to the
instruction manual
Incorrect starting method
Use correct starting method. Refer to the
instruction manual
Engine
stops after
starting
Low oil or no fuel
Check oil and fuel levels
The 3 in 1 switch is still in
“choke” position.
Set 3 in 1 switch to “Run” position.
Engine
lacks power
Clogged air filter
Clean or replace the air filter. Refer to the
instruction manual
Clogged carburetor
Clean the carburetor. Refer to the
instruction manual
Carburetor
leaks
Carburetor is clogged
Clean the carburetor. Refer to the
instruction manual
Starter rope
doesn't
recoil
Recoil mechanism is broken
Call customer service toll-free
Engine
sounds
abnormal or
overloaded
Clogged nozzle
Clean nozzle with tip cleaner
Pressure is too high
Call customer service toll-free
9.
T
OUBLESHOOTING
NOTE:
If your unit still is not functioning properly once you have used this guide please call the SIMONIZ
toll-free service number at 1-866-4SIMONIZ (1-866-474-6664). Please do NOT bring the unit back to the store
until you have called this number.
Trouble Shooting
23
PROBLEM
POSSIBLE CAUSE
SOLUTION
Pump
No pressure, low pressure
Nozzle tip not attached
Attach required nozzle tip
Water supply faucet closed
Turn on faucet. Ensure there are no
kinks or blockage in hose
Water supply pressure is
low
Ensure faucet is fully opened. Check
to make sure water supply is a
minimum 30 psi, 4 GPM
Inlet water filter is clogged
Clean the water filter. Refer to the
instruction manual
Air in pump
Squeeze trigger to release the air in
pump when the machine is running
Clogged check valve
Call customer service toll-free
Damaged pump
Call customer service toll-free
Pressure too high
Clogged nozzle
Clean nozzle with tip cleaner
Water or oil leaks out of
pump
Damaged seal ring
Call customer service toll-free
Cold water keeps draining
out of thermal relief valve
Defective thermal relief
valve
Call customer service toll-free
Accesso
ries &
Connecti
ons
No intake of detergent
The detergent siphon tube
is not connected
Connect detergent siphon tube
properly. Refer to the instruction
manual
Damaged detergent siphon
tube
Replace the detergent siphon tube
Wrong nozzle
Use black nozzle when applying
detergent. Refer to the instruction
manual
Detergent adjustment knob
set to wrong position
Check adjustment knob. Refer to the
instruction manual
Clogged nozzle
Clean nozzle
Clogged pump detergent
siphon fitting
Detach the detergent siphon tube and
clean the fitting with tip cleaner
Detergent is too thick.
Clogged detergent filter
Use only detergent approved for use
with pressure washer
The trigger can’t be
squeezed
Safety lock is not open
Open the safety lock. Refer to the
instruction manual
There is water leakage at
joints/connections on gun,
hose and/or pump
Damaged seal ring
Change with back-up O-ring or
purchase accessory kit
SKU#.039-8552-8 at local Canadian
Tire Store
®
High pressure hose can’t be
connected to pump or gun
The O rings are not
lubricated
Put lubricating oil or water on the O
rings
Limited Warranty
24
10.
L
IMITED WARRANTY
Always keep your receipt as proof of purchase.
We’re here to help! If you have any questions or comments, call our toll-free hotline
1-866-4SIMONIZ (1-866-474-6664). Have your serial number ready. The serial number
can be found on the back plate, located on the rear of the unit.
This product has a Parts Replacement, Product Exchange and/or Repair Warranty only.
NO REFUNDS will be provided. Please see stores for Product Exchange details.
Two-Year Warranty-Engine
Kohler Co. warrants to the original retail consumer that each new engine sold by Kohler
Co. will be free from manufacturing defects in materials or workmanship for a coverage
period as stated below from the date of purchase, provided it is operated and maintained
in accordance with Kohler Co.’s instructions and manuals.
To Obtain Warranty Service:
Original retail consumer must bring the engine to an authorized Kohler dealer found by
visiting www.KohlerEngines.com or telephone 1-800-544-2444 (U.S.A. and Canada).
For details, read engine Owners/Operators Manual.
Ninety-(90)-Day Warranty – Accessories
Trigger gun, hose, spray wands and other accessories are guaranteed for 90 days from
the date of purchase. You may purchase accessories directly through the place of
purchase or by calling our toll-free hotline 1-866-4SIMONIZ (1-866-474-6664).
This warranty does not cover accidental damage, unreasonable use, normal wear and
tear, use of improper detergents, freezing, neglector non-compliance with the operating
instructions. The warranty does not cover loss of use or other consequential damages
arising from any of the above, nor does it cover repairs made or attempted by
unauthorized persons.
The warranty is void if the equipment is used for commercial, rental, or industrial
purposes.
If you have further questions, please visit our website (www.simoniz.ca) or call
1-866-4SIMONIZ (1-866-474-6664).
Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8
Exploded Parts Diagram
25
11.
E
XPLODED PARTS DIAGRAM
Exploded Parts Diagram
26
Ref. Description Qty. Ref. Description Qty.
1 Handle foam 1 36 Spring lock 5
2 Handle 1 1-37 Injection hose (short) 2
3 Front panel 1 2-37 Injection hose (long) 1
4
Cross Pan Head Tapping Screw ST4×25
4 38 Detergent tank holder 1
5 Back panel 1 39 Spring gasket 5 2
6 Locknut M5 8 40 Cross Pan Head Screw M5×16 2
7 Pressure hose 1 41 Washer 5 4
8 Hose hook 1 42 Rubber Pad 1
9 Upper joint 2 43 Rubber foot 2
10 Connecting pin 2 44 Rubber foot washer
2
11 Locating pin 2 45 Inner Hexagon Bolt M8×45 2
12 Knob assembly 2 46 Detergent tank (B) 1
13 Lower joint 2 47 Gun holster 1
14 Square neck bolt 2 48 Cross Pan Head Screw M5×50 1
15 Drain pipe 1 49 Detergent tank panel 1
16 Thermal relief 1 50
Cross Pan Head Tapping Screw ST4×16
2
17 Pressure pump 1 51 Detergent bottle gasket 2
18 Inlet connector 1 52 Detergent bottle cap 2
19 Inner Hexagon Bolt M8×25 4 53 Switch fixing plate 1
20 Spring washer 8 4 54 Detergent bottle switch 1
21 Washer 8 13 55 Switch fixed nut 1
22 Circlip 16 2 56 Cross Pan Head Screw M5×42 1
23 Plain washer 16 2 57 6.5 HP Gasoline engine 1
24 10”Wheel 2 58 Cross Pan Head Screw M5×65 4
25 Wheel shaft 2 59 Cross Pan Head Screw M5×40 2
26 Spring wire 2 60
Holder connector
1
27 Circlip 2 61 Gun holster 1
28 Engine isolator 1 62 0° Nozzle (red) 1
29 Inner Hexagon Bolt M8×40 4 1-63 15° Nozzle (yellow) 1
30 Plate 1 2-63 25° Nozzle (green) 1
31 Wire sleeve 1 3-63 40° Nozzle (white) 1
32 Frame 1 4-63 Detergent nozzle (black) 1
33 Cross Pan Head Screw M6×45 8 5-63 Nozzle grommet 5
34 Locknut M6 8 64 Gun 1
35 Detergent tank (A)
1
65 Wand 1
