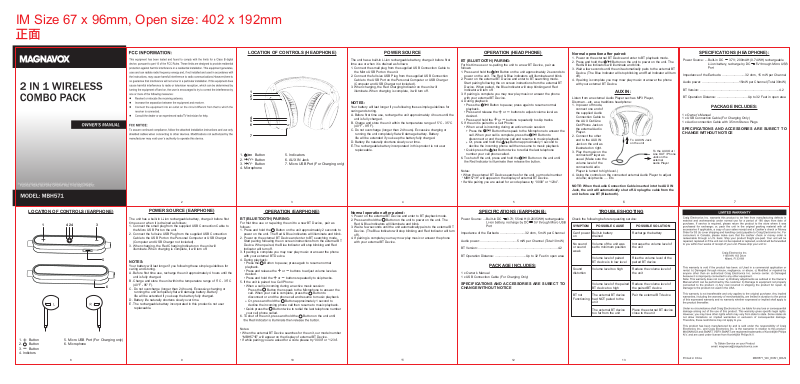

Simo Electronics MBH571E User Manual

IM Size 67 x 96mm, Open size: 402 x 192mm

LOCATION OF CONTROLS (EARPHONE)

1 4 2 4 3

1. Button

2. Button

3. Button

4. Indictors

5. Micro USB Port (For Charging only)

6. Microphone

8 9 10 12 13

LOCATION OF CONTROLS (HEADPHONE)

The unit has a built-in Li-ion rechargeable battery, charge it before first
time use or when it is drained as follows:

1. Connect the small plug from the supplied USB Connection Cable to
the Micro USB Port on the unit.

2. Connect the full size USB Plug from the supplied USB Connection
Cable to the USB Port on the Personal Computer or USB Charger
(Computer and USB Charger not included).

3. When charging, the Red Charging Indicator on the unit will

1
2
3

4
5

6

7

1. Button

2. Button

3. Button

4. Microphone

2 3 4 5

POWER SOURCE (EARPHONE)

The unit has a built-in Li-ion rechargeable battery, charge it before first
time use or when it is drained as follows:

1. Connect the small plug from the supplied USB Connection Cable to
the Micro USB Port on the unit.

2. Connect the full size USB Plug from the supplied USB Connection
Cable to the USB Port on the Personal Computer or USB Charger
(Computer and USB Charger not included).

3. When charging, the Red Charging Indicator on the unit will
illuminate. When charging is complete, it will turn off.

5

6

NOTES:

Your battery will last longer if you following these simple guidelines for
caring and storing.
A. Before first time use, recharge the unit approximately 4 hours until the
unit is fully charged.
B. Charge and store the unit within the temperature range of 5°C - 35°C
(40°F - 95°F).
C. Do not overcharge (longer than 24 hours). Excessive charging or
running the unit completely flat will damage battery. Battery
life will be extended if you keep the battery fully charged.
D. Battery life naturally shortens slowly over time.
E. The rechargeable battery incorporated in this product is not user
replaceable.

BT (BLUETOOTH) PAIRING:

For frist time use or re-pairing the unit to a new BT Device, pair as
follows:

1. Press and hold the Button on the unit approximately 2 seconds to
power on the unit. The Red & Blue indicators will illuminate and blink.

2. Power on the external BT Device and enter to BT searching mode.
Start pairing following the on screen instructions from the external BT
Device. When paired, the Blue lndicator will stop blinking and Red
lndicator will turn off.

3. If pairing is complete you may now play music or answer the phone
with your external BT Device.

4. During playback:

• Press the Button to pause; press again to resume normal
playback.

• Press and release the or buttons to adjust volume level as
desired.

• Press and hold the or buttons repeatedly to skip tracks.

5. If the unit is paired to a Cell Phone:

• When a call is incoming during an active music session:
Press the Button then speak to the Microphone to answer the
call. When your call is complete, press the Button to
disconnect or end the phone call and resume to music playback.
Or, press and hold the Button approximately 1 second to
decline the incoming phone call then resume to music playback.

• Quick press the Button twice to redial the last telephone number
your cell phone called.

6. To shut off the unit, press and hold the Button on the unit until

Notes:

• When the external BT Device searches for the unit, our model number
“MBH571E” will appear on the display of external BT Device.

• If while pairing you are asked for a code please try “0000” or “1234”.

OPERATION (EARPHONE)

5. Indicators

6. AUX IN Jack

7. Micro USB Port (For Charging only)

illuminate. When charging is complete, it will turn off.

NOTES:

Your battery will last longer if you following these simple guidelines for
caring and storing.
A. Before first time use, recharge the unit approximately 4 hours until the
unit is fully charged.
B. Charge and store the unit within the temperature range of 5°C - 35°C
(40°F - 95°F).
C. Do not overcharge (longer than 24 hours). Excessive charging or
running the unit completely flat will damage battery. Battery
life will be extended if you keep the battery fully charged.
D. Battery life naturally shortens slowly over time.
E. The rechargeable battery incorporated in this product is not user
replaceable.

Normal operation after paired:

1. Power on the external BT Device and enter to BT playback mode.

2. Press and hold the Button on the unit to power on the unit. The
Red & Blue lndicators will illuminate and blink.

3. Wait a few seconds until the unit automatically pairs to the external BT
Device. (The Blue lndicator will stop blinking and Red lndicator will turn
off).

4. If pairing is complete you may mow play music or answer the phone
with your external BT Device.

POWER SOURCE OPERATION (HEADPHONE)

BT (BLUETOOTH) PAIRING:

For frist time use or re-pairing the unit to a new BT Device, pair as
follows:

1. Press and hold the Button on the unit approximately 2 seconds to
power on the unit. The Red & Blue indicators will illuminate and blink.

2. Power on the external BT Device and enter to BT searching mode.
Start pairing following the on screen instructions from the external BT
Device. When paired, the Blue lndicator will stop blinking and Red
lndicator will turn off.

3. If pairing is complete you may now play music or answer the phone
with your external BT Device.

4. During playback:

• Press the Button to pause; press again to resume normal
playback.

• Press and release the or buttons to adjust volume level as
desired.

• Press and hold the or buttons repeatedly to skip tracks.

5. If the unit is paired to a Cell Phone:

• When a call is incoming during an active music session:
Press the Button then speak to the Microphone to answer the
call. When your call is complete, press the Button to
disconnect or end the phone call and resume to music playback.
Or, press and hold the Button approximately 1 second to
decline the incoming phone call then resume to music playback.

• Quick press the Button twice to redial the last telephone
number your cell phone called.

6. To shut off the unit, press and hold the Button on the unit until

Notes:

• When the external BT Device searches for the unit, our model number
“MBH571H” will appear on the display of external BT Device.

• If while pairing you are asked for a code please try “0000” or “1234”.

SPECIFICATIONS (EARPHONE): TROUBLESHOOTING

Power Source: ....Built-in DC 3.7V; 55mAH (0.2035WH) rechargeable

Impedance of the Earbuds: ............................32 ohm, 5 mW per Channel

Audio power: .........................................5 mW per Channel (Total 10mW)

BT Version: .........................................................................................4.2

BT Operation Distance: ...................................Up to 32 Feet in open area

PACKAGE INCLUDES:

1 x Owner’s Manual
1 x USB Connection Cable (For Charging Only)

SPECIFICATIONS AND ACCESSORIES ARE SUBECT TO
CHANGE WITHOUT NOTICE

11

Normal operation after paired:

1. Power on the external BT Device and enter to BT playback mode.

2. Press and hold the Button on the unit to power on the unit. The
Red & Blue lndicators will illuminate and blink.

3. Wait a few seconds until the unit automatically pairs to the external BT
Device. (The Blue lndicator will stop blinking and Red lndicator will turn
off).

4. If pairing is complete you may mow play music or answer the phone
with your external BT Device.

AUX IN:

Listen from an external Audio Player such as MP3 Player,
Discman…etc. as a traditions headphone:

1. In power off mode,
connect one end of
the supplied Audio
Connection Cable to
the AUX Out/Line
Out/Phone Jack on
the external Audio
Player.

2. Connect the other
end to the AUX IN
Jack on the unit as
illustrated on right.

3. Play the music on the
connected Player as
usual. (Make sure the
volume level of the
connected Audio
Player is turned to high level.)

4. Using the controls on the connected external Audio Player to adjust
volume; skip tracks …. Etc.

NOTE: When the Audio Connection Cable inserted into the AUX IN
Jack, the unit will automatically shut off. Unplug the cable from the
unit before use BT (Bluetooth).

Check the following before requesting service:

SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION

Can’t power
on

No sound
or sound
weak

Sound
distortion

BT not
Functioning

Built-in battery
drained

Volume of the unit was
set to minimum position

Volume level of paired
BT device is in low level

Volume level too high

Volume level of the paired
BT device too high

The external BT device
had NOT paired to the
unit

The external BT device
too far from the unit

To AUX IN Jack
on the unit

To the AUX Out /
Line OUT / Phone
Jack on the
external
Audio Player

Recharge the battery

Increase the volume level of
the unit

Rise the volume level of the
paired BT device

Reduce the volume level of
the unit

Reduce the volume level of
the paired BT device

Pair the external BT device

Place the external BT device
close to the unit

SPECIFICATIONS (HEADPHONE):

Power Source: ....Built-in DC 3.7V; 200mAH (0.74WH) rechargeable

Impedance of the Earbuds: ..........................32 ohm, 15 mW per Channel

Audio power: .........................................15mW per Channel (Total 30mW)

BT Version: .........................................................................................4.2

BT Operation Distance: ...................................Up to 32 Feet in open area

PACKAGE INCLUDES:

1 x Owner’s Manual
1 x USB Connection Cable (For Charging Only)
1 x Audio connection Cable with 3.5mm Stereo Plugs

SPECIFICATIONS AND ACCESSORIES ARE SUBECT TO
CHANGE WITHOUT NOTICE

76

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.
