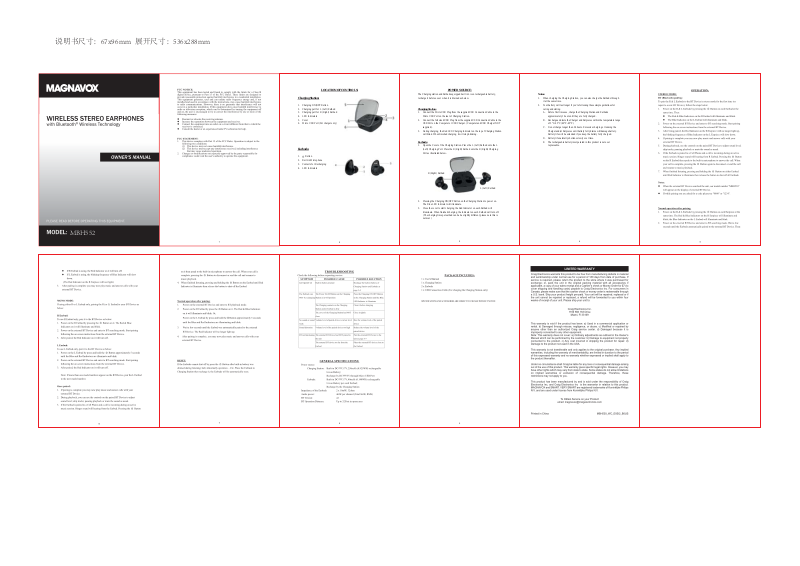

说明书尺寸：67x96mm 展开尺寸：536x288mm
MBH552
LOCATION OF CONTROLS:
Ch
arging Station:
1. Charging ON/OFF Button
2. Charging port for L (Left) Earbud
3. Charging port for R (Right) Earbud
4. LED Indicators
5. Cover
6. Micro USB Port (For charger only)
Earbuds:
1. Button
2. Built-in Microphone
3. Contacts for Recharging
4. LED Indicators
The Charging station and Earbuds equipped built in Li-ion rechargeable battery;
recharge it before use or when it is drained as below.
Charging Station:
1. Connect the Micro USB Plug from the supplied USB Connection Cable to the
2. Connect the full sized USB Plug from the supplied USB Connection Cable to the
3. During charging, the Red LED Charging Indicator on the top of Charging Station
Earbuds:
1. Open the Cover of the Charging Station. Place the L (Left) Earbud onto the L
2. Pressing the Charging ON/OFFButton on the Charging Station to power on.
3. Close the cover to start charging, the Red Indicator on each Earbud will
2
POWER SOURCE:
Micro USB Port on the rear of Charging Station.
USB Port on the Computer or USB Charger. (Computer and USB Charger NOT
supplied).
will blink. When finished charging, it will stop blinking.
(Left) Charging Port. Place the R (Right) Earbud onto the R (Right) Charging
Port as illustrated below:
R (Right) Earbud
L (Left) Earbud
BThe lue LED Indicator will illuminate.
illuminate. When finished charging, the Indicator on each Earbud will turn off.
( The charging time per earbud can be be slightly different, please note this is
normal. )
3
Notes:
1. When charging the Charging Station, you can also charge the Earbuds through
it at the same time.
2. Your battery will last longer if you're following these simple guidelines for
caring and storing.
A. Before first time use, charge the Charging Station and Earbuds
approximately 1 hour until they are fully charged.
B. Recharge and store the Charger and Earpieces within the temperature range
of 5°C~35°C (40°F~95°F).
C. Do not charge longer than 24 hours. Excessive charging or running the
Charger and/or Earpieces until battery fully drains will damage battery.
Battery life will be extended if you keep the battery fully charged.
D. Battery life naturally shortens slowly over time.
E. The rechargeable battery incorporated in this product is not user
replaceable.
4
