SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

ASSOCIATED DOCUMENTATION

The following documentation is available for use with the SRM9000 series of products:

TNM-U-E-0079 P25 SRM9030 Mobile Radio Brief User Guide

TNM-P-E-0006 P25 SRM9030 Product Manual TNM-I-E-0005 SRM9000 Installation Sheet

TNM-M-E-0002 SRM9000 R9 Service Manual

To order copies of any of the above publications, or any other ComGroup Australia product, contact ComGroup Australia on +61 3-9730-3800 or send a Fax on +61 3-9730-3968.

The ComGroup Australia web site also has a comprehensive list of documentation available for download.

http://www.comgroup.net.au

ABOUT THIS DOCUMENT

This publication is copyright and no part may be reproduced without prior permission of ComGroup Australia.

Due to our policy of continuous improvement to our products and services, technical specifications and claims, correct at time of publication, may be subject to variation without prior notice.

ComGroup Australia has endeavoured to ensure that the information in this document is fairly and accurately stated, but does not accept liability for any errors or omissions.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

SAFETY

1. Do NOT operate your radio, without a hands free kit, whilst driving a vehicle.

2. Do NOT operate your radio in an explosive atmosphere. Obey the 'Turn Off Two-way Radios' signs where these are posted, e.g. on a petrol station forecourt.

3. Do NOT touch the antenna while the radio is transmitting.

HINTS FOR USING THE RADIO

• When speaking, hold the microphone a few centimetres from your mouth and speak across it, rather than into it.

• Keep the length of your conversation to a minimum and replace the microphone on its cradle after use.

• When it is possible to move location, avoid making calls from known poor signal-strength areas such as the radio systems fringe areas (limit of range) or from screened or shadowed areas, e.g. an underground car park or underpass.

• To avoid unnecessary drain on the vehicle battery, keep the engine running when using the radio for extensive periods of time.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

CONTENTS

INTRODUCTION..................................................................................................6

1.

1.1 Overview ......................................................................................................6

1.2 Configuration ..............................................................................................6

1.3 Modes of P25-SRM9030 Operation ............................................................6

2. CONTROLS .........................................................................................................7

3. MENU SYSTEM................................................................................................. 10

3.1 Menu Navigation .......................................................................................12

4. MENU SCREENS ..............................................................................................14

4.1 Channel Screen .........................................................................................14

4.2 Menus......................................................................................................... 18

4.2.1 Zone Menu ..............................................................................................18

4.2.2 Squelch ................................................................................................... 19

4.2.3 Mute Adjust ............................................................................................. 21

4.2.4 Phonebook Menu ....................................................................................22

4.2.5 Phonebook Edit Menu .............................................................................23

4.2.6 User Options ...........................................................................................27

4.2.7 Contrast...................................................................................................28

4.2.8 Alert Volume............................................................................................29

4.2.9 Radio Information ....................................................................................30

4.2.10 Mode Menu .............................................................................................32

4.2.11 RSSI (Received Signal Strength Indication) ............................................33

4.2.12 Crypto ......................................................................................................34

4.2.13 Setup Menu .............................................................................................35

4.2.14 Stored Calls............................................................................................. 36

4.2.15 ....................................................................................................................36

4.2.16 Messages................................................................................................37

4.2.17 Scan Edit Menu .......................................................................................45

4.2.18 No Menu..................................................................................................47

5. COMMON FUNCTIONS AND FACILITIES .......................................................48

5.1 Switch-On/Switch-Off ...............................................................................48

5.2 Default Screen –Trunked Mode ...............................................................48

5.3 Volume Adjustment ..................................................................................48

5.4 Receiving (Single Channel Screen) ......................................................... 48

5.5 Received Individual Calls .........................................................................49

5.5.1 Stored Calls Screen.................................................................................50

5.5.2 Received Call Pop-Up Menu ...................................................................50

5.6 Transmitting ..............................................................................................51

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

5.7 Scan/vote Functions .................................................................................51

5.7.1 Scan/Vote Screen.................................................................................... 52

5.8 Keypad Lock.............................................................................................. 53

5.9 Encryption ................................................................................................. 53

5.10

5.10.1 Receiving Emergency Calls..................................................................... 53

5.10.2 Making an Emergency Call...................................................................... 53

6. SPECIAL FUNCTION KEYS .............................................................................55

6.1 Alarm..........................................................................................................55

6.2 Channel Up and Down ..............................................................................55

6.3 Crypto ........................................................................................................ 55

6.4 Low Power .................................................................................................55

6.5 Menu........................................................................................................... 55

6.6 Mode........................................................................................................... 55

6.7 Mute............................................................................................................ 55

6.8 Reset ..........................................................................................................55

6.9 Scan ........................................................................................................... 55

6.10

Emergency Alarm ..................................................................................53

Scrambler...............................................................................................56

6.11

6.12 Zone ........................................................................................................56

6.13 Undefined ...............................................................................................56

7. APPENDICES.................................................................................................... 57

7.1 Alert Tones And Messages ......................................................................57

7.2 Glossary..................................................................................................... 58

7.3 Acronyms .................................................................................................. 59

7.4 Compliance with RF Energy Exposure Guidelines (United STATES and

Canada)................................................................................................................60

Talkaround .............................................................................................56

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

1. INTRODUCTION

1.1 O

The Simoco SRM9000 Series Radios are a family of versatile Digital Signal Processor (DSP) controlled, software controlled two-way mobile radios.

These Operating Instructions describe the operation of the APCO P25 Standard compliant Mobile Radio, consisting of an SRM9000 Transceiver, a MA-MAB-2 Option Board, and SRM9030 / SRM9030plus Control Head.

The SRM9030-P25 Radio may be customised to your operational requirements using the Field Personality Programmer (FPP). Your Simoco representative can help in programming your radio facilities to meet your present and future requirements.

1.2 C

The SRM9030-P25 Radio must be configured using the P25 Field Personality Programmer (FPP) prior to operation. The configuration process defines the radio channels, signalling and other settings so that the radio will operate with your system

1.3 M

The SRM9030-P25 Radio is capable of operation in Analogue FM, Analogue Trunking, P25 Conventional and P25 Trunked modes.

Radio Channels are organised in groups of up to 250 per zone. Up to 40 zones may be defined.

VERVIEW

ONFIGURATION

ODES OF

P25-SRM9030 O

PERATION

Generally, zones can be programmed with channels belonging to common function groups.

A radio channel can be defined as either Analogue, Conventional P25 Channel or Trunked P25 network, and a Zone may contain a mix of Analogue or Conventional P25 Channels.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

2. CONTROLS

Indicator

LED

On/Off

Volume

SPECIAL OPS

ZONE 1

Down

(F2)

MENU

Up

(F3)

Call (F7)

Reset

(F8)

F10

Alarm

(F5)

OK

(F4)

Menu

(F1)

Figure 1 – SRM9030 Control Head

Figure 2 -SRM9030 plus Control Head

The SRM9030 Control Head has the following features:

F9

F12

F11

• 11 programmable direct function Buttons

• 10 additional indirect Function Buttons (keys 0-9)

•

1000 Channels

•

40 Zones

• 250 Channels per zone

• LCD 102x64 graphic display. 8 lines of 14 characters (small font). 3 fonts, small

medium and large. Context based soft menu labels.

•

LED indicator

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

SRM9030 Key Label

9030/9030plus

Power On/Off

PTT

Volume

Function Key F1

Function Key F2

Function Key F3

Function Key F4

Function Key F6

Function Key F5

Function Key F7

Function Key F8

Function Key F9

Function Key F10

Function Key F11

Function

To turn the radio on, press and hold the volume knob for about 1 second. To turn the radio off, press and hold the volume knob until the long tone sounds. Push-to-Talk. Hold the microphone about 10cm from the mouth. Press and hold the PTT switch and speak. Release to listen. Turn the volume knob clockwise to increase volume and anti-clockwise to reduce volume.

Programmable Function key. Located on Microphone.

Programmable Function key. Default – Menu Select.

Programmable Function key. Default – Channel Down.

Programmable Function key. Default – Channel Up.

Programmable Function key. Default – OK.

Programmable Function key. Default – Alarm.

Programmable Function key. Default – Call

Programmable Function key. Default – Reset / Cancel.

Programmable Function key.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

SRM9030 Key Label

9030/9030plus

Function Key F12

1 2 3

Keypad

4 5 6 7 8 9

* 0 #

Indicator LED Function

Green

Red

Programmable Function key.

Keypad can be used to select a Channel or Special Function. E.g. 12# will select channel 12.

Green LED when receiving a signal.

Red LED when the radio is transmitting.

Function

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

3.

MENU SYSTEM

This section details the operation of the menu system for the SRM9030-P25.

The SRM9030 has a menu system that is configurable by the FPP. The FPP has a pool of menu entries that can be applied as required in the order required. In simple configurations, no menu can be programmed, if required. See Figure 5 for example menu.

Pressing the “M” key from the top-level channel screen enters the menu system. This key has a soft menu label alongside it titled “MENU”. The soft key above “MENU” is generally the accept or “OK” key.

SPECIAL OPS

Zone 5

OK

The menus possible are:

•

Zone

(usually the first menu, as often accessed)

•

Squelch

•

Mute Adjust

•

Phonebook

•

Phonebook Edit

•

User Options

•

Contrast

•

Alert Volume

•

Radio Info

•

Mode

•

RSSI

•

Crypto

(FM) /

Y

Monitor

(Digital)

MENU

•

Setup

•

Stored Calls

•

Messages

•

Scan Edit

•

No Menu

The presence and order of the above menu selections is determined by the FPP configuration.

The

Setup

menu is a special case entry. menu selections assigned to it. This means that lesser used selections can be partly hidden away under Setup subgroup if required, although still accessible.

Setup

is a subgroup that can have any of the list of

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The

User Options

on/off functions, such as Key Beeps or Backlight

The order and presence of the instance

Info, RSSI

menu group is also a menu subgroup. This subgroup usually contains

Setup

subgroup selections is determined by the FPP. For

and

Contrast

could be placed under

Setup

.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

3.1 M

Pressing the “ mode, the

To exit Generally, pressing “ the “

The increase/decrease a value.

When the Numeric keys can be programmed (using FPP) with functions i.e. Scan.

To access this, you can press the “ numeric key assigned to that function.

ENU NAVIGATION

M

” key selects

▼

and ▲ keys cycle through the menus.

Menu

mode, press the “M” key again or the Menu timeout will exit automatically.

OK

” button selects the menu screen.

▼

and ▲ keys are used to navigate through a list of options such as channels, or

Menu

key is first pressed, the numeric keys become short cut keys to functions.

Menu

mode from the main Channel Screen. Once in menu

M

” key while in a menu backs up to the next highest level of menu and

M

” or menu key from the channel screen and then the

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Normal

Channel

ENTRY POINT = Default Screen

Note:

Example Menus only shown.

Other Menus may be configured with the FPP

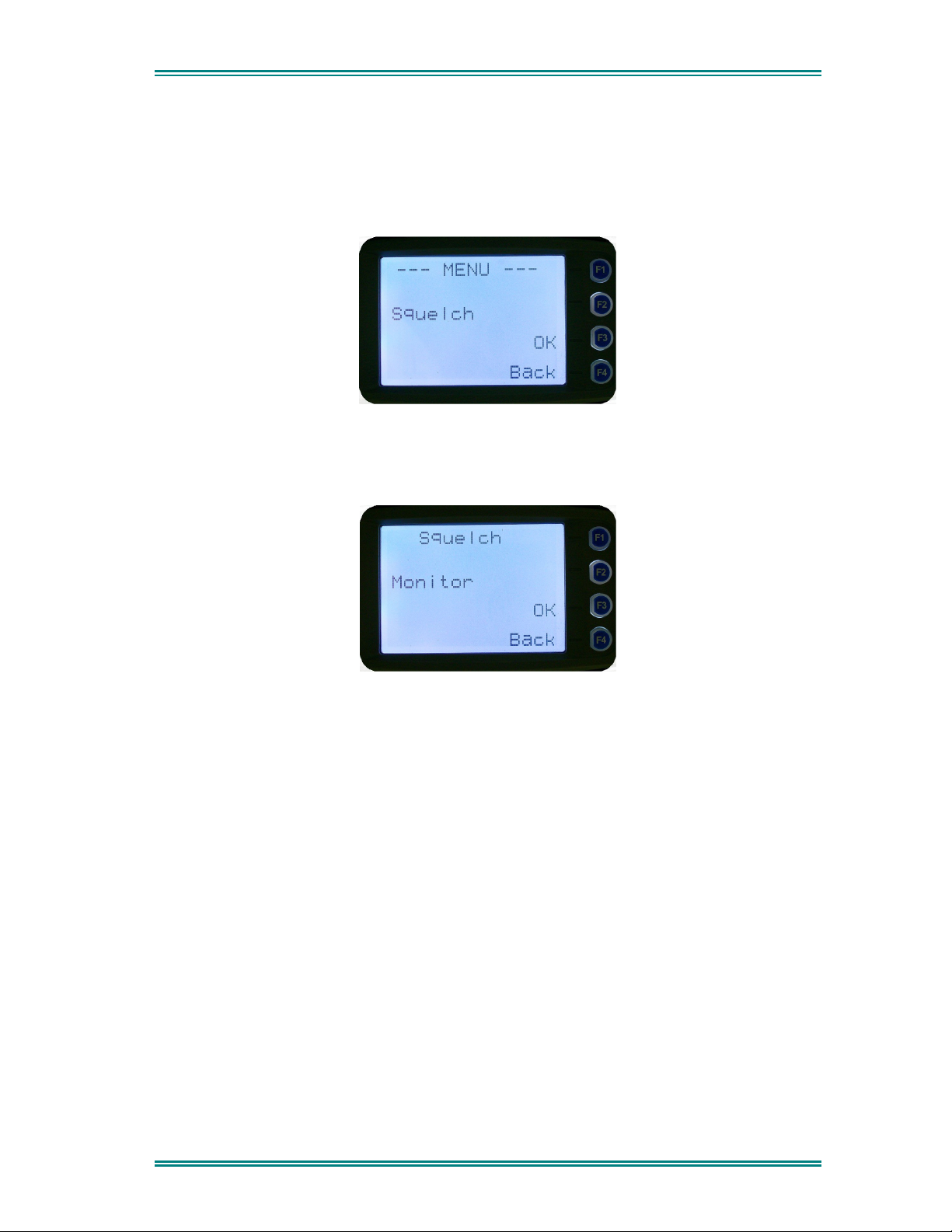

Squelch

OK

BackBack

Submenu

Back

OK

Back

OK Key

Back Key

Up Key

Down Key

P25 Conventional Menu rev1d

Menu #x

(Optional)

Menu #3

(Optional)

OK

Back

Menu #x

Menu #3

Mute

Adjust

RSSI

Mode

Radio Info

Crypto Key

Alert

Volume

Contrast

OK

BackBack

Submenu

BackBack

Back

Menu #2

Setup Menu

OK

User Options

OK

Key Beeps

ON/OFF

SubMenu Selections

Backlight

ON/OFF

OK

Back

Select

Zone

(Other User

Menu items)

Back

Menu #1

Zone Select

Menu

Channel

Screen

Figure 3 - Menu Navigation

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4. MENU SCREENS

4.1 C

HANNEL SCREEN

SPECIAL OPS

Zone 5

OK

Y

The Channel Screen shows the current channel and allows channel selection.

The

Channel Name

channel.

Zone Name

The

RSSI Bars

Pressing the “

The lower part of the screen is reserved for icons.

Menu”

(top line) shows the text associated with the currently selected radio

(middle) shows the text associated with the currently selected radio zone.

(left) indicate the signal strength of the current channel.

key enters the

Menu

mode.

MENU

Radio channels may be configured with the Field Programmer as specific frequencies or as auto scan types. When an auto scan channel is selected, it will immediately go into scan mode. Selecting another non-autoscan channel will stop the scan.

If a radio channel is defined as a P25 Conventional Digital Channel, it will only receive P25 digital signals.

If a radio channel is defined as an Analogue FM channel, it will receive both P25 Digital* and Analogue FM signals.

A radio channel defined as a P25 Trunked network will automatically start searching for the pre-programmed network, and only receive signals from that network once it has service.

* While in Analogue mode, all unencrypted digital P25 traffic will be heard regardless of NAC or Talkgroup.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

SPECIAL OPS

Zone 5

1 2 3

5

6

4

Y

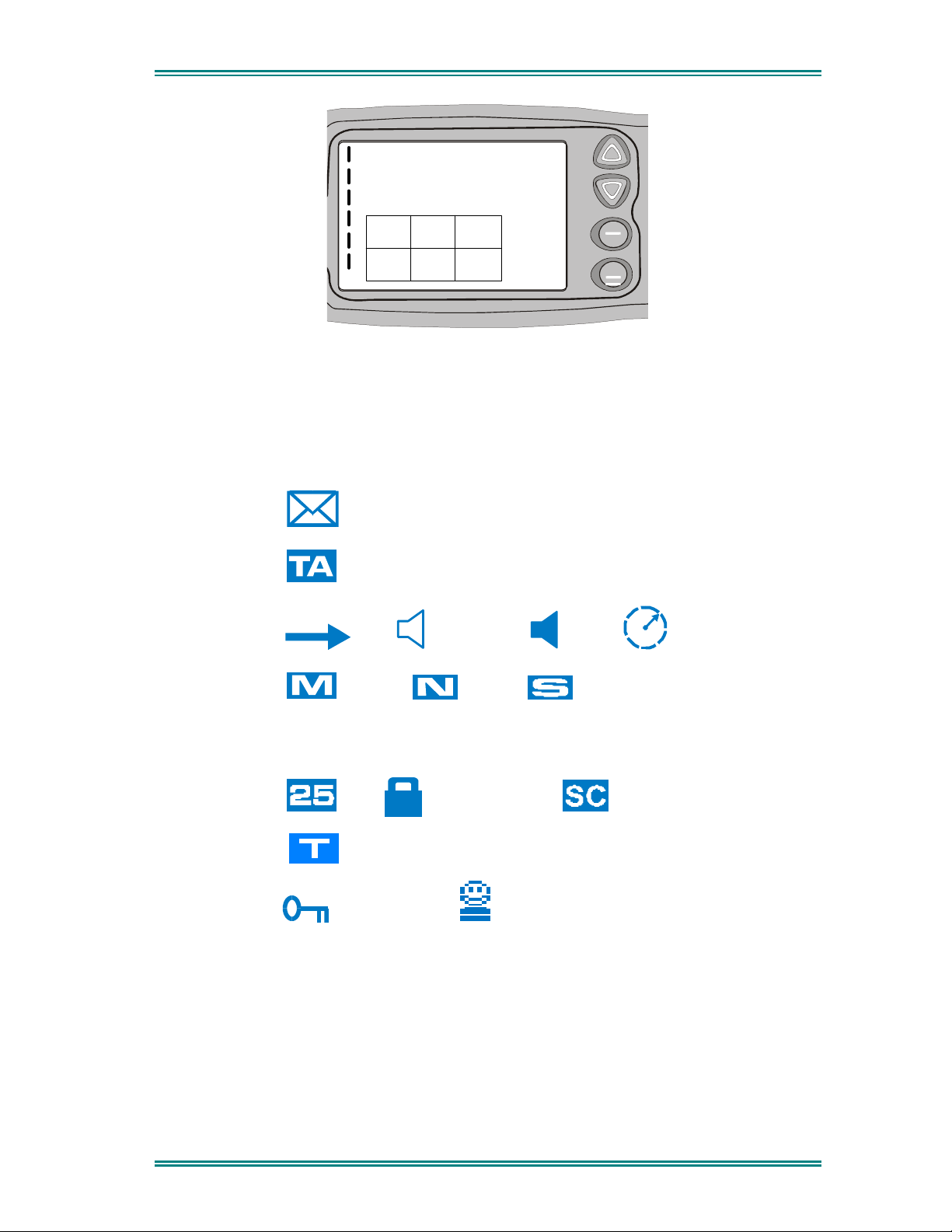

Figure 4 Icon Locations

As there are six positions for icons and displayed icons exceed this, some icons will share the same location.

Position Icon

1

(Message)

2

(Talk Around)

3

(TX) (Other Signal) (Signal) (Scanning)

4

(Monitor) (Normal) (Selective)

OK

MENU

4

C

(Connecting) ! (Connect Fail)

5

(P25) (Digital Encrypted ) ( Scrambler)

5

6

(Trunking)

(Locked Keypad) (Individual Call)

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

ICONS

INDICATION

A filled speaker indicates that a signal is present and the audio can be heard from the speaker.

The outline speaker icon indicates that a signal is present and the radio is muted. This could be another user group, for instance.

Scan Indicator. When radio is on a scan channel and scanning, the arrow will rotate.

Transmit Indicator.

Received Signal Strength Indication (RSSI). A stronger signal will display more bars above the “antenna” icon

Encryption Indicator. The icon is shown when the selected channel is programmed for encryption. If an unencrypted signal is received, the icon will be not be displayed.

25 = Digital Mode Indicator.

Selective Mute. Only radio signals specifically directed to the user or the channel’s defined talkgroup will be heard on the speaker.

Normal Mute. Only radio signals from the users own network will be heard on the speaker.

Monitor. All P25 digital radio signals on the channel will be heard.

All keys except PTT, or any function assigned as Alarm, will be disabled. Press the OK key for 2 seconds to unlock all keys.

Talk Around enabled indicator. When shown, Talk Around is active.

Scrambler indicator. (analogue only)

Emergency mode. Blinking icon indicates that the emergency button has been pressed.

Individual Addressing Mode. When shown, the radio will transmit to an individual address instead of a talkgroup

Envelope icon. Indicates that a message(s) stored if icon steady, icon flashes if unread message(s) stored.

Trunking Icon. Displayed when the radio is in Trunking Mode.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Connecting icon. Shown when a text message is being sent and the

C

!

connection is in progress.

Connection Fail icon. Shown when a text message transmission has failed.

*

Radio has stopped on a scan channel.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2 M

ENUS

The menu structure on the SRM9000 is configurable using the Field Programmer. A system administrator usually tailors the order and presence of the menu options to specific customer requirements.

This section will describe all the possible menus.

Normally the menus are divided into two menu lists.

These are normally the Main menu list and the Setup menu list.

In the default configuration, the Main menu contains the Zone screen and a Setup screen. This allows access to the second “Setup” menu level.

4.2.1 Zone Menu

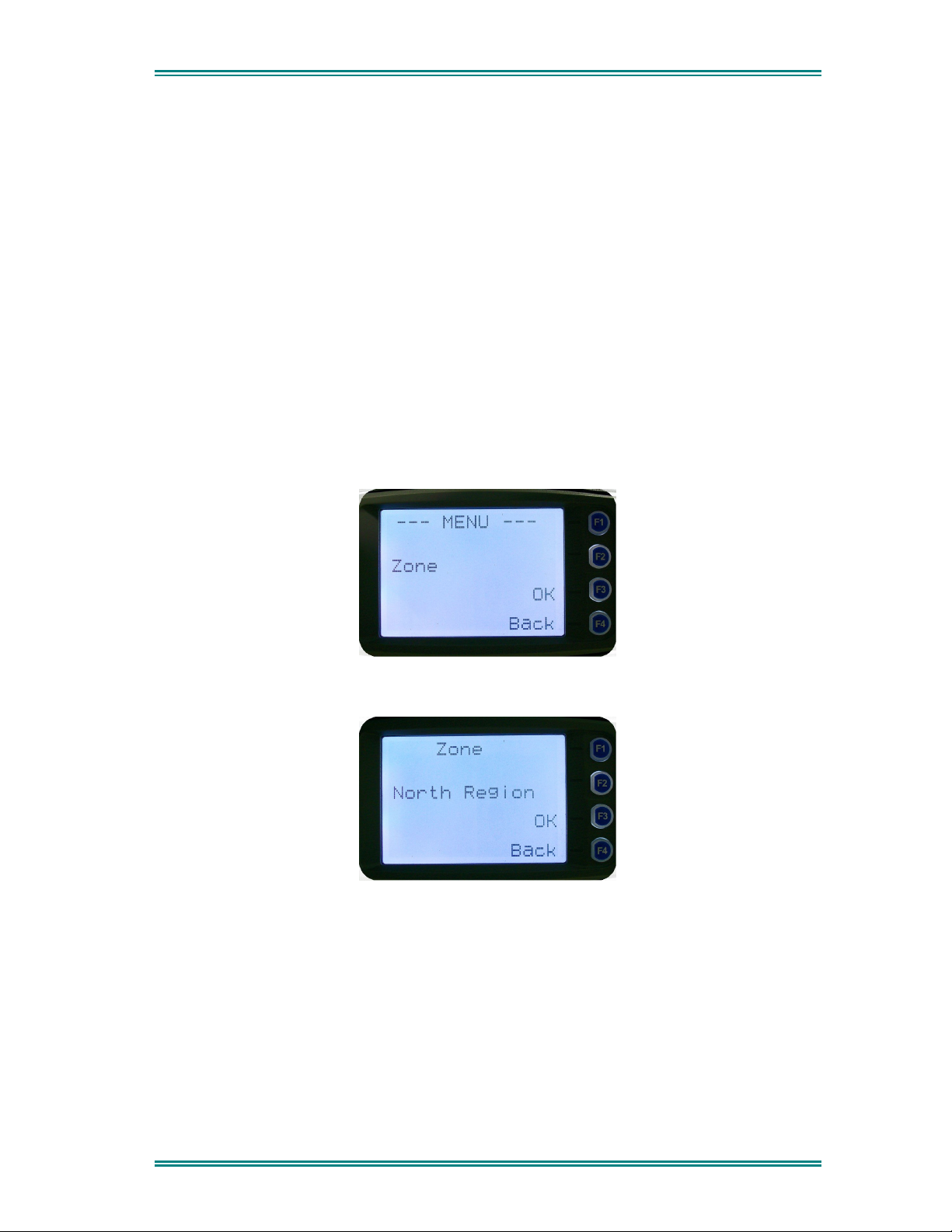

The Zone Screen is used for changing Zones. A Zone is normally defined as a group of radio channels with a common operational role.

Zone

When the “ screen.

Once the “ Press the “ and select the first channel in the new Zone.

Direct access to the “ function buttons with the Field Programmer.

” menu option is displayed, press the “OK” button to enter the “

Zone

” menu appears, press the ▼ and ▲ keys to choose the required Zone.

OK

” key to select the required Zone. The radio will return to the channel screen

Zone

” menu from other screens can also be programmed to one of the

Zone

“ select

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.2 Squelch

This menu allows the channel’s default squelch mode to be modified.

If the selected channel is changed or the radio is switched off, the channel’s default squelch setting will be restored.

Press the “

” key for the “

OK

Squelch

” Menu.

P25 Squelch Screen

For a P25 digital channel, pressing the

Normal

For an analogue channel, pressing the or

Digital Channel Monitor Mode:

or

Normal

Selective

squelch mode.

and ▲ keys will allow selection of either

▼

and ▲ keys will allow selection of either

Monitor

,

The radio will receive any decryptable or clear P25 digital voice signals. The Network Access

M

Code (NAC) is not checked. An “

Digital Channel Normal Mode:

When

Normal

transmissions with the correct NAC. It does not check the Talk Group or Unit ID. An “ icon on the display indicates normal squelch.

Digital Channel Selective Mode

If

Selective

transmissions with the correct NAC and Talk Group ID (TGID) or correct NAC and Unit ID.

S

” icon indicates selective squelch.

An “

squelch is selected, the radio will receive all decryptable or clear digital

squelch is chosen, the radio will only receive decryptable or clear digital

” icon on the display indicates monitor mode.

N

”

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Analogue Channel Monitor Mode:

The radio will receive any Analogue voice or P25 digital signals. Digital NAC or Analogue

M

CTCSS is not checked. An “

Analogue Channel Normal Mode:

When

normal

transmissions and all decryptable or clear digital transmissions. An “ Normal.

Pressing the “

mute is selected, the radio will receive correctly addressed Analogue radio

OK

” key returns to the main channel screen.

” icon indicates monitor.

N

” icon indicates

Pressing the “

Back

” or “

Menu

” key returns to the next highest menu level

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.3 Mute Adjust

From the menu list, step through the menu options with the ▼ and ▲ keys until the “

Adjust

” menu is displayed.

Mute

Press the “

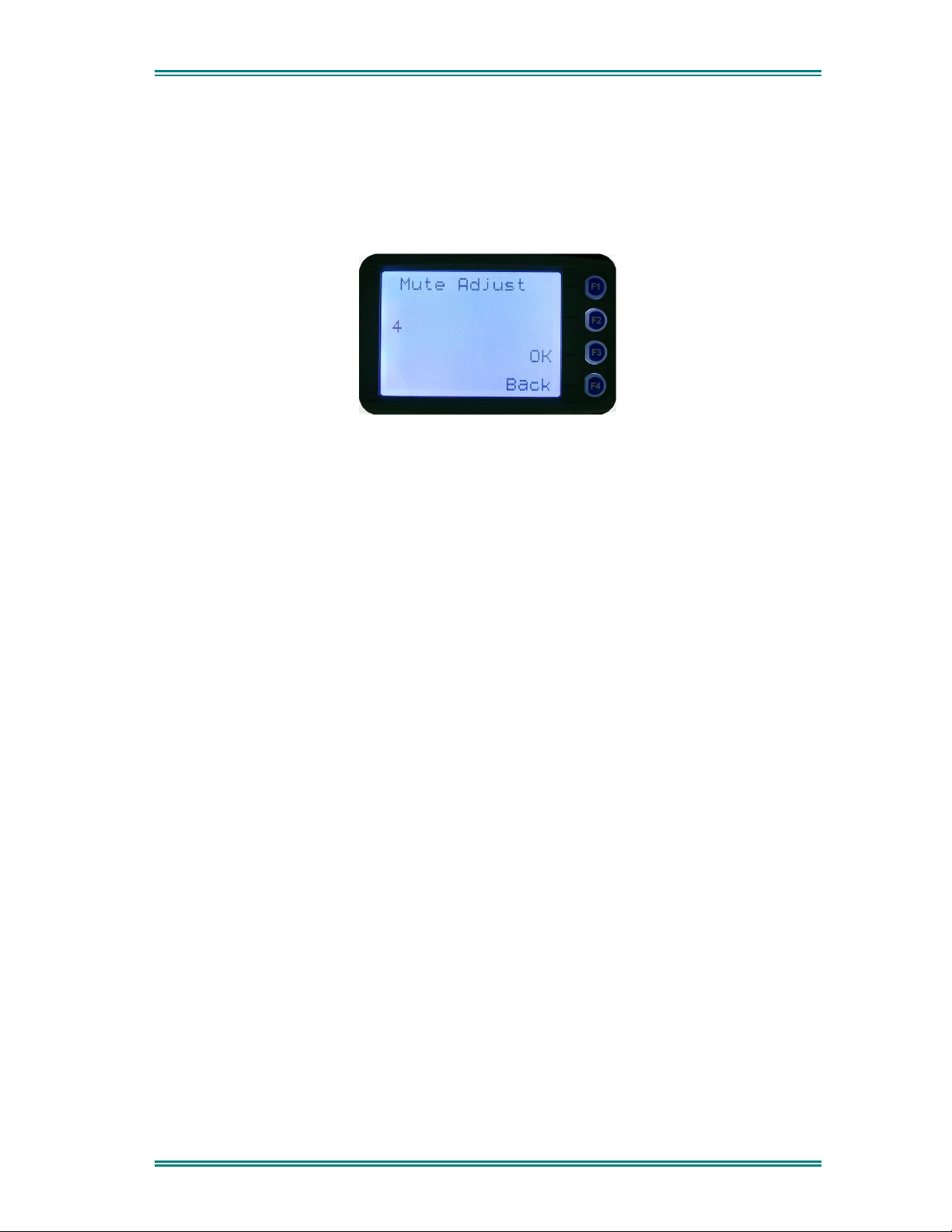

” key for the Mute adjustment screen.

OK

Analogue Mute Screen

The mute adjustment will be applied to all the radio’s analogue channels.

Use the level is shown.

The “

It is recommended that the default mute setting of 4 is used. The SRM9000 series radios have a carrier noise mute and this means the mute will open at the point where an analogue signal is sufficiently noise free to be intelligible with a setting of 4.

▼

and ▲ keys to adjust the mute threshold. A numeric value of the present mute

OK

” key returns to the default channel screen with the selected mute setting.

Other settings are as follows:

0 no muting

4 normal setting,

8 will only hear reasonably strong signals

15 will only hear very strong signals.

Pressing the “

Direct access to the “ one of the function buttons with the Field Programmer.

” key will exit to the Channel Screen with the selected mute setting.

OK

Mute Adjust

” screen from other screens can also be programmed to

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.4 Phonebook Menu

When “ From this screen, it is possible to view the of all phone entries in the phone book.

The second line shows the name of the selected phone book entry.

The third line shows the unit identifier of the phone book entry. This is the P25 ID that the radio will call.

Phone Book

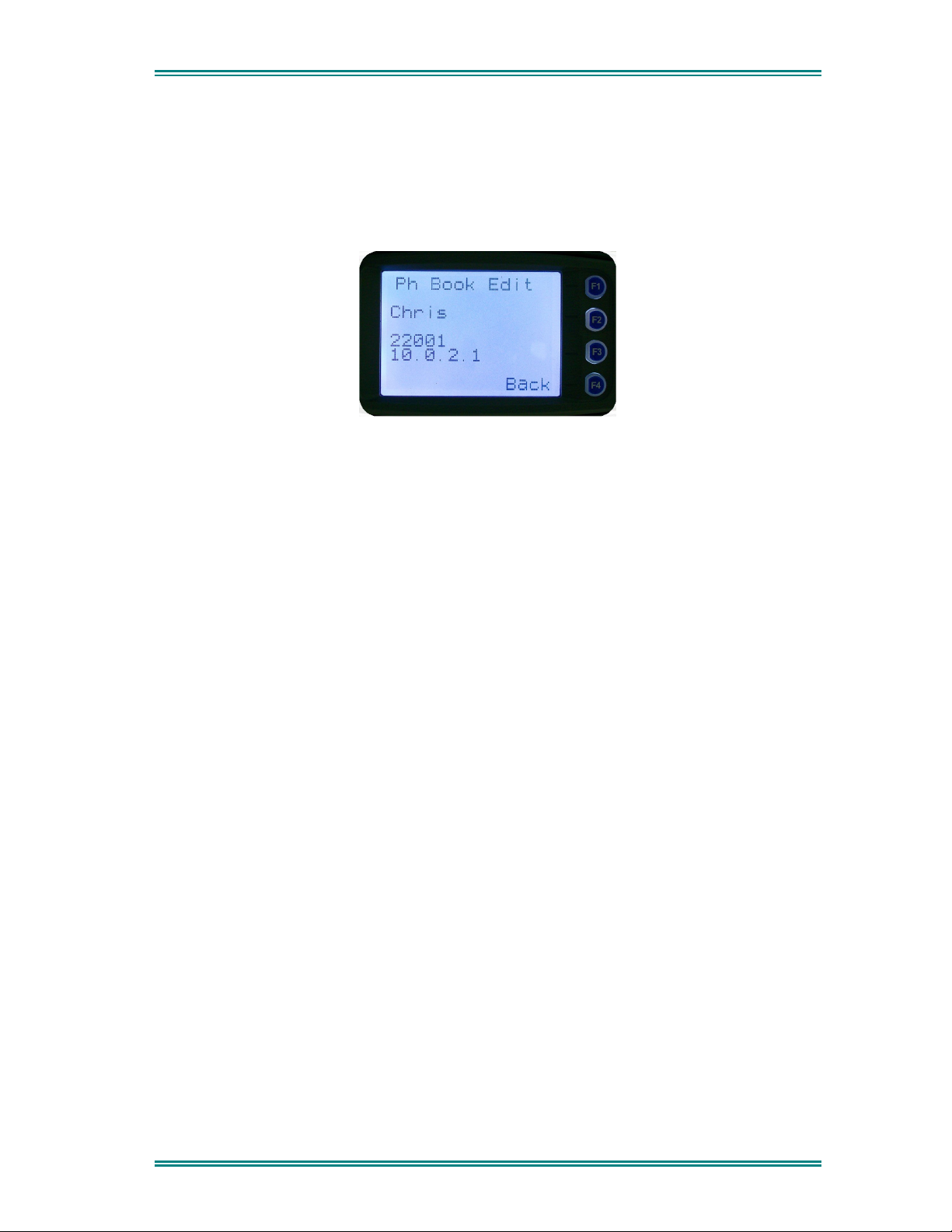

” is selected from the menu screen, the Phone Book Screen is shown.

The fourth line shows the IP address associated with the phone book entry. IP addresses are used for data calls.

▼

Phone book entries may be selected with the

A “Reset” function key press (if configured) takes the radio back to the default screen display.

When the “

Back

” key or “

Menu

” is pressed, the radio returns to the Menu screen.

and ▲ keys.

4.2.4.1 Making an Individual Call

When “

PTT

” key is pressed:

•

The radio is changed to individual call mode (individual call to the unit identifier of the selected phone entry). The individual call icon is displayed.

•

If the radio is already in individual call mode addressed to a different unit, the destination unit ID shall be replaced by that of the newly selected phone entry.

• The radio will remain in individual call mode until the inactivity timeout has elapsed, ie. No PTT or signal received for the Field Programmer set time period (typically 10 seconds).

• The radio will return to the default screen.

4.2.4.2 Making an Individual Call with Call Alert

When the

A Call Alert is sent to the displayed ID.

The called radio will sound a Call Alert.

“OK”

key is pressed with the Phone Book entry displayed:

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.5 Phonebook Edit Menu

The Phone Book can be modified so that new entries can be added and existing entries can be modified or removed from the phone book.

Phone book entries may be Individual Addresses, Telephone numbers or Talk Groups.

Changes to the phone book are permanent.

4.2.5.1 Phonebook Edit Default Screen

When “ Book Edit Screen.

From this screen, an entry can be chosen using the

Phone Book Edit

” is selected from the menu screen, the radio displays the Phone

▼

and ▲ keys.

The displayed information is the same as the Phone Book Screen display.

A

“Reset”

display.

If the “

function key press (if configured) takes the radio back to the default screen

” key or “

Back

OK

” key is pressed, the “

” key is pressed, the radio returns to the MENU screen.

Menu

Phone Book Edit

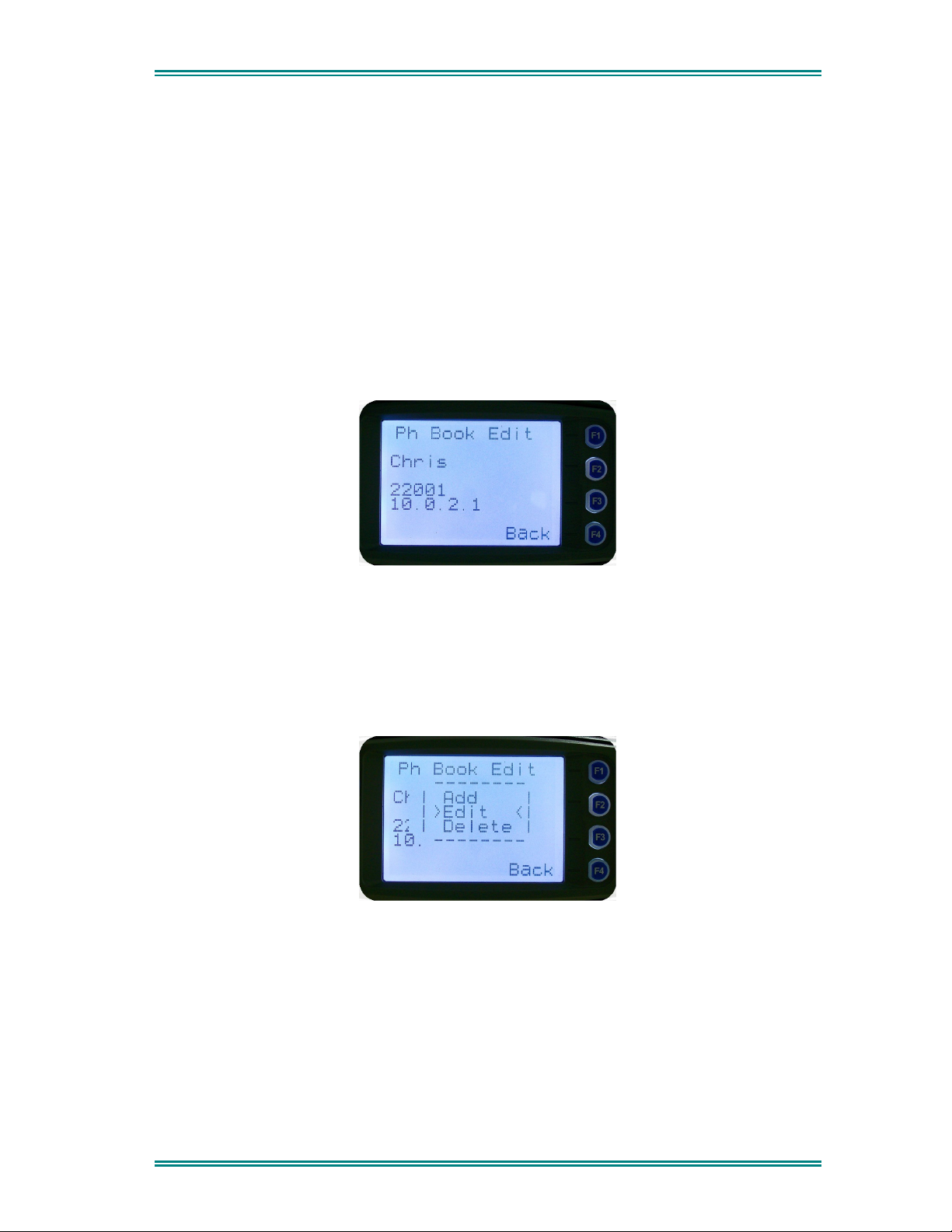

” pop-up menu is displayed.

4.2.5.2 Phone Book Edit Pop-up menu

The pop-up items are:

•

Add:

to add a new phone entry

•

Edit:

to edit (modify) the selected phone entry.

•

Delete:

The selection is made with the

The “

Menu

to delete the currently selected phone entry.

▼

and ▲ keys.

” or “

Back

” key takes the radio back to the Phone Book Edit Default Screen.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

A “

Reset”

display.

Delete

If “ and takes the radio back to the default screen display.

Add

If “

Edit

function key press (if configured) takes the radio back to the default screen

” is selected, pressing “OK” removes the selected phone entry from the phone book

” is selected, pressing “OK” takes the radio to the Add New Entry sub-menu.

” is selected, pressing “OK” takes the radio to the Edit Phone Entry sub-menu.

4.2.5.3 Phone Book Edit – Add New Phone Entry

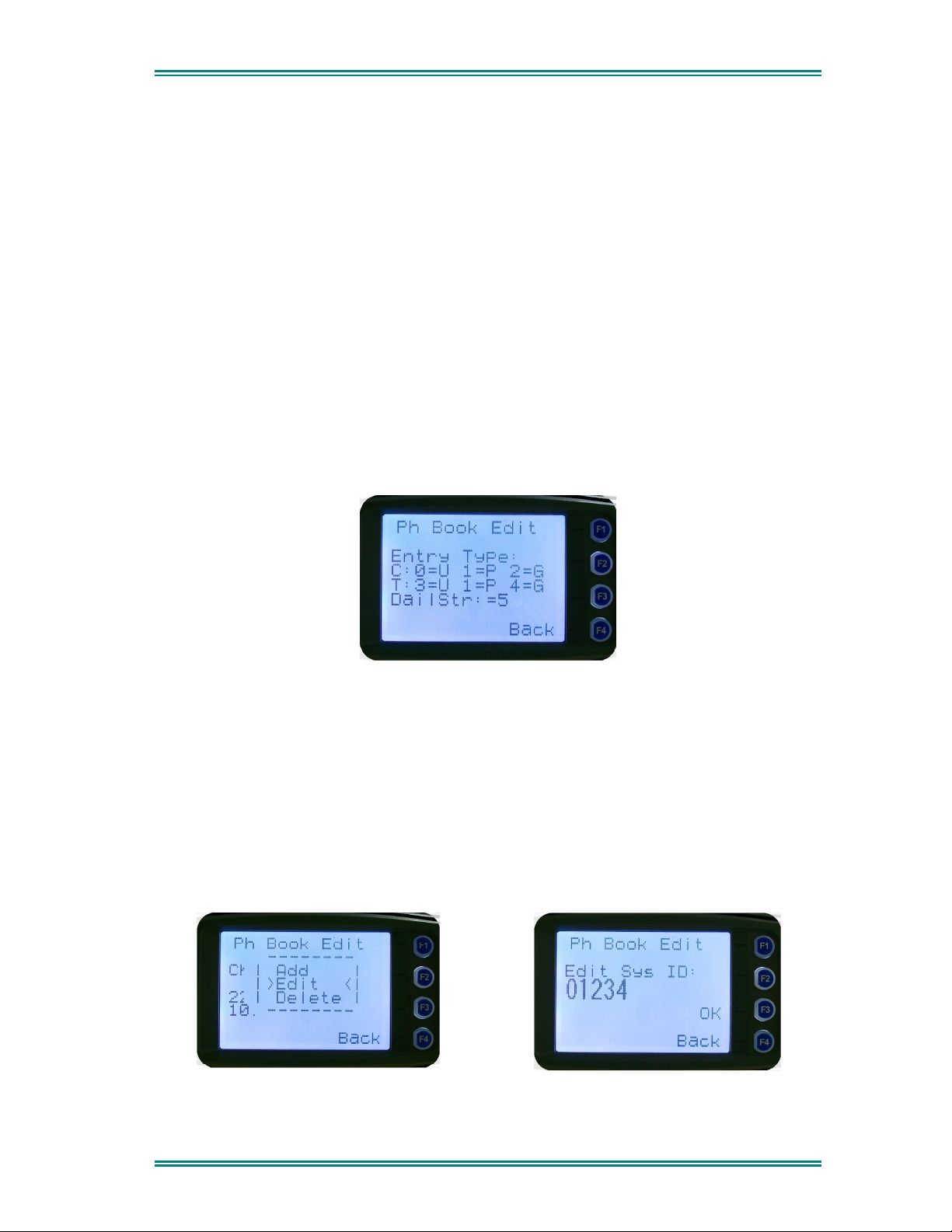

The first edit screen is the entry type screen. There are 6 possible types of Phone Book entries. These are:

Conv.Unit ID (Option 0) Conv.PSTN (Option 1) Conv.Group (Option 2)

Trunk Unit ID (Option 3) Trunk PSTN (Option 1) Trunk Group (Option 4)

Dialstring (Option 5)

Make the selection 0 – 5 and select OK.

From here, enter the System ID value as described in the Phonebook Edit section.

4.2.5.4 Phonebook Edit

This selection is used to edit an existing phone book entry. The operation is similar to adding a phonebook entry in previous section.

In this example, editing a P25 Trunked ID is shown. It is also possible to edit a P25 Conventional ID and a P25 Group Entry.

The first step is to edit the System ID.

Upon entering this screen, the current trunked System ID of the selected entry is displayed.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The System ID entry can then be changed using the numeric digits and ▼ key as a destructive backspace.

OK

Once the New System ID is entered, press “ screen to edit the WACN ID, if required.

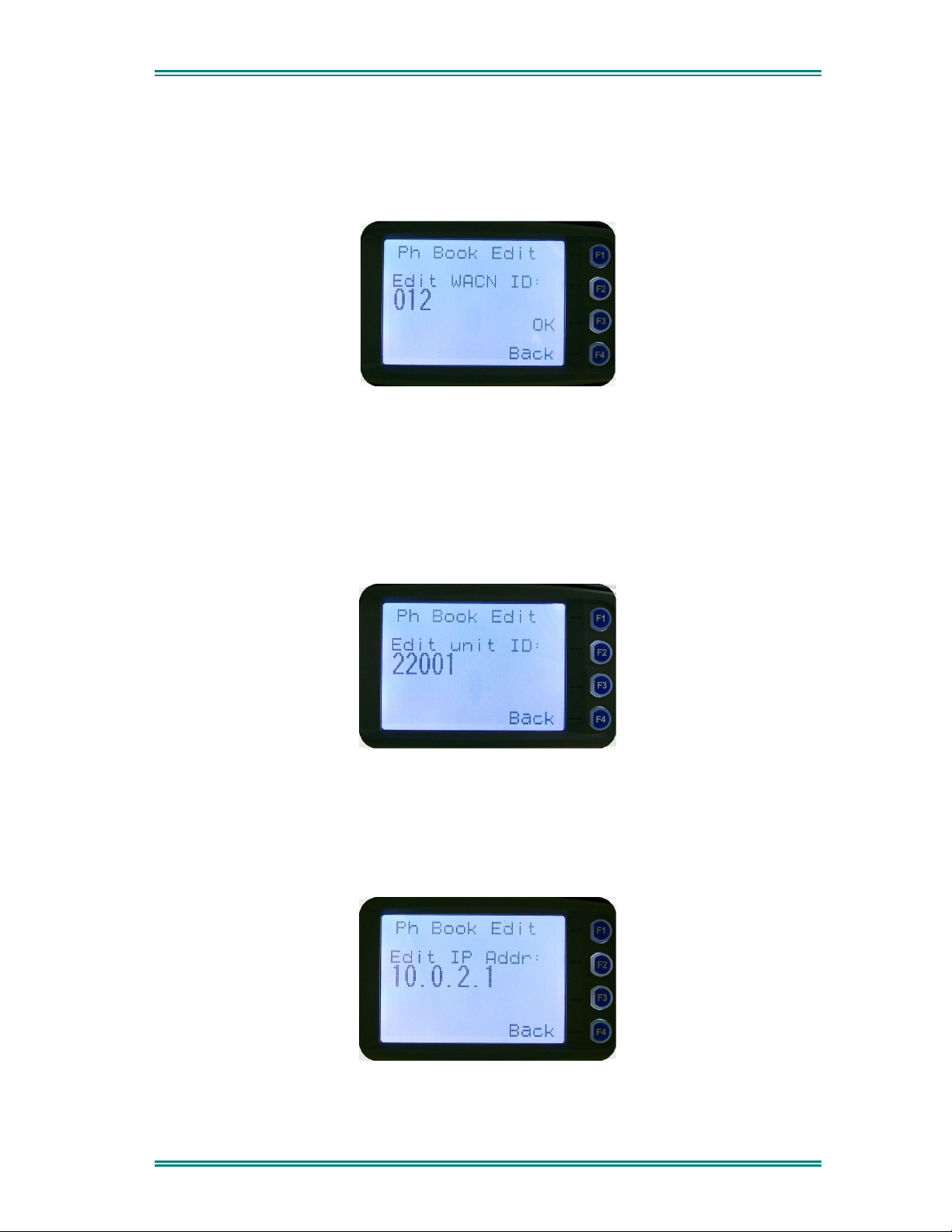

Upon entering this screen, the current WACN ID of the selected entry is displayed.

” key to move on to the next sub-menu

The WACN ID entry can then be changed using the numeric digits and destructive backspace.

OK

If there is no change for the WACN ID, press “ screen to edit the name.

The next step is to edit the Unit ID, if required.

” key to move on to the next sub-menu

▼

key as a

Upon entering this screen, the current Unit ID of the selected entry is displayed.

▼

The entry can then be changed using the numeric digits and backspace.

If there is no change for the Unit ID, press “

OK

” key to edit the IP address, if required.

key as a destructive

Upon entering this screen, the current IP address of the selected phone entry is displayed.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The IP address can then be changed using the numeric digits and ▼ and ▲ key to move the

▼

cursor with

function key as a destructive backspace. The “#” key is used to enter a “.”.

If there is no change for the IP address, press “ screen to edit the name.

Upon entering this screen, the current name of the selected phone entry is displayed.

The name entry can then be changed using the numeric digits and

Reset

cursor with

If there is no change for the name, press “ entry. The phone entry will be modified in the radio, and the radio will return to the default screen.

function key to delete.

OK

” key and move on to the next sub-menu

and ▲ key to move the

▼

OK

” key to complete the editing on the phone

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.6 User Options

The “

User Options

off. Up to 10 functions may be defined in this menu by the FPP programmer.

Press the “

OK

” menu provides access to a list of Functions that may be toggled on or

” key for the “

User Options

” screen.

When the Function is selected, the function can be toggled ON or OFF with the “

▼

The

Pressing the “ highest menu level.

Toggle functions include Key Beeps, Backlight, Talk-Around, Analogue Scrambler and Low Power Override.

These functions can also be assigned directly to the radio’s function buttons, if required.

and ▲ keys are used to select the other functions.

Back

“ or “

Menu

” key saves all the function settings and returns to the next

OK

” key.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.7 Contrast

This menu allows the screen’s contrast setting to be changed.

OK

Press the “

” key for the “

Contrast

” adjustment screen

When the “ The numeric value of the Contrast is displayed.

Pressing the “

Pressing the Back or “

Contrast

” menu is selected, the contrast can be adjusted with the ▼ and ▲ keys.

OK

” key returns to the main channel screen.

Menu

” key returns to the next highest menu level.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.8 Alert Volume

This Screen allows you to set the level of the relative Alert Volume level in relation to the current Volume setting. The level can be set in 62 steps over the range -31 to +31, with 0 being about the same as the voice level. For example, if the alert volume is set to –6, it will be softer than received voice on the radio.

From the Settings Sub Menu, step through the menu options with the Alert menu is displayed.

Press the “

” key for the “

OK

Alert Volume

” adjustment screen

and ▲ keys until the

▼

Use the indicated level each time the setting is changed.

Press “

Pressing the “

Note: A minimum Alert Level may be set by the FPP to ensure that the Alerts can always be heard from the speaker.

▼

and ▲ keys to change the relative alert volume level. The beep will sound at the

OK

” to accept the setting and return to the Channel Screen.

Menu”

key will exit back to the setup menu.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.9 Radio Information

These screens display information that identifies the Field Programmer File description, Radio ID, Serial Number, Software Version and IP Address.

From the Settings Sub Menu, step through the menu options with the Radio Info menu is displayed.

Press the “

▼

The

and ▲ keys select the following information pages:

Description, P25 Conv. Unit ID and Radio Band

” key for the “

OK

Radio Info

” Screen.

Radio Software Version and Serial Number

and ▲ keys until the

▼

Application Software Version and Date

P25 Radio Unit Trunked ID and IP Address

Application Upgrade Version, Date and PLA

P25 Trunked SysID, WACN, GID and UID

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Radio Info

The “ Screen.

Feature Authorisation Enables

Encryption Summary

“ screens are read-only screens. Press “OK” to return to the Channel

External Application Memory Status

Encryption Status

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

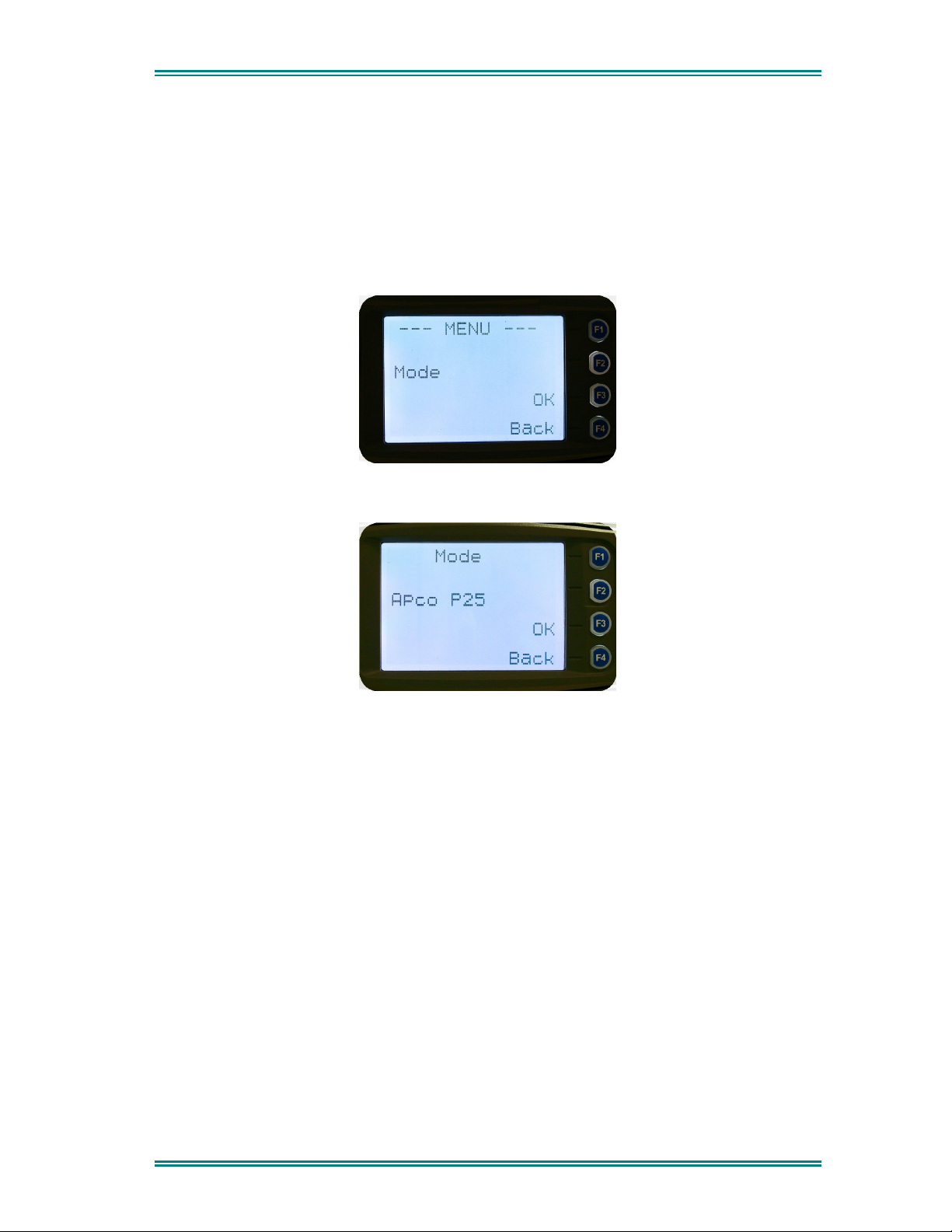

4.2.10 Mode Menu

The mode menu is used for changing from one radio to another, such as PMR/LMR mode to P25 or MPT1327 trunking.

Menu

From the Channel Screen, select menu mode with the “

▼

menus with the

and ▲ keys until the “Mode” menu is reached.

Press “OK” to select the Mode menu.

” key and step through the

From the “ as Apco P25, PMR or MPT Trunking. While the required mode is displayed, press OK to select that operating mode. The radio will then display the default screen for that mode.

Mode

” menu, use the ▼ and ▲ keys to select the required operating mode, such

Keypad shortcuts can be used to change modes from the keypad.

• PMR (*60#)

• P25 (*80#)

•

MPT Network 1 (*71#)

• MPT Network 2 (*72#)

Simoco Wireless Solutions SRMA9000UW, SRMA9000TU, SRMA9000AC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
