SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.11 RSSI (Received Signal Strength Indication)

This screen displays the received signal strength in dBm. The reading is typically accurate within +/- 2 dBm between -120 and -80dBm, if the radio has been correctly calibrated. For example, -90dBm is a strong signal and –120dBm is no signal.

The screen also shows the Bit Error Rate (BER) on digital channels. RSSI and BER are typically used to indicate signal quality.

From the Settings Sub Menu, step through the menu options with the ▼ and ▲ keys until the

RSSI

” menu is displayed.

“

Press the “

If a Digital channel is selected BER will be displayed.

The RSSI/BER will be displayed until either the “ highest menu level or the “

A lower RSSI value indicates a stronger signal, ie. –80dBm is a stronger signal than –100dBm.

OK”

key for the “

RSSI

“ screen

” key is pressed to return to the next

” key is pressed which will return to the main channel menu.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.12 Crypto

This menu allows the digital channel’s default transmit encryption key to be modified. The current selected digital channel has encryption enabled if the padlock symbol is displayed.

Press the “

” key for the “

Crypto Key

” menu.

Digital Analogue

If an Analogue channel is selected, a warning message will display “None-Analog

When the Crypto menu is selected, the digital channel’s Encryption Key ID can be changed

▼

with the

The key name and the key identifier (1-32) for the selected channel is displayed.

If the selected channel is changed or the radio is switched off, the channel’s default encryption key will be restored.

Pressing the “OK” key returns to the main channel screen.

Pressing the “

and ▲ keys.

Back

” or “

” key returns to the next highest menu level.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.13 Setup Menu

The screens in the Setup sub-menus allow the radio operator to edit/modify the operation of some of the general functions of the radio.

Once the the available “Main” menus. Once the “Setup” menu appears, press the “ it.

key is pressed from the “Channel” screen, the ▼ and ▲ keys cycle through

OK”

key to select

▼

and

▲

The

The Setup menu structure may include, for example:

•

Alert Volume,

•

Contrast,

•

RSSI (Received Signal Strength Indication),

•

Info (Radio software and hardware information),

•

Crypto (Select Transmit Encryption Key),

•

Squelch,

•

Mute Adjust or

•

User Options

keys are then used to scroll through the setup menus.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

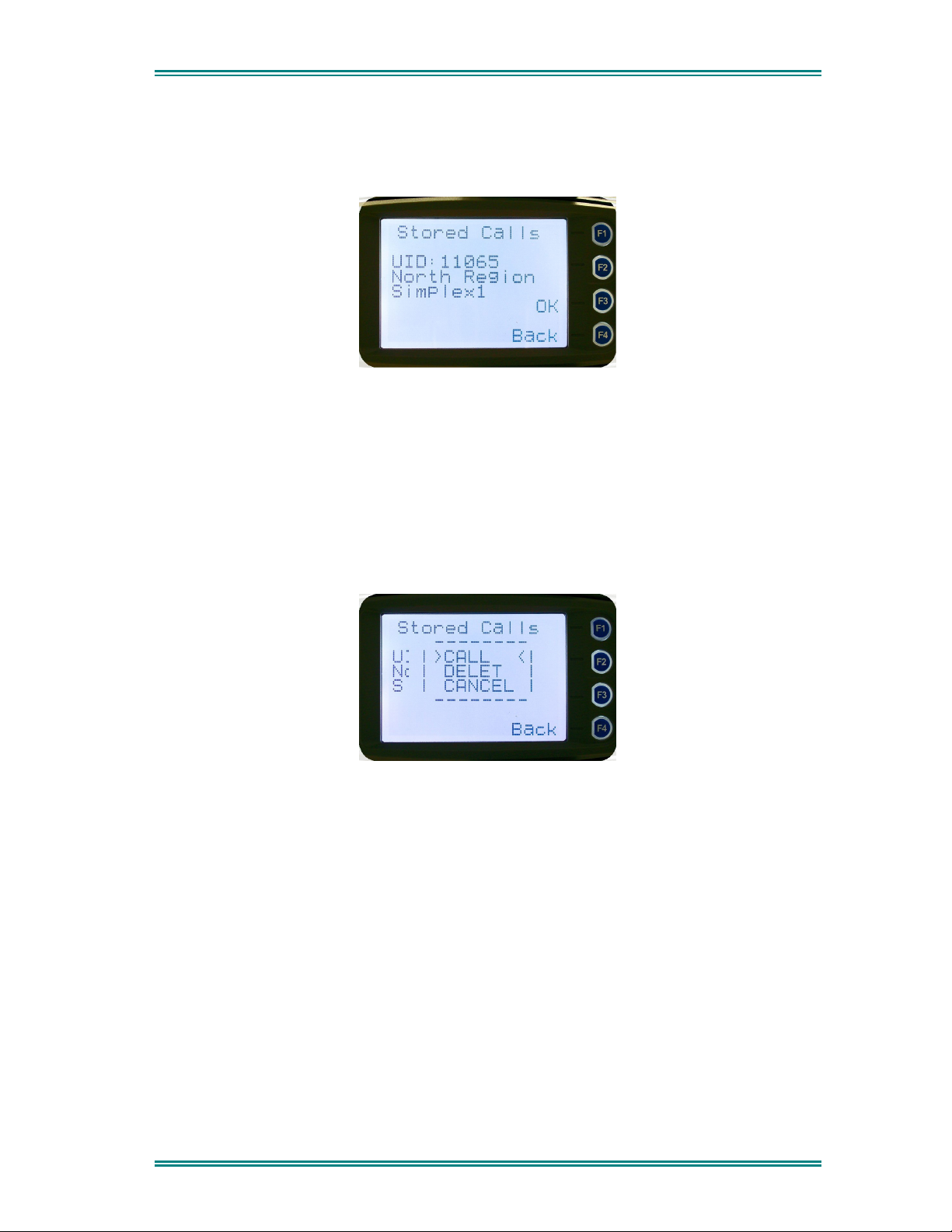

4.2.14 Stored Calls

This screen displays the received individual call records one by one, starting with the most recently received call record.

Either the name of the caller from the phone book or the user ID is displayed if the ID is not known to the phone book. If stored calls are empty, NO RECORD is displayed.

The ▼ and ▲ keys can be used to step through the stored calls. An error beep will sound if there are no more call records.

A “

Reset

” function key press (if configured), takes the radio back to the default screen

display.

” or “

Back

The “ menu is displayed so that the message can be deleted or party called back.

” key returns to Menu screen. When “OK” key is pressed, a pop up

The selections are:

DELETE

•

CALL

•

CANCEL

The selection is made with the

The “

A “Reset” function key press (if configured) takes the radio back to the default screen display.

If “

DELETE

the list. The radio returns to the Stored Calls Screen with the next record being displayed.

– to delete the call record.

– to call back the caller (set individual call to the caller)

– to cancel the action selection.

▼

and ▲ keys.

” or “

Back

” key returns to Stored Calls screen”.

” is selected, pressing “OK” removes the selected call record (being viewed) from

CANCEL

If “

CALL

the stored call. A subsequent PTT within the configured time interval will send an individual call to the ID of the stored call.

” is selected, the

” is selected, pressing “OK” sets the radio to individual calling mode with the ID of

Stored Calls

screen is displayed.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.15 Messages

A radio unit can receive and transmit predefined short messages and text messages with another radio unit on a digital channel (P25 conventional only).

Messages received are stored in radio memory. They can be viewed and deleted as required.

If there are unread messages stored in the radio, the envelope icon on the default screen will flash.

If there are messages in the radio that have all been read, a steady envelope icon is shown on the default screen.

If there are no messages in the radio, the envelope icon will not appear on the default screen.

To view/delete/send messages, go to the Menu selection and choose the “

Messages

” menu.

When “Messages” is selected from the menu screen with “OK”, a pop-up screen will appear.

4.2.15.1 Messages Selection Pop-Up Menu

The pop-up selections are:

•

VIEW

: View received messages.

SMSG:

•

messages. Choosing sent as a short message to another radio unit. Only applicable when a digital channel is selected.

TXTMSG:

•

applicable when a digital channel is selected.

Options are selected with the

Short Message. The radio can be programmed with a list of predefined

SMSG

Text message. Enters the text message edit and send sub-menus. Only

▼

shows a list of predefined messages, which can be

and ▲ keys.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Pressing “

Reset

A “ display.

If “

If “ channel, otherwise an error beep will sound.

If “ digital channel, otherwise an error beep will sound.

” function key press (if configured) takes the radio back to the default screen

” is selected, pressing “OK” shows the Message View screen.

VIEW

SMSG

TXTMSG

” is selected, pressing “OK” shows the Short Message screen only for a digital

” or “

” is selected, pressing “OK” shows the Edit Text Message screen only for a

” keys takes the radio back to the Menu screen.

Back

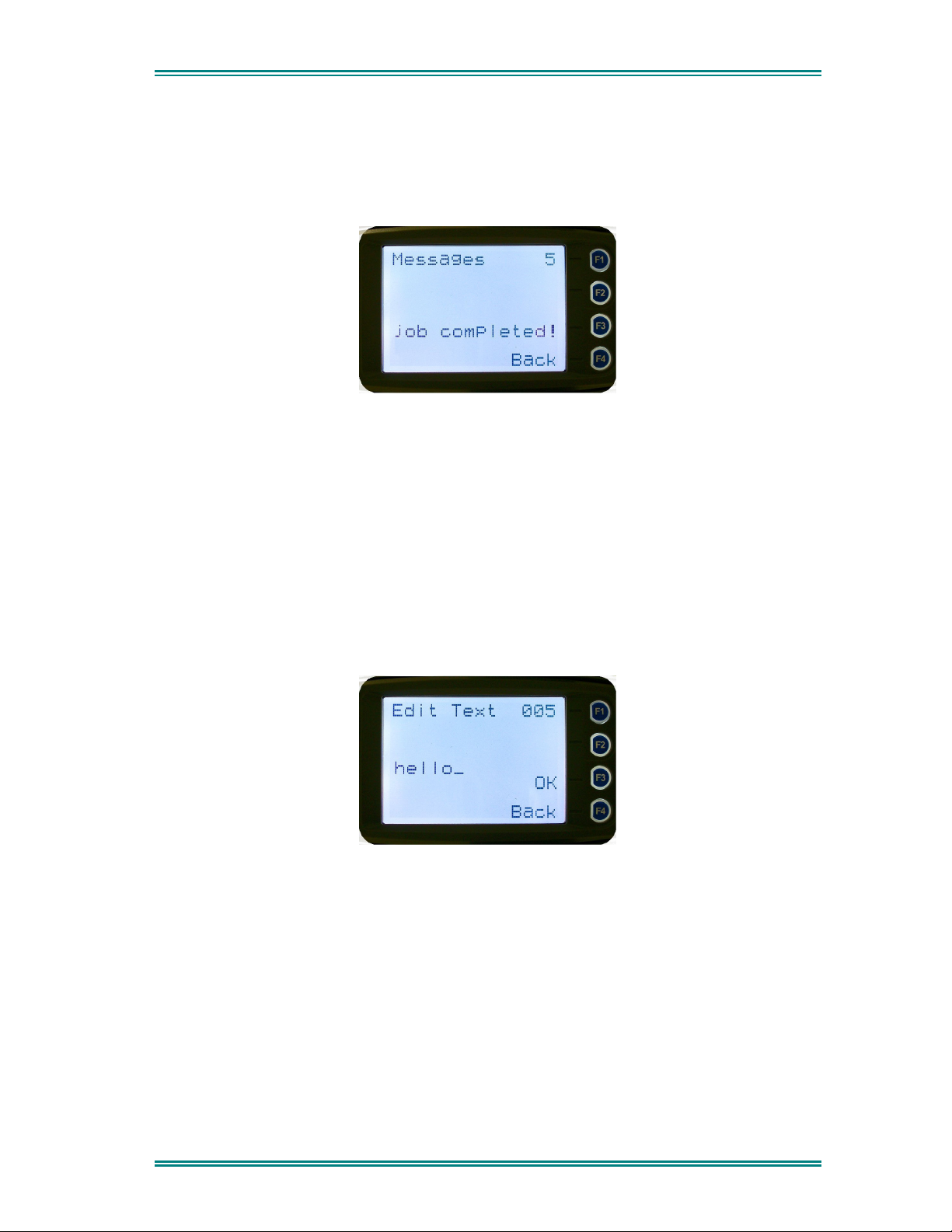

4.2.15.2 View Received Messages Screen

Received messages (both short messages and text messages) can be viewed from this screen.

This screen displays the received messages one by one, starting with the most recent received message.

The information displayed for each message includes the sender ID (S Unit) and the first 2 lines of the received message in text string.

If no messages are stored, “

To step through other stored messages, use the message stored, an error beep will sound.

A “ display.

If the “ up Menu.

Pressing the “

” function key press (if configured) takes the radio back to the default screen

Reset

Back

” or “

” key displays the Message View pop-up menu with further options.

NO RECORD

” key is pressed, the radio will return to the Messages Selection pop-

” is displayed.

▼

and ▲ keys. If there is no further

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.15.3 Message View Pop-Up Menu

The Message View pop-up allows the following options:

•

Delete

–deletes the current received message.

– to view the full (entire) message.

•

Selection is performed using the

Pressing the “

A “Reset” function key press (if configured) takes the radio back to the default screen display.

Delete

If “ radio. The radio will return to the “ selected and displayed.

If “

– to select the method of replying to the selected message.

▼

and ▲ keys.

” or “

Back

” key takes the radio back to the “

” is selected, pressing “OK” will remove the current selected message from the

Messages View

” is selected, pressing “OK” will display the full message.

” is selected, pressing “OK” will display the “

” screen with the next message being

Message Reply”

Messages View

pop-up screen.

” Screen.

4.2.15.4 More Message View Screen

This Screen displays the selected message in full scale – 6 lines of message text per page of the selected message.

If a message exceeds a screen, the ▼ and ▲ keys can select the other pages.

Pressing “

The “Reset” function key press (if configured) takes the radio back to the default screen display.

” or “OK” returns to the “

Messages View

” pop-up screen.

4.2.15.5 Reply Message Selection Pop-Up Menu

Selecting Reply brings up another pop-up menu.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The selections are:

•

Call

– Calls the selected sender.

SMsg

•

– Sends a short message to the sender

•

TxtMsg

Selection is made using the

The “

A “Reset” function key press (if configured) takes the radio back to the default screen display.

If “

Call

” and “OK” is selected, the radio returns to the default screen and is set to individual

calling mode for a time out period determined by radio configuration.

When the radio is PTT’d, an individual voice call is sent to the message sender.

If “

SMsg

If “

TxtMsg

– To edit and send a text message to the sender.

▼

and ▲ keys.

” or “

Back

” key press returns to the “

” is selected, pressing “OK” displays the Message Reply - Short Messages screen.

” is selected, pressing “OK” displays the Message Reply –Text Edit screen.

Messages View

” pop-up screen.

4.2.15.6 Short Message Reply

This menu is used to reply with a pre-defined short message.

This screen shows:

• The destination unit identifier,

• The selected short message.

The short message can be selected from the short message list by using the ▼ and ▲ keys.

A “Reset” function key press (if configured) takes the radio back to the default screen display.

A “

Back

” or “

” keypress returns to the Message Reply Pop-up screen.

When “ message, and the radio returns to the default screen.

” key is pressed, the selected short message is sent in reply to the received

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.15.7 Text Message Reply Screen

This menu is used to reply with a free form text message.

The maximum length of text message is 210 characters.

The characters are entered via the keypad by pressing the relevant key one or more times to choose each character.

The ▼ key is used to move the curser to the left.

▲

The

A “Reset/clear” button press and hold for less than one second deletes the character to the left of the cursor, and moves the curser position to the left by one.

Holding the “Reset/Clear” button down for more than one second deletes all characters from the curser position to the right. A new character entered is put on the current cursor location.

The ‘

The “

When “ screen.

Pressing “ radio returns to the default screen.

key is used to move the curser to the right.

’ key is used to toggle upper and lower case.

” key is the space key.

Back”

key or “

” sends the edited text message in reply to the sender of the message. The

” key is pressed, the radio returns to the Message Reply pop-up

4.2.15.8 Send Message (Short or Text)

This menu is used to send either a short message or a text message to another party. Select Messages from the main menu and then choose either “ Message) or “

TXTMsg

” (Text Message).

SMsg

” (Short

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

4.2.15.8.1 Short Message Screen

This screen allows the user to view and select a short message. It displays the selected short message text.

The short message can be selected by using the ▼ and ▲ keys.

A “Reset” function key press (if configured) takes the radio back to the default screen display.

A “

Back

” or “

” keypress returns to the Message Pop-up screen.

When the “

” key is pressed, the Destination Pop-up screen is shown.

4.2.15.9 Text Message Screen

This screen allows editing and sending a free form text message. A text message can have a maximum length of 210 characters. The number of characters entered is displayed in the top right hand side.

The characters are entered via the keypad by pressing the relevant key one or more times to choose each character.

The ▼ key is used to move the curser to the left.

The

▲

key is used to move the curser to the right.

A “

Reset

” button press and hold for less than one second deletes the character to the left of

the cursor, and moves the cursor position to the left by one.

Reset

Holding the “ cursor position to the right. A new character entered is put on the current cursor location.

The

key is used to toggle upper and lower case.

‘#’

” button down for more than one second deletes all characters from the

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

When the “ screen.

When “

” or “

Back

” key is pressed, the Destination Selection Pop-up Menu screen appears.

” key is pressed, the radio returns to the Message Reply pop-up

4.2.15.10 Destination Select Pop-Up Menu

This menu allows selection of the message destination.

The selections are:

PH. BK:

•

ENT.ID:

CANCEL:

•

Selects the destination from the phone book

Enters the destination unit ID

Cancels the destination selection.

Use the ▼ and ▲ keys to make the selection.

The “

” or “

Back

” key returns to previous screen, i.e., Short Message Screen, or Edit

Text Message Screen.

Reset

A “ display.

If “ Screen, or Edit Text Message Screen.

If “

” function key press (if configured) takes the radio back to the default screen

CANCEL

PH.BK

ENT.ID

” is selected, pressing “OK” returns to the previous screen, i.e., Short Message

” is selected, pressing “OK” key displays the “Phone Entry Screen”.

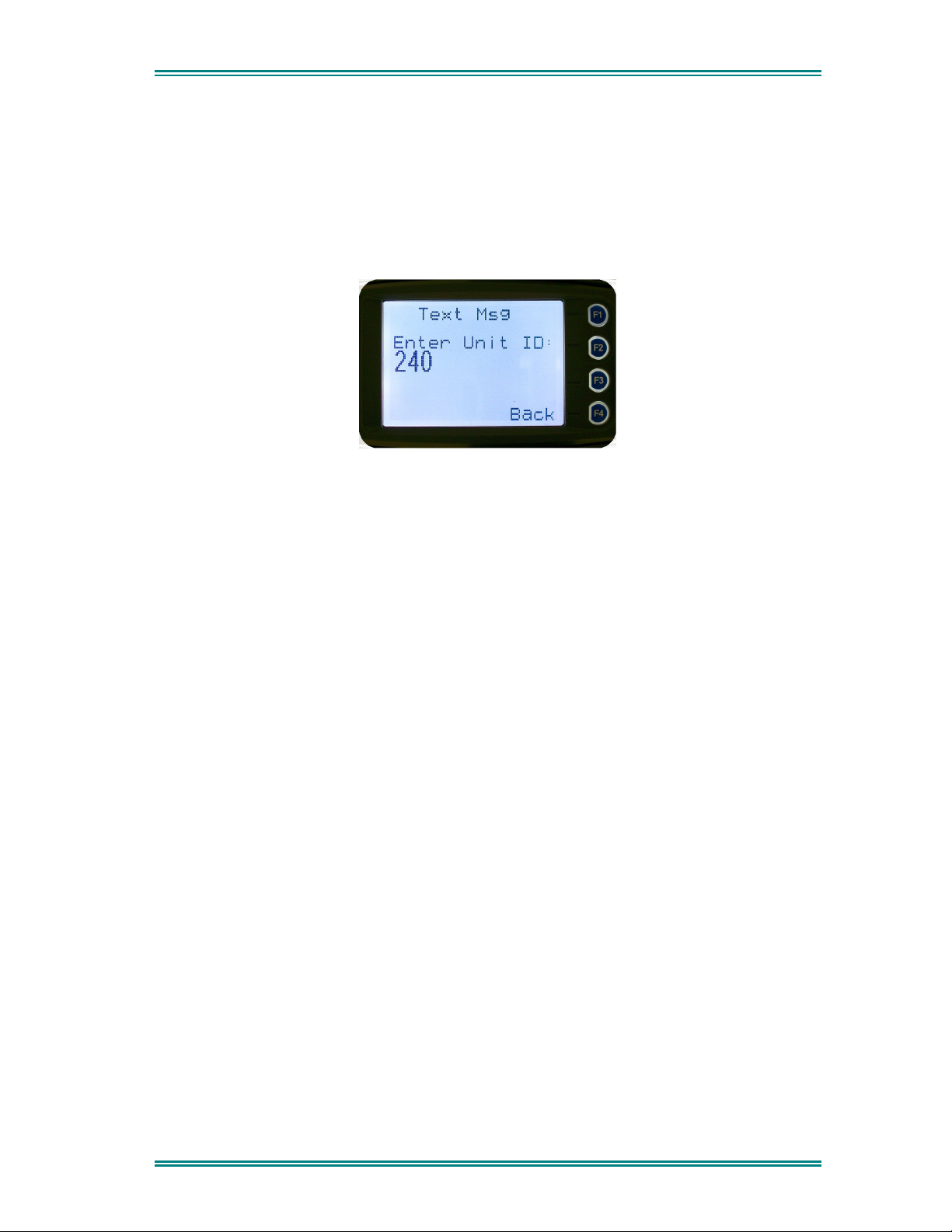

” is selected, pressing “OK” key displays the “Enter Unit Id Screen”.

4.2.15.11 Phone Book Selection Screen

This screen allows selection of the destination ID from the Phone Book.

The ▼ and ▲ keys are used to select the phone book entry.

A “Reset” function key press (if configured) takes the radio back to the default screen display.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The “

” or “

” key returns to the Destination Selection Pop-up screen.

Back

Pressing “OK” key sends the message to the chosen destination ID and the radio returns to the default screen.

4.2.15.12 Enter Unit ID Screen

This screen allows manual entry of the destination unit ID decimal digits. The valid range of unit ID: (0 – 16,777,215).

The entered digits can be deleted by using the ▼ key.

” or “

The “

A “Reset” function key press (if configured) takes the radio back to the default screen display.

” key returns to Destination Selection pop-up Menu screen.

Back

Pressing “ will return to the default screen.

If the entered unit ID is not valid, or the IP address is not defined, an error beep will sound.

Sending a short message or text message can fail if the destination radio is not available.

” sends the message to the entered unit ID (providing it is valid). The screen

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

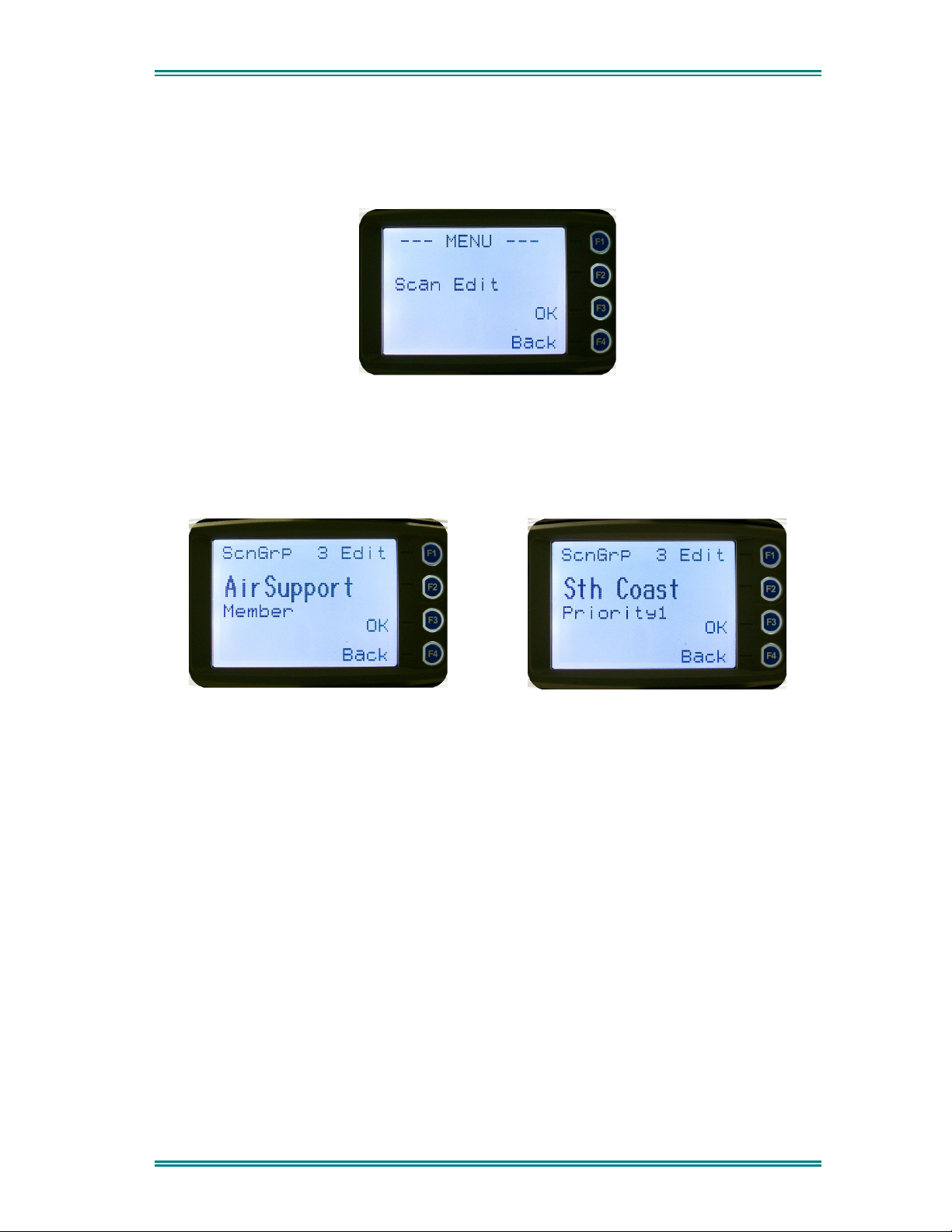

4.2.16 Scan Edit Menu

This menu allows channels in Scan Groups to be added or deleted by the user.

Add and Delete changes to a Scan Group are stored permanently in the radio.

4.2.16.1 Scan Group Edit Screen

When selected, the “ the Scan Group.

Scan Group Edit

” screen is displayed, which shows the channels within

The second line from the top shows the name of the selected channel in the scan group.

The next line shows the channel type, i.e., “Member” if it is a normal member of the scan group; “Priority” if it is the priority channel; or “Skipped”, if the channel is currently skipped from the scan group.

The

When “ display.

When the “ screen.

When “

and ▲ keys select the channel from the scan group list..

▼

Reset

” function key is pressed (if configured), the radio returns to the default screen

” key or “

Back

” key is pressed, a pop-up action selection menu is displayed.

” is pressed, the radio returns to the “

Scan Group Edit

”

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The pop-up selections are:

•

Add:

adds a channel to the scan group

•

The

▼

The “

Reset

A “ display.

Delete:

Back:

and ▲ keys make the selection.

deletes the currently selected channel from the scan group

returns to previous menu screen

” or “

Back

” key takes the radio back to the “

” function key press (if configured) takes the radio back to the default screen

Scan Edit

” main screen.

If “

Delete

and takes the radio back to the default screen display. If scanning is enabled on the current channel, this action shall result in rescanning. The deletion is permanent.

Add

If “

The priority level of the channel to add to the scan group is selected from this screen. The choices are:

The priority of the channel is selected using the Group Add screen will appear next.

” is selected, pressing “OK” key removes the selected channel from the scan group

” is selected, pressing “OK” key takes the radio to the Scan Group Add Type screen.

•

Member:

group.

•

Prty1:

Prty2:

•

A member channel is a normal channel with lowest priority in the scan

A Priority 1 channel will have the highest priority in the scan group

A Priority 2 channel will have the second highest priority in the scan group.

▼

and

▲

keys and pressing OK. The Scan

4.2.16.2 Scan Group Add Screen

The “

Scan Group Add

” screen shows channels that are not members of the Scan Group.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

The second line from the top shows the name of a channel that is not a member of the Scan Group.

Other channels that are not members of the scan group can be selected using the keys.

A “

Reset

” function key press (if configured) takes the radio back to the default screen

display.

Back

When the “

When “

Otherwise, an error beep will sound, and the radio will return to the default screen.

• If the scan group has less than 15 member channels, the selected non-member channel is added to the scan group. If scan is enabled on the current channel, the radio will resume scanning. The radio returns to the default screen. The added channel is permanent.

” key or “

” key is pressed,

” is pressed, the radio returns to the main Scan Edit screen.

▼

and ▲

4.2.17 No Menu

The No Menu option exists in the FPP for when a menu entry is not required. If all entries are No Menu, there will be no menu system available. This may be desirable for simple configurations.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

5. COMMON FUNCTIONS AND FACILITIES

5.1 S

The On/Off power switch on the SRM9030 is on the rotary volume control, located on the top left hand side of the radio control head.

To turn the mobile on, press and hold the volume knob until a beep is heard. The radio will turn on after about one second.

The display will illuminate and show a ‘Welcome Message’ text as programmed by the Field Programmer.

After about two seconds, the display will revert to the Channel Screen, at which time the radio is ready for use.

Pressing and holding the volume knob while the radio is on will turn the radio off, when a low beep is heard, release the knob.

If the radio Power Down Timer is enabled, the mobile will automatically turn off after several hours of inactivity (i.e. no keys pressed).

The radio will emit warning beeps for 10 seconds prior to automatically switching off. Pressing any key will reset this timer.

WITCH-ON/SWITCH-OFF

5.2 D

After power up, the radio will show the currently selected Zone and Channel. If the selected channel is a trunking channel, the radio will scan until it finds the trunked system. This will typically take a few seconds if the trunked network is available.

EFAULT SCREEN –TRUNKED MODE

Trunked mode is indicated by the scanning for a trunked network. When the arrow is not shown, the radio is registered with the trunked network and ready to make or receive a call.

5.3 V

The Volume Control adjusts the speech level at the radio speaker. The rotary Volume Control on the SRM9030 is located on the top of the unit.

OLUME ADJUSTMENT

icon. The rotating arrow indicates that the radio is

Note: The radio may be programmed so that the volume cannot be turned off completely.

5.4 R

ECEIVING (SINGLE CHANNEL SCREEN

)

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS





















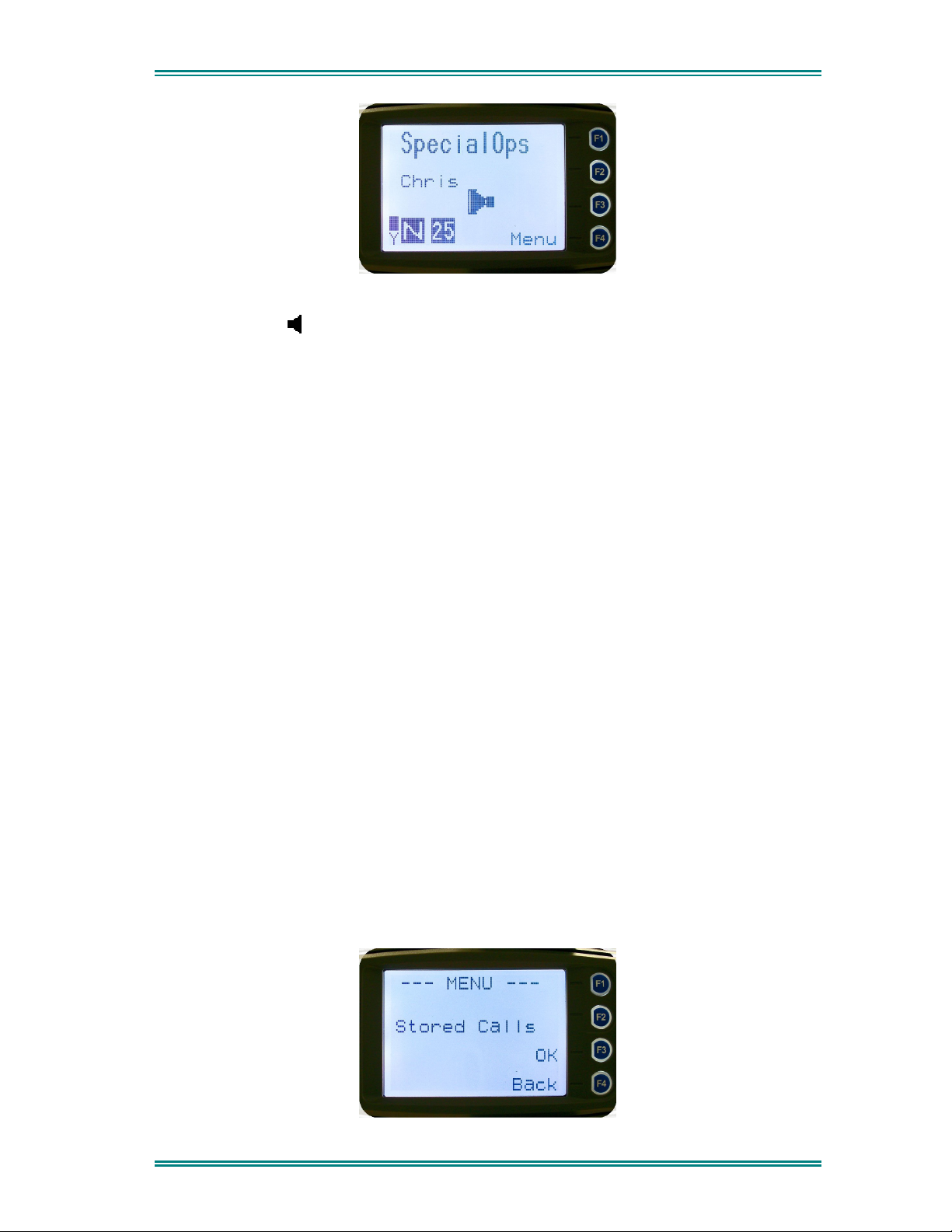

The Speaker Icon

will show when a valid signal is being received and audio will be heard

at the Loudspeaker.

The icon will be shown as an outline when a signal is being received that is not addressing this radio and hence, is not audible. For instance, another user group may be having a conversation on another talkgroup when receiving in Selective Mute.

The analogue channel’s receive mute setting can be altered from the Mute Adjust menu.

While on an Analogue channel, both P25 and Analogue FM transmissions will be received.

While on a P25 channel, only P25 transmissions will be received.

To change channels, press the

Zones can be changed from the

▼

and ▲ keys while in the channel screen.

Zone

menu, see Section 4.2.2

5.5 R

ECEIVED INDIVIDUAL CALLS

Unanswered received Individual calls addressed to the radio are stored in radio memory.

The caller Unit ID may be viewed, answered and deleted by the user as desired.

A newly received individual call addressed to the radio sounds an alert tone periodically until the user presses any key.

If the caller unit ID of a newly received unanswered call is already in the Stored Calls list, the old Stored Call record of that unit ID will be replaced by the new record and added to the top of the list.

To view/answer/delete received call records, the

Stored Calls

screen is selected

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

5.5.1 Stored Calls Screen

This screen displays the received individual call records one by one, starting with the most recently received call record.

On the first line under the menu label, either the name of the caller from the phone book or the user ID is shown. The user ID is displayed if the ID is not known to the phone book. The next line has the zone that the call was received on and the line below shows the channel. If stored calls are empty, NO RECORD is displayed.

The ▼ and ▲ keys can be used to step through the stored calls. An error beep will sound if there are no more call records.

A “ display.

The “ menu is displayed so that the message can be deleted or party called back.

” function key press (if configured) takes the radio back to the default screen

Reset

” or “

Back

” key returns to Menu screen. When “OK” key is pressed, a pop up

5.5.2 Received Call Pop-Up Menu

The selections are:

•

DELETE:

•

CALL:

deletes the call record.

calls back the caller (set individual call to the caller)

•

CANCEL:

The selection is made with the

The “

A “

Reset

” function key press (if configured) takes the radio back to the default screen

display.

cancels the action selection.

▼

” or “

” key returns to Stored Calls screen.

Back

and ▲ keys.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

If “

DELETE

the list. The radio returns to the Stored Calls Screen with the next record being displayed.

CANCEL

If “

CALL

the stored call. A subsequent PTT within the configured time interval will send an individual call to the ID of the stored call.

” is selected, pressing “OK” removes the selected call record (being viewed) from

” is selected, the

” is selected, pressing “OK” sets the radio to individual calling mode with the ID of

Stored Calls

screen is displayed.

5.6 T

RANSMITTING

To avoid interfering with other users of the channel, listen first, or check that the “speaker” icon is not present, to ensure no transmissions are occurring.

If the speaker icon is shown, there are transmissions present on the channel and the user should not transmit. The radio may be programmed to prevent transmission on a busy channel if required.

Hold the microphone a few centimetres from the mouth, press the “Press to talk” (PTT) switch and note that the TX-LED is RED. Wait for the grant tone, and then speak clearly across the face of the microphone in a normal conversational manner.

In most systems it is important to wait a short time between pressing PTT and commencing to speak. This ensures that the path is properly established and avoids lost or distorted speech.

Use the correct operating procedure and keep transmissions short.

Release the PTT switch as soon as the message is finished.

The talkgroup for a transmission is usually associated with a channel selection. A talkgroup will address all others that have the same TGID selected.

While on a P25 Channel, the transmission will be P25 digital. For an Analogue channel, the transmission will be Analogue FM

Note: A Transmit Limit Timer may be setup that limits a continuous transmission on a channel. The last 10 seconds before the timer expires may be accompanied by warning beeps.

5.7 S

The Scan/Vote Function allows the sequential searching of up to 16 channels if the selected zone channel is programmed as a Scan channel, and 15 channels if the selected zone channel is programmed as a Vote channel, for a valid signal (Carrier + CTCSS / DCS tone for Analogue FM or Network Access Code for P25). When found, the radio will stop on that channel until the signal disappears again.

To activate Scanning, select a channel that has been programmed as a Scan channel. Once selected, the scanning will either start automatically, if programmed, or you will need to press the programmed scan function button. (Field Programmer configurable).

CAN/VOTE FUNCTIONS

If a selected zone channel is programmed as a Vote channel, the voting will start automatically without any other user intervention.

While listening on the channel, the user is able to PTT on that channel. After the signal disappears, the radio will remain listening on the channel for a short time (Field programmer configurable, typically 3 seconds) before resuming scanning or voting

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

If a Priority Channel is assigned to Scan mode, the radio will interleave a check of this channel between each normal Scan channel.

5.7.1 Scan/Vote Screen

Scan can be started by

(1) Pressing the function key that has been assigned the scan function

by the Field Programmer or

(2) Selecting a zone channel that has been assigned to automatically

scan by the Field Programmer, or

(3) Under User Options menu, selecting the SCAN ON option.

Selecting a channel that is associated to a VOTING group, with Scan/Vote enabled in the FPP, starts voting.

The top line of the display still shows the name of the current selected channel. The second line of the display shows the name of the current selected zone while scanning/voting.

The Channel can be changed by using the Scan or Normal channels, depending on the radio’s configuration.

Scanning/Voting is indicated by a rotating arrow symbol.

When stopped on a channel, the second line from the top shows the name of the channel from the scan group that the radio stopped on. If stopped on a channel, that channel can be “skipped” by pressing the skip programmed function key. Once a channel is “skipped” it will not be scanned for the duration that Zone/Channel selection.

When transmitting on a channel, the second line of display shows the name of the current channel that the radio is transmitting on.

▼

and ▲ keys. Other channels may be either

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

































5.8 K

EYPAD LOCK

The Keypad Lock function prevents accidental key presses.

The Control Head has a keypad lock function that may be enabled by the Field Programmer during configuration. If this function is activated, a key icon will be displayed in the bottom right-hand side of the display when locked.

The PTT, Alarm Key (if assigned), Reset Key (if assigned) are not locked.

To unlock the keypad, it is necessary to press and hold down the “OK” key for 2 seconds. After 2 seconds, the key icon will disappear and the keys will be enabled.

The keypad will automatically re-lock after a period of 10 seconds following no key activity.

5.9 E

NCRYPTION

In P25 Digital mode, radio channels may be programmed for Encryption.

The encryption state of the selected channel is determined by the radio configuration. An encrypted channel will display the encryption icon.

A radio channel that has been programmed for encryption will receive either clear or encrypted traffic. A transmission on this channel will be encrypted.

The encryption icon will not be shown if a received signal is not encrypted when on an encrypted channel.

The current channel’s transmit encryption key can be temporarily changed from the Crypto menu.

When in Analogue FM mode, there is a simple voice inversion scrambler for low security applications.

A double beep will sound at the start of each PTT.

The scrambler function key is assigned using the Field Programmer.

5.10 E

MERGENCY ALARM

5.10.1 Receiving Emergency Calls

When an emergency call is being received, a message will be displayed on the default screen “RxEm” indicating the radio unit sending the emergency call.

5.10.2 Making an Emergency Call

When the emergency key is pressed and held for a time determined by the Field Programmer, the radio will change to emergency mode. Under emergency mode, the radio can operate in three FPP configurable modes:

•

Normal:

displaying the E icon.

The radio will continue to respond to PTT, channel change etc. while

•

Frozen:

The default screen will freeze, with the E icon displayed indicating

emergency mode.

•

Blank:

The screen will blank giving no indication to others that the radio is in

emergency mode.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

When emergency mode is triggered, the radio can be configured by the FPP to transmit and receive on a cyclic basis with FPP programmed time periods. The display will show “TxEm”:Channel No.

During TX, the radio will generate an emergency broadcast call on either the currently selected channel or an FPP nominated channel.

Others may listen to the automatic transmissions to hear conversations near the radio.

Turning the radio off and on will disable emergency mode.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

6. SPECIAL FUNCTION KEYS

Several function keys are simply short cuts to a menu screen. For further information on the operation of these function keys, refer to the menu descriptions in section 4.

6.1 A

Sets alarm mode on the radio. All transmissions in alarm mode will have the emergency flag set.

6.2 A

After pressing this button, the next PTT call only will be made to the pre-programmed Announce group.

LARM

NNOUNCE

6.3 C

These functions change channel in the upward (F3) or downward (F2) directions.

6.4 C

A short cut to the Crypto menu. Allows selection of the encryption key.

6.5 L

Forces the radio to low power. Pressing the function button again puts the radio back to the power level defined for the current channel. The “forced low power state” is not affected by channel/zone changes.

The RF power level is indicated by the letter L of H replacing the antenna icon when transmitting. The bar graph above this icon shows 1 bar for low power and 6 bars for high power.

6.6 M

Menu function key used for accessing the menu system. This is normally assigned to the Menu key (F1).

HANNEL UP AND DOWN

ENU

RYPTO

OW POWER

6.7 M

ODE

A short cut to the Mode menu. Allows the user to change radio modes, for example from PMR/LMR to P25, or MPT1327 trunking to P25.

6.8 M

Provides direct access to the “Mute Adjust” menu screen and allows the user to change the mute level from that screen. The selected mute level will affect all analogue channels.

6.9 R

Bypasses the repeater for local chat.

UTE

EPEATER DEFEAT

(P25 C

ONVENTIONAL

)

6.10 R

The reset function is usually assigned to F6, and is used as a cancel function when in a menu or as a backspace when entering keypad dial-strings.

6.11 S

The scan function activities the Scanning mode, refer to Section 5.5 for details.

6.12 S

Enters the Scan Edit sub menu. From here it is possible to Add, Delete or Edit scan channels.

ESET

CAN

CAN EDIT

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

6.13 S

If an analogue channel is selected, then the scrambler function button can activate a simple voice inversion scrambler for low security applications. Scramble mode is indicated by the ‘SC” indicator icon.

6.14 S

Sends a pre-defined DTMF dialling string.

6.15 S

Removes a scan channel from the scan list if the Skip button is pressed while stopped on that channel. The channel is only restored to the list when the channel is re-selected.

CRAMBLER (ANALOGUE

DTMF 1 / 2 (

END

KIP

ANALOGUE

)

6.16 S

Allows selection of both Digital and Analogue Squelch settings. The squelch is like a filter in P25 mode where it can be changed to listen to all traffic (monitor), or only your system traffic (normal), or only your talkgroup or calls to your identity.

6.17 T

On a repeater channel only, this function button allows the radio to transmit on the base station’s output channel, so the user can talk directly to other mobiles on the channel, while the repeater is out of service or out of range.

When the key is pressed again (or the Channel is changed) the mobile’s transmitter channel reverts to its normal setting.

Talkaround mode is indicating to the user by a double beep at the start of each PTT.

QUELCH

ALKAROUND

(P25 C

ONVENTIONAL

)

6.18 Z

This function provides a shortcut to the detailed zone menu.

6.19 U

No function assigned to this key.

ONE

NDEFINED

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Continuous Alert

0.05

9000_52b

Duration Indicated in seconds

1480 Hz

7. APPENDICES

7.1 A

LERT TONES AND MESSAGES

Key Beep

Grant Tone

0.05

Error Tone

0.05

Beep Alert

0.10

Bip Alert

2 x Bip Alert

0.10

Ring Alert

0.19

Telephone Ring Tone

Urgent Alert

Continuous

440 Hz 880 Hz

Off

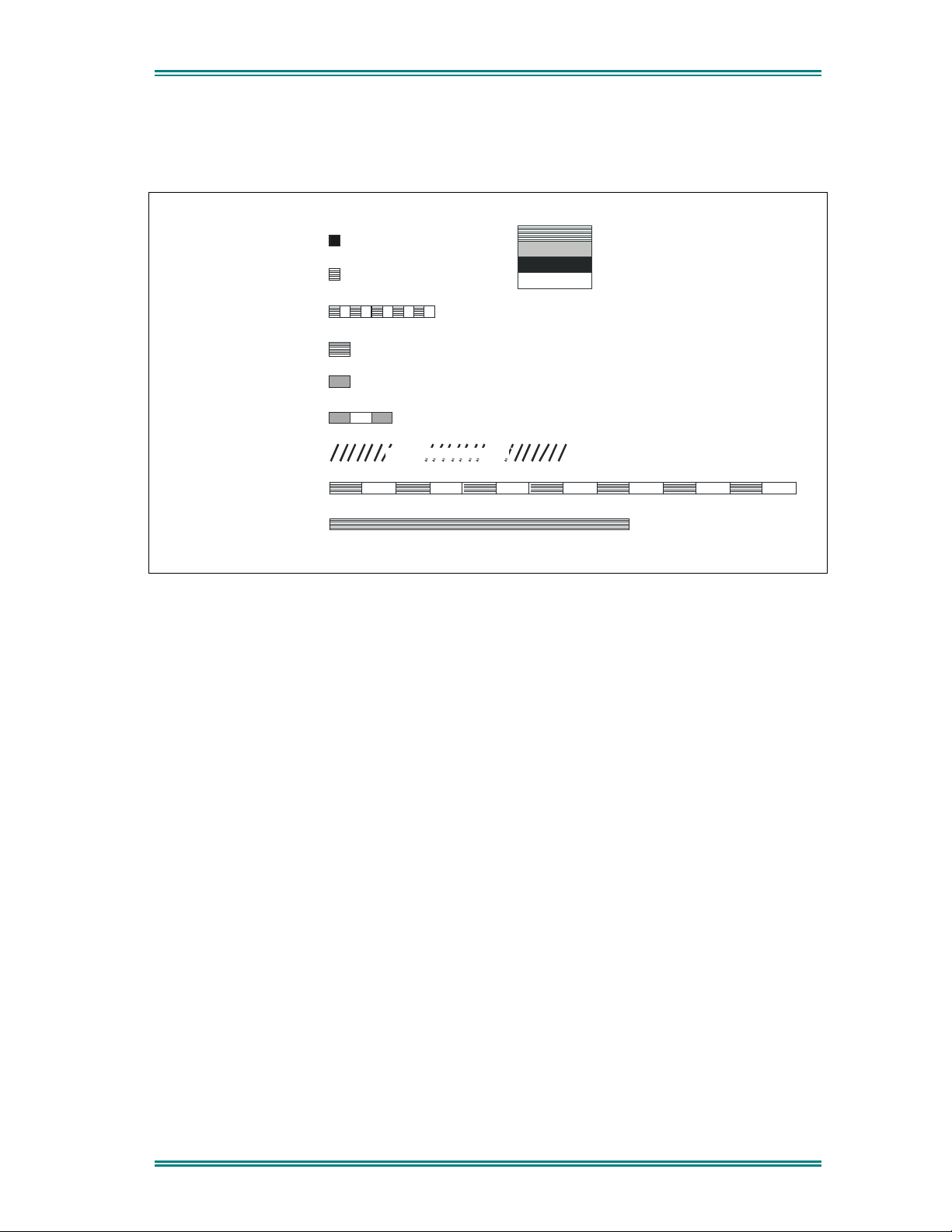

Figure 3 – Alert Tones

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

7.2 G

LOSSARY

A summary of common radio terms and some other terms used in this document, and their meanings, are given below.

Term Description Notes

Bank See Zone

Channel A logical combination of

Network Access Code (NAC) RF Frequency

Default TalkGroup Indentity (TGID)

Encryption Key Index (KID) Other channel associated parameters

(CTCSS, scan etc)

DTMF Dual Tone Multi Frequency

FPP Field Personality Programmer or Field

Programmer

FM Frequency Modulation

LED Light Emitting Diode

Monitor Mode of Radio Receive Any P25 signal regardless of NAC

MPT Trunked MPT1327 Trunked Mode

NAC Network Access Code Used as a filter where multiple

Normal Mute Mode of Radio Receive Only signals with matching NAC

P25 PMR mode using analogue FM used

in as a “fallback” mode with P25

P25 Channel Definition consisting of TX and RX RF

frequencies, NAC and TGID

P25 Conventional Non-Trunked digital, like digital PMR

PMR Private Mobile Radio Mode

PTT Push to Talk

Radio Unit ID Unique identifier allocated to each

radio (0-16,000,000)

RSSI Received Signal Strength Indication

RX Receive

Selective Mode of radio receive Only signals with matching NAC

TX Transmit

Zone A collection of channels (usually

organised by functional group of users)

Used for configuring the radio options and parameters

or TGID will be heard

networks may share a common RF frequency

will be heard.

Interoperability requirement

and TGID or Unit ID will be heard

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

7.3 A

CRONYMS

AES Advanced Encryption Standard APCO Association of Public Communications Officials ARP Address Resolution Protocol AVL Automatic Vehicle Location BER Bit Error Rate BSS Base Station System C4FM Four level FM modulation used on the physical air interface CAI Common Air Interface CRC Cyclic Redundancy Check CTCSS Continuous Tone Controlled Selective Squelch DCS Digital Controlled Squelch DES-OFB DES Encryption Standard DSP Digital Signalling Processor DTMF Dual Tone Multi Frequency FEP Field Encryption Programmer FM Frequency Modulation FNE Fixed Network Equipment FPP Field Personality Programmer IP Internet Protocol LCD Liquid Crystal Display LET Link Establishment Time MAB-1 Mobile Option Board (basic) MAB-2 Mobile Option Board (enhanced I/O) MPT1327 Trunked Radio Standard MDP Mobile Data Peripheral MRC Mobile Routing and Control NAC Network Access Code, see also NID NID Network ID P25 APCO Project 25 PPP Point to Point Protocol PLA Programmable Logic Array PMR Private Mobile Radio PTT Push To Talk RCP Radio Control Protocol RF Radio Frequency SLIP Serial Line Internet Protocol SS Supplementary Service TCP/IP Transmission Control Protocol / Internet Protocol TGID Talk Group ID TIA Telecommunications Industry Association UDP User Datagram Protocol

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

7.4 C C

ANADA

RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS.

Before using your ComGroup Australia mobile two-way radio, read this important RF energy awareness and control information and operational instructions to ensure compliance with the FCC’s RF exposure guidelines.

NOTICE: This radio is intended for use in Occupational/ controlled conditions in a mobile application where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorised for general population, consumer, or any other use.

This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, electric power, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material.

Experts in science, engineering, medicine, health and industry work with organizations to develop standards for exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All two-way radios marketed is North America are designed, manufactured and tested to ensure they meet government established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits.

http:l/www.fcc. gov/oet/rfsafety/rf-fags. htm 1 http://www.osha.gov/SLTC/radiofrequencvradiation/index.htmi

Federal Communications Commission Regulations:

The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. An exposure awareness label is attached to the equipment directing users to specific awareness information.

Compliance with RF Exposure Standards

Your TMC two-way radio is designed to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for Occupational/ Controlled RF exposure environment at duty factors of up to 50% talk 50% listen and is authorised by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode.

Your ComGroup Australia two-way radio complies with the following RF energy exposure standards and guidelines:

OMPLIANCE WITH

)

RF E

NERGY EXPOSURE GUIDELINES (UNITED

STATES

AND

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

• United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J

•

American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992

• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition

•

Industry Canada RSS-102

RF Exposure Compliance and Control Guidelines and Operating Instructions

To control exposure to yourself and others and ensure compliance with the Occupational/ Controlled environment exposure limits always adhere to the following procedures.

Guidelines:

• User awareness instructions should accompany the device when transferred to other users.

•

Instructions:

• Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the

• Transmit only when people outside the vehicle are at least the recommended minimum lateral

NOTES:

Table 1a) lists the recommended minimum lateral distance for bystanders in an uncontrolled environment from the transmitting antenna for the SRM9000AC (150MHz-174MHz) mobile rated power (25 watts) installed in a vehicle. Table 1b) lists the recommended minimum lateral distance for occupational/ controlled use.

Table 2a) lists the recommended minimum lateral distance for bystanders in an uncontrolled environment from the transmitting antenna for the SRM9000TU and SRM9000UW (406.1MHz512MHz) mobile rated power (25 watts) installed in a vehicle. Table 2b) lists the recommended minimum lateral distance for occupational/ controlled use.

Table 3a) lists the recommended minimum lateral distance for bystanders in an uncontrolled environment from the transmitting antenna for the SRM9000X8 (806MHz-870MHz) mobile rated power (25 watts) installed in a vehicle. Table 3b) lists the recommended minimum lateral distance for occupational/ controlled use.

Do not use this device if the operational requirements described herein are not met.

Push-To-Talk button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance).

distance away, as shown in Tables 1, 2 and 3, from a properly installed according to installation instructions, externally-mounted antenna.

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Table 1a). Rated Power and Recommended Lateral Distance for

Table 1b). Rated Power and Recommended Lateral Distance for

Table 2a). Rated Power and Recommended Lateral Distance for

Table 2b). Rated Power and Recommended Lateral Distance for

Table 3a). Rated Power and Recommended Lateral Distance for

Table 3b). Rated Power and Recommended Lateral Distance for

General Population uncontrolled exposure for SRM9000AC

(150MHz to 174MHz). Rated Power of Vehicleinstalled Mobile Two-way Radio 25 watts with λ/4 dipole (2.14dBi gain)

Occupational/ Controlled exposure for SRM9000AC

(150MHz to 174MHz). Rated Power of Vehicleinstalled Mobile Two-way Radio 25 watts with λ/4 dipole (2.14dBi gain)

General Population uncontrolled exposure for SRM9000TU and SRM9000UW

(406.1MHz to 512MHz). Rated Power of Vehicleinstalled Mobile Two-way Radio 25 watts with λ/4 dipole (2.14dBi gain)

Occupational/ Controlled exposure for SRM9000TU and SRM9000UW

(406.1MHz to 512MHz). Rated Power of Vehicleinstalled Mobile Two-way Radio 25 watts with λ/4 dipole (2.14dBi gain)

General Population uncontrolled exposure for SRM9000X8

(806MHz to 870MHz). Rated Power of Vehicleinstalled Mobile Two-way Radio 25 watts with λ/4 dipole (2.14dBi gain)

Occupational/ Controlled exposure for SRM9000X8

(806MHz to 870MHz). Rated Power of Vehicleinstalled Mobile Two-way Radio 25 watts with λ/4 dipole (2.14dBi gain)

Recommended Minimum Lateral Distance from Transmitting Antenna 90cm (35.5 inches)

Recommended Minimum Lateral Distance from Transmitting Antenna 40cm (15.75 inches)

Recommended Minimum Lateral Distance from Transmitting Antenna 75cm (29.5 inches)

Recommended Minimum Lateral Distance from Transmitting Antenna 34cm (13.5 inches)

Recommended Minimum Lateral Distance from Transmitting Antenna 55cm (21.7 inches)

Recommended Minimum Lateral Distance from Transmitting Antenna

24.6cm (9.7 inches)

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS

Vehicle Installation Instructions:

The antenna(s) used for the SRM9000 series of mobile two-way radios must be installed to provide a separation distance of at least 90cm (35.5 inches) from all persons for SRM9000AC (150-174MHz), 75cm (29.5 inches) for SRM9000TU and SRM9000UW (406.1-512MHz) and 55cm (21.7 inches) for SRM9000X8 (806-870MHz). The gain of the antenna(s) may not be greater than 0dBd (2.14dBi).

If the required separation distance extends beyond the physical boundary of the vehicle, the antenna must be installed on the center of the roof ONLY and must be installed in a vehicle having the following characteristics in order to prevent bystanders from being exposed to levels exceeding the limits set for General Population/ Uncontrolled exposure environment:

• All passengers must be sitting under a solid metal roof

•

The rooftop width must be at least 130cm (51 inches)

Mobile Antenna:

• Install the antenna at the center of the roof or the center of the trunk deck, taking into account the bystander exposure conditions of backseat passengers and recommended minimum lateral distances in Tables 1a), 2a) and 3a). These mobile antenna installation guidelines are limited to metal body motor vehicles or vehicles with appropriate ground planes.

•

The antenna installation must additionally be in accordance with:

a) The requirements of the antenna manufacturer/supplier b) Instructions in the Radio Installation Manual, including minimum antenna cable lengths.

c) The installation information of how to install the antenna to facilitate recommended operating distances to all potentially exposed persons.

•

Use only ComGroup Australia approved supplied antenna or ComGroup Australia approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations.

Approved Accessories

•

This radio meets the FCC RF exposure guidelines when used with the ComGroup Australia accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the FCC’s RF exposure guidelines and may violate FCC regulations.

•

To obtain a list of ComGroup Australia approved accessories see contact details below or visit the following website which lists approved accessories: http://www.comgroup.net.au

Contact Information

For additional information on exposure or other information, please contact

ComGroup Australia Pty. Ltd. 1270 Ferntree Gully Road Scoresby Victoria, 3179 Australia

Telephone +61 3 9730 3800 Facsimile +61 3 9730 3968 Email orderdesk@comgroup.net.au Website www.comgroup.net.au

Simoco Wireless Solutions SRMA9000TU, SRMA9000UW, SRMA9000AC Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
