Simoco SRP9170, SRP9180 User Manual

Download

SRP9170/SRP9180 Portable Radio

Radio User Manual

TNM-U-E-0090 Issue 1.3a

Comgroup Australia Pty. Ltd. 1270 Ferntree Gully Road

Scoresby

Victoria, 3179

Australia

MPT1327 Portable

January 2010

SRP9180 ~ MPT1327 Portable Radio User Manual

Associated Documentation

The following documentation is available for the SRP9180 series of products:

TNM-U-E-0088 SRP9180 PMR Brief User Guide TNM-U-E-0089 SRP9180 PMR User Manual TNM-U-E-0091 SRP9180 P25 User Manual TNM-U-E-0095 SRP9180 P25 Brief User Guide TNM-U-E-0102 SRP9180 Brief User Guide (General)

To order copies of any of the above publications, or any other Simoco product, contact Comgroup Australia on +61 3 9730 3800 or send a Fax on +61 3 9730 3968.

About This Document

This publication is copyright and no part may be reproduced without prior permission of Comgroup Australia.

Due to our policy of continuous improvement to our products and services, technical specifications and claims, correct at time of publication, may be subject to variation without prior notice.

Comgroup Australia has endeavoured to ensure that the information in this document is fairly and accurately stated, but does not accept liability for any errors or omissions.

SRP9180 ~ MPT1327 Portable Radio User Manual

General Safety

1. Do not operate your portable radio whilst driving a vehicle.

2. Do not operate your radio in an explosive atmosphere.

Obey the 'Turn Off Two-way Radios' signs where these are posted, e.g. on a petrol station forecourt.

3. Do not dispose of batteries in a fire.

Only recharge batteries in an approved SRP9180 Charger.

IECEx Intrinsically Safe Radios

Radio models approved for use in hazardous environments according to the IECEx Scheme are marked with an approval number.

Refer to the label on the radio for the IECEx compliance level.

The following MUST be observed to maintain the IECEx protection rating:

• Use only approved SIMOCO battery, part number PAR-9180BATL2i or PAR-9180BATL3i

• Battery charging must only be carried out in non-hazardous areas, using an approved battery charger.

• Metal belt clips must NOT be used in hazardous areas.

• It is a requirement that when the radio is used in a hazardous area that either the SRP9180 Accessory Cover Assy (6102 350 1446) or an approved Simoco IECEx accessory is fitted (refer Section 8 for list of approved accessories).

• Approved accessories may only be connected and disconnected outside the hazardous areas.

• Prior to use in a hazardous area, inspect the radio and accessories for signs of damage. Any visible signs of damage to the radio or accessories may compromise the integrity and safety of the radio. A damaged radio or accessories must be repaired or replaced prior to use in a hazardous area.

• Incorrect storage, handling or operation of the radio and accessories, as specified in Simoco published User Guides and Service Manuals, may compromise the safety and integrity of the radio or accessories.

• Approved labels stating the IECEx rating level must be on the radio and accessories, and be legible, before their use in a hazardous area.

• When speaking, hold the radio a few centimetres from your mouth and speak across it, rather than into it. The microphone is located near the bottom right hand corner of the portable radio’s speaker grille.

• Keep the length of your conversation to a minimum to conserve battery life.

• When it is possible to move location, avoid making calls from known poor signal-strength

areas such as the radio system’s fringe areas (limit of range) or from screened or shadowed areas, e.g. an underground car park or underpass.

Hints for Using the Radio

SRP9180 ~ MPT1327 Portable Radio User Manual

CONTENTS

1. INTRODUCTION ................................................................................................. 6

1.1 Overview...................................................................................................... 6

1.2 Configuration .............................................................................................. 6

1.3 Conventions ................................................................................................ 6

2. FRONT PANEL CONTROLS .............................................................................. 7

3. MENU SYSTEM................................................................................................... 8

3.1 Menu navigation ......................................................................................... 8

4. MAIN MENU SCREENS.................................................................................... 10

4.1 Phonebook Screen ................................................................................... 10

4.2 Stored Calls Screen.................................................................................. 11

4.3 Status Screen............................................................................................ 13

Call Types Screen ............................................................................................... 14

4.4 Send Message Screen .............................................................................. 14

4.5 Setup Screen............................................................................................. 14

5. COMMON FUNCTIONS AND FACILITIES ....................................................... 15

5.1 Switch-On/Switch-Off ............................................................................... 15

5.1.1 In-Service Indication................................................................................ 15

5.1.2 Volume Adjustment ................................................................................. 15

6. CALL TYPES..................................................................................................... 16

6.1 Making a Voice Call .................................................................................. 17

6.1.1 During a Voice Call ................................................................................. 17

Making a Status Call ........................................................................................... 18

6.1.1 Using the Phonebook.............................................................................. 18

6.1.2 By Dialling the Numbers.......................................................................... 18

6.2 Receiving a Call ........................................................................................ 19

6.2.1 Receiving an Individual Voice Call .......................................................... 19

Receiving a Group Voice Call ............................................................................... 20

6.2.2 Incoming Status and Data Messages...................................................... 20

6.3 Call Diversion............................................................................................ 21

6.3.1 From the Call-Types Screen ................................................................... 21

6.3.2 By Dialling the Numbers.......................................................................... 21

6.3.3 To Cancel a Diversion ............................................................................. 21

6.4 DTMF Operation........................................................................................ 22

7. SETUP............................................................................................................... 23

7.1 Setup sub-menus...................................................................................... 23

7.1.1 User Options ........................................................................................... 23

SRP9180 ~ MPT1327 Portable Radio User Manual

7.1.2 Group ...................................................................................................... 23

7.1.3 Phone Book Edit Menu ........................................................................... 24

7.1.4 Contrast................................................................................................... 26

7.1.5 Alert Volume............................................................................................ 26

7.1.6 Radio Information.................................................................................... 27

7.1.7 Mode/Network Selection ......................................................................... 27

8. OPTIONS........................................................................................................... 28

8.1 Lithium Ion Battery (PAR-9180BATL2x).................................................. 28

8.2 Lithium Ion Battery (PAR-9180BATL2).................................................... 28

8.3 Lithium Ion Battery (PAR-9180BATL3i)................................................... 28

8.4 Lithium Ion Battery (PAR-9180BATL3).................................................... 28

8.5 Single Pocket Charger (PAR-9180CRG1) ............................................... 28

8.6 Two Pocket Charger (PAR-9180CRG2) ................................................... 28

8.7 Six Pocket Charger (PAR-9180CRG6) ..................................................... 28

8.8 Vehicle Mounted Charger (PAR-9180CRGV) .......................................... 28

8.9 Lightweight Carry Case (PAR-9180CLBC2)............................................ 28

8.10

8.11

8.12

Lightweight Carry Case (PAR-9180CLBC3) ........................................ 28

Heavy Duty Carry Case (PAR-9180CHSM) .......................................... 28

Lightweight Lapel Function Speaker Microphone (PAR-9180LMS2) 28

8.13 GPS Microphone (PAR-9180LMGM) .................................................... 28

9. TROUBLESHOOTING ...................................................................................... 29

10. APPENDIX A – ALERT TONES AND MESSAGES ...................................... 30

11. APPENDIX B - DIAL STRINGS AND NUMBERING CONVENTIONS .......... 31

Dial Strings ........................................................................................................... 31

12. APPENDIX C - GLOSSARY .......................................................................... 33

13. COMPLIANCE WITH RF ENERGY EXPOSURE GUIDELINES (UNITED

STATES AND CANADA) ......................................................................................... 34

SRP9180 ~ MPT1327 Portable Radio User Manual

1. INTRODUCTION

1.1 O

The SRP9180 Series Radio is a versatile Digital Signal Processor (DSP) controlled, two-way portable radio. The SRP9180 Series Radio is available in a number of frequency bands for specific applications.

The radio is software programmable and can be customised to the operational requirements of your particular fleet. Your Simoco representative can help in programming your radio facilities to meet your present and future requirements.

A wide-range of accessories is available to complement the SRP9180 Series Radio including: chargers, antenna, headsets, covert kits, holsters and carry cases. Refer to Simoco website for comprehensive descriptions.

This guide describes the facilities that are currently available and can be programmed into the MPT1327 Trunked Mobile Radio (TMR) mode of the SRP9180 series.

1.2 C

Before you can use the SRP9180, it must be configured using the Field Personality Programmer (FPP). This configuration process loads the customised channels, signalling and user options so the radio will operate with your system.

The FPP will also update the radio software automatically, if required.

1.3 C

Where the word “generally” or “may” is used to describe a facility, this operation is an option that may be enabled with the FPP.

VERVIEW

ONFIGURATION

ONVENTIONS

References to the SRP9180 also apply to the non-keypad version (SRP9170) except where keypad operation is described.

SRP9180 ~ MPT1327 Portable Radio User Manual

2. FRONT PANEL CONTROLS

Selector Switch

ABC Switch

On/Off Volume

Indicator LED

Function #5

Antenna

Function #7

Function #6

Accessory Connector

PTT

Function #2

Function #1

Function #3 Function #4

Keypad

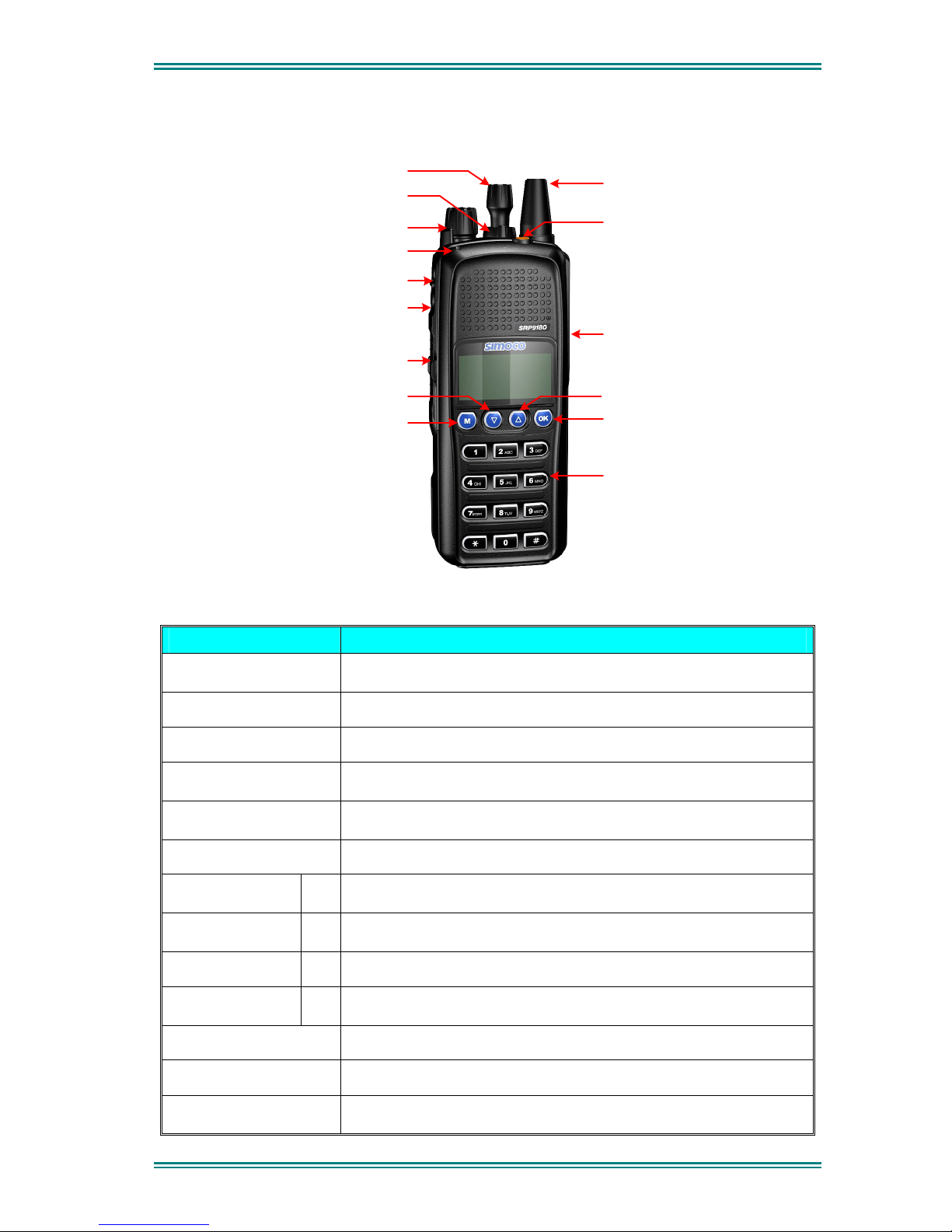

Figure 1 SRP9180 Portable Layout

KEY / CONTROL FUNCTION

On/Off/Volume Rotate the switch clockwise to turn on the radio and then set the

volume to the desired level.

Selector Switch Rotate to select Phone Book entries.

ABC Switch May be programmed to change radio Modes or Networks.

Rx/Tx/Power LED Green LED illuminates when receiving a signal. Red LED illuminates

PTT Push-to-Talk. Hold the radio 10cm from the mouth. Press and hold the

Keypad Used to enter Idents, send text messages and set status.

Function Key F1

Function Key F2 ▼ Programmable function key. It is typically programmed as the

Function Key F3 ▲ Programmable function key. It is typically programmed as the Up key.

Function Key F4

Special Function F5 Programmable function key.

Special Function F6

Special Function F7

when the radio is transmitting. Flashing Red LED indicates low battery.

PTT switch and speak. Release to listen.

Programmable function key. It is typically programmed as the Select key.

key.

This function key may be configured by the programmer. Note that during menu operations it becomes the

Programmable function key.

Programmable function key. It is typically programmed as the

Emergency

key.

Confirm

key.

Down

Alarm /

SRP9180 ~ MPT1327 Portable Radio User Manual

3. MENU SYSTEM

The SRP9180 radio software uses a programmed menu structure to enable the operator to access the radio options. The structure of the menu can be configured to meet the customer’s specific needs using the FPP.

Figure 2 (overleaf) illustrates the menu structure of the radio. Note that the order and presence of each menu is determined by the configuration of the radio programmed by the FPP.

There are

Possible Menu entries are:

• Phone Book

• Recall

• Stored Calls

• Call Types

•

Status

•

Setup

• User Options

• Group

• Phone Book Edit

•

Alert Volume

•

Radio Information

• Mode Selection or Network Selection

• Received Signal Strength Indication (RSSI)

• Send Message

To assist the user in menu key selection, a soft menu label will often appear above the function keys. The label shows the user the current function for that key which may change between different menus.

sub-menus that provide access to radio setup parameters.

Setup

Programming of menus is a configuration task normally performed by the System Manager using the FPP.

3.1 M

The M key is generally used to select Menu mode from the main Screen. Once in Menu mode, the ▼ ▲ keys cycle through the menus.

To exit Menu mode, press the M key again or the Menu timeout will exit automatically. Generally, pressing the M key while in a menu backs up to the next highest level of menu and the OK key selects the function.

The ▼ ▲keys are generally used to navigate through a list of options Phonebook entries, or to increase or decrease a value.

ENU NAVIGATION

SRP9180 ~ MPT1327 Portable Radio User Manual

PHONE

STORED

RECALL

STATUS

RECALL

STORED

ENTRY POINT

Example Menus only shown.

Other Menus may be configured with the FPP

Default Screen

Menu System

OK Key

'M'

'M' Key (same as ’BACK’)

'M'

Up Key

Down Key

SETUP

MPT1327 TNK Menu rev2

'M'

Note:

NETWORK.

RADIO INFO.

ALERT VOL.

CONTRAST

Edit Menu

PHONEBOOK

Edit Menu

'M''M'

NETWORK

'M''M'

INFORMATION

'M''M'

CONTRAST

'M''M'

PHONEBOOK

RADIO

ALERT

VOLUME

'M''M'

'M'

GROUP

KEY BEEPS

ON/OFF

'M'

CALL

TYPES

'M'

CALL

TYPES

'M'

GROUP

User Options

SubMenu Selections

BACKLIGHT

ON/OFF

DTMF

ON/OFF

'M'

CALLS

'M'

BOOK

'M'

CALLS

Scroll through

Phonebook

Entries

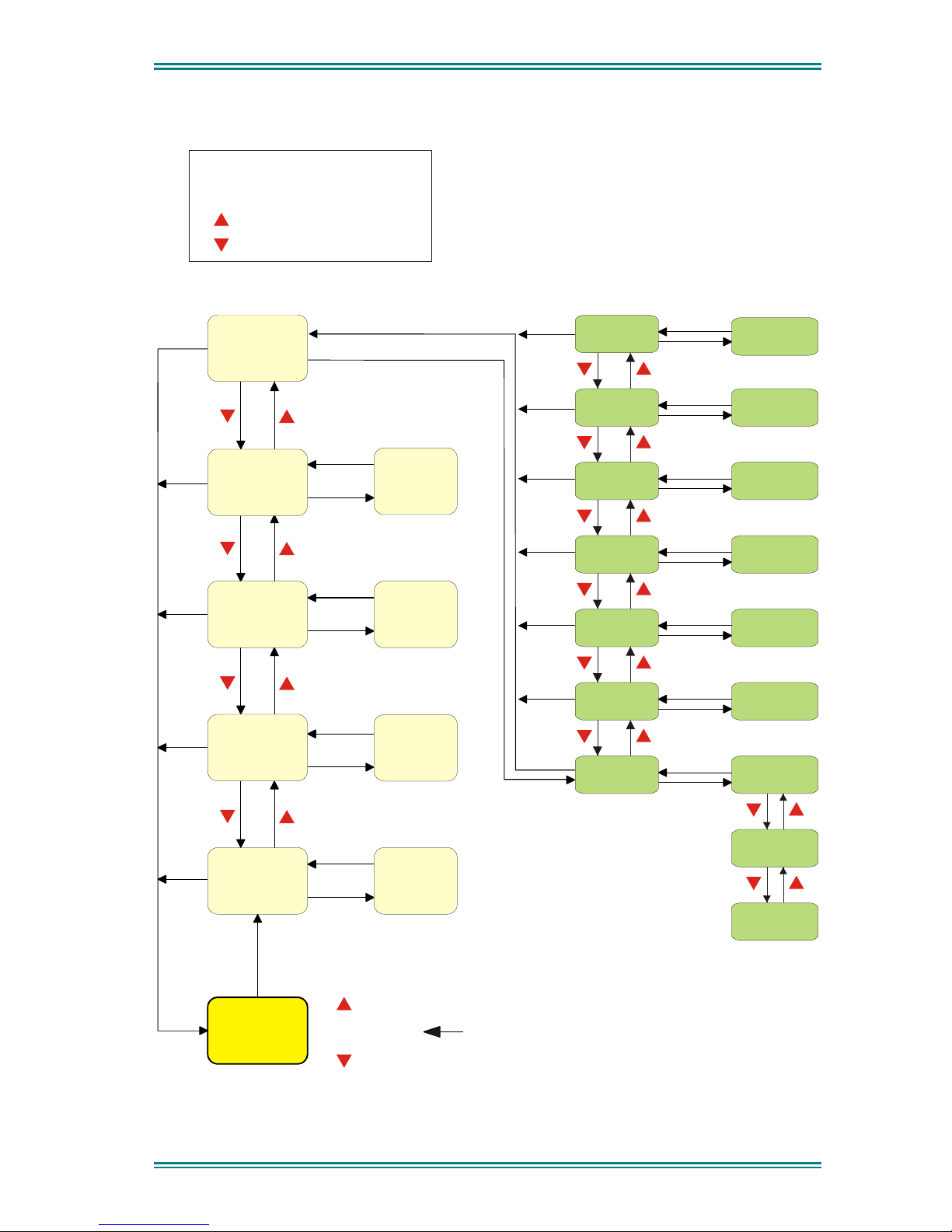

Figure 2 - Menu Navigation

SRP9180 ~ MPT1327 Portable Radio User Manual

4. MAIN MENU SCREENS

4.1 P

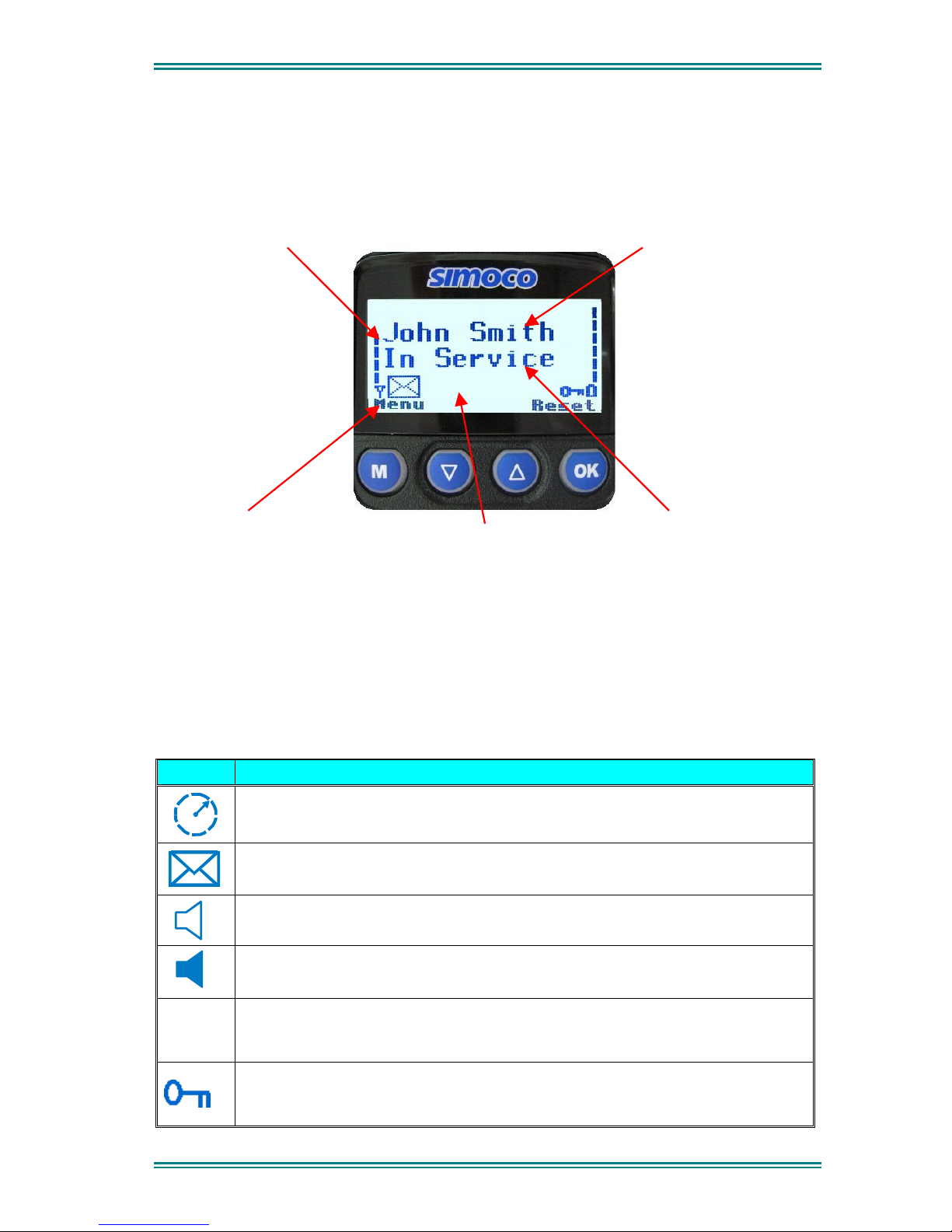

The Phonebook allows calls to be made to entries from the Phonebook list.

The RSSI Bars indicate the signal strength of the current Control or Traffic channel.

Displayed function of the F1 and F4 keys. Pressing the key below will set the function.

HONEBOOK SCREEN

Labels

show the

The Name Field shows the

current selected entry from the Phonebook.

The

Icon Line

various icons as described

in the table below.

displays

The

Message Line

information about what the radio is doing, e.g. Call-setup, Queued, Diverted, etc.

provides

Pressing the ▼ ▲ keys or rotating the top Selector Switch selects the Name Field entries.

Press the

The Keypad may be used to enter dial-strings directly.

Several Icons can be displayed as shown below:

OK (call)

key to call the

Name Field

entry.

ICON INDICATION

The rotating arrow icon shows that the radio is registering with the Trunk Network. It disappears when the radio is

The envelope icon indicates that there are one or more stored calls (in the Stored Calls menu).

The outline speaker icon indicates that speaker audio is muted, e.g. during Call Setup, NPDs, etc.

The filled speaker icon indicates that speaker audio is enabled, e.g. during a Call.

The asterisk symbol indicates Call Pending, i.e. there is an outgoing call waiting for the radio to be In Service.

The key icon indicates that the keypad lock function is activated.

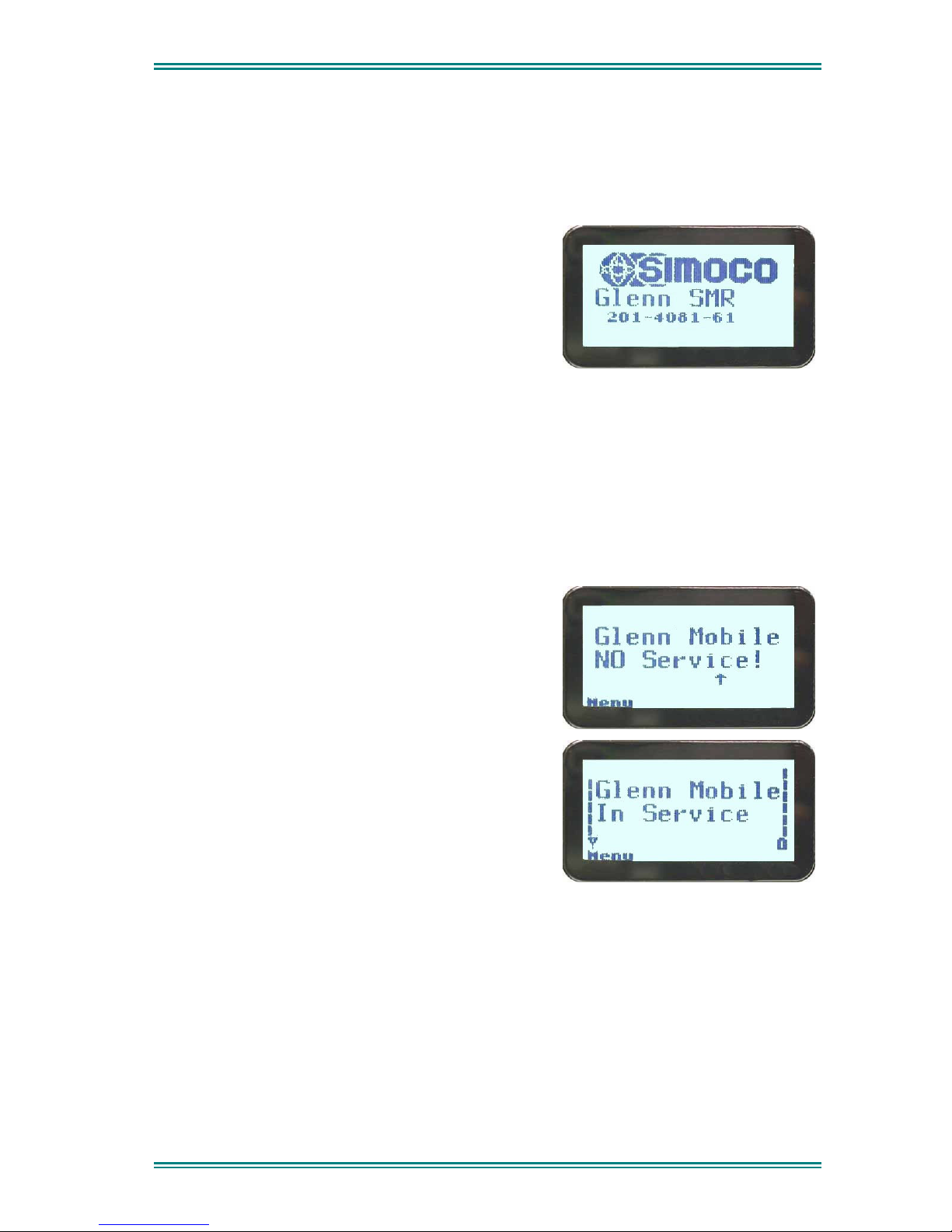

In Service

SRP9180 ~ MPT1327 Portable Radio User Manual

4.2 S

TORED CALLS SCREEN

This screen allows missed Voice calls (and received Status and Data messages) to be reviewed.

The

icon will show in the main Phonebook Screen when there is an entry in this Screen.

A "Bip" tone is emitted every few seconds when a new call or message is stored.

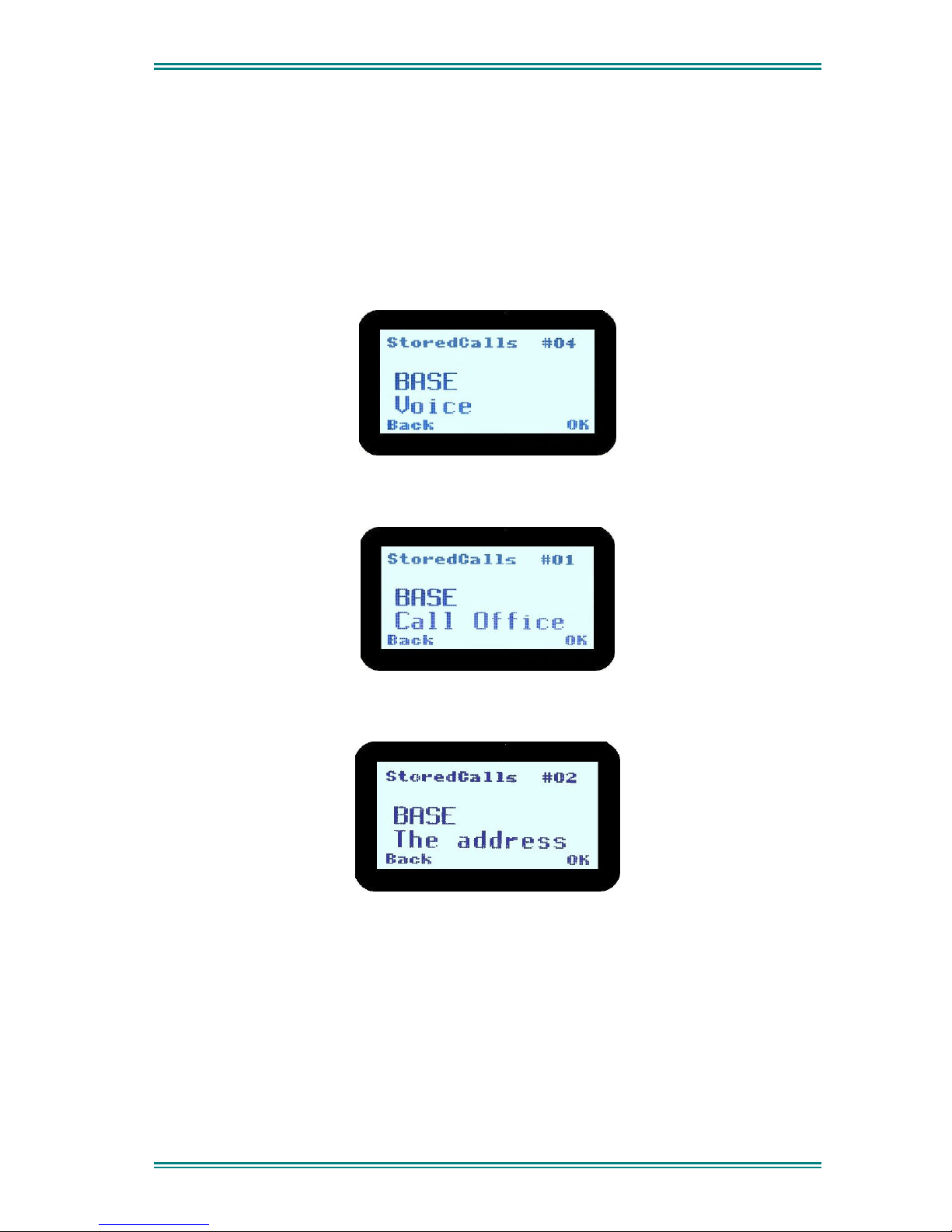

Three different types of call can be stored. The screen display will change depending on the type of call stored.

Missed Voice Call

Received Status Message

Received Data Message

The displayed number (e.g. #02) shows the queued position of the entry.

The most recent call is shown whenever this Screen is displayed.

Press ▼ ▲ keys to scroll through other stored calls.

To return to the Phonebook Screen without making a call, either press M (back) twice or press OK for the pop-up menu and select Exit.

Pressing the function key assigned as Clear will also exit to the Phonebook Screen.

SRP9180 ~ MPT1327 Portable Radio User Manual

Press

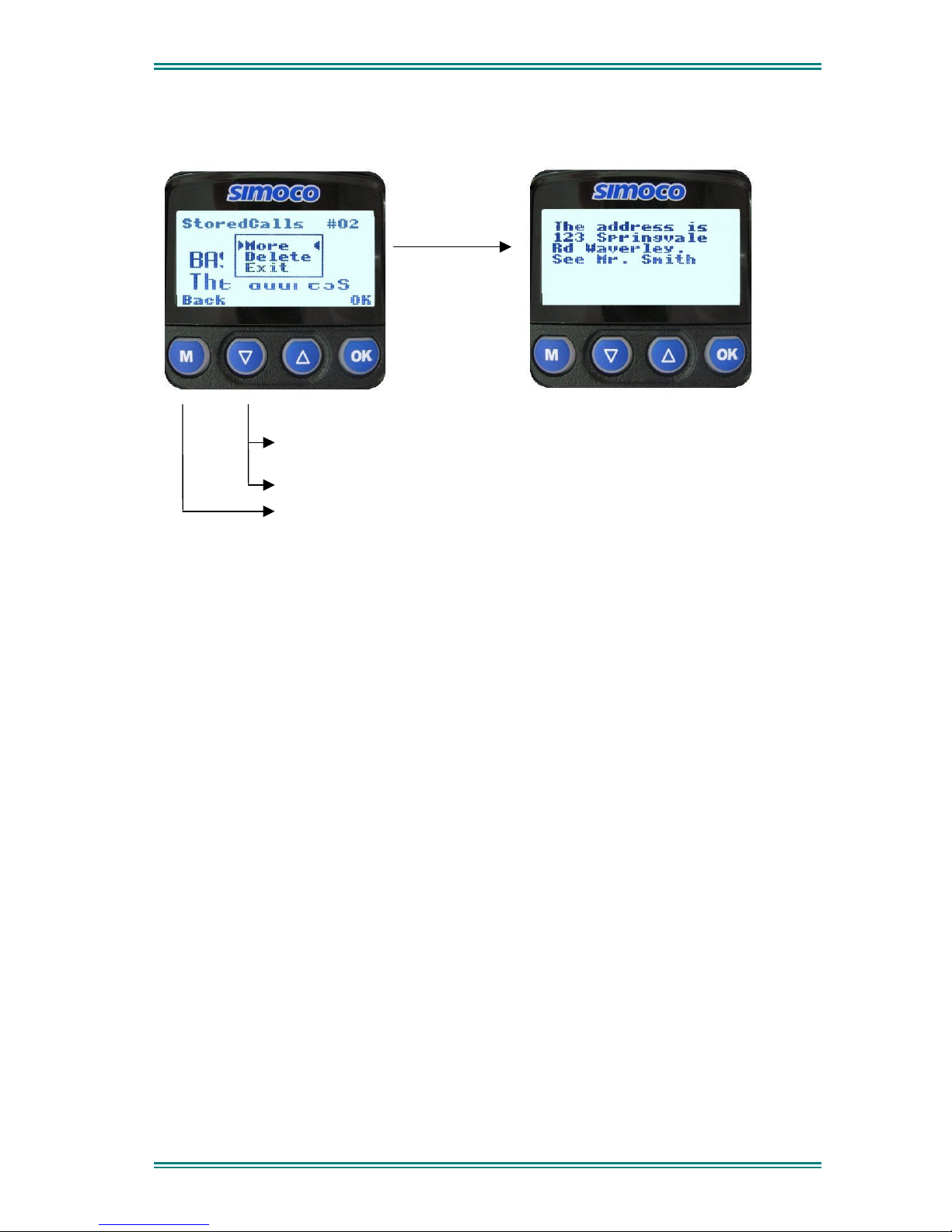

key to bring up a popup menu with functions:

Delete: Delete the message and go to stored calls Screen

Press M to remove the popup

SRP9180 ~ MPT1327 Portable Radio User Manual

4.3 R

ECALL SCREEN

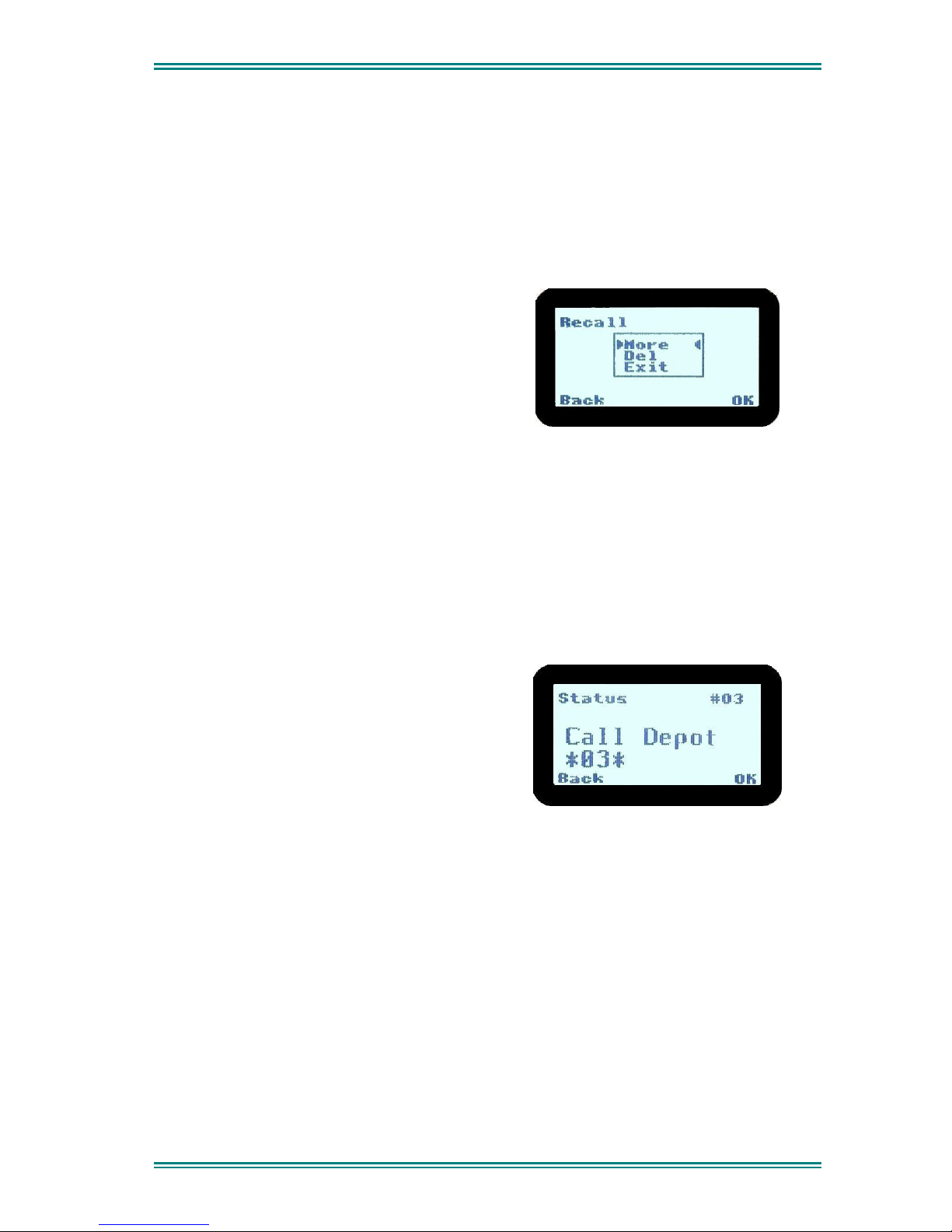

Use this Screen to review any of the last eight recently placed calls.

• Press the ▼ ▲keys to scroll through the Recall list.

• Press OK and select “Exit” by pressing the ▼ ▲keys to return to the Phonebook Screen without making a call or press back twice.

• Press OK and select “

Delete

” by pressing the ▼ ▲keys to delete the viewed entry and return to the Recall Screen.

•

Press OK and select “More” by pressing the ▼ ▲keys to go to the Phonebook Screen with the Call Dial-string ready for editing (the keypad is enabled for this step).

4.3 S

TATUS SCREEN

Use this Screen to view and send Status Messages from the programmed list.

The Screen will always open at the last viewed message.

•

Press the ▼ ▲keys to scroll through the Status list.

•

Press the nominated Clear * key to return to the

Phonebook

Screen without

making a call.

• Press OK to go to the

Phonebook

Screen with the Status Message Dialstring ready for editing (the keypad is

enabled for this step).

* A function key (usually F6) can be programmed as a Clear key using the FPP.

SRP9180 ~ MPT1327 Portable Radio User Manual

ALL TYPES SCREEN

Use this Screen to make different types of calls.

•

Press the ▼ ▲keys to scroll through the available call types.

•

Press the nominated Clear * key to return to the

Phonebook

making a call.

Screen without

• Press OK to go to the

Phonebook

Screen with the Call-Type modifier ready for editing (the keyboard is enabled for this step).

* A function key (usually F6) can be programmed as a

4.4 S

END MESSAGE SCREEN

key using the FPP.

Clear

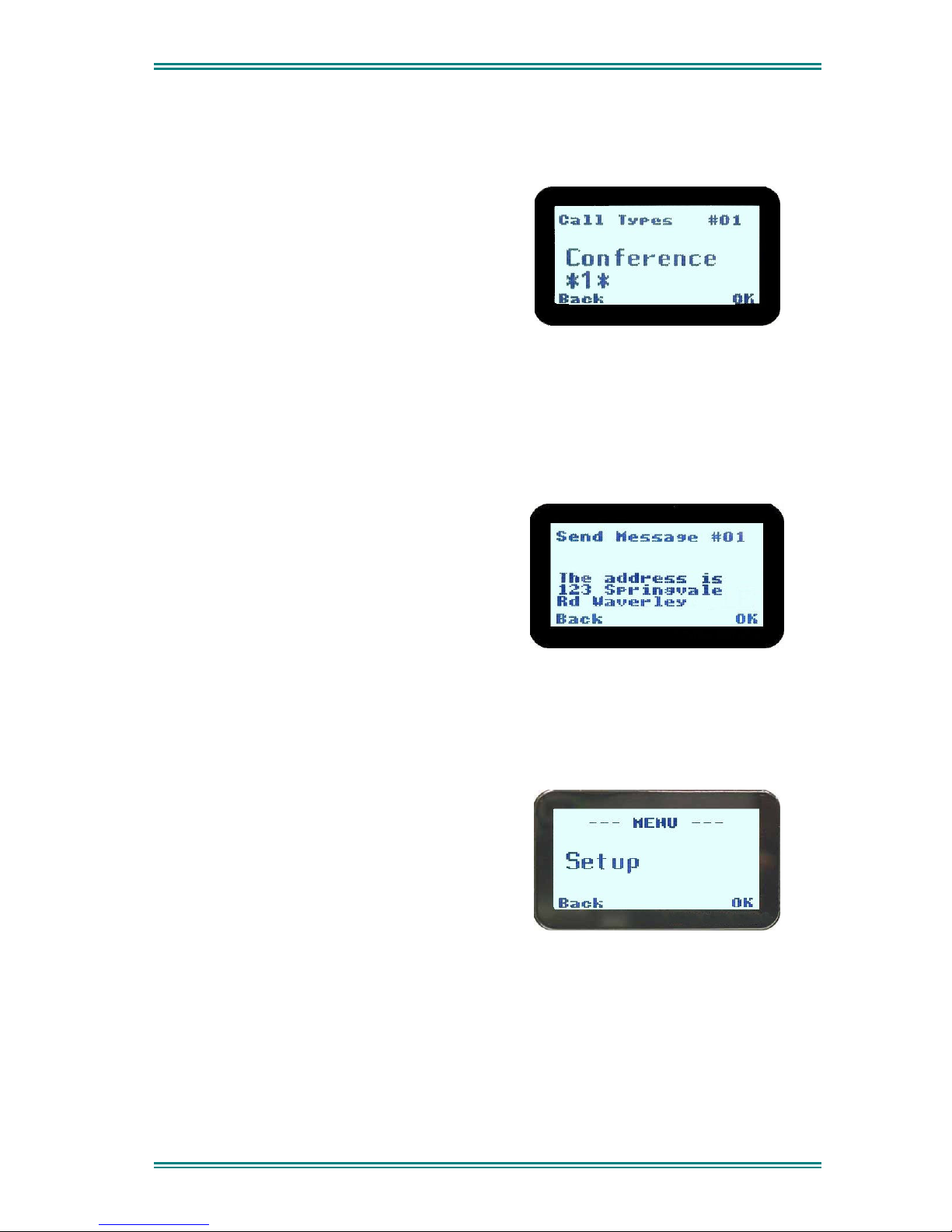

This screen is used to send a free form text message to another radio.

• Press the numeric keys multiple times to select the required text characters. See Section 7.1.3.4 for details.

• When the message is complete, press OK to go to the Phonebook Screen.

• Select the destination address using the ▼ ▲ keys and press OK to send. Alternatively, the address can be manually entered from this Screen.

4.5 S

ETUP SCREEN

Use this Screen to access the other Setup sub-menus.

• Press OK and the ▼ ▲keys to show the sub-menus.

See Section 7 for further information.

SRP9180 ~ MPT1327 Portable Radio User Manual

5. COMMON FUNCTIONS AND FACILITIES

5.1 S

WITCH-ON/SWITCH-OFF

• Turn the On/Off/Volume knob clockwise to switch the portable radio On.

• The display will illuminate and show a Welcome Message and the Trunk Identity of the radio.

• After a brief time the display will revert to the Phonebook Screen, at which time the radio is ready for use.

•

Turning the On/Off/Volume knob anticlockwise will switch the portable radio Off.

• If the radio

Inactivity Timer

is enabled, the radio will automatically turn Off after a predefined duration of inactivity as set by the FPP (i.e. no keys pressed). The radio will emit warning beeps for 10 seconds prior to switching off. Pressing any key will reset this timer.

5.1.1 In-Service Indication

•

After switch on, the portable radio must 'Register' with the Trunking Network before it can place or receive calls. When the radio is searching for the best channel a rotating arrow and the signal strength of the scanned channel is displayed. When the radio has registered, the rotating arrow symbol will disappear.

• The radio is said to be In Service when it is in contact with the Network and the arrow symbol is extinguished. A call cannot be made until the radio is In Service. The radio can queue one call, which will be made as soon as the radio gains service.

5.1.2 Volume Adjustment

The top On/Off/Volume knob adjusts the speech level at the loudspeaker or remote speaker microphone. Rotating clockwise increases the volume and anti-clockwise decreases the volume.

Note: The radio can be programmed so that the volume cannot be turned off completely.

SRP9180 ~ MPT1327 Portable Radio User Manual

6. CALL TYPES

A Trunking System allows the user to make a number of different call types. The SRP9180 supports the following call types:

• Voice Calls between Individuals or Groups,

•

Include Calls,

• Status Calls,

• Priority and Emergency Calls,

•

Diversion Calls,

• Broadcast Calls.

Individual Voice Calls. Allow private conversations between two users. Other users can be included in the call using the Include Call function.

Group Voice Calls. Allow a group of users to participate in a group conversation. Any participant in the group can leave the call individually, but only the originator can end the call.

Status Calls. Allow a status number to be sent between users. The SRP9180 allows text messages to be associated with up to 30 status numbers and can display these text messages when such a status is to be sent or is received.

Diversion Calls. Allows the user to divert incoming calls to another radio or telephone extension for example. This could be used when the user is away from their vehicle. For example, calls could be diverted to the depot radio.

Normal, Priority and Emergency Calls. If the channel is busy, Normal Calls are placed in a queue and actioned when they reach the top of the queue. Priority Calls jump to the top of the queue unless a previous Priority Call is taking place.

Emergency Calls are actioned immediately.

Broadcast Calls. Are similar to Group Voice Calls except that only the person who initiates

the call can speak to the other parties in the call.

Notes 1: Some of these call types are only available after prior arrangement with the Network

Operator.

2: Most Trunk Networks have a time limit placed on call duration. The Network

terminates the call after this time.

SRP9180 ~ MPT1327 Portable Radio User Manual









































6.1 M

AKING A VOICE CALL

Voice Calls may be made in several different ways:

Using the Phonebook:

•

From the Phonebook Screen, scroll through the entries using the ▼ ▲keys until the desired name is shown; then press the OK key (F4 must be programmed as

Call

function).

Using Direct-Call Function Key:

• The F1, F2, …, F6 keys may be assigned as Direct-Call keys. Pressing such a key will place a call to the pre-programmed identity (e.g. Depot).

Through Keypad Entry:

•

The Users ID number can be entered directly as a dial-string using the Keypad (e.g. 4 5 # will call radio unit No 45).

•

Dial-strings of up to 30 digits can be used, refer to Appendix B for numbering convention and valid dial-strings.

Using Quick-Dial Memories:

• The first 20 Phonebook Entries (0-19) can be setup as twenty Quick-Dial Memories.

•

These allow a dial-string for a call number to be dialled quickly using the keypad to enter the Quick-Dial Memory number followed by the # key. (e.g. 1 2 # will dial the number in Quick-Dial Memory location 12). The Phonebook Edit facility allows these numbers to be changed.

6.1.1 During a Voice Call

When a call is placed, a Call Progress Message is displayed on the Message Line and the speaker emits Call Progress tones (see Appendix A for more details).

When the called radio is contacted, both radios will “ring” and display the call setup icon.

When the called person answers, both radios will be connected and will display the audio enabled icon.

A conversation can now take place with each operator taking turns to press their Press-ToTalk (PTT) keys and speaking.

When the call is finished, either operator can end the call by pressing the nominated Clear * key or press * #.

Note: If the called radio cannot be contacted (radio off or out of range) or does not answer within a

short period of time (dependant on the Network - about 10-30 seconds), a Radio Busy or Unavailable message is displayed and call-fail tones are emitted.

* Note that F6 is usually assigned as the

Clear

key.

SRP9180 ~ MPT1327 Portable Radio User Manual

AKING A STATUS CALL

Status Calls allow a Status Number to be sent between users. This Status Number can

have a meaning that the user assigns to it.

e.g. 1 may mean: “Ready for Despatch”.

2 may mean: “At Lunch”.

3 may mean: “Contact Home”, (etc).

A Status Message can be sent in a number of ways similar to making Voice Calls.

6.1.1 Using the Phonebook

To send a Status Call using the Phonebook:

• Scroll through the Phonebook until the persons name is displayed (or enter the ID number using the keypad).

• Do not press #.

• Go to the Status Screen (Press M and then select Status Screen).

•

Then use the ▼ ▲keys to scroll through the entries until the desired message is displayed.

•

Press the PTT key to send the Status Message to the selected Phonebook person (or entered number).

Note: Your radio may be set up to send all Status Messages to a fixed identity.

6.1.2 By Dialling the Numbers

If the Status Number and the destination ID Number are known, use the keypad to enter the numbers in the following format:

* n * x # where n is the Status Message Number (01 – 20), and x is and the destination ID Number.

e.g. * 0 2 * 3 5 # where Status Message Number 02 = ‘At Lunch’, and

destination ID Number 35 = ‘Andrew Jones’ means

A Status Call was sent to ‘Andrew Jones’ indicating the sender was ‘At Lunch’.

Note: You cannot send a Status Message during a Voice Call.

SRP9180 ~ MPT1327 Portable Radio User Manual









































6.2 R

ECEIVING A CALL

The SRP9180 will respond to incoming calls according to the type of call being received.

There are three types of call:

• Individual Voice Call.

•

Group Voice Call.

• Status Message or Data Message.

6.2.1 Receiving an Individual Voice Call

When a call is received the radio will “ring”, display the call setup icon the call.

While the radio is “ringing”, the user can answer the call by pressing the PTT key.

When you answer the call, both radios will be connected and will display the audio enabled icon.

A conversation can now take place with each operator taking turns to press their and speaking.

When the call is finished, either operator can end the call by pressing the nominated Clear * key or pressing

* #

If a “ringing” call is not answered before the Network times out, or the caller cancels the call, details of the call are entered in the Stored Calls Screen, refer to Section 4.2.

and the origin of

keys

PTT

Notes: 1. The SRP9180 responds in the same manner as above for Priority and Emergency

calls. Emergency Calls show Emergency on the display.

2. Some Trunking Networks provide a different Call Setup method that allows the radios to automatically answer incoming Voice Calls or allows the caller to speak to the called person while the radio is ringing.

* Note that F6 is usually assigned as the Clear key.

SRP9180 ~ MPT1327 Portable Radio User Manual

Receiving a Group Voice Call

A Group Voice Call differs from an Individual Voice Call in that the operators of the group do not answer the call. All radios that are members of the group automatically connect to the Group Voice Call.

While in a Group Voice Call, all operators can press their PTT, in turn, and talk to each other. Only the originator of the Group Voice Call can clear the call. Any operator can leave a Group Voice Call in the same manner as ending an Individual Voice Call (refer to Section

6.2.1).

Notes: 1. In some Trunk Networks, operators who leave a Group Voice Call are returned to

that Group Voice Call after a short period of time. This “Late Joiner” Network facility allows users that were previously engaged on another call, to join a Group Voice Call that is in progress.

2. A Broadcast Call is a special type of Group Voice Call in which only the originator can speak. All other group members are inhibited. Broadcast Calls are originated using dial-strings entered on the keypad (refer to Appendix B).

6.2.2 Incoming Status and Data Messages

Incoming Status and Data Messages are stored, and can be viewed in the Stored Calls Screen, refer to Section 4.2.

If not already displayed, the

icon appears on the Main Phonebook Screen and a short

‘bip’ is emitted every 5 seconds to alert the user that a new message has been received.

SRP9180 ~ MPT1327 Portable Radio User Manual

6.3 C

Incoming calls can be diverted to another radio, telephone, or PABX extension, using the Call Diversion facility provided by the Trunk Network. In many instances Call Diversion is only available after prior arrangement with the Network Operator.

A diversion may be set up via the Call Types Screen or direct from the keypad.

ALL DIVERSION

6.3.1 From the Call-Types Screen

• Scroll through the Phonebook until the persons name is displayed (or enter the ID

number using the keypad).

• Do not press #.

• Go to the Call-Types Screen (Press M and select Call Types Screen), then use the ▼

▲keys to scroll through the entries until Divert is displayed.

• Press OK to make the diversion to the selected Phonebook person (or entered ID

number).

6.3.2 By Dialling the Numbers

If you know the destination ID Number, use the keypad to enter the numbers in the following format:

* 4 1 * n # where n is and the destination ID Number.

e.g. (1) * 4 1 * 2 3 # where destination ID Number is 23 means

All calls will be diverted to unit 23.

e.g. (2) * 4 1 * 0 9 7 3 0 3 8 0 0 # where telephone number is 097303800 means

All calls will be diverted to telephone number 097303800.

6.3.3 To Cancel a Diversion

You cancel a call diversion by typing the dial-string option from the Call-Types Screen and pressing the OK key.

Other dial-strings for Call Diversion are as follows:

DIAL-STRING FUNCTION

* 4 1 * n # Divert both Voice and Data calls.

* 4 1 1 * n # Divert only Voice calls.

* 4 1 2 * n # Divert only Data calls.

# 4 1 # Cancel both Voice and Data diversions.

# 4 1 1 # Cancel only Voice diversions.

# 4 1 2 # Cancel only Data Diversions.

# 4 1 #

, or by selecting the

Cancel Divert

These dial-strings can be stored in the phonebook.

SRP9180 ~ MPT1327 Portable Radio User Manual

6.4 DTMF O

PERATION

When the DTMF facility is enabled (refer to Section 7.1.1), the keypad is automatically switched to DTMF mode whenever a Voice Call occurs. In this mode you can send DTMF tones for activating functions via a Voice Call or telephone connection.

Tones are generated using the keys: 0, 2, …, 9, * and #.

Note: When DTMF is enabled, the keypad cannot be used to make

Include Calls

SRP9180 ~ MPT1327 Portable Radio User Manual

7. SETUP

The functions of the radio. The programmer can restructure or restrict access to any or all of these menu screens and may rearrange them according to specific requirements.

sub-menus allow the operator to edit/modify the operation of some of the general

Setup

7.1 S

The sub-menu Screens provide access to the following operator functions.

User Options Key beeps, Backlight, Dual Watch & DTMF on/off selection.

Group Groups 1 – 8: Fixed Groups.

Groups 9 – 16: Network Dynamic.

Groups 17 – 24: Operator Editable.

Phone Book Edit Allows Phonebook entries to be changed, deleted or added.

Contrast Displays contrast adjustment.

Alert Volume Alert “beep” tone level setting (relative to Audio Volume).

Radio Information FPP File description, SW version, Serial No. Selcall ID.

Network Selects Trunk (Network 1/2), P25, or PMR operation mode.

ETUP SUB-MENUS

sub-menu structure programmed at manufacture is shown in Figure 2. These

Setup

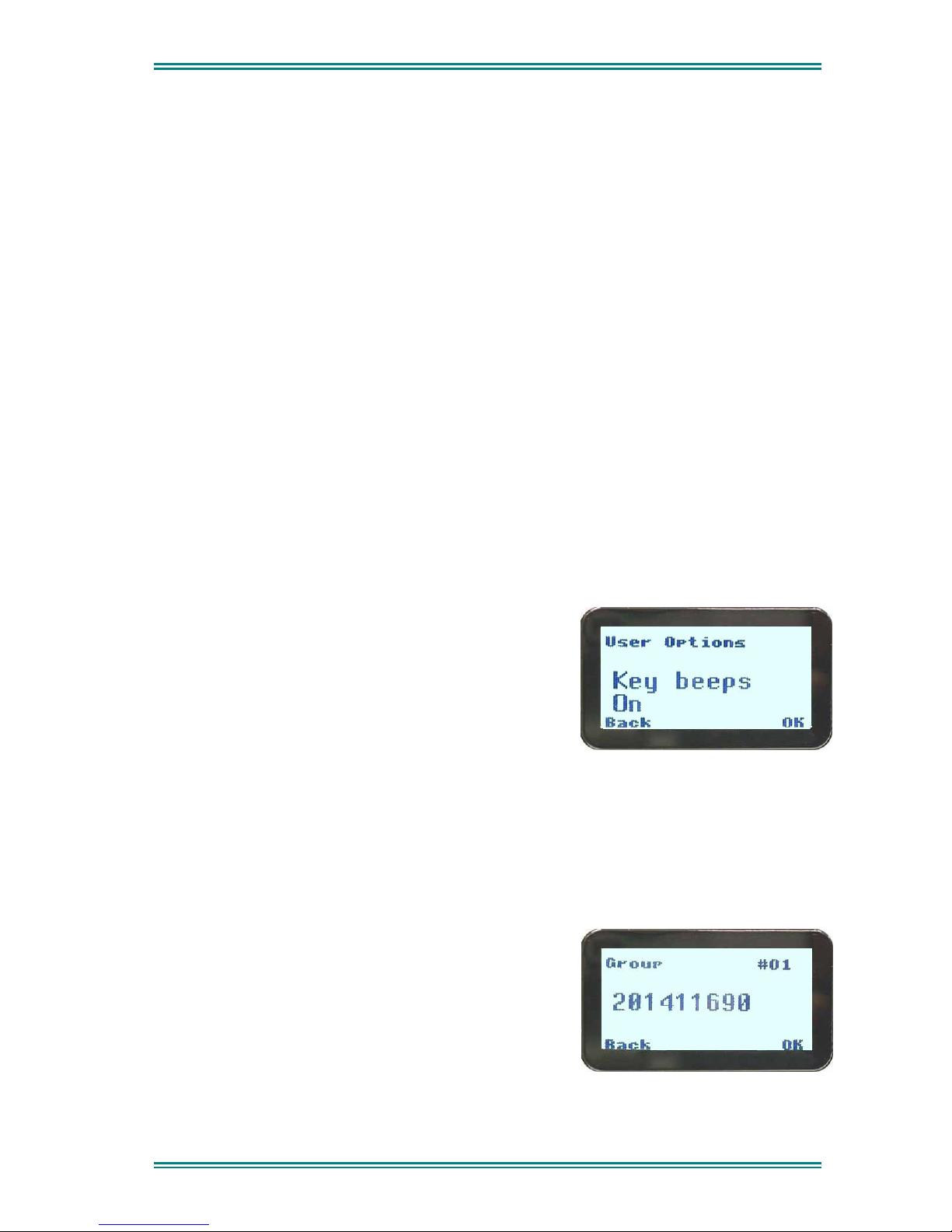

7.1.1 User Options

• The

User Options

options (such as Keybeeps, Backlighting and DTMF facilities) to be set On or Off.

Screen allows a variety of user

• The option selections are set with the FPP.

• Use the ▼ ▲keys to scroll between the different

facilities.

• The OK key toggles the selection On/Off. The setting

is saved on exit.

7.1.2 Group

Use the Group menu to view groups of which you are a member. The lowest numbered Group ID will be displayed first.

•

Use the ▼ ▲keys to scroll the available Groups.

• Groups 1 to 8 have been set up by the programmer

and cannot be changed by the user.

• Groups 9 to 16 are dynamically assigned by the

Trunk Network and cannot be changed by the user.

• Groups 17 to 24 are editable by the user. These

groups are defined via the * 50 *… to * 57 *… dialstrings

•

Use the OK key to return to the idle Phonebook Screen.

SRP9180 ~ MPT1327 Portable Radio User Manual

7.1.3 Phone Book Edit Menu

This menu allows you to add, edit or delete a Phone Book entry.

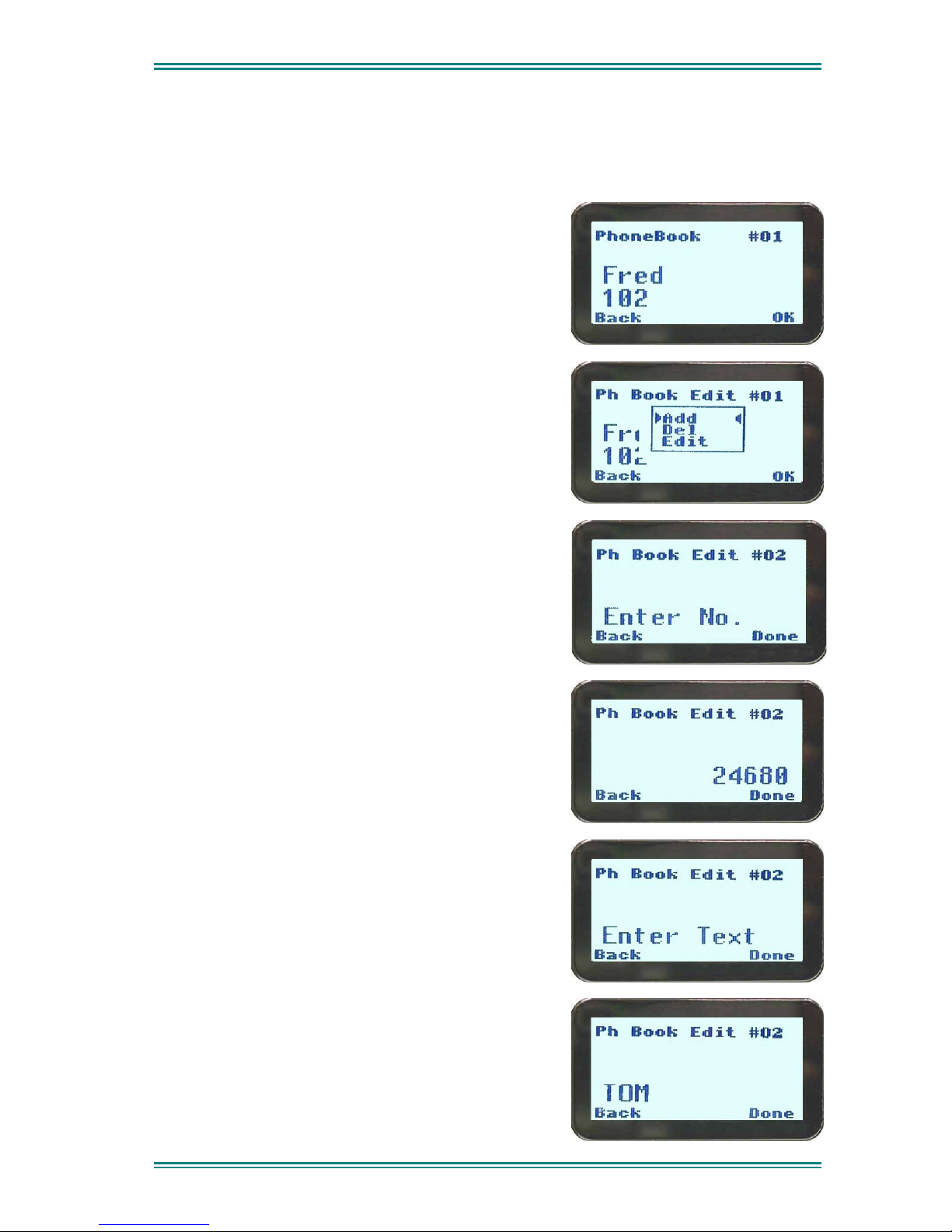

7.1.3.1 ADD A NEW ENTRY

From the main Phone Book Edit Screen (at any Phonebook Entry), just press OK.

Use the ▼ ▲keys to select “Add” and press OK.

Enter the New Entry number using the keypad.

Press OK.

Next, enter New Entry text using the

7.1.3.4 below).

Press OK again to exit back to the Idle Screen.

keypad (see

ABC

SRP9180 ~ MPT1327 Portable Radio User Manual

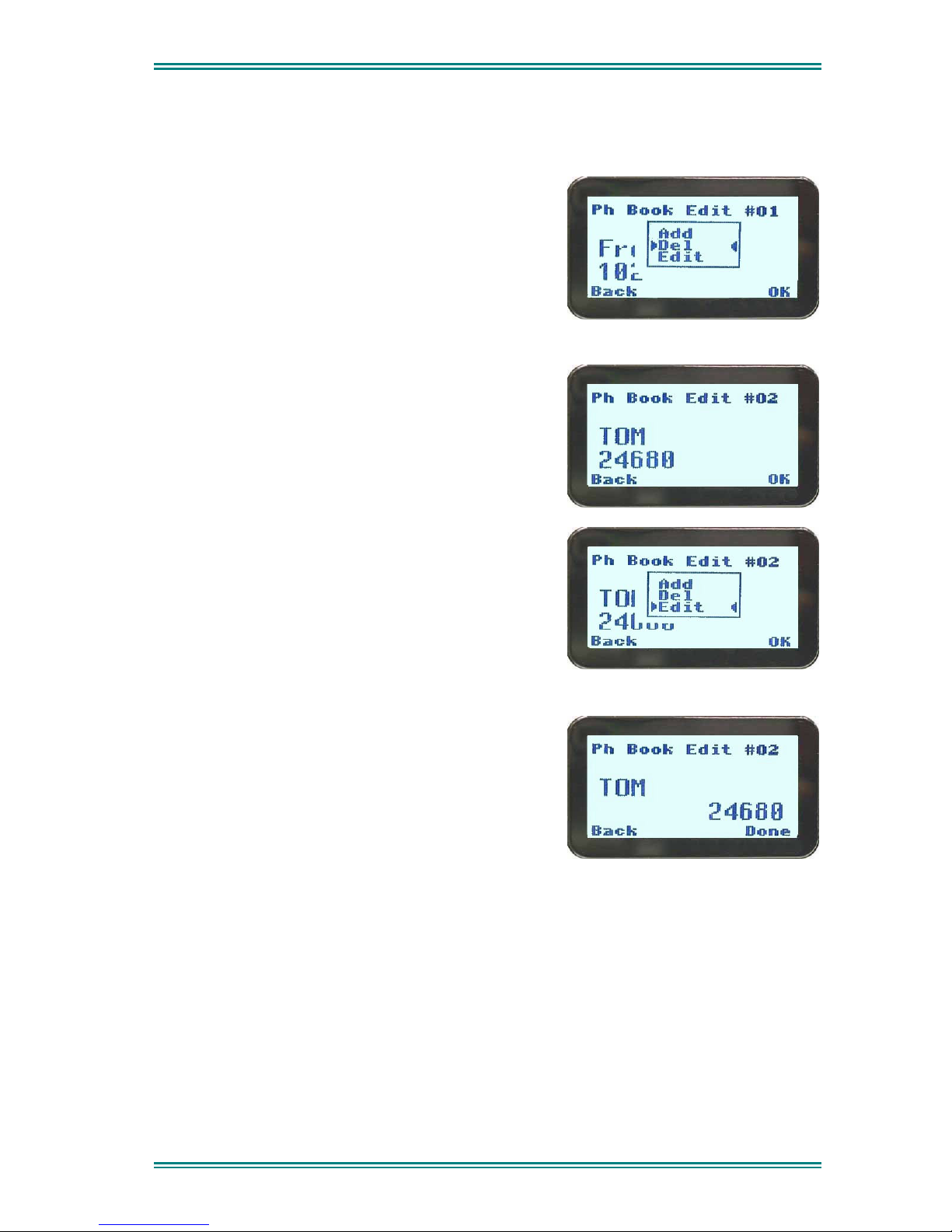

7.1.3.2 DELETE AN ENTRY

Use the ▼ ▲keys to select the required Phonebook Entry, then press OK.

Use the ▼ ▲keys to select “Delete”, then press OK to delete the Entry and exit back to the Idle Screen.

7.1.3.3

EDIT AN EXISTING ENTRY

Use the

▼ ▲

to select the required Phonebook

keys

Entry, then Press OK.

Use the

▼ ▲

to select “Edit” and then press OK.

keys

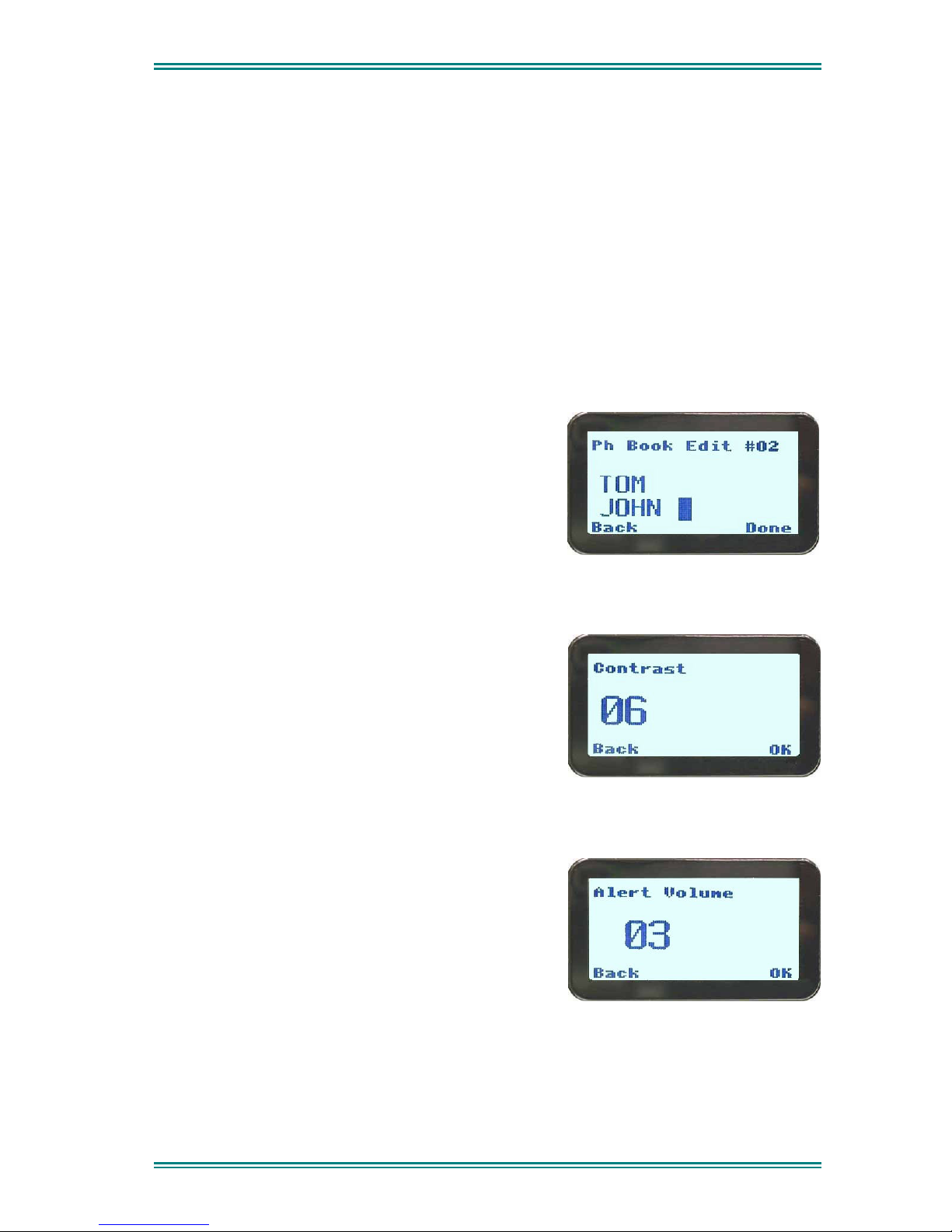

Next, edit the number using the F6 key (destructive backspace) and keypad and press OK.

Next, edit the text using the ▼ ▲keys to move along the text and the “0” key to erase characters. Press OK when finished. (See 7.1.3.4 below).

SRP9180 ~ MPT1327 Portable Radio User Manual

7.1.3.4

USING THE KEYPAD

When using the keypad to enter text:

• Press the appropriate keypad key a number of times until the desired character or

number is selected.

• The current character position is identified by a flashing block cursor.

• Use # to select lower/upper case letters.

•

Use * for special characters.

•

Use the ▼ ▲keys to move to the next or previous character space to be entered/modified.

•

Use the space key, “0” to erase characters.

• Press OK to accept changes.

7.1.4

•

Contrast

The Contrast Screen allows you to set the contrast level of the Display in the range from 0 to 15.

• Use the ▼ ▲keys to select the required contrast

setting.

•

Press OK or Back to accept the setting and return to the Idle Screen.

7.1.5

Alert Volume

This Screen allows you to set the level of the Alert Volume Beep Tone in relation to the current Volume setting. The level can be set in 63 steps over the range

-31 to +31.

• Use the ▼ ▲keys to change the relative alert level.

• Press OK or

to accept the setting and return

Back

to the Idle Screen.

Note: A minimum Alert Level may be set to ensure Alerts can always be heard from the speaker.

SRP9180 ~ MPT1327 Portable Radio User Manual

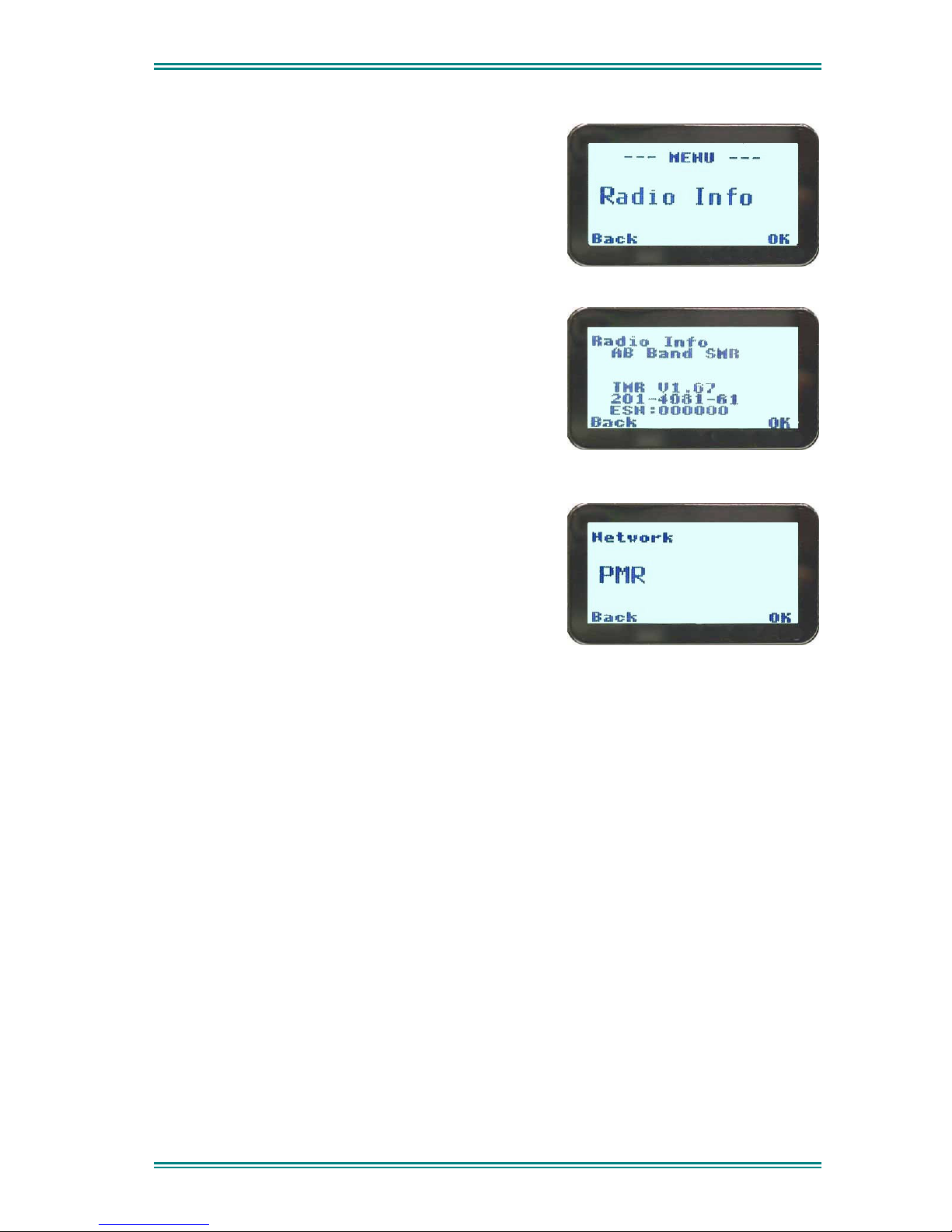

7.1.6 Radio Information

This Screen displays information that identifies the:

•

Programmer File description,

•

Software Version

• Selcall ID; and,

• Radio Serial Number and ESN.

Press OK to return to the Idle Screen.

Press Back to return to the Menu Select Screen.

7.1.7 Mode/Network Selection

The Network Screen allows you to switch operation between:

•

Trunk Network 1,

•

Trunk Network 2,

• PMR mode. *

• P25 mode.

Use the ▼ ▲keys to make your selection, and press OK to accept.

Press Back to return to the Menu Select Screen without changing modes.

The ABC Selector Switch can also be programmed to change radio Modes.

* Note: Refer to the relevant Operating Instructions for PMR operation.

SRP9180 ~ MPT1327 Portable Radio User Manual

8. OPTIONS

The following accessories are available for the SRP9180 portable radio. Contact your Simoco Dealer for further information.

8.1 L

Capacity of 2200 mAh.

8.2 L

Capacity of 2200 mAh. Intrinsically Safe – must be used with Intrinsically Safe version of radio for radio to be Intrinsically Safe.

8.3 L

Capacity of 3000 mAh. Intrinsically Safe – must be used with Intrinsically Safe version of radio for radio to be Intrinsically Safe.

8.4 L

Capacity of 3000 mAh. Intrinsically Safe – must be used with Intrinsically Safe version of radio for radio to be Intrinsically Safe.

8.5 S

Charger capable of charging one portable radio at a time.

8.6 T

Charger for two portable radios.

8.7 S

ITHIUM ION BATTERY

INGLE POCKET CHARGER

WO POCKET CHARGER

IX POCKET CHARGER

(PAR-9180BATL2X)

(PAR-9180BATL2)

(PAR-9180BATL3I)

(PAR-9180BATL3)

(PAR-9180CRG1)

(PAR-9180CRG2)

(PAR-9180CRG6)

Charger for up to six portable radios.

8.8 V

Charger for in-vehicle charging of the portable.

EHICLE MOUNTED CHARGER

(PAR-9180CRGV)

8.9 L

Carry case for light duty use with PAR-9180BATL2/i. This carry case Intrinsically Safe radios.

8.10 L

Carry case for light duty use with PAR-9180BATL3/i. This carry case MUST be used with Intrinsically Safe radios.

8.11 H

Carry case for heavy-duty use with belt loop attachment.

8.12 L

Combined small speaker and microphone for light duty use incorporating two programmable function keys.

8.13 GPS M

Speaker Microphone incorporating GPS receiver for tracking applications and four programmable function keys.

IGHTWEIGHT CARRY CASE

EAVY DUTY CARRY CASE

IGHTWEIGHT LAPEL FUNCTION SPEAKER MICROPHONE

ICROPHONE

(PAR-9180LMGM)

(PAR-9180CLBC2)

(PAR-9180CLBC3)

(PAR-9180CHSM)

be used with

MUST

(PAR-9180LMS2)

SRP9180 ~ MPT1327 Portable Radio User Manual

9. TROUBLESHOOTING

If, after reading this guide, you are unable to switch the radio on, check that the battery is charged and correctly attached.

If these checks are OK, contact your dealer or Simoco representative for further advice.

SRP9180 ~ MPT1327 Portable Radio User Manual

10. APPENDIX A – ALERT TONES AND MESSAGES

Key Press

Call Setup in Progress

Incoming Call or Called Radio is

ringing

Call Queued

Number Unobtainable

Transmit Confirmed

Call Clear

Item Duration Warning

Go to Traffic Channel

No Transmittal Allowed

Wrong Key Press

Call Diversion

Call Fail System Busy

Call Fail

Unavailable

Call Fail Radio Busy

Low Tone

High Tone

Duration Indicated in seconds

Off

0.05

Telephone Ring Tone

0.3

0.3 0.3

0.30.3

1 Second

.1.1.1

.1 0.4 0.4

0.4 0.35 0.22 0.525

1.5 Seconds

0.375 0.375

1.2 Seconds0.8

5 Seconds

Continuous

9000_19b

Figure 3 – Alert Tones and Messages

SRP9180 ~ MPT1327 Portable Radio User Manual

11. APPENDIX B - DIAL STRINGS AND NUMBERING

CONVENTIONS

The following dial strings and numbering conventions apply on the SRP9180 radios.

Dial Strings

DESCRIPTION CALL MODIFIER

Abbreviated PSTN Codes **nn nn = 1 to 45

Call Set up Abandon/Call Complete *#

Accept Incoming Call # or PTT

Status Call *0n*...# , n = 1 to 30

Broadcast Call *11*...# (for groups

only)

Send Short Data Message *2*Data*….# ,Data=Up to 20 digits of 0 9

Non-prescribed data call *31*...#

Divert all, voice, data calls *41*...#, *411*…#, *412*…#

Cancel all, voice, data diversions #41#, #411#, #412#

Cancel all, voice, data incoming diversions #45#, #451#, #452#

Activate Incoming Call Queueing *48#

Cancel Call Queueing #48#

Set BUSY – all , voice, data calls *49#, *491#, *492#

Cancel BUSY – all, voice, data calls #49#, #491#, #492#

Alter User Group Membership *5n*…# n= 0 to 7

Remove Group Membership #5n# n= 0 to 7

Alter Short Form Entry *6n*…# n= 0 to 19

Priority Call *8*...#

Emergency Call *9*...#

Request Call-Back *0*…#

Cancel Call-Back #0*…#

Quick-Dialing n# n = 0 to 19

Repeat Last Call # #

Goto Setup Screen *52#

SRP9180 ~ MPT1327 Portable Radio User Manual

Numbering Conventions

NUMBERING

CONVENTION

0-19 Quick-Dialling (index must be in Phonebook)

20-89 Small fleet Unit number

90-99 Small fleet Group number

200-899 Large fleet Unit number

900-998 Large fleet Group number

999 Emergency operator

1000-8999 PABX extension

31000-38999 PABX extension on exchange 1

41000-48999 PABX extension on exchange 2

51000-58999 PABX extension on exchange 3

61000-68999 PABX extension on exchange 4

9nnnn Short Interfleet Access

FFFFNN Unit/Group NN in small fleet FFFF,

FFFF = 2001-6050, NN = 20-99

FFFFNNN Unit/Group NNN in large fleet FFFF,

FFFF = 2001-6050, NN = 200-998

PPPFFFFNN Unit/Group NN in small fleet FFFF, in prefix PPP,

PPP = 200-329, FFFF = 2001-6050, NN = 20-99

PPPFFFFNNN Unit/Group NNN in large fleet FFFF, in prefix PPP,

PPP = 200-329, FFFF = 2001-6050, NN = 200-998

0NNN... PSTN Call to number NNN...,

NNN... can be up to 30 digits in length

DESCRIPTION

SRP9180 ~ MPT1327 Portable Radio User Manual

12. APPENDIX C - GLOSSARY

A summary of common radio terms and other terms used in this document is given below.

Alert tones The transceiver emits these tones to indicate an invalid

entry or operator error.

ARPANSA Australian Radiation Protection and Nuclear Safety

Association.

Current Phonebook Entry

DSP Digital Signal Processor. DTMF Dual Tone Multi-Frequency (Signalling Method).

ESN Electronic Serial Number. FPP Field Personality Programmer.

LED Light Emitting Diode. MPT Network type, i.e. MPT1327.

Muted Audio not allowed to pass to loudspeaker

Network The system infrastructure e.g. a Trunked MPT1327

NPD Non Prescribed Data

PABX Private Automatic Branch Exchange. PMR Private Mobile Radio.

PTT Press-To-Talk. Hold down the Press-to-talk switch on the

RF Radio Frequency. RSSI Received Signal Strength Indicator.

Rx Receive. Selcall Selective Call. A signalling system that identifies users.

TMR Trunked Mobile Radio.

Tx Transmit.

Unmuted Audio allowed to pass to loudspeaker

Entry the Phonebook Screen would display if currently called upon.

Network, or conventional repeater system.

microphone for the duration of the transmission.

SRP9180 ~ MPT1327 Portable Radio User Manual

13. COMPLIANCE WITH RF ENERGY EXPOSURE GUIDELINES

(UNITED STATES AND CANADA)

RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS.

Before using your Simoco portable two-way radio, read this important RF energy awareness and control information and operational instructions to ensure compliance with the FCC’s RF exposure guidelines.

NOTICE: This portable radio is intended for use in Occupational/ Controlled conditions in applications where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorised for general population, consumer, or any other use.

This portable two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, electric power, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material.

Experts in science, engineering, medicine, health and industry work with organizations to develop standards for exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All two-way radios marketed is North America are designed, manufactured and tested to ensure they meet government established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http:l/www.fcc. gov/oet/rfsafety/rf-fags. htm 1 http://www.osha.gov/SLTC/radiofrequencvradiation/index.htmi

Federal Communications Commission Regulations:

The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. An exposure awareness label is attached to the equipment directing users to specific awareness information.

Compliance with RF Exposure Standards

Your Simoco portable two-way radio is designed to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for Occupational/ Controlled RF exposure environment at duty factors of up to 50% talk 50% listen and is authorised by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode.

Your Simoco two-way radio complies with the following RF energy exposure standards and guidelines:

• United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J

SRP9180 ~ MPT1327 Portable Radio User Manual

• American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992

•

Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition

• Industry Canada RSS-102

SRP9180 ~ MPT1327 Portable Radio User Manual

RF Exposure Compliance and Control Guidelines and

Operating Instructions

To control exposure to yourself and others and ensure compliance with the Occupational/ Controlled environment exposure limits always adhere to the following procedures.

Guidelines:

• User awareness instructions should accompany the device when transferred to other users.

•

This radio meets the FCC RF exposure guidelines when used with the Simoco accessories supplied or designated for the product. The designated Simoco belt clip type is PAR9180CLIP and leather pouches for bodyworn use are SImoco Radio types PAR-9180CLBC2 and 3, and PAR-9180CHSM with extension speaker microphone type PAR-LMS2. Use of other accessories may not ensure compliance with the FCC’s RF exposure guidelines and may violate FCC regulations.

• Do not use this device if the operational requirements described herein are not met.

Instructions:

•

Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance).

•

Do not operate the radio without an approved antenna attached, as this may cause the FCC RF exposure limits to be exceeded. With this product, use only an antenna supplied or approved by Simoco.

• Always keep the radio at least 5 cm (2.0 inches) from the face when transmitting and at least 10 mm (0.4 inches) from the body. This radio has been tested for RF exposure compliance at the distances listed in Table 1.

SRP9180 ~ MPT1327 Portable Radio User Manual

Table 1: RF Exposure Compliance Distances

FREQUENCY Bodyworn Handheld in front of

face

136-174MHz 10mm (0.4 inches) 25mm (1.0 inches)

400-480MHz 10mm (0.4 inches) 25mm (1.0 inches)

440-512MHz 10mm (0.4 inches) 25mm (1.0 inches)

Approved Accessories

• To obtain a list of other Simoco approved accessories see contact details below or visit the following website which lists approved accessories: www.simoco.com

Contact Information

For additional information, please contact:

Comgroup Australia Pty. Ltd. 1270 Ferntree Gully Road Scoresby Victoria, 3179 Australia

Telephone +61 3 9730 3800 Facsimile +61 3 9730 3968 Website www.comgroup.net.au

Simoco SRP9170, SRP9180 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
