SDMK4
Digital Drum pads
user’s Manual
www.simmonsdrums.net
FCC Statements
1. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
One (1) Year Limited Warranty
Subject to the limitations set forth below, Simmons® hereby represents and warrants that the components of this product shall be free from defects
in workmanship and materials, including implied warranties of merchantability or fitness for a particular purpose, subject to normal use and service,
for one (1) years to the original owner from the date of purchase.
Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of use of product, loss of time, interrupted operation
or commercial loss or any other incidental or consequential damages including but not limited to lost profits, downtime, goodwill, damage to or
replacement of equipment and property, and any costs of recovering, reprogramming, or reproducing any program or data stored in equipment
that is used with Simmons® products. This guarantee gives you specific legal rights. You may have other legal rights which vary from state
to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Simmons
P.O. Box 5111
Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders.
Made in China. 0708-7896
SDMK4
www.simmonsdrums.net
1
… on your purchase of the Simmons SDMK4 Digital Drum Pads. To get the most
enjoyment, we recommend that you review this manual at least once, then
refer back to it often to learn more about specific functions.
Taking Care of Your Digital Drum Pads
Location
• To avoid deformation, discoloration, or more serious damage, do not expose the unit to direct sunlight,
high temperature sources, or excessive humidity.
Power Supply
• Turn the power switch off when the SDMK4 is not in use.
• The AC adapter should be unplugged from the AC outlet if the SDMK4 will not be used for an extended
period of time.
• Avoid plugging the AC adapter into an AC outlet that is also powering high-consumption appliances such
as electric heaters or televisions. Also avoid using multi-plug adapters since these can reduce sound quality,
cause operation errors, and result in possible damage.
• To avoid damage, turn off the SDMK4’s power switch and all related devices prior to connecting
or disconnecting cables.
Handling and Transport
• Never apply excessive force to any parts.
• Unplug cables by gripping plugs firmly. Do not pull on cables.
• Serious damage can occur by dropping or bumping
Cleaning
• Clean with a dry, soft cloth.
• A slightly damp cloth may be used to remove stubborn grime and dirt.
• Never use cleaners such as alcohol or thinner.
Electrical Interference
• The SDMK4 contains electronic circuitry that may cause interference if placed too close to radio or television
receivers. If this occurs, move the SDMK4 further away from the affected equipment.
Service and Modification
• There are no user serviceable parts in the SDMK4.
• Do not attempt to open the SDMK4 or make any changes to circuits or parts. This will void the warranty.
welcome
and
Congratulations!
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
Setting Up 3
Power Supply 3
Using Headphones 3
Panels and Pedals 4
Front Panel 4
Rear Panel 4
Connecting the Foot Pedals 4
Playing the Demo Song 5
Starting the Demo Song 5
Stopping the Demo Song 5
Playing the Pads/Pedals 6 - 9
Pad Names 6
Assigning a Drum Kit 7
Assigning a Voice 7
Metronome On/Off 8
Playing a Song 9
Selecting a Song 9
Super Bass 9

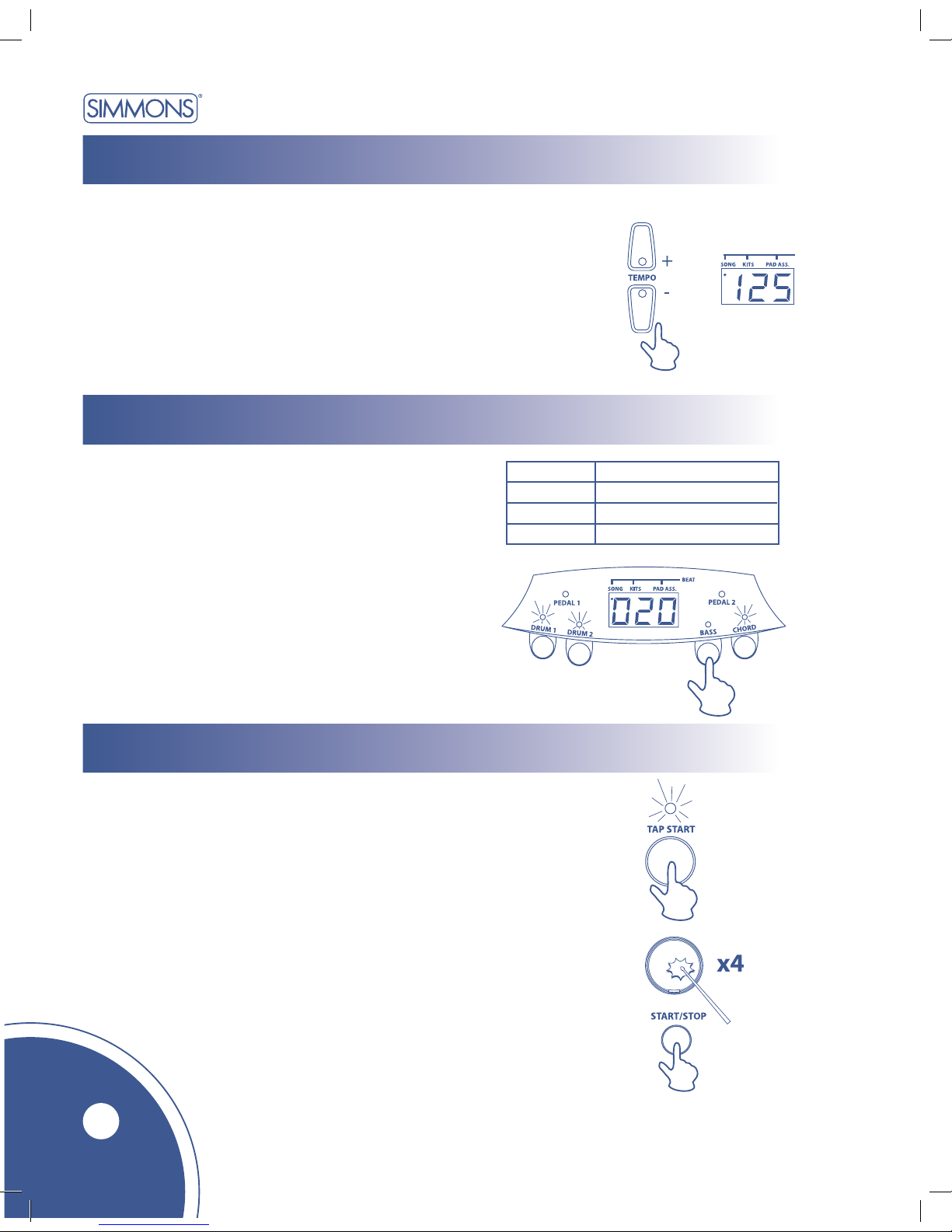

Adjusting the Tempo 10
Track On/Off 10
Tap Start 10

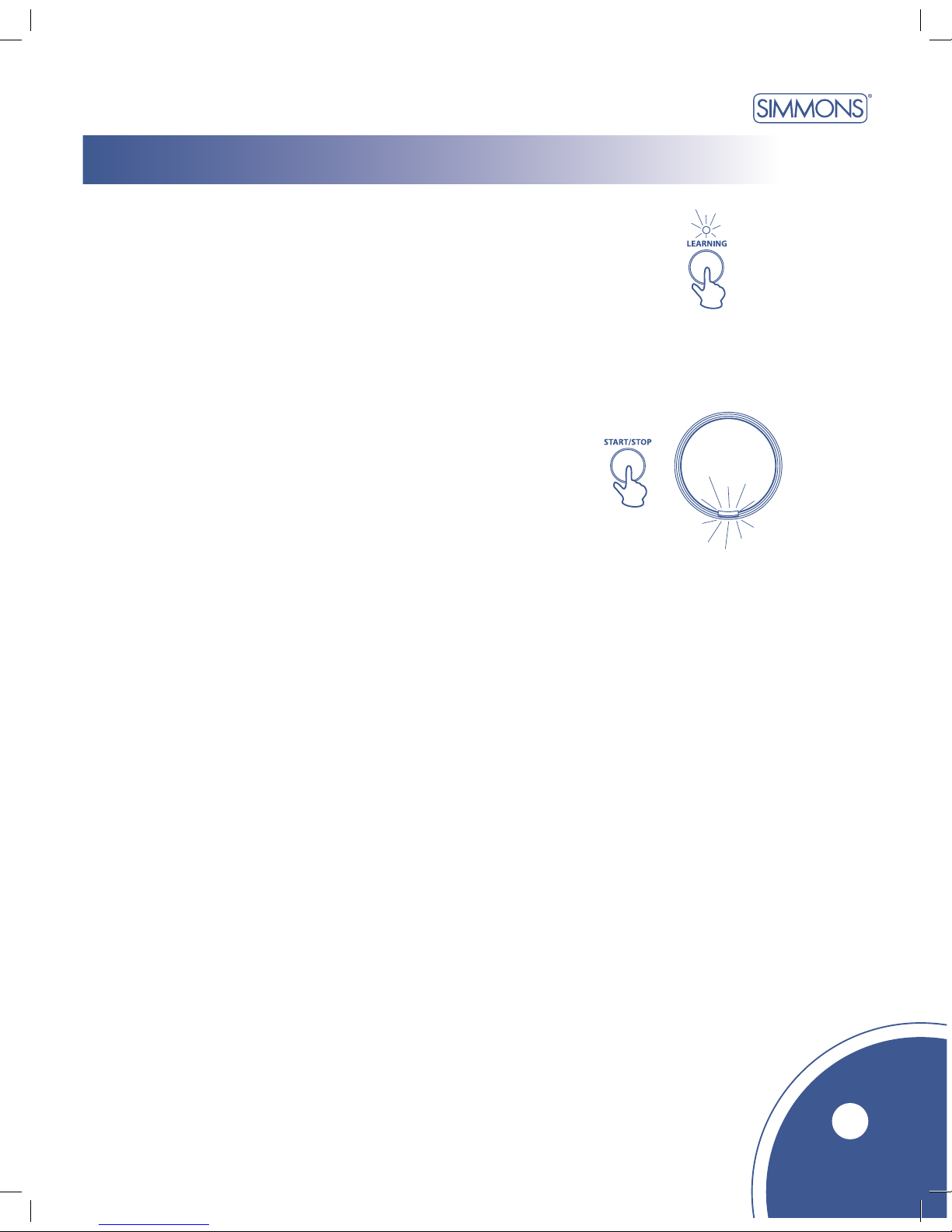

Learn 11

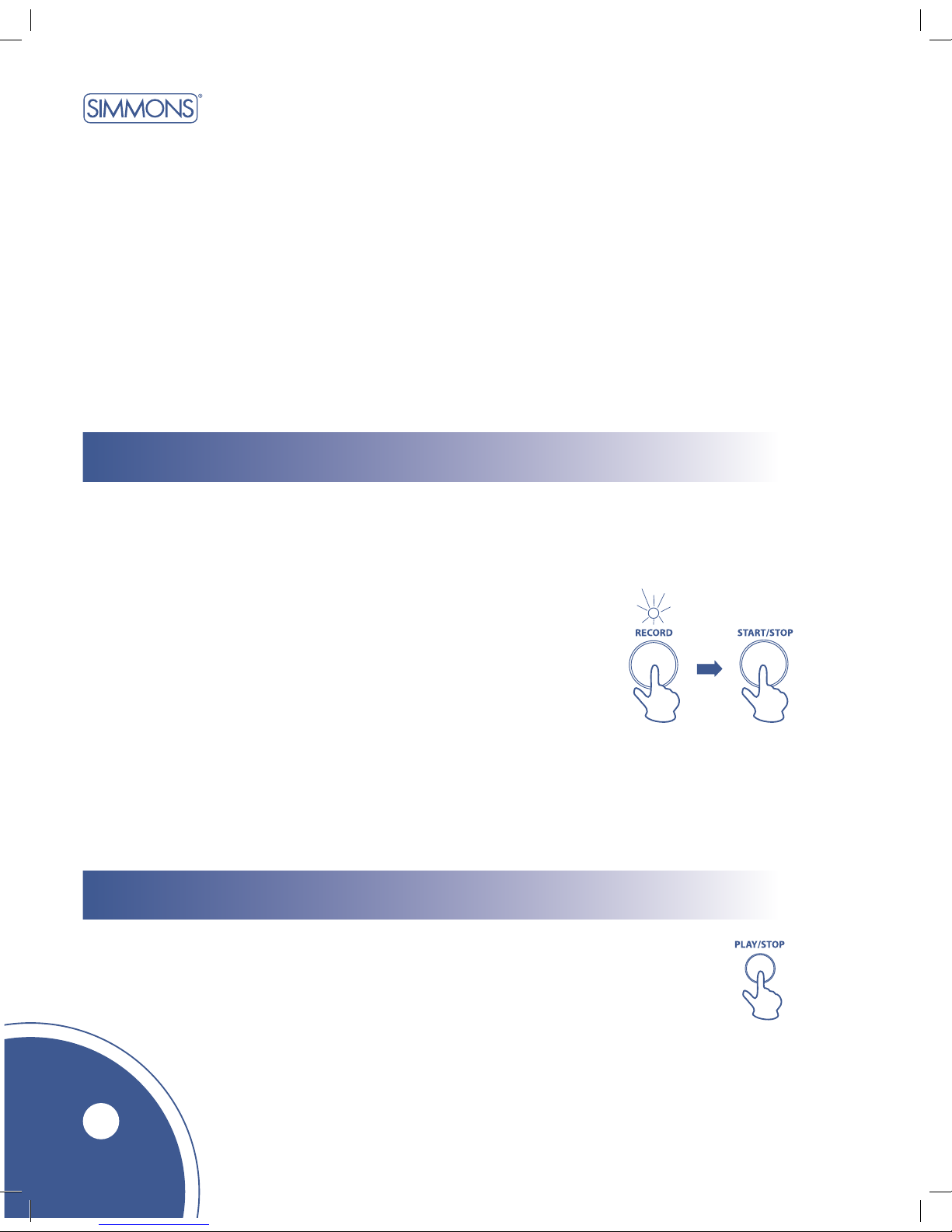

Recording 12
Record 12
Playback 12

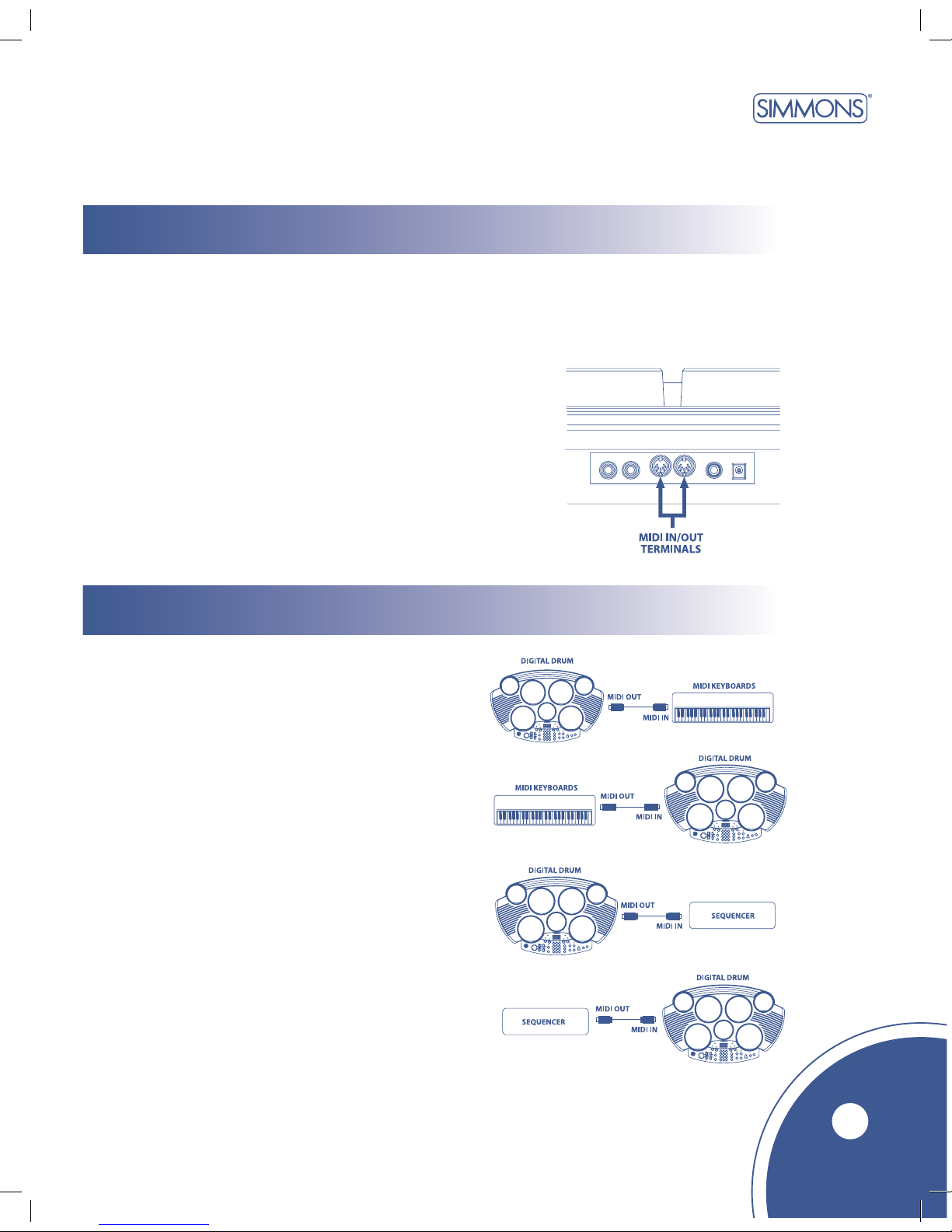

MIDI 13
What is MIDI? 13
Things You Can Do With MIDI 13
Appendix 14 - 18
Drum Voice List 14
Drum Kit List 15
Song List 16
Specifications 16
MIDI Implementation Chart 17
Table of Contents
2
SDMK4
www.simmonsdrums.net
3
SETTING UP
An optional set of stereo headphones can be connected
to the Phone/Output jack located on the rear panel.
When headphones are plugged into the jack, the internal
speakers will switch off automatically, perfect for private
practice or late night playing. If you want to use an
external sound system, the Headphone Jack can also
be used to connect the digital drum to a stereo system
or mixing console.
* Turn all equipment off before making any connections.
Using headphones

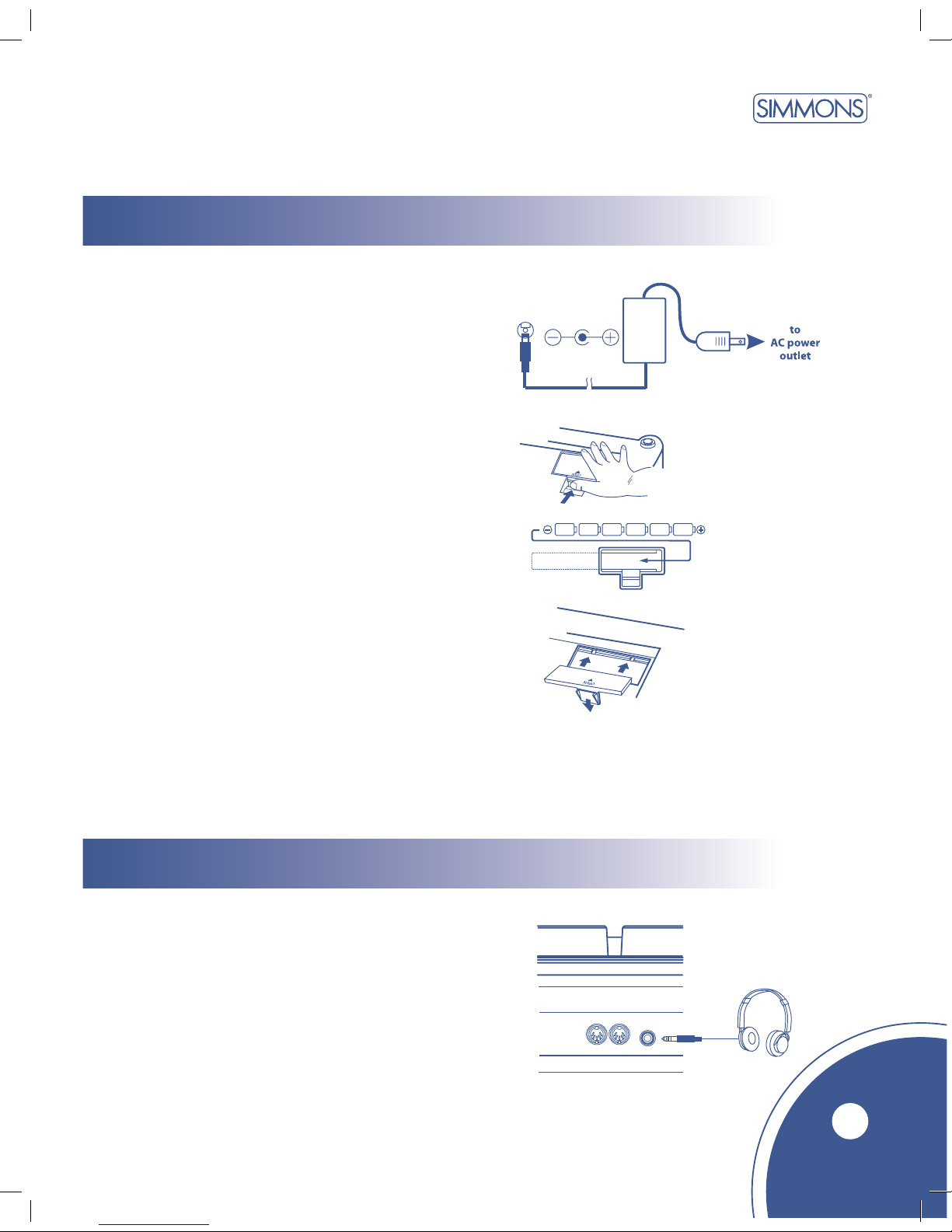

Your SDMK4 will run on batteries or from the included power adapter.
Using an AC Adapter
Connect the power adapter to the DC IN jack located
on the rear panel of the unit, and plug the AC power
adapter into an AC power outlet. Do not use adapters
other than the one specified. The technical specification
of the adapter is 9V DC output, 800mA, center
positive type.
Using Batteries
1 Open the battery compartment cover on
the underside of the unit.
2 Insert six “C” size batteries. When inserting
the batteries, be careful to follow the
polarity markings.
3 Close the battery compartment.
Power supply
NOTES Power will be automatically drawn from the AC adapter if an optional AC adapter is connected while batteries are installed in the instrument.
CAUTION: It is recommended that you replace worn batteries as soon as possible. When battery voltage drops, the display will dim and/or the sound will become
distorted. When this occurs, replace the batteries with a complete set of six new batteries of the same type.
NEVER mix old and new batteries, different types of batteries (alkaline, magnesium, etc.), batteries by different makers, or batteries from the same maker but of different types. Misuse
may cause the instrument to become hot, resulting in fire, or battery leakage. Also, to prevent damage due to batter y leakage, remove all the batteries from the instrument when it is not
to be used for an extended period of time. Batteries left in an unused instrument will also loose their power over time.
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
4
Drum Pads (x7)
Drum Pad Indicator
Power On/Off
Master Volume
Song Volume
Tempo

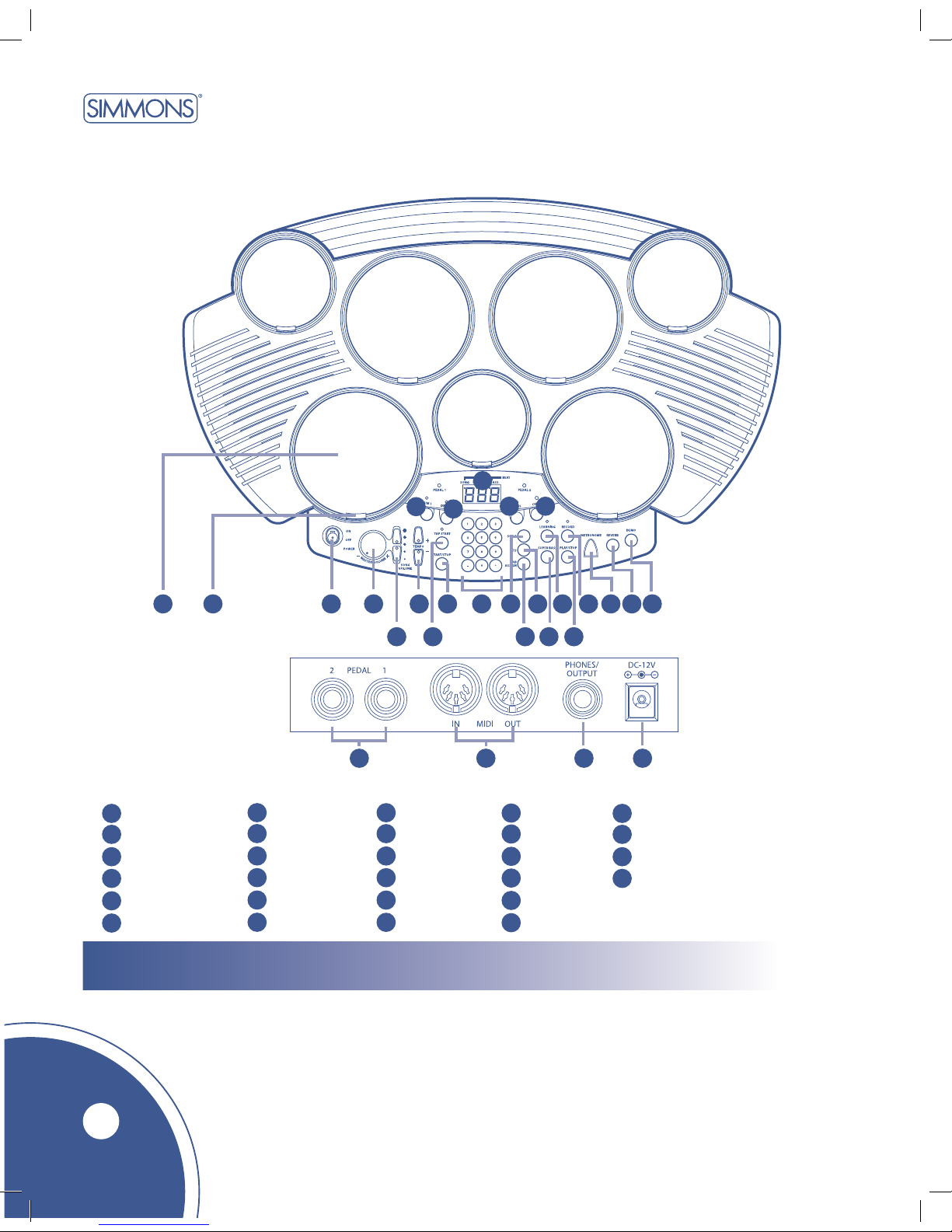

panels and pedals
28
1 2 3 4
5
6
20
21
7
8 9 101112
23 24
131415
16 17 18 19
22
25 26 27
The supplied foot pedals can be connected to the unit to simulate a hi-hat or bass drum pedal. They can also be assigned
to play other voices as well.
Note: Do not press any of the pedals when connecting them to the unit or while turning on power.
Pedal function may be reversed if they are connected in this manner.
1
Front Panel
Rear Panel
Pedal 1 & 2 Jacks
MIDI In/MIDI Out Terminals
Phones/Output Jack
DC IN 12V (AC Adapter) Jack
connecting the foot pedals
2
3
4
6
5
7
8
9
10
12
11
13
14
15
16
18
17
19
20
21
22
24
23
25
26
27
28
Tap Start
Start/Stop
Number Keys
Song
Pad Assign
Kits
Super Bass
Learning
Play/Stop
Record
Metronome
Reverb
Demo
Drum 1
Drum 2
Display
Bass
Chord
Front Panel
Rear Panel
SDMK4
www.simmonsdrums.net

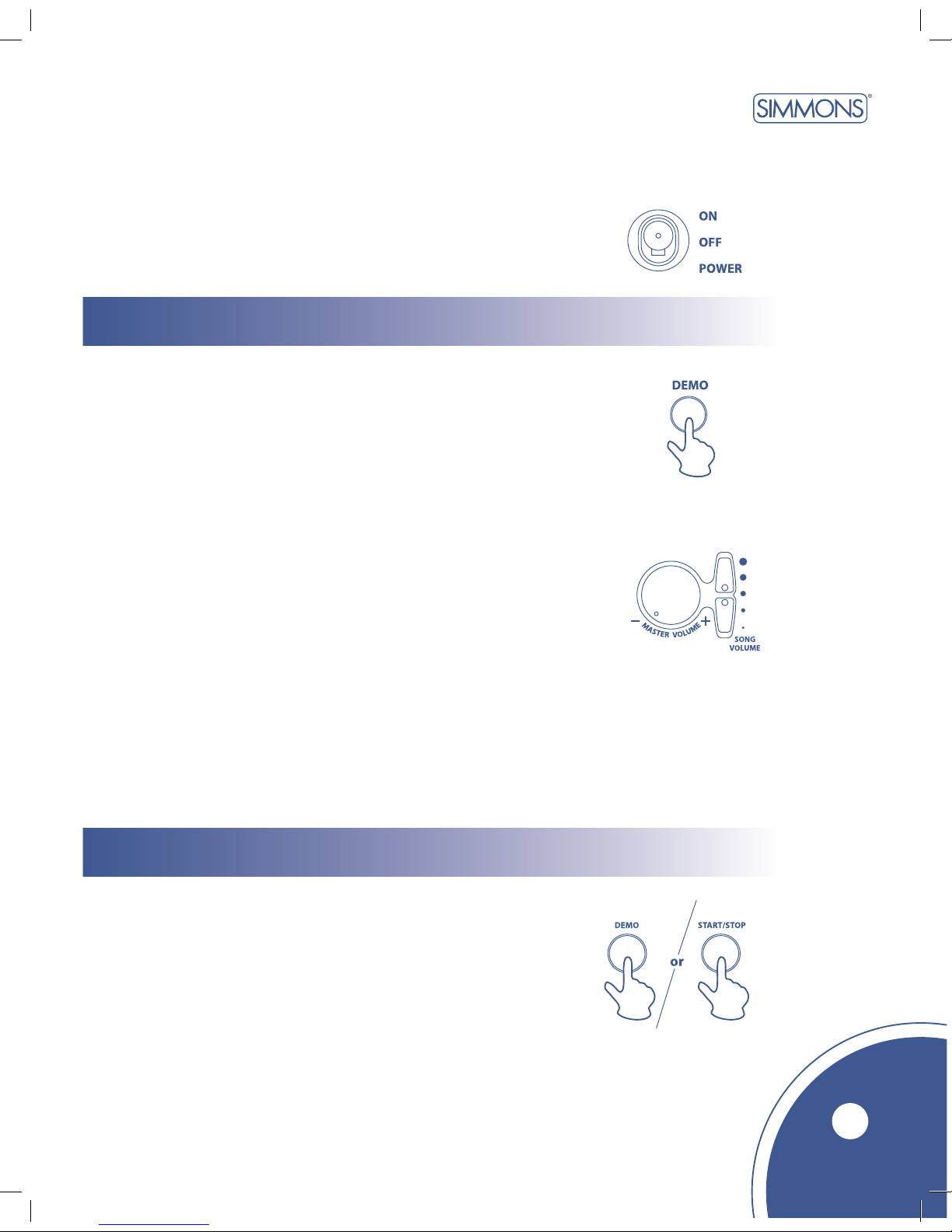

Playing the demo song
5
Turn the [POWER] switch on.
The LED display will light up.
Press the [DEMO] button, the demo song will start and the Learning
indicator will light up. (The demo song starts in learning mode.) The
drum pad indicators will flash as they follow the rhythm.
Master Volume
The overall volume level of the instrument is controlled
by a [MASTER VOLUME] knob.
Song Volume
The song’s volume level is controlled by two [SONG
VOLUME] buttons.
The [SONG VOLUME] buttons adjust the balance between
the song accompaniment (in this case “Demo”) and your own
performance on the pads. Press the top [SONG VOLUME]
button to increase the song volume by one level. Press the bottom
[SONG VOLUME] button to decrease the song volume by one
level. Holding down either button increases or decreases song
volume level rapidly.
Starting the demo song
Stopping the demo song
To stop playback, press the [DEMO] button again or
the [START/STOP] button.
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
Playing the pads/pedals

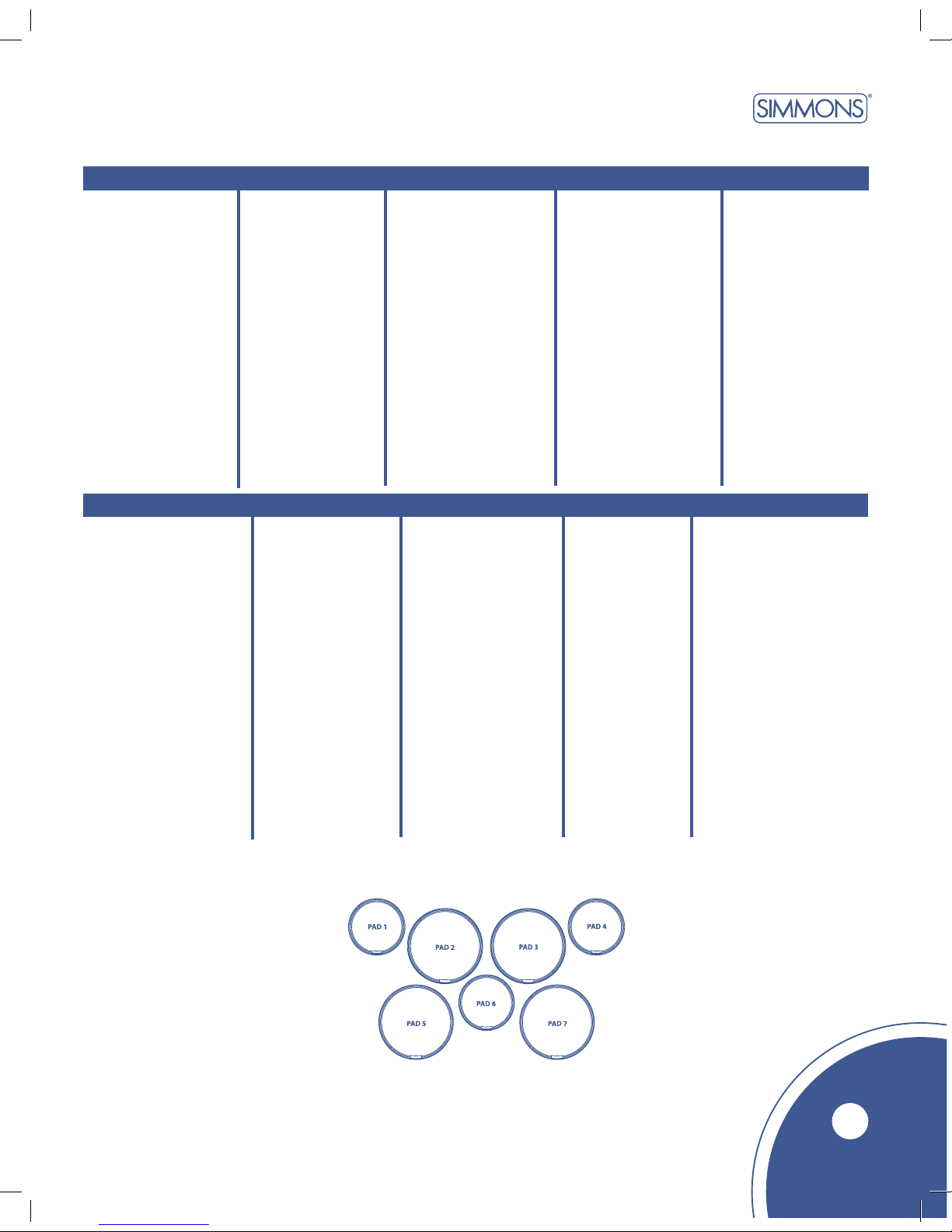

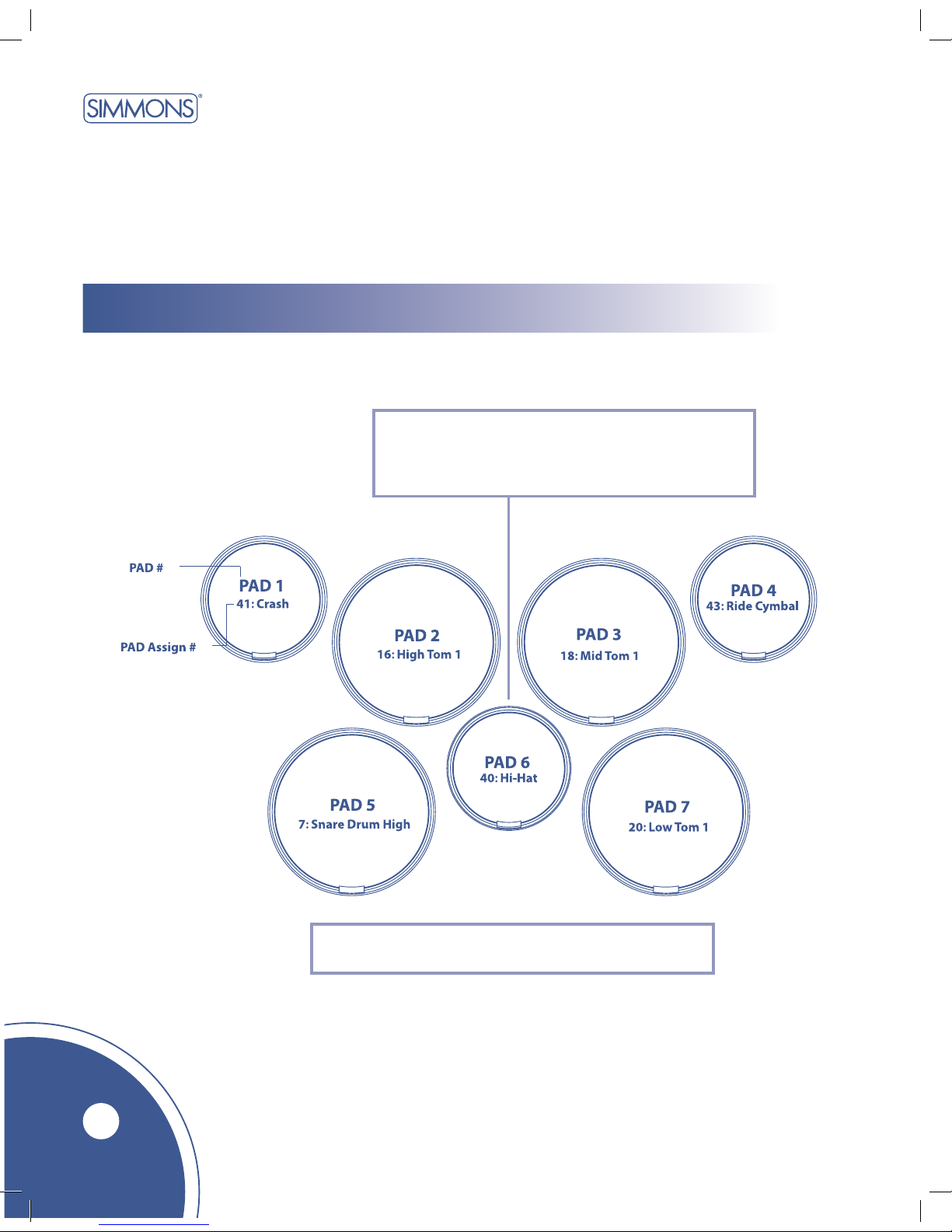

Pad names
Striking the pads at different velocities will result in relatively louder or softer sounds. Loudness also varies
depending on where you strike the pad.
Drum Kit 001 Standard 1
Striking Pad 6 while pressing on Pedal 1 produces
a closed hi-hat sound. Striking the pad without
pressing the pedal produces an open hi-hat sound.
The bass drum voice is controlled by pressing Pedal 2.
6
SDMK4
www.simmonsdrums.net

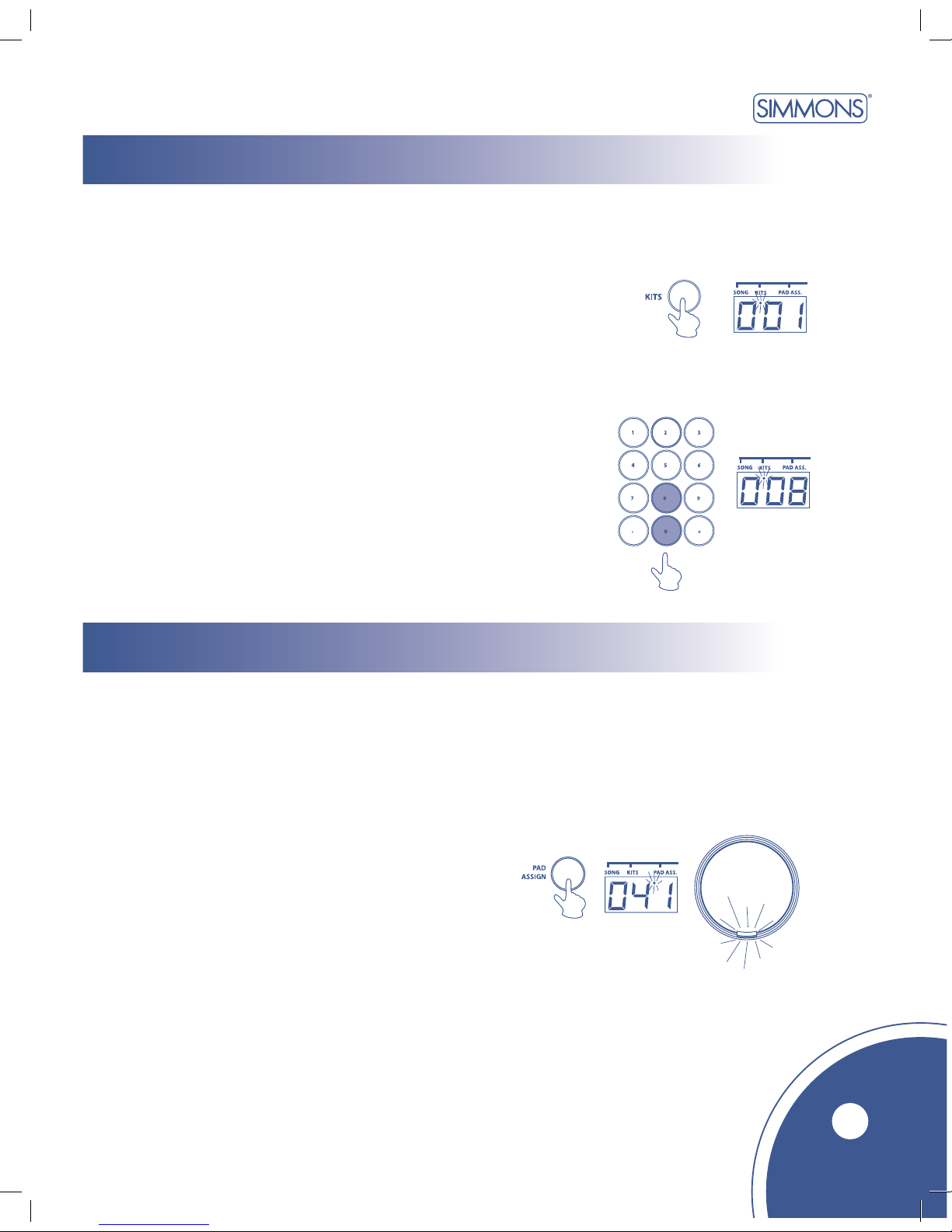

assigning a drum kit
assigning a voice
The SDMK4 allows you to choose from 20 different Drum Kits plus one custom kit quickly and easily. (See
Drum Kit List on page 15.)
Press the [PAD ASSIGN] Button
Press the [PAD ASSIGN] button. The PAD ASSIGN
indicator will appear on the display. The indicator light
below PAD 1 will light up. PAD 1 is now assigned.
Press the [KITS] button
Press the [KITS] button. The selected Drum Kit will
appear on the display.
Note: You will be unable to select Drum Kits when you
are in learning mode.
Select a Drum Kit Number
You can select a Drum Kit by pressing the number
keys, for example, when you want to select Drum Kit 08,
press “0” and “8.” “08” will then appear on the display.
Note: Drum Kit number 01 is normally selected when the
“KITS” function is first turned on.
The SDMK4 has a total of 76 high quality percussion sounds that can be assigned to each of the 7 drum
pads and 2 foot pedals. (See Drum Voice List on page14.) Try assigning different voices to the “CU”
Custom Drum Kit.
Note: Any change made to one of the preset drum kits will automatically be saved in the “CU” Custom
Drum Kit.
7
SDMK4 digital drum pads User’s Manual
Digital DRUm pads

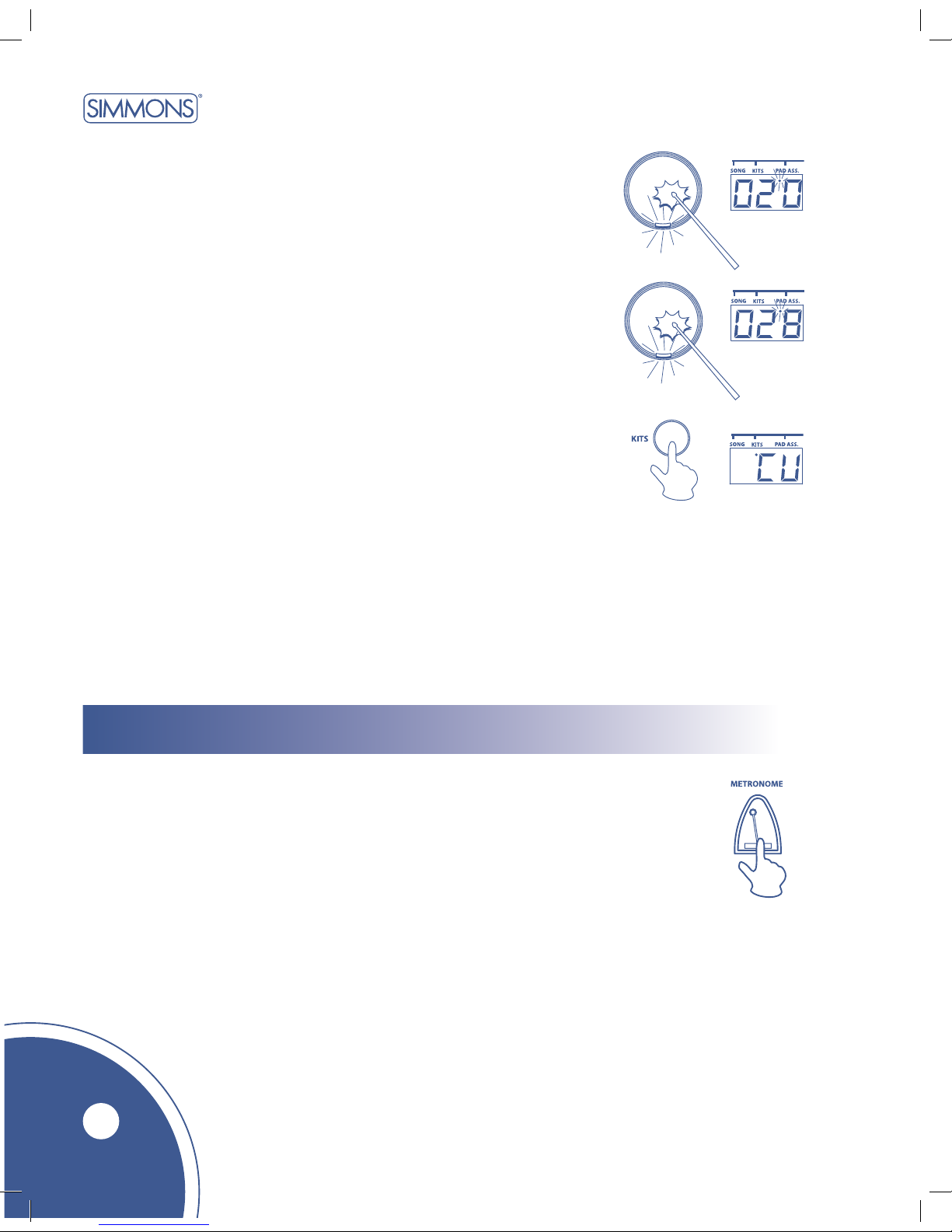

Select a Pad/Pedal
Strike the Drum Pad or press the pedal that you want to
assign. The indicator will light up and the display will
show the current voice number.
Select a Voice
You can rotate through various voices by repeatedly
striking the pad, repeatedly pressing the pedal, or by
pressing the number keys until you reach the desired voice.
Enter the voice number by pressing the number keys shown
on the Drum Voice List on page 16.
Press the [KITS] Button
“CU” (Custom Kit) will appear on the display and the drum kit
indicator will light up.
Play the Pads and Pedals
Now your custom drum kit is ready to be played. Repeat if
you want to assign another drum pad or pedal.
Note: Your “CU” Drum Kit will be preserved even when
you turn off power. To recall the “CU” Drum Kit, press the
[KITS] button to enter the “Kits” mode, then press the [–]
or [+] buttons on the numeric keypad until “CU” is displayed.
Metronome on/off
The SDMK4’s metronome feature improves your timing and makes it easier to follow
the tempo. To hear the metronome vocally count off, press the [METRONOME]
button once. To hear the “click” sound, press the [METRONOME] button twice.
To turn the metronome off, press the button again. Press [TEMPO +] or [TEMPO –]
to adjust the tempo speed. Press the [SONG VOLUME] buttons to adjust the
volume level.
8
SDMK4
www.simmonsdrums.net

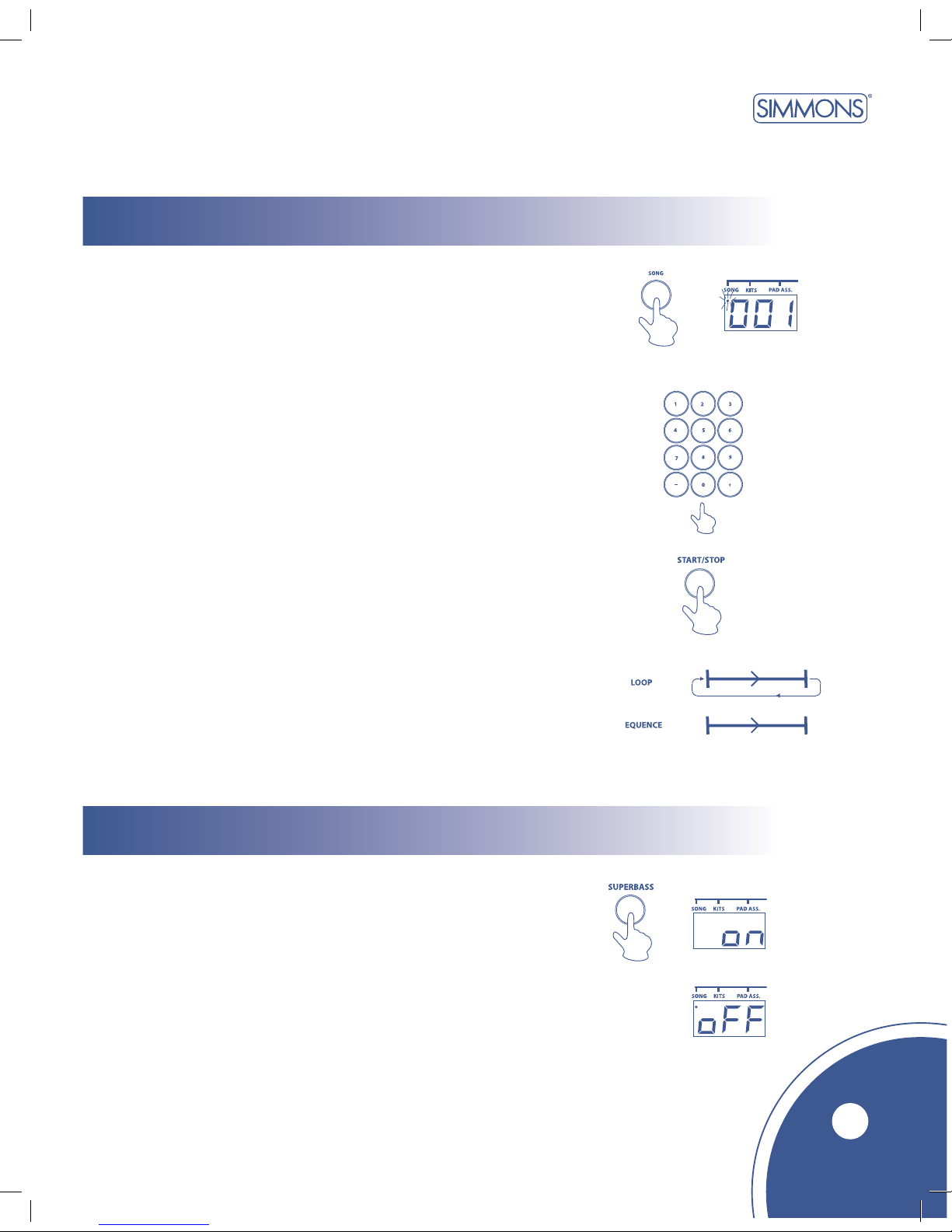

Playing a song
Selecting a song
Super bass
Press the [SONG] Button
Its LED indicator will light, and the currently selected song number
will appear in the display.
Choose a Song
Press the [+] or [–] buttons on the keypad to scroll to the desired
song number. You can also select a song by entering its number
using the number keys. (See Song List on page 16.)
Note: Song number “00” is automatically selected whenever the
power is turned on.
Press the [START/STOP] Button
After a count-in, the song will play. As the song is playing, the song’s
current measure will be shown in the display. Try playing along using
the pads and pedals. To stop playback, press the [START/STOP]
button again.
Note: You can also use the Tap Start function to start songs (see
page10). There are two types of songs: loop & sequence. Loop type
songs (00-79) will continuously play from the time the [START/STOP]
button is initially pressed until the button is pressed again. Sequence
type songs (80-99) will automatically stop when the song reaches its
end. (See Song List on page 16.)
The Super Bass option creates a more powerful bass, and
is turned on automatically when the SDMK4 is powered up.
To turn off Super Bass, press the [SUPER BASS] button.
To turn it back on, press the [SUPER BASS] button again.
9
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
Adjusting the tempo
The song tempo can be set anywhere from 40 to 240 beats per minute.
Set the Tempo
Use the [TEMPO +] or [TEMPO –] to increase or decrease
tempo speed.
Note: If you select another song, your tempo speed will carry over
to the new song. To return to the default tempo press and hold both
the [TEMPO +] and [TEMPO –] buttons.
track on/off
tap start
The SDMK4’s song accompaniment feature
consists of 4 tracks: DRUM 1, DRUM 2, BASS,
and CHORD tracks.
Pressing a Track button ([DRUM 1], [DRUM 2],
[BASS], [CHORD]) will mute the corresponding
track and its indicator light will turn off. Muting
DRUM 1 and DRUM 2 allows you to practice
your technique in Karaoke mode.
DRUM 1
DRUM 2
BASS
CHORD
Main Drum track
Main Percussion track
Bass track
Main Chord track
The Tap Start function allows you to use the pads to set the
overall tempo as well as start the accompaniment.
Press the [TAP START] button and the light will turn on.
Strike any pad or press any pedal four times and the accompaniment
will start at the desired tempo. When the song begins playback, the
Tap Start indicator will turn off.
To stop playback, press the [START/STOP] button.
10
SDMK4
www.simmonsdrums.net
Learn
The SDMK4’s learning feature allows beginners to easily learn a
song from the Song List. (See page 16.)
While in song mode, choose a song from the Song List, then
press the [LEARNING] button. The [LEARNING] button indicator
will light up.
Note: When you are in learning mode, the [KITS] and [PAD
ASSIGN] buttons will not respond.
Press the [START/STOP] button. The lights below the drum pads
(and on pedal indicators) will start flashing. Strike the pads or
press the pedals in time with the flashing lights.
Note: While playing the song, you can turn the learning mode
“on” and “off” by pressing the [LEARNING] button.
11
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
record
playback
Prepare to Record
Select your desired setting for tempo, reverb, track, drum kit,
and song.
Start Recording
Press the [RECORD] button. The recording light will start
flashing. Press the [START/STOP] button. The recording light
will stop flashing and the recording starts. The recording also
starts once you strike a drum pad.
Note: When you start recording, the vocal metronome
also begins but isn’t recorded.
To stop the metronome, press the [METRONOME] button.
Stop Recording
To stop recording, press the [START/STOP] or [RECORD]
buttons. The recording indicator will turn off.
When the memory becomes full, the recording stops automatically
and “FL” will appear on the display.
The recorded song can be played back by pressing the [PLAY/STOP] button.
To stop playback, press [PLAY/STOP] again.
Note: When you record a new song, it replaces the previous recording. The
last recorded song is stored in memory even when the SDMK4 is turned off.
12
Recording
The SDMK4’s recording feature allows you to record and playback a song with up to 1000-notes.
Recorded Data
Drum pad and pedal data
Song data (The number cannot be changed while in the record mode.)
Track On/Off setting
Tempo setting (The tempo cannot be changed while in the record mode.)
Song Volume setting
Reverb On/Off setting
Note: MIDI data cannot be recorded to memory.
SDMK4
www.simmonsdrums.net
things you can do with midi
Connect the SDMK4’s MIDI OUT jack to a MIDI
keyboard’s MIDI IN jack. This setup allows you
to use the SDMK4’s pads to control another
MIDI instrument.
Connect the SDMK4’s MIDI IN jack to a MIDI
keyboard’s MIDI OUT terminal. In this setup, the
SDMK4 can be used as a tone generator and its
voices can be played from a MIDI keyboard. Using
a keyboard as a controller, it is possible to play
drum voices that are not currently assigned to
the SDMK4’s pads/pedals.
Connect the SDMK4’s MIDI OUT jack to a MIDI
sequencer’s MIDI IN terminal. Data produce by
the SDMK4 can be recorded to a MIDI sequencer.
Connect the SDMK4’s MIDI IN jack to a MIDI
sequencer’s MIDI OUT terminal. The sequencer’s
data can be used to drive the SDMK4’s sound.
13
MIDI
The SDMK4 offers broadened musical possibilities through the use of MIDI.
what is midi ?
MIDI stands for Musical Instrument Digital Interface. MIDI is a world-wide standard that makes it possible
for various electronic musical instruments (and other devices, such as computers) to communicate with each
other. For example, by connecting a MIDI tone generator to the SDMK4’s MIDI OUT terminal, you can play
the tone generator’s voices from the SDMK4’s pads and pedals.
The SDMK4 is equipped with two types of MIDI jacks,
both are located on the rear panel.
MIDI IN
Data transmitted from other MIDI instruments via
MIDI cable is received at this jack.
MIDI OUT
Data produced by the SDMK4 is transmitted to other
MIDI instruments via MIDI cable from this jack.
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
14
Drum Voice list
Pad Assign # Percussion
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
Kick Drum 2
Kick Drum 1
Power Kick
Electronic Bass Drum
808 Bass Drum
Snare Drum 1
Snare Drum 2
Gated Snare Drum
Electronic Snare Drum Low
Electronic Snare Drum High
808 Snare Drum
Brush Tap
Brush Swirl
Side Stick
Sticks
High Tom
High Mid Tom
Low Mid Tom
Low Tom
High Floor Tom
Low Floor Tom
Rock High Tom 1
Rock High Tom 2
Rock Mid Tom 1
Rock Mid Tom 2
Rock Low Tom 1
Rock Low Tom 2
Electronic High Tom 1
Electronic High Tom 2
Electronic Mid Tom 1
Electronic Mid Tom 2
Electronic Low Tom 1
Electronic Low Tom 2
808 High Tom 1
808 High Tom 2
808 Mid Tom 1
808 Mid Tom 2
808 Low Tom 1
808 Low Tom 2
*Hi-Hat Open/Closed
Crash Cymbal 1
Crash Cymbal 2
Ride Cymbal
Ride Bell
Chinese Cymbal
Splash Cymbal
Vibra-slap
Hand Clap
Tambourine
Cowbell
808 Cowbell
Mute High Conga
Open High Conga
Low Conga
High Bongo
Low Bongo
High Timbale
Low Timbale
High Agogo
Low Agogo
Cabasa
Shaker
Claves
Mute Triangle
Open Triangle
Short Guiro
Long Guiro
Mute Cuica
Open Cuica
Mute Surdo
Open Surdo
Maracas
High-Q
Slap
Scratch Pull
Scratch Push
Pad Assign # Percussion
# Name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
* Voices can be controlled with a pad and foot pedal as follows:
• Strike the pad while pressing the Foot Pedal, the “Closed” Hi-Hat voice will sound.
• Strike the pad without pressing the Foot Pedal, the “Open” Hi-Hat voice will sound.
• Press the Foot Pedal without striking the pad, the Hi-Hat “Pedal” voice will sound.
SDMK4
www.simmonsdrums.net
Drum kit list
# Kit Name
Standard 1
Standard 2
Standard 3
Standard 4
Standard 5
Standard 6
Standard 7
Standard 8
Rock
Heavy Metal
Dance 1
Dance 2
Samba Perc.
Timbales
Conga
808
Brush
Jazz
Ballad Perc.
Cymbal
# Name
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
017
018
019
020
Pad 1
Crash Cymbal 1
HH Open/Closed
Crash Cymbal 1
HH Open/Close
Crash Cymbal 1
Splash Cymbal
HH Open/Close
HH Open/Close
Crash Cymbal 1
Crash Cymbal 1
HH Open/Close
Chinese Cymbal
Mute Cuica
Crash Cymbal 1
High Bongo
Crash Cymbal 2
Ride Cymbal
HH Open/Close
Shaker
HH Open/Close
41
40
41
40
41
46
40
40
41
41
40
45
68
41
55
42
43
40
62
40
High Tom 1
High Tom 2
High Tom 1
High Tom 1
High Tom 2
High Tom 2
High Tom 1
Side Stick
Rock High Tom 1
Rock High Tom 2
Electronic High Tom 1
Electronic High Tom 2
High Agogo
Splash Cymbal
Mute High Conga
808 High Tom 1
High Tom 2
High Tom 1
Claves
Crash Cymbal 1
16
17
16
16
17
17
16
14
22
23
28
29
59
46
52
34
17
16
63
41
Pad 2 Pad 3
Mid Tom 1
Mid Tom 2
Mid Tom 1
Mid Tom 1
Mid Tom 2
Mid Tom 2
Mid Tom 1
Mid Tom 1
Rock Mid Tom 1
Rock Mid Tom 2
Electronic Mid Tom 1
Electronic Mid Tom 2
Low Agogo
Maracas
Open High Conga
808 Mid Tom 1
Mid Tom 2
Mid Tom 1
Tambourine
Ride Cymbal
18
19
18
18
19
19
18
18
24
25
30
31
60
72
53
36
19
18
49
43
Pad 4
Ride Cymbal
Crash Cymbal 1
Cowbell
Crash Cymbal 1
Cowbell
Tambourine
Ride Cymbal
Ride Bell
Tambourine
Cowbell
Splash Cymbal
High-Q
Open Cuica
Snare Drum High
Low Bongo
808 Cowbell
Crash Cymbal 1
Ride Cymbal
Cabasa
Ride Bell
43
41
50
41
50
49
43
44
49
50
46
73
69
7
56
51
41
43
61
44
Snare Drum High
Snare Drum Low
Snare Drum High
Snare Drum High
Snare Drum High
Snare Drum High
Snare Drum Low
Snare Drum Low
Snare Drum High
Gated Snare Drum
Electronic Snare
Drum High
Electronic Snare
Drum Low
Mute Surdo
Low Timbale
Snare Drum High
808 Snare Drum
Brush Tap
Brush Swirl
Mute Triangle
Snare Drum High
# Name
7
6
7
7
7
7
6
6
7
8
10
9
70
58
7
11
12
13
64
7
Pad 6
HH Open/Close
Cowbell
HH Open/Close
Side Stick
HH Open/Close
HH Open/Close
Crash Cymbal 1
Crash Cymbal 1
HH Open/Close
HH Open/Close
Hand Clap
HH Open/Close
Cabasa
Cowbell
Low Timbale
HH Open/Close
HH Open/Close
Shaker
Splash Cymbal
Splash Cymbal
40
50
40
14
40
40
41
41
40
40
48
40
61
50
58
40
40
62
46
46
Low Tom 1
Low Tom 2
Low Tom 1
Low Tom 1
Low Tom 2
Low Tom 2
Low Tom 1
Low Tom 1
Rock Low Tom 1
Rock Low Tom 2
Electronic Low
Tom 1
Electronic Low
Tom 2
Open Surdo
High Timbale
Low Conga
808 Low Tom 1
Side Stick
Low Tom 1
Open Triangle
Chinese Cymbal
20
21
20
20
21
21
20
20
26
27
32
33
71
57
54
38
14
20
65
45
Pad 7 Pedal 1
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
HH Pedal
Tambourine
Claves
Cowbell
HH Pedal
HH Pedal
HH Pedal
Slap
HH Pedal
40
40
40
40
40
40
40
40
40
40
40
40
49
63
50
40
40
40
74
40
Pedal 2
Bass Drum Low
Bass Drum Low
Bass Drum High
Bass Drum Low
Bass Drum Low
Bass Drum Low
Bass Drum Low
Bass Drum Low
Bass Drum High
Power Kick Bass Drum
Electronic Bass Drum
Electronic Bass Drum
Cowbell
Bass Drum Low
Bass Drum Low
808 Bass Drum
Bass Drum Low
Bass Drum Low
Cowbell
Bass Drum Low
1
1
2
1
1
1
1
1
2
3
4
4
50
1
1
5
1
1
50
1
Pad 5
15
SDMK4 digital drum pads User’s Manual
Digital DRUm pads
16
song list
# Song Name
8 Beat 1
8 Beat 2
8 Beat 3
8 Beat 4
8 Beat 5
8 Beat Ballad 1
8 Beat Ballad 2
8 Beat Ballad 3
Soft Rock
Rock 1
Rock 2
Rock 3
Rock 4
Rock 5
Hard Rock 1
Hard Rock 2
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
8 Beat
# Song Name
16 Beat 1
16 Beat 2
16 Beat 3
16 Beat 4
16 Beat 5
16 Beat 6
16 Beat 7
16 Beat Ballad 1
16 Beat Ballad 2
16 Beat Ballad 3
16 Beat Ballad 4
16 Beat Ballad 5
16 Beat Funk 1
16 Beat Funk 2
16
17
18
19
20
21
22
23
24
25
26
27
28
29
16 Beat
# Song Name
Dance 1
Dance 2
Dance 3
Dance 4
Dance 5
Dance 6
Rap 1
Rap 2
Rap 3
Bounce 1
Bounce 2
Bounce 3
30
31
32
33
34
35
36
37
38
39
40
41
Dance
# Song Name
Shuffle 1
Shuffle 2
Shuffle 3
Shuffle 4
Shuffle 5
Shuffle 6
Shuffle 7
Slow Rock 1
Slow Rock 2
Slow Rock 3
Slow Rock 4
42
43
44
45
46
47
48
49
50
51
52
Shuffle
Rap
Bounce
Slow Rock
Reggae 1
Reggae 2
Bossa Nova 1
Bossa Nova 2
Samba
Salsa
Latin Rock
Cha-Cha
Mambo
Rhumba 1
Rhumba 2
Afro Cuban
Tango
53
54
55
56
57
58
59
60
61
62
63
64
65
Latin
Swing 1
Swing 2
Swing 3
Waltz
3/4 Ballad
Swing Blues
Blues
March 1
March 2
R&B
Hip-Hop
Funk
Country
Big Band
66
67
68
69
70
71
72
73
74
75
76
77
78
79
Swing
Others
8 Beat 1
8 Beat 2
Ballad
Hard Rock 1
Hard Rock 2
Hard Rock 3
Pop Dance 1
Pop Dance 2
R&B
16 Beat
Fusion
Funk 1
Funk 2
80
81
82
83
84
85
86
87
88
89
90
91
92
8 Beat
16 Beat
Funk
Shuffle 1
Shuffle 2
16 Beat Shuffle
16 Beat Triplet
Reggae
Bossa Nova
Big Band
93
94
95
96
97
98
99
Shuffle
Others
Song Number 00-79: Loop Type (Short)
Song Number 80-99: Sequence Type (Long)
specifications
Model SDMK4
Pads:
Drum Voices:
Drum Kits:
Songs:
Demo Song:
Panel Controls:
Connectors:
Power Source:
Dimensions:
Weight:
7 Touch Sensitive Drum Pads
76 PCM Drum Voices
20 Preset + 1 Custom
100
1
Power On/Off, Master Volume, Song Volume, Tempo, Start/Stop, Tap Start, Numeric Keys,
Song, Pad Assign, Kits, Learning, Super Bass, Record, Play/Stop, Metronome, Reverb, Demo,
Track (Drum1/Drum2/Bass/Chord)
Pedal 1 & Pedal 2
MIDI In/Out
Phones/Output
Six “C” size batteries
DC 12V adapter, 2200mA, center negative type
23.6”(W) X 15”(D) X 5”(H)
7.27 lbs (without batteries)
SDMK4
www.simmonsdrums.net
midi implementation chart
Function Transmitted Recognized Remarks
0: YES
X: NO
Basic Default 10 1–16
Channel Changed X X
Default X 3
Mode Message X 3
Alerted ************** X
Note 1–76 0-127
Number: True voice ************** 0-127
Velocity Note on 0 0
Note off X X
After Key’s X X
Touch Channel’s X X
Pitch Bend X 0
Control 0 0 0 Bank Select
Change 1 X 0 Modulation
7 X 0 Volume
10 X 0 Pan
11 X 0 Expression
64 X 0 Sustain Pedal
66 X 0 Sostenuto Pedal
67 X 0 Soft Pedal
80 X 0 Reverb Program
81 X 0 Chorus Program
91 X 0 Reverb Level
93 X 0 Chorus Level
120 X 0 ALL SOUND OFF
121 X 0 Reset all Controllers
123 X 0 All notes off
Program 0 0
Change: true ************** 0-127
System Exclusive X X
System : Song Position X X
: Song Select X X
Common : Tune X X
System : Clock X X
Real Time : Commands X X
Aux : Local ON/OFF X X
: All Notes OFF X 0
Message : Active Sense X 0
: Reset X 0
Mode 1: OMNI ON, POLY
Mode 3: OMNI OFF, POLY
Mode 2: OMNI ON, MONO
Mode 4: OMNI OFF, MONO
17
www.simmonsdrums.net
Loading...
