Allegro Hand User's Manual v1.4

Hyobong8 Bldg 2nd Fl, 1425-9 Seocho-Dong, Seocho-Gu,

Seoul 137-864, Korea

Page 3

A L L E G R O H A N D U S E R S M A N U A L

Allegro, Allegro Hand, Allegro Application Studio for Allegro Hand, Allegro Hand Application Studio, and RoboticsLab are trademarks of SimLab Co., Ltd. All other trademarks or registered trademarks mentioned are the property of their respective owners.

Page 4

A L L E G R O H A N D U S E R S M A N U A L

Copyright & Trademark Notice ................................................................................................................. i

Quick Start Guide .................................................................................................................................... 1

In The Box ........................................................................................................................................ 1

Power Supply ................................................................................................................................... 1

Read these Sections First ................................................................................................................ 1

Allegro Hand Overview ........................................................................................................................... 2

Features ........................................................................................................................................... 2

Technical Specifications .......................................................................................................................... 3

System Requirements ............................................................................................................................. 4

Products .................................................................................................................................................. 4

Installing Allegro Hand Application Studio (AHAS) ................................................................................. 5

AHAS Installation ............................................................................................................................. 5

VC++ Redistributable ..................................................................................................................... 10

USB License Dongle Driver ........................................................................................................... 10

Finishing Installation ...................................................................................................................... 11

AHAS License Registration ........................................................................................................... 11

CAN Driver Installation................................................................................................................... 12

NI USB-8473s CAN ................................................................................................................ 12

Softing CAN-AC2-PCI............................................................................................................. 12

Kvaser PCIcan 4xHS .............................................................................................................. 12

ESD CAN-PCI/266 .................................................................................................................. 12

Page 5

A L L E G R O H A N D U S E R S M A N U A L

Using Allegro Hand Application Studio (AHAS) .................................................................................... 13

Running AHAS ............................................................................................................................... 13

Which Hand? ................................................................................................................................. 13

Virtual ...................................................................................................................................... 13

Actual ...................................................................................................................................... 13

Virtual Hand Simulation ................................................................................................................. 14

Home ...................................................................................................................................... 15

Ready ..................................................................................................................................... 15

Grasp 3 ................................................................................................................................... 15

Grasp 4 ................................................................................................................................... 15

Pinching (I) .............................................................................................................................. 15

Pinching (M) ............................................................................................................................ 15

Envelop ................................................................................................................................... 15

Test Encoders (actual hand only) ........................................................................................... 15

Test Motors (actual hand only) ............................................................................................... 15

Sliders ..................................................................................................................................... 16

Actual Hand ................................................................................................................................... 17

Wiring ...................................................................................................................................... 17

Power ...................................................................................................................................... 17

AHAS ............................................................................................................................................. 18

Quitting ........................................................................................................................................... 18

Joint Dimensions ................................................................................................................................... 19

Joint Directions ...................................................................................................................................... 20

Right Hand ..................................................................................................................................... 20

Left Hand ....................................................................................................................................... 20

Page 6

A L L E G R O H A N D U S E R S M A N U A L

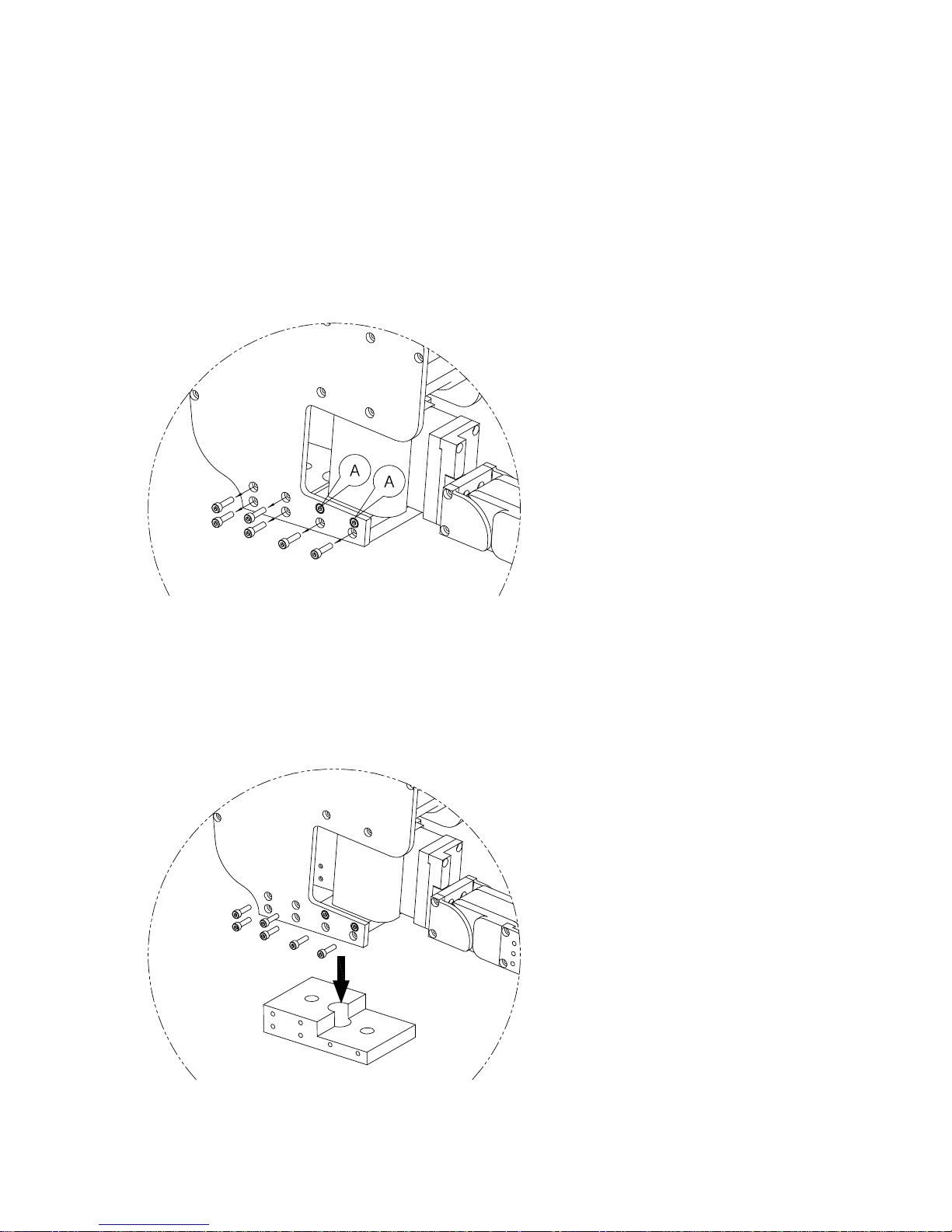

Mounting the Allegro Hand.................................................................................................................... 21

Mounting Block Removal ............................................................................................................... 21

Mounting ........................................................................................................................................ 23

Reassembly ................................................................................................................................... 23

Mount Block Dimensions ............................................................................................................... 24

CAN Protocol ........................................................................................................................................ 25

Baud-Rate ...................................................................................................................................... 25

Non-Periodic Communication ........................................................................................................ 25

Periodic Communication ................................................................................................................ 25

CAN Frames ......................................................................................................................................... 25

Standard CAN Packet .................................................................................................................... 25

ID (Message Identifier)................................................................................................................... 26

Command Identifiers ...................................................................................................................... 26

Source and Destination Identifiers ................................................................................................. 26

Case-study: Softing CAN ...................................................................................................................... 27

Opening the CAN Communication Channel .................................................................................. 27

CAN Initialization ............................................................................................................................ 28

Starting Periodic CAN Communication .......................................................................................... 28

Stopping Periodic CAN Communication ........................................................................................ 28

Transmitting Control Torques ........................................................................................................ 29

Receiving Joint Angles................................................................................................................... 30

Technical Support ................................................................................................................................. 31

Page 7

A L L E G R O H A N D U S E R S M A N U A L

In The Box

Included are the software and hardware necessary to get you started.

1. Allegro Hand

2. Allegro Hand Application Studio

2.1 Installation CD

2.2 USB License Dongle

3. 2mm Hex Wrench

4. M2x5mm socket-head cap screws (extra) qty 2

5. Wires/Connectors

5.1 4-pin wired male connector (power/CAN) qty 1

Note: Only hand end of wire is terminated. CAN interface end must be terminated by user.

5.2 4-pin male connector body qty 1

5.3 Wire terminals (for use with connector) qty 4

Power Supply

Power provided to the Allegro Hand must meet the following specifications: A power supply meeting these requirements can be purchased along with the Allegro Hand

Voltage: 7.4VDC (7.0V - 8.1V) Amperage: 5A (minimum)

Read these Sections First

1. Installing Allegro Hand Application Studio (AHAS)

2. Using Allegro Hand Application Studio

Wiki for Users

All information provided in this user's manual along with a forum and tutorials is available at simlab.co.kr/AllegroHand/wiki

Allegro Hand Hard Case

Optionally, a hard-plastic protective case can be purchased from SimLab for storing and transporting your Allegro Hand. Please ask for details.

Note: The names Allegro Application Studio for Allegro Hand and Allegro Hand Application Studio both refer to the software included with the Allegro Hand

Page 8

A L L E G R O H A N D U S E R S M A N U A L

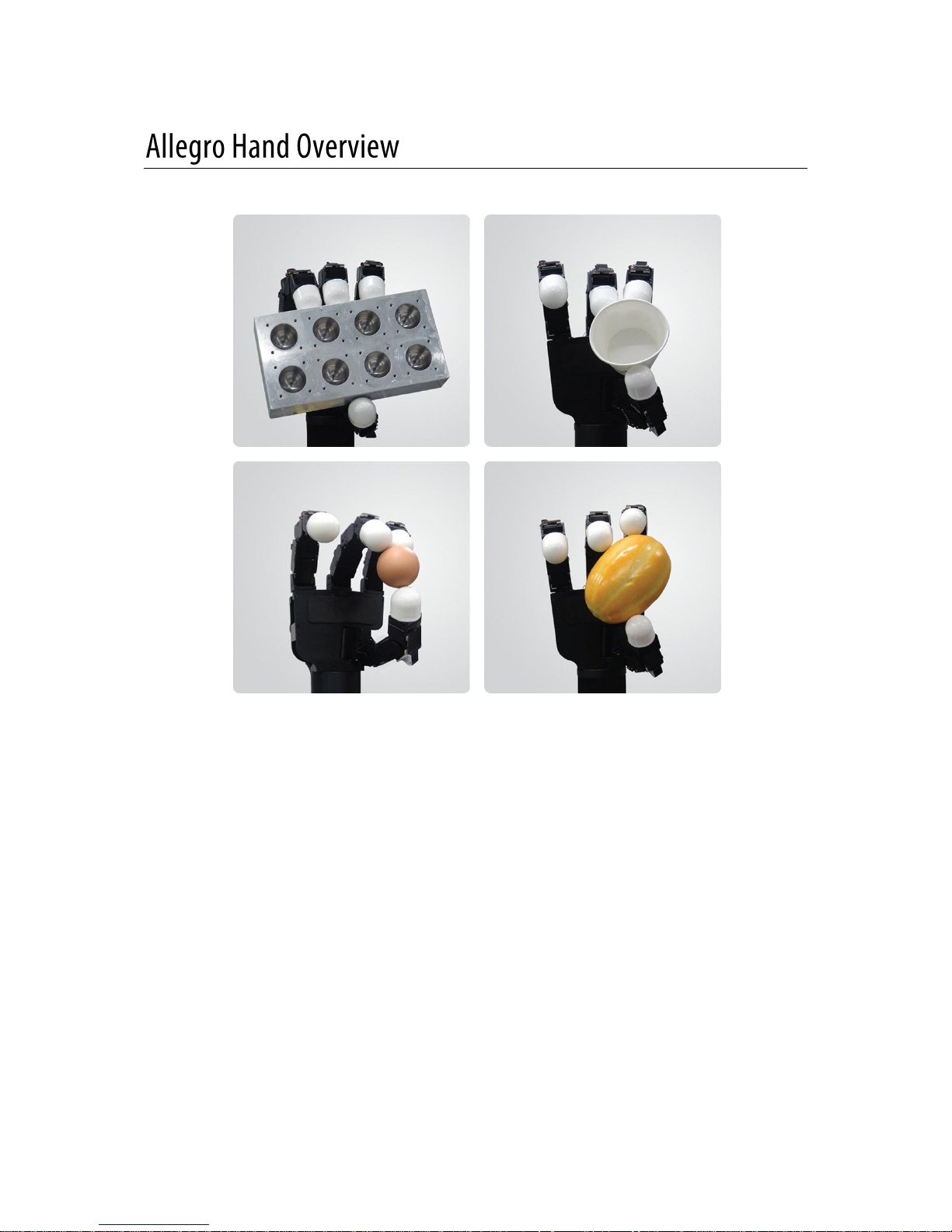

Allegro Hand is a low-cost and highly adaptive robotic hand.

With four fingers and sixteen independent current-controlled joints,

it's the perfect platform for grasp and manipulation research.

Features

 Lightweight and portable anthropomorphic design  Low-cost dexterous manipulation with applications in research and industry  Multiple ready-to-use sensorless grasping algorithms capable of handling a variety of object

geometries

 Capable of holding up to 1.5kg  16 independent current-controlled joints (4 fingers x 4 DOF ea.)  Allegro Hand Application Studio integration allows for simulation based algorithm prototyping

without ever changing your code

 Support for real-time control and online simulation

Page 9

A L L E G R O H A N D U S E R S M A N U A L

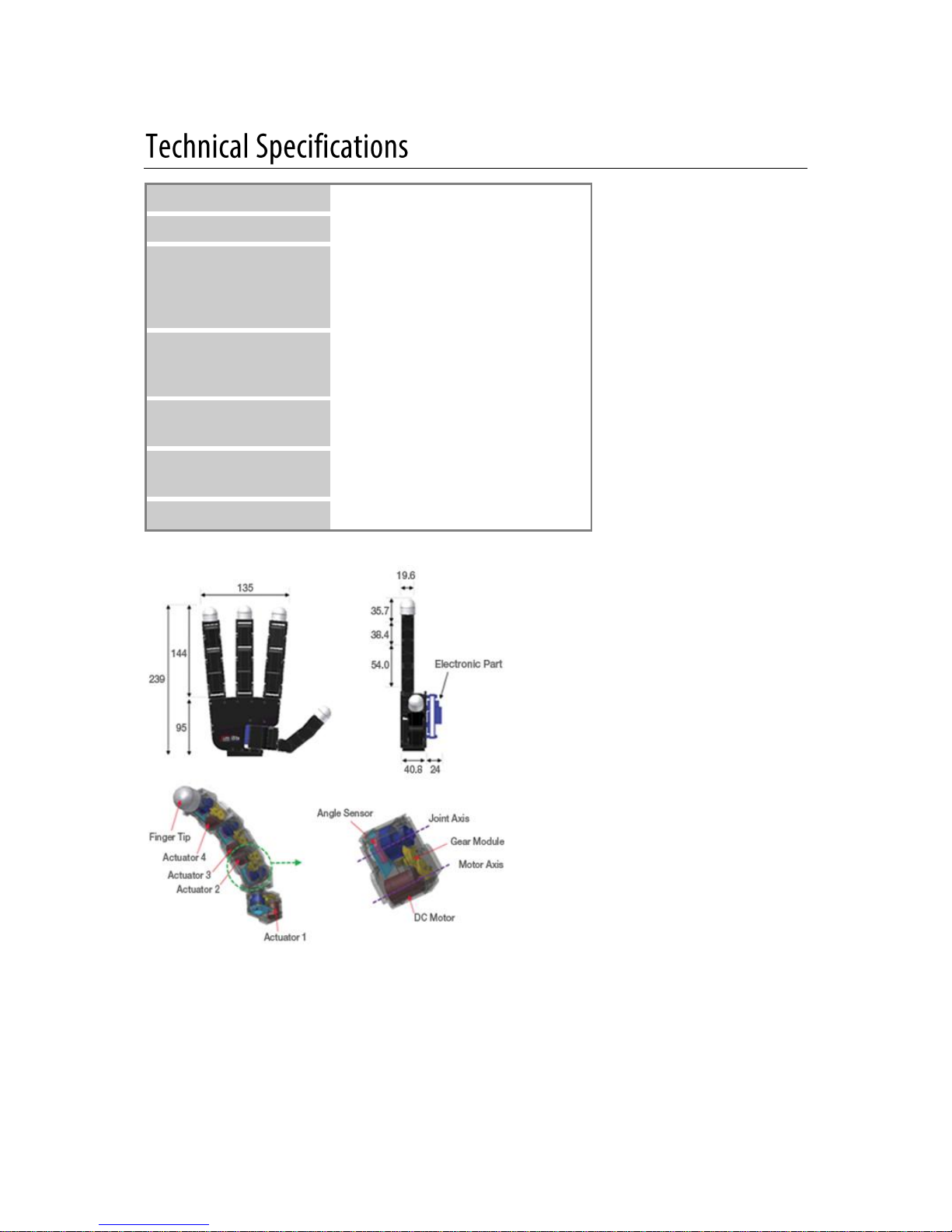

Number of Fingers

Three (3) fingers and a thumb (1) = 4

Degrees of Freedom

4 fingers x 4 = 16 (Active)

Actuation

Type

DC Motor

Gear Ratio

1:369

Max. Torque

0.70 (Nm)

Overdrive Torque

0.90 (kg)

Weight

Finger

0.17 (kg)

Thumb

0.19 (kg)

Total

1.20 (kg)

Joint Resolution

Measurement

Potentiometer

Resolution (nominal)

0.002 (deg)

Communication

Type

CAN

Frequency

333 (Hz)

Power Requirement

7.4VDC (7.0V - 8.1V), 5A Minimum

Page 10

A L L E G R O H A N D U S E R S M A N U A L

CPU

Intel® Core™2 Duo or higher

RAM

at least 2GB

HDD

at least 2GB

Graphics

OpenGL 3.0 H/W Acceleration enabled with at least 64Mb of video RAM

MS Windows® XP,

MS Windows® Vista,0.19

MS Windows® 7

Additional S/W

MS Visual Studio®

Communication

NI, Softing, Kvaser or ESD CAN

Note: Any CAN interface can be userconfigured for use with the Allegro Hand.

The Allegro Hand comes with its own version of SimLab's Allegro Application Studio (AAS), a robotics software for developing and testing control algorithms for a variety of commercial robots. AAS for the Allegro Hand includes a customized kinematics/dynamics simulator based on RoboticsLab. Algorithms developed can be applied to the virtual hand as well as directly to the real hand without any changes to the code.

For more information, please visit our Allegro Application Studio website:

www.simlab.co.kr/Allegro-Application-Studio.htm

Paired with our RoboticsLab development environment, the user can take full advantage of robust dynamics and system control engines as well as out feature-rich controls SDK. RoboticsLab also enables users to easily model custom robots and test environments in 3D and add built-in and custom sensors, actuators and other devices. RoboticsLab provides the flexibility necessary to prototype and test control algorithms for any system.

For more information, please visit our RoboticsLab website:

www.simlab.co.kr/RoboticsLab.htm

Page 11

A L L E G R O H A N D U S E R S M A N U A L

Allegro Hand Application Studio (AHAS) for the Allegro Hand comes as a packaged installer (CD ROM included) for easy installation. This setup tutorial will guide you through the steps necessary to get your Allegro Hand up and running for the first time.

Insert the CD into your Windows computer to install AHAS. If the installer does not start automatically, please navigate to the installer CD to locate the AHAS setup program.

Start Menu > Computer > CD/DVD Drive > setup_AllegroHand.exe

AHAS Installation

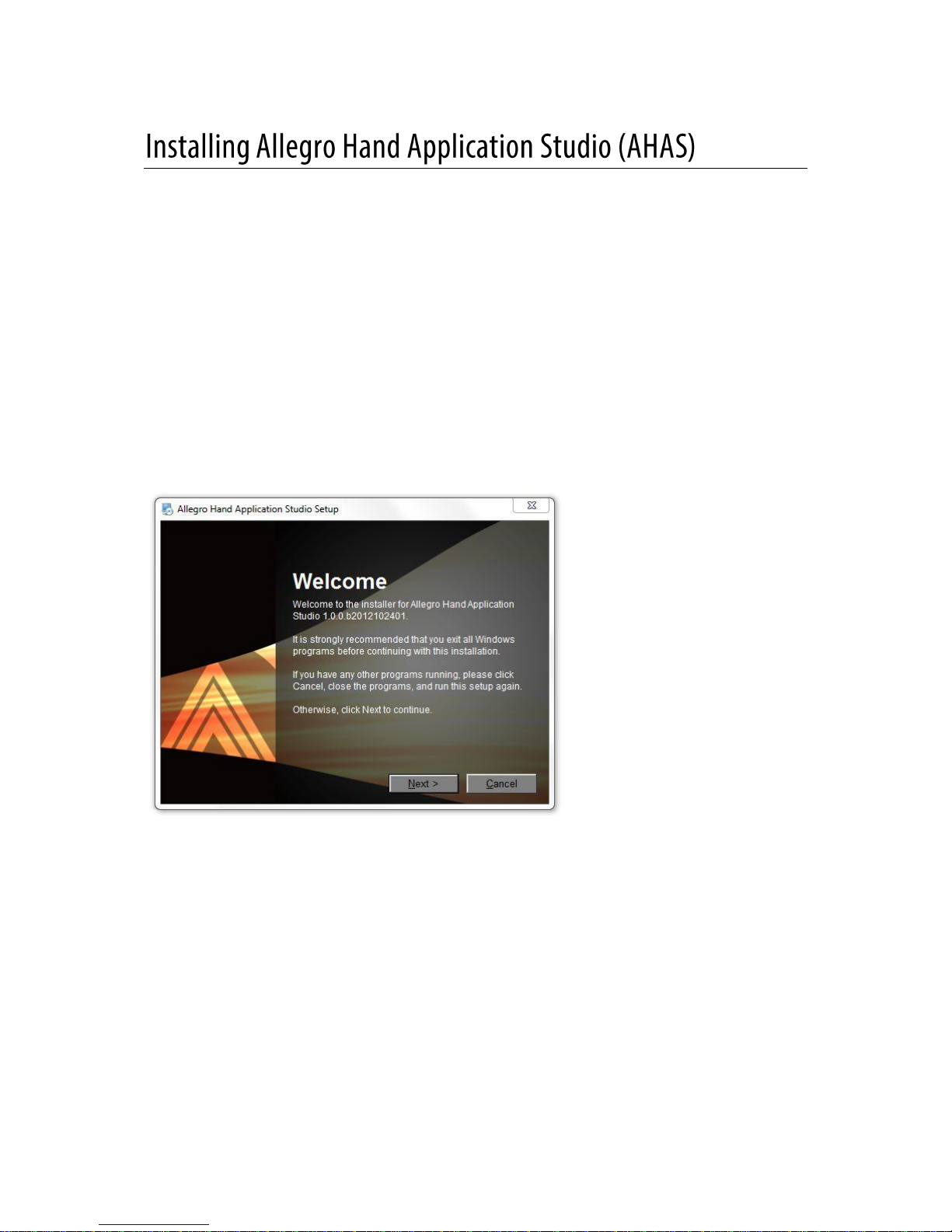

Upon beginning the installer, you will be greeted with the Allegro Hand Application Studio (AHAS) welcome screen. At this point, if you have any other programs running, please exit the AHAS installer, close all other programs, then restart the installation process. Click Next when you are ready to continue.

Page 12

A L L E G R O H A N D U S E R S M A N U A L

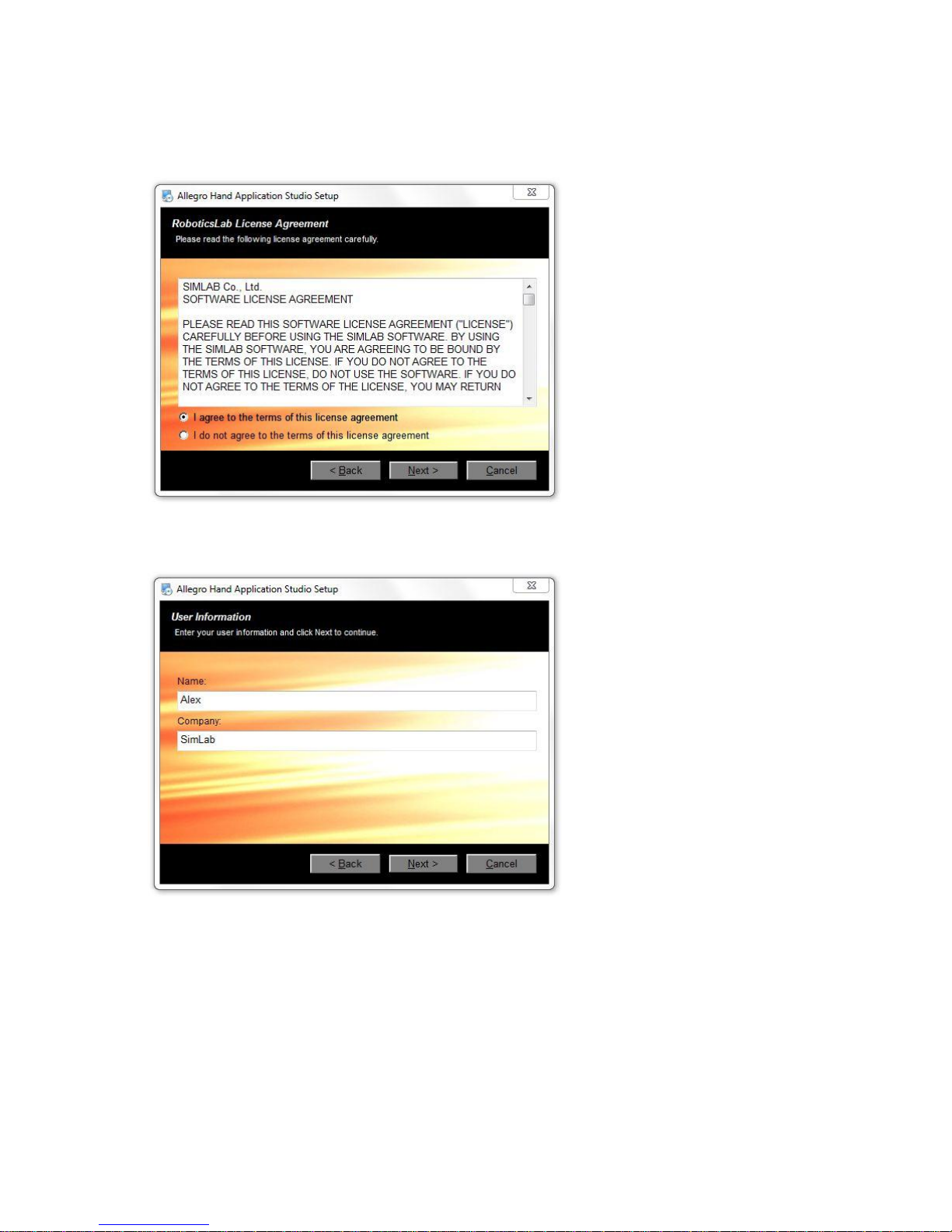

Please fully read the RoboticsLab/Allegro Hand Application Studio License Agreement then, if you agree, select that option and click Next.

On the next page, you will be prompted to enter the names of yourself and your organization. Please do so then click Next.

Page 13

A L L E G R O H A N D U S E R S M A N U A L

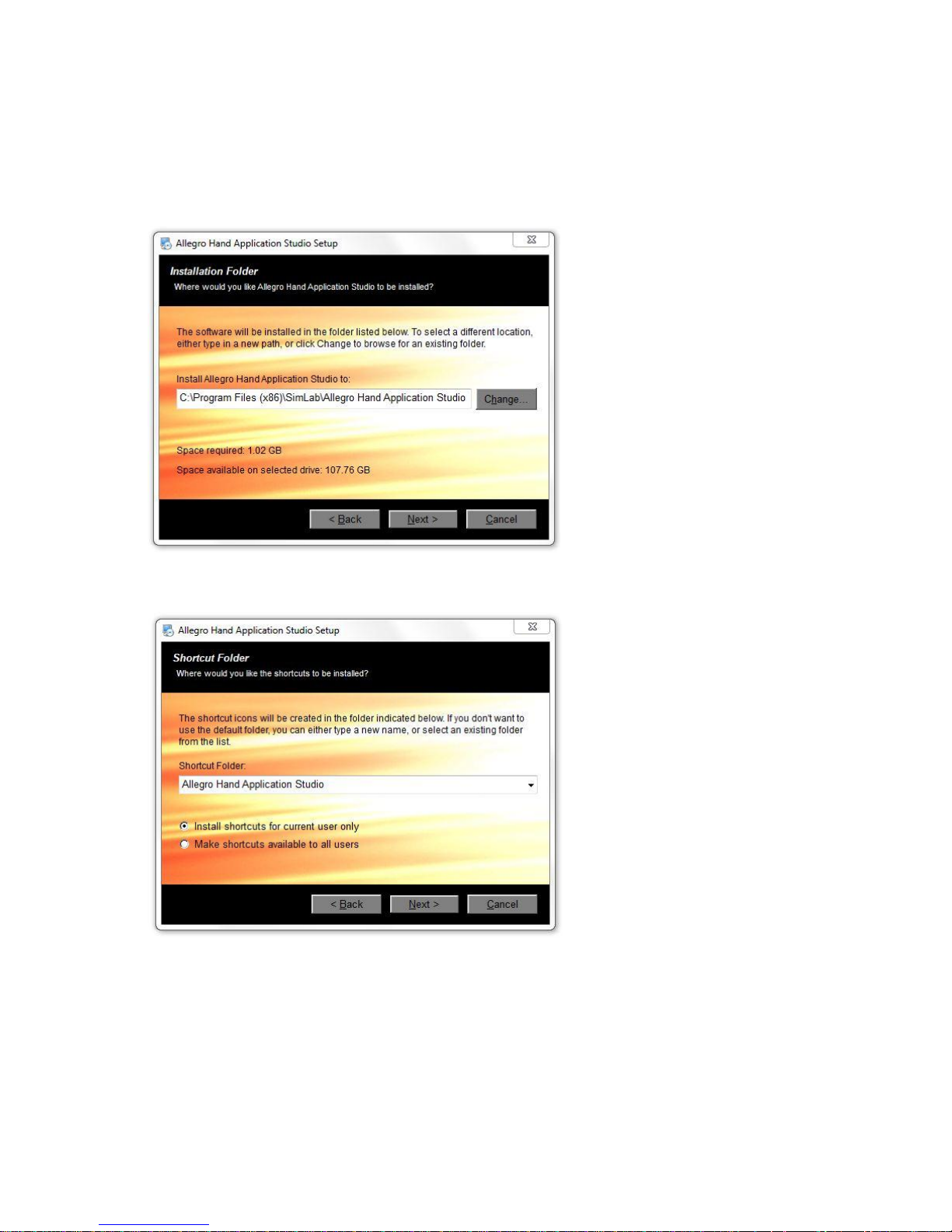

Next, you will be prompted to select AHAS' installation path. You can leave it as default, or, if you already have RoboticsLab installed, you can install within the RoboticsLab's installation directory. Please choose any path you'd like then click Next.

Note: The default path is Program Files\SimLab\Allegro Hand Application Studio

Next, select whether you want shortcuts installed for just you or every user of the computer. Shortcuts will be placed on the desktop and in the Start Menu.

Page 14

A L L E G R O H A N D U S E R S M A N U A L

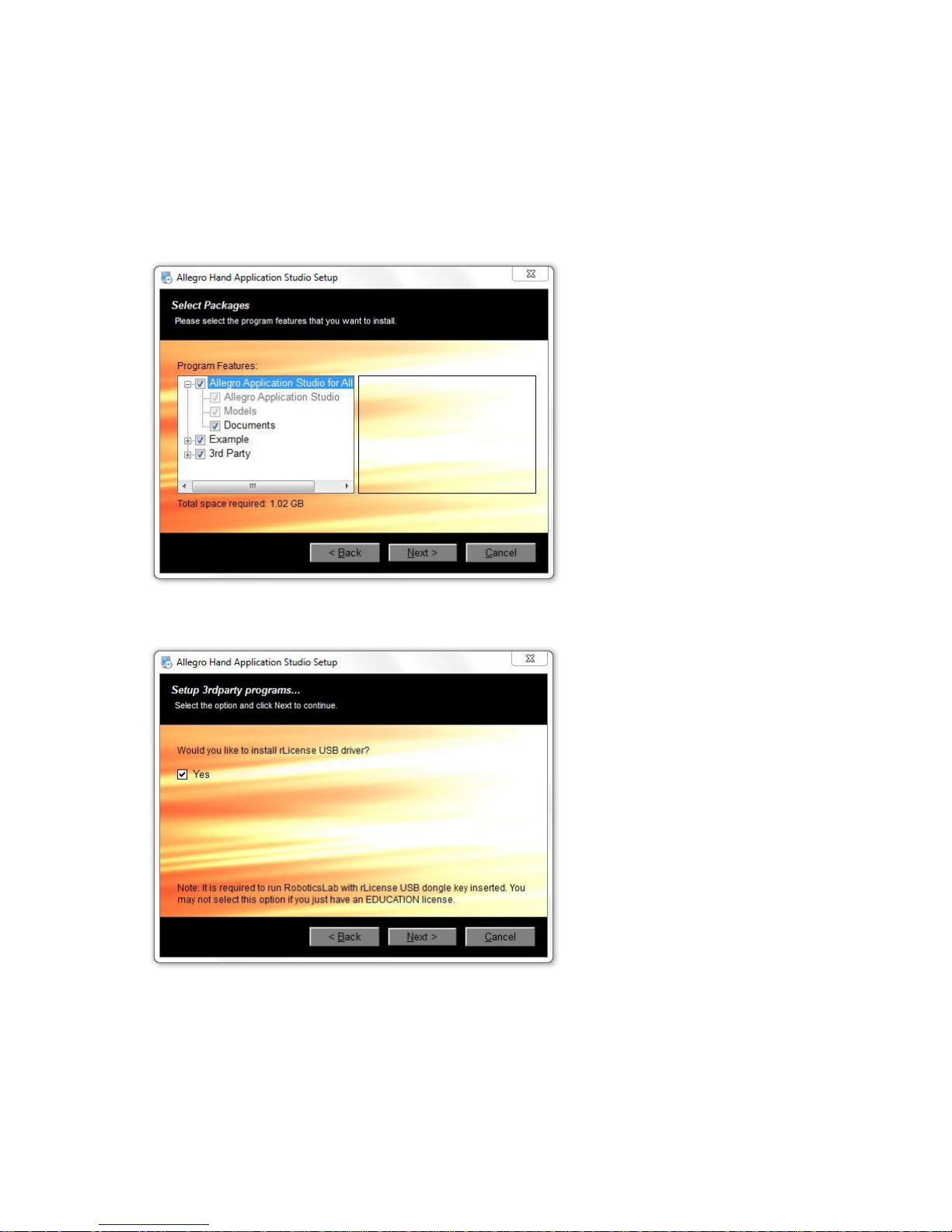

The next screen allows you to customize your installation. It is recommended that you install all components unless already installed. The third party software included with AHAS includes a Visual C++ (VC++) redistributable package and the Sentinel USB dongle driver. If you have RoboticsLab installed, both the VC++ package and the USB dongle driver are likely to have already been installed. If you do not uncheck these options on this configuration screen, you will be given the opportunity on the following two screens of the AHAS installer.

If you are unsure whether or not you have the USB dongle driver installed, please leave this option checked as it is required to run AHAS.

Page 15

A L L E G R O H A N D U S E R S M A N U A L

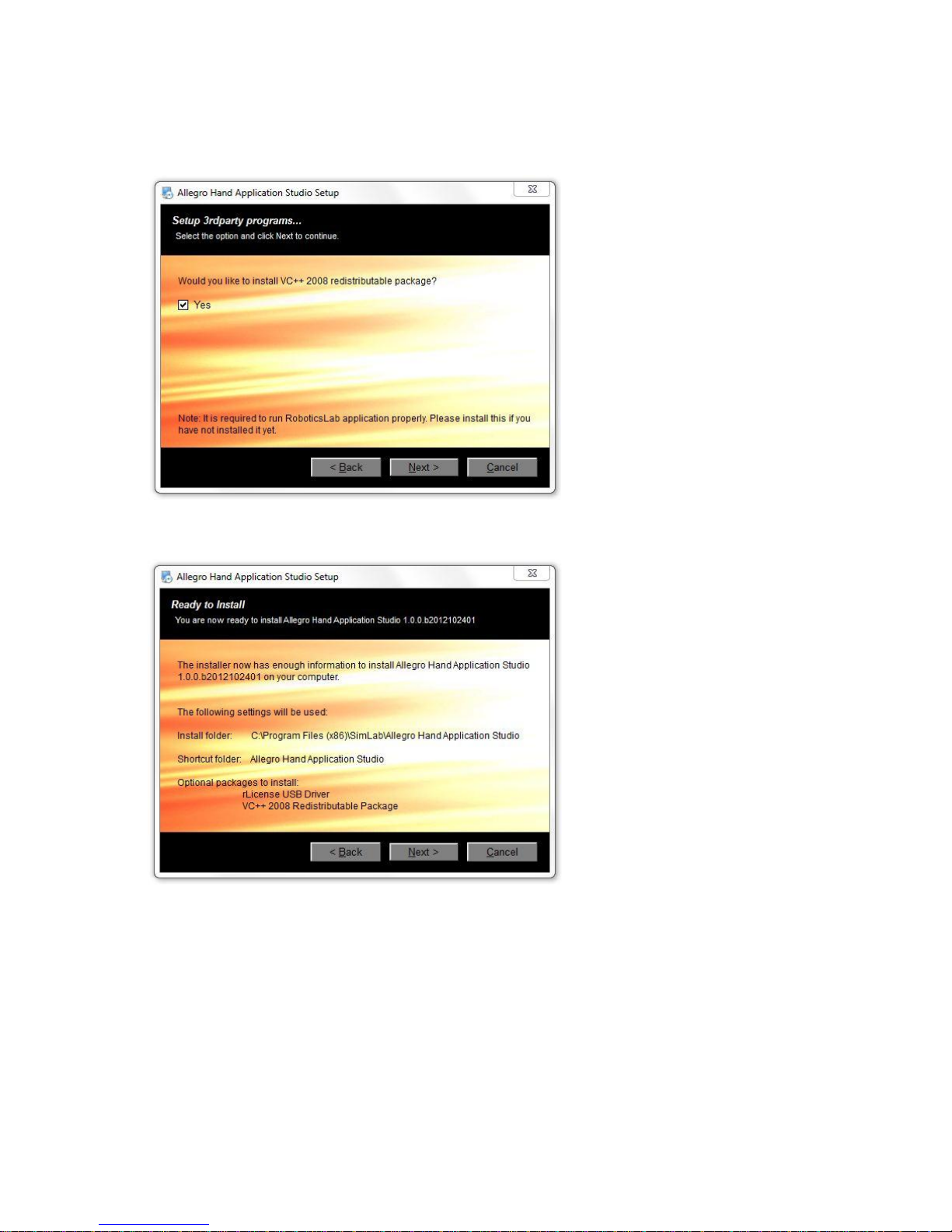

If you are unsure whether or not you have the VC++ redistributable package installed, please leave this option checked as it is required to run AHAS.

The next screen provides an overview of the software to be installed. This is your last chance to go back and change any information or quit the installer. Pressing Next will begin the installation.

Page 16

A L L E G R O H A N D U S E R S M A N U A L

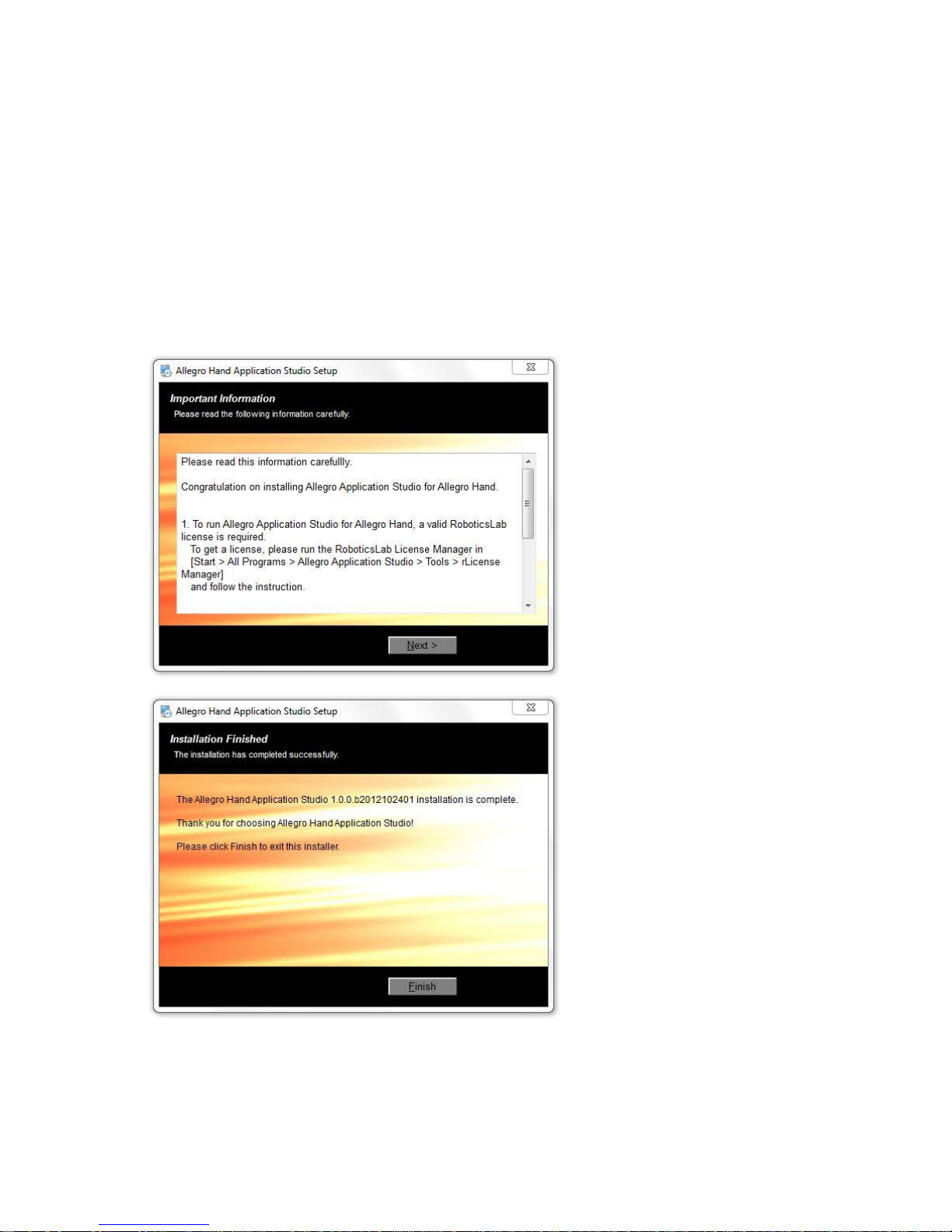

VC++ Redistributable

After the installation of Allegro Hand Application Studio is finished, please proceed to install the Visual C++ (VC++) redistributable package. The installation of this software is necessary to run AHAS.

Note: If you already have VC++ installed and are asked to repair or uninstall, choose Repair.

USB License Dongle Driver

After the installation of VC++ is finished, please proceed to install the Sentinel USB dongle driver. The installation of this software is necessary to run AHAS.

Page 17

A L L E G R O H A N D U S E R S M A N U A L

Finishing Installation

Once installation has finished, you will be prompted to reboot your computer. Please save any unsaved work and reboot.

AHAS License Registration

Please insert the USB license dongle included with Allegro Hand Application Studio. Once inserted into a working USB port, navigate to the newly installed rLicense Manager application

to install the USB device.

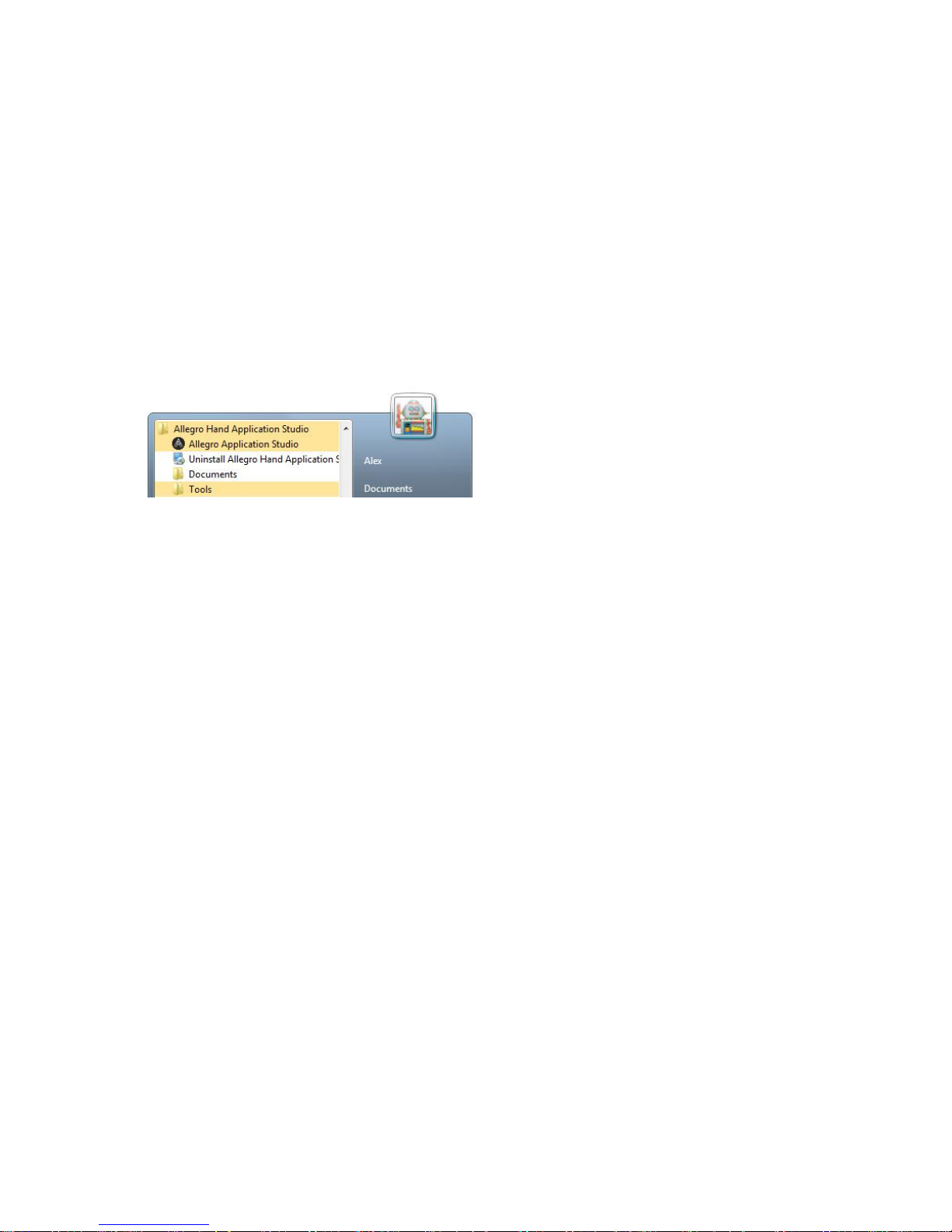

Start Menu > All Programs > Allegro Hand Application Studio > Tools > rLicense Manager

Clicking this application should install the USB device. You should now install your CAN interface hardware and driver.

Page 18

A L L E G R O H A N D U S E R S M A N U A L

CAN Driver Installation

Your CAN interface, either PCI (Softing, ESD, Kvaser) or USB (NI, PEAK), should be installed or plugged in to you computer before installing the proper drivers.

CAN Hardware drivers, if not included with the hardware, can be downloaded from the respective manufacturer's website. For the four CAN interfaces available through SimLab, product drivers and documentation are available at the following websites.

Note: After installation, check in Start Menu > Control Panel > Device Manager to make sure that a driver has installed successfully.

NI USB-8473s CAN

Product Page: sine.ni.com/nips/cds/view/p/lang/en/nid/203385 Driver Page: joule.ni.com/nidu/cds/view/p/id/3152/lang/en

Softing CAN-AC2-PCI

Product Page: http://www.softing.com/home/en/automotive-electronics/products/can-bus/interface cards/can/pci-2.php

Driver Page: http://industrial.softing.com/en/products/functionality/interface-cards-gateways/pci interface-cards/can/can-dual-channel-pci-interface-card.html

Click "Downloads"

Kvaser PCIcan 4xHS

Product Page: http://www.kvaser.com/index.php?option=com_php&Itemid=261&eaninput= 7330130000841&lang=en&product=Kvaser%20PCIcan%204xHS

Driver Page: http://www.kvaser.com/index.php?option=com_php&Itemid=261&eaninput= 7330130000841&lang=en&product=Kvaser%20PCIcan%204xHS

Click "Downloads"

ESD CAN-PCI/266

Product Page: http://www.esd-electronics-usa.com/CAN-CANopen-J1939-66-MHZ-PC-Board-PCI-

2.2-1-OR-2-CAN-Interface-CAN-PCI/266.html Driver Page: http://esd.eu/en/products/can-pci266

PEAK PCAN-USB (Drivers available for Windows and Linux) Product Page: http://www.peak-system.com/PCAN-USB.199.0.html?&L=1

Driver Page: http://www.peak-system.com/forum/viewtopic.php?f=119&t=66

Note: You may be required to reboot after your CAN driver installation. Any of the CAN interface devices mentioned about can be purchased through SimLab.

Page 19

A L L E G R O H A N D U S E R S M A N U A L

If you have not yet installed Allegro Hand Application Studio (AHAS) or your CAN interface and driver, please see the Installing Allegro Hand Application Studio section before reading this one.

Running AHAS

When installing Allegro Hand Application Studio (AHAS), you were prompted to select an installation path where all files associated with AHAS would be stored. This installation path will be referred to as [installPath] from here on out.

Within the installation directory (at the top level), you will find a file titled Allegro.exe. Also, a shortcut to this executable should have been placed on your desktop during installation. Doubleclick Allegro.exe to launch AHAS for the Allegro Hand.

Which Hand?

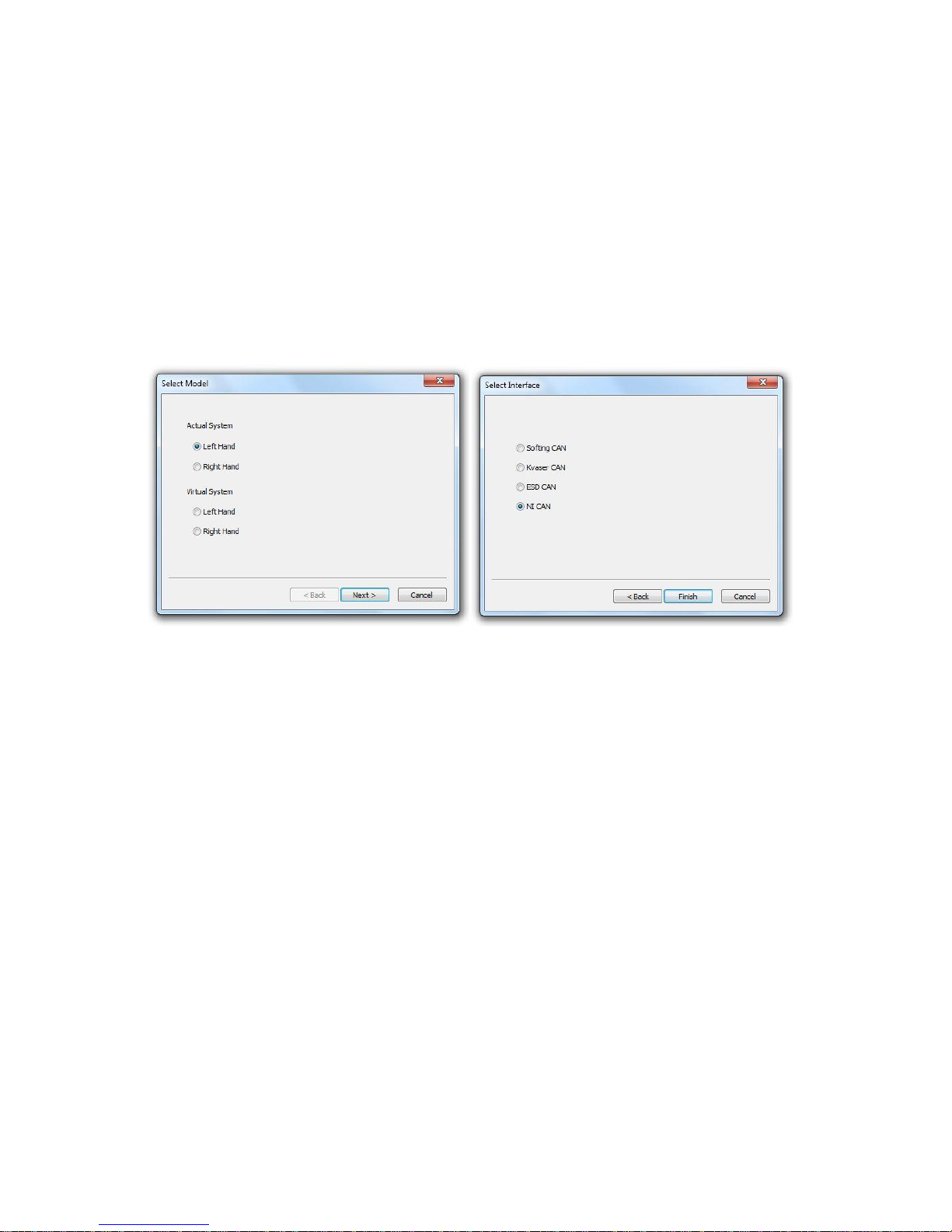

When you first run Allegro Hand Application Studio (AHAS), you are prompted to select the hand (right/left/actual/virtual) you would like to use.

Virtual

If a virtual system is selected, a dynamic simulation is run using the Allegro Hand virtual model. This simulation includes full physics simulation including contact dynamics. The virtual system can be simulated without the actual system. This ability is useful for testing algorithms in a dynamics environment before trying them out of the actual hardware.

Actual

An Actual system refers to the Allegro Hand hardware. If an actual system is selected, AHAS will load the corresponding (left/right) virtual model and open CAN communication with the actual Allegro Hand. The virtual Allegro Hand seen along with the Actual System simply mimics the joint kinematics (no physics or contact dynamics) of the actual system based on the encoder values obtained over CAN. Motion commands from AHAS are send directly to the actual system while the encoder feedback controls the AHAS virtual hand.

Page 20

A L L E G R O H A N D U S E R S M A N U A L

Virtual Hand Simulation

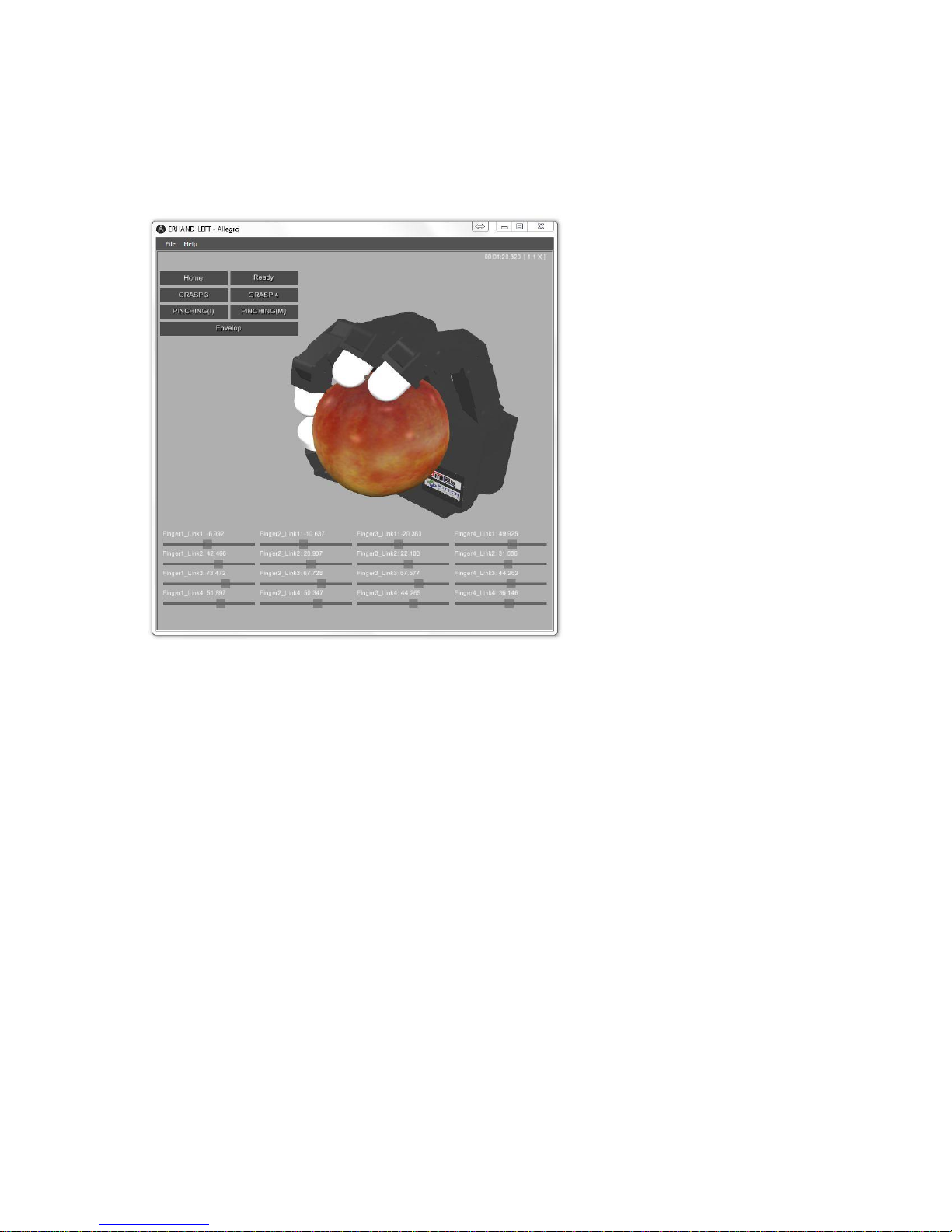

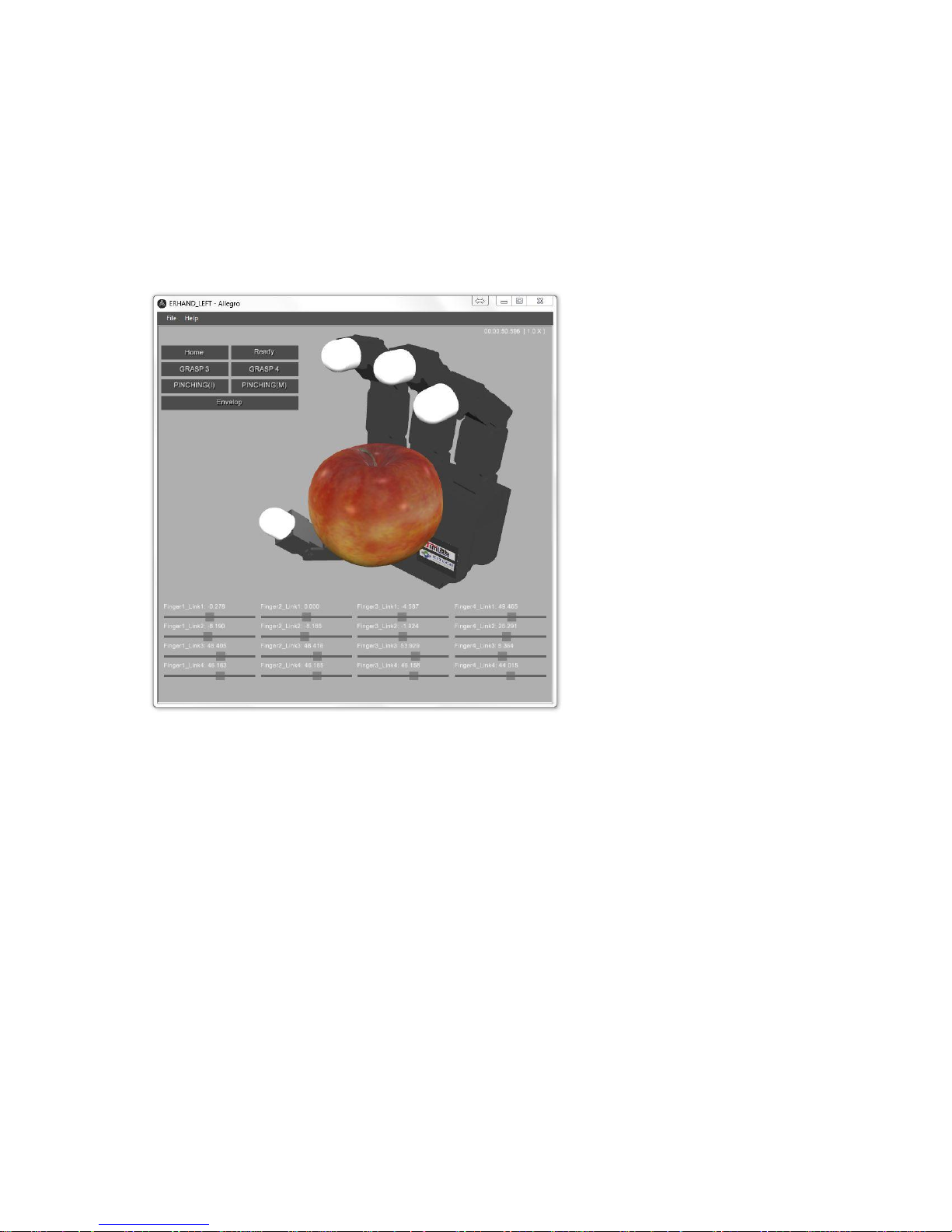

First, we will select the Virtual Left Hand system and click Finish to start the simulation. Selecting either virtual hand system at the Allegro Hand Application Studio (AHAS) hand selection

prompt will load the AHAS dynamics simulation environment and a virtual hand model. The simulation begins running as soon as the AHAS simulation window is loaded.

Note: If presented with a Windows Firewall Security Alert, click "Allow access" to run AHAS.

AHAS is provided along with the Allegro Hand for two main purposes. AHAS allows for ease of testing CAN communication between your PC and the Allegro Hand hardware. Secondly, AHAS provides several robust grasping algorithms for use with the Allegro Hand. The algorithms provided with AHAS can grasp a variety of object geometries for demonstration or for use at the end of a manipulator.

The grasping algorithms provided with AHAS can be explored via the graphical user interface (GUI) buttons at the top-left of the AHAS simulation window. Clicking these buttons will send a command to the virtual CAN device on the virtual Allegro Hand model.

Page 21

A L L E G R O H A N D U S E R S M A N U A L

Home

Let's start by clicking the button entitled Home. The position assumed by the Allegro Hand is a starting position that ensures that all joints are oriented properly for executing a grasp.

Ready

Click the button entitled Ready to prepare for each type of grasping motion.

Note: For the virtual hand, you will notice the finger joints sagging if left in ready mode too long. As the finger tip locations are controlled, all joint angles do not necessarily matter. Due to the lack of friction found in the actual system, the ready position does not remain constant. In this case, simply push Home then Ready again to prepare for a grasp.

Grasp 3

Click the buttons entitled Home then Ready to prepare the hand for a grasp. Now click the button entitled GRASP3. This grasping algorithm is a torque-controlled, three-fingered

grip. This grasp can be used for pick-and-place style object grasping as the object is held between the tips of the thumb, index and middle fingers.

Grasp 4

Click the buttons entitled Home then Ready to prepare the hand for another type of grasp. Click the button entitled GRASP4. This grasping algorithm is a torque-controlled, four-fingered grip.

This grasp can be used for pick-and-place style object grasping as the object is held between the tips of the thumb and three fingers.

Pinching (I)

Click the buttons entitled Home then Ready to prepare the hand for another type of grasp. Click the button entitled Pinching (I). This grasping algorithm is a torque-controlled, two-fingered pinch.

This grasp can be used for pick-and-place style object grasping and more dexterous manipulation as the object is held between the tips of the thumb and the index finger.

Pinching (M)

Click the buttons entitled Home then Ready to prepare the hand for another type of grasp. Click the button entitled Pinching (M). This grasping algorithm is a torque-controlled, two-fingered

pinch. This grasp can be used for pick-and-place style object grasping and more dexterous manipulation as the object is held between the tips of the thumb and the middle finger.

Envelop

Click the buttons entitled Home then Ready to prepare the hand for another type of grasp. Click the button entitled Envelop. This grasping algorithm can be used to fully envelop an object within

the hand's four fingers. This algorithm can handle a variety of object geometries.

Test Encoders (actual hand only)

This button is only used when zeroing the hand joints. Pressing this button will print out the current raw encoder data. (Only available in actual hand AHAS)

Test Motors (actual hand only) This button is only when checking the positive direction of each motor. Pressing this button multiple times will send a positive torque value to each motor in succession. (Only available in actual hand AHAS)

Page 22

A L L E G R O H A N D U S E R S M A N U A L

Sliders

The sliders at the bottom of the AHAS simulation window provide a secondary form of visual feedback for the sixteen joints of the hand. Each column represents a finger with link 1 being the yaw joint attached to the palm and link 4 being the last joint at the end of each finger.

Page 23

A L L E G R O H A N D U S E R S M A N U A L

Actual Hand

Wiring

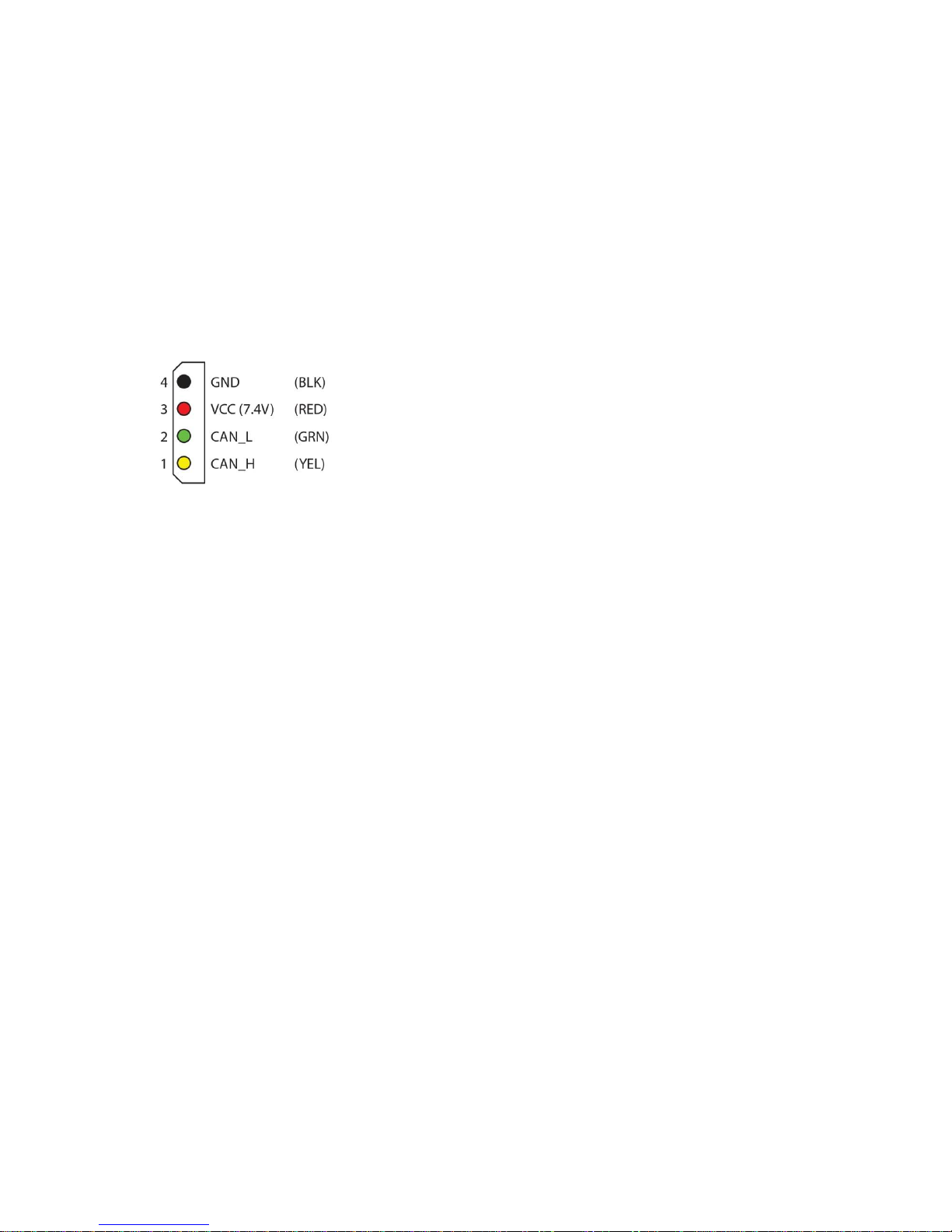

On the back of the Allegro Hand, you will see two connectors labeled J1 and J5. While these ports are identical in that they both offer CAN and power connections, J5 offers a switch making it favorable for power. CAN_H and CAN_L get plugged into ports 1 and 2, respectively and power VCC and GND get plugged into ports 3 and 4, respectively, on port J5.

On the connector provided with the Allegro Hand, the wires are color coded such that power ground and voltage are a standard black and red, respectively, and CAN-Low and CAN-High are green and yellow, respectively.

Power

The Allegro Hand must be powered by 7.4VDC (7.0 - 8.1 VDC) and at least 5 Amps. If a minimum of 5A is not provided, the motors will brown-out during grasping.

Once the power supply is on at the rated values, the power switch on the back of the Allegro Hand can be switched on (upward towards the fingers) to provide power to the hand.

Page 24

A L L E G R O H A N D U S E R S M A N U A L

AHAS

With the hand powered on and the CAN connected, it is finally time to run Allegro Hand Application Studio.

A virtual Allegro Hand, left or right, can be loaded by clicking New in the File drop-down menu (File > New) or by quitting and reopening Allegro Hand Application Studio.

Again, you will presented with the AHAS hand selection window. This time we will select the Actual Left Hand System (or a right hand if that's what you have) and click Next to select the type of CAN interface you are using. Click Finish to start AHAS.

Note: If you have a right hand, proceed accordingly.

While the CAN communication is established at start-up, the motors must be turned on using the On button before commands can be sent and encoder values received.

Note: You should always straighten out all of the fingers before running Allegro Hand Application Studio or any other hand control application (think High-Five). This habit poses the fingers as far away as possible from any collision that could occur in the event of unexpected motion. This pose also increases the reliability of the encoders in finding the hand's initial position.

Once the On button is pressed, the AHAS hand model is updated to reflect the actual Allegro Hand. Move the fingers around a bit manually to make sure the communication is, in fact, established.

For the actual hand, the same grasping algorithms can be executed via the GUI interface. You can use the hand to manipulate reasonably sized objects of many shapes. The virtual hand will continue to reflect any motion the actual hand makes.

Quitting

You can quit Allegro Hand Application Studio in two ways. First, you can quit by clicking Exit in the File drop-down menu (File > Exit). You can also quit by click the X button to the right of the AHAS window's title bar.

Page 25

A L L E G R O H A N D U S E R S M A N U A L

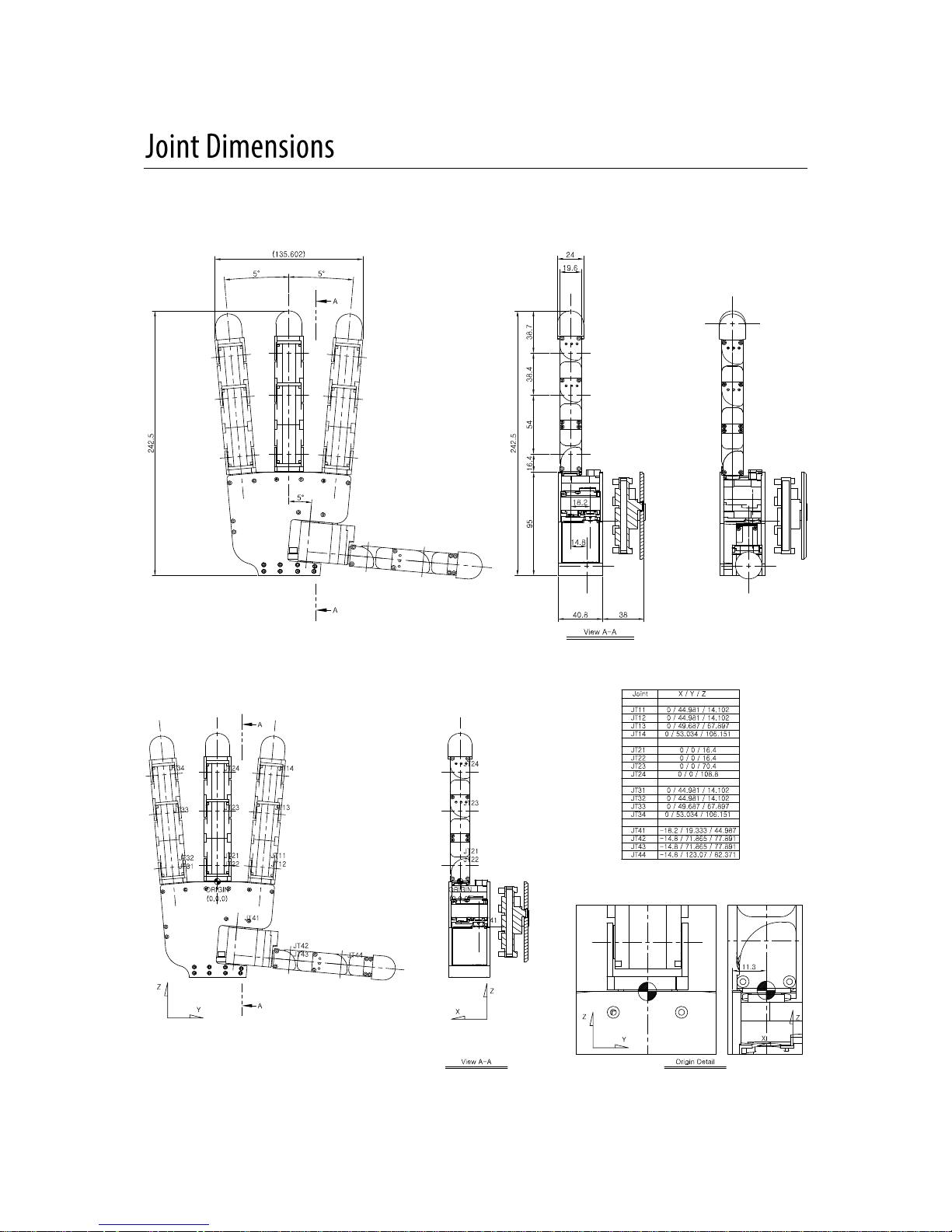

All dimensions are displayed in millimeters (mm) and degrees.

Page 26

A L L E G R O H A N D U S E R S M A N U A L

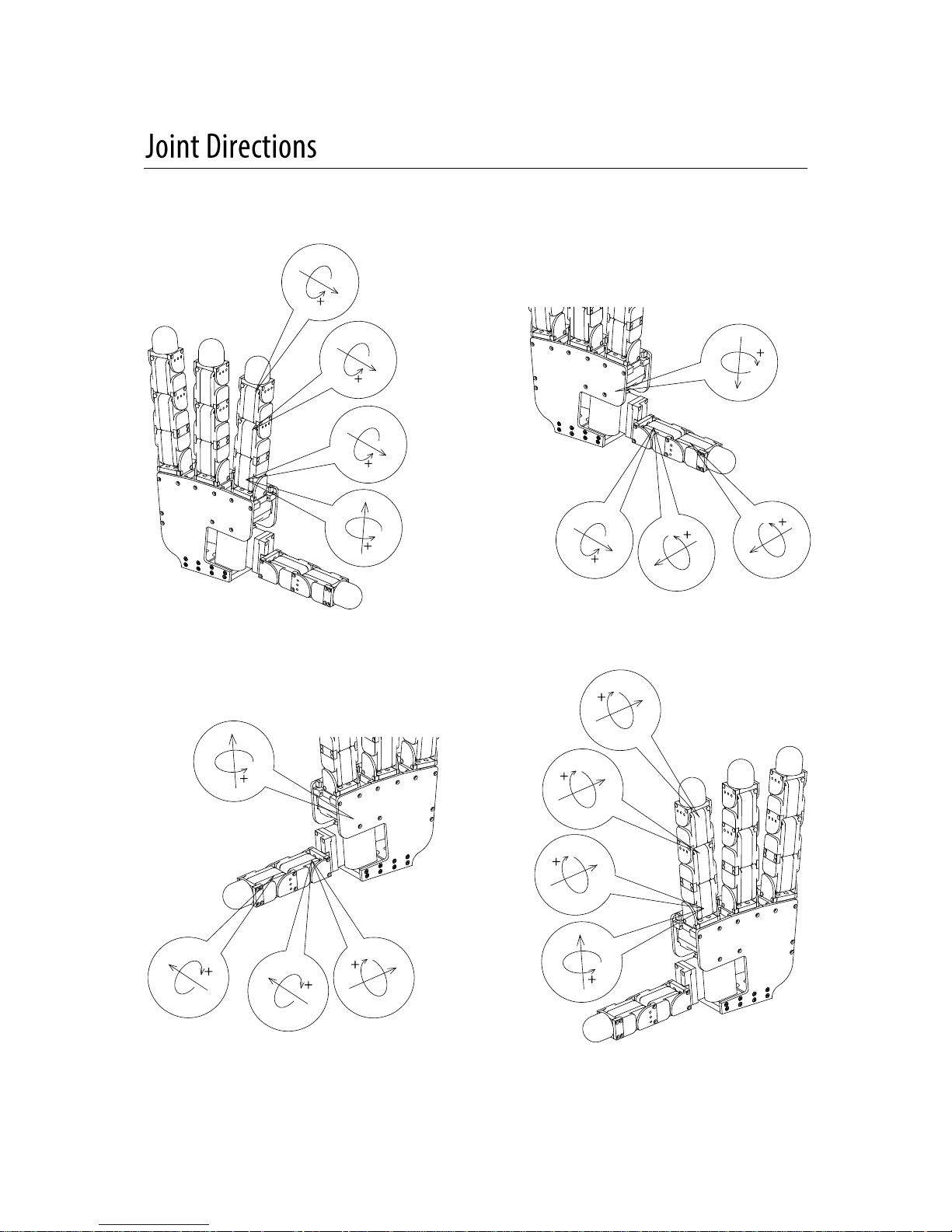

Right Hand

Left Hand

Page 27

A L L E G R O H A N D U S E R S M A N U A L

All dimensions are displayed in millimeters (mm) and degrees.

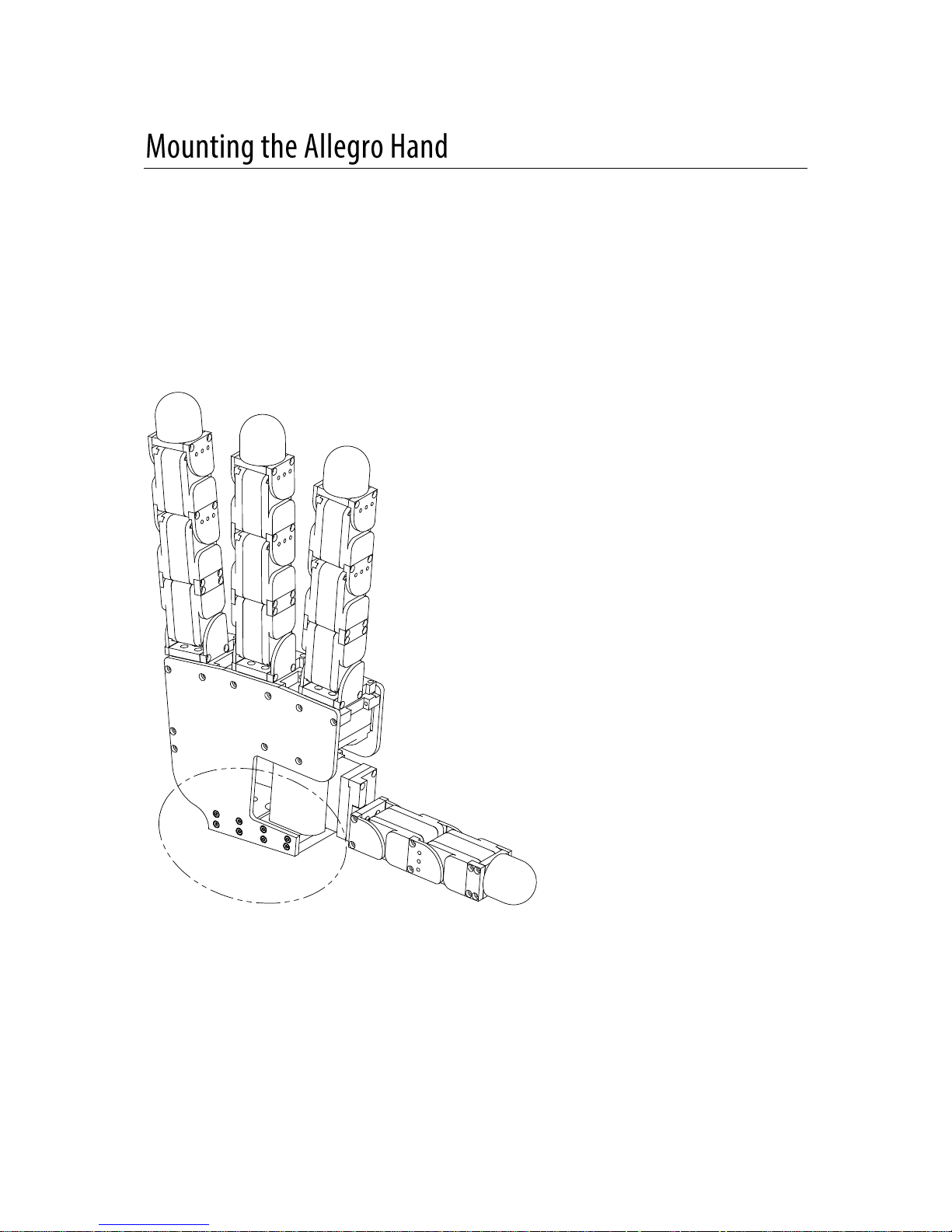

Mounting Block Removal

The mounting block is connected to the Allegro Hand using twelve (12) M2 socket-head cap screws (6 on each side).

Page 28

A L L E G R O H A N D U S E R S M A N U A L

Remove six (6) screws on either side of the hand.

DO NOT remove the two (2) screws labeled A or the corresponding screws on the other side of the hand.

Note: Secure the hand while unscrewing the mounting block to avoid dropping the hand once disconnected.

Once the twelve (12) screws have been removed, the mounting block can be removed from the bottom of the hand.

Page 29

A L L E G R O H A N D U S E R S M A N U A L

Mounting

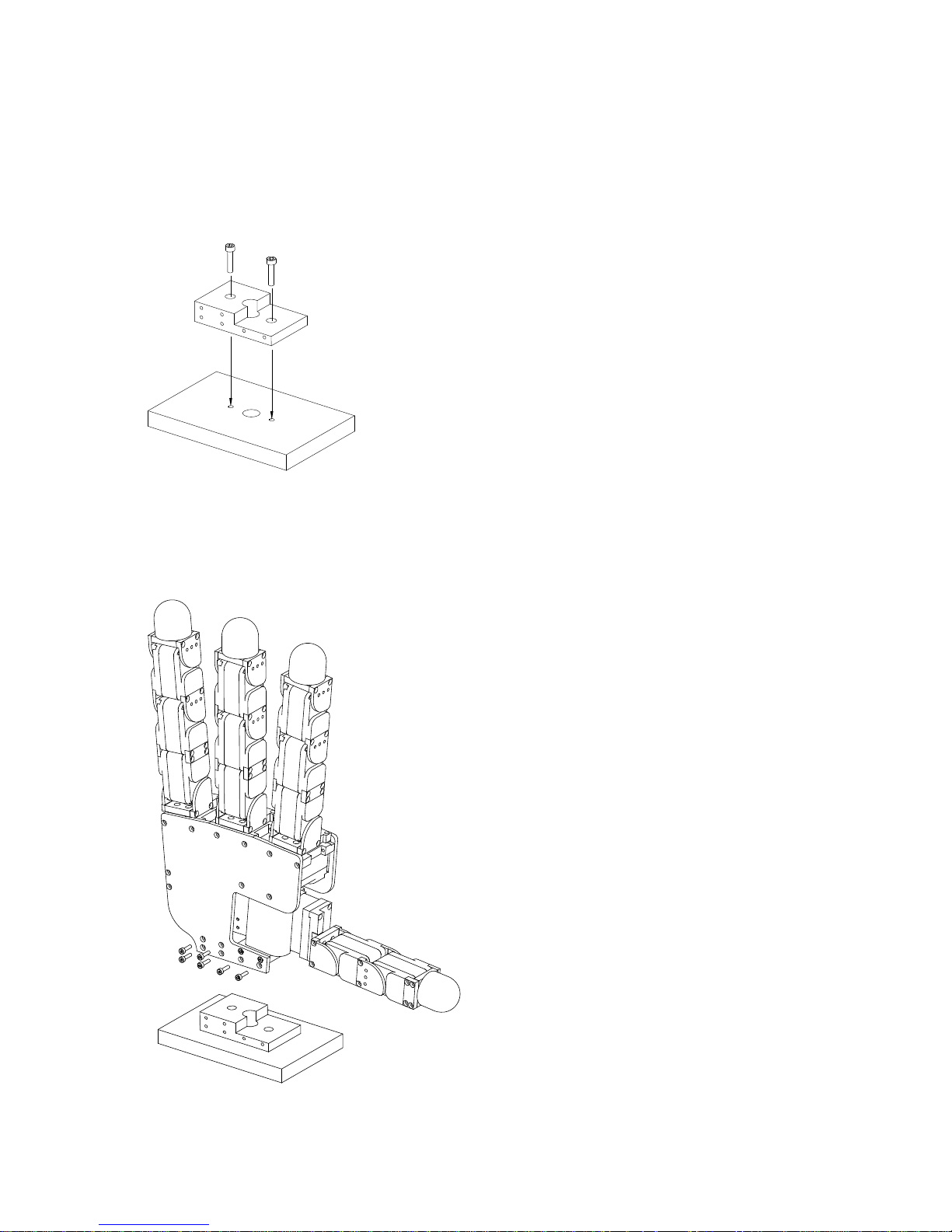

The block can be mounted to a surface using two (2) M3 socket-head cap screws.

Note: The hand should be mounted to a raised area so as to avoid thumb-mount interference during hand movement.

Reassembly

Place the hand onto the mounting block and replace the twelve (12) M2 socket-head cap screws (6 on each side).

Page 30

A L L E G R O H A N D U S E R S M A N U A L

Mount Block Dimensions

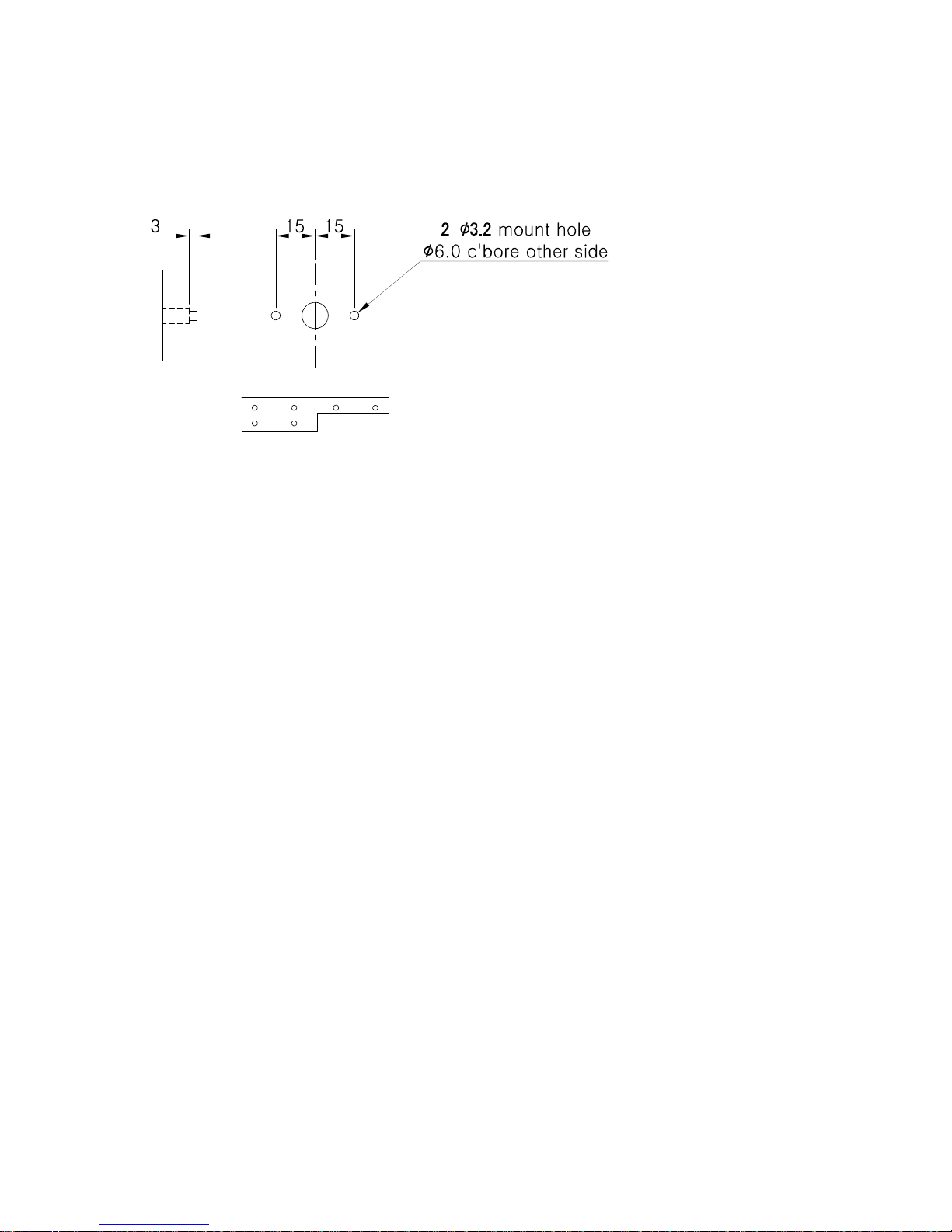

The relevant dimensions of the mounting block are presented in millimeters (mm).

Page 31

A L L E G R O H A N D U S E R S M A N U A L

Baud-Rate

The CAN communication baud-rate is 1Mbps.

Non-Periodic Communication

Messages can be sent to initialize or stop CAN communication.

Periodic Communication

The Allegro Hand control software attempts to communicate with the real or simulated hand at a regular control interval. Every 3 milliseconds, the joint torques are calculated and the joint angles are updated.

Standard CAN Packet

The standard CAN packet used for communication contains 8 bytes.

Code 1: CAN Packet Structure

typedef struct{ unsigned char STD_EXT;

unsigned long msg_id; //message identifier unsigned char data_length; // char data[8]; // data array } can_msg;

Page 32

A L L E G R O H A N D U S E R S M A N U A L

ID (Message Identifier)

The 4 byte integer CAN message is split into the command ID (26 bits), destination ID (3bits) and source ID (3 bits).

Table 1: CAN Message Identifiers

1 8 16

Command ID

DSTN. ID

Source ID

Command Identifiers

Table 2: CAN Message Command Identifiers

Variable name

Value

Description

Source

Destination

ID_CMD_SET_SYSTEM_ON

0x01

Start periodic communication

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_SYSTEM_OFF

0x02

Stop periodic communication

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_PERIOD

0x03

Set communication frequency

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_MODE_JOINT

0x04

Command Transmission Mode

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_MODE_TASK

0x05

Command Transmission Mode

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_TORQUE_1

0x06

Index finger (1) torque command

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_TORQUE_2

0x07

Middle finger (2) toque command

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_TORQUE_3

0x08

Pinky finger (3) torque command

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_TORQUE_4

0x09

Thumb torque command

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_SET_POSITION_1

0x0a

(unused)

ID_CMD_SET_POSITION_2

0x0b

(unused)

ID_CMD_SET_POSITION_3

0x0c

(unused)

ID_CMD_SET_POSITION_4

0x0d

(unused)

ID_CMD_QUERY_STATE_DATA

0x0e

Request joint state

ID_DEVICE_MAIN

ID_COMMON

ID_CMD_QUERY_STATE_DATA

0x0e

Joint state response

ID_DEVICE_SUB_01 ID_DEVICE_SUB_02 ID_DEVICE_SUB_03 ID_DEVICE_SUB_04

ID_DEVICE_MAIN

ID_CMD_QUERY_CONTROL_DATA

0x0f

Joint state response

ID_DEVICE_SUB_01 ID_DEVICE_SUB_02 ID_DEVICE_SUB_03 ID_DEVICE_SUB_04

ID_DEVICE_MAIN

Source and Destination Identifiers

Table 3: Source and Destination Identifiers

Variable name

Value

Description

ID_COMMON

0x01

Allegro Hand

ID_DEVICE_MAIN

0x02

Control PC

ID_DEVICE_SUB_01

0x03

Index Finger

ID_DEVICE_SUB_02

0x04

Middle Finger

ID_DEVICE_SUB_03

0x05

Little Finger

ID_DEVICE_SUB_04

0x06

Thumb

Page 33

A L L E G R O H A N D U S E R S M A N U A L

In this chapter, sample code demonstrating the implementation of the CAN communication interface is provide. This is the foundation for Softing PCI CAN.

Opening the CAN Communication Channel

Code 2: Opening the CAN Communication Channel

char ch_name[256];

sprintf_s(ch_name, 256, "CAN-ACx-PCI_%d", ch); INIL2_initialize_channel(&hCAN[ch-1], ch_name);

L2CONFIG L2Config; L2Config.fBaudrate = 1000.0; L2Config.bEnableAck = 0; L2Config.bEnableErrorframe = 0; L2Config.s32AccCodeStd = 0; L2Config.s32AccMaskStd = 0; L2Config.s32AccCodeXtd = 0; L2Config.s32AccMaskXtd = 0; L2Config.s32OutputCtrl = GET_FROM_SCIM; L2Config.s32Prescaler = 1; L2Config.s32Sam = 0; L2Config.s32Sjw = 1; L2Config.s32Tseg1 = 4; L2Config.s32Tseg2 = 3; L2Config.hEvent = (void*)-1;

CANL2_initialize_fifo_mode(hCAN[ch-1], &L2Config);

Page 34

A L L E G R O H A N D U S E R S M A N U A L

CAN Initialization

Code 3: Opening the CAN Communication Channel

long Txid; unsigned char data[8];

Txid = ((unsigned long)ID_CMD_SET_PERIOD<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN); data[0] = (unsigned char)period_msec; canWrite(hCAN, Txid, data, 1, STD);

Sleep(10);

Txid = ((unsigned long)ID_CMD_SET_MODE_TASK<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN); canWrite(hCAN, Txid, data, 0, STD);

Sleep(10);

Txid = ((unsigned long)ID_CMD_QUERY_STATE_DATA<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN); canWrite(hCAN, Txid, data, 0, STD);

Starting Periodic CAN Communication

When you start periodic CAN communication, joint angles are automatically updated according to the torque control input.

Code 4: Starting Periodic CAN Communication

long Txid; unsigned char data[8];

Txid = ((unsigned long)ID_CMD_QUERY_STATE_DATA<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN); canWrite(hCAN[ch-1], Txid, data, 0, STD);

Sleep(10); Txid = ((unsigned long)ID_CMD_SET_SYSTEM_ON<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN);

canWrite(hCAN[ch-1], Txid, data, 0, STD);

Stopping Periodic CAN Communication

Code 5: Stopping Periodic CAN Communication

long Txid; unsigned char data[8];

Txid = ((unsigned long)ID_CMD_SET_SYSTEM_OFF<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN); canWrite(hCAN[ch-1], Txid, data, 0, STD);

Page 35

A L L E G R O H A N D U S E R S M A N U A L

Transmitting Control Torques

Control inputs for the four joints in each finger should be packed in a single CAN frame. The sample code below demonstrates how to encode four PWM inputs into an 8 byte data buffer and how to set the CAN frame ID properly.

Code 6: Transmitting Control Torques

long Txid; unsigned char data[8]; float torque2pwm = 800.0f short pwm[4] = {

0.1*torque2pwm,

0.1*torque2pwm };

if (findex >= 0 && findex < 4)

{ data[0] = (unsigned char)( (pwm[0] >> 8) & 0x00ff); data[1] = (unsigned char)(pwm[0] & 0x00ff);

data[2] = (unsigned char)( (pwm[1] >> 8) & 0x00ff); data[3] = (unsigned char)(pwm[1] & 0x00ff);

data[4] = (unsigned char)( (pwm[2] >> 8) & 0x00ff); data[5] = (unsigned char)(pwm[2] & 0x00ff);

data[6] = (unsigned char)( (pwm[3] >> 8) & 0x00ff); data[7] = (unsigned char)(pwm[3] & 0x00ff);

Txid = ((unsigned long)(ID_CMD_SET_TORQUE_1 + findex)<<6) | ((unsigned long)ID_COMMON <<3) | ((unsigned long)ID_DEVICE_MAIN); canWrite(hCAN, Txid, data, 8, STD); }

Page 36

A L L E G R O H A N D U S E R S M A N U A L

Receiving Joint Angles

Each finger consists of four joints. The joint angles for those four joints can be received via one CAN packet. The sample code below demonstrates the method for decoding the data buffer and reading the joint angles.

The sample code assumes that when fingers are in their zero positions, the joint angles from the CAN packet are 32768. In practice, users should perform experiments and introduce offsets to obtain the zero position.

Code 7: Receiving Joint Angles

char cmd; char src; char des; int len; unsigned char data[8]; int ret;

can_msg msg; PARAM_STRUCT param;

ret = CANL2_read_ac(hCAN, ¶m);

switch (ret)

{

case CANL2_RA_DATAFRAME:

msg.msg_id = param.Ident; msg.STD_EXT = STD; msg.data_length = param.DataLength;

msg.data[0] = param.RCV_data[0]; msg.data[1] = param.RCV_data[1]; msg.data[2] = param.RCV_data[2]; msg.data[3] = param.RCV_data[3]; msg.data[4] = param.RCV_data[4]; msg.data[5] = param.RCV_data[5]; msg.data[6] = param.RCV_data[6]; msg.data[7] = param.RCV_data[7];

break; }

cmd = (char)( (msg.msg_id >> 6) & 0x1f ); des = (char)( (msg.msg_id >> 3) & 0x07 ); src = (char)( msg.msg_id & 0x07 ); len = (int)( msg.data_length );

for(int nd=0; nd<len; nd++)

data[nd] = msg.data[nd];

switch (cmd)

{

case ID_CMD_QUERY_CONTROL_DATA:

{ if (id_src >= ID_DEVICE_SUB_01 && id_src <= ID_DEVICE_SUB_04) { int temp_pos[4]; // raw angle data float ang[4]; // degree float q[4]; // radian

temp_pos[0] = (int)(data[0] | (data[1] << 8)); temp_pos[1] = (int)(data[2] | (data[3] << 8)); temp_pos[2] = (int)(data[4] | (data[5] << 8)); temp_pos[3] = (int)(data[6] | (data[7] << 8));

ang[0] = ((float)(temp_pos[0]-32768)*(333.3f/65536.0f))*(1); ang[1] = ((float)(temp_pos[1]-32768)*(333.3f/65536.0f))*(1); ang[2] = ((float)(temp_pos[2]-32768)*(333.3f/65536.0f))*(1); ang[3] = ((float)(temp_pos[3]-32768)*(333.3f/65536.0f))*(1);

q[0] = (3.141592f/180.0f) * ang[0]; q[1] = (3.141592f/180.0f) * ang[1]; q[2] = (3.141592f/180.0f) * ang[2]; q[3] = (3.141592f/180.0f) * ang[3]; } }

}

Page 37

A L L E G R O H A N D U S E R S M A N U A L

The newest versions of all documents found in this manual can be found in the Allegro Hand wiki at

simlab.co.kr/AllegroHand/wiki

A forum is also available on the wiki where users can share problems and solutions with each other and with SimLab. Upon request, you may be granted editing access to the wiki to host your tutorials and samples of your work. In fact, we would love to collaborate.

For any further questions please contact us.

Address

Hyobong8 Bldg 2Fl, 1425-9 Seocho-dong Seocho-gu, Seoul 137-864, Korea (13, Nambusunhwan-ro 333-gil)

Phone

+82-2-3471-2014

Fax

+82-2-6280-9931

[email protected]

Please enjoy your Allegro Hand,

and feel free to share your success stories and videos!

The Allegro Hand Wiki and User's Manual is written and maintained by Alex Alspach [email protected]
