HDMI to Scart converter
User manual
1
2
3
Share your smart phone photos, music and movies on the TV.
Branded 5V, 1A USB Chargers for enough power supply to avoid insufficient power issue.)
4
1280x1024@60Hz,1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz
NTSC
5

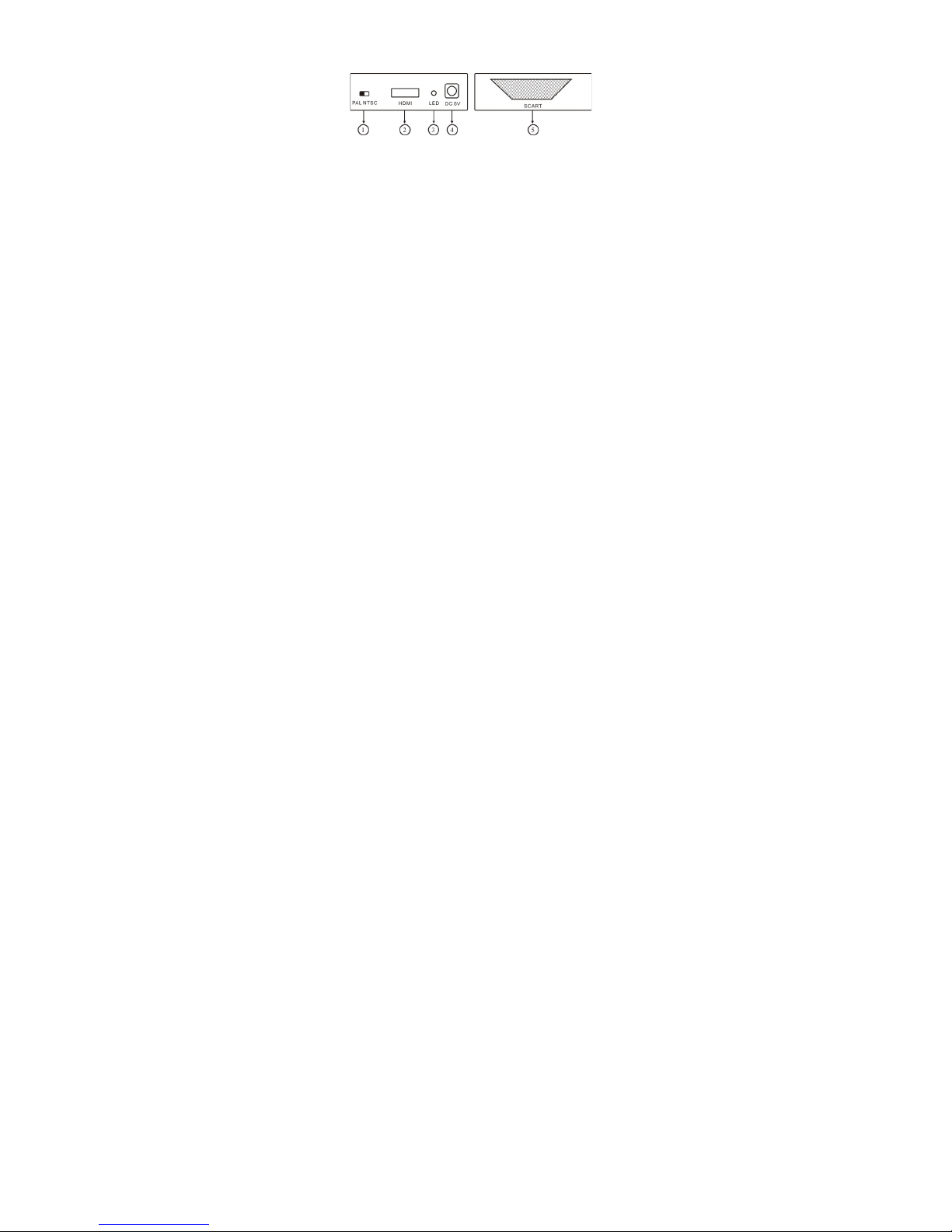

Front Panel Rear Panel
6
Samsung
I9100,i9108,i9188,I977,Samsung Galaxy Note(i900)
HTC
HTC sensation(HTC G14/G18/G19),HTC Flyer, HTC EVO 3D
Z710,Z710e,Z710T
LG
LU6200, LG P940
SONY
LT26I
7
NOKIA
N10
8
Before troubleshooting
Please make sure that your PC/notebook Input Status is HDMI in, and output signals for
TV/Monitor to SCART CVBS signals out.
How to connect the device correctly?
■ Connect TV/Monitor with the device by qualified HDMI Cable.
■ Power On the device by using USB Power cable or 5V, 1A USB Charger. (Please use
Branded 5V, 1A USB Chargers for enough power supply to avoid insufficient power issue.).
■ Connect HDMI cable with the device.
■ LED Light On. You will see the signal on TV/Monitor within 5 seconds. Then Switching
PAL/ NTSC button according to your actual needs.
Trouble Shooting Tips
The converter scale up to the analogue SCART signal to 1080p.
- The converter is using analogue SCART as output. SCART’s International Standard
resolution is 720 x 576 @ 25fps (PAL); 720 x 480 @ 30FPS (NTSC).
Please check your input signal’s resolution is lower than that. The present device supports
Max. Input resolution of 1080p instead of higher.
9
- Check TV/Monitor input channel is SCART CVBS.
- Check SCART Cable is tightly connected with the device.
- Check if you choose the right signal of NTSC / PAL.
- Check the Power Supply is sufficient. Strongly suggest branded USB Charger, which supply
real 5V, 1A power.
-- Our HDMI to Scart support HDMI1.3 1080P for max. resolution, if input device is 4Kx2K or
HDMI 1.4, it won’t show video.
- Check USB power cable is contacting tightly. The power supply is 5V, 1A. Please use
Branded 5V, 1A USB Chargers for enough power supply to avoid insufficient power issue.
- With CVBS cable will result similar issue. Please change it.
- Normally the device temperature under working is 35-40 degree Celsius.
- We have PAL/NTSC Switcher on device, please adjust the PAL/NTSC for your actual
needs.
10
- If the colorful testing picture is clear, then the device is no problem, the input HDMI signal
- If the colorful testing picture is vague, then try to use another SCART Port TV, some
- check if the HDMI port has problem, try to change another HDMI port,
- connect another SCART TV. Some Scart TV itself is very vague. For our Scart Output is
720x576/25fps (PAL),720*480/30fps(NTSC)
11
-- If you bought device is with USB power, please to use Branded 5V, 1A USB Chargers for
enough power supply to avoid insufficient power issue.
- Try to change another High quality HDMI Cable;
- Try to change another HDMI input source, try another PC
