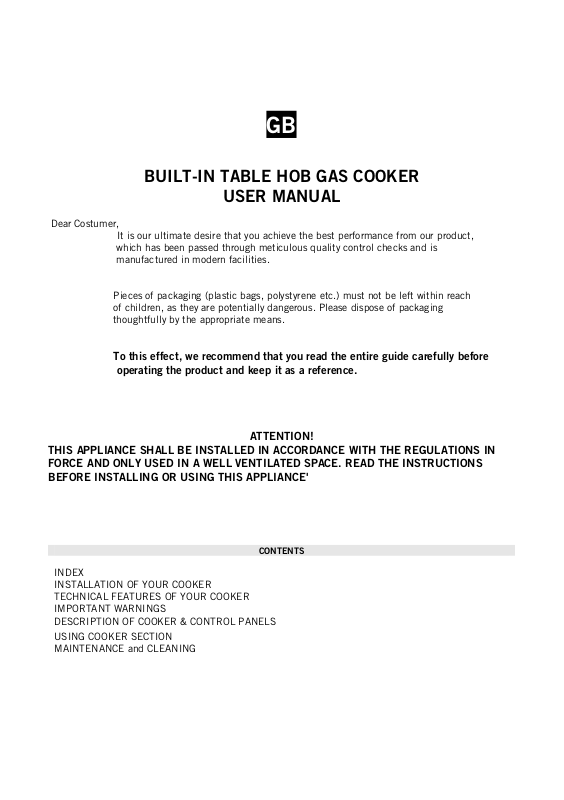

BUILT-IN TABLE HOB GAS COOKER

USER MANUAL

Dear Costumer,

It is our ultimate desire that you achieve the best performance from our product,

which has been passed through meticulous quality control checks and is
manufactured in modern facilities.

Pieces of packaging (plastic bags, polystyrene etc.) must not be left within reach

of children, as they are potentially dangerous. Please dispose of packaging
thoughtfully by the appropriate means.

To this effect, we recommend that you read the entire guide carefully before
operating the product and keep it as a reference.

ATTENTION!
THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN
FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS
BEFORE INSTALLING OR USING THIS APPLIANCE'

INDEX
INSTALLATION OF YOUR COOKER
TECHNICAL FEATURES OF YOUR COOKER
IMPORTANT WARNINGS
DESCRIPTION OF COOKER & CONTROL PANELS

USING COOKER SECTION
MAINTENANCE and CLEANING

CONTENTS

INSTALLATION OF YOUR COOKER

510

60 cm

45 cm 30 cm

580

1- This appliance must be installed by a competent person and with particular attention to air circulation.
2- The housing must be heat resistant to a temperature of 95 °C as per EEC directives

90 cm

70 cm

ELECTRICAL CONNECTION and SECURITY

1. Your cooker requires a 13 or 16 Amp fuse. If necessary, installation by a qualified electrician is recommended.

2. Your oven is adjusted in compliance with 230Volt AC, 50 Hz (for SA will be 220-240V,50-60 Hz), electrical

supply, and requires a 16 Amp (for England 13 Amp) fuse. If the mains are different from this specified value,
contact an electrician or your authorised service.

3. Electrical connection of the hob should only be made using sockets with Earth system installed (for England B.S.

Approved sockets with Earth system), and in compliance with Regulations. If there is no proper socket with Earth
in place, immediately contact a qualified electrician. The Manufacturer will not be responsible for damage or
injuries that can arise because of inappropriate supply outlets with no earth system.If the ends of the electrical
connection cable is open, according to the appliance type, make a proper switch installed in the mains by which
all ends can be disconnected in case of connecting / disconnecting from / to the mains.

4. If your electric supply cable gets defective, it should definitely be replaced by the authorized service or qualified

electricians in order to avoid from the dangers

5. Electrical cable shouldn't touch the hot parts of the appliance.

GAS CONNECTION and SECURITY

1. Fit the clamp to the hose. Push one of the hose until it goes to the end of the pipe y heating in boiling water,

and tighten the clamp with screw driver.

2. For soundness testing; ensure that the gas controls are closed,

3. Apply only Approved Leak Detection solutions to the connections for leaks.

4. If the hob is installed above a cupboard or openable drawer, a heat protection panel must be installed under the
hob with a minimum 15 mm clearance

Caution! Make the oven connection to the gas inlet valve,the hose length must be short and be sure that there is no
leakage.

The hose used sholud not be longer than 125 cm for safety.

RE-INSPECT THE GAS CONNECTION.

DO NOT MAKE GAS HOSE and ELECTRICAL CABLE OF YOUR COOKER GO THROUGH THE HEATED AREAS, SPECIALLY
THROUGH THE REAR SIDE OF THE COOKER. DO NOT MOVE GAS CONNECTED COOKER. SINCE THE FORCING SHALL LOOSEN
THE HOSE, GAS LEAKAGE MAY OCCUR.

.
