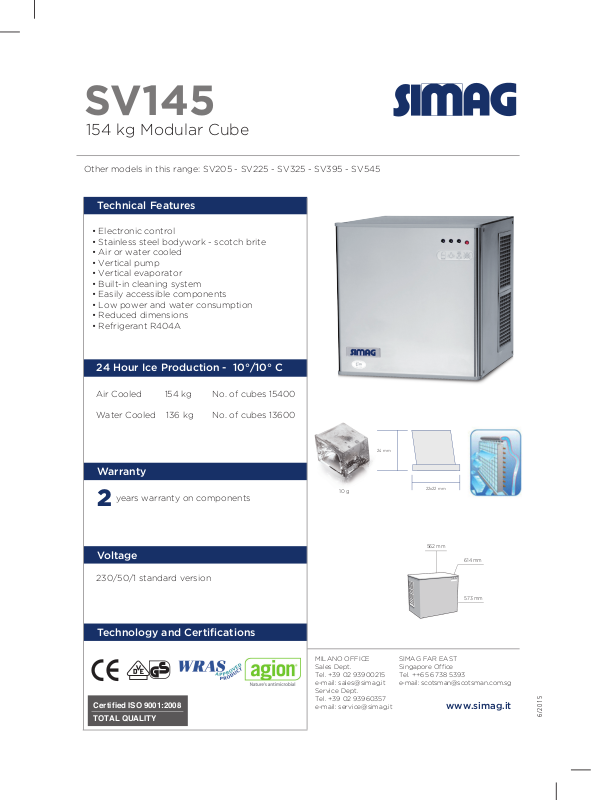

SIMAG SV 145 AS Technical Features

SV145

154 kg Modular Cube

Other models in this range: SV205 - SV225 - SV325 - SV395 - SV545

Technical Features

• Electronic control

• Stainless steel bodywork - scotch brite

• Air or water cooled

• Vertical pump

• Vertical evaporator

• Built-in cleaning system

• Easily accessible components

• Low power and water consumption

• Reduced dimensions

• Refrigerant R404A

24 Hour Ice Production - 10°/10° C

Air Cooled 154 kg No. of cubes 15400

Water Cooled 136 kg No. of cubes 13600

Warranty

years warranty on components

2

Voltage

230/50/1 standard version

10 g

24 mm

22x22 mm

562 mm

614 mm

573 mm

Technology and Certifications

GEPRUFTE
SICHERMEIT

Certified ISO 9001:2008

TOTAL QUALITY

MILANO OFFICE
Sales Dept.
Tel. [phone]
e-mail: [e-mail]
Service Dept.
Tel. [phone]
e-mail: [e-mail]

SIMAG FAR EAST
Singapore Office
Tel. ++65 6738 5393
e-mail: [e-mail]

www.simag.it

6/2015

SV145

154 kg Modular Cube

Other models in this range: SV205 - SV225 - SV325 - SV395 - SV545

154 mm 562 mm

min. for utiòity connections

573 mm

614 mm 152 mm

min. for utiòity connections

POTABLE WATER INLET 3/4” GAS

509 mm

CORD SET

WATER DRAIN ø 20 mm

Operating Limits

Air Temperatures

Water Temperatures

Electrical Voltage

Water Pressure

43 mm

264 mm

76 mm

117 mm

WATER COOLED INLET

WATER COOLED OUTLET

10°C

5° C

-10%

14 psi

1 bar

3/4” GAS

3/4” GAS

MaximumMini mum

38°C

35°C
+10%
70 psi

5 bar

124 mm

351 mm

SV 145 AS

SV 145 AS

SV 145 WS

SV 145 WS

Voltage Refrigerant

230/50/1

220-240/60/1

230/50/1

220-240/60/1

Power Input

Watt (*)

850 168
780
750
640

R404A
R404A
R404A
R404A

Refrigerant

charge
kg

0,500
0,450
0,450
0,450

Fuse
Amp

10
10
10
10

Specifications and design are subject

Water

Consumption

l/h (**)

168
2568
2568

to change without notice

Net

Weight

kg

53
53
53
53

Shipping

Weight

kg

65
65
65
65

10/2015
