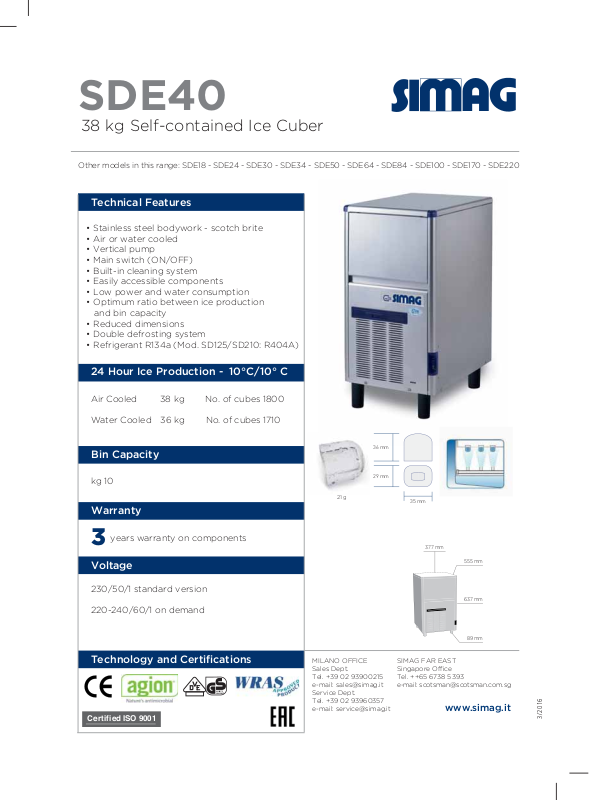

SIMAG SDE 40 AS, SDE 40 WS Datasheet

SDE40

38 kg Self-contained Ice Cuber

Other models in this range: SDE18 - SDE24 - SDE30 - SDE34 - SDE50 - SDE64 - SDE84 - SDE100 - SDE170 - SDE220

Technical Features

• Stainless steel bodywork - scotch brite

• Air or water cooled

• Vertical pump

• Main switch (ON/OFF)

• Built-in cleaning system

• Easily accessible components

• Low power and water consumption

• Optimum ratio between ice production
and bin capacity

• Reduced dimensions

• Double defrosting system

• Refrigerant R134a (Mod. SD125/SD210: R404A)

24 Hour Ice Production - 10°C/10° C

Air Cooled 38 kg No. of cubes 1800

Water Cooled 36 kg No. of cubes 1710

Bin Capacity

kg 10

Warranty

years warranty on components

3

Voltage

230/50/1 standard version

220-240/60/1 on demand

21 g

36 mm

29 mm

35 mm

377 mm

555 mm

637 mm

Technology and Certifications

GEPRUFTE

Certifi

Certified ISO 9001

SICHERMEIT

MILANO OFFICE
Sales Dept.
Tel. [phone]
e-mail: [e-mail]
Service Dept.
Tel. [phone]
e-mail: [e-mail]

89 mm

SIMAG FAR EAST
Singapore Office
Tel. ++65 6738 5393
e-mail: [e-mail]

www.simag.it

3/2016

SDE40

38 kg Self-contained Ice Cuber

Other models in this range: SDE18 - SDE24 - SDE30 - SDE34 - SDE50 - SDE64 - SDE84 - SDE100 - SDE170 - SDE220

555 mm 377 mm

637 mm89 mm

726 mm

180 mm

115 mm

75 mm

10 mm

60 mm

105 mm

* Ø 20 mm WATER DRAIN

CORD SET

* DRAINAGE PER GRAVITY

3/4” GAS WATER INLET

CONTROL BOARD

MAIN SWITCH
New embedded
main switch

VENTILATING GRILLE
New ventilating grille
in water colled version

SPRAY BAR
New spray bar
with nozzles in
fixed position

CLEANING SYSTEM
Easy cleaning of
water pump filter

TOP ANGLE
New top plastic
round corners

AIR FI LTER
New condenser air filter
for air cooled version

Operating Limits

Air Temperatures

Water Temperatures

Electrical Voltage

Water Pressure

Specifications and design are subject

MaximumMini mum

10°C

5°C

-10%

14 psi

1 bar

to change without notice

43°C

38°C
+10%
70 psi

5 bar

Voltage Refrigerant

SDE 40 AS

SDE 40 AS

SDE 40 WS

SDE 40 WS

(*) Power Input: at 43°C Ambient Temperature
(**) Water Consumption: at 32°C Air and 21°C Water

230/50/1

220-240/60/1

230/50/1

220-240/60/1

Power Input

Watt (*)

350 3,8
350

350 22,5
350 22,5

R134a
R134a

R134a
R134a

Refrigerant

charge
kg

0,26

0,26

0,24

0,24

Fuse
Amp

10
10

10 47
10 47

Water

Consumption

l/h (**)

3,8

Net

Weight

kg

40
40

40
40

Shipping

Weight

kg

47
47
