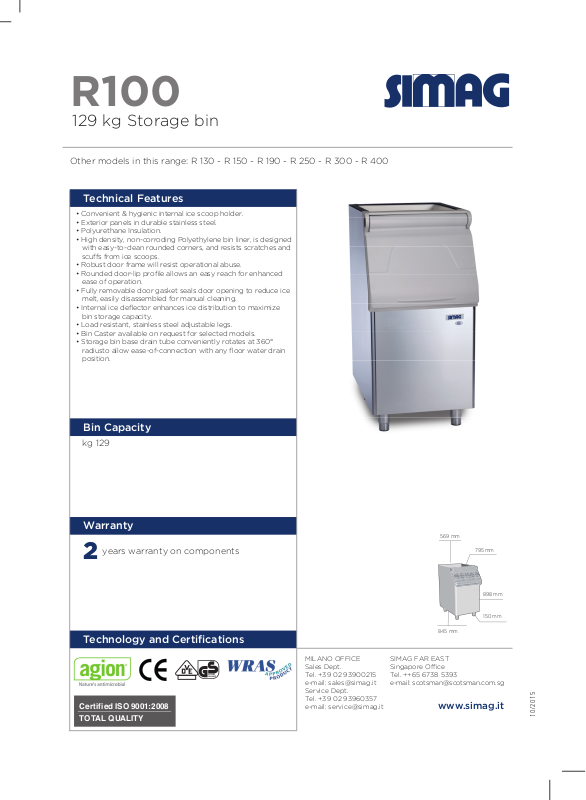

SIMAG R 100 Technical Features
R100
129 kg Storage bin
Other models in this range: R 130 - R 150 - R 190 - R 250 - R 300 - R 400
Technical Features
• Convenient & hygienic internal ice scoop holder.
• Exterior panels in durable stainless steel.
• Polyurethane Insulation.
• High density, non-corroding Polyethylene bin liner, is designed
with easy-to-clean rounded corners, and resists scratches and
scuffs from ice scoops.
• Robust door frame will resist operational abuse.
• Rounded door-lip profile allows an easy reach for enhanced
ease of operation.
• Fully removable door gasket seals door opening to reduce ice
melt, easily disassembled for manual cleaning.
• Internal ice deflector enhances ice distribution to maximize
bin storage capacity.
• Load resistant, stainless steel adjustable legs.
• Bin Caster available on request for selected models.
• Storage bin base drain tube conveniently rotates at 360°
radiusto allow ease-of-connection with any floor water drain
position.
Bin Capacity
kg 129
Warranty
years warranty on components
2
Technology and Certifications
GEPRUFTE
SICHERMEIT
Certified ISO 9001:2008
TOTAL QUALITY
MILANO OFFICE
Sales Dept.
Tel. +39 02 93900215
e-mail: sales@simag.it
Service Dept.
Tel. +39 02 93960357
e-mail: service@simag.it
569 mm
795 mm
898 mm
150 mm
845 mm
SIMAG FAR EAST
Singapore Office
Tel. ++65 6738 5393
e-mail: scotsman@scotsman.com.sg
www.simag.it
10/2015
R100
129 kg Storage bin
Other models in this range: R 130 - R 150 - R 190 - R 250 - R 300 - R 400
1034 mm
845 mm
795 mm
898 mm845 mm
1048 mm
150 mm
569 mm
Drain-diam. 20 mm
520 mm
569 mm
R 100
Net Weight
kg
36
Specifications and design are subject
to change without notice
Shipping Weight
kg
50
10/2015
