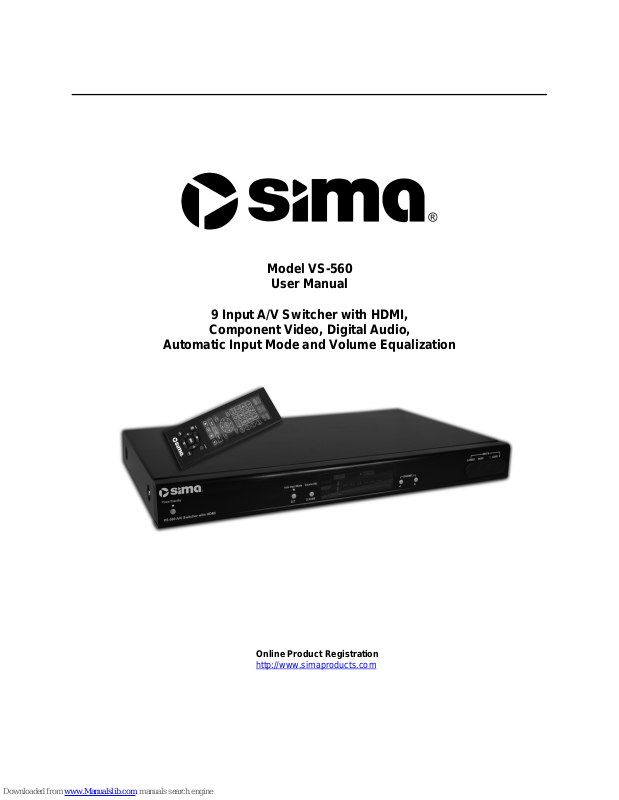

Sima VS-560 User Manual

Online Product Registration

http://www.simaproducts.com

Model VS-560

User Manual

9 Input A/V Switcher with HDMI,

Component Video, Digital Audio,

Automatic Input Mode and Volume Equalization

Page 2

Package Contents:

1 - VS-560 A/V Switcher Unit
1 - Power Adapter, (120-220VAC input, 5V DC output)
1 – Universal Remote Control (PN – 52466)
1 - Instruction Manual for VS-560 (PN-21793)
1 – Instruction manual for remote control

2009 by Sima Products Corporation.
All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without prior
written permission from Sima Products Corp.

Page 3

Caution:

IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS.

PLEASE READ CAREFULLY THE FOLLOWING IMPORTANT
SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT

1. Read instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow instructions - Follow all operating and use instructions.

5. Water and Moisture - the appliance should not be used near water - for example: near a bathtub, washbowl, kitchen sink, laundry tub, in a

wet basement or near a swimming pool.

6. Ventilation - The appliance should be located so that its location or position does not interfere with proper ventilation. For example: the
appliance should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings.

7. Heat - the appliance should be situated away from heat sources such as radiators, registers, stoves or other heat-producing appliances.

8. Power sources - the appliance should be connected to a power supply only of the type described in the operating instructions or as

marked on the appliance.

9. Grounding or polarization. - Precautions should be taken so that the polarization or grounding means of the appliance is not defeated.
Caution: To prevent electric shock, match the wide blade of this plug to the wide slot, fully insert. Do not use this polarized plug with an

extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

10. Power cord Protection - Power supply cords should be routed so they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience receptacles, and where they exit from the appliance.

11. Cleaning - Wipe unit with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong
detergents.

12. Nonuse periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

13. Object and Liquid entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

14. Damage requiring service - The appliance should be serviced by qualified personnel when: the power cord has been damaged, objects

have fallen or liquids spilled into the appliance, the appliance has been exposed to rain, does not appear to operate normally or exhibits a
marked change in performance or the unit has been dropped or the enclosure damaged.

15. Service - The user should not attempt to service the appliance beyond that described in the operating manual. All other servicing should be
referred to qualified service personnel.

Notice to Users

The system may cause interference to a TV or radio even when it is operating properly. To determine whether the system is
causing the interference, turn it off. If the interference goes away, the system is causing the interference.

NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.

• Contact your dealer for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two Conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment

Page 4

Table of Contents

PACKAGE CONTENTS: ................................................................................................................................................2

CAUTION:........................................................................................................................................................................3

INTRODUCTION ............................................................................................................................................................6

FRONT PANEL................................................................................................................................................................ 7

C

ONTROLS

............................................................................................ ..........................................................................7

REAR PANEL................................................................................................................................................................... 8

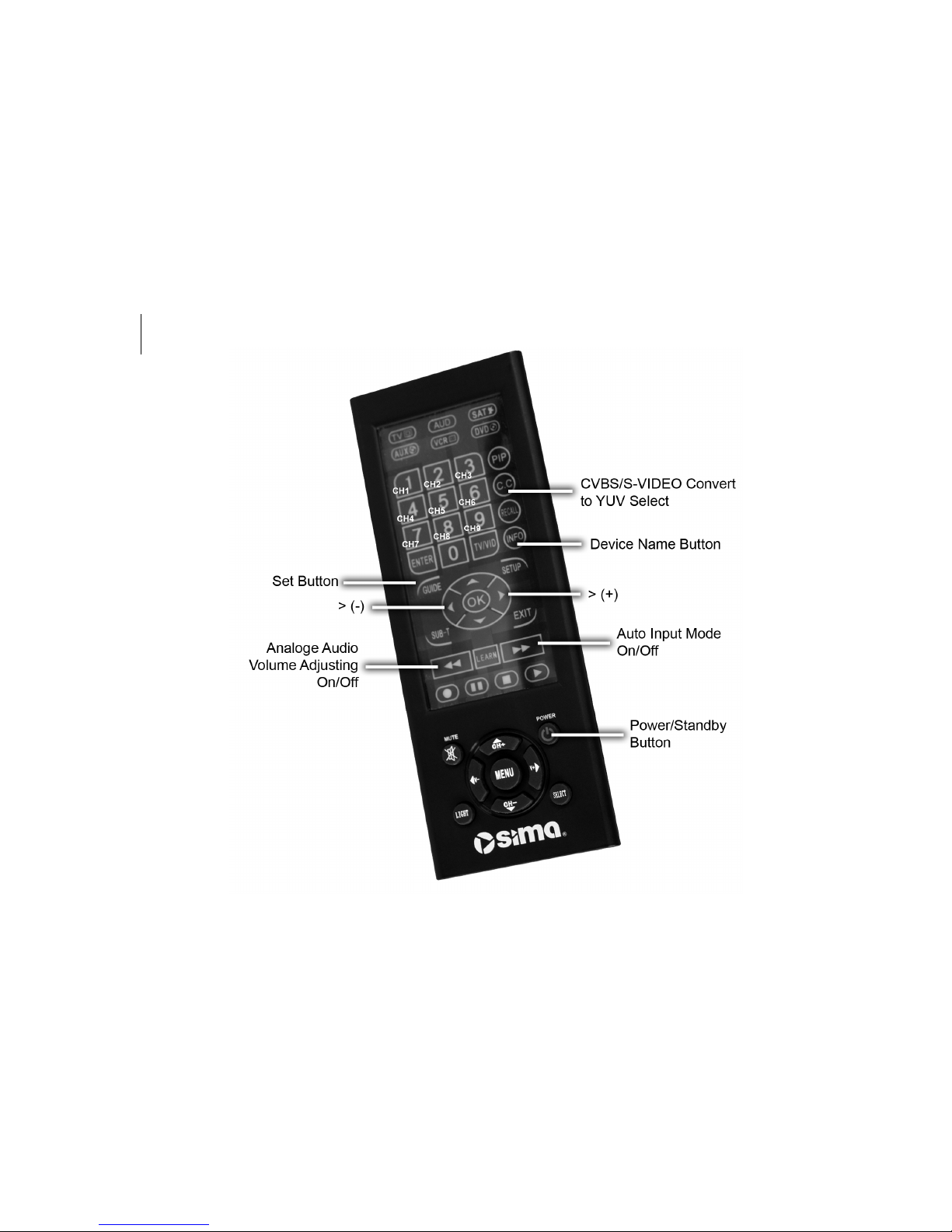

IR UNIVERSAL REMOTE CONTROL........................................................................................................................9

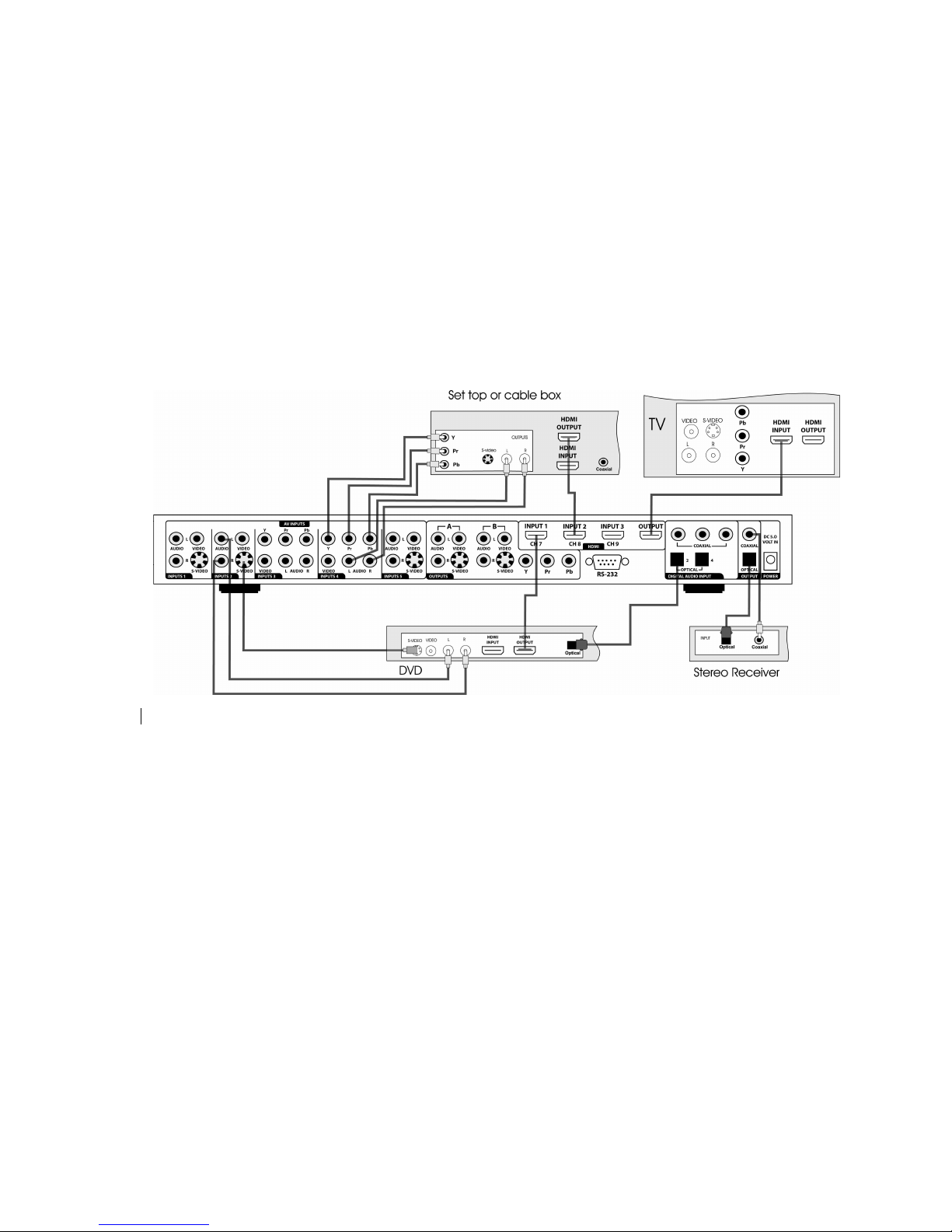

TYPICAL HOOK UP.....................................................................................................................................................10

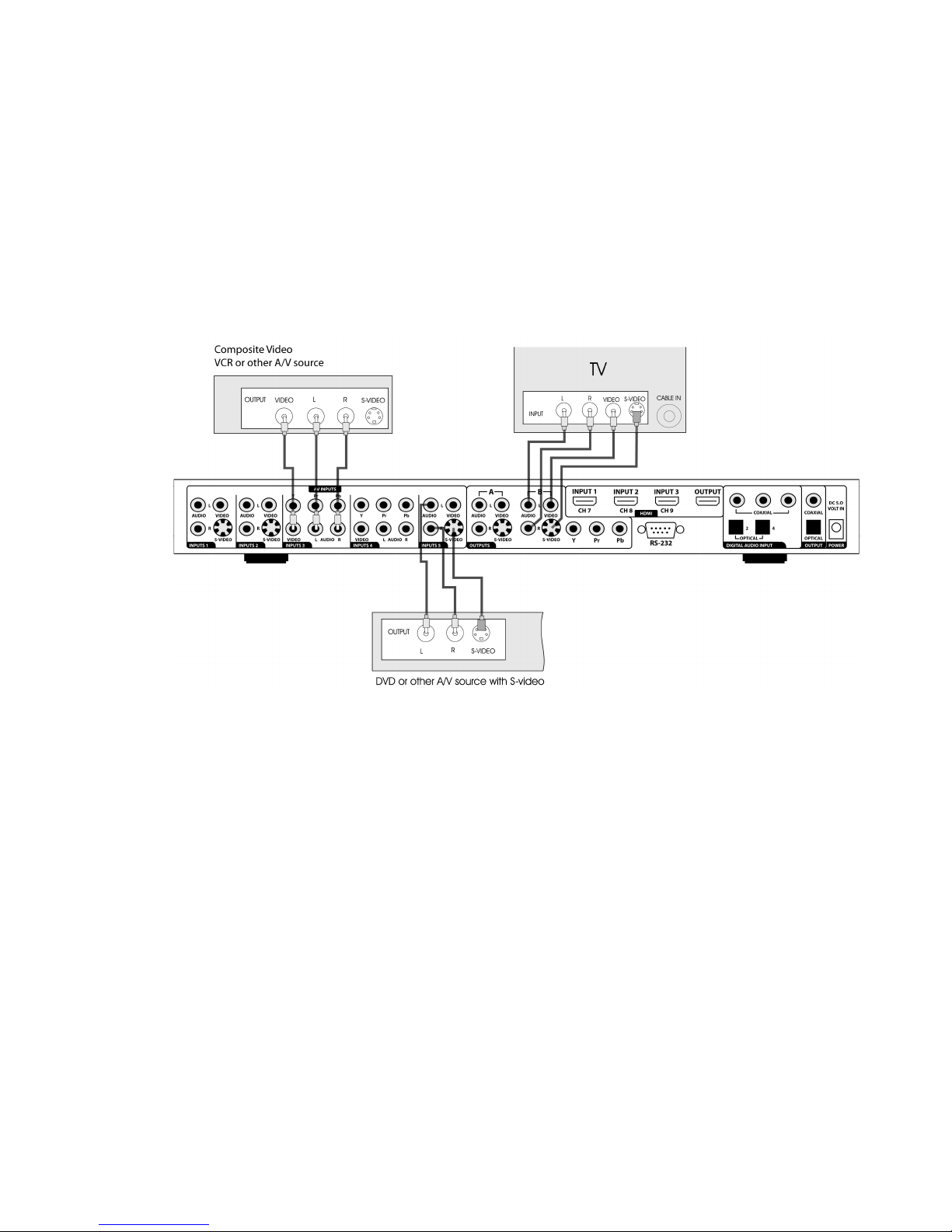

BASIC HOOK-UP #1: CONNECTING TWO SOURCES.........................................................................................11

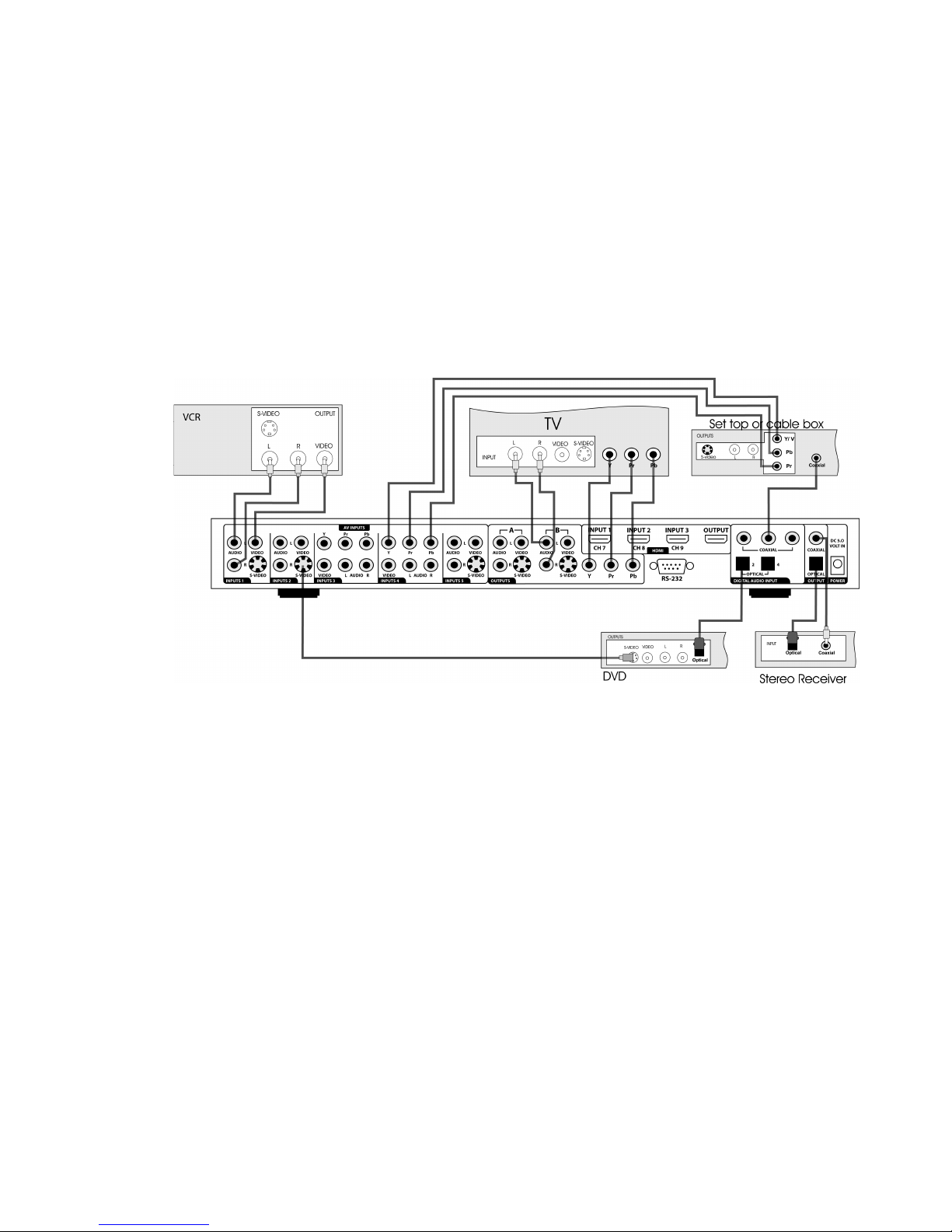

BASIC HOOK-UP #2: CONNECTING DIFFERENT VIDEO TYPES....................................................................12

BASIC HOOK-UP #3: CONNECTING HDMI SOURCES........................................................................................ 13

OPERATION..................................................................................................................................................................14

P

OWER

.................................................................................................. ........................................................................14

A

UTO INPUT MODE

............................................................................... ........................................................................ 14

V

OLUME EQUALIZATION ADJUSTMENT

................................................ ........................................................................14

D

IGITAL AUDIO CONVERSION

............................................................... ........................................................................ 14

HOW IT WORKS...........................................................................................................................................................15

S

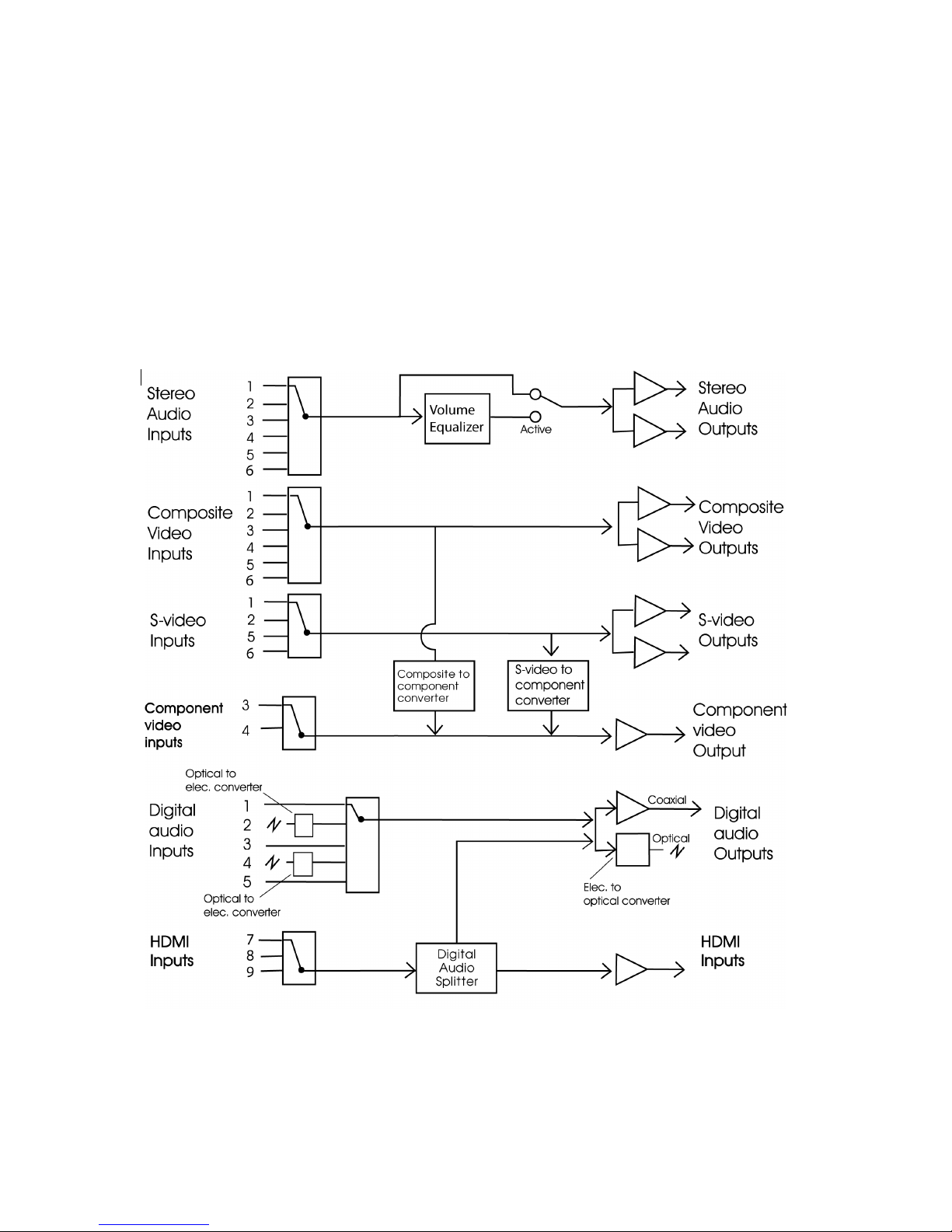

IMPLIFIED BLOCK DIAGRAM

............................................................... ........................................................................ 15

A

UTOMATIC INPUT SENSING

................................................................. ........................................................................ 16

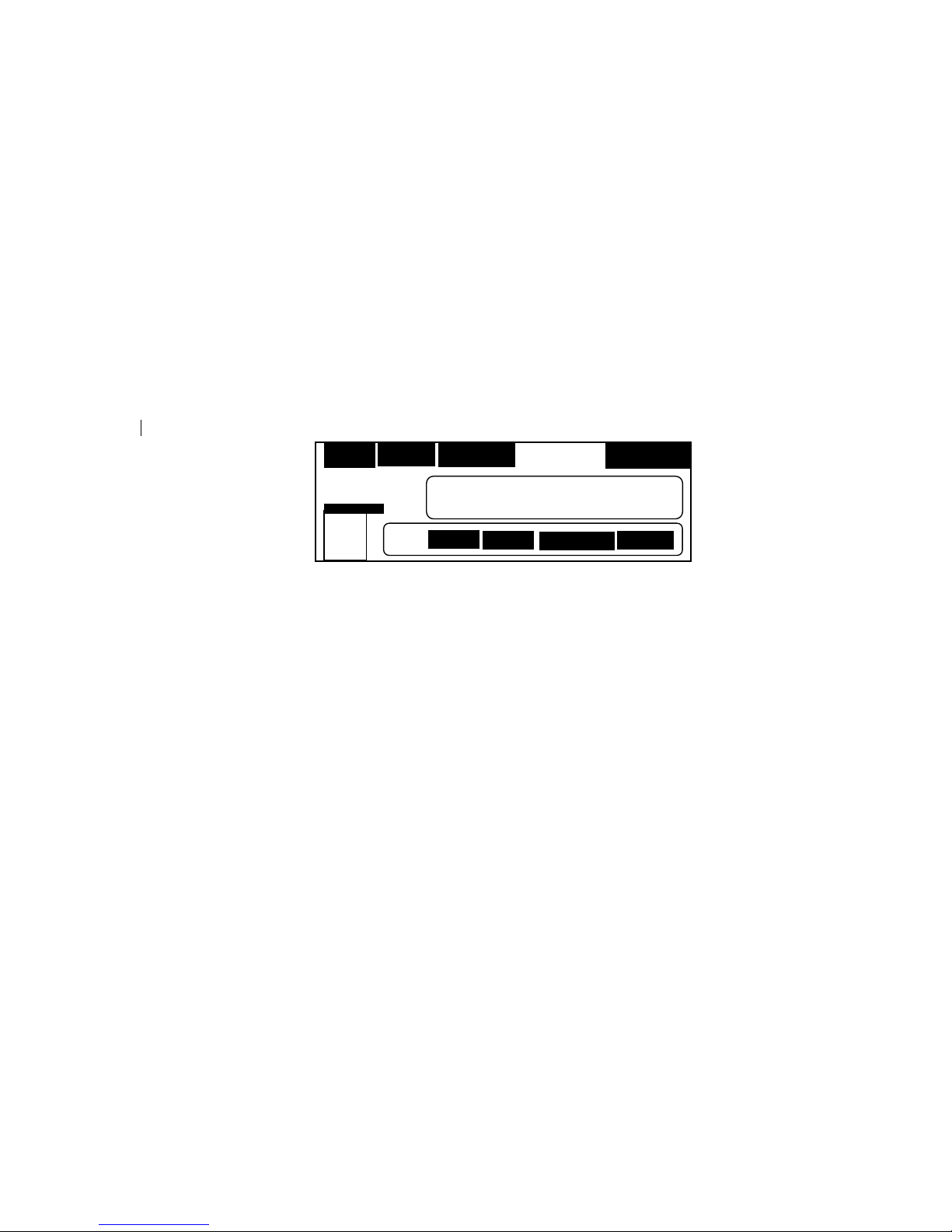

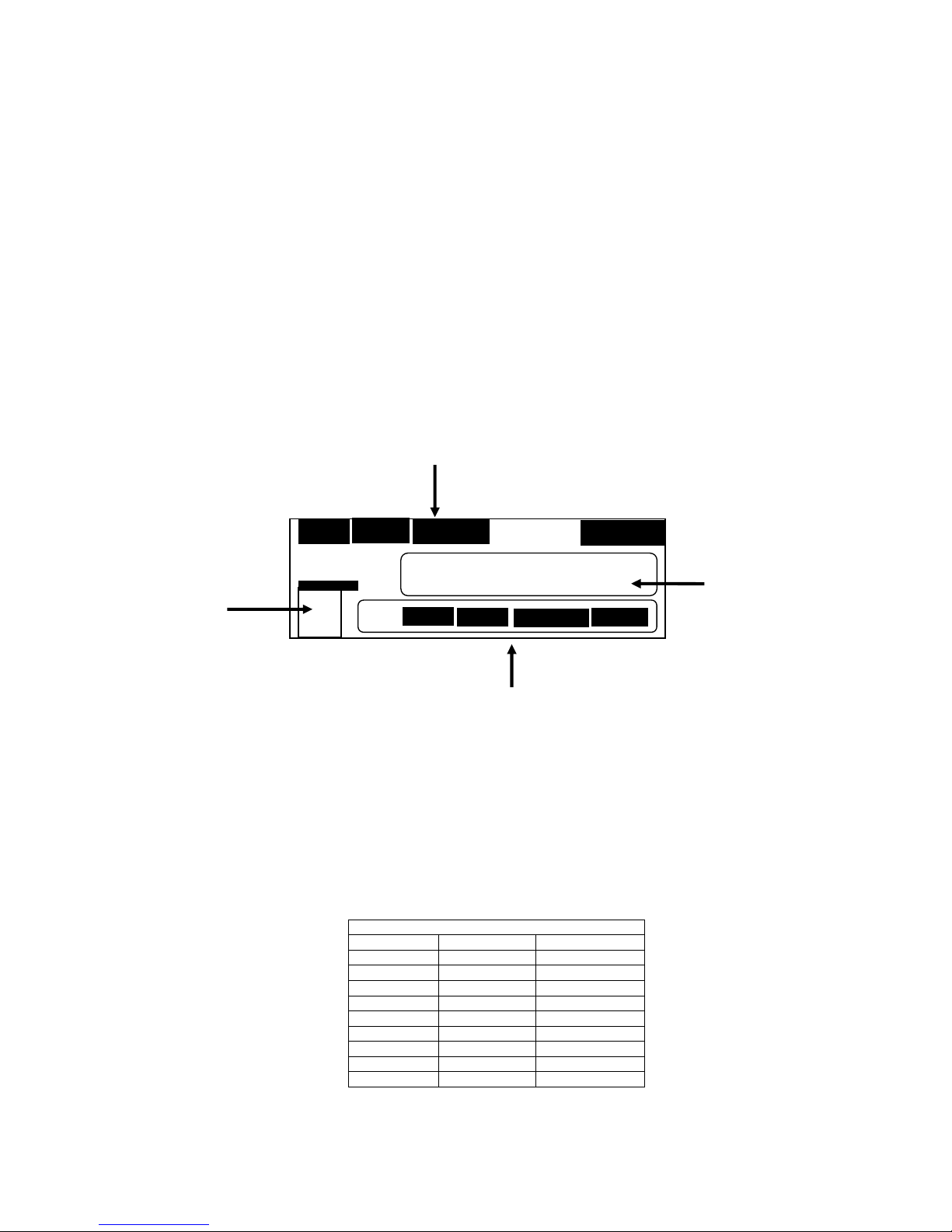

LCD SCREEN.................................................................................................................................................................16

RS-232C INTERFACE................................................................................................................................................... 18

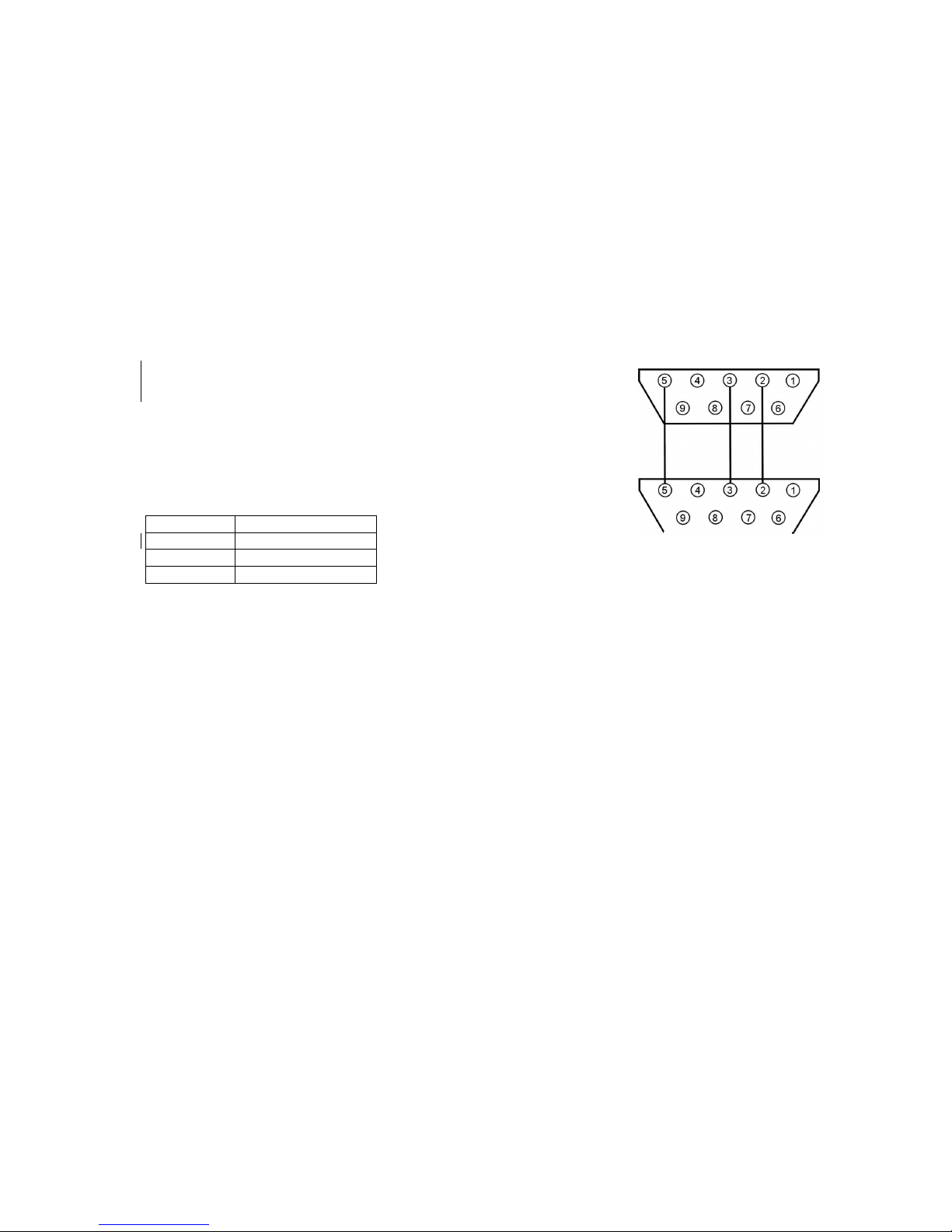

RS-232C C

ONNECTION

......................................................................... ........................................................................18

RS232 C

OMMAND STRUCTURE

............................................................ ........................................................................ 19

TROUBLE SHOOTING ................................................................................................................................................ 20

TERMS............................................................................................................................................................................ 20

TECHNICAL SPECIFICATIONS................................................................................................................................21

LIMITED WARRANTY................................................................................................................................................22

SYSTEM ORGANIZATION CHART..........................................................................................................................23

Page 5

Introduction

Congratulations on purchasing Sima’s Model VS-560, 9 Input A/V Switcher with HDMI,
Component Video, Digital Audio, Automatic Input Mode and Volume Equalization. It has been designed for
use with Home Theater, DSS Satellite, DVD, HDTV, Video Games, Audio Recording Equipment, as well as
for background music applications.

The VS-560 has the following features:

• High Bandwidth - low noise audio / video switching for today’s high quality systems.

• Nine A/V Inputs plus HDMI, component video and digital audio - to allow you to add more A/V

sources such as HDMI, DVD, satellite dish, VCR, HDTV, games, and more to your TV and home theater
system.

• Convenient Front Panel - A/V input for connecting camcorder or portable video player.

• Front panel LCD screen – displays input selection, channel information, video format and volume level.

• Video Signal Conversion - Simplifies connections and cable hook-up. Up Converts Composite video to

Component video, and S-Video to Component.

• Digital Audio Conversion - Simplifies your hook-up by providing outputs for both coaxial and optical
(Toslink™) audio signals regardless of the source.

• Digital Audio Splitter - Simplifies your hook-up by splitting off the digital audio from the HDMI inputs, and
routes the signal to the optical and co-axial audio outputs

• Automatic Input Mode (Auto Input) - detects and switches to the most recent active input without
manual selection. Simply turn on your DVD and the VS-560 directs the video and audio from this device
automatically to the TV and audio receiver.

• Volume Equalization - Equalizes audio line levels from a dynamic range of 6 to -6 dB.

• IR Universal Remote Control - to select a different input or mode. Also learns commands to operate

other home theater and A/V equipment.

• RS-232 Interface - to allow the VS-560 to be controlled by home automation equipment or a PC. (Cable
not included)

• NTSC and PAL Compatible

Page 6

Front Panel

Figure 1, VS-560 front panel

Controls

1 - Power / Standby - Press to toggle the unit

between modes. The red Standby indicator
above the button will be lit when the unit is in
Standby Mode. Light turns Blue when power
is on.

2 - Auto Input Mode - Press Set button to turn

the Auto Input mode on or off. When on, the
unit will scan the video inputs, automatically
turn on and switch to the most recently active
input device. Also use this button to set
dynamic range levels.

3 - Volume Adjustment – Display name -

Equalizes audio line levels from a dynamic
range of 6 to -6 dB. Also use this button to
select pre-programmed display names or
create custom display names.

4 - IR Receive Window
5 – Channel (< + >) – For selecting A/V input

channels 1-9. Also use < > to select alpha
numeric characters for display names and to
set the volume levels for each input.

6 - Input 6 Jacks – Front panel input for ease of
use.

4 1 5 6 3 2

Page 7

Rear Panel

Figure 2, VS-560 rear panel

Inputs 1 & 2
Audio/Video
S-video

Inputs 3 & 4
Audio/Video
Component

Input 5
Audio/Video
S-video

Outputs
(2) Audio/Video
(2) S-video
(1) Component

HDMI
(3) Inputs
(1) Output

RS-232

Digital Audio Inputs
Coaxial 1, 3, 5
Optical 2, 4

Digital Audio Outputs

Coaxial

,

Optical

Power

5V DC
