Sima VS-502 User Manual

5 Input A/V Switcher

with Component Video, Digital Audio, Automatic Input Mode and Volume

Stabilizer

Model VS-502

User Manual

Online Product Registration

http://www.simacorp.com

Package Contents:

1 - VS-502 A/V Switcher Unit 1 - Power Adapter, (120VAC input, 15VDC output) 1 - IR Remote Control, with Batteries 1 - Instruction Manual

Caution:

IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS.

PLEASE READ CAREFULLY THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT

1. Read instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow instructions - Follow all operating and use instructions.

5. Water and Moisture - the appliance should not be used near water - for example: near a bathtub, washbowl, kitchen sink, laundry tub, in a

wet basement or near a swimming pool.

6. Ventilation - The appliance should be located so that its location or position does not interfere with proper ventilation. For example: the appliance should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings.

7. Heat - the appliance should be situated away from heat sources such as radiators, registers, stoves or other heat-producing appliances.

8. Power sources - the appliance should be connected to a power supply only of the type described in the operating instructions or as

marked on the appliance.

9. Grounding or polarization. - Precautions should be taken so that the polarization or grounding means of the appliance is not defeated. Caution: To prevent electric shock, match the wide blade of this plug to the wide slot, fully insert. Do not use this polarized plug with an

extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

10. Power cord Protection - Power supply cords should be routed so they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and where they exit from the appliance.

11. Cleaning - Wipe unit with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

12. Nonuse periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

13. Object and Liquid entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

14. Damage requiring service - The appliance should be serviced by qualified personnel when: the power cord has been damaged, objects

have fallen or liquids spilled into the appliance, the appliance has been exposed to rain, does not appear to operate normally or exhibits a marked change in performance or the unit has been dropped or the enclosure damaged.

15. Service - The user should not attempt to service the appliance beyond that described in the operating manual. All other servicing should be referred to qualified service personnel.

Notice to Users

The system may cause interference to a TV or radio even when it is operating properly. To determine whether the system is causing the interference, turn it off. If the interference goes away, the system is causing the interference.

NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.

• Contact your dealer for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two Conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

Table of Contents

PACKAGE CONTENTS: ...................................................................1

CAUTION: ...........................................................................................2

INTRODUCTION................................................................................4

Page 2

FRONT PANEL................................................................................... 5

REAR PANEL .....................................................................................6

IR REMOTE CONTROL................................................................... 7

TYPICAL HOOK UP ......................................................................... 8

OPERATION..................................................................................... 11

POWER.............................................................................................. 11

INPUTS.............................................................................................. 11

AUTO INPUT MODE...........................................................................11

VOLUME STABILIZER ACTIVE........................................................... 11

VOLUME STABILIZATION ADJUSTMENT............................................ 12

HOW IT WORKS ............................................................................. 13

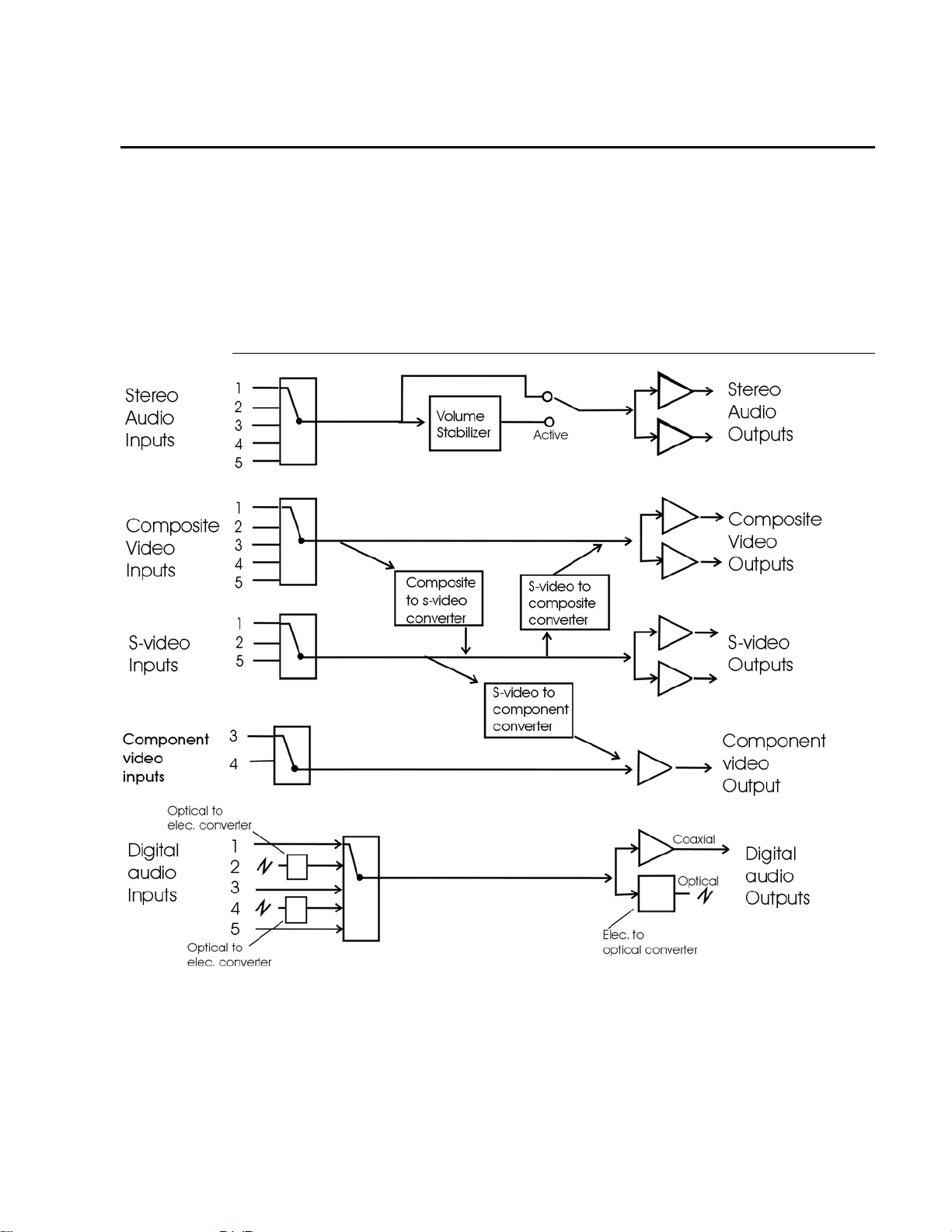

SIMPLIFIED BLOCK DIAGRAM........................................................... 13

AUTOMATIC INPUT SENSING............................................................. 13

VOLUME STABILIZATION.................................................................. 14

VOLUME STABILIZER INPUT / OUTPUT CURVES................................ 14

VIDEO CONVERSION......................................................................... 15

DIGITAL AUDIO CONVERSION ..........................................................15

RS-232C INTERFACE .....................................................................16

RS-232C CONNECTION ....................................................................16

VIDEO COMMANDS....................................................................... 17

ADVANCED SYSTEM COMMANDS............................................19

ADVANCED DIGITAL AUDIO MAPPING .............................................19

FACTORY SYSTEM SETTINGS RESTORE............................................. 19

TERMS............................................................................................... 20

TECHNICAL SPECIFICATIONS -................................................21

LIMITED WARRANTY...................................................................22

System Organization Chart.......................................................... 24

Page 3

Introduction

Congratulations on purchasing Sima’s Model VS502, 5 Input Audio / Video Switcher with Automatic

Input Mode (Auto Input) and Volume Stabilization. It has been designed for use with Home Theater, DSS Satellite, DVD, HDTV, Video Games, Audio Recording Equipment, as well as for background music applications.

The VS-502 has the following features:

• High Bandwidth- low noise audio / video

switching for today’s high quality systems.

• Five A/V Inputs plus component video and

digital audio to allow you to add more A/V sources such as DVD, satellite dish, VCR, HDTV, games, and more to your TV and home theater system.

• Convenient Front Panel - A/V input for

connecting camcorder or portable video player.

• Video Signal Conversion - Simplifies

connections and cable hook-up. Up Converts

Composite video to S-Video, and S-Video to

Component. Down-Converts S-Video to

Composite.

• Digital Audio Conversion - Simplifies your

hook-up by providing outputs for both coaxial and optical (Toslink™) audio signals regardless of the source.

• Automatic Input Mode (Auto Input) detects

and switches to the most recent active input without manual selection. Simply turn on your DVD and the VS-502 directs the video and audio from this device automatically to the TV and audio receiver.

• Volume Stabilization - Maintains constant

audio volume levels for late night viewing or when channel surfing. It can also be adjusted to add impact to older movies by increasing the dynamic range.

• IR Remote control to select a different input or

mode.

• Brightness Control - Front panel display allows

you to dim the lights for nighttime use (via the remote only).

• RS-232C Interface to allow the VS-502 to be

controlled by home automation equipment or a

PC. (Cable not included)

• NTSC and PAL Compatible

Page 4

Front Panel

1 2 3 4 6

Figure 1, VS-502 front panel

Controls

1 - Power / Standby - Press to toggle the unit

between modes. The red Standby indicator

above the button will be lit when the unit is in Standby Mode.

2 - Auto Input Mode - Press to turn the Auto Input mode on or off. When on, the unit will scan the video inputs and automatically turn on and switch to the most recent input device turned on.

3 - Inputs 1 through 5 - Press to select the

desired input to send to the outputs. The

green LED indicator will light to show the

currently selected input.

4 - IR Receive Window

5 - Volume Stabilizer Active - Press to turn

Volume Stabilizer on or off. The amber

indicator light will be lit next to the selected adjustment level. Indicator light is off when the Volume Stabilizer is bypassed.

6 - Volume Stabilizer Knob - This controls the

amount of dynamic range you want from 10:1 (compressed – constant audio) to 1:1 setting, (no effect) to 1:2 (expanded – increased dynamic range).

7* - Input Jacks – Input # 5

*Note: These jacks cannot be used if input #5 on the back panel is connected.

Page 5

Rear Panel

2 3 4 1 8 9 10 5 126 7 11

Figure 2, VS-502 rear panel

1 - Left and Right Audio Inputs, 1 through 5

from the audio output of your VCR, DSS or DVD devices.

2 - Composite Video Inputs; 1, 2, 3, 4, & 5 from

the composite video output of your VCR, DSS or DVD devices.

3 - S-Video Inputs; 1, 2, & 5 from the S-Video

output of your VCR, DSS or DVD devices.

4 - Component Video Inputs; 3 & 4 from the

video output of your Cable Box, DSS or DVD devices.

5 - Left and Right Audio Outputs that connect to

the audio inputs on your TV, VCR or surround sound receiver.

6 - S-Video and Composite Video Outputs that connects to your TV or monitor.

7 - Component Video Output that connects to

your TV or monitor.

9 - Coaxial Inputs for Digital Audio - Inputs 1, 3,

& 5 have coaxial connectors to connect to the coaxial output of your DVD, CD player etc.

10 – Optical and Coaxial Output for Digital

Audio - Connect the digital output of the VS-502 to the digital audio input of stereo receiver.

11 – RS-232C Connect to your home automation

system or PC.

12 – 15V DC Input from the AC wall power supply

Note: The rear panel inputs #5 can not be used if input #5 on the front panel are connected.

8 - Optical Inputs for Digital Audio – Inputs 2 & 4

have TosLink connectors to connect to the optical output of your DVD, CD player etc.

Page 6

IR Remote Control

The IR remote control allows you to control all of the functions available from the

unit’s front panel, with the addition of a DIM setting.

POWER – Toggles between Active and Standby mode. DIM - Pressing this button cycles through four levels of brightness on the front panel

lights-100%, 75%, 50%, 10%.

VOLUME STABILIZER ACTIVE - Toggles between the Volume Stabilizer being

Active or in the Bypass mode.

AUTO SCAN - Toggles between the Auto Input Selection mode being on or off. INPUT SELECT 1 through 5 - Selects desired input.

Be sure to install the two AAA batteries in the remote before using. Slide the cover open on the remote in the direction of the arrow and install the batteries as shown inside the unit.

Fig. 3

Page 7

Typical Hook up

Step 1

Connect the AC adapter to 120 VAC and plug the DC cord into the 15 VDC input on the rear of the VS-

502.

Step 2

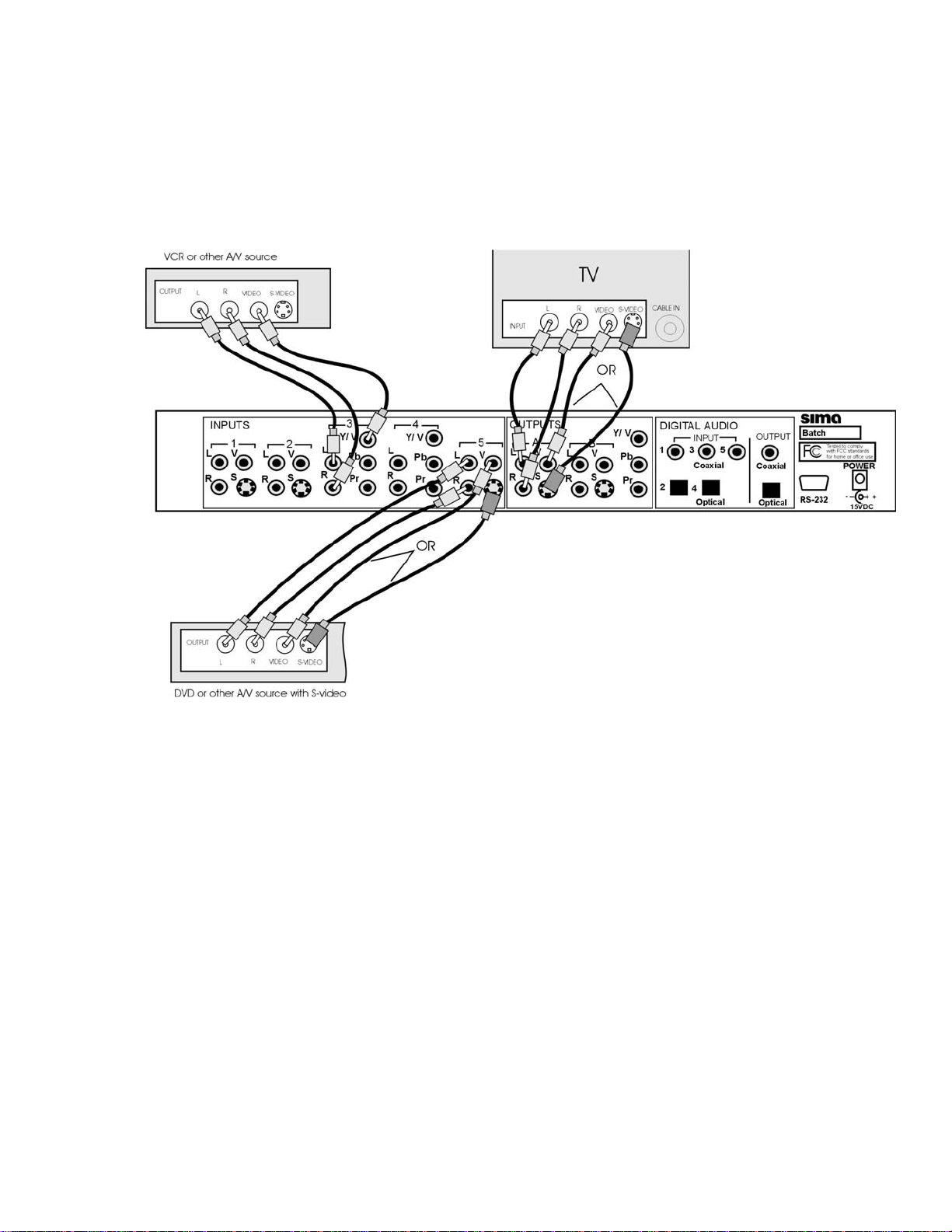

You will need to determine how you want to use your system. We have provided two sample hook-up

diagrams to help you determine how to connect the components of your system. You can use the last page of this manual as an organizer for your equipment. Read the following notes before installing the

VS-502 into your system.

 Note: The VS-502 does not convert analog audio to digital audio or vice versa.

If you have a combination of standard composite video (RCA type jacks) and S-Video (mini-din jacks) on your equipment you can only feed one or both cables to any given input of the VS-502.

Option 1: For ease of use, the VS-502 has a composite to S-Video converter. You can feed a combination of composite and S-Video to the VS-502 and feed only a S-Video signal to your TV. This lets you use just one S-Video input on your TV and all sources will automatically be displayed there.

Option 2: Additionally, the VS-502 has a S-Video to composite converter. You can feed a combination of composite and S-Video to the VS-502 and feed only a composite signal to your TV. This lets you use just one composite input on your TV and all sources will automatically be displayed there.

Option 3: The VS-502 has a composite to component converter. You can feed a combination of composite, s-video and component to the VS-502 and feed only a component signal to your TV. This lets you use just one component input on your TV and all sources will automatically be displayed there.

Page 8
