Introduction
Congratulations on your purchase of the Sima SUP-2 Universal Power Adapter. It
can power digital cameras and other portable electronic devices requiring 3.3 / 4.2 / 5.0
/ 6.5 / 8.4 or 9.5V DC power. The SUP-2 can also provide power for other devices. It is
fully regulated using high efficiency switching technology and features overload and
short circuit protection. The SUP-2 comes with seven connectors to fit different digital
cameras and other electronic devices. Additional connectors are available from Sima.
This package Includes:
1 AC adapter 7 Center pin positive connectors
120 VAC 12V DC
1 12V car lighter cord 1 SUP-2 This Manual
or
Operation

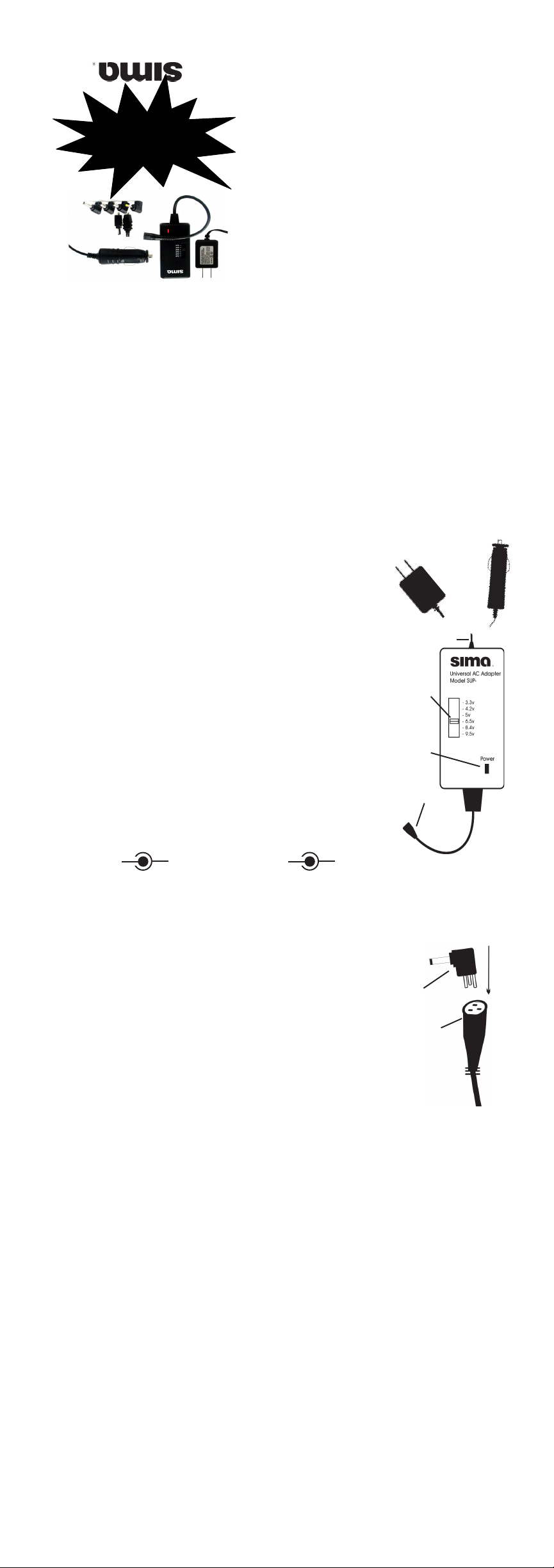

1. Set the output voltage switch, as illustrated in Fig. 1, to
the desired output for your device. Choose from the
following settings: 3.3 / 4.2 / 5.0 / 6.5 / 8.4 or 9.5 V.
Output
The SUP-2 comes with seven standard connectors. The
connectors allow you to match the size and polarity of
Voltage
Switch
your device’s DC input jack. If your device requires other
types of connectors, contact Sima customer service at
800-345-7462.
The connectors supplied with the SUP-2 are all set in a
center pin positive alignment ( Fig. A) If your device
requires a center pin negative power source (Fig. B)
do not use this adapter. To determine the required
current and correct polarity for your device, refer to the
manufacturer’s instruction manual or specifications
Fig. A
OK
+ -
Fig. B
No
- +
2. Select the appropriate connector and attach it to the output socket at the end of the
output cord. The connectors are numbered as follows: 1, 2, 4, 5, 13, 14 & 17. To
identify the correct connector for your camera, see the list of digital cameras on the
reverse side of this sheet. If unsure, use the connector that fits the power jack of
your camera. The three-pin connectors are designed to fit into
the socket in only one position. Align the pins as shown at
right in Fig. 2. Do not force.
Input
2
Power
light
Output
socket
Fig. 1
3. Insert the connector into the power jack on your portable device.
4. Plug either the AC adapter or the car cigarette lighter cord
into the SUP-2’s input power jack located at the top of the
Connector
Output
socket
unit. Note: Do not plug the AC adapter or car cord
directly into anything except the SUP-2. Next, plug the
AC adapter (or car cord) into a standard AC wall outlet (or
car lighter). The red power light on the SUP-2 should turn
on. You can now operate your device.
Fig. 2
IMPORTANT: Your portable device must be rated between 3 - 10V DC and no more
than 2100 mA of current to use the SUP-2. If the exact voltage for your device is not
listed below and is less than 10V, you can try setting the voltage switch to the
nearest voltage – use the lower setting first. If the device does not operate, disconnect
the connector from the device, reset the voltage switch to the next higher setting
and re-connect. Do not continue trying higher settings as they may result in
damage to your device or the adapter.
The SUP-2’s current (mA) must be equal to or greater than the current your portable
device requires. Remember 1A = 1000mA, 0.5A = 500mA. Use the following chart
to determine the output current from the SUP-2:
Output Max. Output Max.
Voltage Current Voltage Current
3.3V = 2.1A 6.5V = 1.7A
4.2V = 2.0A 8.4V = 1.6A
5.0V = 1.9 A 9.5V = 1.5A
Resetting the Adapter
CAUTION: If the power light turns off, check the power source. If on, the output current may be
beyond the AC adapter’s specifications and the overload protection has been activated.
To reset the adapter:
1. Disconnect the AC adapter from the AC outlet and the device you are powering. Wait 10 seconds.
2. Plug the AC adapter into the AC outlet again. If the indicator remains off, there may be a problem
with the AC adapter. Contact Sima customer service for assistance.
Page 2
Specifications:
AC adapter input: 120V AC, 60 Hz
AC adapter output: 13.5V DC, 1.2A
SUP-2 input: 12-15V DC,
Output rating: 3.3 / 4.2 / 5 / 6.5 / 8.4 or 9.5V DC
DC cord length: 1 m
Operation Temp: 32 to 113 degrees F
Storage temp.: -4 to 140 degrees F
Dimensions: 4” x 2.1” x 1.4”
Plug # Size (diameter)
1 4.0 mm x 1.7 mm
2 4.75 mm x 1.7 mm
4 Sony L/M
5 Sony S/C
13 3.5 mm x 1.35 mm
14 5.5 mm x 2.1 mm
17 Sony FC
Safety warnings and Cautions
WARNING: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture.
CAUTION: To reduce the risk of electric shock, do not remove cover or back. No user serviceable parts
inside. Refer servicing to qualified personnel.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for your AC power adapter. Before using
your adapter, read all instructions and cautionary markings on the product.
DANGER: To reduce the risk of fire or electric shock, follow these instructions.
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Your adapter is ETL listed to
UL standards and meets all applicable FCC standards.
WARNING: Changes or modifications to this unit not expressly approved by Sima may cause interference
and void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:1. Re-orient or relocate the receiving antenna. 2. Increase the separation between the
equipment and receiver. 3. Consult Sima customer service at 800-345-7462 if the problem still exists.
CAUTIONS: ·The adapter must attach to the power supply source with a built-in over-current protective
device (Max. 15A), such as a 15A fuse and branch circuit.· Make sure the adapter is disconnected from the AC
outlet and device before adjusting the voltage setting.·Do not use the adapter to power a device that exceeds
the maximum power rating.·
Note: The SUP-2’s voltage must be the same as the voltage your portable device requires.·The SUP-2’s
current (mA) must be equal to or greater than the current your portable device requires.
Digital Camera/Camcorder SUP-2 Connector Plug Chart
Brand Model # Voltage Plug #
AGFA ePHOTO CL-30, CL-34, CL-50, 307, 780, 780C, 1280, 1680 6.5V 1
CANON IXUS, IXUS V,V2, V3, 100, 110, 230, 300, 330 4.2V 13
CANON A10, A20, A30, A40 4.2V 1
CASIO QV-10A, QV-11, QV-70, QV-100, QV-120, QV-200, QV-300, QV-700,
QV770, QV-780, QV-2000UX, QV-2300UX, QV-2400UX, QV-2800UX,
QV-2900UX, QV-3000EX, QV-3000Plus, QV-3500EX, QV-4000E,
QV-5000SX, QV-5500SX, QV-7000SX, QV-8000SX 6.5V 1
EPSON PC 550, PC 600, PC 650, PC 700, PC 750Z, PC800Z, PC850Z, PC2100Z,
PC3000Z, PC3100Z 6.5V 2
FUJIFILM Finepix 50i,1300, 1400Z, 2300, 2400Z, 2700Z, 2800Z, 2900, 3800, 4800Z,
4900Z, 6800Z, 6900Z, DX-10, F401, F402, F601, M603, MX-500, MX-600Z,
MX-700, MX-1200, MX-1400, MX-1500, MX-1700Z, MX-2700, MX-2900Z,
S1 Pro, S2 Pro, S304, S602 5V 1
HP PhotoSmart 120, 315, 318, 320, 612, 620, 720, 850 6.5V 1
KODAK DC40, DC50, DC120, DC200, DC200 plus, DC210, DC210 plus, DC215,
DC220, DC240, DC240i, DC260, DC265, DC280, DC290, DC3200z,
DC3400z, DC5000z 6.5V 2
KODAK DC4800, LS443 5V 1
KYOCERA Finecam S3, S3L, S4, S5 5V 1
MINOLTA Dimage 5, 7, 7Hi, 7i, 3D 1500, EX1500, 2300, 2330z, E201, RD3000,
S304, S404 6.5V 2
NIKON Coolpix 100, 300, 600,700, 750, 800, 900, 950, 990, 2000 6.5V 2
NIKON CoolPix 775, 880, 885, 995, 4300, 4500, 5000, 5700 8.4V 2
OLYMPUS C-100, C-120, C-200Z, C-211, C-300Z, C-320L, C-700UZ, C-720UZ,
C-730UZ, C-960Z, C-990Z, C-2000Z, C-2020Z, C-2030, C-2040Z,
C-2100Z, C-2500L, C-3000Z, C-3020Z. C-3030Z, C-3040Z, C-4000Z,
C-4040Z, C-5050Z, D-200L, D-220L, D-320L,D-340L, D-340R, D-360L,
D-370L, D-400Z, D-450L, D-450Z, D-460Z, D-500L, D550Z, D-600L,
D-620L, E-10, E-20, E-20P, E-100 RS 6.5V 2
OLYMPUS C-1, C-1Z, C-2, C-40Z, C-220Z, D-40Z, D-100, D-150Z, D-230 3.3V 1
OLYMPUS C-50Z 4.2V 1
PANASONIC DMC-F7 5V 1
PANASONIC DMC-FZ1 8.4V 2
PANASONIC DMC-LC5, DMC-LC40 8.4V 2
PENTAX Optio 330RS, 430RS 4.2V 1
PREMIER DC620, 820, 1310, 1311, 1500, 2000 6.5V 2
RICOH Caplio PR1, Caplio PR10, Caplio PR120, RDC-2, RDC-2E, RDC-300,
RDC-300Z, RDC-4200, RDC-4300, RDC-5000, RDC-5300, RDC-6000,
RDC-7, RDC-i500, RDC-i700 5V 1
SANYO VPC-MZ1, VPC-AZ1 3.3V 1
SIMA CP-150 Image Bank (Digital Photo Storage Unit) 6.5V 1
SONY CD200, CD250, CD300, CD400, CD450, CD1000, F707, F717, FD85, 8.4V 4
FD87, FD90, FD92, FD95, FD97, FD100, FD200, S50, S70, S75, S85
SONY P1, P2, P3, P5, P9, P20, P30, P31, P50, P51, P71 4.2V 5
SONY Cybershot DSC P8, P10, P32, P52, P72, P92, V-1 4.2V 17
TOSHIBA PDR-M1, M3, M4, M5, M11, M21, M25, M60, M61, M65, M70, M71, M81 5V 1
Remarks: For more information about connector plugs for the SUP-2,
see our website at www.simacorp.com
Sima Products Corporation 140 Pennsylvania Ave. Bldg #5
Oakmont, PA 15139 USA
800-345-7462 www.simacorp.com
Made in Taiwan © 2003 Sima Products Corporation PN21697
