Sima SPM-3 Instructions Manual

~
POWERMAX'
Camcorder Battery
Quick Charger
and Reconditioner
INSTRUCTIONS
MODEL SPM-1
PlUS

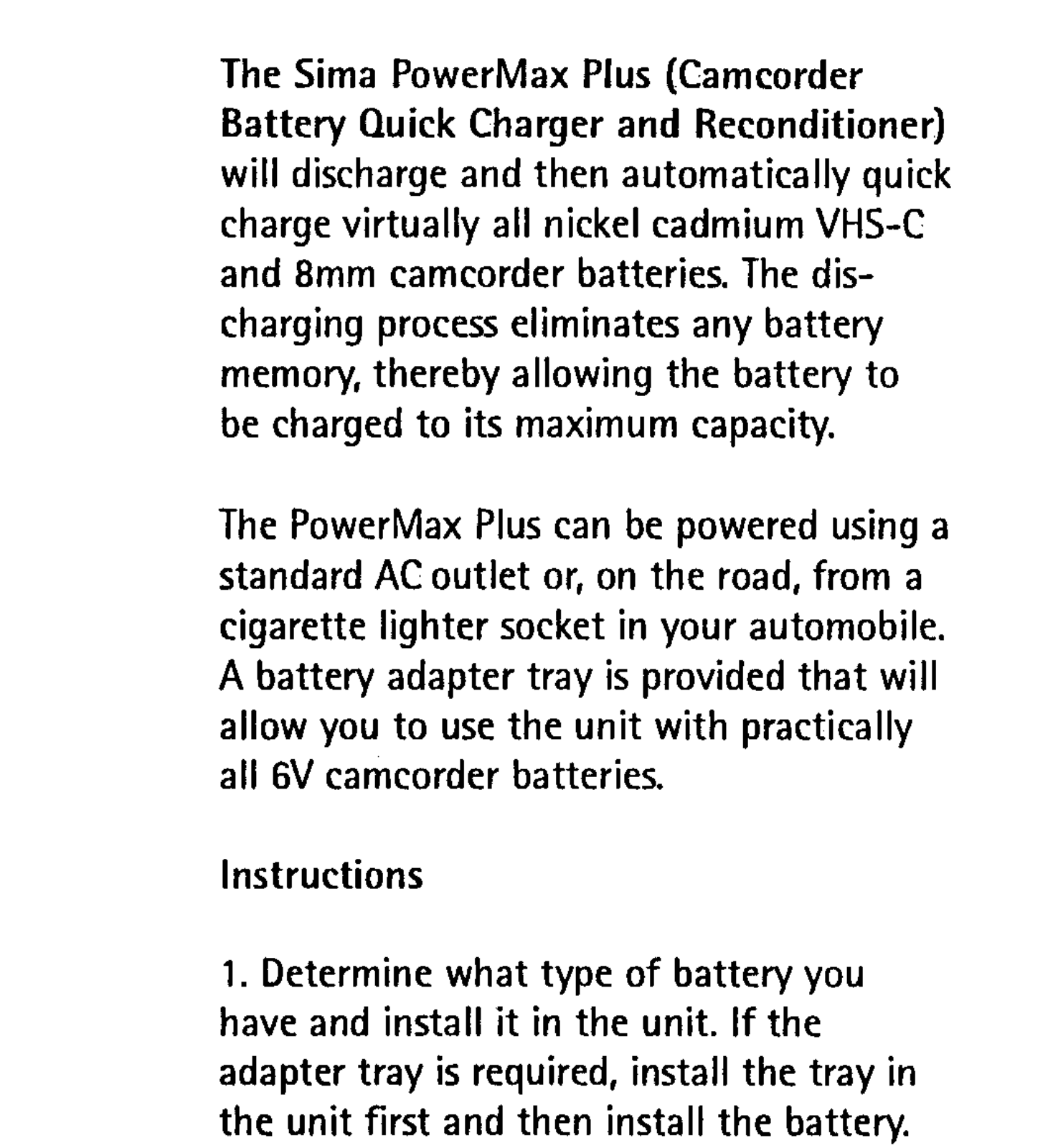

The PowerMax Plus can be powered using a standard AC outlet or, on the road, from a cigarette lighter socket in your automobile. A battery adapter tray is provided that will allow you to use the unit with practically all 6V camcorder batteries.
Instructions
1. Determine what type of battery you have and install it in the unit. If the adapter tray is required, install the tray in the unit first and then install the battery.

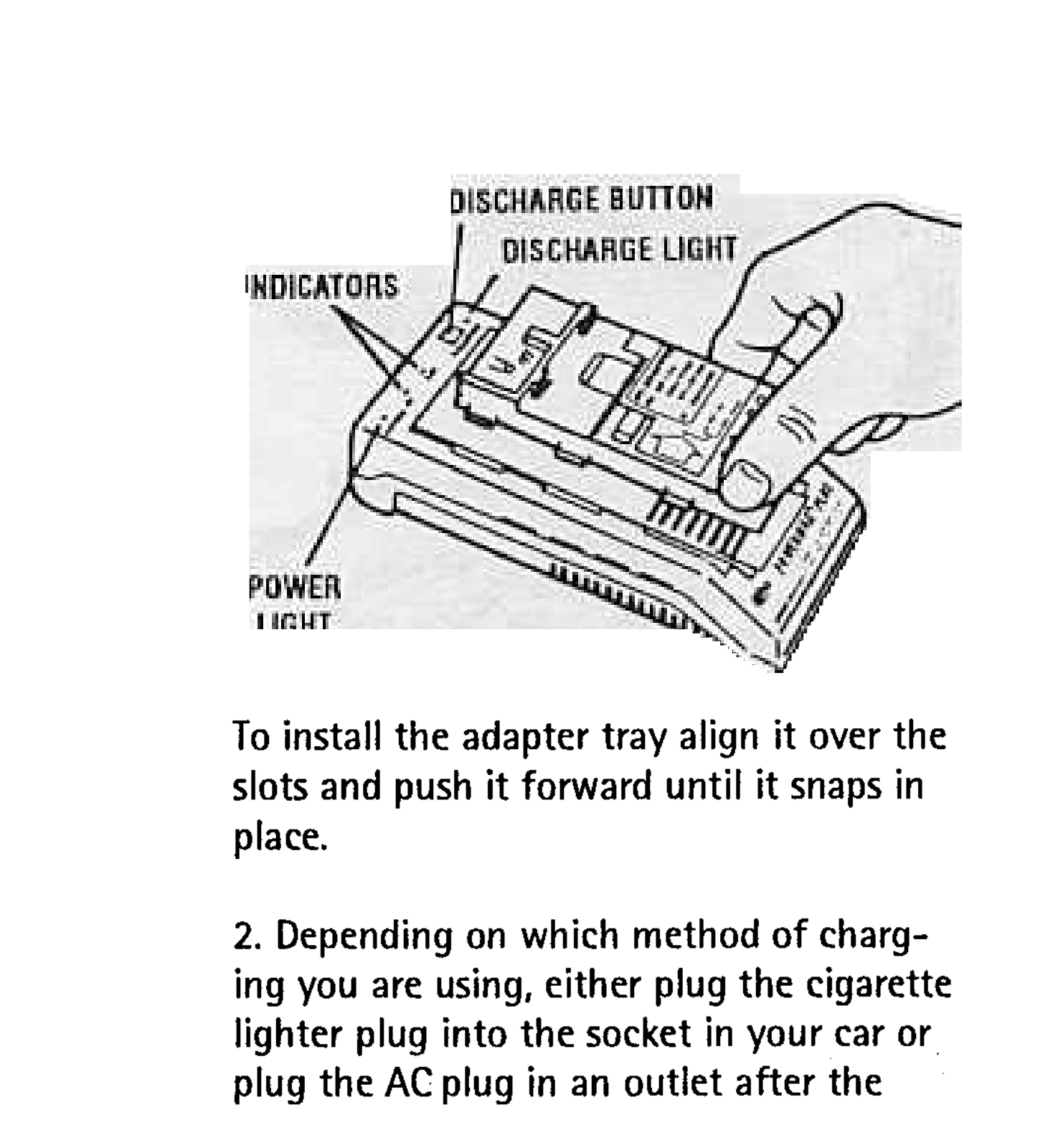

To install the adapter tray align it over the slots and push it forward until it snaps in
place.
2. Depending on which method of charg­ing you are using, either plug the cigarette
lighter plug into the socket in your car or
plug the AC plug in an outlet after the

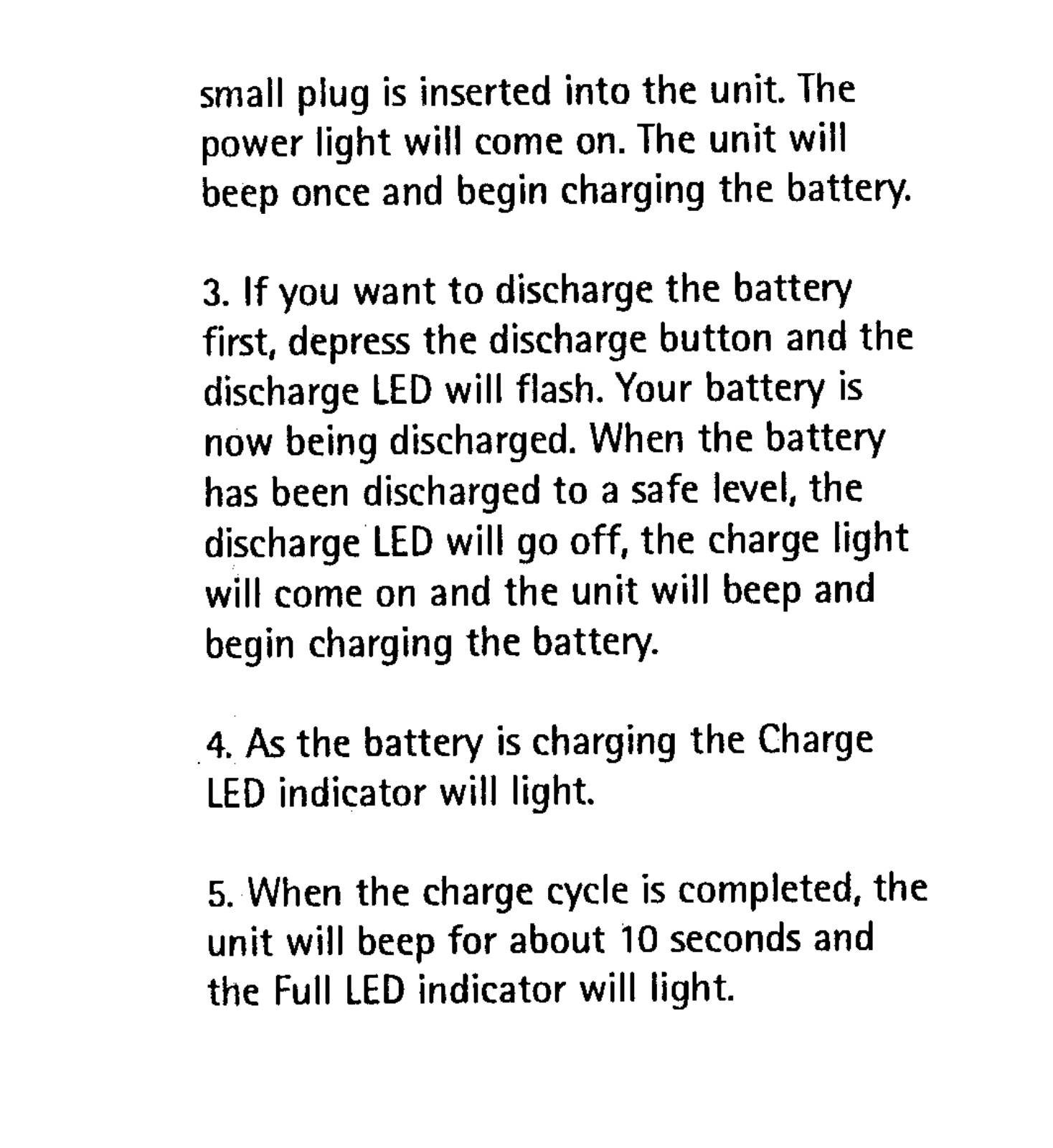

small plug is inserted into the unit. The power light will come on. The unit will beep once and begin charging the battery.
3. If you want to discharge the battery
first, depress the discharge button and the
discharge LED will flash. Your battery is now being discharged. When the battery has been discharged to a safe level, the discharge LED will go off, the charge light will come on and the unit will beep and
begin charging the battery.
4. As the battery is charging the Charge LED indicator will light.
5. When the charge cycle is completed, the unit will beep for about 10 seconds and the Full LED indicator will light.

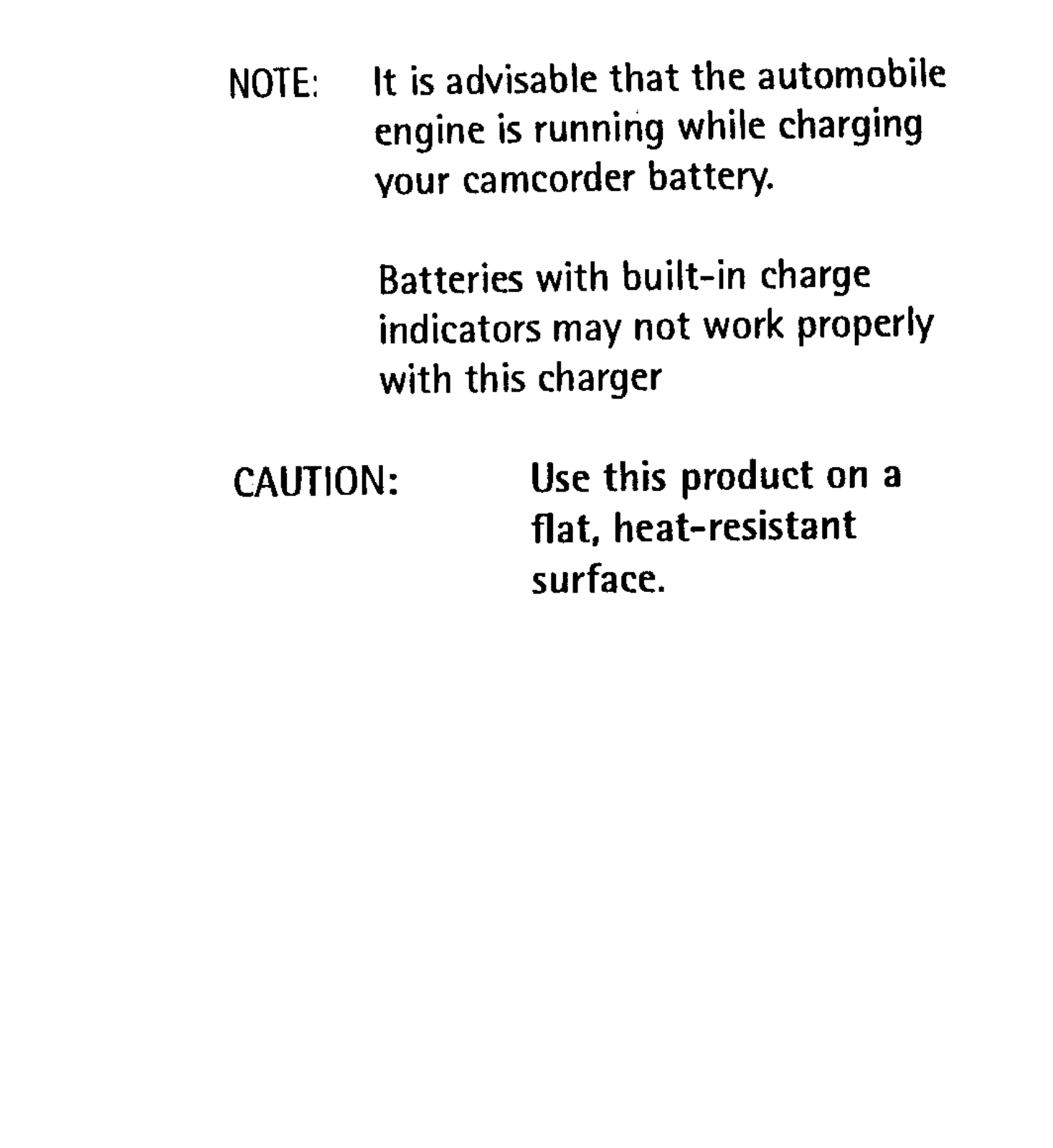

NOTE'
It is advisable that the automobile engine is running while charging
your camcorder battery.
Batteries with built-in charge indicators may not work properly
with this charger
CAUTION:
Use this product on a flat. heat-resistant surface.

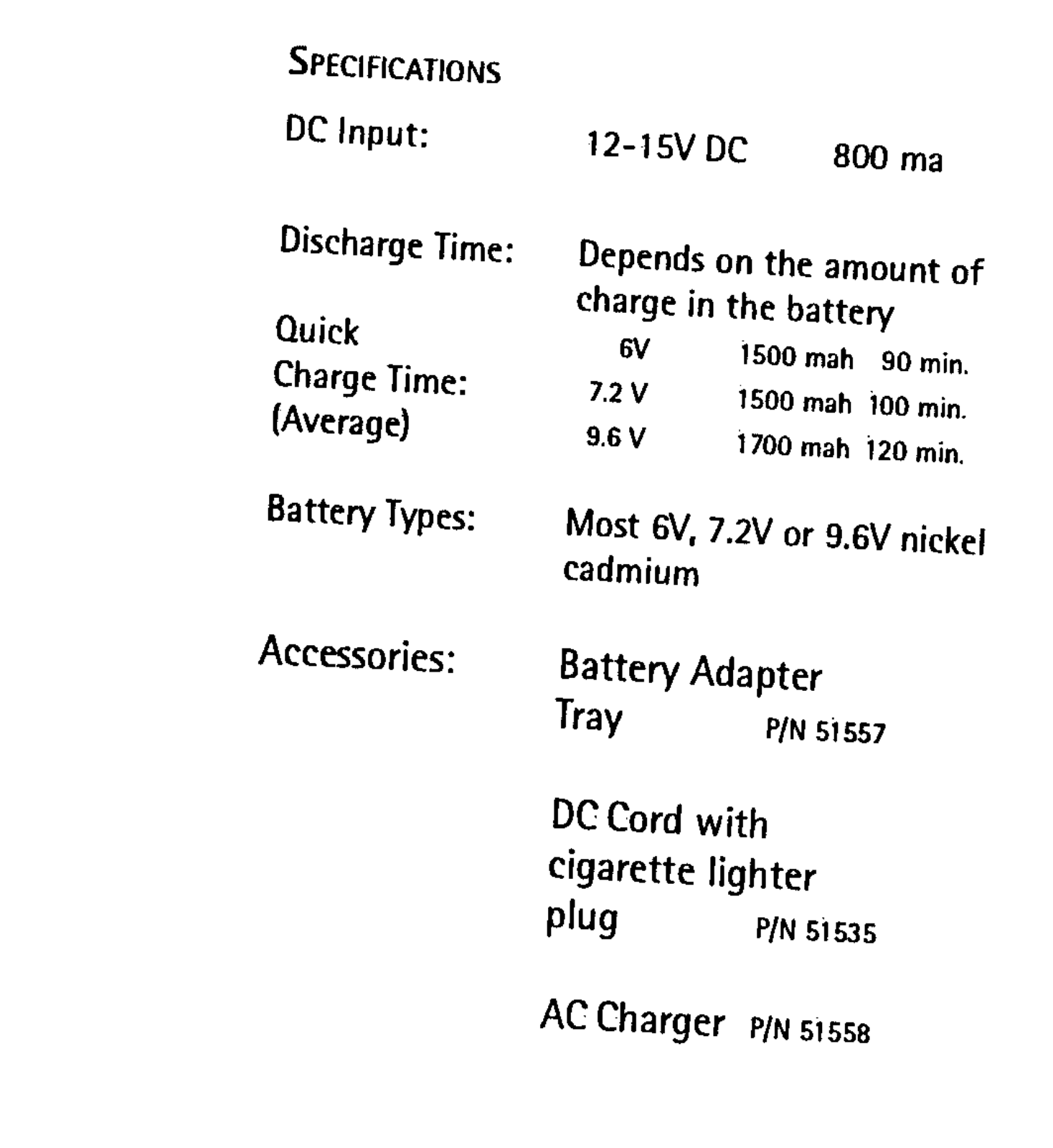

SPECIFICATIONS DC Input:
12-15VDC
800 ma
Discharge Time:
Quick Charge Time:
(Average)
Battery Types:
Accessories:
Depends on the amount of
charge in the battery
6V 1500 mah 90 min.
7.2 V 1500 mah 100 min.
9.6 V 1700 mah 120 min.
Most 6V, 7.2V or 9.6V nickel
cadmium
Battery Adapter
Tray PIN 51557
DC Cord with
cigarette lighter plug PIN 51535
AC Charger PIN 51558

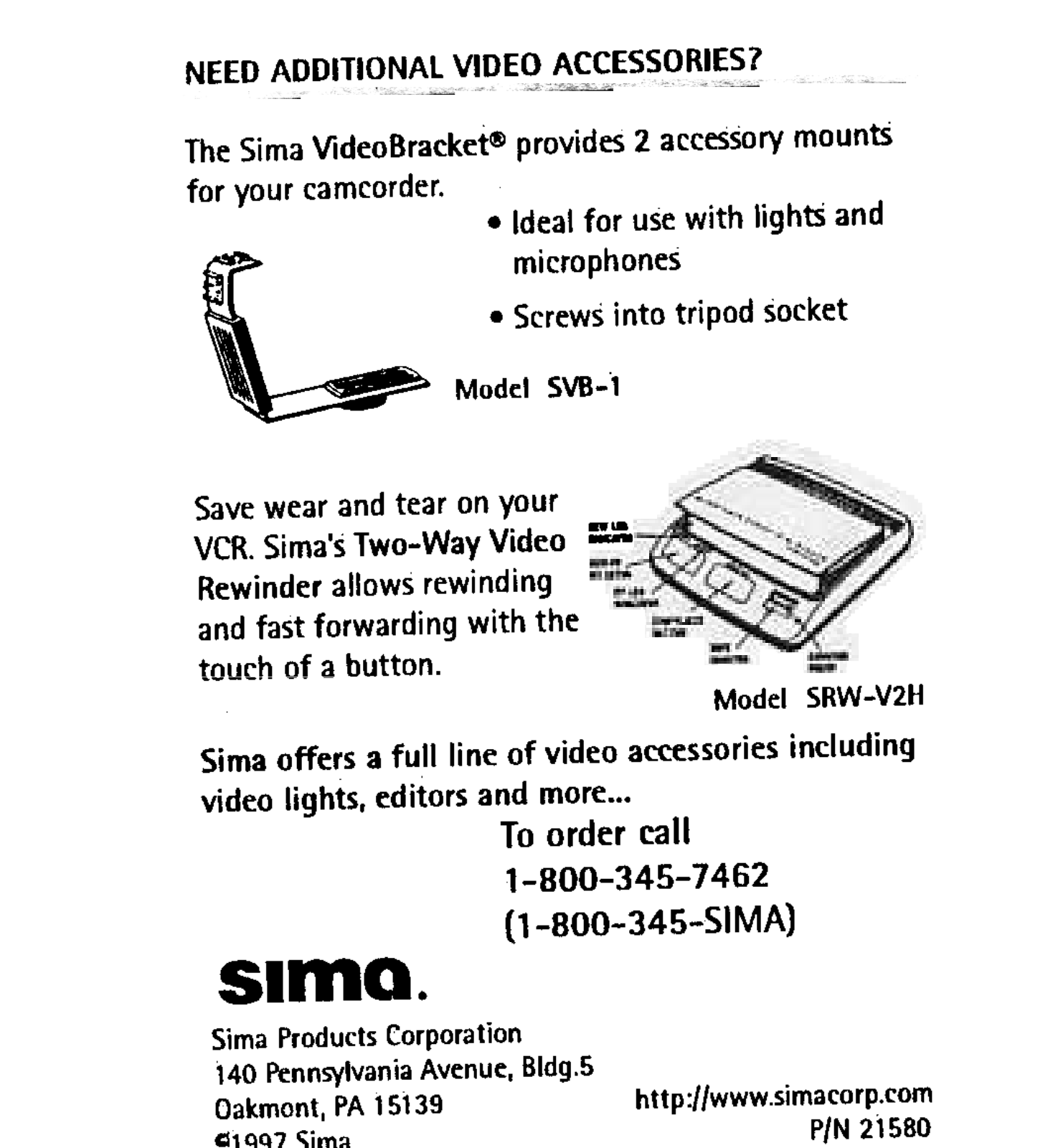

NEED ADDITIONAL VIDEO ACCESSORIES?
The Sima Video8racket~ provides 2 accessory mountS for your camcorder.
.Ideal for use with lightS and
l- microphones " .Screws into tripod socket
\1 Model SVB-1
Save wear and tear on your VCR. sima's Two-Way Video =
Rewinder allows rewinding and fast forwarding with the
tmt..h of a button.
Sima offers a fu.llline of video accessories including video lights. editors and more...
To order call
1-800-345-7462 (1-800-345-SIMA)
SlmQ.
Sima Products Corporation
140 Pennsylvania Avenue, Bldg.5 Oakmont, PA 15139 C,QQ7,jm"
Model SRW-V2H
http:llwww.simacorp.com
PIN 21580

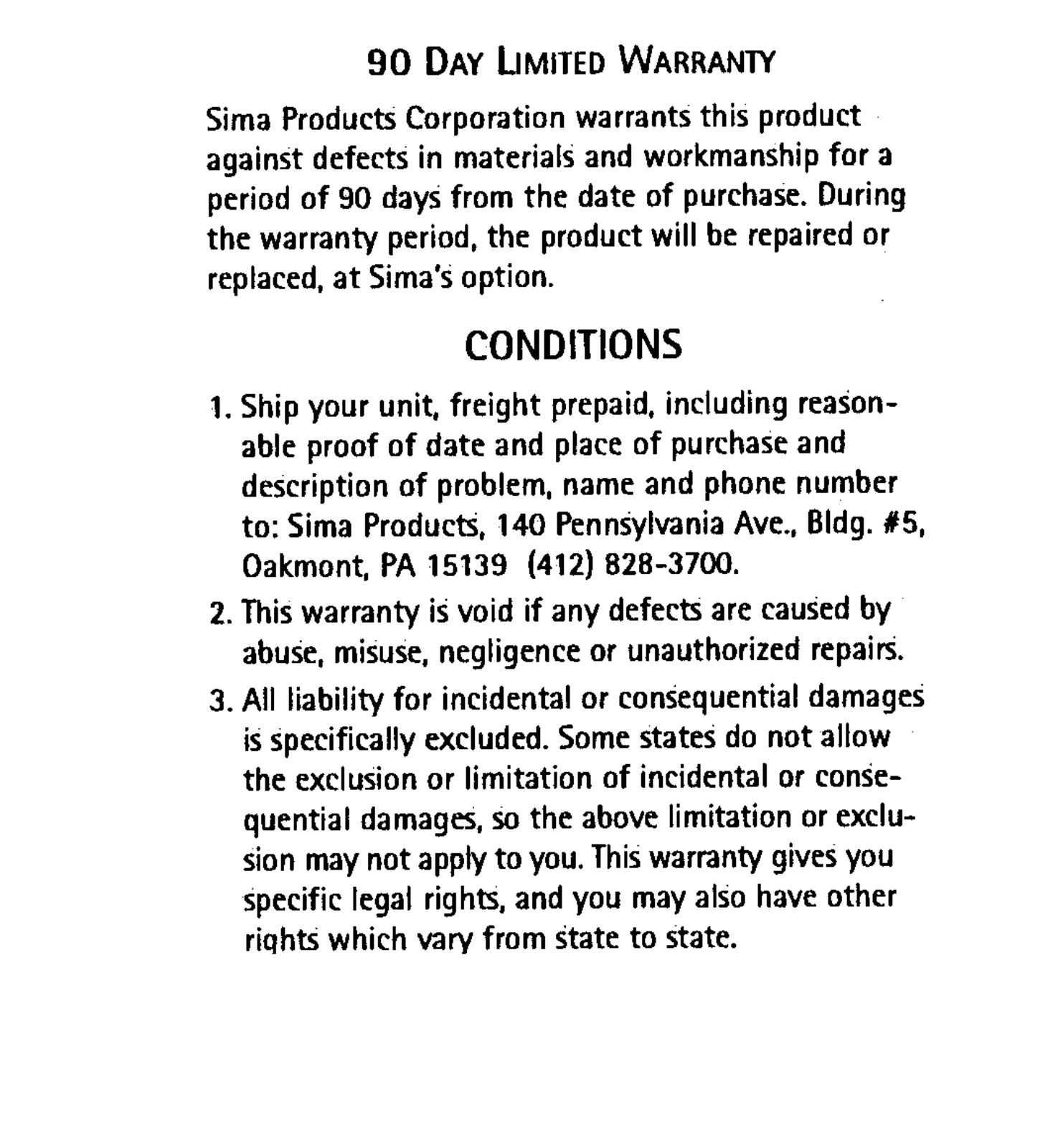

90 DAY liMITED WARRANTY
Sima ProductS Corporation warrants this product against defects in materials and workmanship for a period of 90 days from the date of purchase. During the warranty period, the product will be repaired or
replaced, at Sima's option.
CONDITIONS
1. Ship your unit, freight prepaid, including reaSon­able proof of date and place of purchase and description of problem, name and phone number to: Sima ProductS, 140 Pennsylvania Ave., Bldg. #5, Oakmont, PA 15139 (412) 828-3700.
2. This warranty is void if any defectS are caused by abuse, misuse, negligence or unauthorized repairS.
3. All liability for incidental or consequential damages is specifically excluded. Some states do not allow the exclusion or limitation of incidental or conSe­quential damages, so the above limitation or exclu­sion may not apply to you. This warranty gives you specific legal rightS, and you may also have other
riqhtS which vary from state to state.
