Sima SL-9 Instructions Manual

p

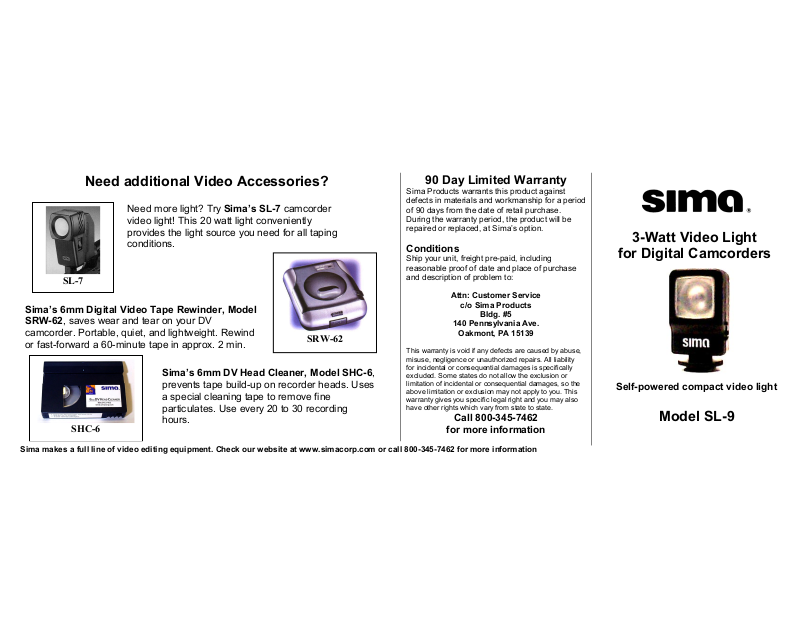

Need additional Video Accessories?

SL-7

Sima’s 6mm Digital Video Tape Rewinder, Model
SRW-62, saves wear and tear on your DV

camcorder. Portable, quiet, and lightweight. Rewind
or fast-forward a 60-minute ta

SHC-6

Sima makes a full line of video editing equipment. Check our website at www.simacorp.com or call 800-345-7462 for more information

Need more light? Try Sima’s SL-7 camcorder
video light! This 20 watt light conveniently
provides the light source you need for all taping
conditions.

e in approx. 2 min.

Sima’s 6mm DV Head Cleaner, Model SHC-6,
prevents tape build-up on recorder heads. Uses
a special cleaning tape to remove fine
particulates. Use every 20 to 30 recording
hours.

SRW-62

90 Day Limited Warranty

Sima Products warrants this product against
defects in materials and workmanship for a period
of 90 days from the date of retail purchase.
During the warranty period, the product will be
repaired or replaced, at Sima’s option.

Conditions

Ship your unit, freight pre-paid, including
reasonable proof of date and place of purchase
and description of problem to:

Attn: Customer Service

c/o Sima Products

Bldg. #5

140 Pennsylvania Ave.

Oakmont, PA 15139

This warranty is void if any defects are caused by abuse,
misuse, negligence or unauthorized repairs. All liability
for incidental or consequential damages is specifically
excluded. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This
warranty gives you specific legal right and you may also
have other rights which vary from state to state.

Call 800-345-7462

for more information

3-Watt Video Light

for Digital Camcorders

Self-powered compact video light

Model SL-9

Introduction

The Sima 3-Watt Universal Video
Light can be mounted on the
accessory shoe of any camcorder by
sliding it into place and tightening the
mounting screw. If your camcorder
does not have a shoe mount, the Sima
Video Bracket, (Model SVB-1)
available at most video stores or order
directly from Sima, will provide the
necessary mounting platform.

Batteries.

The SL-9 comes with two
rechargeable AAA NiMH batteries. The
batteries must be charged 4 to 6 hrs.
prior to use. Use the supplied AC
adapter/charger to charge the
batteries.

Installing the batteries

To install the batteries – slide open
the battery compartment located on
top of the unit. Insert two fresh AAA
size batteries according to the +/­markings on the unit. Close top.

To charge the batteries:

1. Insert the jack on the power cord into the
power input jack on the side of the SL-9
(Fig. A). Red
LED indicator
light, located
below power
jack, will turn
on. Note:

indicator light
will not turn
off when
charging is complete.

2. Plug AC transformer into standard

120 VAC wall outlet.

3. Batteries must charge 4 to 6 hours before
fully charged.

4. Fully charged batteries will provide approx.

20 to 25 minutes continuous run time.

Note: Light does not work with AC adapter
plugged in unit’s power jack.

Warning! Do not overcharge. Unplug after 4­8 hours charging.

Fig. A

Special Notes

The SL-9 video light can also be operated with
two standard AAA alkaline batteries. Running
time will be less than when using the
rechargeable NiMH batteries included with
your unit. If using non-rechargeable batteries,
do not use AC charger. Supplying current to
non-rechargeable batteries can cause them to
leak or explode and may damage the unit.

Warning! Never charge alkaline
batteries. Damage to AC charger or light
can occur.

Operation:

Turn light on by sliding
the on/off switch up to
the ON position as shown
in Fig. B

Fig. B

Specifications

Lamp: 3W halogen lamp

Power: 2 AAA NiMH batteries

Run Time: 20 to 25 min.

with 600 mA hour NiMh batteries.

Charger: 120V AC input; 3V DC
output

Weight: 2.2 oz. (with batteries).

Size: 2.75” x 1.5”

Replacing the lamp:

Contact Sima at 800-345-7462 for
instructions on replacing the lamp.
Note: Touching bulb with bare fingers
will damage bulb and cause bulb
failure.

© 2002 Sima Products Corporation
P/N 21660 Made in China
