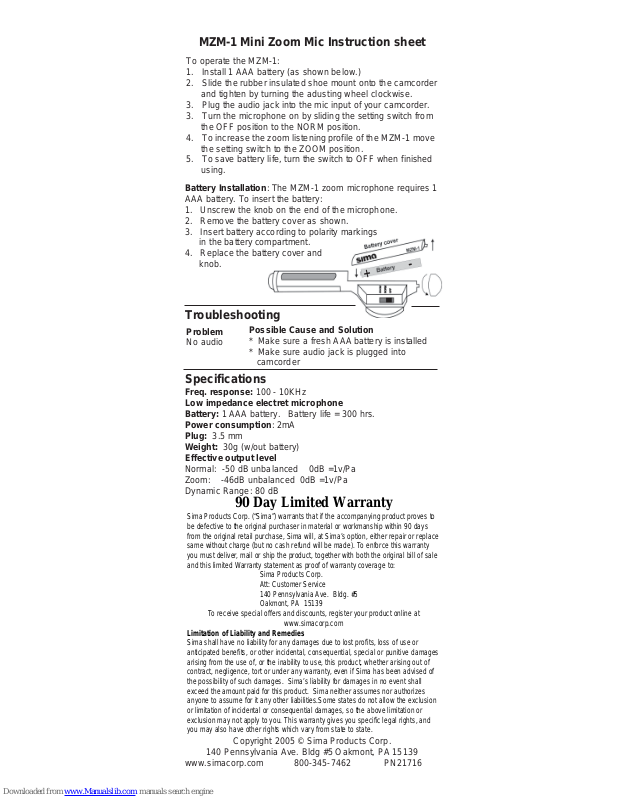

MZM-1 Mini Zoom Mic Instruction sheet

Battery Installation: The MZM-1 zoom microphone requires 1

AAA battery. To insert the battery:

1. Unscrew the knob on the end of the microphone.

2. Remove the battery cover as shown.

3. Insert battery according to polarity markings
in the battery compartment.

4. Replace the battery cover and
knob.

To operate the MZM-1:

1. Install 1 AAA battery (as shown below.)

2. Slide the rubber insulated shoe mount onto the camcorder
and tighten by turning the adusting wheel clockwise.

3. Plug the audio jack into the mic input of your camcorder.

3. Turn the microphone on by sliding the setting switch from
the OFF position to the NORM position.

4. To increase the zoom listening profile of the MZM-1 move
the setting switch to the ZOOM position.

5. To save battery life, turn the switch to OFF when finished
using.

Troubleshooting

Specifications

Freq. response: 100 - 10KHz
Low impedance electret microphone
Battery: 1 AAA battery. Battery life = 300 hrs.
Power consumption: 2mA
Plug: 3.5 mm
Weight: 30g (w/out battery)
Effective output level

Normal: -50 dB unbalanced 0dB =1v/Pa
Zoom: -46dB unbalanced 0dB =1v/Pa
Dynamic Range: 80 dB
