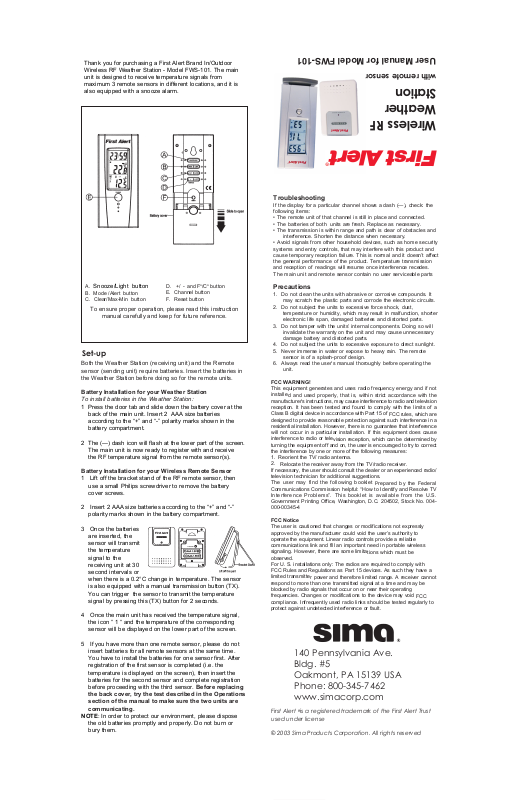

Sima FWS-101 User manual

Thank you for purchasing a First Alert Brand In/Outdoor
Wireless RF Weather Station - Model FWS-101. The main
unit is designed to receive temperature signals from
maximum 3 remote sensors in different locations, and it is
also equipped with a snooze alarm.

User Manual for Model FWS-101

with remote sensor

Station
Weather
Wireless RF

Troubleshooting

If the display for a particular channel shows a dash (—), check: the
following items:

• The remote unit of that channel is still in place and connected.

• The batteries of both units are fresh. Replace as necessary.

• The transmission is within range and path is clear of obstacles and
interference. Shorten the distance when necessary.

• Avoid signals from other household devices, such as home security

systems and entry controls, that may interfere with this product and
cause temporary reception failure. This is normal and it doesn’t affect
the general performance of the product. Temperature transmission
and reception of readings will resume once interference recedes.
The main unit and remote sensor contain no user serviceable parts

Snooze/Light button

A.
B. Mode /Alert button
C. Clear/Max-Min button

To ensure proper operation, please read this instruction

manual carefully and keep for future reference.

D. +/ - and Fo/Co button
E. Channel button
F. Reset button

Set-up

Both the Weather Station (receiving unit) and the Remote
sensor (sending unit) require batteries. Insert the batteries in
the Weather Station before doing so for the remote units.

Battery Installation for your Weather Station

To install batteries in the Weather Station:

1 Press the door tab and slide down the battery cover at the

back of the main unit. Insert 2 AAA size batteries
according to the “+” and “-” polarity marks shown in the
battery compartment.

2 The (—) dash icon will flash at the lower part of the screen.

The main unit is now ready to register with and receive
the RF temperature signal from the remote sensor(s).

Battery Installation for your Wireless Remote Sensor

1 Lift off the bracket stand of the RF remote sensor, then

use a small Philips screwdriver to remove the battery
cover screws.

2 Insert 2 AAA size batteries according to the “+” and “-”

polarity marks shown in the battery compartment.

3 Once the batteries

are inserted, the
sensor will transmit
the temperature
signal to the
receiving unit at 30
second intervals or
when there is a 0.2°C change in temperature. The sensor
is also equipped with a manual transmission button (TX).
You can trigger the sensor to transmit the temperature
signal by pressing this (TX) button for 2 seconds.

4 Once the main unit has received the temperature signal,

the icon “ 1 “ and the temperature of the corresponding
sensor will be displayed on the lower part of the screen.

Precautions

1. Do not clean the units with abrasive or corrosive compounds. It
may scratch the plastic parts and corrode the electronic circuits.

2. Do not subject the units to excessive force shock, dust,
temperature or humidity, which may result in malfunction, shorter
electronic life span, damaged batteries and distorted parts.

3. Do not tamper with the units’ internal components. Doing so will
invalidate the warranty on the unit and may cause unnecessary
damage battery and distorted parts.

4. Do not subject the units to excessive exposure to direct sunlight.

5. Never immerse in water or expose to heavy rain. The remote
sensor is of a splash-proof design.

6. Always read the user’s manual thoroughly before operating the
unit.

FCC WARNING!

This equipment generates and uses radio frequency energy and if not
installed and used properly, that is, within strict accordance with the
manufacturer’s instructions, may cause interference to radio and television
reception. It has been tested and found to comply with the limits of a
Class B digital device in accordance with Part 15 of FCC rules, which are
designed to provide reasonable protection against such interference in a
residential installation. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

1. Reorient the TV/ radio antenna.

2. Relocate the receiver away from the TV/radio receiver.
If necessary, the user should consult the dealer or an experienced radio/
television technician for additional suggestions.
The user may find the following booklet prepared by the Federal
Communications Commission helpful: “How to Identify and Resolve TV
Interference Problems”. This booklet is available from the U.S.
Government Printing Office, Washington, D.C. 204502, Stock No. 004­000-00345-4

FCC Notice

The user is cautioned that changes or modifications not expressly
approved by the manufacturer could void the user’s authority to
operate the equipment. Linear radio controls provide a reliable
communications link and fill an important need in portable wireless
signaling. However, there are some limitations which must be
observed.
For U. S. installations only: The radios are required to comply with
FCC Rules and Regulations as Part 15 devices. As such they have a
limited transmitter power and therefore limited range. A receiver cannot
respond to more than one transmitted signal at a time and may be
blocked by radio signals that occur on or near their operating
frequencies. Changes or modifications to the device may void FCC
compliance. Infrequently used radio links should be tested regularly to
protect against undetected interference or fault.

5 If you have more than one remote sensor, please do not

insert batteries for all remote sensors at the same time.
You have to install the batteries for one sensor first. After
registration of the first sensor is completed (i.e. the
temperature is displayed on the screen), then insert the
batteries for the second sensor and complete registration
before proceeding with the third sensor. Before replacing

the back cover, try the test described in the Operations
section of the manual to make sure the two units are
communicating.

NOTE: In order to protect our environment, please dispose

the old batteries promptly and properly. Do not burn or
bury them.

140 Pennsylvania Ave.
Bldg. #5
Oakmont, PA 15139 USA
Phone: [phone]
www.simacorp.com

First Alert ®is a registered trademark of the First Alert Trust
used under license

© 2003 Sima Products Corporation. All rights reserved

Operations - Testing the units

After installing the batteries in the remote sensor and before
replacing the back cover, try the following test to make sure
the two units are communicating.

1. Place the two units approximately five feet apart and
press and hold for 2 seconds the TX button inside the
battery compartment on the remote sensor. The receiving
unit should now display the temperature reading for that
sensor.

2. Next, place the sensor in the desired remote location and
place the receiving unit it its desired location.

How to Reset the Main Unit

Press the RESET button, located inside the battery compartment of
the main unit, to return all settings to factory values.

Snooze Function

The alarm will go off for one minute, press any button (except
SNOOZE button) to stop the alarm. If SNOOZE button is pressed,
the snooze function will be triggered and the alarm will stop for 8
minutes.

How to Set Temperature Alert

You can pre-define the desired temperature range of the main unit
and/or the remote sensor(s) whenever you like.

3. Press and hold the TX button again.

4. Check the receiving unit display for that sensor. If the
dash icon (—) appears and flashes, it indicates a signal
interruption. RF signal interruptions can be caused by
interference from electronic devices or physical
obstructions such as walls, buildings etc...

5. Rotate the sensor in 45° steps and press the TX button
again to send the signal.

6. If there is still no display, move the remote sensor closer
to the receiving unit or reposition both the receiving unit
and the remote sensor until reception is observed.

7. When complete, put the rubber seal into the cover groove
and close the battery cover. Tighten the screws, and snap
on the bracket stand.

How to Set Time

1. Make sure the colon icon [:] is blinking on the upper part of

the screen, if [:] is not blinking, press the MODE button
once to change it.

2. Press and hold the MODE button for 3 seconds, the hour

format 12 or 24 hr will start to blink.

3. Use the - +(°C/°F) button to select the desired time format.

Press the MODE button again to confirm. Proceed to set
hour and minute.

4. Press the - button to enter the minute value and press the

+(°C/°F) button to enter the hour value, then press the
MODE button to confirm and proceed to set T2 time zone.

5. T2 time zone setting is for people who can easily adjust the

local time when they move from one time zone to another.
If time offset is not required, keep the time offset value
equals to 0 and press the MODE button to exit.

NOTE: If the main unit sits idle for 8 seconds during

setting, it will exit the setting mode and return to
normal display.

How to Set Alarm

1. Make sure the colon icon [:] is not blinking on the upper
part of the screen, if [:] is blinking, press the [MODE]
button once to change it.

2. Press and hold the ALERT button for 3 seconds, then the
hour and min will start to blink.

3. Press the - button to enter the min value and press the
+(°C/°F) button to enter the hour value, press the MODE
button to confirm, the alarm will be automatically activated
and the ? icon will be displayed on the upper part of the
screen.

4. To deactivate or reactivate the alarm clock, press CLR
button once.

How to Display Different Outdoor Temperatures

1. You can select the temperature shown in Celsius or
Fahrenheit by pressing the °C/°F button.

2. The main unit is designed to receive RF signals from a
maximum of 3 RF remote sensors. Pressing the
CHANNEL button will change the temperature display
from one sensor to another.

3. If there is only one remote sensor, the CHANNEL button
will be disabled. This main unit is also equipped with auto
scroll function, when there is more than one remote
sensor, press and hold the CHANNEL button for 3
seconds, a “ “ icon will be displayed and the outdoor
temperature display will automatically cycle among the
remote sensors. The auto scroll function can be
deactivated by pressing and hold the CHANNEL button
for another 3 seconds.

How to Display MAX/MIN Temperatures

1. The main unit records the maximum and minimum value of
both indoor and outdoor temperature.

2. Press the MAX/MIN button once to read the minimum
temperature, press it again for the maximum temperature.

3 . To erase the max/min temperature record, select max or

min temperature then press the CLR button once.

1. Press and hold the ALERT button for 2 seconds, the

and the
dash “—” icons in the middle segment will start to blink. The main
unit is now under temperature alert setting mode.

2. Press “-” or “+”(C/F) button to select the temperature alert for the
indoor or outdoor channel. Press the ALERT button to confirm.

3. After pressing the ALERT button, the S icon will start to flash,
you can use the “-” or “+”(C/F) button to enter the upper limit
value, press the ALERT button again to confirm, and the main
unit will enter the lower limit setting mode.

4. The T icon will blink. Use the “-” or “+”(C/F) button to enter the
lower limit value and press the ALERT button to confirm.

5. Repeat the above procedure steps 1-4 to define the temperature
range of other channels.

6. Once the temperature range is defined, the

icon will be
displayed and the temperature alert is enabled. To disable the
temperature alert function press the ALERT button once.

7. When the temperature goes above or below the pre-defined
range, the corresponding segment will start to blink and the
buzzer will beep for 5 seconds followed by 45 seconds off. This
sequence will repeat until any key is pressed.

The Hold Seek Function

Activate the hold seek function before replacing batteries of any
remote unit. Select the channel for the desired remote sensor.

1. Press and hold the [-] button for 3 seconds to activate the hold
seek function.

2. The main unit will temporary stop seeking signal from the
corresponding remote sensor and waiting for new signal
registration.

3. Once the batteries have been replaced, the remote unit will start
to transmit signal to the main unit again and the main unit will
automatically set the new signal back to its previous channel.
With this hold seek function, there is no need to reset the main
unit or proceed the whole registration procedures again when
batteries of any remote unit have to be replaced

Battery Indicators

The main unit comes with battery level detectors, it will

continuously monitor the battery level of both the main unit
and the RFremote sensor(s).

There are two low battery level icons

.

When the low battery level of the main unit is detected, the low

battery icon

will be displayed on the indoor temperature

segment of the screen.

If the low battery level of any remote unit is detected, the low

battery icon

will be displayed on the outdoor temperature

segment of the corresponding remote sensor channel.

Specifications

Recommended operating range

Indoor temp. range +32°F to +122°F (0°C to +50°C)
Sensor temp range -4°F to +122°F (-20°C to +50°C)
Detachable outdoor probe -58°F to +158°F (-50°C to +70°C)

Batteries

Receiving unit 2 AAA batteries
Remote Sensor 2 AAA batteries
Battery life Receiving unit Typical 1 year
Battery life Remote sensorTypical 6 mos

Miscellaneous

Alarm Duration 1 minute
Snooze 8 minutes
Transmission range max. 100 feet open area
Transmission freq. 433.92 MHz.
Clock Quartz

90 Day Limited Warranty Sima Products Corporation

Sima Products Corp. (“Sima”) warrants that is the accompanying product
proves to be defective to the original purchaser in material or workmanship
within 90 days from the original retail purchase, Sima will, at Sima’s option,
either repair or replace same without charge (but no cash refund will be
made). What you must do to enforce Warranty: You must deliver, mail or
ship the product, together with both the original bill of sale and this limited
Warranty statement as proof of warranty coverage to:

Sima Products Corp.
Att: Customer Service
140 Pennsylvania Ave. Bldg. #5
Oakmont, PA 15139

Limitation of Liability and Remedies

Sima shall have no liability for any damages due to lost profits, loss of use
or anticipated benefits, or other incidental, consequential, special or punitive
damages arising from the use of, or the inability to use, this product, whether
arising out of contract, negligence, tort or under any warranty, even if Sima
has been advised of the possibility of such damages. Sima’s liability for
damages in no event shall exceed the amount paid for this product. Sima
neither assumes nor authorizes anyone to assume for it any other liabilities.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply
to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.

It is recommended that you call Sima at 412-828-3700 to obtain a return
authorization number.
