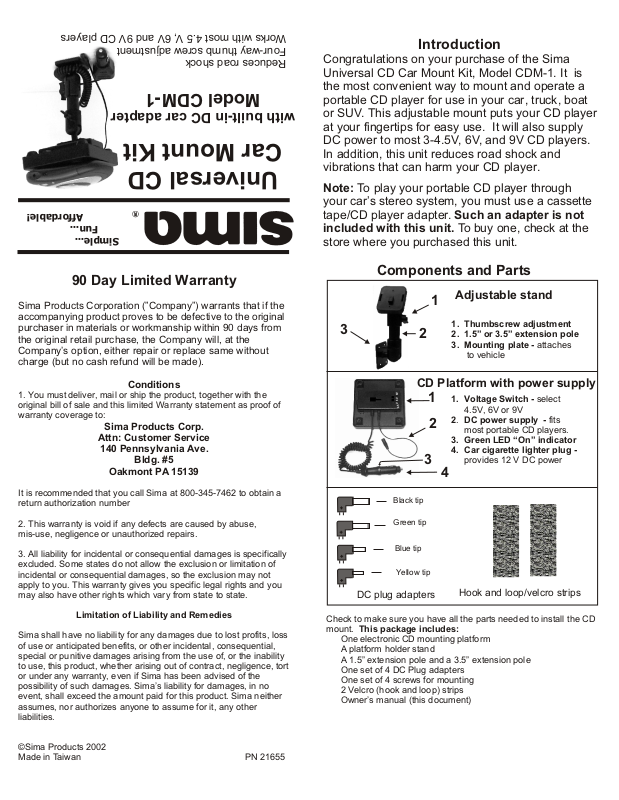

Sima CDM-1 User manual

Model CDM-1

Universal CD

Affordable!
Fun...
Simple...

90 Day Limited Warranty

Sima Products Corporation (”Company”) warrants that if the
accompanying product proves to be defective to the original
purchaser in materials or workmanship within 90 days from
the original retail purchase, the Company will, at the
Company’s option, either repair or replace same without
charge (but no cash refund will be made).

l Works with most 4.5 V, 6V and 9V CD players
l Four-way thumb screw adjustment
l Reduces road shock

Congratulations on your purchase of the Sima

Introduction

Universal CD Car Mount Kit, Model CDM-1. It is
the most convenient way to mount and operate a
portable CD player for use in your car, truck, boat

with built-in DC car adapter

or SUV. This adjustable mount puts your CD player
at your fingertips for easy use. It will also supply

Car Mount Kit

DC power to most 3-4.5V, 6V, and 9V CD players.
In addition, this unit reduces road shock and
vibrations that can harm your CD player.

Note: To play your portable CD player through
your car’s stereo system, you must use a cassette
tape/CD player adapter. Such an adapter is not
included with this unit. To buy one, check at the
store where you purchased this unit.

Components and Parts

Adjustable stand

1

3

2

1. Thumbscrew adjustment

2. 1.5” or 3.5” extension pole

3. Mounting plate - attaches

to vehicle

Conditions

1. You must deliver, mail or ship the product, together with the
original bill of sale and this limited Warranty statement as proof of
warranty coverage to:

Sima Products Corp.

Attn: Customer Service

140 Pennsylvania Ave.

Bldg. #5

Oakmont PA 15139

It is recommended that you call Sima at to obtain a
return authorization number

2. This warranty is void if any defects are caused by abuse,
mis-use, negligence or unauthorized repairs.

3. All liability for incidental or consequential damages is specifically
excluded. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the exclusion may not
apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state.

Limitation of Liability and Remedies

Sima shall have no liability for any damages due to lost profits, loss
of use or anticipated benefits, or other incidental, consequential,
special or punitive damages arising from the use of, or the inability
to use, this product, whether arising out of contract, negligence, tort
or under any warranty, even if Sima has been advised of the
possibility of such damages. Sima’s liability for damages, in no
event, shall exceed the amount paid for this product. Sima neither
assumes, nor authorizes anyone to assume for it, any other
liabilities.

800-345-7462

CD Platform with power supply

9V
V
6
V
.5

4

1

1. Voltage Switch - select

4.5V, 6V or 9V

2. DC power supply - fits

2

most portable CD players.

3. Green LED “On” indicator

4. Car cigarette lighter plug ­ provides 12 V DC power

3

4

Black tip

Green tip

Blue tip

Yellow tip

DC plug adapters

Check to make sure you have all the parts needed to install the CD
mount. This package includes:

! One electronic CD mounting platform
! A platform holder stand
! A 1.5” extension pole and a 3.5” extension pole
! One set of 4 DC Plug adapters
! One set of 4 screws for mounting
! 2 Velcro (hook and loop) strips
! Owner’s manual (this document)

Hook and loop/velcro strips

©Sima Products 2002
Made in Taiwan PN 21655

Installation

Note: Installation of this CD stand requires drilling four
small holes in your vehicle. You will need a power drill,
a 1/8” drill bit and a Phillips head screwdriver.

Step 1

Assemble the components as shown in
diagram A at right. Insert the raised tab on
the stand into the corresponding hole on
the bottom of the platform and slide
toward center until firmly in place.

Fig. A

Step 2 Choose a mounting location that will provide the

most access and convenience for using your portable CD
player in the vehicle. It must be close enough to the cigarette
lighter for the lighter cord to reach.

If necessary, use the 3.5”
extension provided. To change
extension poles, loosen
thumbscrew adjusters until fitting
separates into two pieces
( Fig B). Remove 1.5” extension.

Fig B

Fig C

Insert 3.5” extension and tighten
until snug (Fig. C).

Step 6 - Set the voltage switch located on the underside of

the mounting platform to the correct voltage for your
portable player.

4.5V 6V 9V

Fig. F - Voltage selection switch

Step 7 - Select the DC Plug adapter that fits the DC IN

jack on your portable player.

Step 8 - Insert the DC Plug Adapter onto the DC power

cord. Look closely at the markings on each side of the DC
power cord and DC Plug adapter.

To configure the connection
as “Center Positive”, make
sure the polarity markings
match up same to same
( “+” to “+” and” -” to “ -”) as
illustrated in Figure G
below.

CDM - 1 cord

Fig. G Fig. H
Center Positive Center Negative

Warning: Failure to observe polarity may cause damage
to the mounting platform or your CD player.

To configure the connection
as “Center Negative” make
sure the polarity markings
are reversed ( “+” to “-” and
“+” to “ -”) as illustrated in
Figure H below.

CDM-1 cord

Step 3 After selecting a location on the vehicle to mount the

stand, use the mounting plate as a template to mark the
position of the four holes. Be sure no wires or cables are
behind the surface before drilling. Drill the holes using an
1/8” drill bit. Using the 4 screws provided, attach the platform
holder stand to the vehicle.

Step 4 When the stand has been mounted to the vehicle,

use the thumbscrew adjustments to position the platform to
your liking. Using the self-adhesive hook and loop (velcro)
strips provided, fasten your portable CD player to the mount
platform.

Power Supply

The CDM -1 has a DC power supply that will provide power
to most portable CD players provided they have a voltage of
either 3-4.5V, 6V or 9V. A set of DC Plug adapter jacks are
also provided. Make sure the jack fits into the portable
player. If not, you may be able to purchase additional
adapters at the store where you purchased this unit.

Connecting the power supply to a portable player:

Step 5 - Determine the voltage and polarity requirement .

Markings near the DC IN jack on your CD player indicate the
voltage and polarity. In Fig. D below, the polarity is center
positive and the voltage is 6V. In Fig. E, the polarity is
center negative and the voltage is 4.5V

Fig. D Fig. E

DC IN 6 V

Center pos. on typical CD player Center neg. on typical CD player

DC IN 4.5 V

Fuse replacement

The DC power source input is protected by a 1.5A fuse located
inside the cigarette lighter plug. Replace this fuse only with a 1.5A
fuse as shown in the illustration below.

Electronic Specifications

Input Voltage 12V - 13.8VDC
Max. output current 500mA
Selectable voltage 4.5V, 6V & 9V

TroubleShooting

Problem

Green LED light
on Car Plug not on

Green LED light on
Car plug dims out

Sounds bad

Possible Causes

! No power supply from

lighter socket

! Short circuit of the power

supply

! External power short

circuit

! Incorrect polarity of the

output power

! Incorrect voltage supply

to music player

Remedy

! Cigarette plug not

inserted correctly

! Check the portable

player power supply
including polarity

! Check requirement of

music player.
Change adapter plug
or voltage switch
setting as needed
