Sim2 Multimedia DIGITAL D60 User Manual

Download

D60 Digital Projector

User Manual

Important safety instructions.. 3

Overview ................................. 5

Shipping contents........................5

Remote control batteries ...........5

Remote control operation ......... 5

Projector features........................6

Projector exterior view................7

Controls and functions................8

Front and upper side view ..............8

Remote control ................................9

Positioning your projector....10

Choosing a location .................10

Obtaining a preferred projected

image size...................................11

Shifting the projection lens

vertically..........................................11

How to determine the position of the projector for a given screen size..12

How to determine the recommended screen size for a given

distance ..........................................12

Projection dimensions....................13

Connecting with video

equipment............................. 15

Preparations....................................15

Connecting HDMI devices... ....... ..16

Connecting RGBHV devices.........16

Connecting component-video de-

vices.................................................16

Connecting S-Video or video

devices............................................17

Connecting a computer...............17

Using the projector ............... 18

Turning the projector on........... 18

Selecting an input source.........18

Using the menus ........................ 19

Fine-tuning the image size and

clarity .......................................... 19

Securing the projector..............20

Using a security cable lock...........20

Utilizing the password function.....20

Adjusting the projected image22

Adjusting the projection angle ....22

Correcting picture distortion.........22

Using the preset and user

modes.........................................23

Fine-tuning the picture quality.25 Advanced picture quality

controls .......................................26

Selecting the aspect ratio........29

Operating in a high altitude

environment...............................31

Displaying more than one image

source simultaneously...............32

Creating your own startup

screen .........................................33

Personalizing the projector menu

display.........................................33

Turning the power off................34

On-Screen Display (OSD)

menus..........................................35

Additional information ......... 41

Care of the projector................41

Cleaning and replacing the dust

filter..............................................41

Lamp information......................43

Getting to know the lamp hour ...43

Extending lamp life........................ 43

Timing of replacing the lamp .......44

Replacing the lamp.......................44

Indicators....................................46

Troubleshooting .........................47

Specifications.............................48

Warranty and Copyright

information ............................51

Regulation statements.......... 52

2 Table of contents

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

1. Please read this user manual before you operate your projector. Keep this manual in a safe place for future reference.

2. Always place the projector on a level, horizo ntal surface during operat ion.

- Do not place the projector on an unstable cart, stand, or table as it may fall and be damaged;

- Do not place inflammables near the projector;

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back.

3. Do not store the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage.

4. Do not place the projector in any of the following environments:

- space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector;

- locations where temperatures may become excessively high, such as the inside of a car with all windows closed;

- locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector’s lifespan and darkening the screen;

- locations near fire alarms;

- locations with an ambient temperature above 40°C/104°F;

- locations where altitude is higher than 1500 meters/4920 feet above sea level.

5. Do not block the ventilation holes while the projector is on (even in standby mode):

- Do not cover the projector with any item;

- Do not place the projector on a blanket, bedding or any other soft surface.

6. In areas where the mains power supply voltage may fluctuate by ±10 volts, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS) as appropriate to your situation.

7. Do not step on the projector or place any objects upon it.

8. Do not place liquids near or on the projector. Liquids spilled into the projector will void your warranty. If the projector does become wet, disconnect it from the power point and call your local service center to have the projector repaired.

9. Do not look straight into the projector lens during operation. It may harm your sight.

10. Do not operate the projector lamp beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause a lamp to break on rare occasions.

11. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

12. This projector is capable of displaying inverted images for ceiling mount installation. Use only qualified ceiling mounting kit for mounting.

13. Never attempt to replace the lamp assembly until the projector has cooled down and is unplugged from the power supply.

14. When you think service or repair is required, take the projector only to a suitably qualified technician.

15. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable parts are the lamp, and air filter which have their own removable covers or access panels. See pages 42 and 44. Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Important safety instructions

Notice Please keep the original packing for possible future shipment. If you need to pack your projector after

use, adjust the projection lens to an appropriate position, put the lens cushion around the lens, and fit the lens cushion and projector cushion together to prevent damage during transportation.

Moisture condensation

Never operate the projector immediately after moving it from a cold location to a hot location. When the projector is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the projector from possible damage, do not use the projector for at least 2 hours when there is a sudden change in temperature.

Avoid volatile liquid

Do not use volatile liquids, such as insecticide or some types of cleaner, near the projector. Do not have rubber or plastic products touching the projector for a long time. They will leave marks on the finish. If cleaning with a chemically treated cloth, be sure to follow the cleaning product’s safety instructions.

Disposal

This product contains the following material which is harmful to human bodies and environment.

• Mercury, which is used in the lamp.

To dispose of used lamps, consult your local environment authorities for regulations.

Ceiling mounting the projector

We want you to have a pleasant experience using your projector, so we need to bring this safety matter to your attention to prevent damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your projector. We recommend that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Important safety instructions

Overview

Shipping contents

The projector is shipped with the cables required for connection to video equipment. Some of the items may not be available depending on your region of purchase. Please check with your place of purchase.

Some of the accessories may vary from region to region.

(EU) (UK) (US)

Projector Power cables

Component Video cable

Remote

control

Batteries

User manual

Quick

start

guide

Remote control batteries

1. To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it down in the direction of the arrow as illustrated. The cover will slide off.

2. Remove any existing batteries (if necessary) and install two new AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) go es to positive and negative(-) goes to negative.

3. Refit the cover by aligning it with the case and sliding it back up into position. Stop when it clicks into place.

Notes on handling batteries

• Do not mix old batteries with new ones, or mix different types of batteries.

• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen, bathroom, sauna, sunroom, or in a closed car.

• Dispose of used batteries according to the battery manufacturer’s instructions and local environment regulations for your region.

• If the remote control will not be used for an extended period of time, remove the batteries to avoid damage to the control from possible battery leakage.

Remote control operation

• Make sure that there is nothing positioned between the remote control and the infrared (IR) sensor on the projector that might obstruct the IR beam from the remote control reaching the projector.

• The effective range of the remote control is up to 8 meters, and at an angle within 60 degrees of the IR beam. Always aim straight at the projector, however most screens will also reflect the IR beam to the projector.

up to 8m

Overview

Projector features

• Full HD compatible

The projector is compatible with Standard Definition TV (SDTV) 480i, 480p, 576i, 576p, and High Definition TV (HDTV) 720p, 1080i and 1080p formats, with the 1080p format providing a true 1:1 image reproduction.

• High picture quality

The projector provides excellent picture quality due to its high resolution, excellent home theater brightness, super high contrast ratio, vivid color and rich gray-scale reproduction.

• Super-high contrast ratio

This projector utilizes a motorized IRIS control lens to achieve a super-high contrast ratio.

• Vivid color reproduction

This projector features an 7-segment color wheel to produce realistic color depth and range unattainable with lesser segment color wheels.

• Rich gray-scale

When viewed in a darkened environment, the automatic gamma control provides excellent gray-scale display which reveals details in shadows and in night or darkened scenes.

• Extra-low noise operation

This projector's unique cooling system design prevents unnecessary fan noise, and is rated at less than 28dB in normal mode and a low 25dB when in whisper mode.

• Motorized lens shift

The remote control can be used to adjust vertical lens shift from the comfort of your armchair.

• Wide variety of inputs and video formats

The projector supports a wide variety of inputs for connection to your video and PC equipment, including component video, S-Video, and composite video, as well as HDMI, RGBHD, and an output trigger for connection to automated screen and environment lighting systems.

• Panamorph lenses compatible

The projector is compatible with Panamorph lenses that allow you to convert 16:9 projectors to 2.35:1 aspect ratio.

Overview

Projector exterior view

Front and upper side view

Rear view

Under and side view

1. Rear IR sensor

2. Vent (heated air exhaust)

3. Dust filter grill (cool air intake)

4. Front IR sensor

5. Projection lens

6. Connector panel (see below for details)

7. Main AC power switch

8. Power cable socket

7 8

9. Adjustable feet

10. Ceiling mounting holes

11. Kensington lock slot

Connector panel

See "Connecting with video equipment" on page 15 for connection details.

12 13 14 15

191817

12. HDMI ports

13. Component Video inputs (RCA) support Y/P

14. Composite Video input (RCA)

15. S-Video input (mini 4-pin DIN)

16. Component video inputs (BNC) support Y/P signal

17. RGB High Definition inputs (BNC) supports RGBHV video or PC signal

18. 12V DC output terminal Used to trigger external devices such as an electric screen or light control, etc. Consult your dealer for how to connect these devices.

19. RS-232 port for wired remote control

B/PR or Y/CB/CR video signal

B/PR, Y/CB/CR, or RGB video

Overview

Controls and functions

Front and upper side view

3 4 5

1. Focus ring

Adjusts the focus of the projected image.

2. Zoom ring

Adjusts the size of the projected image.

3. POWER indicator light

Lights up or flashes when the projector is operating. See "Indicators" on page 46 for details.

4. TEMPerature warning light

Lights up or flashes if the projector’s temperature becomes too high. See "Indicators" on

page 46 for details.

5. LAMP indicator light

Lights up or flashes when the projector lamp has developed a problem. See "Indicators"

on page 46 for details.

Overview

Remote control

1 2

6 7

8 10

1. POWER button

Toggles the projector between standby and on. See "Turning the projector on" on page 18 and "Turning the power off" on page 34 for details.

2. Source selection buttons (COMP1, COMP2, VIDEO, HDMI, RGB HD, S-VIDEO)

Selects an input source for display. See

"Selecting an input source" on page 18 for

details.

3. Aspect buttons (ANA, 4:3, LB, WIDE, REAL)

Selects the display aspect ratio. See

"Selecting the aspect ratio" on page 29 for

details.

4. PICTURE MODE button

Selects one of the preset program modes. See "Selecting a picture mode" on page 23 for details.

5. MEMORY buttons (USER 1, USER 2, USER 3, and DEFAULT)

Restores picture settings saved in USER 1, USER 2, USER 3, or DEFAULT for the current

input source. See "Setting the User 1/User 2/

User 3 mode" on page 24 for details.

6. ENTER button

Enacts the selected On-Screen Display (OSD) menu item.

12 13

7. Arrow buttons (Left , Up , Right , Down )

Moves the current On-Screen Display (OSD) menu selection in the direction of the arrow being pressed when the OSD menu is activated. See "Using the menus" on

page 19 for details.

Adjusts the motorised vertical lens by moving the image upwards or downwards on the screen in relation to the orientation of the projector. (Up , Down ) Manually corrects distorted pictures resulting from an angled projection. (Left

, Right )

8. MENU button

Toggles the On-Screen Display (OSD) menu on and off. See "Using the menus"

on page 19 for details.

9. EXIT button

Goes back to previous OSD menus, exits and saves any changes made using the On-Screen Display (OSD) menu. See

"Using the menus" on page 19 for details.

10. Picture quality adjustment buttons (BRIGHTNESS, COLOR, CONTRAST, TINT):

Displays the setting bars for adjustment of the appropriate picture quality values. See

"Fine-tuning the picture quality" on page 25

for details.

11. Picture window control buttons (PIP, SIZES, POSITION, ACTIVE)

Displays the Picture In Picture (PIP) windows, toggles between the main window and sub-window with ACTIVE, and adjusts the size and position of the currently active window with SIZE and POSITION. See

"Displaying more than one image source simultaneously" on page 32 for details.

12. LENS button

Displays the setting page for the adjustment of the motorised vertical Lens shift value. See "Shifting the projection lens vertically"

on page 11 for details.

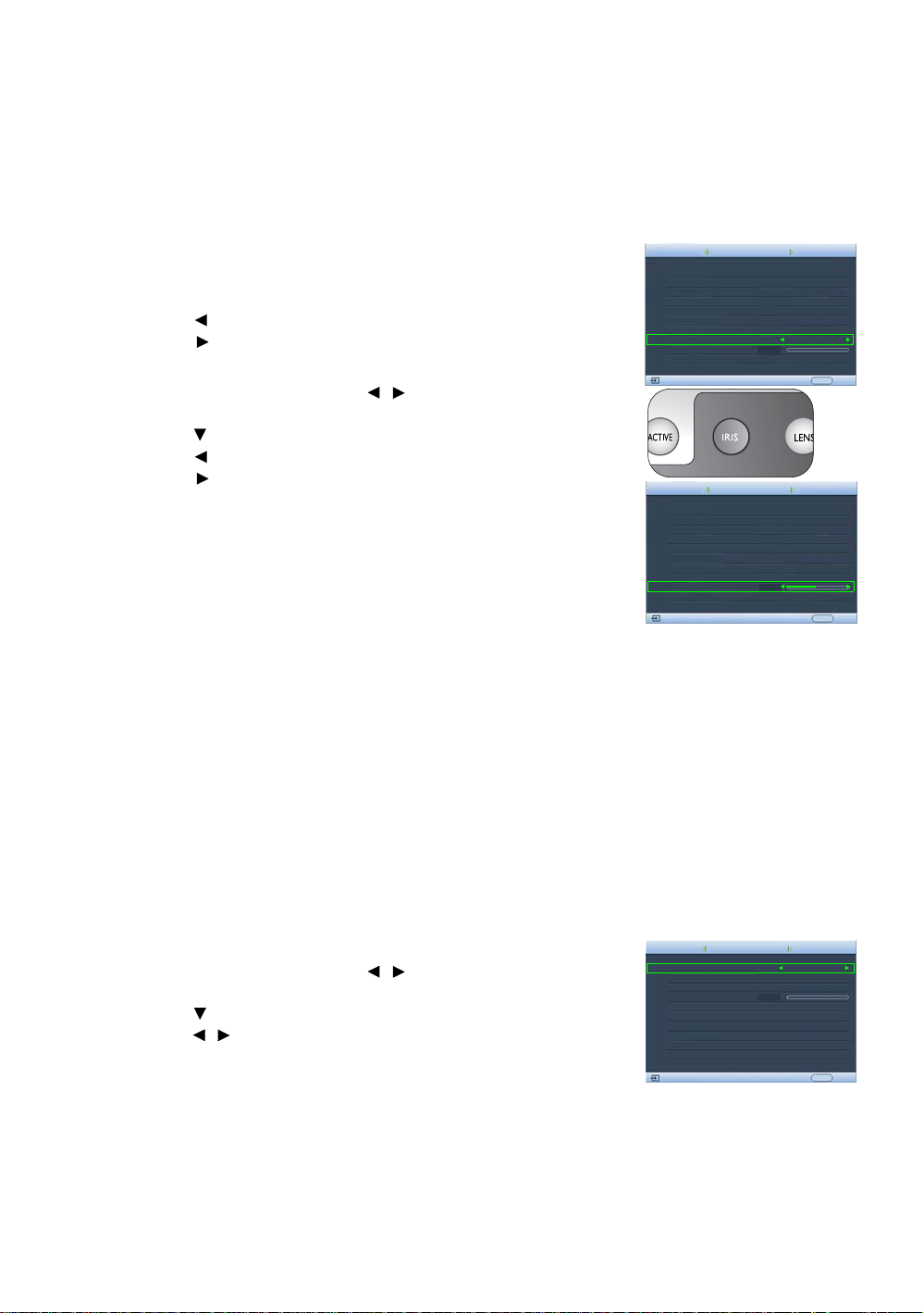

13. IRIS button

Displays the setting bar for the adjustment of the motorised aperture lens IRIS. See

"Adjusting contrast ratio via IRIS" on page29

for details.

14. LIGHT button

Turns on the remote control backlight for about 10 seconds. Pressing any other button while the backlight is on keeps the backlight on for a further 10 seconds. Press the button again to turn the backlight off.

Overview

Positioning your projector

Choosing a location

Your projector is designed to be installed in one of four possible installation locations:

1. Floor in front of screen;

2. Ceiling in front of screen;

3. Floor at rear of screen; or

4. Ceiling at rear of screen. Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

1. Floor front:

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

3. Floor rear:

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

*Set Floor Rear after you turn the projector on.

2. Ceiling Front:

Select this location with the projector suspended from the ceiling in front of the screen.

Purchase an appropriate projector ceiling mounting kit from your dealer to mount your projector on the ceiling.

*Set Ceiling Front after you turn the projector on.

4. Ceiling Rear:

Select this location with the projector suspended from the ceiling behind the screen.

Note that a special rear projection screen and a qualified projector ceiling mounting kit are required for this installation location.

*Set Ceiling Rear after you turn the projector on.

*To set the projector position:

1. Press MENU on the remote control and then press / until the System menu is highlighted.

2. Press / to highlight Projector Position and press / until the correct position is selected.

Display

Language Splash Screen My Screen

Projector Position

Auto Off Sleep Timer Background Color Menu Settings Input Source Auto Source Search

S-Video

System

Setup

English

SIM2

Floor Front

Disable Disable

Blue

EXIT Back

Positioning your projector

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format each factors in the projected image size.

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular (90° right-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces). If the projector is mounted on a ceiling, it must be mounted upside-down.

This projector is equipped with a movable lens. See "Shifting the projection lens vertically" below for details. You can see the diagrams on pages 13 and 14 for the vertical offset values in the dimension tables that are measured when the lens is shifted fully up or down.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

We have provided separate tables of dimensions for both 16:9 and 4:3 screen ratios to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset).

Shifting the projection lens vertically

The vertical lens shift control provides flexibility for installing your projector. It allows the projector to be positioned slightly above or below the top level of the projected images.

The lens shift (offset) is expressed as a percentage of the projected image height. It is measured as an offset from the projected image's vertical center. The projector is equipped with + 60% and - 40% vertical lens shift. You can shift the projection lens upwards or downwards within the allowable range depending on your desired image position.

To adjust the vertical position of the projection lens:

1. Press LENS or / (when the OSD menu is not activated)

on the remote control to display the adjustment page. (Pressing ENTER in the Color > Lens Shift menu performs the same function.)

2. To raise the projected image, press on the remote

control. To lower the projected image, press on the remote control.

Projector position:

Floor front or floor rear

Projector position:

Ceiling front or ceiling rear


Black Level Clarity Control Color Temperature Color Temperature User_ Fine Gamma Selection Brilliant Color Color Management Dynamic Black On IRIS

Lens Shift

S-Video

Lens Shift

Color

Display

0 IRE

Normal

2.4

ENTER

EXIT Back

(D)

(C)

(D)

Center of the lens

(C)

Center of the lens

See pages 13 and 14 for the corresponding values of (C) and (D).

EXIT Back

Positioning your projector

How to determine the position of the projector for a given screen size

1. Determine the aspect ratio of your screen, 16:9 or 4:3.

2. Refer to the table and find the closest match to your screen size in the left columns

labelled "Screen Dimensions". Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled "Average". This is the projection distance.

3. Decide the exact height of your projector according to the position of your screen and

the adjustable vertical lens shift range. For example, if you are using an 120-inch, 4:3-aspect-ratio screen, please refer to "4:3

(standard) ratio screen dimension table". The average projection distance is 495 cm.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

1. Determine the aspect ratio of your screen, 16:9 or 4:3.

2. Measure the distance between the projector and where you want to position the

screen. This is the projection distance.

3. Refer to the table and find the closest match to your measurement in the average

distance from screen column labelled "Average". Check that your measured distance is

between the min and max distances listed on either side of the average distance value.

4. Using this value, look across that row to the left to find the corresponding screen

diagonal listed in that row. That is the projected image size of the projector at that

projection distance. For example, if you have a 16:9-aspect-ratio screen and your measured projection distance was 4.5m (450cm), please refer to "16:9 (widescreen) ratio screen dimension table". The closest match in the "Average" column is 449 cm. Looking across this row shows that an 100inch screen is required.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting picture distortion"

on page 22 for details.

Positioning your projector

Projection dimensions

Refer to "Dimensions" on page 48 for the center of lens dimensions of this projector before calculating the appropriate position.

Installation for a 16:9 ratio screen

Floor Installation

Diagonal

Height

Offset

Screen

Center of the lens

Projection Distance

Floor

Ceiling Installation

Diagonal

Projection Distance

Offset

Height

Ceiling

Center of the lens

Screen

16:9 (widescreen) ratio screen dimension table

Screen Dimensions Projection Distance in cm Offset

Diagonal (inch)

100 125 221 408 449 490 12 -112 110 137 244 449 494 539 14 -123 120 149 266 490 539 588 15 -134 130 162 288 531 584 637 16 -146 140 174 310 571 629 686 17 -157 150 187 332 612 674 735 19 -168 160 199 354 653 719 784 20 -179 170 212 376 694 764 833 21 -191 180 224 398 735 809 882 22 -202 190 237 421 776 854 931 24 -213 200 249 443 816 898 980 25 -224 250 311 553 1020 1122 1224 31 -280 300 374 664 1224 1347 1469 37 -336

* See the pictures of "Shifting the projection lens vertically" on page 11 for the range of (C) and (D) The above numbers are approximate and may be slightly different from the actual measurements. Only

the recommended screen sizes are listed. If the your screen size is not in the table above, please contact your dealer for assistance.

Height (cm)

41 51 91 167 184 201 5 -46 50 62 111 204 225 245 6 -56 60 75 133 245 270 294 7 -67 70 87 155 286 315 343 9 -78 80 100 177 327 360 392 10 -90 90 112 199 367 404 441 11 -101

Width (cm)

Min distance (with max zoom)

Average

Max distance (with min zoom)

Highest lens position (cm) (C)*

Lowest lens position (cm) (D)*

Positioning your projector

Installation for a 4:3 ratio screen

The illustrations and table below are provided for those users who already have 4:3 aspect ratio screens or intend to purchase 4:3 aspect ratio screens to view 16:9 ratio projected images.

Floor Installation

Diagonal

Image Height

Offset

Screen

Center of the lens

Projection Distance

Floor

Ceiling Installation

Diagonal

Image Height

Projection Distance

Offset

Ceiling

Center of the lens

Screen

4:3 (standard) ratio screen dimension table

Screen Dimensions Projection Distance in cm Offset

Min Diagonal (inch)

Height (cm)

Width (cm)

distance

(with max

Average

zoom)

41 62 83 154 169 184 5 -42 47 50 76 102 187 206 225 6 -51 57 60 91 122 225 248 270 7 -62 69 70 107 142 262 289 315 8 -72 80 80 122 163 300 330 360 9 -82 91

90 137 183 337 371 405 10 -93 103 100 152 203 375 413 450 11 -103 114 110 168 224 412 454 495 13 -113 126 120 183 244 450 495 539 14 -123 137 130 198 264 487 536 584 15 -134 149 140 213 284 525 577 629 16 -144 160 150 229 305 562 618 674 17 -154 171 160 244 325 599 659 719 18 -165 183 170 259 345 637 701 764 19 -175 194 180 274 366 674 742 809 21 -185 206 190 290 386 712 783 854 22 -195 217 200 305 406 749 824 899 23 -206 229 250 381 508 937 1031 1124 29 -257 286 300 457 610 1124 1237 1349 34 -309 343

the recommended screen sizes are listed. If the your screen size is not in the table above, please contact your dealer for assistance.

Max distance (with min zoom)

Highest lens position (cm) (C)*

Lowest lens position (cm)(D)*

Image Height (cm)

Positioning your projector

Connecting with video equipment

You can connect the projector to any type of video equipment, such as a VCR, DVD player, digital tuner, cable or satellite decoder, video game console or digital camera. You can also connect it to a desktop or laptop PC or Apple Macintosh system. However, it has no built-in speakers and cannot be connected to audio equipment.

The projector can be connected to multiple video equipment at the same time by using different cables. All you need to do is select the appropriate input for the projector to display.

Best video quality

The best available video connection method is HDMI. HDMI (High-Definition Multimedia Interface) supports uncompressed video data transmission between compatible devices like DTV tuners, DVD players and displays over a single cable. It provides pure digital viewing and listening experience.

See "Connecting HDMI devices" on page 16 for how to connect the projector to a HDMI device.

The RGBHV also provides high video quality that transmits Red, Green, Blue, Horizontal and Vertical sync signals separately on its own conductor.

See "Connecting RGBHV devices" on page 16 for how to connect the projector to a RGBHV device.

The next best video signal is Component Video (not to be confused with composite Video). Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) Video.

See "Connecting component-video devices" on page 16 for how to connect the projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video. If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use the S-Video option.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting S-Video or video devices" on page 17 for how to connect the projector to an S-Video or composite Video device.

Preparations

When connecting a signal source to the projector, be sure to:

1. Turn off all equipment before making any connections.

2. Use only the correct type cables for each source with proper type plugs.

3. Ensure that all cable plugs are firmly fitted to the equipment sockets.

Note that all cables shown in the following connection diagrams may not be supplied with the projector (See "Shipping contents" on page 5 for details). Most cables are commercially available from electronics stores.

Connecting with video equipment

Connecting HDMI devices

You should use an HDMI cable when making connection between the projector and HDMI devices.

HDMI device: DVD player, digital tuner, etc.

From audio output

terminals

HDMI cable

To audio input

terminals

You should also connect the separate audio cable to a suitable audio amplifier.

Connecting RGBHV devices

Use a RGBHV video cable with 5 BNC male connectors for connection. Be sure to match the corresponding colors between the cables and the terminals.

AV equipment: DVD player, digital tuner, etc.

From audio output

terminals

BNC cable

To audio input

terminals

Connecting component-video devices

Be sure to match the corresponding colors between the cables and the terminals.

AV equipment: DVD player, digital tuner, etc.

From audio output

terminals

Component cable

To audio input

terminals

The RCA type component video sockets are provided for connection to video output devices. If you have a BNC type component video cable, you can alternatively connect through the BNC component video sockets.

You should also connect the separate audio cable to a suitable audio amplifier.

Connecting with video equipment

Connecting S-Video or video devices

From audio output

terminals

S-Video cable

Video cable

To audio input

terminals

You need only connect S-Video or composite Video cable from the sam e device, never both at the same time. You should also connect the separate audio cable to a suitable audio amplifier.

If you have already made a Component Video connection between the projector and the video source device, you need not connect to this device again using an S-Video or composite Video connection as this makes an unnecessary second connection of poorer picture quality. You need only connect using a composite Video connection if both Component Video and S-Video are not supplied on the video source device (for example, with some analog video cameras).

Connecting a computer

Connect the projector to a computer with a VGA-BNC cable.

Laptop or desktop computer

From audio output

terminals

To audio input

terminals

VGA-BNC cable

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, please check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Many laptops do not turn on their external video ports when connected to a projector. Usually a key combination like Fn + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the laptop. Press Fn and the labeled function key simultaneously. Refer to your laptop’s documentation to discover your laptop’s key combination.

Connecting with video equipment

Using the projector

Preparations

1. Plug in and turn all of the connected equipment on.

2. If not already in, plug the supplied power cable into the AC inlet on the rear of the projector and turn on the power switch.

3. Plug the power cable into a wall socket and turn the wall switch on.

Turning the projector on

Follow the steps below.

1. Make sure the Power light is orange after power has been applied and the main AC power switch is turned on.

2. Press and hold POWER () on the remote control to turn the projector on.

3. The fans will start operating, and a start-up image displays on the screen for a few seconds while it warms up.

4. If you are prompted for a password, press the arrow keys to enter a six digit password. See "Utilizing the password

function" on page 20 for details.

5. "Source Searching..." will be displayed on the screen before the projector identifies the input signal. This message will remain on the screen until a valid signal is detected. See "Selecting an input source" on page 18 for details.

6. If the horizontal frequency of the input signal exceeds the range of the projecto r, the message "Out of Range" will be displayed on the screen. This message will remain onscreen until you change the input signal to an appropriate source.

The projector will not respond to further commands while it is warming up.

Selecting an input source

The projector can be connected to multiple equipment at the same time. When the projector is first turned on, it will attempt to reconnect with the input source which was in use when the projector was last shut down.

To select the video source:

• Using the remote control

Press one of the Source buttons on the remote control. To switch between HDMI 1 and HDMI 2, press HDMI again.

•Using the OSD menu

1. Press MENU and then press / until the System menu is highlighted.

2. Press to highlight Input Source and press ENTER. The source selection bar displays.

3. Press / repeatedly until your desired signal is selected and press ENTER. Once detected, the selected source information will display on the screen for seconds. If there is multiple equipment connected to the projector, you can go back to the source selection bar again to search for other signals.

• If you want the projector to automatically search for the signals, select On in the System > Auto Source Search menu.

Display

Language Splash Screen My Screen Projector Position Auto Off Sleep Timer Background Color Menu Settings

Input Source Auto Source Search

S-Video

HDMI 1

HDMI 2

Video

S-Video

Component 1

Component 2

RGB HD

System

Setup

English

SIM2

Floor Front

Disable Disable

Blue

ENTER

NOTE: When automatically searching for an valid input source, the projector cycles through the available signals following the sequence from top to bottom as the source selection bar shows.

EXIT Back

Using the projector

• If you want to use the PIP function, see "Displaying more than one image source

simultaneously" on page 32 for details.

Using the menus

The projector is equipped with multilingual On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

Main menu

Information


Color

Highlight

Sub-menu

Picture Mode

Load Settings From

Brightness Contrast Color

Tint Sharpness Reset Picture Settings Rename User Mode

+ 50 + 50 + 50

Cinema Mode

Status

+ 2

Press EXIT to the previous page or to exit.

Current input source

S-Video

EXIT Back

To use the OSD menus, please set the OSD menu to your familiar language first.

1. Press MENU on the remote control to turn the OSD menu on.

Information

Picture Mode Load Settings From Brightness Contrast Color Tint Sharpness Reset Picture Settings Rename User Mode

S-Video


+ 50 + 50 + 50

Color

Cinema Mode

+ 2

EXIT Back

2. Use / to highlight the System menu.

Display

Language Splash Screen My Screen Projector Position Auto Off Sleep Timer Background Color Menu Settings Input Source Auto Source Search

S-Video

System

Setup

English

SIM2

Floor Front

Disable Disable

Blue

EXIT Back

3. Press to highlight Language and press / to select a preferred language.

Display

Language

Splash Screen My Screen Projector Position Auto Off Sleep Timer Background Color Menu Settings Input Source

Auto Source Search

S-Video

System

4. Press MENU once or EXIT twice* on the remote control to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Setup

English

SIM2

Floor Front

Disable Disable

Blue

EXIT Back

Fine-tuning the image size and clarity

1. Adjust the projected picture to the size that you need using the zoom ring.

2. Then sharpen the picture by rotating the focus ring.

Using the projector

Securing the projector

Using a security cable lock

The projector has to be installed in a safe place to prevent stealing. If not, purchase a lock, like Kensington lock, to secure the projector. You can locate a Kensington lock slot on the left side of the projector. See item 11 on page 7 for details.

A Kensington security cable lock is usually the combination of key(s) and lock. Refer to the lock’s documentation about how to use it.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. Once the password is set and this function is selected, the projector is passwordprotected. Users who do not know the correct password can not use the projector.

You will be inconvenienced if you activate the password functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set and activated, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Press MENU on the remote control and then press / until the Setup menu is highlighted.

2. Press to highlight Password and press ENTER. The Password page displays.

3. Highlight Password and press / to select On. The Input Password page displays.

4. As the picture indicates, the four arrow keys ( , , , ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys on the remote control to enter six digits for the password. If the function is used for the first time, enter the default password (1, 1, 1, 1, 1, 1) of the projector by pressing the arrow key six times. Once the password is set, the OSD menu returns to the

Password page.

IMPORTANT: The digits being input will display as asterisks onscreen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it. Password: __ __ __ __ __ __

Lamp settings Pattern Dust Filter High Altitude Mode

Password

Reset All Settings

S-Video

Password

Change Password

Input Password

Setup

InformationSystem

Off

ENTER

EXIT Back

Off

EXIT Back

EXIT Clear

5. To leave the OSD menu, press MENU.

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the Input Password page follows. You can retry by entering another six-digit password, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 21 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Using the projector

Password Error

Please try again.

Entering the password recall procedure

1. Make sure the Input Password page displays on screen. Press and hold PICTURE MODE on the remote control for 3 seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Recall Password

Please write down the recall code, and contact your nearest SIM2 Customer Center.

Recall code:

255 255 255 255

EXIT Back

Changing the password

1. Press MENU on the remote control and then press / until the Setup menu is highlighted.

2. Press / to highlight Password and press ENTER. The Password page displays.

3. Highlight Change Password and press ENTER. The Input Current Password page displays.

4. Enter the old password.

• If the password is correct, the message 'Input New Password' displays.

• If the password is incorrect, the password error message displays lasting for three

seconds, and the message 'Input Current Password' displays for your retry. You can either press MENU to cancel the change or try another password.

5. Enter a new password.

IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __ Keep this manual in a safe place.

6. Confirm the new password by re-entering the new password.

7. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

Password Changed

8. To leave the OSD menu, press MENU.

Disabling the password function

To disable password protection, go back to the Setup > Password > Password menu. Highlight Password and select Off

by pressing / . The message 'Input Password' displays. Enter the current password.

• If the password is correct, the OSD menu returns to the

Password page with 'Off' shown in the row of Password. You will not have to enter the password next time when turning on the projector.

• If the password is incorrect, the password error message

displays lasting for three seconds, and the message 'Input Password' displays for your retry. You can either press MENU to cancel the change or try another password.

Note that though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Password

Change Password

EXIT Back

Using the projector

Adjusting the projected image

Adjusting the projection angle

There are four adjuster feet on the bottom of the projector. These can be used if necessary to change the projection angle. Screw the feet in or out as appropriate to aim and level the projection angle.

If the screen and the projector are not perpendicular to each other, the projected image becomes vertical trapezoidal. To correct this problem, see "Correcting picture

distortion" on page 22 for details.

Correcting picture distortion

Keystoning occurs when the projector is not perpendicular to the screen and is where the projected picture displays visible as a trapezoid shape like either of th e following:

• Two parallel sides (left and right, or top and bottom) but is noticeably wider on either side.

• No parallel sides.

To correct the picture's shape, you can perform the following steps.

1. Adjust the projection angle. Move the projector to be in front of the center of the screen with the base of the lens level with the top or bottom edge of the screen.

2. If the picture is stilled distorted, or the projector is unable to be positioned as described above, you will need to manually correct the picture.

• Using the remote control

i. Press one of the Arrow keys on the remote control ( ,

) to display the Keystone page.

ii. See step iv below for further operation.

• Using the OSD menu

i. Press MENU and then press / until the Display menu is

highlighted.

ii. Press to highlight Keystone and press ENTER. The

Keystone page displays.

iii. Highlight 2D Keystone and press ENTER. The keystone

correction page displays.

iv. Press the key whose keystone icon is similar to the shape

of the projected picture. Continue pressing the same key or press the other keys until you are satisfied with the shape. The values on the lower portion of the page change while pressing. When the values reach their maximum or minimum with repeated key presses, the picture's shape will stop changing. You will not be able to change the picture further in that direction.

Color

Aspect Ratio

Keystone

Position Overscan Adjustment PIP PC & Component YPbPr Tuning

S-Video

Keystone

2D Keystone

Display

System

Anamorphic

ENTER

EXIT Back

Two parallel sides

Press .

No parallel sides

1. Press .

Using the projector

2. Press .

Press .

Keystone

EXIT Back

Using the preset and user modes

Selecting a picture mode

The projector is preset with several pre-defined picture modes so that you can choose one to suit your operating environment and input source picture type.

To select a picture mode that suits your need:

• Using the remote control

1. Press PICTURE MODE repeatedly or USER 1, USER 2, USER 3 on the remote control until your desired mode is selected.

•Using the OSD menu

1. Press MENU and then press / until the Image menu is highlighted.

2. Press to highlight Picture Mode.

3. Press / until your desired mode is selected.

These modes consist of preset values suitable for various projection situations as described below:

• Cinema Mode: with well-balanced color saturation and contrast with a low brightness level. This is most suitable for enjoying movies in a totally dark environment (as you would find in a commercial cinema).

• Dynamic Mode: Maximizes the brightness of the projected image. This mode is suitable for environments where extrahigh brightness is required, such as using the projector in well lit rooms.

• Standard: Is slightly brighter than Cinema Mode mode, and suitable for use in rooms where there is a small amount of ambient light.

• User 1/User 2/User 3: Recalls the customized settings. See "Setting the User 1/User 2/User 3

mode" on page 24 for details.

Information

Picture Mode

Load Settings From

Brightness Contrast Color Tint Sharpness Reset Picture Settings Rename User Mode

S-Video


Color

Cinema Mode

+50 +50 +50

+ 2

EXIT Back

Fine-tuning the selected picture mode

The pre-defined picture mode settings can be altered via the availa b le items shown in the Image and Color menus.

To fine-tune the picture mode:

1. Press MENU and then press / until the Image or Color menu is highlighted.

2. Press to highlight the item you want to adjust (from among Brightness, Contrast, Color,

Tint, Sharpness, Black Level, Clarity Control, Color Temperature, Gamma Selection, Brilliant Color, Color Management, IRIS) and press / to set your desired value. Your

selection is automatically stored in the projector and associated with that input source. See "Fine-tuning the picture quality" on page 25 and "Advanced picture quality controls"

on page 26 for details.

Each time you change the picture mode, the projector also changes the setting to the one which was last set for that particular picture mode on that particular input. If you change the input source, the most recently used picture mode and settings for that input and resolution will be restored.

Using the projector

Setting the User 1/User 2/User 3 mode

There are three user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the selected User mode) as a starting point and customize the settings.

1. In the Image menu, highlight Picture Mode and press / to select User 1, User 2, or User 3 mode.

2. Press to highlight Load Settings From.

This function is only available when User 1, User 2, or User 3 mode is selected up in the Picture Mode sub-menu item.

3. Press ENTER to display the Load Settings From page.

4. Press to highlight a picture mode that is closest to your need and press ENTER and EXIT.

5. Press to select a sub-menu item to be changed and adjust the value with / . See "Fine-tuning the picture

quality" on page 25 and "Advanced picture quality controls" on page 26 for details.

6. When all settings have been done, press MENU to save and

Information

Picture Mode

Load Settings From

Brightness Contrast Color Tint Sharpness Reset Picture Settings Rename User Mode

S-Video

Load Settings From

Cinema Mode

Dynamic Mode Standard Mode

User 1

User 2 User 3


Color

User 1

ENTER

+50 +50 +50

+ 2

EXIT Back

ENTER

EXIT Back

leave the settings.

Renaming user modes

You can change User 1, User 2, and User 3 to the names easy to be identified or understood by the users of this projector. The new name can be up to 12 characters including English letters (A-Z, a-z), digits (0-9), and space (_).

To rename user modes:

1. In the Image menu, highlight Rename User Mode and press ENTER to display the Rename User Mode page.

2. Press / to highlight the item you want to rename and press ENTER. The first letter will be highlighted by a white box.

3. Press / to select the first character.

4. Press to move along until the new name is set and press ENTER to confirm.

5. Repeat steps 2-4 if you want to change the other names.

Resetting the picture mode

All of the adjustments you’ve done in the Image and Color menus can be returned to the factory preset values with a key press on the highlight of Reset.

To reset the picture mode to the preset factory values:

1. In the Image menu, highlight Picture Mode and press / to select the picture mode (including User 1, User 2, or User 3) you want to reset.

2. Press to highlight Reset Picture Settings and press ENTER. The confirmation message displays.

3. Press / to highlight Reset and press ENTER. The picture mode will return to the factory preset settings.

4. Repeat steps 1-3 if you want to reset other picture modes.

Do not to be confused with the Reset Picture Settings function here with the Reset All Settings in the Setup menu. The Reset All Settings function returns most of the settings to the factory preset values system wide. See "Reset All Settings" on page 39 for details.

Using the projector

Fine-tuning the picture quality

No matter what picture mode you have selected, you are able to fine-tune those settings to fit every presentation purpose. Those adjustments will be saved to the Picture mode you are at when you exit the OSD menu.

Adjusting Brightness

Highlight Brightness in the Image menu and adjust the values by pressing / on the remote control.

The higher the value, the brighter the picture. And lower the

-15

setting, darker the picture. Adjust this control so the black areas of the picture appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight Contrast in the Image menu and adjust the values by pressing / on the remote control.

The higher the value, the greater the contrast. Use this to set the

-8

peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Adjusting Color

Highlight Color in the Image menu and adjust the values by pressing / on the remote control.

Lower setting produces less saturated colors; setting to the minimum value makes the image black and white. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

+15

Adjusting Tint

Highlight Tint and adjust the values by pressing / on the remote control. The higher the value, the more reddish the picture becomes. The lower the value, the more

greenish the picture becomes.

Adjusting Sharpness

Highlight Sharpness and adjust the values by pressing / on the remote control.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

The Brightness, Color, Contrast, Tint functions can also be accessible by pressing BRIGHTNESS, COLOR, CONTRAST, TINT on the remote control to display the adjustment bar and then you can press / to adjust the values.

+30

+50

+70

Using the projector

Advanced picture quality controls

There are more advanced functions in the Color menu to be adjusted to your preference. To save the settings, just press

MENU to leave the OSD menu.

Setting Black Level

Highlight Black Level and press / on the remote control to select 0 IRE or 7.5 IRE.

The grayscale video signal is measured in IRE units. In some areas which use NTSC TV standard, the grayscale is measured from 7.5 IRE (black) to 100 IRE (white); however, in other areas which use PAL equipment or Japanese NTSC standard, the grayscale is measured from 0 IRE (black) to 100 IRE (white). We suggest that you check the input source if it is with 0 IRE or 7.5 IRE, then select accordingly.

Controlling image clarity

You may have static or noisy projected pictures. To achieve better picture clarity:

1. Highlight Clarity Control and press ENTER on the remote control to display the Clarity Control page.

2. Press / to select the item you want to adjust and press

/ to set the desired value.

• Noise Reduction: Reduces electrical image noise

caused by different media players. The higher the setting, the less the noise.

• Detail Enhancement: Sharpens the image. The higher the

setting, the more details the image reveals.

• Luma Transmission (Luminance Transmission

Improvement): Enhances picture brightness. The higher the setting, the more distinct the effect.

• Chroma Transmission (Chroma Transmission

Improvement): Reduces color smear. The higher the setting, the more distinct the effect.

Selecting a color temperature*

Highlight Color Temperature and select a preferred setting by pressing / on remote control.

There are several color temperature settings available.

1. Lamp Native: With the lamp’s original color temperature and higher brightness. This setting is suitable for environments where high brightness is required, such as projecting pictures in well lit rooms.

2. Warm: Makes pictures appear reddish white.

3. Normal: Maintains normal colorings for white.

4. Cool: Makes pictures appear bluish white.

5. User 1/User 2/User 3: Recalls the settings customized in the Color Temperature User_ Fine Tuning menu. See "Setting a

preferred color temperature" on page 27 for details.


Black Level

Clarity Control Color Temperature Color Temperature User_ Fine Gamma Selection Brilliant Color

Color Management Dynamic Black IRIS

Lens Shift

S-Video


Black Level

Clarity Control

Color Temperatu re

Color Temperature User_ Fine

Gamma Selection

Brilliant Color

Color Management Dynamic Black On

IRIS

Lens Shift

S-Video

Clarity Control

Noise Reduction

Detail Enhancement

Luma Transmission Chroma Transmission


Black Level Clarity Control

Color Temperature

Color Temperature User_ Fine Gamma Selection Brilliant Color Color Management

Dynamic Black On IRIS Lens Shift

S-Video

*About color temperatures: There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

Color

Display

0 IRE

Normal

2.4

EXIT Back

Display

0 IRE

ENTER

Normal

2.4 On

EXIT Back

0 0

EXIT Back

Display

0 IRE

Normal

2.4 On

EXIT Back

Using the projector

Setting a preferred color temperature

To set a preferred color temperature:

1. Highlight Color Temperature and select User 1, User 2, or User 3 by pressing / on the remote control.

2. Press to highlight Color Temperature User_ Fine Tuning and press ENTER. The Color Temperature User_ Fine Tuning page displays.

The menu name ‘User_’ corresponds with the setting selected in Color Temperature.

3. Press / to highlight the item you want to change and adjust the values by pressing

• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue.

• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and

Blue.

4. To save and leave the settings, press MENU once or EXIT twice.

Color Temp. User 1 Fine Tuning

Red Gain

Green Gain Blue Gain Red Offset Green Offset Blue Offset

+50

+50 +50 +50 +50 +50

EXIT Back

Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted to favorite colors. When you select each color, you can independently adjust its color range and saturation according to your preference.

To adjust and store the settings:

Using the projector

1. In the Color menu, highlight Color Management and press ENTER. The Color Management page displays.

2. Highlight Primary Color and press / to sele ct a color from among Red, Yellow, Green, Cyan, Blue, and Magenta.

3. Press to highlight Range and press / to select the color range you wish to make adjustment. The bigger the range, the more proportions of its two adjacent colors the color contains.

Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red is selected. Increasing its range will include both the red color close to yellow and red color close to magenta.

4. Press to highlight Saturation and adjusts the color saturation level by pressing / . If you select Red and set its range at 0, only the saturation of the pure red will be affected.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

5. To leave and save the settings, press MENU once or EXIT twice.

Adjusting Brilliant Color

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. When set to "Off", Brilliant Color is disabled.


Black Level Clarity Control Color Temperatu re Color Temperature User_ Fine Gamma Selection

Brilliant Color

Color Management

Dynamic Black

IRIS

Lens Shift

S-Video

Color Management

Primary Color

Range Saturation

Yellow

Red

Magenta


Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine

Gamma Selection

Brilliant Color

Color Management

Dynamic Black

IRIS

Lens Shift

S-Video

Color

Blue

Color

+15 +15

Cyan

0 IRE

Normal

2.4 On

ENTER

Magenta

Green

0 IRE

Normal

Display

EXIT Back

Display

2.4

EXIT Back

Selecting a Gamma setting

Highlight Gamma Selection and select a preferred setting by pressing / on the remote control.

Gamma refers to the relationship between input source and picture brightness.

•Gamma 2.2 Increases the average brightness of the picture. Best for a lit

environment, meeting room or family room.

• Gamma 2.4/2.5 Best for viewing movies in a darken environment.

• Gamma 2.6/2.8 Best for viewing movies which are mostly composed of dark

scenes.

High Brightness

Low Contrast

2.2 2.4 2.5 2.6 2.8

Using the projector

Low Brightness

High Contrast


Black Level Clarity Control Color Temperature Color Temperature User_ Fine

Gamma Selection

Brilliant Color Color Management

Dynamic Black On IRIS Lens Shift

S-Video

Color

Display

0 IRE

Normal

2.4

EXIT Back

Adjusting contrast ratio via IRIS

The contrast ratio is the measurement of the difference between the brightest whites and the darkest blacks a display can show. This projector has a very high contrast ratio which can reveal subtle color detail not possible with projectors which have a lower contrast ratio. You can adjust the contrast level to allow for ambient lighting levels within the room which may affect color detail. Make sure Dynamic Black in the Color menu is set to "On" before you can adjust the contrast ratio.

To manually adjust the contrast ratio,

• Using the remote control

1. Press IRIS. The adjustment bar displays.

2. Press to lower the contrast and increase brightness, or press to raise the contrast and decrease brightness.

•Using the OSD menu

1. Press MENU and then press / until the Color menu is highlighted.

2. Press to highlight IRIS.

3. Press to lower the contrast and increase brightness, or press to raise the contrast and decrease brightness.


Black Level Clarity Control Color Temperature Color Temperature User_ Fine Gamma Selection Brilliant Color

Color Management

Dynamic Black

IRIS 0

Lens Shift

S-Video


Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine

Gamma Selection

Brilliant Color

Color Management

Dynamic Black

IRIS

Lens Shift

S-Video

Color

Display

0 IRE

Normal

2.4

EXIT Back

Display

0 IRE

Normal

2.4 On

+ 8

EXIT Back

Selecting the aspect ratio

The "aspect ratio" is the ratio of the image width to the image height. Digital TV is usually in 16:9 ratio, which is the default for this projector, and most analog TV signals and DVDs are in 4:3 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input source. Images can be stretched in a linear manner so the whole of the image is stretched equally, or non-linearly, which distorts the image.

To change the projected picture ratio (no matter what aspect the source is):

• Using the remote control

Press one of the aspect ratio buttons to suit the format of the video signal and your display requirements.

•Using the OSD menu

1. Press MENU and then press / until the Display menu is highlighted.

2. Press to highlight Aspect Ratio.

3. Press / to select an aspect ratio to suit the format of the video signal and your display requirements.

Color

Aspect Ratio

Keystone Position Overscan Adjustment PIP PC & Component YPbPr Tuning

S-Video

Display

System

Anamorphic

EXIT Back

Using the projector

About the aspect ratio

1. Anamorphic (ANA): Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This setting stretches and resizes linearly, except that it treats the vertical and horizontal dimensions independently. It stretches the height of the source image until it reaches the full projected height, and stretches the width of the source image until it reaches the full projected width. This may alter the projected aspect, depending upon the original aspect of the source image. Anamorphic is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

2. 4:3: Scales a picture so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 pictures like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.

3. Letter Box (LB): Scales a picture to fit the projector’s native resolution in its horizontal width and resize the picture’s height to the 3/4 of the projection width. This may produce a picture greater in height than can be displayed, so part of the picture is lost (not displayed) along the top and bottom edges of the projection. This is suitable for the display of movies which are presented in letter box format (with black bars on the top and bottom).

16:9 picture

4:3 picture

16:9 picture

Letter Box format picture

4. Wide: Stretches the picture horizontally in a non-linear manner, that is, the edges of the picture are stretched more than the center of the picture to prevent distortion of the central part of the picture. This is suitable for occasions

4:3 picture

where you want to stretch the width of a 4:3 aspect picture to the width of a 16:9 aspect screen. It does not alter the height. Some widescreen movies have been produced with their width squashed down to the width of a 4:3 aspect, and are best viewed when restretched back to their original width using this setting.

5. Real: This setting displays the image in a one-to-one pixel mapping without alteration or resize in the centre of the projection. This is most suitable for use with PC and RGBHD source inputs.

The black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

4:3 picture

Using the projector

Using anamorphic lenses (optional)

Anamorphic lenses allow you to convert 16:9 projectors to the full 2.35:1 aspect ratio of most of major motion pictures, showing the best movies without letterbox bars at top and bottom of images while increasing resolution by 33% and brightness by 20%.

2.35:1 aspect ratio image

Pressing LB on

the remote

control

2.35:1 aspect ratio image using the entire resolution of

Using

anamorphic

lens

2.35:1 aspect ratio image in a 2.35:1 display area

the 16:9 display

You may need a 2.35:1 screen to display the 2.35:1 images.

Operating in a high altitude environment

We recommend you activate High Altitude Mode when your environment is higher than 1500 meters (around 4920 feet) above sea level, or whenever the projector will be used for extended periods of time (>10 hours) without shutdown.

To activate High Altitude Mode:

1. Press MENU and then press / until the Setup menu is highlighted.

2. Press to highlight High Altitude Mode.

3. Press / to select On. A confirmation message displays.

4. Highlight Yes and press ENTER.

Operation under High Altitude Mode may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Setup

Lamp settings Pattern Dust Filter

High Altitude Mode

Password Reset All Settings

S-Video

WARNING

High Altitude Mode is used when the environment is higher than 1500m.

Do you want to turn the High Altitude Mode on?

Yes

InformationSystem

EXIT Back

Using the projector

Displaying more than one image source simultaneously

Your projector is capable of displaying pictures simultaneously from two input sources, which can be used to enhance your presentation in an interesting way. Ensure the signals you want to display are correctly connected to the projector.

To display the PIP window:

• Using the remote control

Press PIP to display the PIP page and make adjustments by following the steps starting from step 3 in the section "Using the OSD menu" below.

When the PIP window is on, to change the PIP window size, press SIZE repeatedly until a desired size is selected.

When the PIP window is on, to change the PIP window position, press POSITION repeatedly until a desired position is selected.

When the PIP window is on, to highlight one of the sources to make adjustments, press ACTIVE repeatedly until the source is selected.

•Using the OSD menu

1. Press MENU and then press / until the Display menu is highlighted.

2. Press to highlight PIP and press ENTER. The PIP page displays.

3. Highlight PIP and press / to select On.

The projector will select two currently active signals to display and the last viewed picture will be displayed on the big screen as a main source.

The PIP function is effective at below source combination.

Source 2

Source 1 CVBS S-Video

HDMI 1 V V

HDMI 2 V V Component 1 V V Component 2 V V

RGB HD V V

4. To change the Main Source or Second Source, press to highlight Main Source or Second Source and press ENTER. The source selection bar displays.

5. Use / to highlight the source you want to display for the main (bigger) or second (smaller) window, and press ENTER to save the setting and go back to the PIP page.

6. To make OSD settings to one of the two sources (main or second), highlight Active

Window and press / to select the source you want to make adjustments.

The settings made on the OSD menus will only take effect on the active window. See "Disabled functions

for the active windows" on page 33 for exceptions.

7. To change the position of the smaller picture, highlight Position and press / repeatedly until a suitable position is selected.

8. To resize the small picture, highlight Size and press / to set the PIP size among Small or Large.

9. To save the settings and leave the OSD menu, press MENU once or EXIT repeatedly until the menu disappears.

Color

Aspect Ratio Keystone Position Overscan Adjustment

PIP

PC & Component YPbPr Tuning

S-Video

PIP

Main Source Second Source Active Window Position Size

Display

System

Anamorphic

ENTER

EXIT Back

Main

Top-Right

Large

EXIT Back

Using the projector

Disabled functions for the active windows

The following OSD menu functions cannot work on the active windows for the PIP: My Screen, Auto Source Search.

Creating your own startup screen

In addition to selecting the projector preset startup screen from among SIM2 or Blue screen, you can make your own startup screen that is a picture projected from your computer or video source.

To create your own startup screen, project the picture you want to use as your startup screen from either a computer or video source. The rest steps are as follows.

• Using the OSD menu

1. Press MENU and then press / until the System menu is highlighted.

2. Press to highlight My Screen and press ENTER. A confirmation message displays.

3. Press ENTER again.

4. The message 'Screen Capturing...' displays while the projector is processing the picture. Please wait.

5. If the action is successful, you see the message 'Captured

Display

Language

Splash Screen My Screen Projector Position

Auto Off

Sleep Timer Background Color Menu Settings Input Source Auto Source Search

S-Video

System

Setup

English

My Screen

ENTER

Floor Front

Disable

Blue

EXIT Back

Succeeded' on the screen. The captured picture is saved as My Screen.

6. To view the captured picture displayed as the startup screen, set My Screen in the System > Splash Screen menu and restart the projector.

In the unlikely event that the capturing action fails, change your target picture.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

• Rename User Mode: See "Renaming user modes" on page 24 for details.

• Menu Display Time in the System > Menu Settings menu sets the length of time the OSD will remain active after your last key press. The time length ranges from 5 to 30 seconds in 5-second increments. Use / to select a suitable time.

• Menu Position in the System > Menu Settings menu sets the OSD position in five locations. Use / to select a preferred position.

• Language in the System menu sets your familiar language for the On-Screen (OSD) Menus. See "Using the menus" on page 19 for details.

• Splash Screen in the System menu sets a preferred screen to be displayed during projector start-up. See "Creating your own startup screen" on page 33 for details.

Using the projector

Turning the power off

To turn the projector off, press POWER ( ) on the remote control and a warning message appears. Press POWER again.

• The Power indicator light flashes orange and the fans run for about 90 seconds to cool the lamp. The projector will not respond to any commands until the cooling process is complete.

• Then, the Power indicator light is a steady orange once the cooling process has finished and fans stop.

• If the projector will not be used for an extended period, turn the main power switch off and unplug the power cable from the power outlet.

• To protect the lamp, the projector will not respond to any commands during the cooling process.

Are You Sure to Power Off?

Press again to power off.

Press any other button to cancel

Using the projector

On-Screen Display (OSD) menus

On-Screen Display (OSD) structure

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Main menu Sub-menu Options

Cinema Mode/Dynamic Mode/Standard/ User 1/User 2/User 3

Lamp Native/Warm/Normal/Cool/User 1/ User 2/User 3

Video/S-Video/Component 1/Component 2/ HDMI 1/HDMI 2/RGB HD


Color

Display

Picture Mode Load Settings From

Brightness 0–100 Contrast 0–100 Color 0–100 Tint -20–+20 Sharpness 0–8 Reset Picture Settings Rename User Mode Black Level 0 IRE/7.5 IRE

Noise Reduction 0/1/2

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection 2.2/2.4/2.5/2.6/2.8 Brilliant Color On/Off

Color Management

Dynamic Black On/Off IRIS 0–19 Lens Shift Aspect Ratio Anamorphic/4:3/Wide/Real/Letter Box Keystone 2D Keystone

Position Overscan Adjustment 0/1/2/3

PIP

PC & Component YPbPr Tuning

Detail Enhancement 0-5 Luma Transmission 0/1/2 Chroma Transmission 0/1/2

Red Gain 0–100 Green Gain 0–100 Blue Gain 0–100 Red Offset 0–100 Green Offset 0–100 Blue Offset 0–100

Primary Color Red/Yellow/Green/Cyan/Blue/Magenta Range 0–100 Saturation 0–100

PIP On/Off Main Source Second Source Active Window Main/Second Position Top-Right/Top-Left/Bottom-Right/Bottom-Left Size Large/Small H.Size -15–+15 Phase -15–+15 Auto

Using the projector

Language

Splash Screen SIM2/Blue/My Screen My Screen

Floor Front/Ceiling Front/Floor Rear/Ceiling Rear

Disable/5 min/10 min/15 min/20 min/25 min/ 30 min

Disable/30 min/60 min/90 min/120 min/150 min/180 min

Center/Top-Left/Top-Right/Bottom-Right/ Bottom-Left

HDMI 1/HDMI 2/Video/S-Video/Component 1/Component 2/RGB HD

System

Setup

Information

Projector Position

Auto Off

Sleep Timer Background Color Purple/Black/Blue

Menu Settings

Input Source Auto Source Search On/Off

Lamp settings

Pattern

Dust Filter

High Altitude Mode On/Off

Password

Reset All Settings Source Picture Mode Resolution

Lamp Hours

Dust Filter Hours

Menu Display Time 5 sec/10 sec/15 sec/20 sec/25 sec/30 sec Menu Position

Lamp Power Normal/Whisper Lamp Hours (shows lamp hours information) Grid Color Bar Dust Filter Hours (shows lamp hours information) Reset Dust Filter Timer

Password On/Off Change Password (inputs current password)

Normal Whisper Total

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

The default values listed in this manual, especially on pages 37-39, are for reference only. They may vary from the projectors due to the continuous improvement to the products.

Using the projector

Image menu

FUNCTION

(default setting/value)

Picture Mode

(Cinema Mode)

Load Settings From

Brightness

(depends on the selected input source)

Contrast

(depends on the selected input source)

Color

(depends on the selected input source)

Tint

(depends on the selected input source)

Sharpness

(depends on the selected input source)

Reset Picture Settings

Rename User Mode

DESCRIPTION

Pre-defined picture modes are provided so you can optimize your projector picture set-up to suit your program type. See "Selecting a

picture mode" on page 23 for details.

Selects a picture mode that most suits your need for the picture quality and further fine-tune the picture based on the selections listed below. See "Setting the User 1/User 2/User 3 mode" on

page 24 for details.

Adjusts the brightness of the picture. See "Adjusting Brightness" on

page 25 for details.

Adjusts the degree of difference between dark and light in the picture. See "Adjusting Contrast" on page 25 for details.

Adjusts the color saturation level -- the amount of each color in a video picture. See "Adjusting Color" on page 25 for details.

Adjusts the red and green color tones of the picture. See

"Adjusting Tint" on page25 for details.

Adjusts the picture to make it look sharper or softer. See "Adjusting

Sharpness" on page 25 for details.

Returns all settings in the Image and Color menus to the factory preset values. See "Resetting the picture mode" on page 24 for details. Renames User 1, User 2, or User 3. See "Renaming user modes" on

page 24 for details.

Color menu

FUNCTION

(default setting / value)

Black Level

(0 IRE)

Clarity Control Color Temperature

(depends on the selected Picture Mode)

Color Temperature User_ Fine Tuning

Gamma Selection

(depends on the selected Picture Mode)

Brilliant Color

(On)

Color Management

Dynamic Black

(On)

DESCRIPTION

Sets the picture grayscale as 0 IRE or 7.5 IRE. See "Setting Black

Level" on page 26 for details.

Adjusts the picture clarity. See "Controlling image clarity" on

page 26 for details.

There are several color temperature settings available. See

"Selecting a color temperature*" on page 26 for details.

See "Setting a preferred color temperature" on page 27 for details.

See "Selecting a Gamma setting" on page 28 for details.

See "Adjusting Brilliant Color" on page 28 for details. See "Color Management" on page 27 for details.

See "Adjusting contrast ratio via IRIS" on page 29 for details.

Using the projector

IRIS Lens Shift

Display menu

FUNCTION

(default setting / value)

Aspect Ratio

(Anamorphic)

Keystone

(0)

Position

(0)

Overscan Adjustment

(depends on the selected input source)

PIP

PC & Component YPbPr Tuning

See "Adjusting contrast ratio via IRIS" on page 29 for details. See "Shifting the projection lens vertically" on page 11 for details.

DESCRIPTION

There are several options to set the picture's aspect ratio depending on your input source. See "Selecting the aspect ratio"

on page 29 for details.

Corrects any keystoning of the picture. See "Correcting pictu re

distortion" on page 22 for details.

Displays the position adjustment page. To move the projected picture, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum. Conceals the poor picture quality in the four edges. You can also manually press / to decide how much to be concealed. Setting 0 means the picture is 100% displayed. The greater the value, the more portion of the picture is concealed while the screen remains filled and geometrically accurate. Turns the PIP window on or off and makes related adjustments. See

"Displaying more than one image source simultaneously" on page 32 for details.

H.Size (0) Adjusts the horizontal width of the picture.

Phase (0) Adjusts the clock phase to reduce picture distortion.

Auto

Adjusts the phase, and frequency automatically

System menu

FUNCTION

(default setting / value)

Language

(English)

Splash Screen

(SIM2)

My Screen

Projector Position

(Floor Front)

Auto Off

(Disable)

Sleep Timer

(Disable)

Background Color

(Blue)

Using the projector

DESCRIPTION

Sets the language for the On-Screen Display (OSD) menus. See

"Using the menus" on page 19 for details.

Allows you to select which screen will display during projector startup. Three options are available: SIM2 logo screen, Blue screen, or My Screen. Captures and stores the projected picture as My Screen. See

"Creating your own startup screen" on page 33 for details.

The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Obtaining a preferred projected

image size" on page 11 for details.

Prevents unnecessary projection when no signal is detected for a long time. See "Setting Auto Off" on page 43 for details.

Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 3 hours. Allows you to choose the color of the background screen that will be displayed when there is no input signal detected.

Menu Settings

Input Source

Auto Source Search

(Off)

Setup menu

FUNCTION

(default setting / value)

Lamp settings

Pattern

Dust Filter

High Altitude Mode

(Off)

Password

Reset All Settings

Menu Display Time

(10 sec)

Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.

Menu Position

(Center)

Sets the On-Screen Display (OSD) menu position. Selects an input source to be projected. See "Selecting an input

source" on page 18 for details.

Sets whether the projector searches automatically for input sources. If the source scan is Off, the projector will scan for input sources until it acquires a signal. If the function is not activated, the projector selects the last used input source.

DESCRIPTION

Lamp Power (Normal) Selects the projector lamp between Normal and Whisper modes. Lamp Hours

Shows the lamp hours information. See "Getting to know the lamp

hour" on page 43 for details.

Grid

Press ENTER to display the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free of distortion.

Color Bar

Press ENTER to display the color bar test pattern. You can display this test pattern to check that the colors are to your liking.

Dust Filter Hours

Shows the dust filter hours information

Reset Dust Filter Timer

Resets the duster filter timer to '0'. See "To clean the filter" on

page 42 for details.

A mode for operation in areas like high altitude or high temperature. See "Operating in a high altitude environment" on

page 31 for details.

Password

(Off)

Limits use of the projector to only those who know the correct password. See "Utilizing the password function" on page 20 for details.

Change Password

You will be asked to enter the current password before changing to a new one. See "Utilizing the password function" on page 20 for details. Returns all settings to the factory preset values.

The following settings will still remain: the selected input source, the position of lens shift, names of user modes, Keystone, Phase, Language, Projector Position, Reset Dust Filter Timer, High Altitude Mode, and Password.

Information menu

This menu shows you the current operating status of the projector.

Using the projector

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

FUNCTION DESCRIPTION

Source Picture Mode Resolution Lamp Hours Dust Filter Hours

Shows the current signal source. Shows the selected mode in the Image > Picture Mode menu. Shows the native resolution of the input source. Shows the lamp time used under Normal and Whisper modes. Shows the total time of the filter has been used.

Using the projector

Additional information

Care of the projector

Your projector needs little maintenance. The only thing you have to do on a regular basis is keep the lens clean and clean or replace the air filter. Never remove any parts of the projector except the lamp or the air filter. Contact your dealer or local service centre if the projector fails to operate as expected.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface. Before you attempt to clean the lens, turn the projector off, unplug the power cable, and leave it several minutes to cool completely.

1. Use a canister of compressed air to remove dust. (Available from building hardware or photographic suppliers.)

2. If there is stubborn dirt or smudge marks, use a proper photographic lens brush or moisten a clean soft lens cloth with lens cleaner to gently wipe the lens surface.

Never touch the lens with your finger or rub the lens with abrasive materials. Even paper towels can damage the lens coating. Only ever use a proper photographic lens brush, cloth, and cleaning solution. Do not attempt to clean the lens while the projector is switched on or is still hot from previous use.

Cleaning the projector case

Before you attempt to clean the case, turn the projector off, unplug the power cable, and leave it several minutes to cool completely.

1. To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

2. To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please:

1. Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to the Spec. page in this manual or consult your dealer about the range.

2. Retract the adjuster feet.

3. Remove the batteries from the remote control.

4. Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent. When you carry the projector yourself, please use a soft carry case.

Cleaning and replacing the dust filter

The message to the right displays periodically every 500 hours use. You can also use the Setup > Dust Filter > Dust Filter Hours menu or the Information > Dust Filter Hours menu to check how long the filter has been used. If the filter is not cleaned, it can become clogged with dust and prevent proper ventilation. This can cause overheating and a malfunction of the projector. Should the projector filter become seriously clogged with dust, it can cause over-heating inside of the projector.

WARNING

FILTER CLEAN REMIND NOTICE

Please check if the filter is clean. Clean the filter or re place

with a new one.

Additional information

To clean the filter

1. Shut down the projector if turned on and wait until the fans stop running.

2. Release the bottom edge of the filter cover (right side of projector) by gently pulling the tabs on the lower ends of the panel (as illustrated).

5. Use a small vacuum cleaner (designed for computers and other office equipment) or use a soft brush (such as a clean artist’s paintbrush) to vacuum or sweep the dust away.

• If the dirt is difficult to remove or the

filter is broken, you should replace it.

6. Re-install the filter grill and cover securely.

3. Remove the filter cover by gently lifting the loosened cover vertically upwards and then away from the projector body.

4. Remove the dust filter grill by pulling the tab outwards and away from the projector.

7. Reapply power and turn the projector on.

• If the filter grill is not correctly seated in

place, you will be reminded by messages displayed on the screen until ENTER is pressed on the highlight of OK.

• The projector will automatically shut

down within minutes if there has been no further action taken. Re-install the filter and cover securely, then turn on the power again.

Resetting the filter timer

Do not reset the filter timer if the filter has not been replaced.

1. After the startup screen, press MENU and then press / until the Setup menu is highlighted.

2. Press to highlight Dust Filter and press ENTER. The Dust Filter page displays.

3. Highlight Reset Dust Filter Timer and press ENTER. A warning message displays asking if you want to reset the filter timer. Highlight Reset and press ENTER. The filter time will be reset to '0'.

Do not reset if the filter is not new or replaced as this could cause damage.

Additional information

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Equivalent lamp hour = 1 (hours used in Whisper mode) + 3/2 (hours used in Normal mode)

See "Setting Lamp Power as Whisper" below for more information on

System

Lamp settings

Pattern Dust Filter High Altitude Mode Password Reset All Settings

Setup

Whisper mode.

To obtain the lamp hour information:

1. Press MENU and then press / until the Setup menu is highlighted.

2. Press to highlight Lamp settings and press ENTER. The

S-Video

Lamp settings

Lamp Power Lamp Hours

Lamp settings page displays.

3. Highlight Lamp Hours and press ENTER to display the Lamp Hours information page.

4. To leave the menu, press MENU.

About Lamp Reset Rate:

Lamp Hours

Lamp Hours Nor. Lamp Hours Eco. Lamp Reset Rate

Lamp Reset Rate shows the percentage of the lamp rest life. The method of calculating the rate is as follows:

Reset Rate = [1 - (Total Lamp Hours /3000)] x 100%

Extending lamp life

The projection lamp is a consumable item that normally can last up to 2500-3000 hours with proper usage. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

• Setting Lamp Power as Whisper

Using Whisper mode reduces system noise and power consumption. If the Whisper mode is selected, the light output will be reduced and result in darker projected pictures.

Setting the projector in Whisper mode also extends the lamp life. To set Whisper mode, go into the Setup > Lamp settings > Lamp Power menu and press / .

• Setting Auto Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time.

To set Auto Off, go into the System > Auto Off menu and press / to select a time period. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Display

Language Splash Screen My Screen Projector Position

Auto Off

Sleep Timer Background Color Menu Settings Input Source Auto Source Search

S-Video

System

Information

ENTER

Off

EXIT Back

Whisper

ENTER

EXIT Back

100hr 150hr

90%

EXIT Back

Setup

English

SIM2

Floor Front

Disable

Blue

EXIT Back

Additional information

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See

"Indicators" on page 46 for details.

The following Lamp warning displays will remind you to change the lamp.

Status Message

The lamp has been in operation for 2500 hours. Install a new lamp for optimal performance. If the projector is normally run with Whisper selected (See "Getting to know the lamp hour" on

page 43), you may continue to operate the projector until the

2950 hour lamp warning appears.

Press ENTER to dismiss the message.

Notice

Order Replacement Lamp

Lamp > 2500 Hours

The lamp has been in operation for 2950 hours. A new lamp

should be fitted to avoid the inconvenience when the projector runs out of lamp time.

The lamp has been in operation for 3000 hours. It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it should be replaced after 3000 hours usage.

Notice

Replacement Lamp Soon

Lamp > 2950 Hours

Notice

Replacement Lamp Now

Lamp > 3000 Hours

Lamp-usage time exceeded

Press ENTER to dismiss the message. The lamp MUST be replaced before the projector will operate

normally. Press ENTER to dismiss the message.

WARNING

Out of Lamp Usage Time

Replace lamp (refer t o U ser Manual) Then reset lamp timer

Replacing the lamp

To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.

To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.

To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.

Additional information

This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

1. Turn the power off and disconnect the

projector from the wall socket. Turn off all connected equipment and disconnect all other cables. See "Turning the power

off" on page 34 for details.

2. Slightly lift the projector up. Loosen the

screws on the lamp cover (located on the left side).

3. Remove the lamp cover.

5. Slowly pull the lamp out of the projector.

Pulling it too quickly may cause the lamp to

break and scatter broken glass in the projector. To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered.

Do not place the lamp in locations where

water might splash on it, children can reach it, near or above heat sources, or near flammable materials.

Do not insert your hand into the projector

when the lamp is removed. If you touch the optical components inside, it could cause blurred images.

6. Insert the replacement lamp. Make sure it is pushed fully and firmly in place.

7. Tighten the screws securing the lamp box.

4. Loosen the screws that hold the lamp to the projector. If the screws are not loosened completely, they could injure your fingers. It is strongly recommended that you use a magnetic-head screwdriver to retain the screw should it come loose.

Please be careful to not over-tighten the

screws.

Loose screws may cause a bad connection,

which could result in malfunction.

8. Re-install the lamp cover.

9. Tighten the screws on the lamp cover.

10. Reapply power and turn the projector back on.

Additional information

Indicators

There are three indicators which show the status of the projector. Check the following for information about the indicator lights. If there is anything wrong, turn the projector off and contact your dealer.

When the projector is in a normal state, ...

Lamp Temp Power Status & Description

Red Red Red

Off Off Orange Off Off Off Off Green

Off Off

Green

Flashing

Orange

Flashing

When the projector is in an abnormal state, ...

Lamp Temp Power Status & Description

Red Off Off

Red Off Orange

Off Red Off

Red Red Off

Green Red Off

Orange Red Off

Red Green Off

Orange Green Off

Red Orange Off Red Red Red

Green Red Red

Orange Red Red

Red Red Green

Green Red Green

Orange Red Green

Red Red Orange

Green Red Orange

Orange Red Orange

Green Orange Off

Main power switch on Stand-by mode

Powering up Normal operation

• The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process.

• The projector needs to cool for 90 seconds after the power is turned off.

• The lamp has been damaged. Please contact your local customer center for purchasing a new lamp.

• The lamp is not properly attached.

• The lamp has been damaged. Please contact your local customer center for purchasing a new lamp.

The fans are not working.

Fan sensors error Fans do not rotate during powering up.

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.

Thermal condition error

The internal temperature is too high.

• The intake ventilation or the exhaust ventilation is blocked.

• The projector may be in a poorly ventilated location.

• The ambient temperature may be too high.

The dust filter is seriously clogged with dust. The projector is going to shut down.

Additional information

Troubleshooting

Problem Cause Remedy

Plug the power cable into the AC inlet on the rear of the projector, and plug

The projector does not turn on.

No picture.

Image is unstable.

Picture is blurred.

Remote control does not work correctly

There is no power from the power cable.

The power switch is not in the on position.

Attempting to turn the projector on again during the cooling process.

The lamp cover is not securely attached.

The video source is not turned on or connected correctly.

The projector is not correctly connected to the input source device.

The input signal has not been correctly selected.

The connection cables are not securely connected to the projector or the signal source.

The projection lens is not correctly focused.

The projector and the screen are not aligned properly.

The batteries are out of power. There is an obstacle between

the remote control and the projector.

You are too far away from the projector.

the power cable into to the power outlet. If the power outlet has a switch, make sure that it is switched on. (See page 18)

Put the power switch in the on position. (See page 18)

Wait until the cooling down process has completed.

Correctly attach the lamp cover. (See

page 44)

Turn the video source on and check that the signal cable is connected correctly. (See page 15)

Check the connection. (See page 15)

Select the correct input signal with the Source buttons on the remote control.

(See page 18)

Correctly connect the cables to the appropriate terminals. (See page 15)

Adjust the focus of the lens using the focus ring. (See page 19)

Adjust the projection angle and direction as well as the height of this unit if necessary. (See page 22)

Replace both of the batteries with new ones. (See page 5)

Remove the obstacle. (See page 5)

Stand within 8 meters (26.2 feet) of the projector. (See page 5)

Additional information

Specifications

All specifications are subject to change without notice.

Optical

Projection system DMD chip

Lens Projection screen size Lamp

Electrical

Compatibility PC: 640 x 400 to 1920 x 1080 (16:9)

Color Space Color Gamut > 55% NTSC

Terminals

Input Analog RGB: BNC x 5

Output Control

General characteristics

Projector weight Approx. 9.6 kg (21.2 lbs) Power VAC 100-240V, 3.2A-1.3A, 50-60Hz (Automatic) Power consumption Max. 340W Operating temperature 0 °C to 40 °C at sea level Operating humidity 10% - 90% (without condensation) Operating altitude 0-1499 m at 0°C-35°C

Storage temperature -20°C- 60°C/-4°F to 140°F Storage humidity 10% - 90%

Single-chip DLPTM system.

0.95" DLP (1920 x 1080) F=2.4 to 2.7, f=38.87 to 46.63 mm 41" to 250" 200W

Video: NTSC, PAL, SECAM, YPbPr NTSC(480i)/480p/PAL(576i)/ 576p, HDTV (720p/1080i/1080p)

DDC 2B

HDMI (V. 1.2) x 2 Component Video (Y/ C Component Video (Y/ CB/ CR, Y/ PB/ PR) x 1 (shared with BNC) Composite Video x 1 S-Video x 1

12V DC (Max. 0.5 A) Serial Connector: RS232 8 pin MINI DIN

1500-3000 m at 0°C-30°C (with High Altitude Mode on)

B/ CR, Y/ PB/ PR) x 1

Dimensions

492 x 203 x 416 mm (W x H x D)

416

Unit: mm

Additional information

492

203

Timing chart

Supported timing for RGBHV input (Analog or Digital PC signals)/HDMI input (Digital PC signals)

Format Resolution Refresh rate(Hz) H. Freq.(KHz) Pixel Freq.(MHz)

60 31.469 25.175

640 x 480 640 x 480

800 x 600 800 x 600

1024 x 768 1024 x 768

1152 x 864 1152 x 864 75 67.5 108

1280 x 768 1280 x 768

1280 x 960 1280 x 960

1280 x 1024 1280 x 1024

1360 x 768 1360 x 768 60 47.712 85.5

1440 x 900 1440 x 900

1600 x 1200 1600 x 1200 60 75 162 1680 x 1050 1680 x 1050 1920 x 1200 1920 x 1200 60 74.038 154

72 37.861 31.5 75 37.5 31.5 85 43.269 36 56 35.156 36 60 37.879 40 72 48.077 50 75 46.875 49.5 85 53.674 56.25 60 48.363 65 70 56.476 75 75 60.023 78.75 85 68.677 94.5

60 47.396 68.25 60 47.776 79.5 75 60.289 102.25 85 68.633 117.5 60 60 108 85 85.938 148.5 60 63.981 108 75 79.976 135 85 91.146 157.5

60 55.469 88.75 60 59.935 106.5 75 70.635 136.75 85 80.43 157

60 64.674 119 60 65.29 146.25

Additional information

Supported timing for DVI-D and HDMI (HDCP) input

Format Resolution Refresh rate(Hz) H. Freq.(KHz) Pixel Freq.(MHz)

480/60i 720 x 487 29.97 15.734 27

480/60p 720 x 483 59.94 31.469 27

576/50i 720 x 576 25 15.625 27 576/50p 720 x 576 50 31.25 27 720/50p 1280 x 720 50 37.5 74.25 720/60p 1280 x 720 60 45 74.25

1080/50i 1920 x 1080 50 28.125/31.25 74.25/72

1080/60i 1920 x 1080 59.94/60 33.716/33.75 74.175/74.25 1080/24P 1920 x 1080 23.98/24 26.978/27 74.175/74.25 1080/25P 1920 x 1080 25 28.125 74.25 1080/30P 1920 x 1080 29.97/30 33.716/33.75 74.175/74.25 1080/50P 1920 x 1080 50 56.25 148.5 1080/60P 1920 x 1080 59.94/60 67.433/67.5 148.35/148.5

Supported timing for EDTV and HDTV (via Component and RGBHV inputs)

Format Resolution Refresh rate(Hz) H. Freq.(KHz) Pixel Freq.(MHz)

480/60i 720 x 487 59.94 15.734 13.5

480/60p 720 x 483 59.94 31.469 27

576/50i 720 x 576 50 15.625 14.75 576/50p 720 x 576 50 31.25 29 720/50p 1280 x 720 50 37.5 75.25 720/60p 1280 x 720 60 45 74.25

1080/50i 1920 x 1080 50 28.125/31.25 74.25/72

Supported timing for Video and S-Video inputs

Format Resolution Refresh rate(Hz) H. Freq.(KHz) Pixel Freq.(MHz)

NTSC 3.58 - 59.94/60 15.734/15.75 3.58 NTSC 4.43 - 59.94/60 15.734/15.75 4.43

PAL-B/G - 50 15.625 4.43

PAL M - 59.94/60 15.734/15.75 3.58

PAL N - 50 15.625 3.58

PAL 60 - 59.94/60 15.734/15.75 4.43

SECAM - 50 15.625 4.25/4.41

Additional information

Warranty and Copyright information

Copyright © 2008. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.

All trademarks and registered trademarks are the property of their respective own ers.

Disclaimer

SIM2 Multimedia makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, SIM2 Multimedia reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of SIM2 Multimedia to notify any person of such revision or changes.

Warranty and Copyright information

Regulation statements

FCC statement (for United States users)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the distance between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

EEC statement (for European users)

This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.

MIC statement

B class equipment (Household purpose info/telecommunications equipment)

As this equipment has undergone EMC registration for household purpose, this product can be used in any area including residential areas.

WEEE directive

Disposal of Waste Electrical and Electronic Equipment by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more information about recycling of this equipment, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.

Regulation statements

Sim2 Multimedia DIGITAL D60 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

Important safety instructions

Overview

Shipping contents

Remote control batteries

Remote control operation

Projector features

Projector exterior view

Controls and functions

Front and upper side view

Remote control

Positioning your projector

Choosing a location

Obtaining a preferred projected image size

Shifting the projection lens vertically

How to determine the position of the projector for a given screen size

How to determine the recommended screen size for a given distance

Projection dimensions

Connecting with video equipment

Preparations

Connecting HDMI devices

Connecting RGBHV devices

Connecting component-video devices

Connecting S-Video or video devices

Connecting a computer

Using the projector

Turning the projector on

Selecting an input source

Using the menus

Fine-tuning the image size and clarity

Securing the projector

Using a security cable lock

Utilizing the password function

Adjusting the projected image

Adjusting the projection angle

Correcting picture distortion

Using the preset and user modes

Fine-tuning the picture quality

Advanced picture quality controls

Selecting the aspect ratio

Operating in a high altitude environment

Displaying more than one image source simultaneously

Creating your own startup screen

Personalizing the projector menu display

Turning the power off

On-Screen Display (OSD) menus

Additional information

Care of the projector

Cleaning and replacing the dust filter

Lamp information

Getting to know the lamp hour

Extending lamp life

Timing of replacing the lamp

Replacing the lamp

Indicators

Troubleshooting

Specifications

Warranty and Copyright information

Regulation statements
