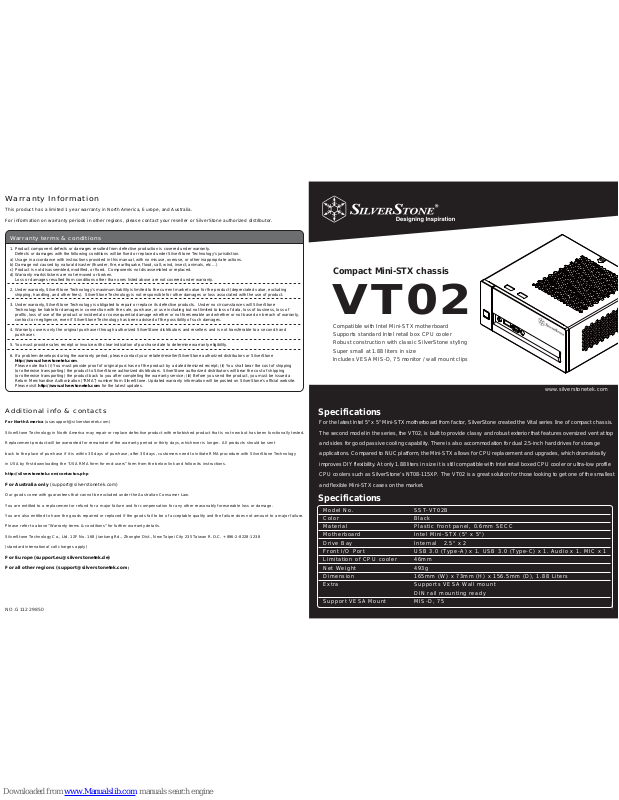

SilverStone VT02 User Manual

NO.G11229850

Warranty Information

This product has a limited 1 year warranty in North America, Europe, and Australia.
For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.

1. Product component defects or damages resulted from defective production is covered under warranty.
Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology’s jurisdiction.
a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other inappropriate actions.
b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc…)
c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.
d) Warranty mark/stickers are not removed or broken.
Loss or damages resulted from conditions other than ones listed above are not covered under warranty.

2. Under warranty, SilverStone Technology’s maximum liability is limited to the current market value for the product (depreciated value, excluding
shipping, handling, and other fees). SilverStone Technology is not responsible for other damages or loss associated with the use of product.

3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no circumstances will SilverStone
Technology be liable for damages in connection with the sale, purchase, or use including but not limited to loss of data, loss of business, loss of
profits, loss of use of the product or incidental or consequential damage whether or not foreseeable and whether or not based on breach of warranty,
contract or negligence, even if SilverStone Technology has been advised of the possibility of such damages.

4. Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand
purchaser.

5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility.

6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone
http://www.silverstonetek.com.
Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt; (ii) You shall bear the cost of shipping
(or otherwise transporting) the product to SilverStone authorized distributors. SilverStone authorized distributors will bear the cost of shipping
(or otherwise transporting) the product back to you after completing the warranty service; (iii) Before you send the product, you must be issued a
Return Merchandise Authorization (“RMA”) number from SilverStone. Updated warranty information will be posted on SilverStone’s official website.
Please visit http://www.silverstonetek.com for the latest updates.

Warranty terms & conditions

Additional info & contacts

For North America ([e-mail])

SilverStone Technology in North America may repair or replace defective product with refurbished product that is not new but has been functionally tested.

Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All products should be sent

back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology

in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.

http://silverstonetek.com/contactus.php

For Australia only ([e-mail])

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Please refer to above “Warranty terms & conditions” for further warranty details.

SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd., Zhonghe Dist., New Taipei City 235 Taiwan R.O.C. + 886-2-8228-1238

(standard international call charges apply)

For Europe ([e-mail])

For all other regions ([e-mail]

)

Compact Mini-STX chassis

VT02

Compatible with Intel Mini-STX motherboard
Supports standard Intel retail box CPU cooler
Robust construction with classic SilverStone styling
Super small at 1.88 liters in size
Includes VESA MIS-D, 75 monitor / wall mount clips

www.silverstonetek.com

Model No.
Color
Material
Motherboard
Drive Bay
Front I/O Port
Limitation of CPU cooler
Net Weight
Dimension
Extra

Support VESA Mount

SST-VT02B
Black
Plastic front panel, 0.6mm SECC
Intel Mini-STX (5" x 5")
Internal 2.5" x 2
USB 3.0 (Type-A) x 1. USB 3.0 (Type-C) x 1. Audio x 1. MIC x 1
46mm
493g
165mm (W) x 73mm (H) x 156.5mm (D), 1.88 Liters
Supports VESA Wall mount
DIN rail mounting ready
MIS-D, 75

Specifications

For the latest Intel 5" x 5" Mini-STX motherboard from factor, SilverStone created the Vital series line of compact chassis.
The second model in the series, the VT02, is built to provide classy and robust exterior that features oversized vent at top
and sides for good passive cooling capability. There is also accommodation for dual 2.5-inch hard drives for storage
applications. Compared to NUC platform, the Mini-STX allows for CPU replacement and upgrades, which dramatically
improves DIY flexibility. At only 1.88 liters in size it is still compatible with Intel retail boxed CPU cooler or ultra-low profile
CPU coolers such as SilverStone’s NT08-115XP. The VT02 is a great solution for those looking to get one of the smallest
and flexible Mini-STX cases on the market.

Specifications

背面から2本のネジを緩め、上部カバーを取
り外します

Ослабьте 2 винтов снизу, чтобы снять
Задняя крышку

將後部2顆螺絲拆下，拉開上蓋

将后部2颗螺丝拆下，拉开上盖

아래쪽에서 2개의 나사를 풀어 상단 커버를
분리합니다

Lösen Sie zum Entfernen der rückseite Abdeckung
die zwei Schrauben von der Unterseite

Afloje 2 tornillos de la parte inferior para retirar la
cubierta posterior

Allentare 2 viti dalla parte inferiore per rimuovere il
coperchio posteriore

Loosen 2 screws from rear to remove top cover

ROUND HEAD-SCREW-M3-4 X4

ROUND HEAD-SCREW-M3-5 Nickel-Plated

Desserrez les 2 vis du bas pour enlever le
couvercle arrière

マザーボードのI/Oプレートを挿入します

Вставьте I/O пластину материнской платы

裝上主機板檔板

装上主机板档板

메인보드 I/O 플레이트를 끼웁니다

Setzen Sie die Motherboard-I/O-Blende ein

Inserte la placa E/S de la placa base

Inserire la piastra I/O della scheda madre

Insert motherboard I/O plate

Insérez la plaque I/O carte mère

Installation guide

01

02

2.5インチハードドライブとマザーボードを
固定します

Установите жёсткий диск 2,5" и материнскую
плату

鎖固2.5"硬碟及主機板

锁固2.5"硬盘及主板

2.5" 하드 드라이브와 메인보드를 고정합니다

Befestigen Sie 2,5-Zoll-Laufwerk und Motherboard

Fije el disco duro de 2,5" y la placa base

Fissare il disco rigido da 2,5" e la scheda madre

Secure 2.5" hard drive and motherboard

Fixez le disque dur 2,5" et la carte mère

03

上部カバーを再取り付けし、取付を完了します

Установите верхнюю крышку

裝回上蓋，安裝完成

装回上盖，安装完成

상단 커버를 도로 설치하여 설치를 완료합니다

Bringen Sie zum Abschluss der Installation die
obere Abdeckung wieder an

Reinstale la cubierta superior para completar
la instalación

Reinstallare il coperchio superiore per
completare l'installazione

Reinstall top cover to complete installation

Réinstallez le capot supérieur pour terminer
l'installation

04

CPUクーラーの高さ制限は46mmです。また、マザーボードの上端から1.75mm
のクリアランスが必要です。SilverStoneNT08-115XPを推奨します。

Ограничение для высоты процессорного кулера составляет 46мм с 1,75мм
зазором над верхнем краем материнской платы. мы рекомендуем SilverStone

NT08-115XP.

Cooler限高為 46mm，Cooler外緣允許超出主機板上邊界1.75mm。
推薦使用銀欣 NT08-115XP。

Cooler限高为 46mm，Cooler外缘允许超出主板上边界1.75mm。
推荐使用银欣 NT08-115XP。

CPU 쿨러의 높이 제한은 46mm이며 메인보드 상단 가장자리 위쪽의 허용 오차는

1.75mm입니다. SilverStone NT08-115XP 사용을 권장합니다.

Die Höhenbeschränkung für CPU-Kühler beträgt 46mm mit einem Freiraum
von 1,75mm oberhalb der Motherboard-Oberkante. Wir empfehlen
SilverStones NT08-115XP.

La limitación de altura para el disipador de la CPU es de 46mm con un espacio
libre de 1,75mm sobre la parte superior de la placa base. Le recomendamos el
SilverStone NT08-115XP.

La limitazione dell’altezza del dissipatore di calore CPU è di 46mm con uno spazio
libero di 1,75mm sopra il bordo superiore della scheda madre. Si consiglia
NT08-115XP di SilverStone.

Height limitation for CPU cooler is 46mm with 1.75mm clearance over the
motherboard’s top edge. We recommend SilverStone NT08-115XP.

La limitation de la hauteur du refroidisseur CPU est de 46mm avec 1,75mm de jeu
sur le bord supérieur de la carte mère. Nous vous recommandons le SilverStone
NT08-115XP.

CPU Cooler limitation

46 mm
