SilverStone TM01,TM02,TM03,TM04 User Manual
Full motion LCD TV
wall mount bracket
with tilt & swivel arms
TM01/TM02/TM03/TM04
1
TM02
TM03
TM04
TM01
Full motion LCD TV
wall mount bracket
with tilt & swivel arms
Introduction
Features
Flexible tilt & swivel torque adjustment
Smart cable management design
Optimal angle adjustment with full motion arms
Heavy duty aluminum structure
Easy installation
2
SilverStone’s TM series is an excellent TV wall mount arm with full tilt
and swivel adjustment ability. It has a slim profile that occupies minimal
space when initially installed and can provide highly flexible motion to
meet viewing requirement in any environment.
The TM series utilizes heavy duty aluminum arm not only for more
robust structure but to also achieve a premium appearance. It has
smart cable management design to provide elegant and clean setup.
With patented hinge mechanism and arms making TM series movement
smoother than other competitive solutions on the market and parallel
jointed arms designed with human ergonomics in mind, it will help to
provide the best TV viewing experience possible.
3
Specifications
Model No.
Mounting pattern
Screw type
Material
Swivel (hinge)
Tilt (hinge)
Support max. weight
Support flat panel size
Support wall types
Max. distance to the wall
Min. distance to the wall
Extended arm provided
Net weight
Dimension(W x H x D)
SST-TM01
200x200 / 200x100 / 100x100 mm
M4,M5,M6,M8
Steel/aluminum alloy/plastic
+/-60°
+/-15°
50 kg (110.3 lbs)
32"~52"
Masonry walls/cement walls/stud walls/
550mm (21.65")
105mm (4.13")
4
9.53 kg (21.01 lbs)
567 x 420 x 550 mm
TM01

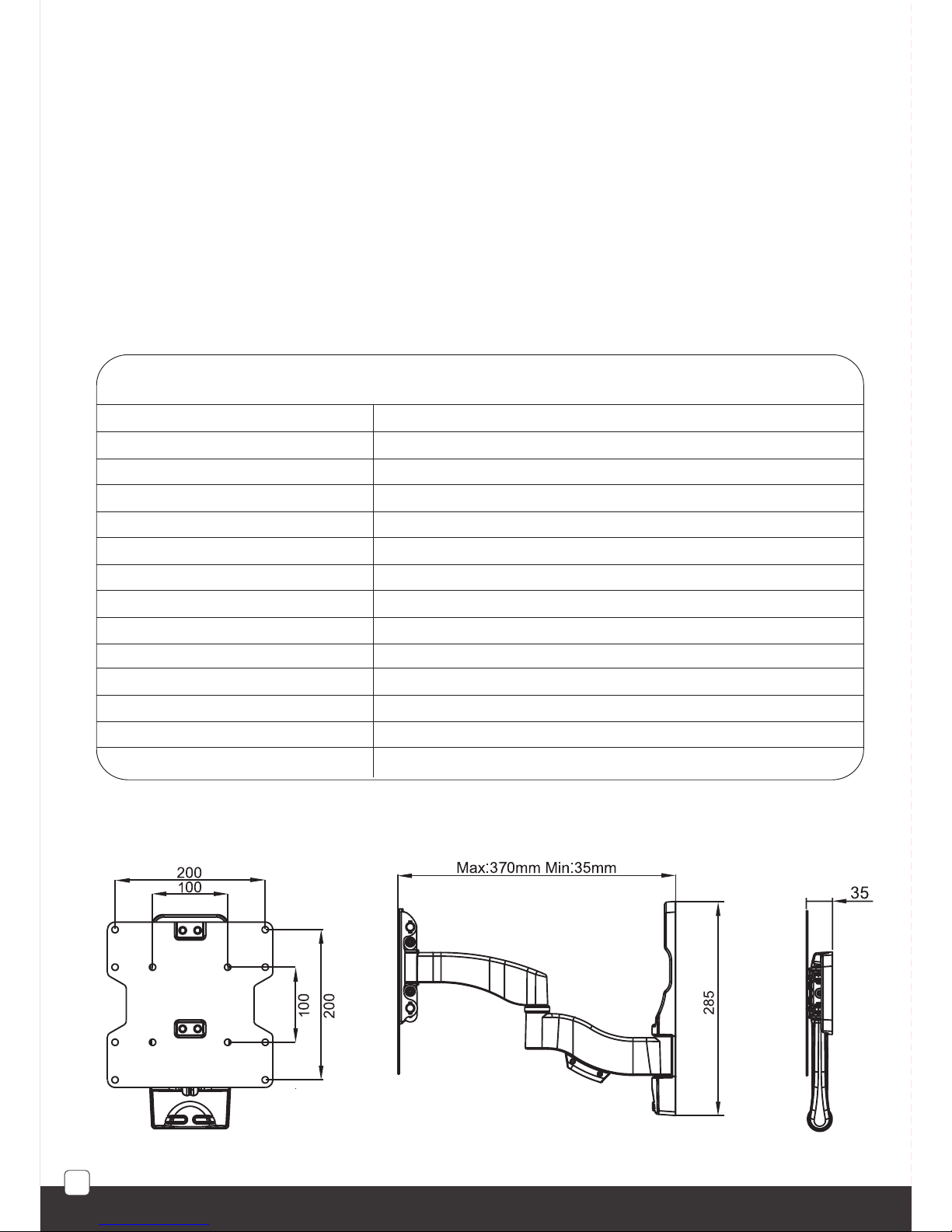

Physical Dimension (mm)
4
Enclosed Parts
5
Installation Guide
TM01
6
7
Specifications
Model No.
Mounting pattern
Screw type
Material
Swivel (hinge)
Tilt (hinge)
Support max. weight
Support flat panel size
Support wall types
Max. distance to the wall
Min. distance to the wall
Extended arm provided
Net weight
Dimension(W x H x D)
SST-TM02
660 x400mm
M4,M5,M6,M8
Steel/Aluminum Alloy/Plastic
+/-60°
+/-15°
50 kg (110.3 lbs)
32"~70"
Masonry walls/cement walls/stud walls/
550mm (21.65")
105mm (4.13")
4
10.50 kg (23.15 lbs)
730 x 448 x 550 mm
TM02
Physical Dimension (mm)
8
Enclosed Parts
