Page 1
lssue date: July, 2012
NO.G11216750
STRIDER PLUS SERIES
SST-ST60F-PS
Smallest and most powerful modular ATX PSUs
with 80 PLUS Silver
Compact design with a depth of 140mm for easy integration
80 PLUS Silver certification with 80 PLUS Gold level efficiency at 230Vac
100% modular cables
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
Silent running 120mm fan with 18dBA minimum
Page 2
SPECIFICATION
STRIDER PLUS SERIES
2.3 Max. Input AC Current
Max. Input Current Measuring Range
8A 90 - 264 Vrms
SilverStone Strider Plus
ST60F-PS
ATX12V / EPS 12V Switching Power Supply
With Active PFC
80Plus Silver
PS/2
1.General
1.1 Scope
This specification defines the performance characteristics of a single phase 600watts,
5 output power supply. This specification also defines worldwide safety and
electromagnetic compatibility requirements for the power supply which is intended for
use in computer products.
2.Input Characteristics
2.1 Input Voltage
Nominal Voltage Voltage Variation Range
100-240 Vrms 90 - 264 Vrms
2.2 Input Frequency
Nominal Frequency Frequency Variation Range
50-60 Hz 47 Hz to 63 Hz
2.4 Inrush Current
The power supply must meet inrush requirements for any rated AC voltage,
during turn on at any phase of AC voltage, during a single cycle AC dropout
condition, during repetitive ON/OFF cycling of AC, and over the specified
temperature range.
The peak inrush current shall be less than the ratings of its critical components
(including input fuse, bulk rectifiers, and surge limiting device).
2.5 Efficiency
SST-ST60F-PS provides an efficiency of 85% minimum when measured at full
load under 115V/60Hz condition.
3.Output characteristics
3.1 Normal Operation Output
Output Voltage Load MIN Range MAX Regulation Ripple P-P Max.
1. +5V
2. +12V
4. –12V
5. +5Vs
6. +3.3V
Maximum continuous total DC output power should not exceed 600W.
Maximum continuous combined load on +3.3VDC and +5VDC outputs
shall not exceed 130W.
Maximum combined load on +12V outputs shall not exceed 588W.
NOTE:Noise test should be measured with 20 MHz bandwidth frequency
oscilloscope. The output terminal shall add a tantalum capacitor of 10uF in
parallel with a ceramic capacitor of 0.1uF.
0.2A
0.6A
0.0A
0.0A
0.1A
20A
49.0A
0.5A
3.0A
20.0A
±3%
±3%
±10%
±5%
±3%
50mV
120mV
120mV
50mV
50mV
* The power supply must operate at above frequency with 90-264 VACrms input voltage range.
01
02
Page 3
STRIDER PLUS SERIES
3.2 Remote On/Off Controlled mode
The PSON# signal is required to remotely turn on/off the power supply,
PSON# is an active low signal that turns on the output power rails. When this is
not pulled low by the system, or left open, the outputs (except the +5VSB) turn off.
This signal is pulled to a standby voltage by a pull-up resistor internal to the power
supply.
TTL level "H" 2.0 V - 5.25 V
"L" 0.0 V – 1.0 V
3.3 Regulation
The cross regulation defined as follows, the output regulation should be within the
specified range.
Load
Light Load.
Typical Load
Full Load
+5V
2.54A
6.36A
12.72A
+3.3V
2.54A
6.36A
12.72A
+12V
7.96A
19.96A
39.78A
-12V
0.08A
0.2A
0.41A
+5Vsb
0.49A
1.22A
2.44A
3.4 Rise Time
DC output rise time is less than 20 mS at nominal line and full load.
3.5 Hold-up Time
DC +5V output maintains at least 12mS after power off which hold within para 3.1
under 230V/50Hz condition.
3.6 5VSB
5VSB is requierd for the implementation of PS-ON described above. 5VSB is a
standby voltage that may be used to power circuits that require power input
during the powered-down state of all power rails. The 5 VSB pin should deliver
5V ± 5% at a minimum of 3.0 A for PC board circuits to operate. Conversely,
PC board should draw no more than 3.0A maximum form this pin. This power may
be used to operate circuits such as soft power control.
3.7 PG-OK
PG-OK is a power good signal and should be asserted high by power supply to
indicate that the +5 VDC and +3.3 VDC outputs are above the under-voltage
thresholds of the power supply. When this signal is asserted high, there should
be sufficient mains energy stored by the converter to guarantee continuous
power operation within specification. Conversely, when either the +5VDC or the
+3.3VDC output voltage falls below the under-voltage threshold, or when mains
power has been removed for a time sufficiently long so that power supply
operation is no longer guaranteed, PG-OK should be deasserted to a low state.
See Figure 1 for a representation of the timing characteristics of the PG-OK,PS-ON,
and germane power rail signals.
3.8 3.3V Sense
A default 3.3V sense line should be implemented pin 13 of the connector.
3.9 Capacitive Load
The power supply should be able to power up and operate normally with the following
capacitances simultaneously present on the DC outputs.
Output
+5V
+12V
+3.3V
-12V
+5VS
Capacitive load (uF)
6,000
8,000
6,000
350
350
4.Protection
4.1 Input Protection
In primary circuit of the power supply , a protected fuse is inserted. Only internal fault
of the power supply will cause the fuse blown. Any overload or short circuit at DC
output will keep from fuse brown or fire hazard.
03
04
Page 4
STRIDER PLUS SERIES
4.2.1 Under voltage protection
4.2.2 Over Voltage Protection
4.2.3 Over Power Protection
4.2.4 Short Circuit Protection
4.2.5 Over-Current Protection
4.2.6 Over-Temperature Protection
6.1.1 Operating
6.1.2 Storage
4.2 Output Protection
4.2.1 Under voltage protection
The +5V/+12V/+3.3V DC output are protected against the under voltage
condition . range value can't be exceed 3.3~3.7V at 5V terminal and
8.5~9.5V at 12V, 2.0~2.4V at 3.3V.
4.2.2 Over Voltage Protection
The +12V/ DC output are protected against the over voltage condition .
Maximum value can't be over 15.5V at 12V.
4.2.3 Over Power Protection
The power supply can be used electronic circuit to limit the output current
against exceeding 60% of surge output power or protected against excessive
power delivery since short circuit of any output or over total power at high line.
4.2.4 Short Circuit Protection
Short circuit placed on +5V,+12V,+3.3V,-12V will latch off. +5VSB will
auto-recovery.
4.2.5 Over-Current Protection
Current protection should be designed to limit the current to operate within safe
operating conditions. Over current protection schemes where only the voltage
output that experiences the over current event is shut off may be adequate to
maintain safe operation of the power supply and the system; however, damage
to the motherboard or other system components may occur. The recommended
over current protection scheme is for the power supply to latch into the shutdown
state. The setting of over current protection for each output rail is as following.
5.Start Stability
5.1 No Load Start
When power is applied to SST-ST60F-PS with no load connected or under minimum
load connected, neither damage to power supply nor hazards to users will occur.
5.2 Cold Start
The power supply shall operate properly when first applied at normal input voltage
and or so maximum load after 4 hours storage in 0℃ environment.
6.Environments
6.1 Temperature and Humidity
6.1.1 Operating
Temperature 0 to 40 ℃
Relative Humidity 20 to 90 %
6.1.2 Storage
Temperature -40 to 70 ℃
Relative Humidity 20 to 95 % noncondensing
6.2 Altitude
The power supply can operate normally at any altitude between 0 to 10000 feet.
6.3 Vibration and Shock
Sweep and resonance search for each of X,Y,Z, axis at the sweep.
RATE of 1/OCTAVE/Min.
Frequency
Duration
Amplitude
05
4.2.6 Over-Temperature Protection
This power supply includes an over-temperature protection sensor, which can
trip and shut down the power supply at 110℃
5-55-10 Hz
30 minutes
7. Conducted EMI
0.35 mm
06
Page 5
STRIDER PLUS SERIES
8. Product Safety
8.1 Safety Requirement
8.2 Leakage Current
The AC leakage current is less than 3.5mA when the power supply connect
to 264Vac/50Hz .
8.3 Insulation Resistance
The insulation resistance should be not less than 30M ohm after applying of 500VDC
for 1 minute.
8.4 Dielectric Voltage Withstand
The power supply shall withstand for 1 minute without breakdown the application of
a V AC voltage applied between both input line and chassis
(20mA DC cut-off current). Main transformer shall similarly withstand 3000Vac
applied between both primary and secondary windings for a minimum of one minute.
9. Power Good Signal
A TTL compatible signal for the purpose of initiating an orderly start-up procedure
under normal input operating conditions. During power up, this signal is asserted
( low ) until +5V is under regulation and AC reaches min. line specification range.
After all voltage are going appropriate level, the system may have a turn on delay
of 100mS, but no greater than 500mS. During power off the signal should go to low
level before +5V is out of regulation. The low level is 0 to 0.8V and high level is 4.75
to 5.25V. The " Power Good "signal can drive up to 6 standard TTL loads.

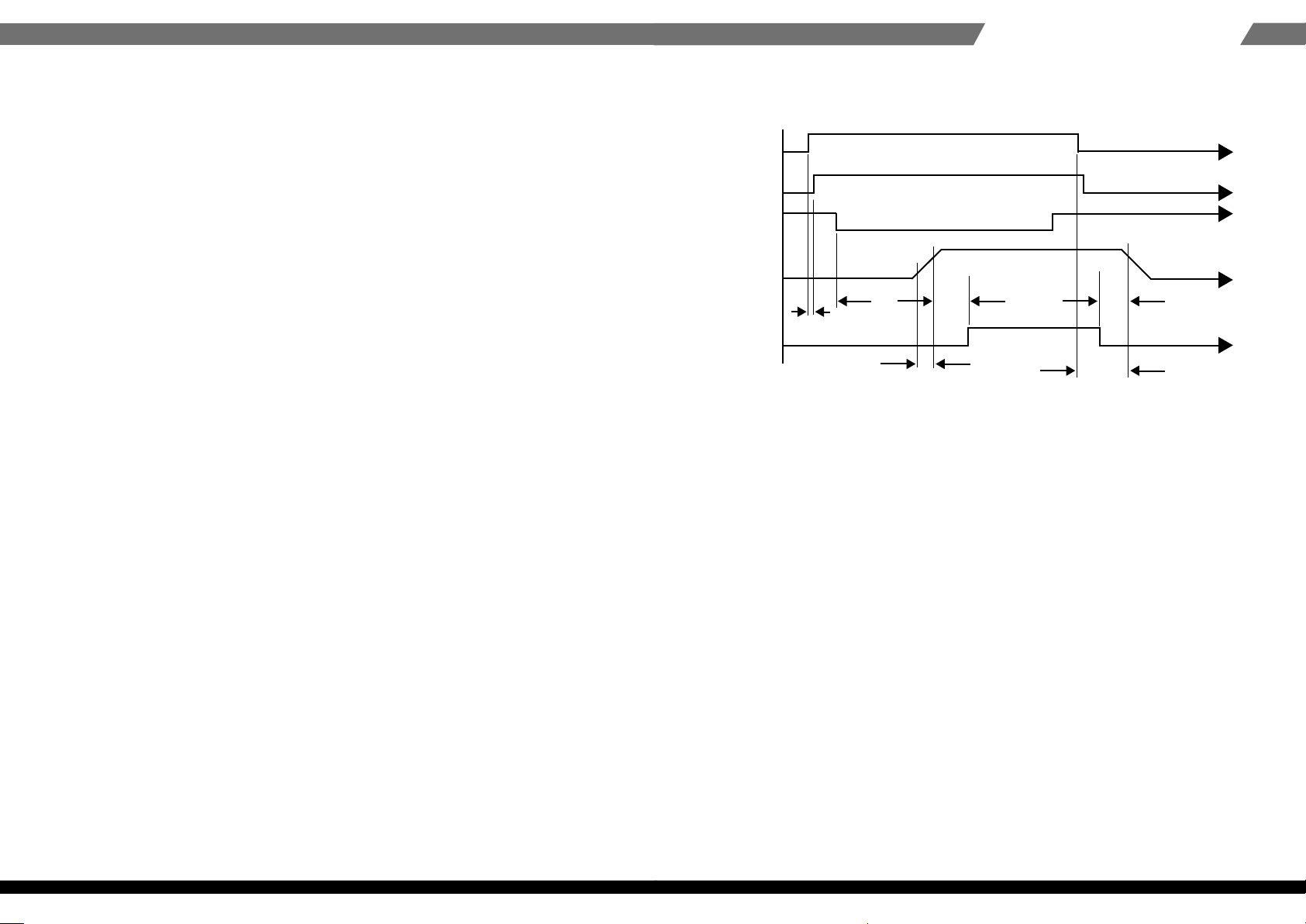

Time Diagram Figure 1
AC
+5Vs
PS-ON/OFF
+5V O/P
T1
Power Good
* T1 : Turn on time ( 2 sec. Max.)
* T2 : Rise time ( ≦ 20mS Max.)
* T3 : Power good turn on delay time ( 100 < T3 < 500 mS )
* T4 : Switch on time (0.5 sec. Max.)
* T5 : Power good turn off delay time ( 1.0 mS Min.) PS-ON/OFF
* T6 : Power hold-on time ( 12 mS Min.)
* Power on-off cycle :
When the power supply is turned off for a minimum of 2.0 sec. and turn on again,
the power good signal will be asserted.
AC ON AC OFF
POWER ON POWER ON
4.75V
0.25V
T4 T3
T2
4.75V
T5
T6
10. MTBF
The MTBF of the power should be 100,000 hours min.
07
11. Burn-In
11.1 Input Voltage
Applying 220Vac for 230V model.
11.2 Test Condition
Applying 75% loads for the power supply in 45 (+/-5) oC chamber for 4 hours.
08
Page 6
STRIDER PLUS SERIES
12. Harmonics
The product shall meet requirement for EN61000-3-2 & EN61000-3-3 :1995
standard of class D, test at 230Vac 50Hz.
13.Power Factor
The power supply with active power factor correction, and meet the EN61000-3-2
standards, The power factor is greater than 0.9 at 230V/50Hz, Max. load.
14. Mechanical Requirements
14.1 Physical Dimension
150 mm (W) × 86 mm (H) × 140mm (D)

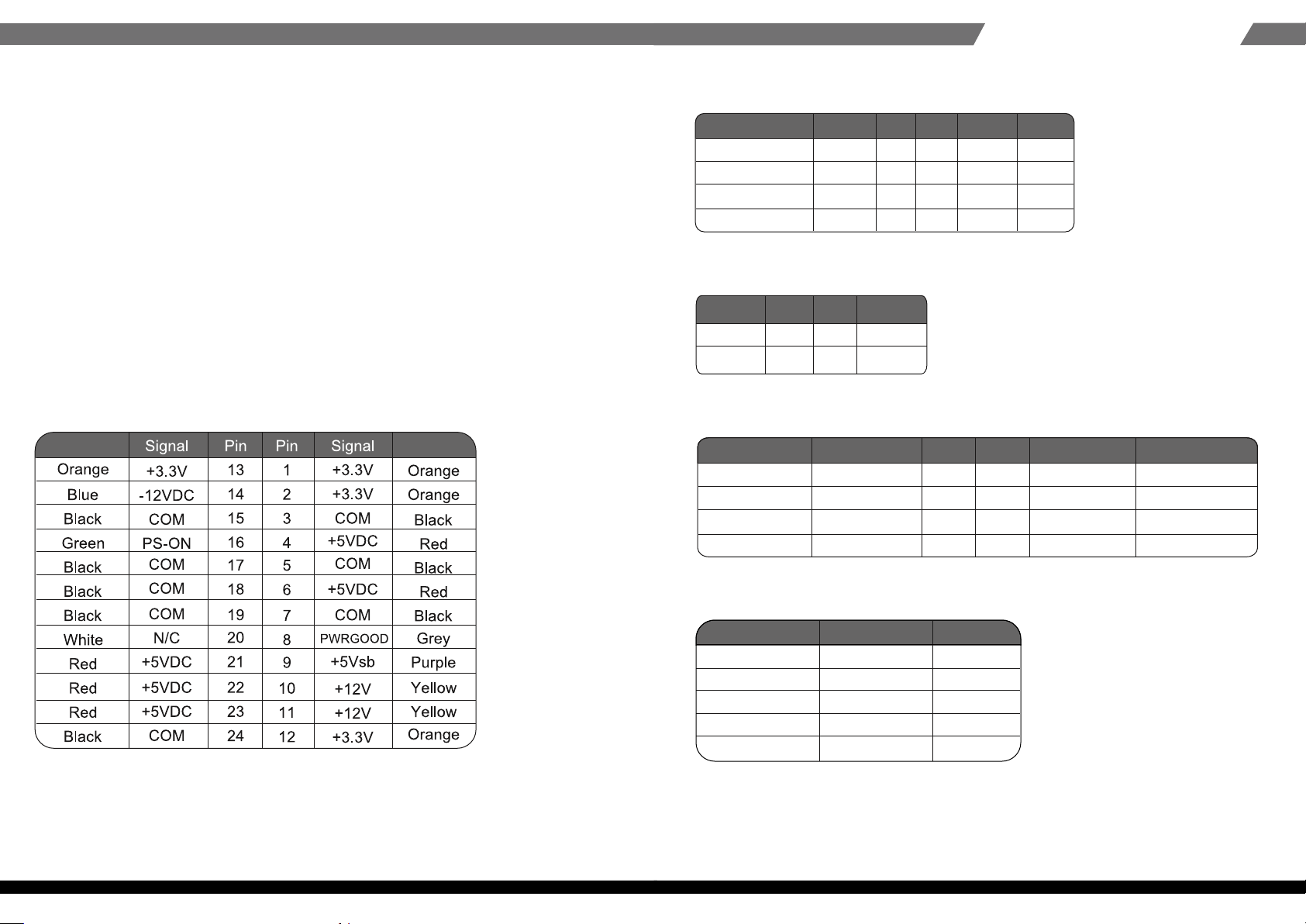

14.2 Connectors
M/B 24PIN connector
EPS 12V 8PIN connector
Signal
Pin
Signal
+12V
+12V
Signal
+12V
COM
COM
+5VDC
Pin
5
6
7
8
1
2
3
4
Pin
1
2
3
4
COM
COM
COM
COM
Pin
Black
Black
Black
Black
Signal
1
2
3
4
+5VDC
COM
COM
+12V
Signal
Yellow
Yellow
Yellow
Yellow
ATX 12V 4PIN (4+4PIN EPS 12V in split mode)
Signal
GND
GND
4PIN peripheral connector (HDD) 4PIN floppy connector (FDD)
Pin
Yellow
Black
Black
Red
+12V
+12V
+12V
+12V
Pin
1
3
2
4
Red
Black
Black
Yellow
09
SATA connector
Orange
Black
Red
Black
Yellow
Signal Pin
+3.3V 5
COM 4
+5V 3
COM 2
+12V 1
10
Page 7
STRIDER PLUS SERIES
8PIN PCI Express connector
Signal Pin Pin Signal
Yellow
Yellow
Yellow
+12V 1 5 COM Black
+12V 2 6 COM Black
+12V 3 7 COM Black
Black sense1 COM 4 8 COM Black
6PIN PCI Express connector
Signal Pin Pin Signal
Yellow
Yellow
Yellow
+12V 1 4 COM Black
+12V 2 5 COM Black
+12V 3 6 COM Black
Warranty Information
This product has a limited 3 year warranty in North America, Europe, and Australia.
For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.
Warranty terms & conditions
1. Product component defects or damages resulted from defective production is covered under warranty.
Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology’s jurisdiction.
a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other inappropriate actions.
b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc…)
c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.
d) Warranty mark/stickers are not removed or broken.
Loss or damages resulted from conditions other than ones listed above are not covered under warranty.
2. Under warranty, SilverStone Technology’s maximum liability is limited to the current market value for the product (depreciated value, excluding
shipping, handling, and other fees). SilverStone Technology is not responsible for other damages or loss associated with the use of product.
3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no circumstances will SilverStone
Technology be liable for damages in connection with the sale, purchase, or use including but not limited to loss of data, loss of business, loss of
profits, lsof use of the product or incidental or consequential damage whether or not foreseeable and whether or not based on breach of warranty,
contract or negligence, even if SilverStone Technology has been advised of the possibility of such damages.
4. Warrant y covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand
purchaser.
5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility.
6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone
http://www.silverstonetek.com.
Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt; (ii) You shall bear the cost of shipping
(or otherwise transporting) the product to SilverStone authorized distributors. SilverStone authorized distributors will bear the cost of shipping
(or otherwise transporting) the product back to you after completing the warranty service; (iii) Before you send the product, you must be issued a
Return Merchandise Authorization (“RMA”) number from SilverStone. Updated warranty information will be posted on SilverStone’s official website.
Please visit http://www.silverstonetek.com for the latest updates.
Additional info & contacts
11
For North America (usasupport@silverstonetek.com)
SilverStone T echnology in North America may repair or replace defective product with refurbished product that is not new but has been functionally tested.
Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All power supplies should be sent
back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology
in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.
http://silverstonetek.com/contactus.php
For Australia only (support@silverstonetek.com)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Please refer to above “Warranty terms & conditions” for further warranty details.
SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd., Zhonghe Dist., New Taipei City 235 Taiwan R.O.C. + 886-2-8228-1238
(standard international call charges apply)
For Europe (support.eu@silverstonetek.de)
For all other regions (support@silverstonetek.com)
12
Loading...
