Strider Essential Series
ST70F-ES / ST60F-ES
November, 2010
NO. G1121
Power for everything you need
High efficiency with 80Plus certification
24hour continuous power output with 40 C operating temperature
Class-leading single +12V rail
Silent running 120mm fan with 18dBA
PCI-E 8pin and PCI-E 6pin connector support
o
Multiple protection circuitry
ATX 12V 2.3 support
Active PFC circuitry
Strider Essential Series
SPECIFICATION
SilverStone Essential Plus
ST70F-ES
ATX12V 2.3 Switching Power Supply
1.GENERSAL
1.1. Scope
This specification defines the performance characteristics of a single phase 700
watts, 600 watts, 5 output power supply. This specification also defines worldwide
safety and electromagnetic compatibility requirements for the power supply which
is intended for use in computer products.
2.INPUT CHARACTERISTICS
ST60F-ES
With Active PFC
PS/2
2.2 Input Frequency
2.2.1 ST70F-ES
Nominal Frequency
50-60 Hz
2.2.2 ST60F-ES
Nominal Frequency
50-60 Hz
* The power supply must operate at above frequency with 90-264 VACrms
input voltage range.
2.3 Max. Input AC Current
2.3.1 ST70F-ES
Max. Input Current
10A
Frequency Variation Range
47 Hz to 63 Hz
Frequency Variation Range
47 Hz to 63 Hz
Measuring Range
90 - 264 Vrms
2.1. Input Voltage
2.1.1 ST70F-ES
Nominal Voltage
100-240 Vrms
2.1.1 ST60F-ES
Nominal Voltage
100-240 Vrms
01
Voltage Variation Range
90 - 264 Vrms
Voltage Variation Range
90 - 264 Vrms
2.3.2 ST60F-ES
Max. Input Current
10A
2.4 Inrush Current
The power supply must meet inrush requirements for any rated AC voltage,
during turn on at any phase of AC voltage, during a single cycle AC dropout
condition, during repetitive ON/OFF cycling of AC, and over the specified
temperature range. The peak inrush current shall be less than the ratings of
its critical components (including input fuse, bulk rectifiers, and surge limiting
device).
Measuring Range
90 - 264 Vrms
02
2.5 Efficiency
3.1.2 ST60F-ES
Strider Essential Series
STRIDER ST1000STRIDER ST1000-NV
ST70F-ES, ST60F-ES provides an efficiency of >80% when measured at full load
under 115V/60Hz and 230V/50Hz condition.
3. OUTPUT CHARACTERISTICS
3.1 Normal Operation Output
3.1.1 ST70F-ES
Output
Voltage
1. +5V 0.2A
2. +12V 0.6A
4. -12V
5. +5Vs
6. +3.3V
Maximum continuous total DC output power should not exceed 700W.
Load
MIN
0.0A
0.0A
0.1A
Range
MAX
25A
46A
0.3A
2.5A
25A
Peak Regulation
--
--
--
--
--
±5%
±5%
±5%
±10%
±5%
Ripple
P-P Max
70mV
120mV
150mV
70mV
70mV
Output
Voltage
1. +5V 0.2A
2. +12V 0.6A
4. -12V
5. +5Vs
6. +3.3V
Maximum continuous total DC output power should not exceed 600W.
Maximum continuous combined load on +3.3VDC and +5VDC outputs shall
not exceed 150W.
Maximum combined load on 12V rails outputs shall not exceed 504W.
NOTE:
Noise test should be measured with 20 MHz bandwidth frequency oscilloscope.
The output terminal shall add a tantalum capacitor of 10uF in parallel with a
ceramic capacitor of 0.1uF.
Load
MIN
0.0A
0.0A
0.1A
Range
MAX
25A
42A
0.3A
2.5A
25A
Peak Regulation
--
--
--
--
--
±5%
±5%
±5%
±10%
±5%
Ripple
P-P Max
70mV
120mV
120mV
70mV
70mV
Maximum continuous combined load on +3.3VDC and +5VDC outputs shall
not exceed 150W.
Maximum combined load on 12V outputs shall not exceed 552W.
NOTE:
Noise test should be measured with 20 MHz bandwidth frequency oscilloscope.
The output terminal shall add a tantalum capacitor of 10uF in parallel with a
ceramic capacitor of 0.1uF.
03
3.2 Remote On/Off Controlled mode
The PSON# signal is required to remotely turn on/off the power supply, PSON#
is an active low signal that turns on the output power rails. When this is not pulled
low by the system, or left open, the outputs (except the +5VSB) turn off. This signal
is pulled to a standby voltage by a pull-up resistor internal to the power supply.
TTL level "H" 2.0 V - 5.25 V
"L" 0.0 V – 1.0 V
04
Strider Essential Series
3.3 Regulation
The cross regulation defined as follows, the output regulation should be within
the specified range.
3.3.1 ST70F-ES
Load
Light Load
Typical Load
Full Load
3.3.2 ST60F-ES
Load
Light Load
Typical Load
Full Load
+5V
3.3 A
8.8 A
17.6 A
+5V
3.24 A
8.09 A
16.2 A
+3.3V
3.3 A
8.8 A
17.6 A
+3.3V
3.24 A
8.09 A
16.2 A
+12V
9.2 A
22.4 A
44.8 A
+12V
7.52A
18.8 A
37.6 A
-12V
0.06 A
0.15 A
0.3 A
-12V
0.05 A
0.15 A
0.3 A
+5Vsb
0.5 A
1.3 A
2.5 A
+5Vsb
0.45 A
1.25 A
2.5 A
3.4 Rise Time
3.7 PG-OK
PG-OK is a power good signal and should be asserted high by power supply to indicate
that the +5 VDC and +3.3 VDC outputs are above the under-voltage thresholds of the
power supply. When this signal is asserted high, there should be sufficient mains energy
stored by the converter to guarantee continuous power operation within specification.
Conversely, when either the +5VDC or the +3.3VDC output voltage falls below the under
-voltage threshold, or when mains power has been removed for a time sufficiently long
so that power supply operation is no longer guaranteed, PG-OK should be deasserted
to a low state. See Figure 1 for a representation of the timing characteristics of the PGOK,PS-ON, and germane power rail signals.
Time Diagram
DC output rise time is less than 20 mS at nominal line and full load.
3.5 Hold-up Time
DC +5V output maintains at least 16mS after power off which hold within para 3.1
under 115V/60Hz and 230V/50Hz condition.
3.6 5VSB
5VSB is requierd for the implementation of PS-ON described above. 5VSB is
a standby voltage that may be used to power circuits that require power input
during the powered-down state of all power rails. The 5 VSB pin should deliver
5V ± 5% at a minimum of 2.0 A for PC board circuits to operate. Conversely,
PC board should draw no more than 2.0A maximum form this pin. This power
may be used to operate circuits such as soft power control.
05

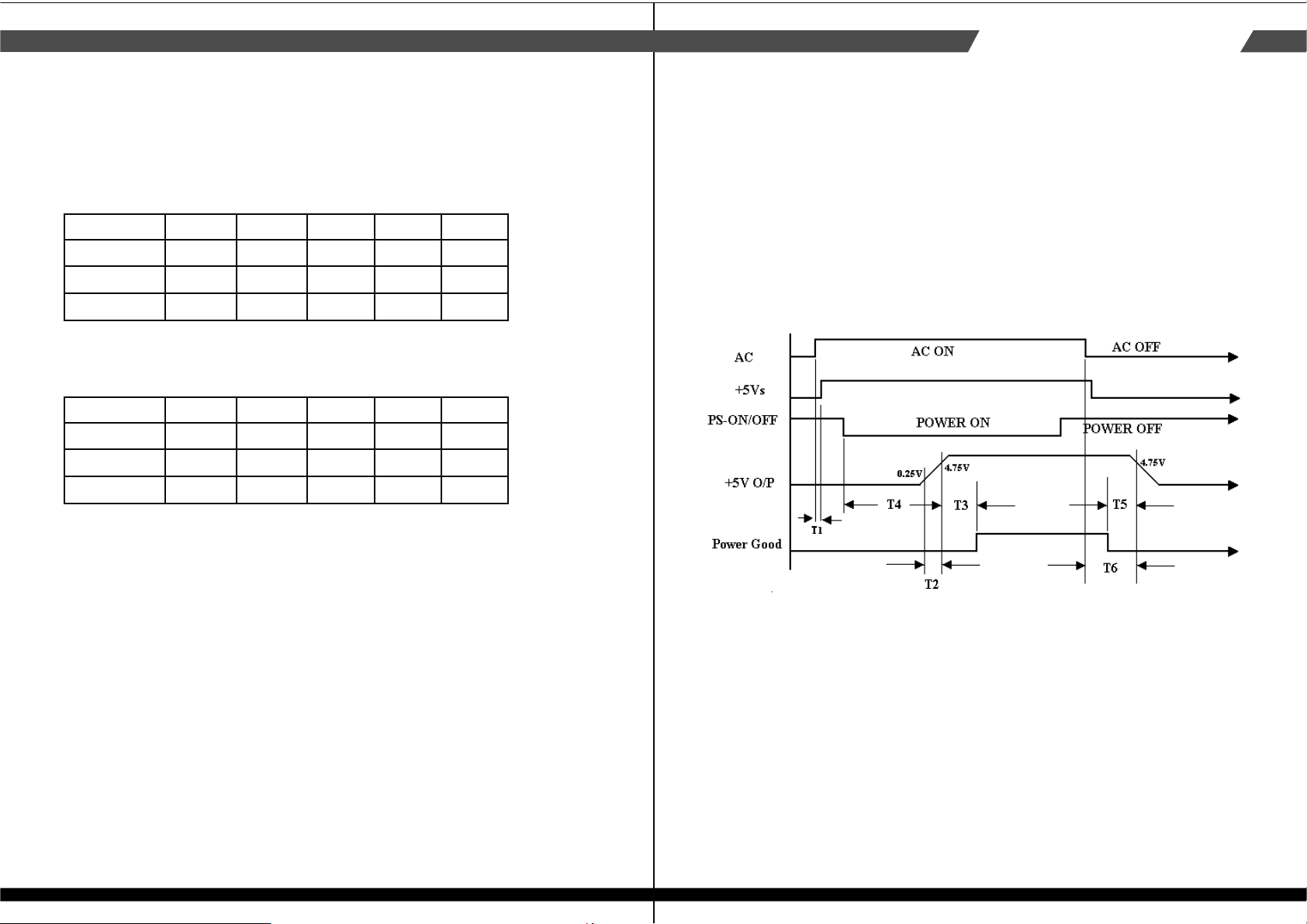

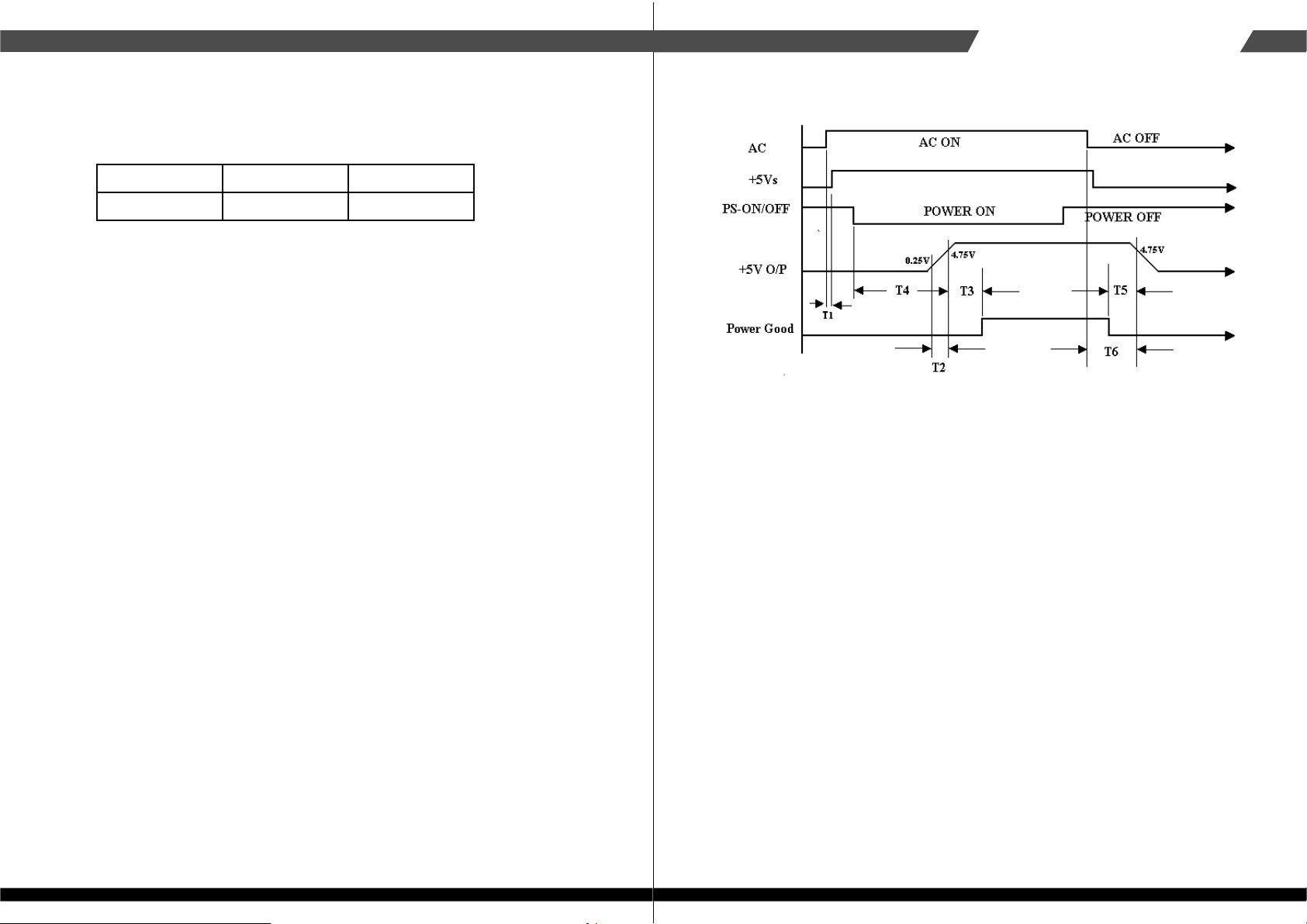

T1 : Turn on time ( 2 sec. Max.)
T2 : Rise time ( 20mS Max.)
<
=
T3 : Power good turn on delay time ( 100 < T3 < 500 mS )
T4 : Switch on time (0.5 sec. Max.)
T5 : Power good turn off delay time ( 1.0 mS Min.) PS-ON/OFF
T6 : Power hold-on time ( 16 mS Min.)
Power on-off cycle : When the power supply is turned off for a minimum of 2.0 sec. and
turn on again, the power good signal will be asserted.
06
Strider Essential Series
3.8 3.3V Sense
A default 3.3V sense line should be implemented pin 13 of the connector.
3.9 Capacitive Load
The power supply should be able to power up and operate normally with the
following capacitances simultaneously present on the DC outputs.
Output
+5V
+12V
+3.3V
-12V
+5VS
Capacitive load (uF)
6,000
8,000
6,000
350
350
4. PROTECTION
4.1 Input Protection
In primary circuit of the power supply, a protected fuse is inserted. Only internal
fault of the power supply will cause the fuse blown. Any overload or short circuit
at DC output will keep from fuse brown or fire hazard.
4.2 Output Protection
4.2.1 Under voltage protection
The +5V/+12V/+3.3V DC output are protected against the under voltage condition.
range value can't be exceed 3.3~3.7V at 5V terminal and 8.5~9.5V at 12V, 2.0~2.4V
at 3.3V.
4.2.5 Over-Current Protection
Current protection should be designed to limit the current to operate within safe
operating conditions. Over current protection schemes where only the voltage
output that experiences the over current event is shut off may be adequate to
maintain safe operation of the power supply and the system; however, damage
to the motherboard or other system components may occur. The recommended
over current protection scheme is for the power supply to latch into the shutdown
state. The setting of over current protection for each output rail is as following.
4.2.6 Over-Temperature Protection
This power supply includes an over-temperature protection sensor, which can trip
and shut down the power supply at 110 C
o
5. START STABILITY
5.1 No Load Start
When power is applied to ST70F-ES & ST60F-ES with no load connected or
under minimum load connected, neither damage to power supply nor hazards
to users will occur.
5.2 Cold Start
The power supply shall operate properly when first applied at normal input
voltage and or so maximum load after 4 hours storage in 0 C environment.
o
6. ENVIRONMENTS
6.1 Temperature and Humidity
4.2.2 Over Voltage Protection
The +5V/+12V/+3.3V DC output are protected against the over voltage condition.
Maximum value can't be over 6.5V at 5V terminal and 15.5V at 12V, 4.3V at 3.3V.
4.2.3 Over Power Protection
The power supply can be used electronic circuit to limit the output current
against exceeding 60% of surge output power or protected against excessive
power delivery since short circuit of any output or over total power at high line.
4.2.4 Short Circuit Protection
Short circuit placed on +5V,+12V,+3.3V,-12V will latch off. +5VSB will auto-recovery.
07
6.1.1 Operating
Temperature 0 to 40 C
o
Relative Humidity 20 to 90 %
6.1.2 Storage
Temperature -40 to 70 C
o
Relative Humidity 20 to 95 % noncondensing
6.2 Altitude
The power supply can operate normally at any altitude between 0 to 10000 feet.
08
Strider Essential Series
6.3 Vibration and Shock
6.3.1 Sweep and resonance search for each of X,Y,Z, axis at the sweep.
Frequency
5-55-10 Hz
Duration
30 minutes
Amplitude
0.35 mm
7. CONDUCTED EMI
FCC, CE
8. PRODUCT SAFETY
8.1 Safety Requirement
TUV, UL/c-UL,CB
8.2 Leakage Current
The AC leakage current is less than 3.5mA when the power supply connect to
253Vac/50Hz .
8.3 Insulation Resistance
The insulation resistance should be not less than 30M ohm after applying of
500VDC for 1 minute.
8.4 Dielectric Voltage Withstand
The power supply shall withstand for 1 minute without breakdown the application
of a 60Hz 1500V AC voltage applied between both input line and chassis (20mA
DC cut-off current). Main transformer shall similarly withstand 3000Vac applied
between both primary and secondary windings for a minimum of one minute.
9. POWER GOOD SIGNAL
A TTL compatible signal for the purpose of initiating an orderly start-up procedure
under normal input operating conditions. During power up, this signal is asserted
( low ) until +5V is under regulation and AC reaches min. line specification range.
After all voltage are going appropriate level, the system may have a turn on delay
of 100mS, but no greater than 500mS. During power off the signal should go to low
level before +5V is out of regulation. The low level is 0 to 0.8V and high level is 4.75
to 5.25V. The " Power Good "signal can drive up to 6 standard TTL loads.
Time Diagram
T1 : Turn on time ( 2 sec. Max.)
T2 : Rise time ( 20mS Max.)
T3 : Power good turn on delay time ( 100 < T3 < 500 mS )
T4 : Switch on time (0.5 sec. Max.)
T5 : Power good turn off delay time ( 1.0 mS Min.) PS-ON/OFF
T6 : Power hold-on time ( 16 mS Min.)
Power on-off cycle :
When the power supply is turned off for a minimum of 2.0 sec. and turn on again,
the power good signal will be asserted.
<
=
10. MTBF
The MTBF of the power should be 100,000 hours min.
11. Burn-In
11.1 Input Voltage
Applying 220Vac for 230V model.
11.2 Test Condition
Applying 75% loads for the power supply in 45 (+/-5) C chamber for 4 hours.
o
12. Harmonics
The product shall meet requirement for EN61000-3-2 & EN61000-3-3 :1995 standard
of class D, test at 230Vac 50Hz.
09
10
Strider Essential Series
13. Power Factor
The power supply with active power factor correction, and meet the EN61000-3-2
standards, The power factor is greater than 0.9 at 230V/50Hz, Max. load.
14. MECHANICAL REQUIREMENTS
14.1 Physical Dimension
150 mm (W) × 86 mm (H) × 140mm (D)
14.2 Connectors
M/B 24PIN connector
Signal Pin Pin Signal
Orange
Blue
Black
Green
Black
Black
Black
White
Red
Red
Red
Black
EPS 12V 8PIN connector
Signal Pin Pin Signal
Yellow +12V
Yellow +12V
Yellow +12V
Yellow +12V
+3.3V
-12VDC
COM
PS-ON
COM
COM
COM
N/C
+5VDC
+5VDC
+5VDC
COM
13
14
15
16
17
18
19
20
21
22
23
24
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
1 COM Black
2 COM Black
3 COM Black
4 COM Black
+3.3V
+3.3V
COM
+5VDC
COM
+5VDC
COM
PWRGOOD
+5Vsb
+12V
+12V
+3.3V
Orange
Orange
Black
Red
Black
Red
Black
Grey
Purple
Yellow
Yellow
Orange
ATX 12V 4PIN (4+4PIN EPS 12V in split mode)
Signal Pin Pin Signal
Black GND
Black GND
4PIN peripheral connector (HDD) 4PIN floppy connector (FDD)
Signal Pin Pin Signal
Yellow +12V
Black COM
Black COM
Red +5VDC
SATA connector
Signal Pin
Orange +3.3V
Black COM
Red +5V
Black COM
Yellow +12V
8PIN PCI Express connector
Signal Pin Pin Signal
Yellow +12V
Yellow +12V
Yellow +12V
Black sense1 COM
6PIN PCI Express connector
Signal Pin Pin Signal
Yellow +12V
Yellow +12V
Yellow +12V
1
2
1
2
3
4
5
4
3
2
1
1
2
3
1
2
3
4
3 +12V Yellow
4 +12V Yellow
1 +5VDC
2 COM
3 COM
4 +12V
5 COM
6 COM
7 COM
8 COM
4 COM
5 COM
6 COM
Red
Black
Black
Yellow
Black
Black
Black
Black
Black
Black
Black
11
12
Loading...
