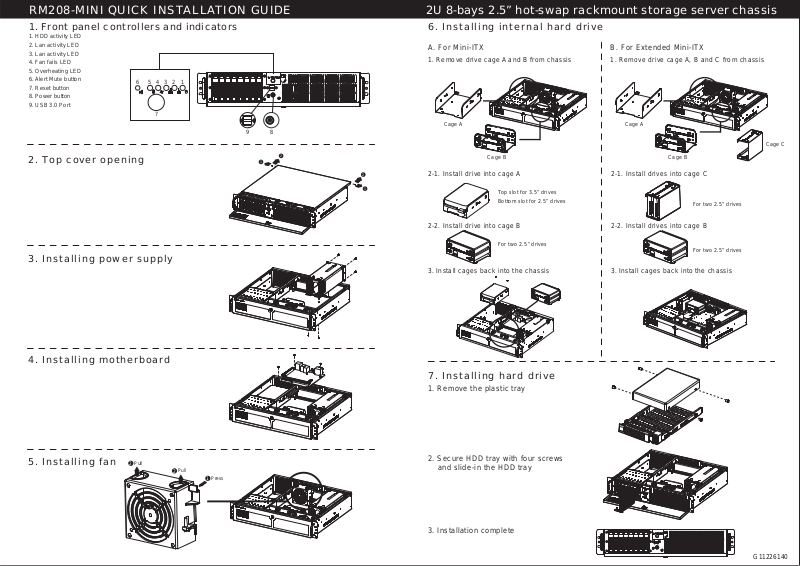

RM208-MINI QUICK INSTALLATION GUIDE 2U 8-bays 2.5” hot-swap rackmount storage server chassis

1. Front panel controllers and indicators

1. HDD activity LED

2. Lan activity LED

3. Lan activity LED

4. Fan fails LED

5. Overheating LED

6. Alert Mute button

7. Reset button

8. Power button

9. USB 3.0 Port

123456

2. Top cover opening

6. Installing internal har d drive

A. For Mini-ITX

1. Remove drive cage A and B from chassis 1. Remove drive cage A, B and C from chassis

Cage A

Cage B

2-1. Install drive into cage A 2-1. Install drives into cage C

Top slot for 3.5” drives Bottom slot for 2.5” drives

2-2. Install drive into cage B 2-2. Install drives into cage B

B. For Extended Mini-ITX

Cage A

Cage B

For two 2.5” drives

Cage C

3. Installing power supply

4. Installing motherboard

5. Installing fan

Pull

For two 2.5” drives

3. Install cages back into the chassis 3. Install cages back into the chassis

7. Installing hard drive

1. Remove the plastic tray

2. Secure HDD tray with four screws

Pull

Press

and slide-in the HDD tray

3. Installation complete

G11226140
