EC04-E
PCI express card with two USB 3.0 external ports
and internal 19pin dual port connector
MANUAL
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19pin dual port connector
Introduction
SilverStone created an excellent extension card product, the EC04-E, which connects to the
motherboard via single lane PCI Express 2.0 to support two external and a dual port USB 3.0
connector for maximum compatibility and flexibility. This card is a great add-on for systems
that require connections to multiple USB 3.0 devices such as SilverStone’s own USB 3.0
enclosures RVS02 and TS07.
Features
USB 3.0 with two external standard Type-A ports and one dual port internal connector
PCI Express 2.0 with single lane (x1) throughput 5Gbit/s
Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices
Adds four total USB 3.0 ports to your system
Built-in power connector to receive extra power from system power supply
Specifications
Model No.
Form factor
USB 3.0 controller
Power Requirement
USB Ports
Transfer speed
Port Interface
USB bus power output
OS Support
SST-EC04-E
Low profile single lane (X1) PCI Express 2.0
NEC uPD720201
5Vdc via peripheral 15pin SATA power connector
Two external ports and one internal dual port
USB 3.0 (5Gbit/s), USB 2.0 (480Mbit/s), USB 1.1 (12Mbit/s)
USB 3.0 (Max. 5Gbit/s) backwards compatible with USB 2.0
5Vdc
Windows XP, Vista, 7 , 8 (32bit/64bit)
1
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION
Install EC04-E into PCIe slot on the motherboard Установите плату EC04-E в гнездо PCIe
Installieren Sie die EC04-E im PCIe-Steckplatz
des Motherboards.
IInstallez le EC04-E dans un emplacement
PCIe de la carte mère.
Instale el EC04-E en el zócalo PCIe de la
placa base.
Inserisci EC04-E nello slot PCIe della scheda
madre.
INSTALLATION
1
материнской платы.
將EC04-E 安裝於主機板上的PCI-E插槽。
将EC04-E 安装于主机板上的PCI-E插槽。
EC04-E をマザーボードのPCIeスロットにインスト
ールします
EC04-E 을 메인보드의 PCIe 슬롯에 장착합니다.
2
Plug 15pin SATA power connecter. ПрПодсоедините 15-контактный разъем
Schließen Sie den 15pin SATA-Netzstecker an.
Branchez le cordon d'alimentation SATA 15Pin. 请将15pin SATA电源线接上。
Conecte el SATA 15Pin en el conector
depotencia.
Connett il SATA 15Pin alla presa d’alimentazione. SATA 15Pin 파워 커넥터를 연결합니다.
питания SATA.
請將15pin SATA電源線接上。
Plug SATA 15Pin電源コネクタを接続します。
）
。
2
EC04-E
and internal 19P dual port connector
INSTALLATION 3
PCI express card with two USB 3.0 external ports

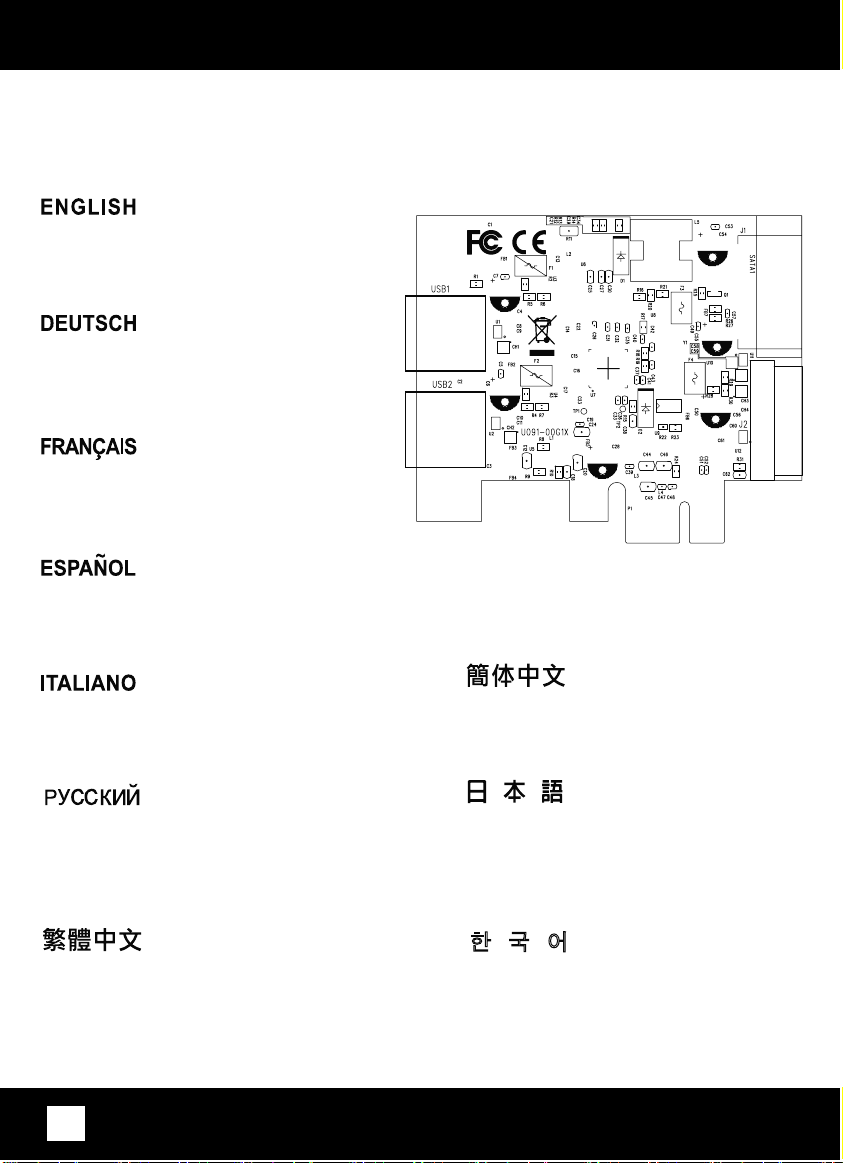

Connect to 19pin USB 3.0 connector
(refer PIC1)
Schließen Sie den 19-poligen internen
Dual-Port- USB 3.0-Stecker an.
(vgl. Abb. 1)
Branchez le connecteur USB 3.0 à double
port interne 19P.
(voir image 1)
Conecte el puerto dual 19P al conector USB 3.0.
(consulte la IMAGEN1)
Connetti la doppia porta interna 19P USB 3.0.
(refer PIC1)
USB 3.0 Port
USB 3.0 Port
连接内接19pin USB 3.0线材。
（请参考图一）
15P SATA
power connecter
PIC1
USB 3.0 connector
Подсоедините внутренний 19-контактный
разъем для двух портов USB 3.0.
(см. рисунок 1)
連接內接19pin USB 3.0線材。
（請參考圖一）
3
内蔵19PデュアルポートUSB 3.0コネクタを
接続します。
(図1.参照)
내부 19P 듀얼 포트 USB 3.0
커넥터를연결합니다.
(PIC 1 참조)
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION
Install Renesas Electronics USB 3.0
host controller driver.
Installieren Sie den USB 3.0-Host-ControllerTreiber von Renesas Electronics .
Installez le pilote du contrôleur hôte
Renesas Electronics USB 3.0.
4
Установите драйвер хост-контроллера
Renesas Electronics USB 3.0.
安裝Renesas Electronics USB 3.0 host controller
驅動程式。
安装Renesas Electronics USB 3.0 host controller
驱动程序。
Instale el controlador Renesas Electronics
USB 3.0.
Installa il driver Renesas Electronics
USB 3.0 host controller.
Renesas ElectronicsのUSB 3.0
ホストコントローラドライバをインストールしてください。
Renesas Electronics USB 3.0 호스트 컨트롤러
드라이버를 설치합니다.
4
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION
After above installation, you will find the
Renesas Electronics USB 3.0 host controller
in the device manager.
Nach der obigen Installation finden Sie den
USB 3.0-Host-Controller von Renesas Electronics
im Geräte-Manager.
Après l'installation ci-dessus, vous trouverez
le contrôleur hôte Renesas Electronics USB 3.0
dans le gestionnaire de périphériques.
5
После установки указанного выше драйвера
хост-контроллер Renesas Electronics USB 3.0
отобразится
安裝完成後，在硬體管理員列表中可看見
Renesas Electronics USB 3.0 host controller。
安装完成后，在硬件管理员列表中可看见
Renesas Electronics USB 3.0 host controller。
в диспетчере устройств.
Tras la instalación anterior, encontrará el
controlador Renesas Electronics USB 3.0 en el
administrador de dispositivos.
Dopo l’installazione del driver, troverai
Renesas Electronics USB 3.0 host controller
in gestione periferiche.
5
上記インストール後、デバイスマネージャには
Renesas Electronics
ホストコントローラが表示されます
위의 설치 후, 장치관리자에서
Renesas Electronics USB 3.0
호스트 컨트롤러를 확인할 수 있습니다.
USB 3.0
。
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19pin dual port connector
INSTALLATION
Plug your USB 3.0 device and enjoy the
5Gbit/s USB 3.0 super speed transfer speed.
Schließen Sie Ihr USB 3.0-Gerät an und
genießen die USB 3.0-Super-SpeedÜbertragungsgeschwindigkeit von 5 Gbit/s.
Branchez vos appareils USB 3.0 et profitez
de la super vitesse de transfert de 5Gbit/s.
6
Подключите устройство с интерфейсом USB
3.0 и передавайте данные на высокой
скорости до 5 Гбит/с через разъем USB 3.0.
連接USB 3.0裝置並開始享受高速傳輸速度。
连接USB 3.0装置并开始享受高速传输速度。
Conecte el dispositivo USB 3.0 y disfrutede
la transferencia de alta velocidad USB 3.0 de
5Gbit/s.
Connetti pure la tua periferica USB 3.0 ed
apprezza la super velocità di trasferimento dati
di ben 5Gbit/s.
お持ちのUSB 3.0装置を接続して、5Gbit/sという
USB 3.0の超高速データ転送速度が実感できます。
USB 3.0 장비를 연결한 후 5Gbit/s USB 3.0
초고속 전송 속도를 즐기십시요.
6
