SilverStone MS05 User Manual

MS05

manual

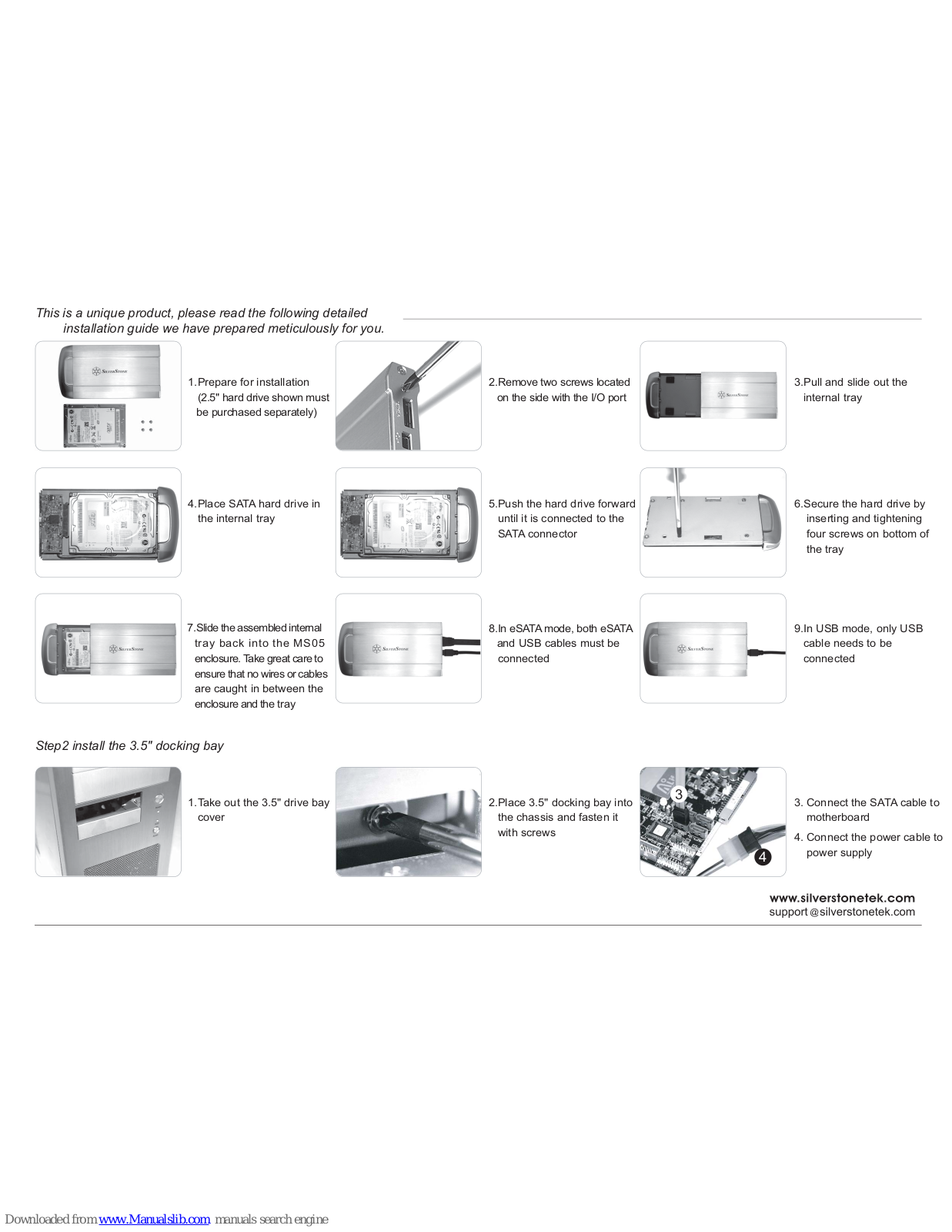

This is a unique product, please read the following detailed
installation guide we have prepared meticulously for you.

Step2 install the 3.5" docking bay

9.In USB mode, only USB
cable needs to be
connected

3. Connect the SATA cable to
motherboard

4. Connect the power cable to
power supply

7.Slide the assembled internal
tray back into the MS05
enclosure. Take great care to
ensure that no wires or cables
are caught in between the
enclosure and the tray

8.In eSATA mode, both eSATA
and USB cables must be
connected

5.Push the hard drive forward
until it is connected to the
SATA connector

3.Pull and slide out the
internal tray

6.Secure the hard drive by
inserting and tightening
four screws on bottom of
the tray

1.Prepare for installation
(2.5" hard drive shown must
be purchased separately)

2.Remove two screws located
on the side with the I/O port

4.Place SATA hard drive in
the internal tray

1.Take out the 3.5" drive bay
cover

2.Place 3.5" docking bay into
the chassis and fasten it
with screws
