EC04-E
PCI express card with two USB 3.0 external ports
and internal 19pin dual port connector
MANUAL
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19pin dual port connector
Introduction
Features
Specifications
Model No.
Form factor
USB 3.0 controller
Power Requirement
USB Ports
Transfer speed
Port Interface
USB bus power output
OS Support
SST-EC04-E
Low profile single lane (X1) PCI Express 2.0
NEC uPD720201
5Vdc via peripheral 15pin SATA power connector
Two external ports and one internal dual port
USB 3.0 (5Gbit/s), USB 2.0 (480Mbit/s), USB 1.1 (12Mbit/s)
USB 3.0 (Max. 5Gbit/s) backwards compatible with USB 2.0
5Vdc
Windows XP, Vista, 7 , 8 (32bit/64bit)
1
SilverStone created an excellent extension card product, the EC04-E, which connects to the
motherboard via single lane PCI Express 2.0 to support two external and a dual port USB 3.0
connector for maximum compatibility and flexibility. This card is a great add-on for systems
that require connections to multiple USB 3.0 devices such as SilverStone’s own USB 3.0
enclosures RVS02 and TS07.
USB 3.0 with two external standard Type-A ports and one dual port internal connector
PCI Express 2.0 with single lane (x1) throughput 5Gbit/s
Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices
Adds four total USB 3.0 ports to your system
Built-in power connector to receive extra power from system power supply
INSTALLATION
1
Install EC04-E into PCIe slot on the motherboard Установите плату EC04-E в гнездо PCIe
материнской платы.
Installieren Sie die EC04-E im PCIe-Steckplatz
des Motherboards.
將EC04-E 安裝於主機板上的PCI-E插槽。
IInstallez le EC04-E dans un emplacement
PCIe de la carte mère.
将EC04-E 安装于主机板上的PCI-E插槽。
Instale el EC04-E en el zócalo PCIe de la
placa base.
EC04-E をマザーボードのPCIeスロットにインスト
ールします
Inserisci EC04-E nello slot PCIe della scheda
madre.
EC04-E 을 메인보드의 PCIe 슬롯에 장착합니다.
2
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION
2
Plug 15pin SATA power connecter. ПрПодсоедините 15-контактный разъем
питания SATA.
Schließen Sie den 15pin SATA-Netzstecker an.
請將15pin SATA電源線接上。
）
Branchez le cordon d'alimentation SATA 15Pin. 请将15pin SATA电源线接上。
Conecte el SATA 15Pin en el conector
depotencia.
Plug SATA 15Pin電源コネクタを接続します。
Connett il SATA 15Pin alla presa d’alimentazione. SATA 15Pin 파워 커넥터를 연결합니다.
。
3
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION 3
Connect to 19pin USB 3.0 connector
(refer PIC1)
Подсоедините внутренний 19-контактный
разъем для двух портов USB 3.0.
(см. рисунок 1)
Schließen Sie den 19-poligen internen
Dual-Port- USB 3.0-Stecker an.
(vgl. Abb. 1)
連接內接19pin USB 3.0線材。
（請參考圖一）
Branchez le connecteur USB 3.0 à double
port interne 19P.
(voir image 1)
连接内接19pin USB 3.0线材。
（请参考图一）
Conecte el puerto dual 19P al conector USB 3.0.
(consulte la IMAGEN1)
内蔵19PデュアルポートUSB 3.0コネクタを
接続します。
(図1.参照)
Connetti la doppia porta interna 19P USB 3.0.
(refer PIC1)
내부 19P 듀얼 포트 USB 3.0
커넥터를연결합니다.
(PIC 1 참조)

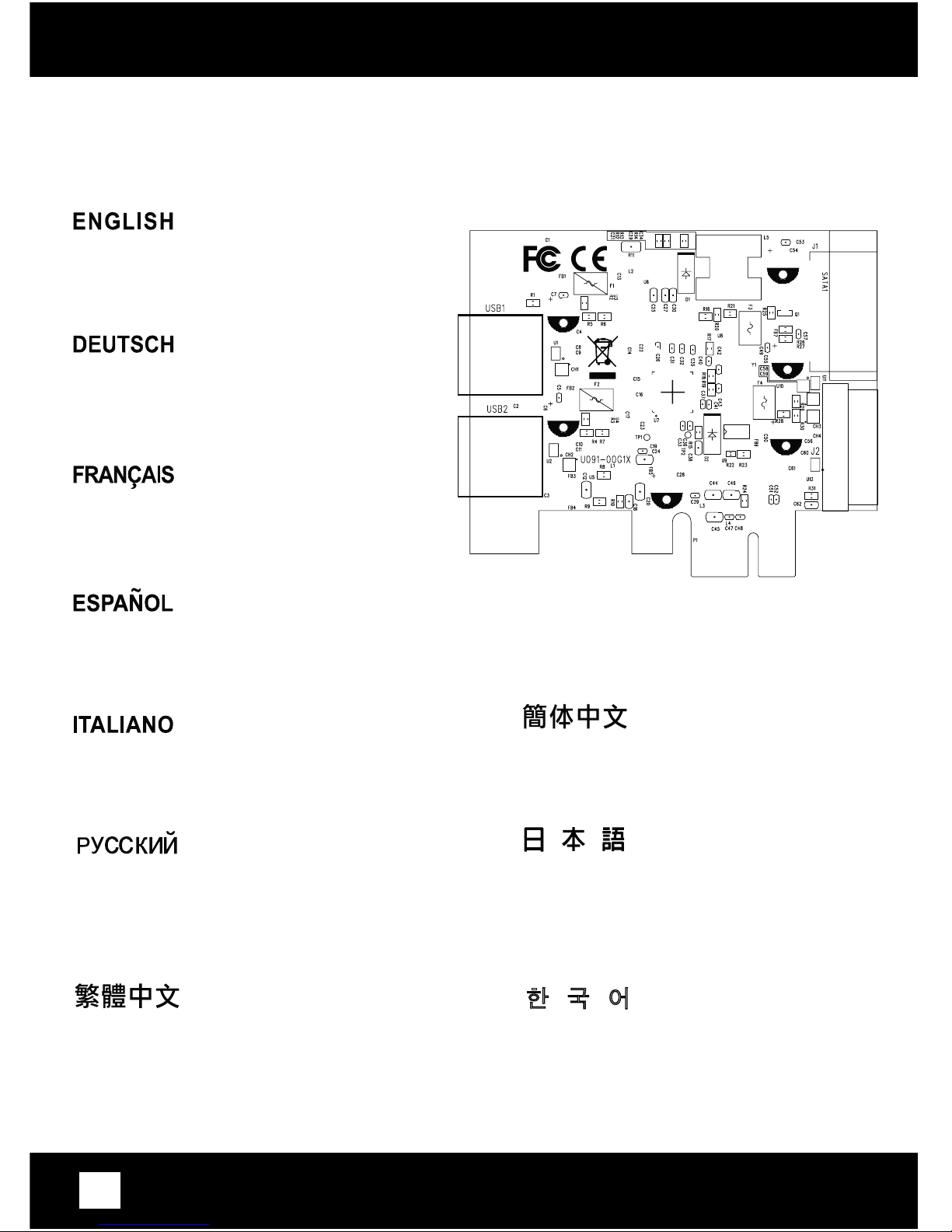

PIC1
USB 3.0 Port
USB 3.0 Port
USB 3.0 connector
15P SATA
power connecter
4
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION
4
Install Renesas Electronics USB 3.0
host controller driver.
Установите драйвер хост-контроллера
Renesas Electronics USB 3.0.
Installieren Sie den USB 3.0-Host-ControllerTreiber von Renesas Electronics .
安裝Renesas Electronics USB 3.0 host controller
驅動程式。
Installez le pilote du contrôleur hôte
Renesas Electronics USB 3.0.
安装Renesas Electronics USB 3.0 host controller
驱动程序。
Instale el controlador Renesas Electronics
USB 3.0.
Renesas ElectronicsのUSB 3.0
ホストコントローラドライバをインストールしてください。
Installa il driver Renesas Electronics
USB 3.0 host controller.
Renesas Electronics USB 3.0 호스트 컨트롤러
드라이버를 설치합니다.
5
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19P dual port connector
INSTALLATION
5
After above installation, you will find the
Renesas Electronics USB 3.0 host controller
in the device manager.
После установки указанного выше драйвера
хост-контроллер Renesas Electronics USB 3.0
отобразится
в диспетчере устройств.
Nach der obigen Installation finden Sie den
USB 3.0-Host-Controller von Renesas Electronics
im Geräte-Manager.
安裝完成後，在硬體管理員列表中可看見
Renesas Electronics USB 3.0 host controller。
Après l'installation ci-dessus, vous trouverez
le contrôleur hôte Renesas Electronics USB 3.0
dans le gestionnaire de périphériques.
安装完成后，在硬件管理员列表中可看见
Renesas Electronics USB 3.0 host controller。
Tras la instalación anterior, encontrará el
controlador Renesas Electronics USB 3.0 en el
administrador de dispositivos.
上記インストール後、デバイスマネージャには
Renesas Electronics
USB 3.0
ホストコントローラが表示されます
。
Dopo l’installazione del driver, troverai
Renesas Electronics USB 3.0 host controller
in gestione periferiche.
위의 설치 후, 장치관리자에서
Renesas Electronics USB 3.0
호스트 컨트롤러를 확인할 수 있습니다.
6
EC04-E
PCI express card with two USB 3.0 external ports
and internal 19pin dual port connector
INSTALLATION
6
Plug your USB 3.0 device and enjoy the
5Gbit/s USB 3.0 super speed transfer speed.
Подключите устройство с интерфейсом USB
3.0 и передавайте данные на высокой
скорости до 5 Гбит/с через разъем USB 3.0.
Schließen Sie Ihr USB 3.0-Gerät an und
genießen die USB 3.0-Super-SpeedÜbertragungsgeschwindigkeit von 5 Gbit/s.
連接USB 3.0裝置並開始享受高速傳輸速度。
Branchez vos appareils USB 3.0 et profitez
de la super vitesse de transfert de 5Gbit/s.
连接USB 3.0装置并开始享受高速传输速度。
Conecte el dispositivo USB 3.0 y disfrutede
la transferencia de alta velocidad USB 3.0 de
5Gbit/s.
お持ちのUSB 3.0装置を接続して、5Gbit/sという
USB 3.0の超高速データ転送速度が実感できます。
Connetti pure la tua periferica USB 3.0 ed
apprezza la super velocità di trasferimento dati
di ben 5Gbit/s.
USB 3.0 장비를 연결한 후 5Gbit/s USB 3.0
초고속 전송 속도를 즐기십시요.
