SilverStone EC04 User Manual

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

MANUAL

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

Introduction

SilverStone created an excellent expansion card product, the EC04, which connects to the
motherboard via single lane PCI Express 2.0 to support two external and a dual port USB 3.0
connector for maximum compatibility and flexibility. This card is a great add-on for systems
that require connections to multiple USB 3.0 devices such as SilverStone’s own USB 3.0
enclosures RVS02 and TS07.

Features

USB 3.0 with two external standard Type-A ports and one dual port internal connector
PCI Express 2.0 with single lane (x1) throughput 5Gbit/s
Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices
Adds four total USB 3.0 ports to your system
Built-in power connector to receiving extra power from system power supply

Specifications

Model No.
Form factor
USB 3.0 controller
Power Requirement
USB Ports
Transfer speed
Port Interface
USB bus power output
OS Support

SST-EC04
Low profile single lane (X1) PCI Express 2.0
TI TUSB7340
5Vdc via peripheral 4pin power connector
Two external ports and one internal dual port
USB 3.0(5Gbit/s), USB 2.0(480Mbit/s), USB 1.1(12Mbit/s)
USB 3.0 (Max. 5Gbit/s) backwards compatible with USB 2.0
5Vdc with unlimited power current
Windows XP, Vista, 7(32bit/64bit)

1

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

INSTALLATION

Install EC04 onto PCIe slot of Motherboard.
(refer to PIC1)

Installieren Sie die EC04 im PCIe-Steckplatz
des Motherboards. (vgl. Abb. 1)

Installez le EC04 dans un emplacement PCIe
de la carte mère. (voir image 1)

1

Установите плату EC04 в гнездо PCIe
материнской платы. (см. рисунок 1)

將EC04 安裝於主機板上的PCI-E插槽。
（請參考圖一）

将EC04 安装于主机板上的PCI-E插槽。
（请参考图一）

Instale el EC04 en el zócalo PCIe de la placa
base. (consulte la IMAGEN1)

Inserisci EC04 nello slot PCIe della scheda
madre. (fare riferimento alla PIC1)

EC04 をマザーボードのPCIeスロットにインスト

。

ールします

EC04 을 메인보드의 PCIe 슬롯에 장착합니다.
(PIC 1 참조)

(図1.参照)

2

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

INSTALLATION

Plug Molex 4P power connecter.
(refer to PIC1)

Schließen Sie den 4-poligen Molex-Netzstecker
an. (vgl. Abb. 1)

Branchez le cordon d'alimentation Molex 4P.
(voir image 1)

2

Подсоедините 4-контактный разъем питания
Molex. (см. рисунок 1)

將4pin電源線接上EC04 。（請參考圖一））

将4pin电源线接上EC04 。（请参考图一）

Conecte el Mólex 4P en el conector depotencia.
(consulte la IMAGEN1)

Connett il molex 4P alla presa d’alimentazione.
(fare riferimento alla PIC1)

3

Plug Molex 4P電源コネクタを接続します。
(図1.参照)

Molex 4P 파워 커넥터를 연결합니다. (PIC 1

참조)

EC04

and internal 19P dual port connector

INSTALLATION 3

Plug internal 20P dual port USB 3.0 connector.
(refer PIC1)

PCI express card with two USB 3.0 external ports

USB 3.0 connector

Schließen Sie den 20-poligen internen
Dual-Port- USB 3.0-Stecker an. (vgl. Abb. 1)

Branchez le connecteur USB 3.0 à double port
interne 20P. (voir image 1)

Conecte el puerto dual 20P al conector USB 3.0.
(consulte la IMAGEN1)

Connetti la doppia porta interna 20P USB 3.0.
(refer PIC1)

Подсоедините внутренний 20-контактный
разъем для двух портов USB 3.0.

(см. рисунок 1)

USB 3.0 Port

USB 3.0 Port

连接EC04与20pin USB 3.0讯号线。
（请参考图一）

内蔵20PデュアルポートUSB 3.0コネクタを接
続します。(図1.参照)

4P power connecter

PIC1

連接EC04與20pin USB 3.0訊號線。
（請參考圖一）

내부 20P 듀얼 포트 USB 3.0 커넥터를
연결합니다. (PIC 1 참조)

4

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

INSTALLATION

Install Texas Instruments USB 3.0
host controller driver.

Installieren Sie den USB 3.0-Host-Controller­Treiber von Texas Instruments.

Installez le pilote du contrôleur hôte
Texas Instruments USB 3.0.

4

Установите драйвер хост-контроллера
Texas Instruments USB 3.0.

安裝Texas Instruments USB 3.0 host controller
驅動程式。

安装Texas Instruments USB 3.0 host controller
驱动程序。

Instale el controlador Texas Instruments
USB 3.0.

Installa il driver Texas Instruments
USB 3.0 host controller.

5

USB 3.0ホストコントローラドライバをインストール

します。

Texas Instruments USB 3.0 호스트 컨트롤러
드라이버를 설치합니다.

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

INSTALLATION

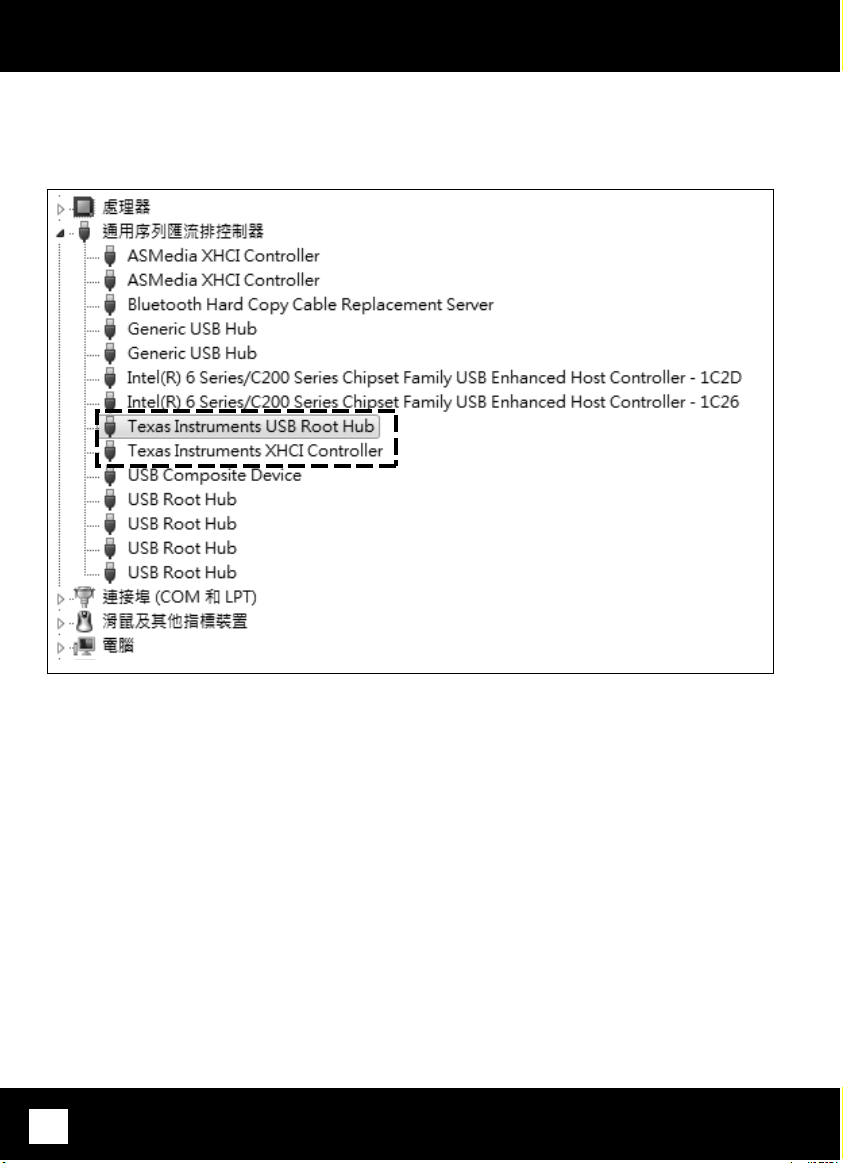

After above installation, you will find the
Texas Instruments USB 3.0 host controller
in the device manager. (refer to PIC2)

Nach der obigen Installation finden Sie den
USB 3.0-Host-Controller von Texas Instruments
im Geräte-Manager. (vgl.Abb.2)

Après l'installation ci-dessus, vous trouverez
le contrôleur hôte Texas Instruments USB 3.0
dans le gestionnaire de périphériques.

(voir image 2)

5

После установки указанного выше драйвера
хост-контроллер Texas Instruments USB 3.0
отобразится

(см. рисунок 2)

安裝完成後，在硬體管理員列表中可看見
Texas Instruments USB 3.0 host controller。
（請參考圖二）

安装完成后，在硬件管理员列表中可看见
Texas Instruments USB 3.0 host controller。
（请参考图二）

в диспетчере устройств.

Tras la instalación anterior, encontrará el
controlador Texas Instruments USB 3.0 en el
administrador de dispositivos.

Dopo l’installazione del driver, troverai
Texas Instruments USB 3.0 host controller
in gestione periferiche.

(fare riferimento alla PIC2)

上記インストール後、デバイスマネージャには

Texas Instruments USB 3.0

ホストコントローラが表示されます

위의 설치 후, 장치관리자에서

Texas Instruments USB 3.0

호스트 컨트롤러를 확인할 수 있습니다.
(PIC 2 참조)

。(図2.参照)

6

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

PLEASE SEE EXAMPLE BELOW

7

PIC2

EC04

PCI express card with two USB 3.0 external ports
and internal 19P dual port connector

INSTALLATION

Plug your USB 3.0 device and enjoy the
5Gbit/s USB 3.0 super speed transfer speed.

Schließen Sie Ihr USB 3.0-Gerät an und
genießen die USB 3.0-Super-Speed­Übertragungsgeschwindigkeit von 5 Gbit/s.

Branchez vos appareils USB 3.0 et profitez
de la super vitesse de transfert de 5Gbit/s.

6

Подключите устройство с интерфейсом USB

3.0 и передавайте данные на высокой
скорости до 5 Гбит/с через разъем USB 3.0.

連接USB 3.0裝置並開始享受高速傳輸速度。

连接USB 3.0装置并开始享受高速传输速度。

Conecte el dispositivo USB 3.0 y disfrutede
la transferencia de alta velocidad USB 3.0 de
5Gbit/s.

Connetti pure la tua periferica USB 3.0 ed
apprezza la super velocità di trasferimento dati
di ben 5Gbit/s.

お持ちのUSB 3.0装置を接続して、5Gbit/sという
USB 3.0の超高速データ転送速度が実感できます。

USB 3.0 장비를 연결한 후 5Gbit/s USB 3.0

초고속 전송 속도를 즐기십시요.

8

December, 2011
