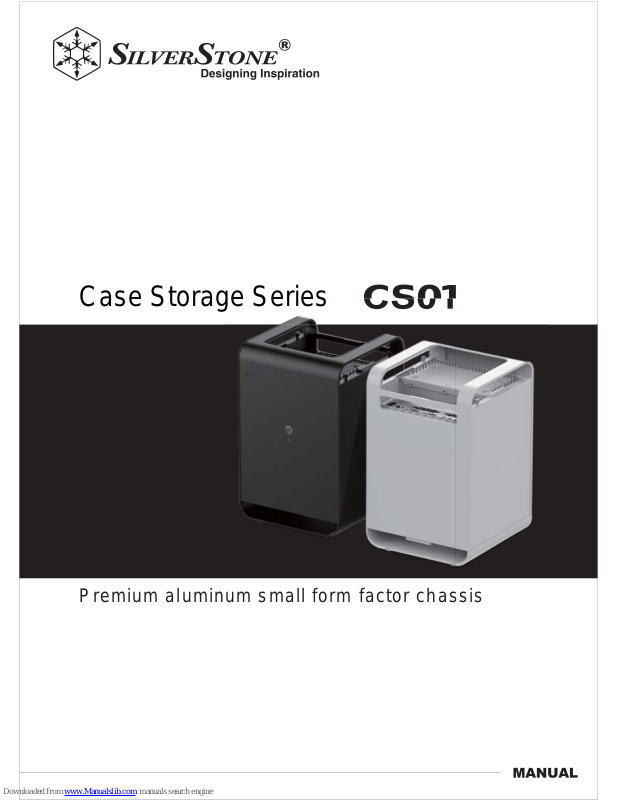

SilverStone CS01 Instruction Manual

Case Storage Series

Premium aluminum small form factor chassis

CS01

Serie

s

The following manual and guides were carefully prepared by the SilverStone engineering team to
help you maximize the potential of your SilverStone product. Please keep this manual for future
reference when upgrading or performing maintenance on your system. A copy of this manual can also
be downloaded from our website at:

Warranty Information

Installation and system optimization guide:

Product Overview

Special Features

Specification

Disassemble Chart

Exterior Overview

Installation Guide

Connector Definition

Componet Size Limitations

Optimal Thermal Performance Layout

Upgrade And Maintenance

P.1

P.1

P.1

P.2

P.3

P.4

P.11

P.14

P.16

P.18

Product Overview

Specification

Material
Model No.
Motherboard
Drive Bay
Cooling System
Expansion Slot
Front I/O Port
Power Supply
Expansion Card
Limitation of CPU cooler
Limitation of PSU
Dimension

Aluminum outer shell, steel body
SST-CS01S (Silver), SST-CS01B (Black)
Mini-ITX
Internal
Bottom
1x low profile
USB 3.0 x 2
SFX / SFX-L
1 x low profile up to 7.5”, width restriction – 2.95”
68mm
130mm (SFX-L)

210.5mm (W) x 322 mm (H) x 210 mm (D), 14.2 L

3.5" x 2 , 2.5” x 2
120mm AP fan x 1 , 1200rpm, 19.7dBA

Case Storage Series CS01

Introduction

Special Features

1

To meet increasing demand for cloud and local storage needs, SilverStone created the CS01 case to enable users to build sophisticated
and user-friendly system. Constructed with durable, sand-blasted anodized aluminium, the CS01 also utilizes SilverStone’s patented
90 degree rotated design to achieve efficient stack effect cooling for excellent thermal acoustic performance. Besides being durable
and practical, CS01 is also beautifully styled to fit perfectly in any office or home environment.

Modern design with premium aluminum exterior
Compatible with Mini-ITX motherboard and SFX power supply
Vertical layout for stack effect cooling with built-in Air Penetrator fan
Accommodates two 3.5” and two 2.5” drives simultaneously
Supports low profile expansion card

Case Storage Series CS01

Disassemble Chart

2

PICTURE PURPOSEITEM

Manual
STICKER

STICKER

M3 - 4 SCREW - NI

632 - 5 - SCREW - NI

THUMB - SCREW

Secure motherboard, PSU, 3.5" HDD and water cooling pump

Secure side panel

Secure 2.5" SSD/HDD

Description HDD content
Description HDD content

12025 FAN x 1

Side Cover x 2

Fan Filter x 1

USB3.0

2.5" HDD Tray x 2

3.5" HDD Tray x 2

Extended AC
power cord

Power LED

Reset Button

Power Button

HDD LED

Case Storage Series CS01

Exterior Overview

TOP

BOTTOM

FRONT

BACK

RIGHT SIDELEFT SIDE

3

Case Storage Series CS01

4

Installation Chart

have all components collected
check that all components do not have compatibility problems with each other or with the case
if possible, assemble the components outside the case first to make sure they are working
keep the motherboard manual ready for reference during installation
prepare a Philips screwdriver.

1
2
3
4
5

Before you begin, please make sure that you

01

Lösen Sie die beiden Schrauben an beiden Seitenblenden und entfernen Sie sie in der abgebildeten Ausrichtung.

Quite dos tornillos de cada uno de los paneles laterales para retirarlos en la dirección que se muestra.

Svitare due viti da entrambi i pannelli laterali per rimuoverli nella direzione mostrata.

Unscrew two screws each from both side panels to remove them in the direction as shown.

Чтобы снять боковые панели, отверните по два винта с каждой стороны панелей.

取下左右側板各兩顆螺絲，依箭頭方向卸下側板。

取下左右侧板各两颗螺丝，依箭头方向卸下侧板。

양 측면 패널에서 각각 2개의 나사를 풀어 그림과 같은 방향으로 이들을 분리합니다.

パネルの両サイドから各2本のネジを外し、図に示される方向に取り外します。

Desserrez deux vis des deux panneaux latéraux pour les retirer dans le sens indiqué.

Case Storage Series CS01

5

Installation Chart

02

Installieren Sie zunächst Speicher, CPU-Kühler und SATA-Kabel am Motherboard. Installieren Sie dann das Motherboard durch die Gehäuseseite
und schließen Sie frontseitige Ein-/Ausgänge, Lüfter- und Netzteilkabel an.

Instale primero la memoria, el disipador de la CPU y los cables SATA en la placa base. Luego instale la placa base por el lateral de la carcasa
y conéctele los cables de E/S frontales, de los ventiladores y las fuentes de alimentación.

Per prima cosa, installare memoria, dispositivo di raffreddamento CPU e cavi SATA sulla scheda madre. Quindi installare la scheda madre attraverso
il lato del case e collegare I/O anteriore, ventole e cavi di alimentazione ad essa.

Install memory, CPU cooler, and SATA cables onto the motherboard first. Then install the motherboard through the side of the case and connect
front I/O, fans, and power supply cables to it.

Сначала на системную плату установите чипы памяти, кулер процессора и подключите кабели SATA. Затем пропустите системную плату
через боковое отверстие в корпусе и подключите к ней кабели ввода/вывода на передней панели, кабели вентиляторов и блока питания.

將記憶體、CPU散熱器、SATA線，先安裝與連接至主機板，再將主機板由機殼側邊裝入，並連接IO線材、風扇線及電源線。

将内存、CPU散热器、SATA线，先安装与连接至主板，再将主板由机壳侧边装入，并连接IO线材、风扇线及电源线。

먼저 메인보드에 메모리, CPU 쿨러, SATA 케이블을 설치합니다. 그리고 케이스의 측면을 통해 메인보드를 설치하고 전면 I/O, 팬,전원 공급장치
케이블을 메인보드에 연결합니다.

メモリ、CPUクーラー、およびSATAケーブルをマザーボードに取り付けます。それからケース側面からマザーボードを装着し、フロントI/O、ファ
ン、および電源ケーブルを接続します。

Installez d'abord la mémoire, le dispositif de refroidissement du processeur et les câbles SATA sur la carte mère. Ensuite, installez la carte mère
par le côté du boîtier et raccordez-y les E/S de façade, les ventilateurs et les câbles d'alimentation.

632-5-Screw x 4

Case Storage Series CS01

6

Installation Chart

03

Installieren Sie das Netzteil in der abgebildeten Ausrichtung und schließen Sie es an das Verlängerungskabel an.

Instale la fuente de alimentación en la dirección que se muestra y luego conecte el cable de extensión.

Installare l’alimentatore nella direzione mostrata, quindi collegare alla prolunga.

Install power supply in the direction as shown then connect to extension cable.

Установите блок питания, как показано на рисунке, затем подключите кабельный удлинитель.

將電源按圖示方向安裝，並接上內接延長線。

将电源按图示方向安装，并接上内接延长线。

전원 공급장치를 그림과 같은 방향으로 설치한 후 연장 케이블에 연결합니다.

図に示される方向鬼電源を装着し、延長ケーブルを接続します。

Installez l'alimentation dans le sens indiqué, puis raccordez-la au câble d'extension.
