Silver Spring IMU Installation Manual
innovation in utility networking
Single Channel Rotary and
Turbine Meter IMU Installation
April 6, 2011
2
© 2010 Silver Spring Networks | Company Confidential
Overview

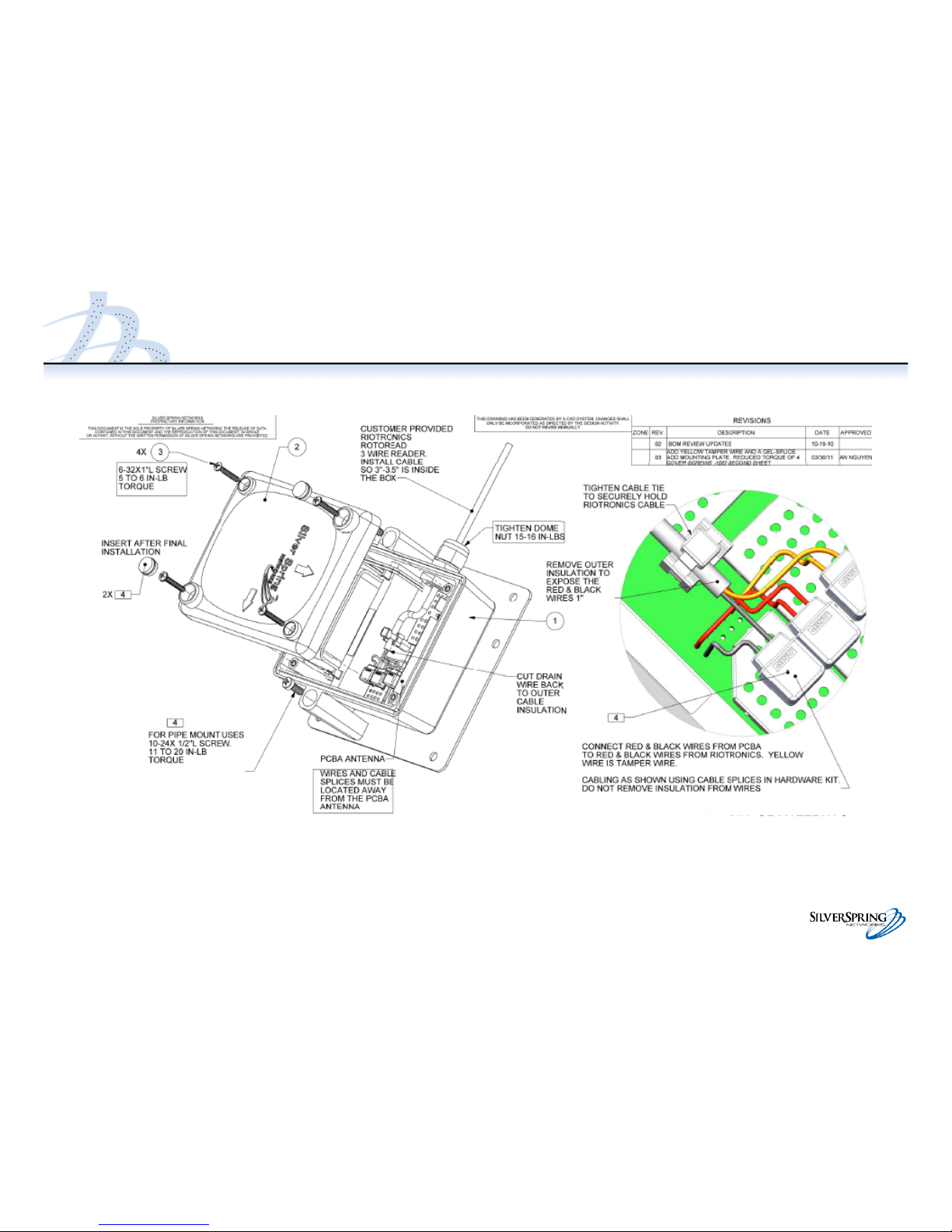

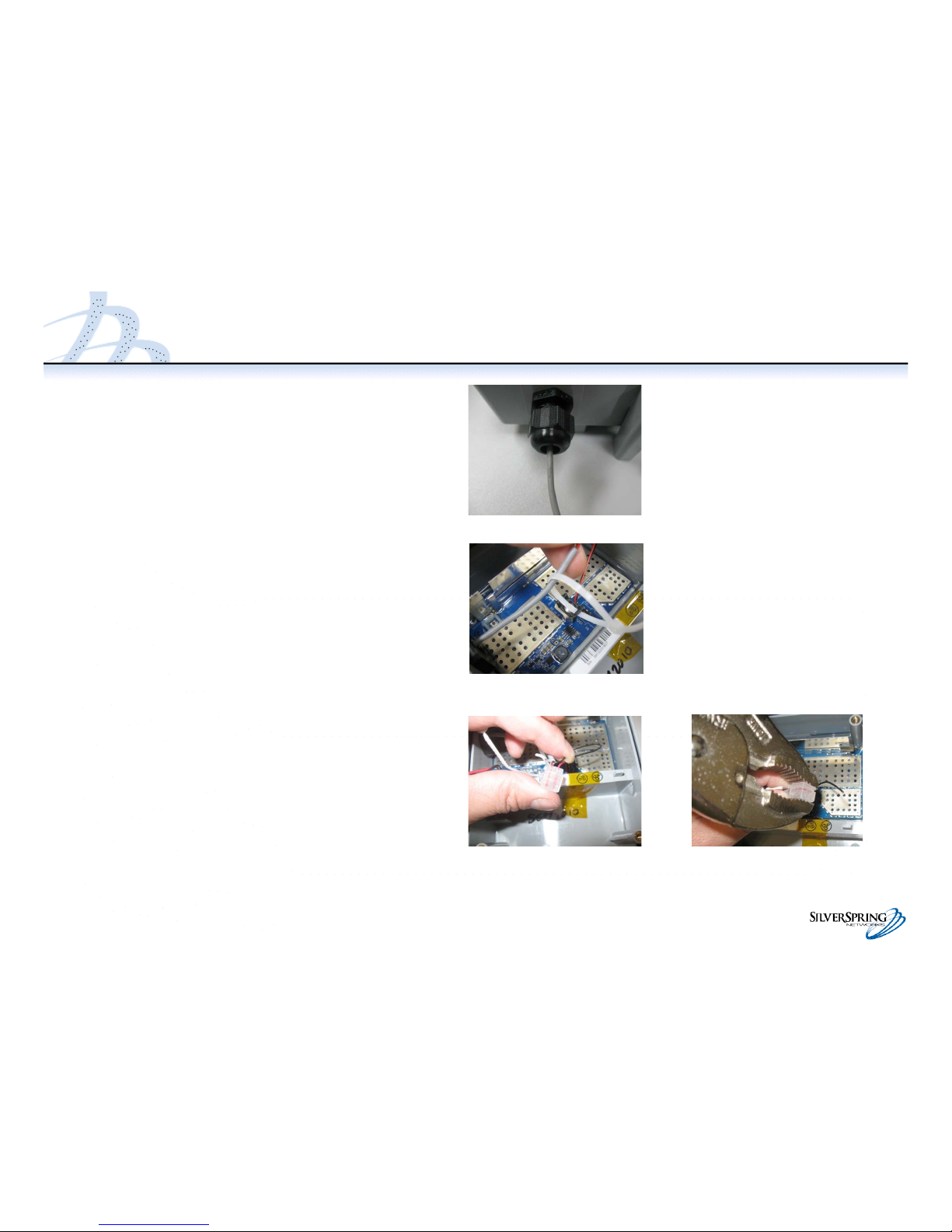

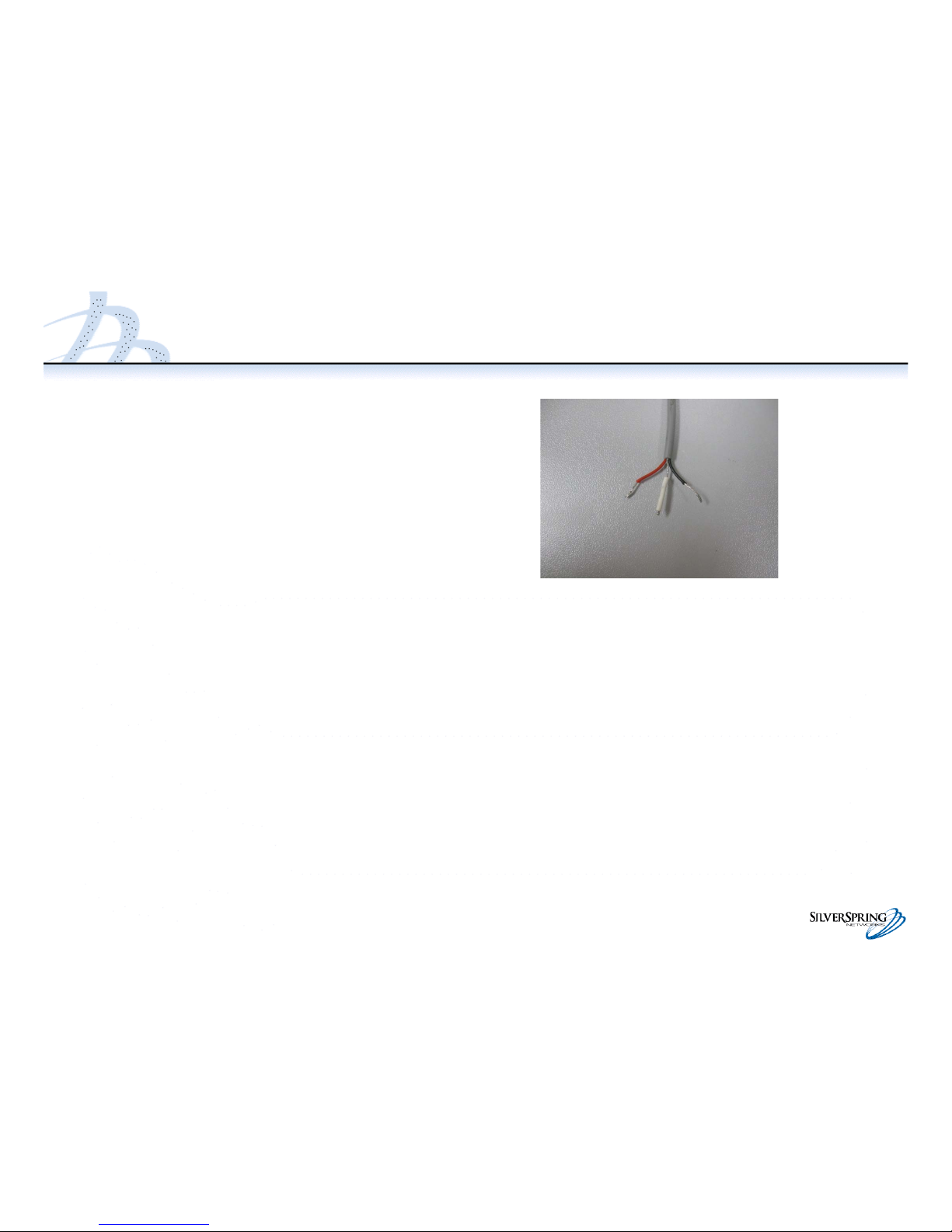

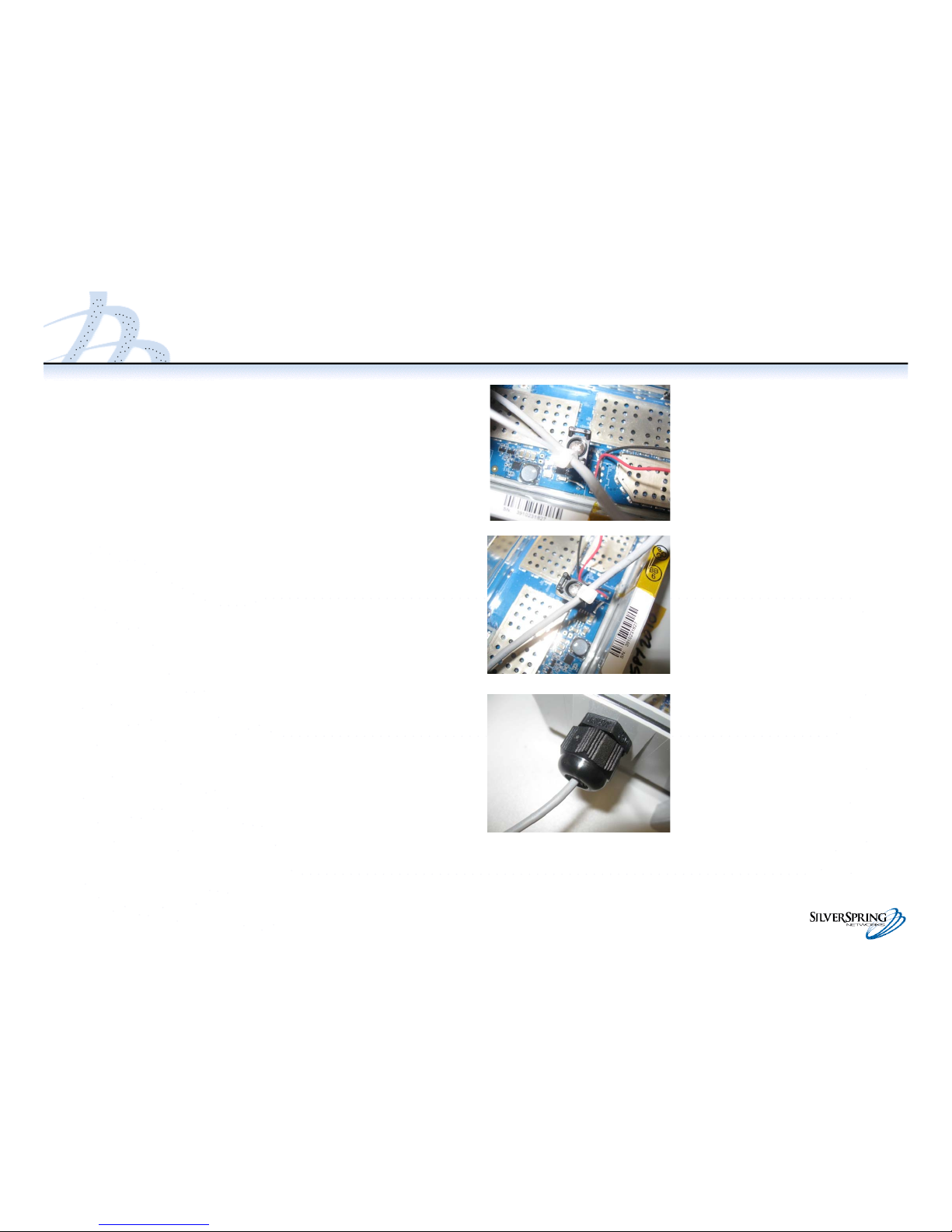

• Connect the pulser and IMU cables

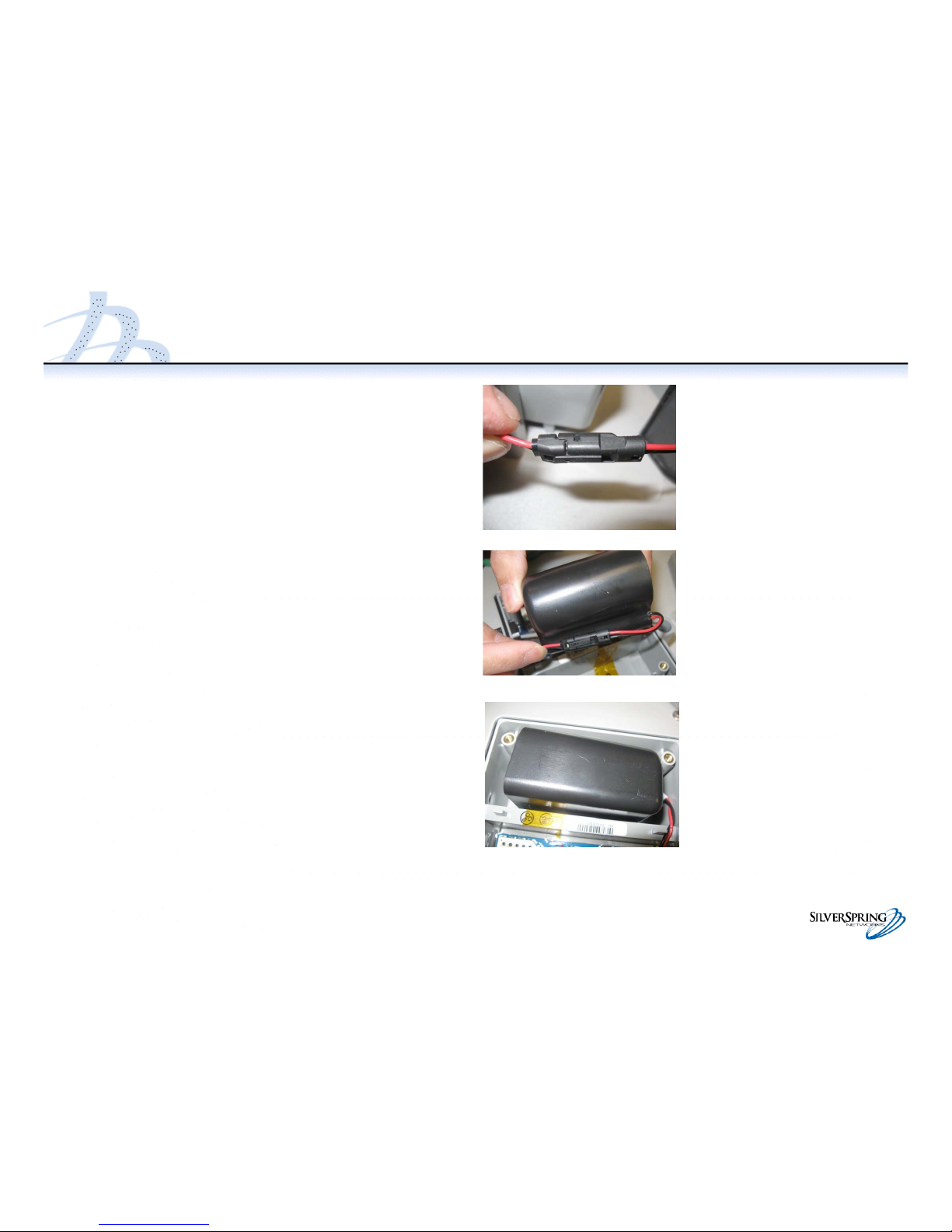

• Connect the IMU battery cable

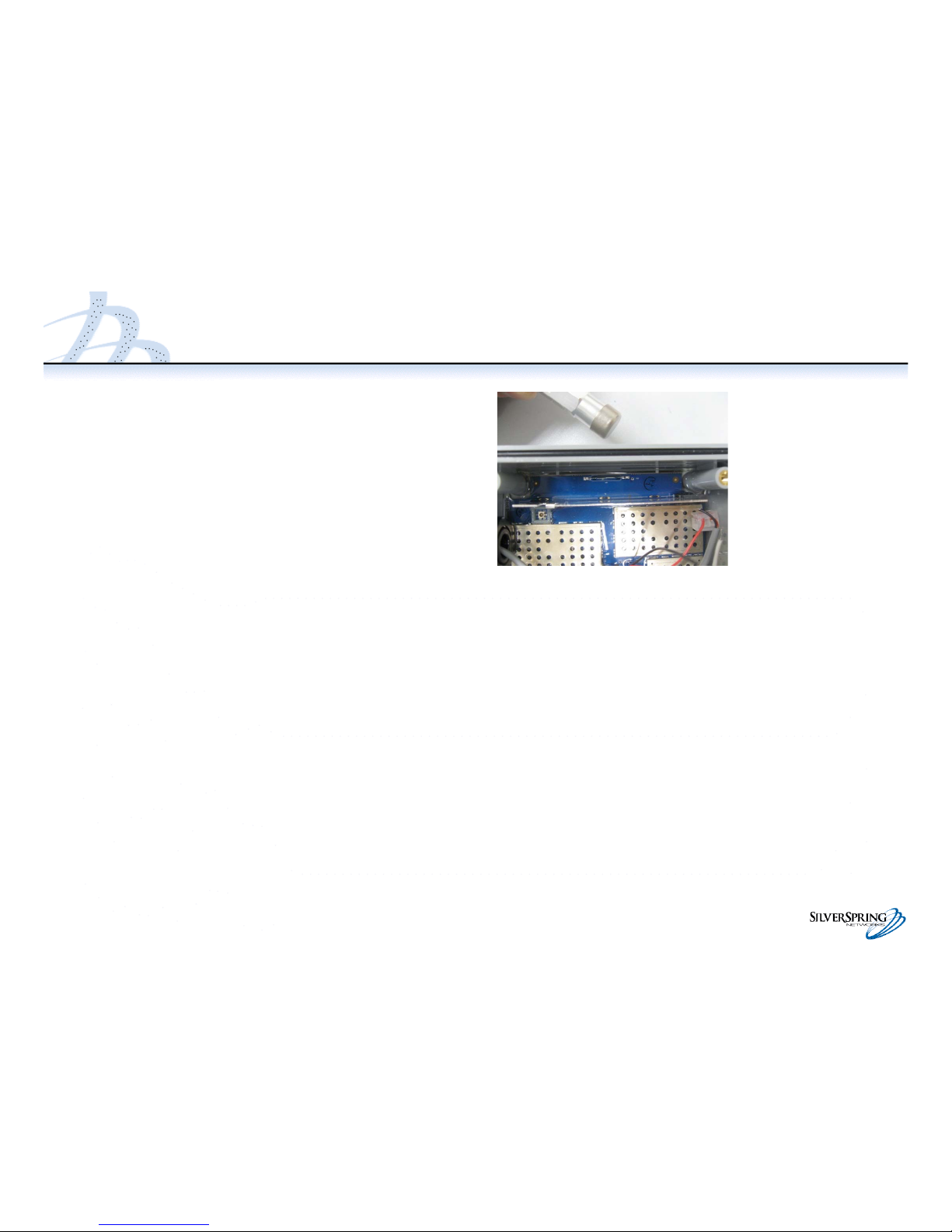

• Configure the IMU for field use

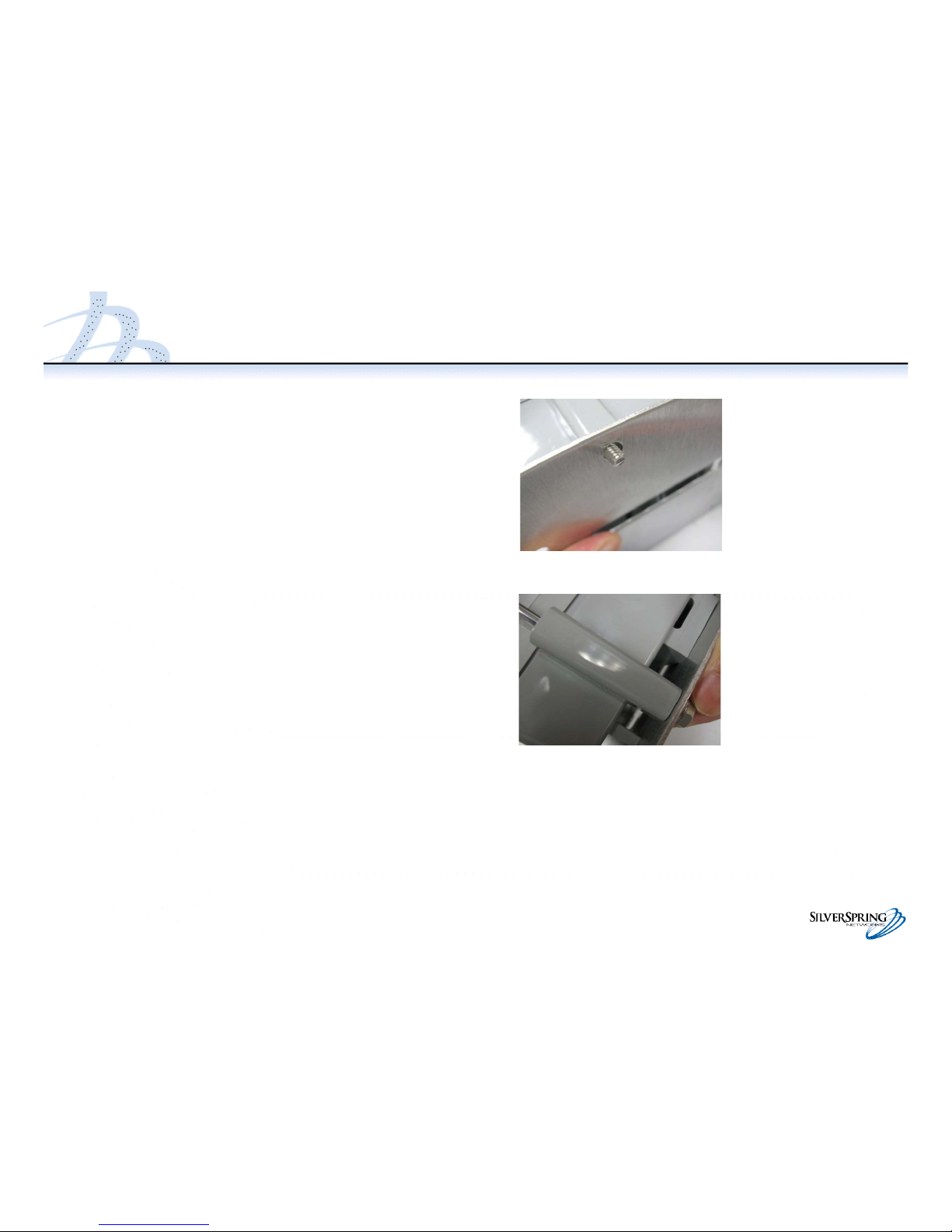

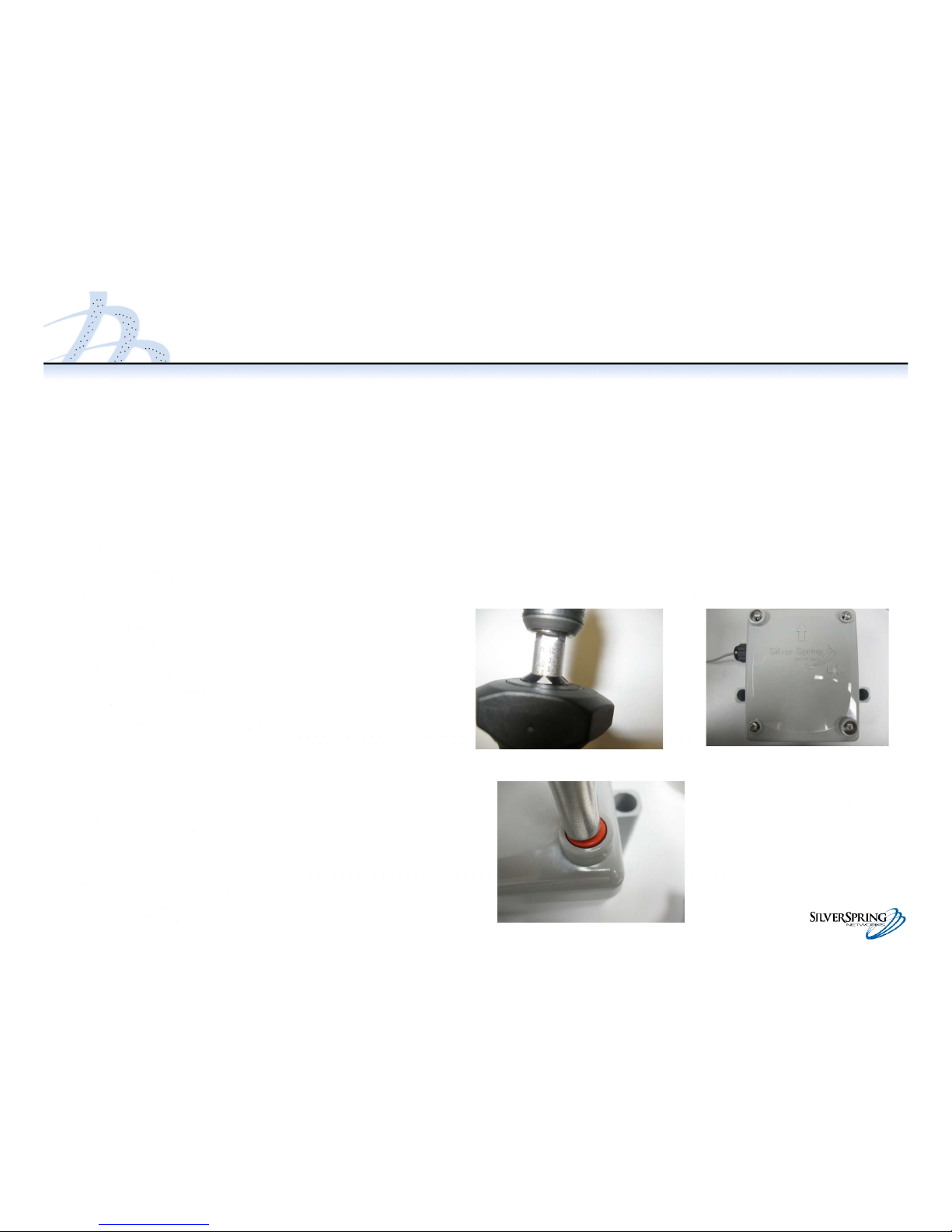

• Attach the mounting plate and the cover to the IMU enclosure

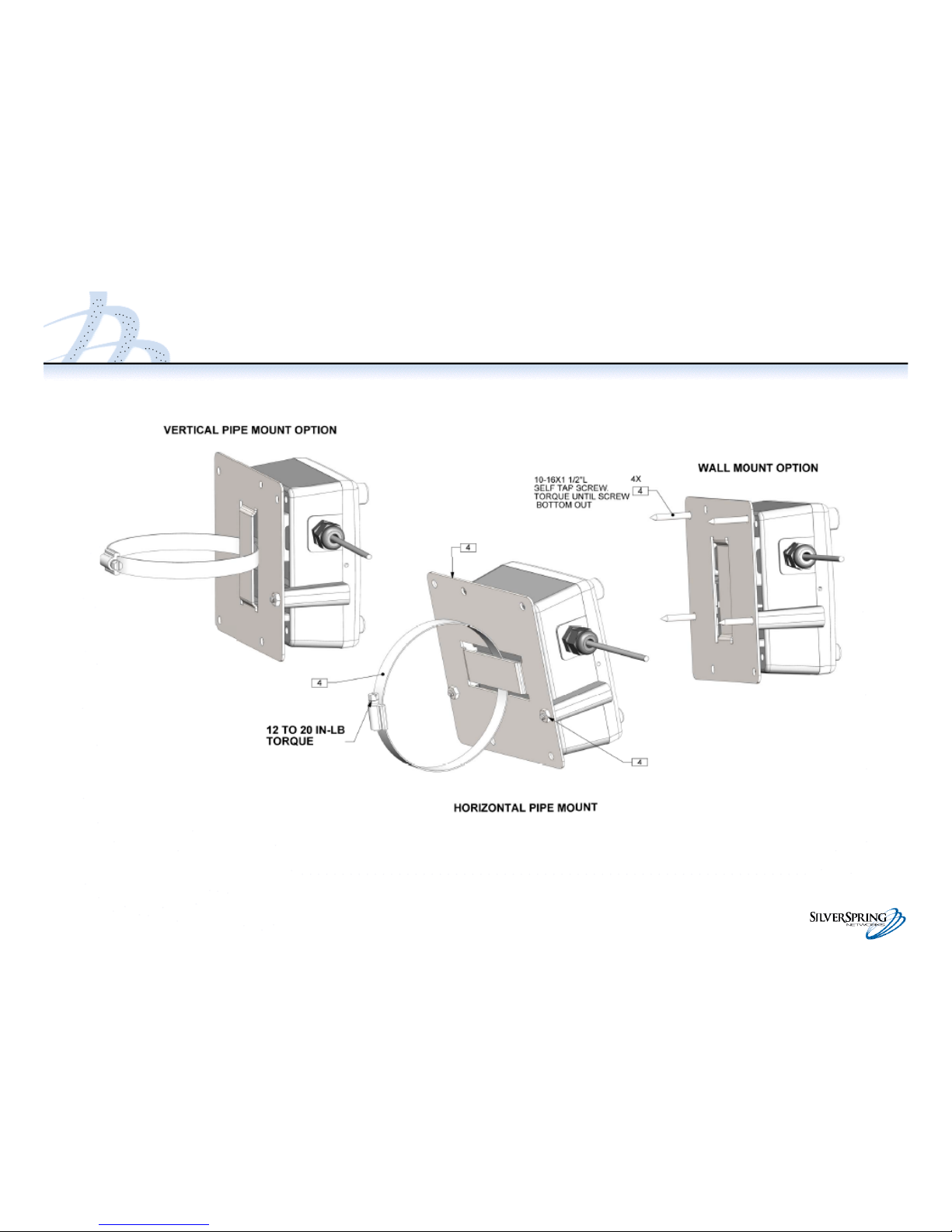

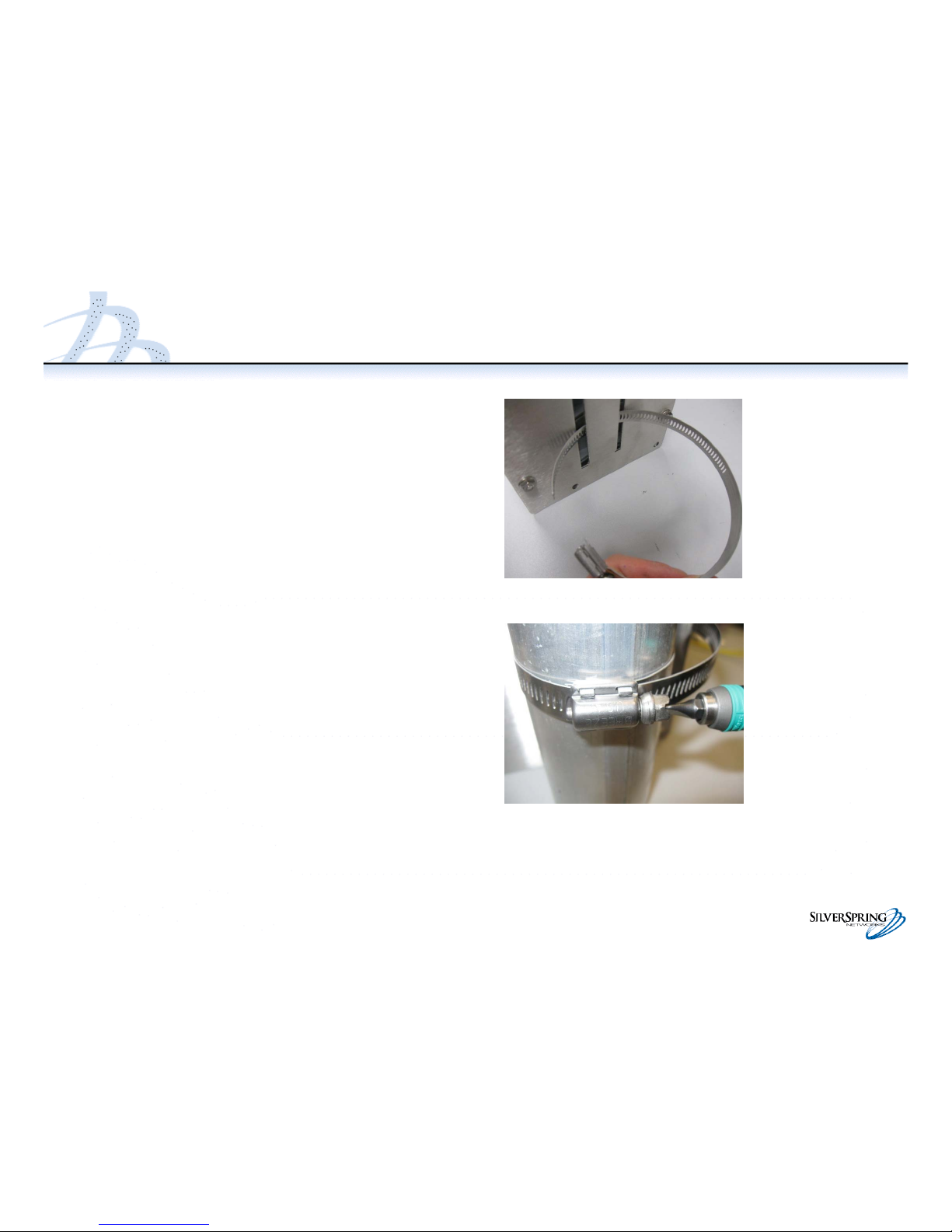

• Attach the IMU and mounting plate to the pipe or wall
3
© 2010 Silver Spring Networks | Company Confidential
Safety First!
• Always follow applicable standards for safety!
• Refer to the meter documentation for further safety information.
• Follow your employer’s best practices.
• If you smell gas, report it to the utility.
• Do not use power tools!
4
© 2010 Silver Spring Networks | Company Confidential
RF Exposure Notice (509)
• The antenna of this transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
• The device should be installed so that people will not come within 20 cm (8 in.) of the antenna.
• This equipment has been tested and found to comply with Part 15 of the FCC Rules, and
with Industry
Canada licence-exempt RSS standard(s). This equipment generates, uses and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver disconnected.
• Consult the dealer or an experienced Radio/TV technician for help.
Modifications to the IMU not
expressly approved by Silver Spring Networks
may void your authority to operate the IMU.
5
© 2010 Silver Spring Networks | Company Confidential
Components and Tools
• Components:
– See next page for hardware component detail
• Tools:
– Flathead screw driver (capable of torque setting)
– Phillips screw driver (capable of torque setting)
– Pliers
– Nut driver
– Service magnet
Service magnet
Component Qty. Part Number
SSN IMU (top level,
includes hardware)
1 224-040001
6
© 2010 Silver Spring Networks | Company Confidential
Components
Flanged nut 10-24
Screws 10-24 x 1/2 Tamper Seals
Cover screws, 6-32 x 1”
Mounting Plate
Pipe clamp
