ECHO MANUAL v1.111 Page 1 of 47
SIL ECHO BS/ST
User Manual
Version 1.0 (27/06/2017)
ECHO MANUAL v1.111 Page 2 of 47
Radio frequency Interference Requirements
The operation of this device in the 5.15 GHz to 5.25 GHz frequency range is
restricted to indoor use. FCC regulations require this product to be used indoors
while operating at 5.15 GHz to 5.25 GHz to reduce the potential for harmful
interference. However, the operation of this device in the 5.25 GHz to 5.35 GHz
frequency range is allowed for both indoor and outdoor use. High power radars
are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85
GHz bands. These radar stations can cause interference with and/or damage to
this device.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. No guarantee exists that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception (determined by turning the
equipment off and on), the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the radio/TV receiving antenna.
• Increase the separation between the equipment and the radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the radio/TV receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications made to the product, unless expressly approved by SilverNet
Limited, could void the user’s authority to operate the equipment.
RF Exposure Requirements
To ensure compliance with FCC RF exposure requirements, the antenna used for
this device must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any
other antenna or radio transmitter. Installers and end-users must follow the
installation instructions provided in this user guide.
ECHO MANUAL v1.111 Page 3 of 47
CE Statement
The ECHO range is intended to be used by suitably trained individuals or
organisations that are familiar with the requirements of the R&TTE directive. In
particular the client must ensure that appropriate antennas and transmit power
levels are selected to ensure that all power limits are met. Hereby, SilverNet
Limited declares that this device is in compliance with the essential requirements
and other relevant provisions of the R&TTE Directive 1999/5/EC. However, the
use of the following warning symbol
Means that this equipment is subject to restrictions of use in certain countries and
selection of the correct country of operation (country code) will ensure that the
device operates only on the frequencies permissible within that country. It is also
the operator’s responsibility to ensure that appropriate licenses have been sought
when operating on licensed frequencies, for example UK Band C, 5725-5850 MHz
Copyright Information
Copyright ©2017 all rights reserved. No part of this publication may be
reproduced, adapted, stored in a retrieval system, translated into any language,
or transmitted in any form or by any means without the written permission of the
supplier.
ECHO MANUAL v1.111 Page 4 of 47
Contents
Radio frequency Interference Requirements ................................................................................... 2
FCC Warning .................................................................................................................................... 2
RF Exposure Requirements .......................................................................................................... 2
CE Statement .................................................................................................................................. 3
Copyright Information ................................................................................................................... 3
1. Installing the radio ............................................................................................................................ 6
1.1 Instructions before installing ................................................................................................ 6
1.2 Installation ........................................................................................................................... 7
1.3 Powering up the Radio ...................................................................................................... 10
1.4 Accessing the radio ........................................................................................................... 11
2. Software Configuration ................................................................................................................... 12
2.1 Main Page ............................................................................................................................. 12
2.1.1 Status-WIRELESS ......................................................................................................... 13
2.1.2 Status-NETWORK ..................................................................................................... 15
2.1.3 Status-SYSTEM ......................................................................................................... 16
2.1.4 Monitor-Throughput ................................................................................................... 17
2.1.5 Monitor-Interfaces ...................................................................................................... 17
2.1.6 Monitor-ARP List ........................................................................................................ 18
2.1.7 Monitor-STA Stats ...................................................................................................... 18
2.1.8 Monitor-AP Stats ........................................................................................................ 20
2.2 Radio Page ........................................................................................................................... 22
2.2.1 Basic Wireless Settings ............................................................................................. 22
2.2.2 Advanced Wireless Settings ...................................................................................... 25
2.2.3 WMM Settings ........................................................................................................... 26
2.3 WIRELESS Page .................................................................................................................. 27
2.3.1 AP/AP WDS Mode ..................................................................................................... 27
2.3.2 Station/Station WDS Mode ........................................................................................ 29
ECHO MANUAL v1.111 Page 5 of 47
2.4 NETWORK ........................................................................................................................ 30
2.4.1 Bridge Mode ............................................................................................................... 30
2.4.2 WISP/SOHO Router Mode ......................................................................................... 33
2.5 SERVICES ........................................................................................................................ 36
2.5.1 Web Server .............................................................................................................. 36
2.5.2 NTP Client ................................................................................................................ 37
2.5.3 Dynamic DNS ........................................................................................................... 37
2.5.4 Wireless Client Rate Limit ........................................................................................ 37
2.5.5 MAC Control ............................................................................................................. 39
2.6 SYSTEM ........................................................................................................................... 40
2.6.1 Device .............................................................................................................................. 40
2.6.2 Ping Watchdog ......................................................................................................... 41
2.6.3 System Accounts ...................................................................................................... 41
2.6.4 Configuration Management ...................................................................................... 42
2.6.5 Firmware upgrade .................................................................................................... 43
2.7 Tools .................................................................................................................................. 44
2.7.1 Ping .......................................................................................................................... 44
2.7.2 Traceroute ................................................................................................................ 44
2.7.3 Site survey ................................................................................................................ 45
2.7.4 Speed Test ............................................................................................................... 45
Contact Us ............................................................................................................................................ 46
Online Resources .......................................................................................................................... 46
ECHO MANUAL v1.111 Page 6 of 47
1. Installing the radio
1.1 Instructions before installing
You will need clear Line-Of-Sight for the units to work correctly. Locate a suitable mounting location with
a pole between 30 and 60mm. Do not install anywhere that is illegal and please ensure you obey the
local regulatory rules.

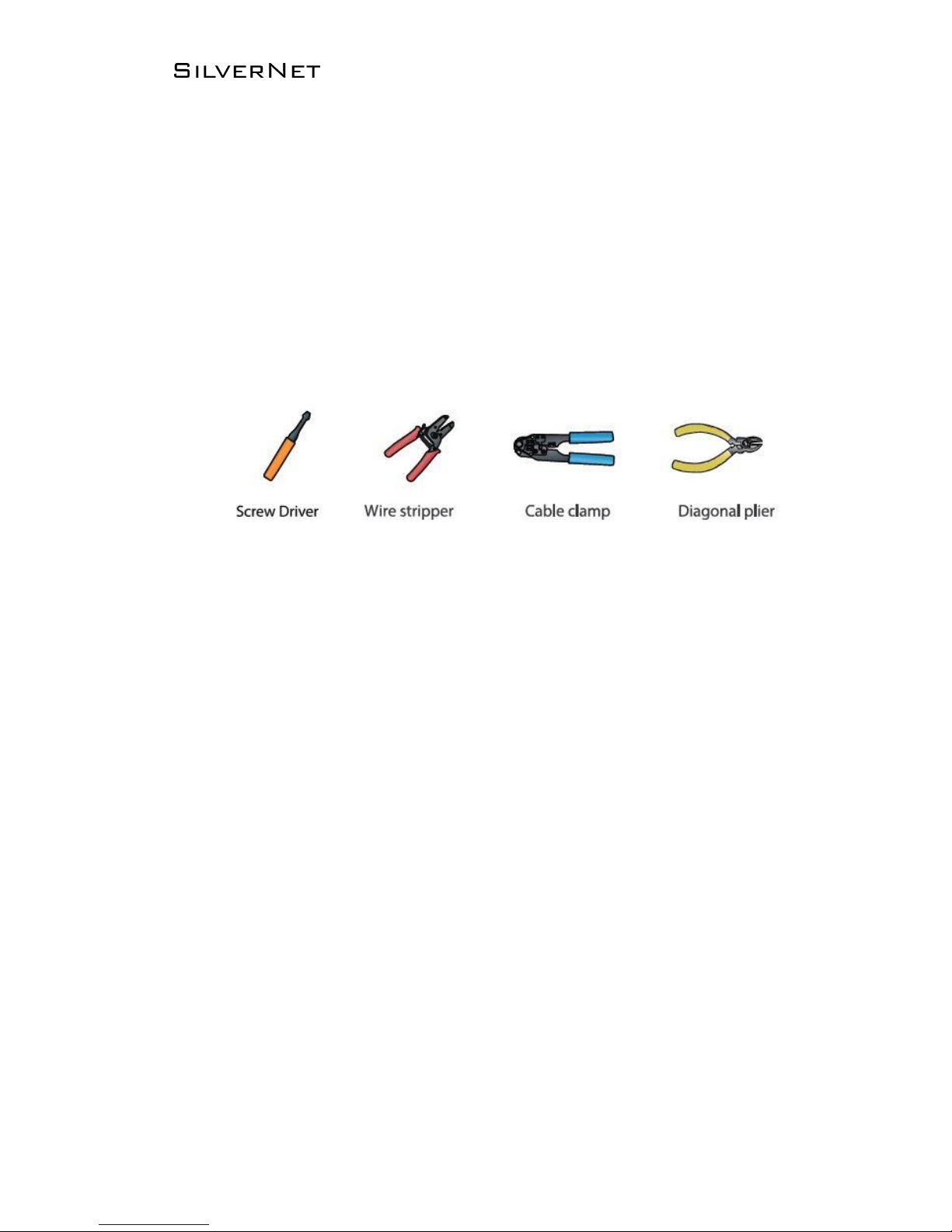

You may need the following tools,
ECHO MANUAL v1.111 Page 7 of 47
1.2 Installation

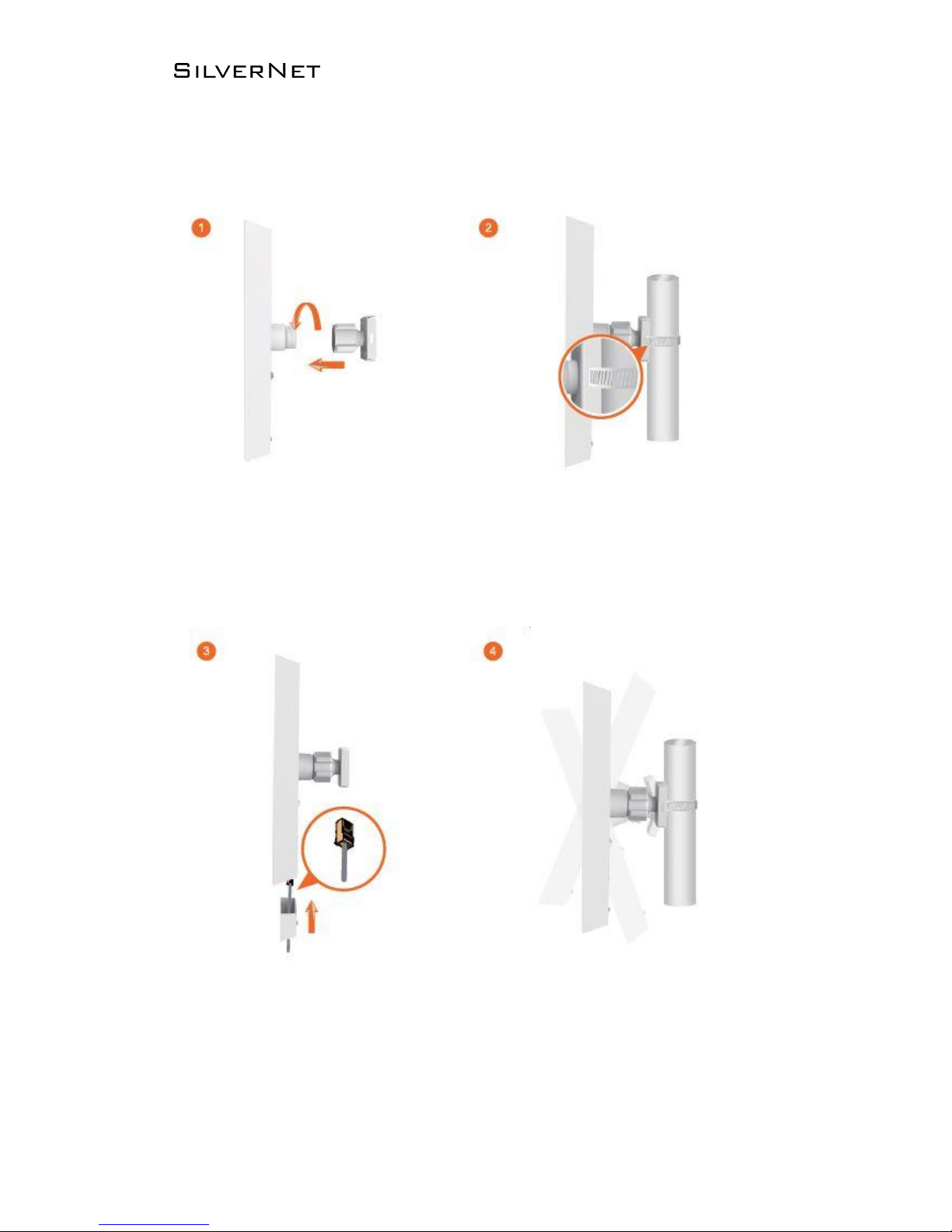

1. Attach the Ball Joint Mount to the radio by rotating the lock nut clockwise by hand. Do not
tighten the nut.
2. Open the Metal strap and feed it through the two slots of the Ball Joint Mount, then wrap the
Metal Strap around the pole.
3. Pull out the port cover and connect an Ethernet cable to the port, then slide the cover back.
4. Loosen the lock nut on the Ball Joint Mount and aim in the direction of the other end of the
wireless link. Lock the nut.
ECHO MANUAL v1.111 Page 8 of 47
5. Make sure the air bubble stays in the middle of the level after installation
ECHO MANUAL v1.111 Page 9 of 47

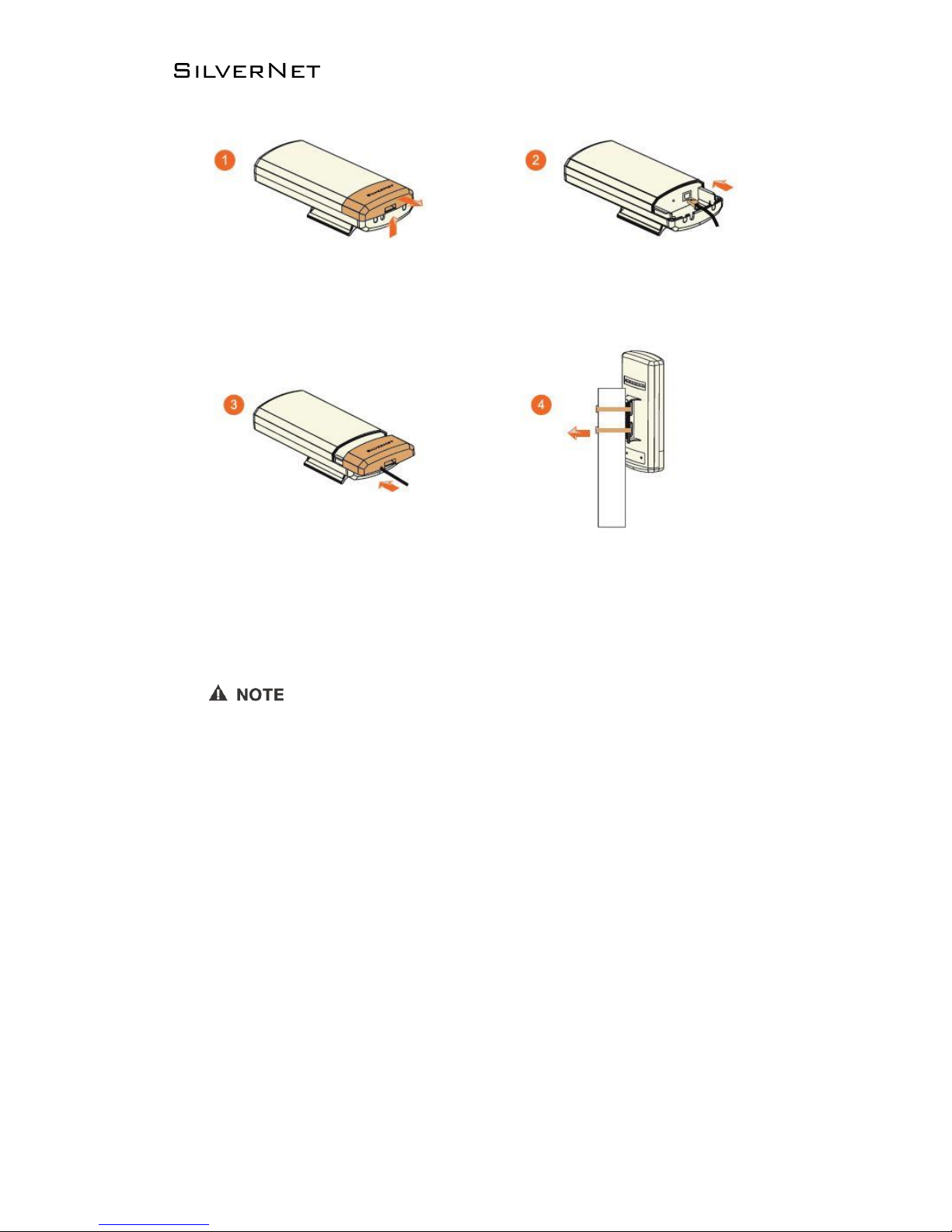

1. Press the buckle down and move the cover (highlighted) in the direction shown above.
2. Connect your Ethernet cable to the Ethernet port.
3. Replace the cover (highlighted) with the cable passing through the hole.
4. Mount the radio to a pole with the provided clip
If you are using our 5GHz radios these should be connected with a Cat 5 or Cat 6 outdoor shielded
grade Ethernet cable.
ECHO MANUAL v1.111 Page 10 of 47
1.3 Powering up the Radio
Connect the other end of the Ethernet cable to the PoE port of the provided PoE adapter. Then
connect the LAN port of the PoE adapter to a PC or switch using a separate Ethernet cable. Finally,
plug the PoE adapter into a standard electrical wall socket.
If you use a PoE adapter which is not provided by SilverNet, we cannot provide warranty cover if
the radio is damaged.
ECHO MANUAL v1.111 Page 11 of 47
1.4 Accessing the radio
1. Configure the Ethernet adapter on your computer with a static IP address on the 192.168.1.x subnet
(for example, IP address: 192.168.1.100 and subnet mask:
255.255.255.0
2. Launch your web browser and enter the default IP address of your device (192.168.1.1) in the
address field. IP Address
3. Enter admin in the Username field and password in the Password field, and click Login.
ECHO MANUAL v1.111 Page 12 of 47
2. Software Configuration
2.1 Main Page
Figure 2-1 Wireless Status (Access Point WDS Mode)
Figure 2-2 Wireless Status (Station Mode)
ECHO MANUAL v1.111 Page 13 of 47
2.1.1 Status-WIRELESS
The Radio status window displays a summary of the link status information
▪ Wireless mode: The mode the unit is currently set to, there are 4 modes the unit can run in.
AP Mode, Station Mode, AP WDS Mode and Station WDS Mode.
▪ Radio mode: The working mode of the radio, which supports 802.11a/an which are two
separate wireless transmission standards.
▪ Channel/Frequency: The radio’s current working channel and working frequency.
▪ Channel Width: Displays the spectral width of the radio channel. A 40 MHz channel in a
minimal interference environment will give up to twice the bandwidth of a 20 MHz channel.
▪ Country Code: set the country to which the unit is operating this will affect the channels you
can use and the power of the radio in order to comply with the countries regulations.
▪ Tx Power: The transmission power of the radio. The higher your transmission power the more
signal strength you will receive on a link.
▪ Max Rate: The max transmission rate of the radio. Different channel bandwidth’s have different
max rates. A 40 MHz channel max rate is 300Mbps. The higher this rate on both ends of the
link the better the transmission of the link.
▪ TDMA: The status of TDMA - ‘enabled’ or ‘disabled’.
Station status box shows the unit working in Station Mode.
Figure 2-3 Wireless Station Status
▪ Up/Down: UP means the Station has successfully connected with the AP. Down means there
is no link.
▪ SSID: This is the name of the wireless network the AP is transmitting
ECHO MANUAL v1.111 Page 14 of 47
▪ BSSID: BSSID is the Mac address of the remote device. Use this to lock stations to AP’s.
▪ Signal Strength: When there is a link between an AP and Station there will be a signal
strength value. This is displayed as a negative so the smaller the value the better the signal
strength.
▪ Security: This is the level of security on the device
Wireless 1 (2, 3 and 4 only appear in the AP). The device can support up to 4 wireless services 1 to 4.
Figure 2-4 Wireless Access Point Status
▪ Up/Down: UP states the interface is enabled and providing wireless services. Down means it is
disabled.
▪ SSID: This is the name of the wireless network the AP is transmitting
▪ BSSID: BSSID is the Mac address of the remote device. Use this to lock stations to AP’s.
▪ Signal Strength: When there is a link between an AP and Station there will be a signal
strength value. This is displayed as a negative so the smaller the value the better the signal
strength.
▪ Security: This is the level of security on the device
▪ Assoc Number: current amount of stations connected to the AP.
ECHO MANUAL v1.111 Page 15 of 47
2.1.2 Status-NETWORK

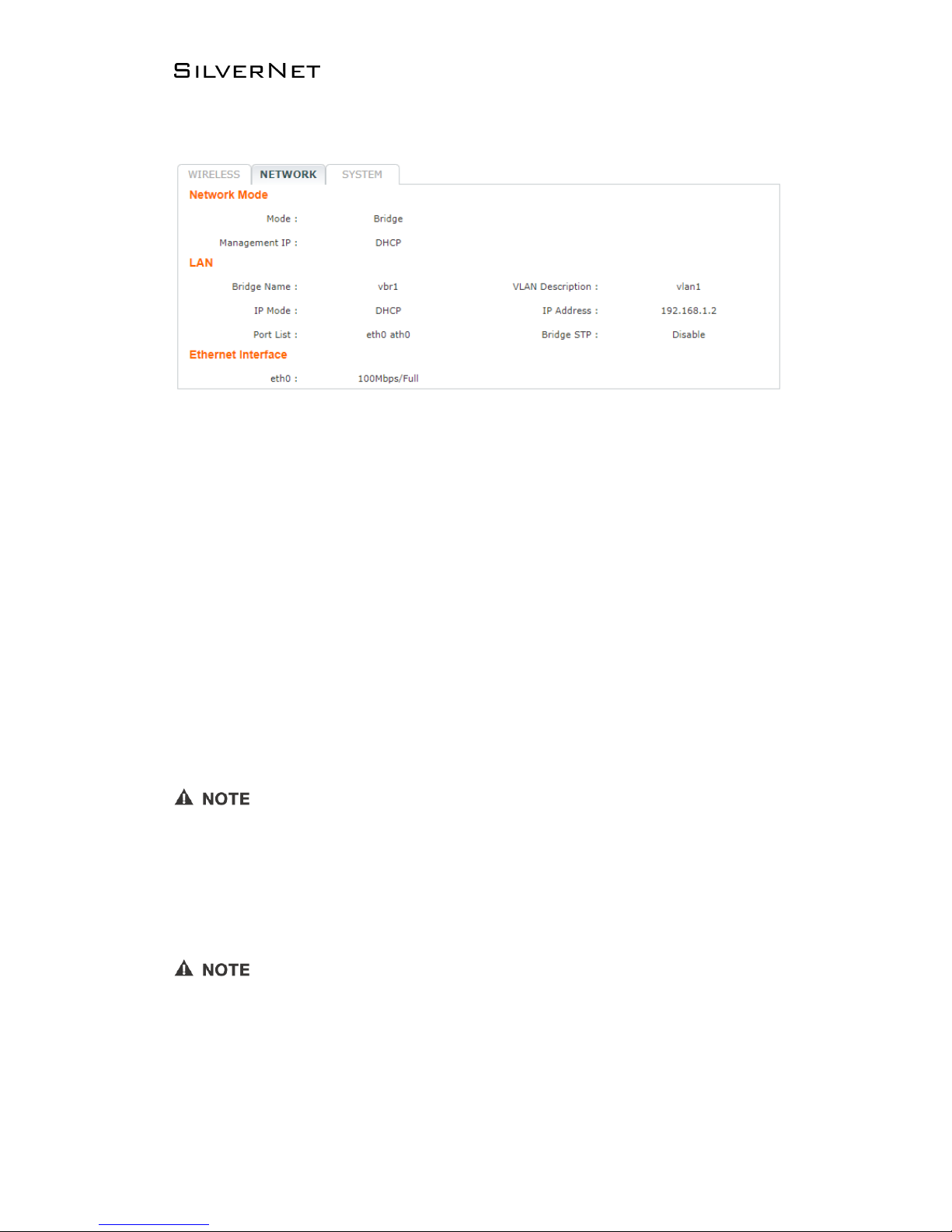

Figure 2-5 Network
Network Mode
▪ Mode: The device supports 3 different network modes Bridge Mode, SOHO Router Mode and
WISP Mode.
A brief introduction to those modes:
1. Bridge Mode: Bridge Mode is a 2-layer network mode. The unit ETH port and wireless
interface are working at layer-2.
2. SOHO Router Mode: This mode is typically a network router mode. The ETH port works as
a WAN interface by connecting it to another network via an ETH port such as the Internet or
personal network.
The network mode can only be set as SOHO Router Mode when the unit is in AP Mode or AP WDS
Mode.
3. WISP Mode: This mode is opposite to the SOHO Router mode. It uses the wireless interface
as a WAN to connect to a public network and the ETH port operates as a 2-layer access port.
The network mode can only be set as WISP Mode when the unit is in Station Mode or Station WDS
Mode.
LAN
ECHO MANUAL v1.111 Page 16 of 47
▪ Bridge Name: The name of the bridge interface
▪ VLAN Description: The name of the VLAN interface
▪ IP Mode： Will show as “static” or “DHCP” depending on the selected mode
▪ IP address： The IP address of the device
▪ Port List： The active ports on the device
▪ Bridge STP： Wil show as “Enabled” or “disabled”
2.1.3 Status-SYSTEM

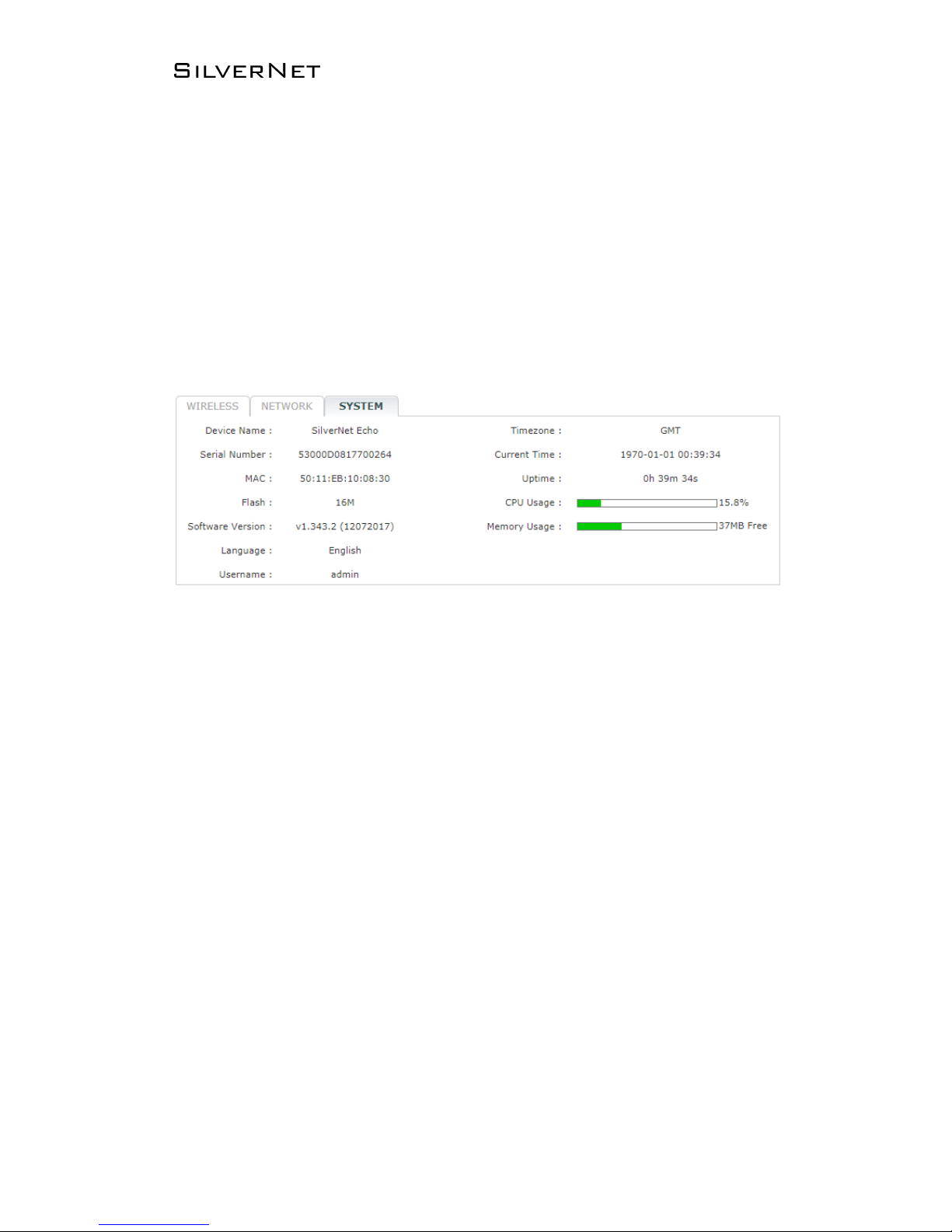

Figure 2-6 System label of status
▪ Device Name: Device name or model name
▪ Serial Number: Device serial NO.
▪ MAC: The MAC address of the device
▪ Flash: The flash memory of the device
▪ Software Version: Current software version
▪ Language: Current web language
▪ Username: Username when login
▪ Time zone: Current time zone
▪ Current time: Current time
▪ Uptime: How long the device has been on for
▪ CPU Usage: Shows the CPU usage as a percentage
▪ Memory Usage: Shows the memory usage
ECHO MANUAL v1.111 Page 17 of 47

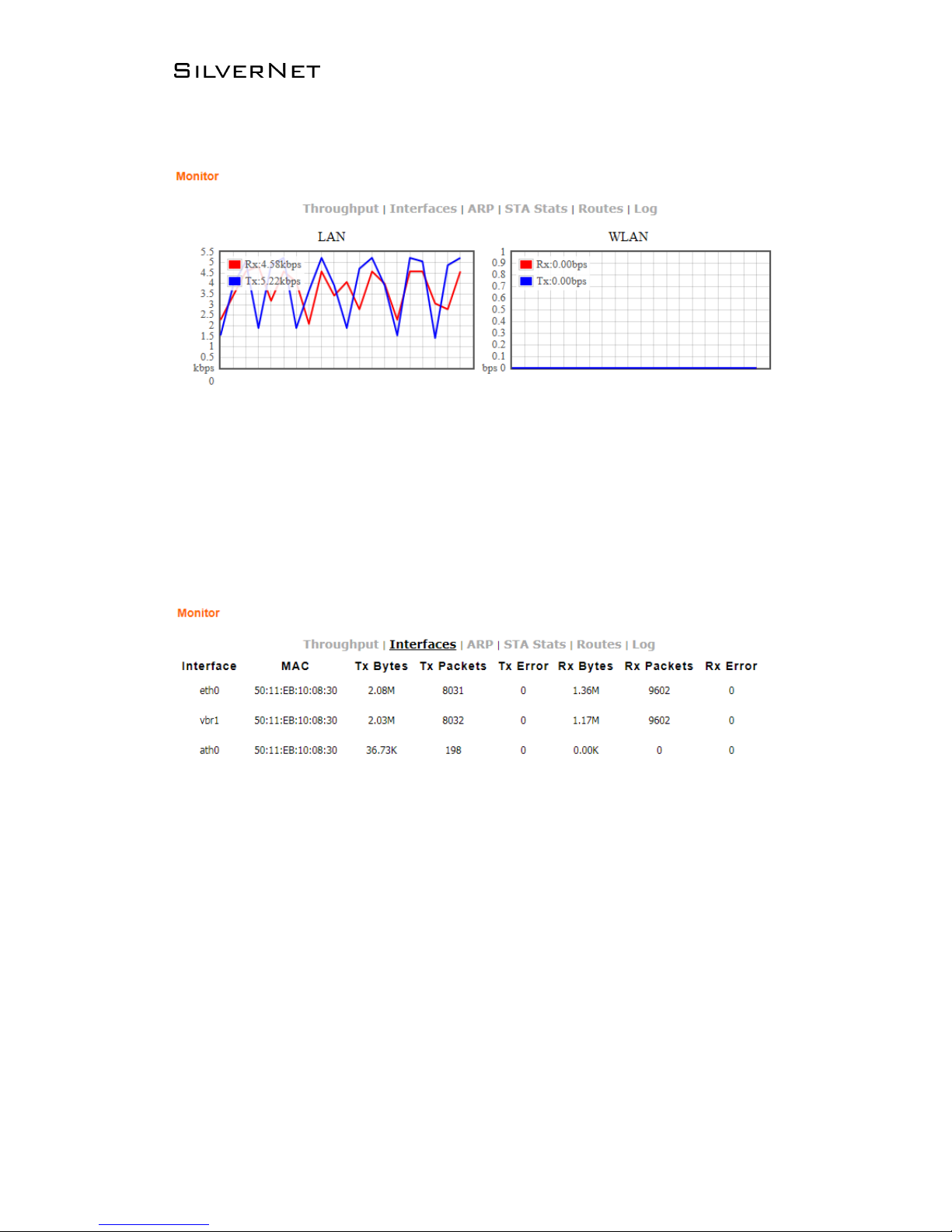

2.1.4 Monitor-Throughput
Figure 2-7 Monitor-Throughput
2.1.5 Monitor-Interfaces
Interfaces list counts the send-receive information of all interfaces.
Figure 2-8 Monitor-Interfaces
▪ Interface：Listing all interfaces and interface names.
▪ MAC Address：Listing MAC address of all interfaces.
▪ Tx Bytes：Sending bytes number.
▪ Tx Packet：Sending packets.
▪ Tx Err：Sending error packet.
▪ Rx Bytes：Receiving bytes.
▪ Rx Packet: Receiving packet.
▪ Rx Err: Receiving error packet.
ECHO MANUAL v1.111 Page 18 of 47
2.1.6 Monitor-ARP List

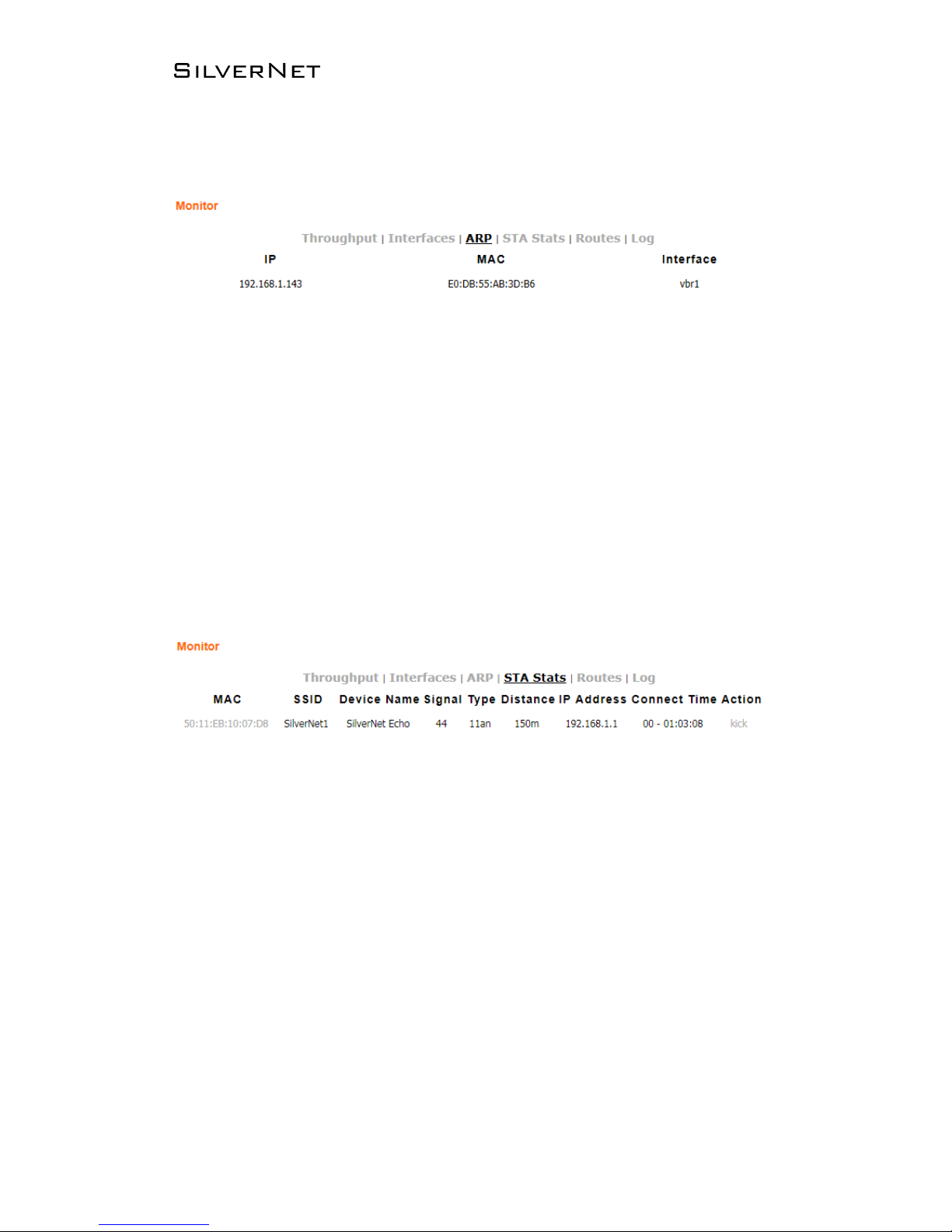

ARP List counts the ARP information of device. As Figure 2-9.
Figure 2-9 Monitor-ARP List
▪ IP: IP address of device.
▪ MAC: MAC address corresponding to IP address of device.
▪ Interface: Interface of the IP address of device.
▪ Type: Interface hardware type of learning ARP.
2.1.7 Monitor-STA Stats
When the unit is set to AP WDS Mode, the list shows STA info of current clients connected as Figure 2-
10
Figure 2-10 Monitor-STA Stats
ECHO MANUAL v1.111 Page 19 of 47

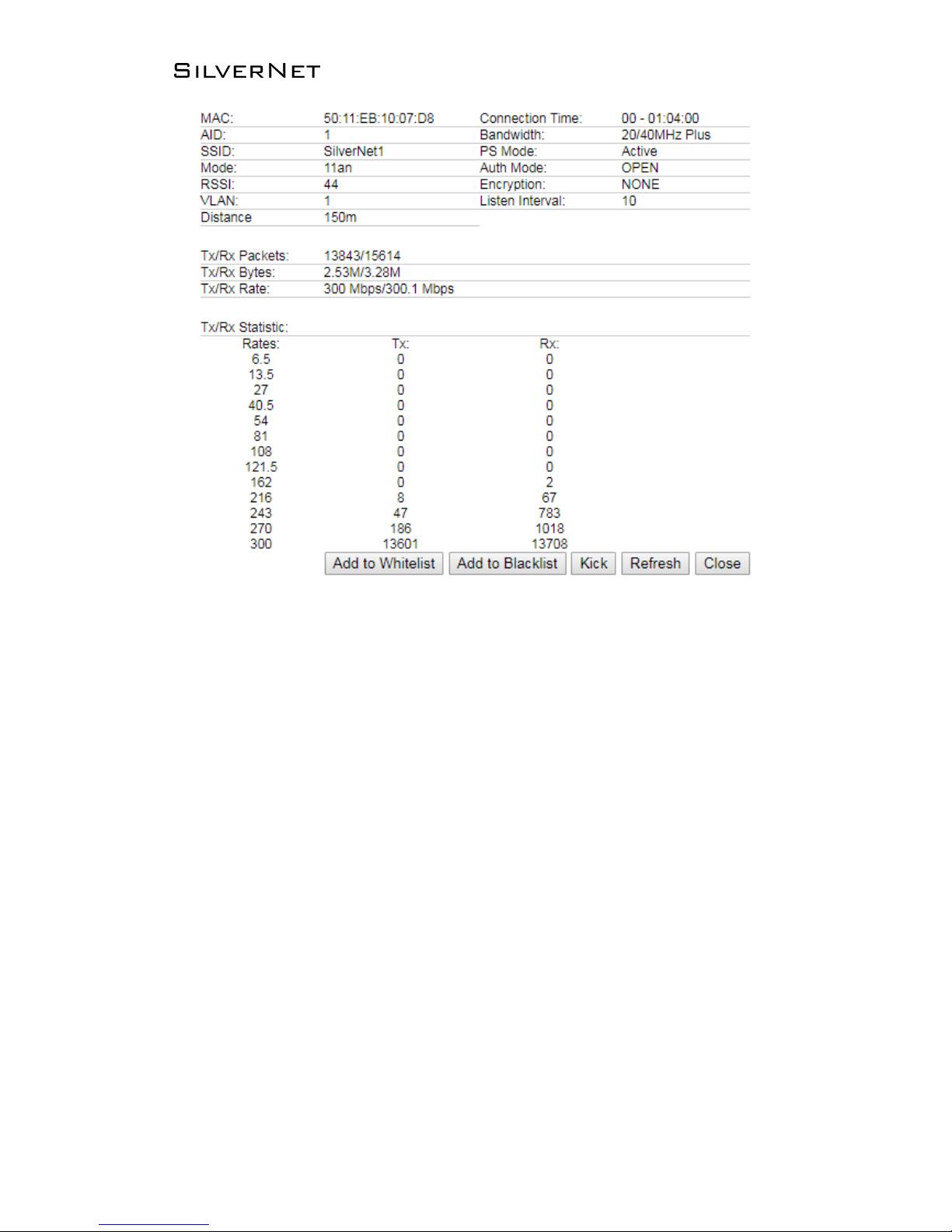

Figure 2-11 Station Details
▪ BSSID：BSSID of station.
▪ Mode: The mode of Station Radio.
▪ AID: connecting ID of Station.
▪ Signal: AP detected RSSI of the Station.
▪ Assoc Time: Uptime of STA.
▪ Tx/Rx Packets: send-receive packets between AP and Station. Tx means sending packets, Rx
means receiving packets.
▪ Tx/Rx Bytes: send-receive bytes between AP and STA. Tx means sending bytes, Rx means
receiving bytes.
▪ Tx/Rx Rate: The rate the packets are sent-received between AP and Station.
ECHO MANUAL v1.111 Page 20 of 47

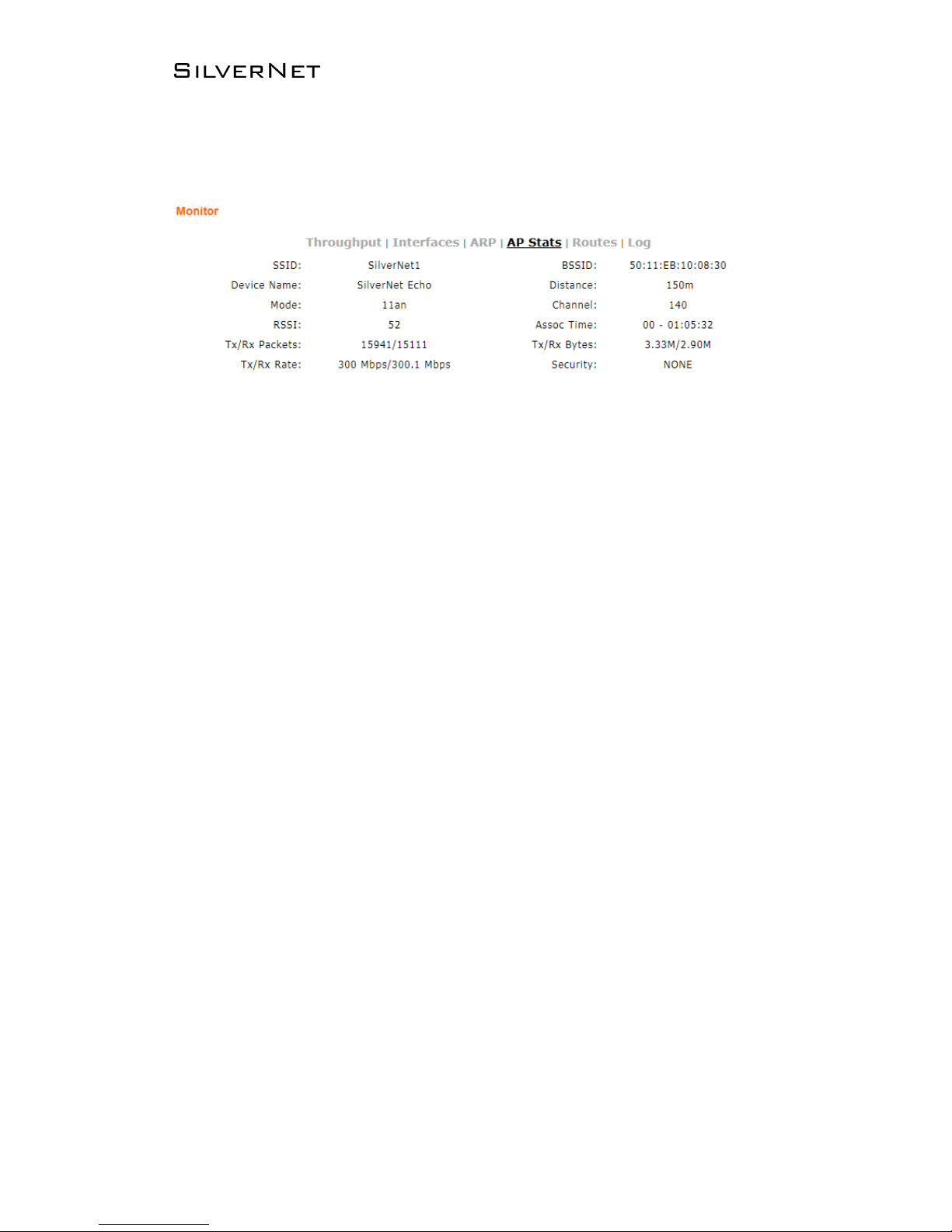

2.1.8 Monitor-AP Stats
When the unit is in Station Mode, the list shows information of the connected AP, as Figure 2-12
Figure 2-12 Monitor-AP Stats
▪ SSID: SSID name of the AP that the Station is connecting to.
▪ BSSID: BSSID address of the AP that the Station is connecting to.
▪ Device Name: The name of the device
▪ Distance: The estimated distance
▪ Mode: The Radio work mode of the AP that the Station is connecting to.
▪ Channel: The channel of the AP that the Station is connecting to.
▪ Signal: station detected AP RSSI.
▪ RSSI: The Receive signal strength
▪ Assoc Time: Up time after the station has connected to AP.
▪ Tx/Rx Packets: send-receive packets between AP and Station. Tx means sending packets, Rx
means receiving packets.
▪ Tx/Rx Bytes: send-receive bytes between AP and STA. Tx means sending bytes, Rx means
receiving bytes.
▪ Tx/Rx Rate: The rate the packets are sent-received between AP and Station.
▪ Security: The security mode the device is using
ECHO MANUAL v1.111 Page 21 of 47
2.1.9 Monitor-Routes

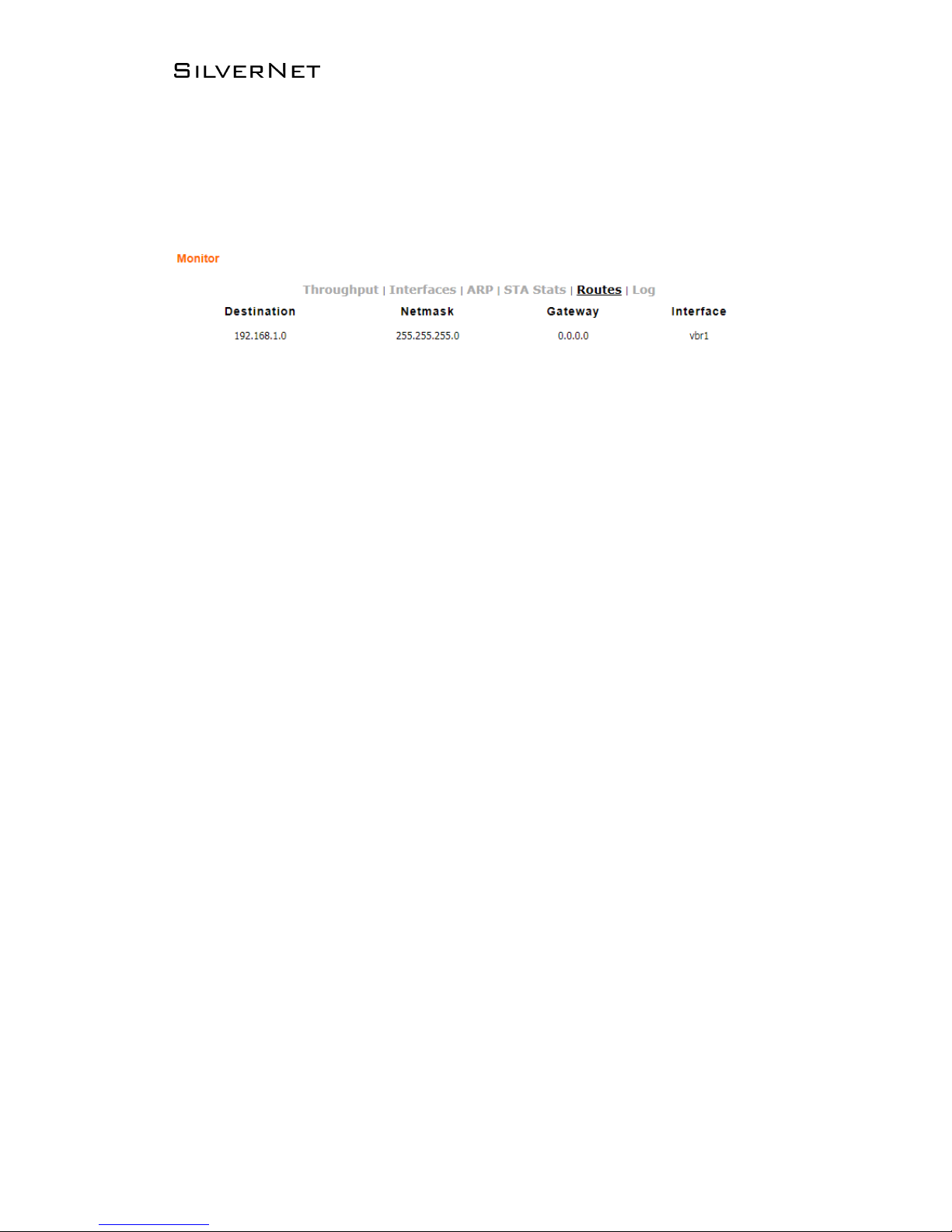

Routes list shows current routing relationship of devices, as Figure 2-13.
Figure 2-13 Monitor-Routes
▪ Destination: Destination address
▪ Netmask: The subnet mask
▪ Gateway: The address of the router on the network if applicable.
▪ Interface: The interface relating to this routing info.
ECHO MANUAL v1.111 Page 22 of 47
2.2 Radio Page
The Radio Page is mainly used for setting up the wireless LAN parameters

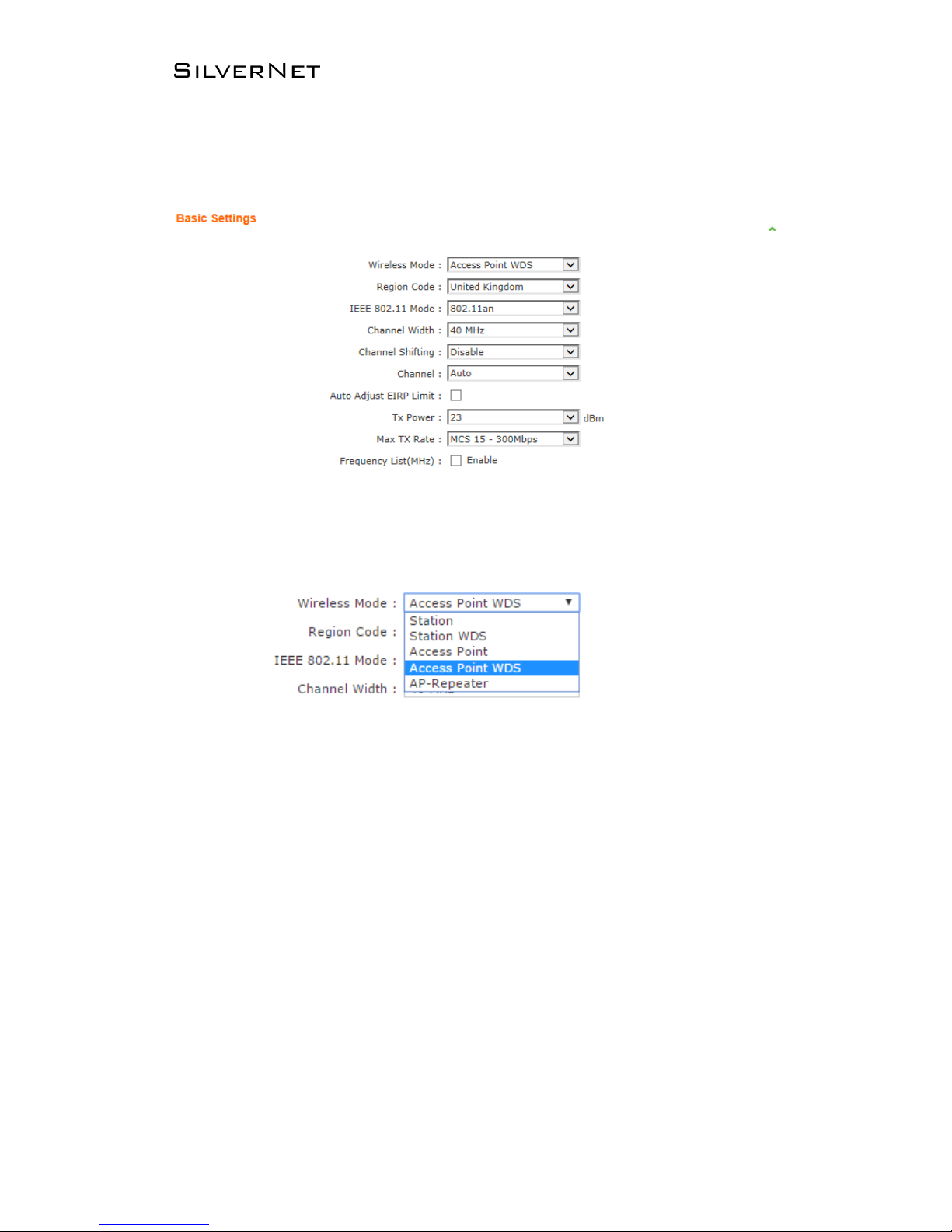

Figure 2-17 Radio Page
2.2.1 Basic Wireless Settings
Figure 2-18 Wireless Mode
▪ Wireless Mode： The mode of the WLAN. There are 4 modes the unit can run in. AP Mode,
Station Mode, AP WDS Mode and Station WDS Mode. The default is AP WDS Mode.
ECHO MANUAL v1.111 Page 23 of 47

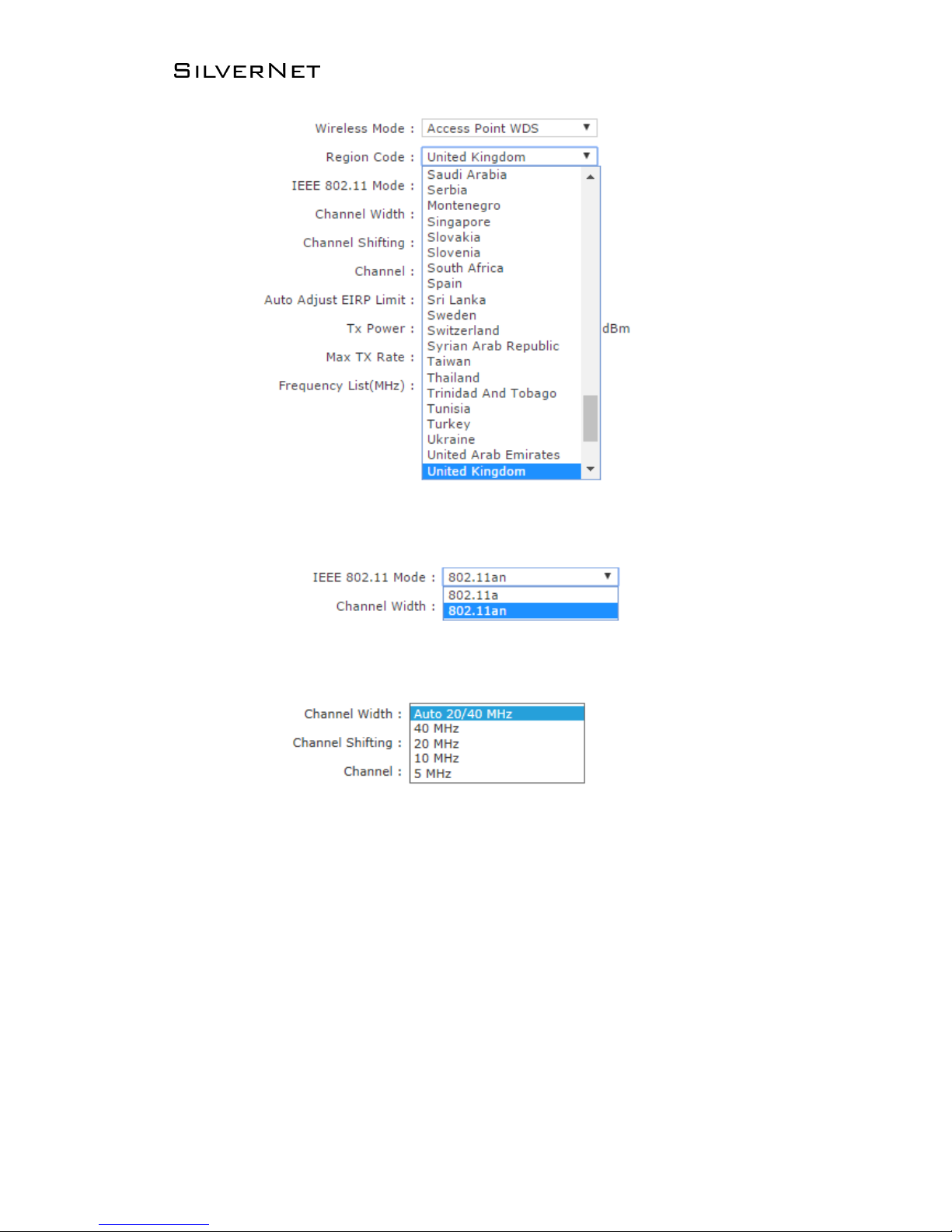

Figure 2-19 Country Code
▪ Region code：The default set region code is United Kingdom.
Figure 2-20 IEEE 802.11 Mode
▪ IEEE 802.11 Mode: The default mode is 802.11an.
Figure 2-21 Channel Width
▪ Channel Width： The default mode is 20/40MHz.
ECHO MANUAL v1.111 Page 24 of 47

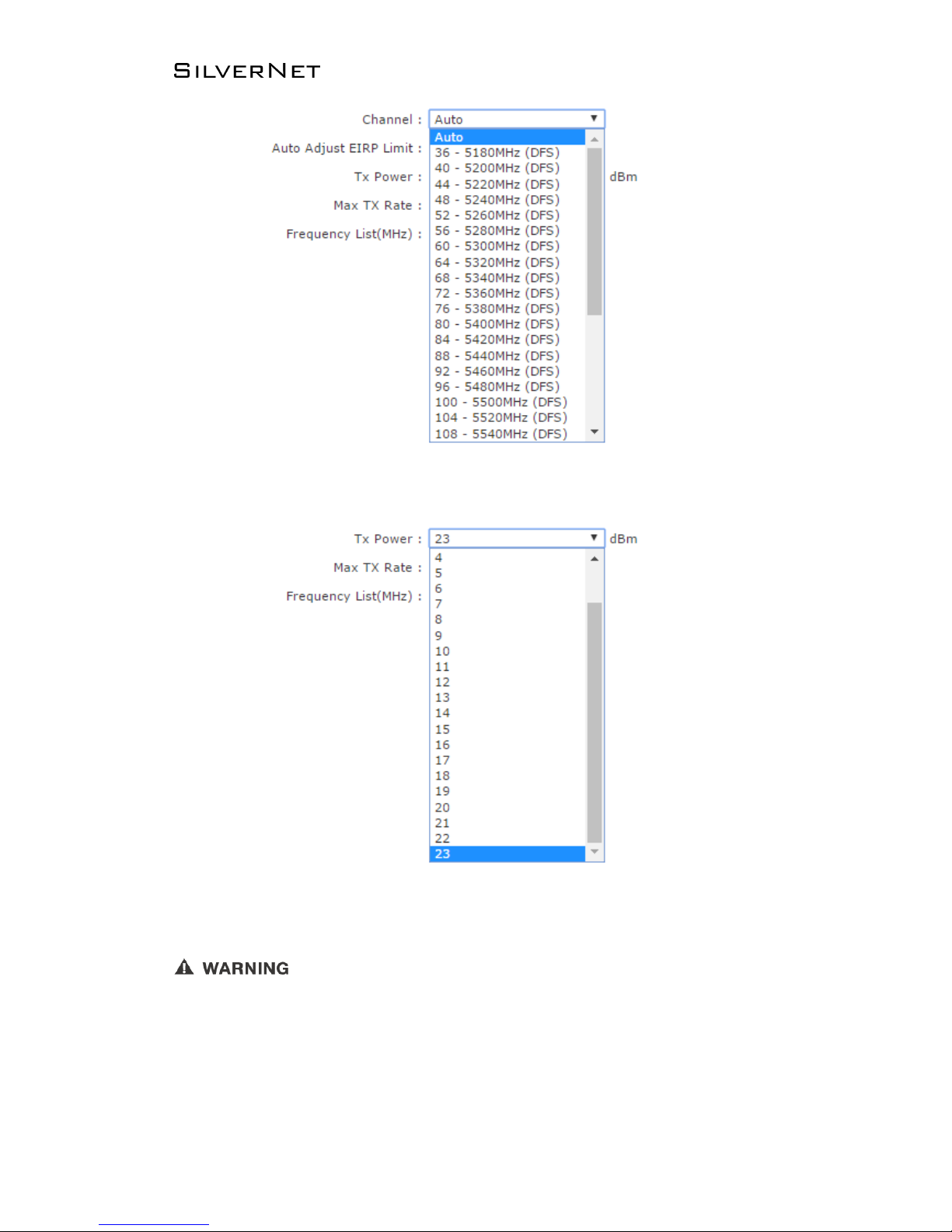

Figure 2-22 Channel
▪ Channel: This is set to auto channel by default.
、
Figure 2-23 Tx Power
▪ Tx Power： The default is 24dBm.
Tx power has a different limit for each country. When changing the Tx power the user should
follow the regulatory rules.
Transmission power can influence signal strength of the wireless communication. When it transmit
distance is long, please increase transmit power intermittently to ensure stronger signal. signal strength.
ECHO MANUAL v1.111 Page 25 of 47
Figure 2-24 Max TX Rate
▪ Max TX Rate： 2.4GHz/5GHz radio are 2X2 devices, the max support is MCS=15 which is
also the default setting.
2.2.2 Advanced Wireless Settings

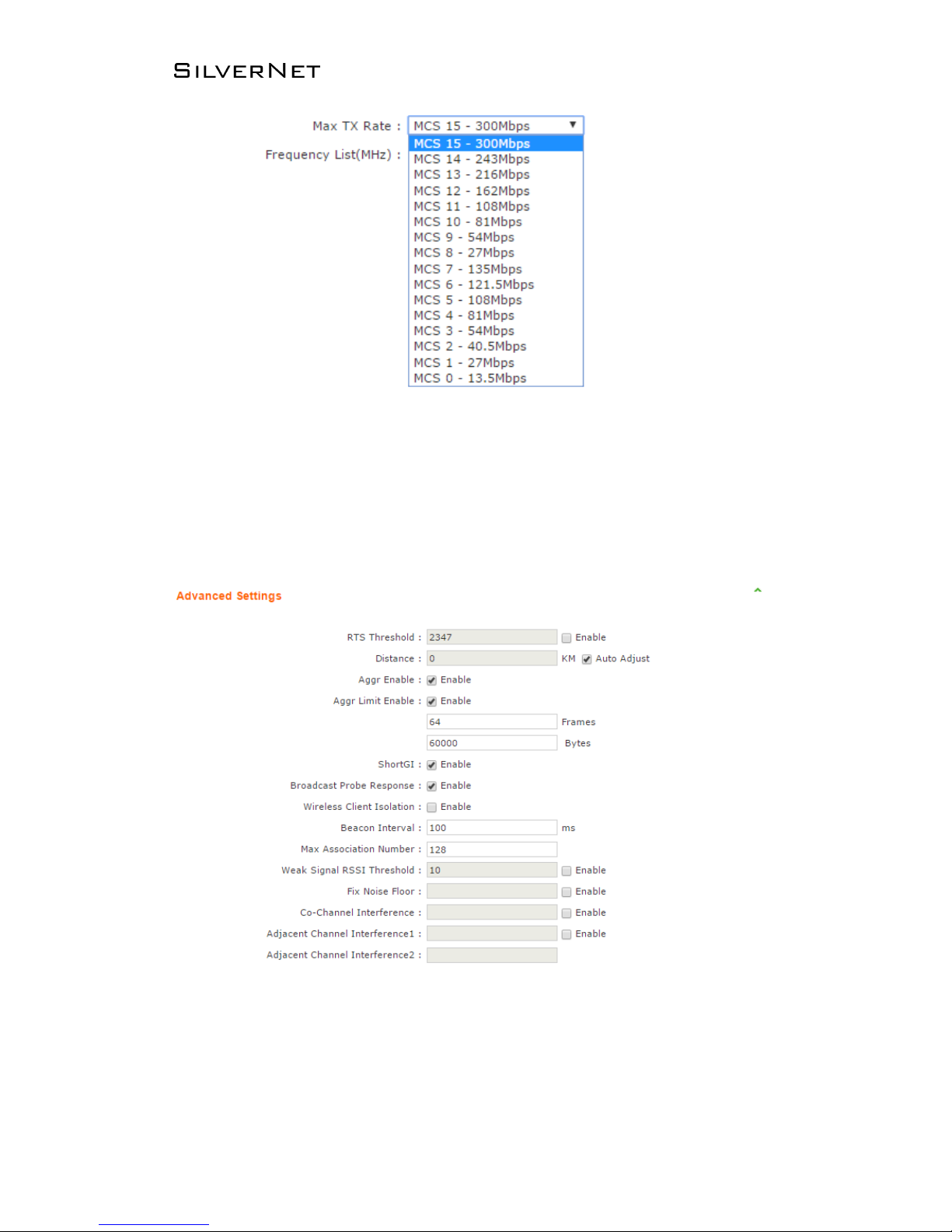

Figure 2-25 RTS Threshold
▪ RTS Threshold: The default setting for the RTS threshold is 2347. However this is not enabled
by default.
▪ Fragmentation Threshold：This is not set by default
ECHO MANUAL v1.111 Page 26 of 47
▪ Distance: ACK _timeout is enabled by default you can set distance between AP and STA
allowing the link to be more stable when it is transmitting in long distance, proper adjustment
can improve throughput.
▪ Aggr Enable：Enable to start function of A-MPDU this is set to enable by default.
▪ Aggr limit Enable: used o set the sending limit function of A-MPDU, this is set to enable by
default. The max Aggr packet is 64 units. The max Aggr length is 60000 bytes.
2.2.3 WMM Settings
Figure 2-26 WMM Settings
WMM Settings is used to set AP EDCA parameter and ST EDCA parameter.
▪ AC Type: Access control, the Enhance Distributed Channel Access (EDCA) has 4 AC types.
Each AC type has a specific set of parameters that they follow.
▪ AIFSN：Arbitration Inter-Frame Space Number. This allows for AC types to be given higher or
lower priority.
▪ ECWmin/max：CW means content window. This can be set according to the traffic expected
in each AC. Wider window is set for higher traffic.
▪ TXOP Limit：TXOP means Tx opportunity. This is a bounded time window in which a unit can
send as many frames as possible.
▪ No ACK: No ACK frames do not have to be acknowledged used to avoid retransmission.
ECHO MANUAL v1.111 Page 27 of 47
2.3 WIRELESS Page
The wireless Page is used to set up the WLAN of the AP or the relevant parameters for the Station
allowing the station to connect to the AP
2.3.1 AP/AP WDS Mode
When the unit is set as AP/AP WDS Mode, Wireless Page is shown as Figure 3-12.
1. Wireless Settings
▪ Wireless1/2/3/4：The unit can be ser with 4 wireless services, name correctly so they can be
distinguished from one another.
▪ Wireless Availability：Weather the wireless service is enabled or disabled by default the
status of Wireless1 is enabled, and Disabled for all others.
▪ Hide SSID：This can be disabled or enabled. This function allows the link to be hidden from all
other wireless equipment. By default this is disabled.
▪ SSID: In this textbox is where you would type the SSID.
Figure 2-27 Wireless Page
ECHO MANUAL v1.111 Page 28 of 47
2. Wireless Security
▪ Security: This is where the security settings of the link can be changed the default setting is
WPA2 PSK. WEP security type, as shown Figure 2-27.
Figure 2-28 WEP Security Type
▪ Authentication Type： Set authentication method, the default is set to open.
▪ WEP Key Length： Set WEP key length, the default is 64 bit.
▪ Key Type： Set key type, the default is ASCII type.
▪ WEP Key： Enter WEP key.
▪ Key Index： Choose key index, the default is 1.
WPA/WPA2 security type, as shown Figure 2-28.
Figure 2-29 WPA security type
Figure 2-30 WPA2 security type
▪ WPA Authentication: Set WPA/WPA2 authentication method
▪ WPA Preshard Key： Set PSK key of WPA/WPA2.
ECHO MANUAL v1.111 Page 29 of 47
2.3.2 Station/Station WDS Mode
Wireless settings when the unit is set as Station/Station WDS Mode, Wireless is shown as Figure 2-30.
Figure 2-31 Wireless Setting Page
1. Wireless Settings
▪ SSID: Enter the same SSID as you have in the AP. IF you just enter the SSID and do not lock
to AP MAC the station will connect to the strongest signal of the same SSID.
▪ Lock to AP MAC: Here you will enter the Mac of the partner radio making the radios have to
meet two conditions before they connect.
▪ Scan: The scan button is used to scan for SSID’s and available channels, as Figure 2-31.
Figure 2-32 Scan List
▪ MAC Address: The BSSID address of the wireless service.
▪ SSID: The BSSID name of the wireless service, also called ESSID.
▪ Auth_mode: Authentication method of the wireless service.
▪ Encryption: The encryption type of the wireless service.
▪ Signal/Noise: Ssignal strength of the wireless service.
▪ Frequency：The frequency of the wireless service.
▪ Channel: The channel of the wireless service.
▪ Lock to AP: If this button is pressed the unit would lock to the BSSID of this wireless service.
2. Wireless Security
The unit would automatically choose the right encryption type you would need to manually go and
ECHO MANUAL v1.111 Page 30 of 47
input the pre shared key to establish connection.
2.4 NETWORK
NETWORK Page is used for setting up the relevant parameters of the network mode. The unit supports
Bridge Mode, SOHO Router Mode and WISP Mode.
SOHO Router Mode and WISP Mode have the same settings page; here is introduction about Bridge
Mode and WISP Mode.
2.4.1 Bridge Mode
Setting of Bridge Mode is shown as Figure 2-32.
Figure 2-33 Bridge Mode
1. Network Role
▪ Network Mode: set current network mode.
▪ Auto IP Aliasing: When this is enable the unit will be recoverable by the IP address set up in
whichever Vlan interface the user inputs into the drop down menu
2. VLAN
▪ ID: The added VLAN ID.
ECHO MANUAL v1.111 Page 31 of 47
▪ Describe: The description of a VLAN.
▪ Untagged Port: Untagged ports of this VLAN.
▪ Tagged Port: Tagged ports of this VLAN.
▪ Edit: Edit corresponding VLAN
▪ Delete: Delete corresponding VLAN.
3. VLAN Interface
▪ ID: VLAN ID.
▪ Interface: corresponding VLAN interface of VLAN ID.
▪ Mode: Access of the IP of the corresponding VLAN interface.
▪ IP/ Mask: IP address and netmask of corresponding VLAN interface.
▪ Gateway: Gateway of corresponding VLAN interface.
▪ DHCP: Open DHCP server function of corresponding VLAN interface.
▪ MTU: MTU of corresponding VLAN interface.
▪ Edit: Edit corresponding VLAN interface.
,
Figure 2-34 Edit VLAN
▪ VLAN Description: edit the description of the VLAN
▪ Port: When set to untagged all traffic can flow through the port tagged and untagged. When set
to tagged only traffic with the corresponding Vlan ID can pass through the port.
ECHO MANUAL v1.111 Page 32 of 47

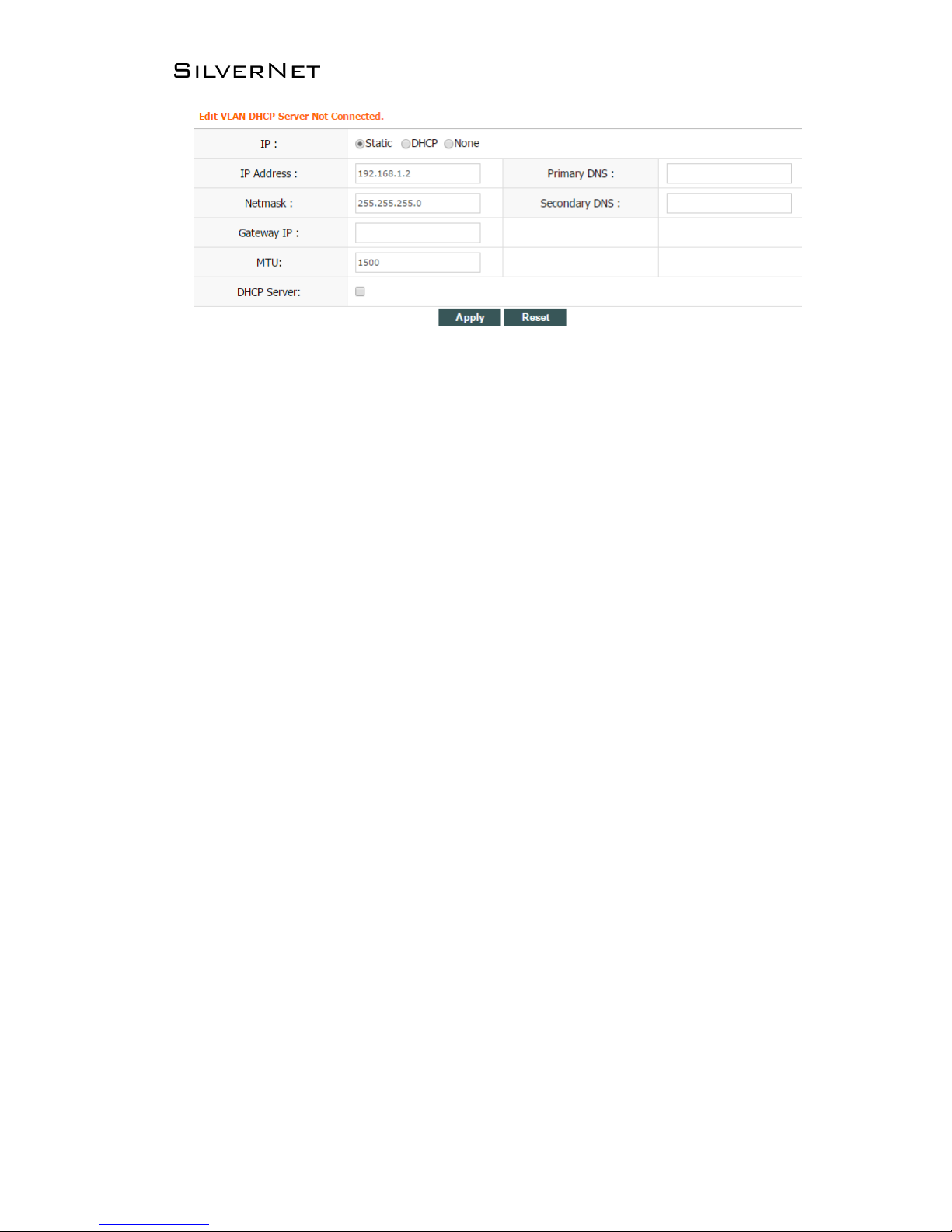

Figure 2-35 Edit VLAN Interface
▪ IP Address: Set static IP address.
▪ Netmask: Set netmask of static IP address.
▪ Gateway IP: Set static gateway address.
▪ Primary DNS IP: Set static main DNS address.
▪ Secondary DNS IP: Set static backup DNS address.
▪ MTU: Set MTU, the default is 1500 bytes.
▪ IP Start: Set start IP address of DHCP server
▪ IP End: Set end IP address of DHCP server
▪ Netmask: Set netmask of DHCP server
▪ Lease Time: Set lease time of DHCP server
ECHO MANUAL v1.111 Page 33 of 47
2.4.2 WISP/SOHO Router Mode

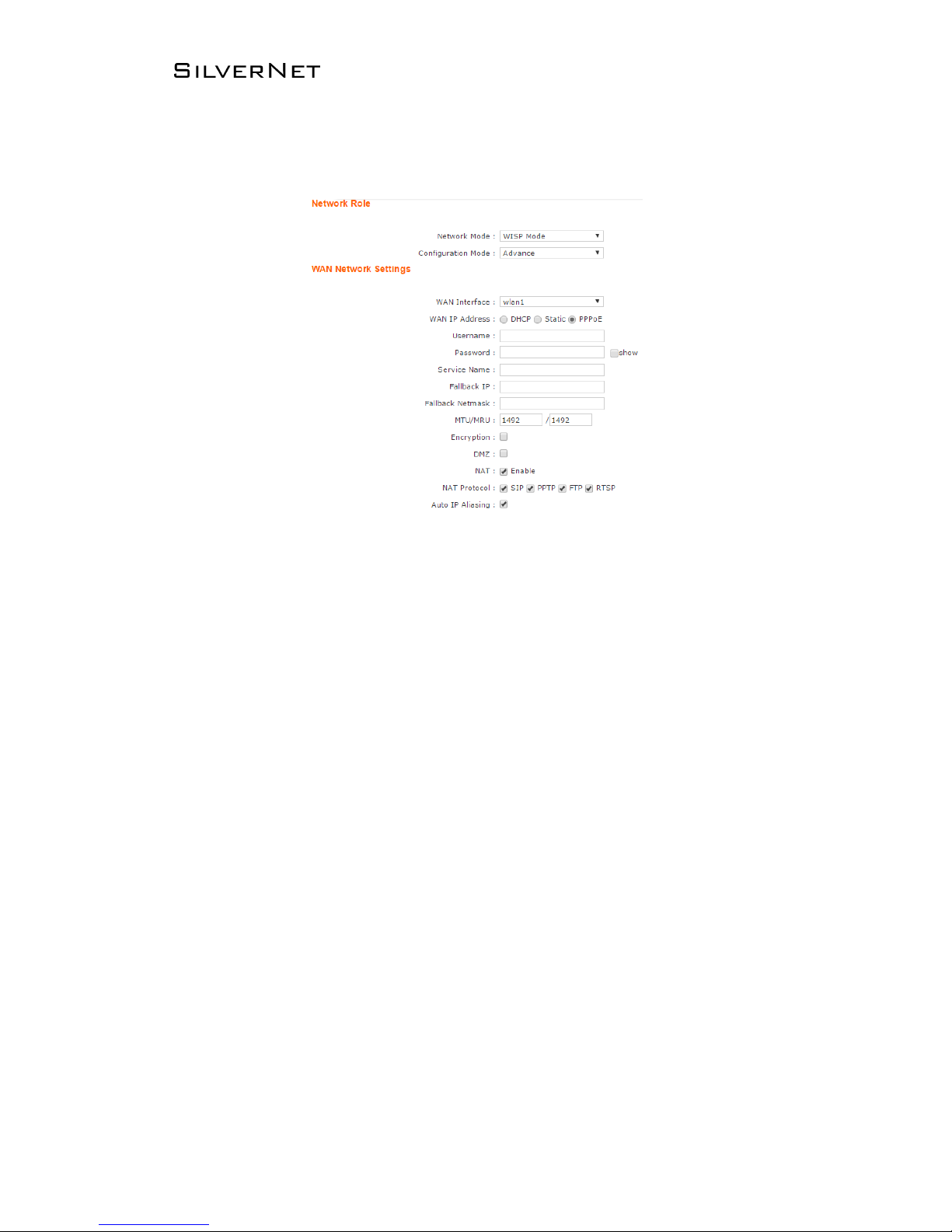

WISP/SOHO Router Mode is shown as Figure 2-35.
Figure 2-36 Setting Page
1. Network Role
▪ Network Mode: Used to set network mode.
2. WAN Network Settings
▪ WAN IP Address: The WAN IP address can be obtained in three different ways, Static, DHCP
and PPPoE negotiation. WISP Mode uses PPPoE to obtain wan IP address
▪ Username: Set PPPoE connection username.
▪ Password: Set PPPoE connection password.
▪ Service Name: Set PPPoE connection service name.
▪ Fallback IP: Set fallback IP address after PPPoE negotiation failed.
▪ Fallback Netmask: Set fallback netmask of IP address after PPPoE negotiation failed.
▪ MTU/MRU: Set MTU and MRU PPPoE negotiation.
▪ Encryption: Set MPPE Agreement is enabled when PPPoE negotiation is using Microsoft
Point-to-Point Encryption Agreement.
▪ NAT: Set NAT service to “enabled” or “disabled” with the checkbox.
▪ DMZ: Set DMZ service of “enabled” or “disabled” with the checkbox
▪ NAT Protocol: Device supports the following NAT services of SIP, RSTP, FTP and PPTP.
ECHO MANUAL v1.111 Page 34 of 47

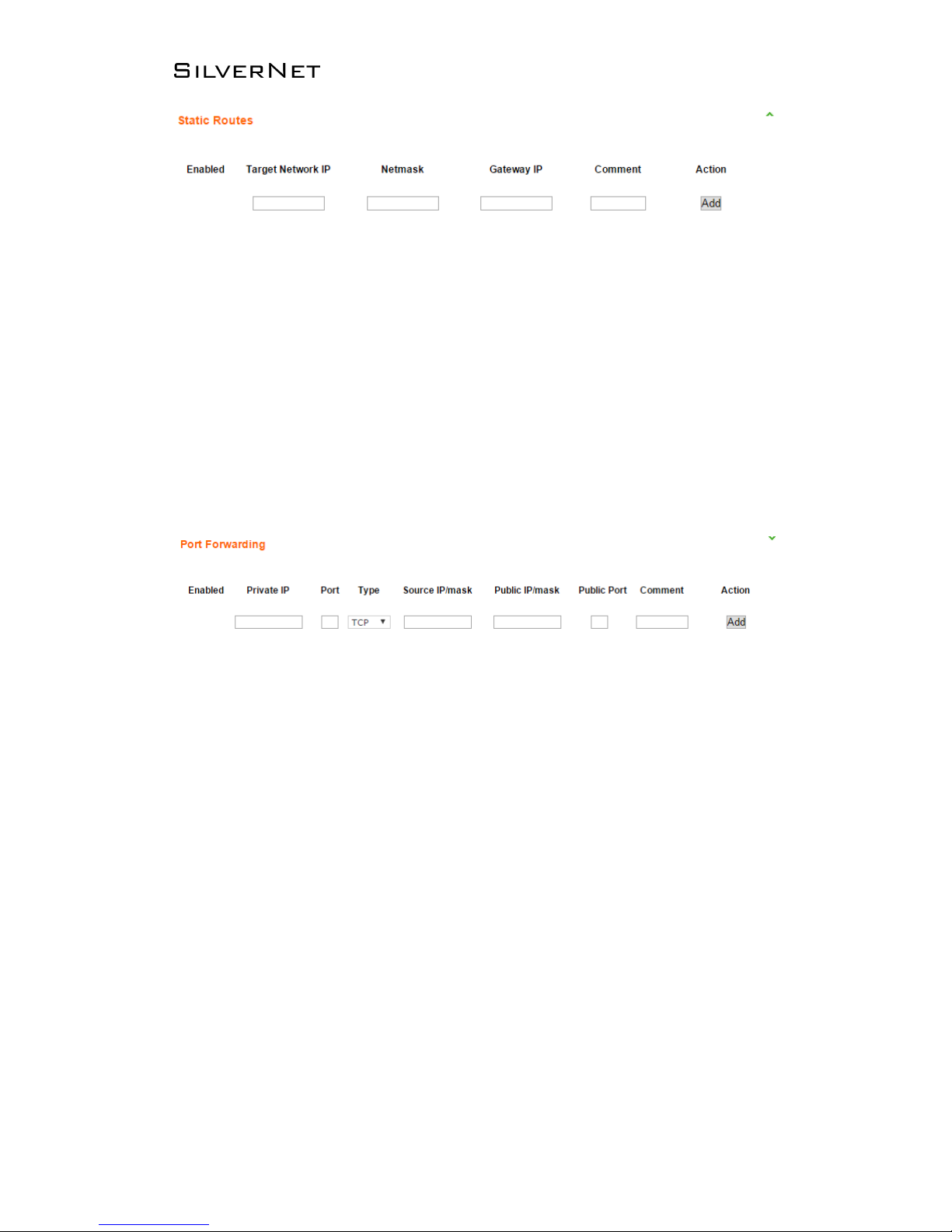

Figure 2-38 Static Routes
Static Routes is one kind of special routes, manually configured by the administrator.
▪ Enable: Set the static routes service to enable or disabled.
▪ Target Network IP: Set the target network IP address.
▪ Netmask: set the netmask.
▪ Gateway IP: Set the gateway IP.
▪ Comment: Comment can be added for corresponding static routes.
▪ Action: Add, delete, and edit static routes.
Figure 2-39 Port Forwarding
Port Forwarding comes into effect when network mode is SOHO Router/WISP.
▪ Enable: Set the port forwarding to enable or disabled.
▪ Private IP: Set the forwarded intranet host IP address.
▪ Private Port: Set the forwarded intranet host protocol a port number.
▪ Type: Set the forwarded intranet host protocol to either TCP or UDP.
▪ Source IP/Mask: Set the visiting host source IP and mask.
▪ Public IP/Mask: Set the forwarded extranet host IP and mask.
▪ Public Port: Set the extranet port for intranet host forwarding.
▪ Comment: Add a comment for corresponding forwarding.
▪ Action: Add, delete, and edit corresponding forwarding.
ECHO MANUAL v1.111 Page 35 of 47

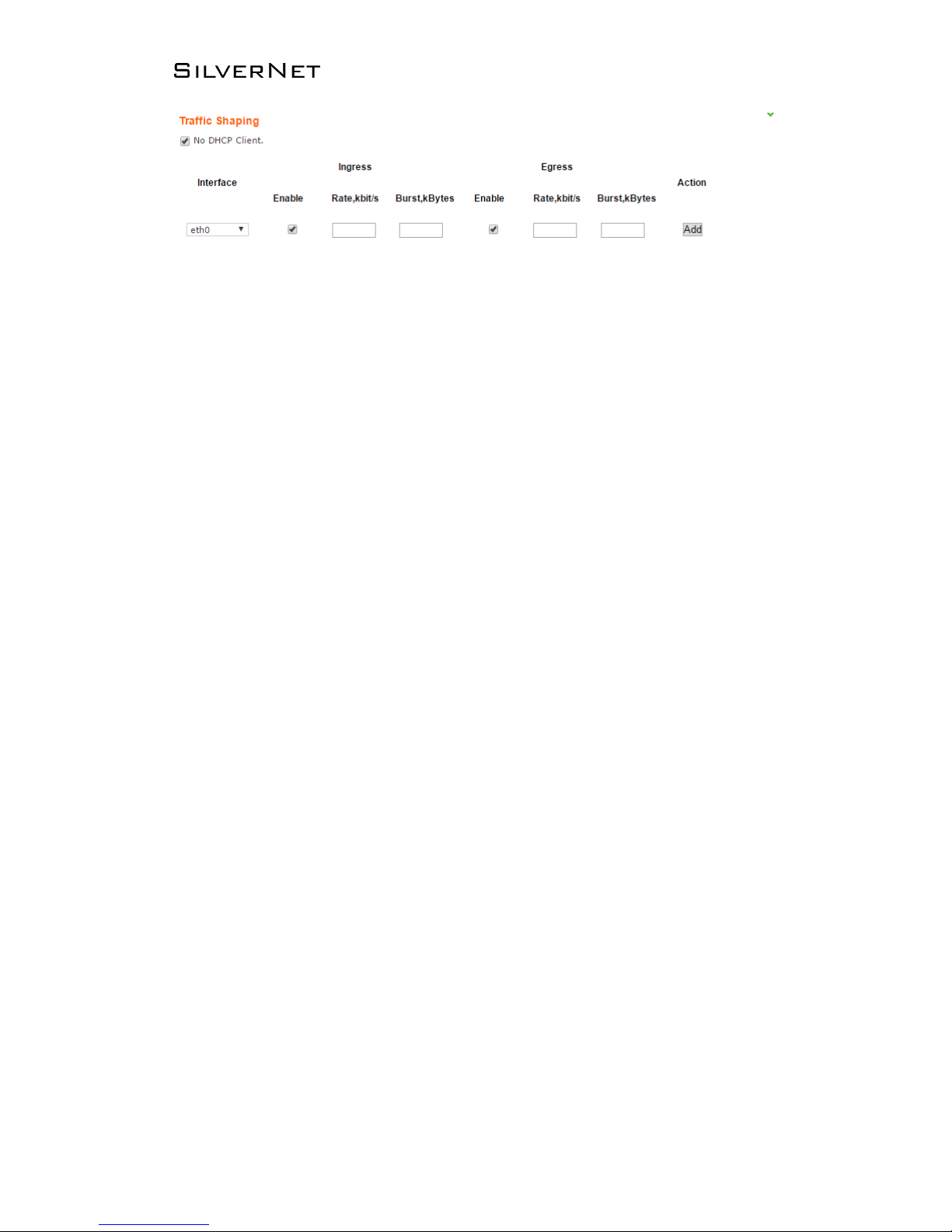

Figure 2-40 Traffic Shaping
Traffic Shaping is used to limit ingress and egress bandwidth on the Ethernet port and the wireless
interface.
▪ Enable: set traffic shaping service to enable or disabled for the corresponding interface.
▪ Ingress: ingress traffic is traffic on the ingressing interface.
▪ Egress: egress traffic is traffic on the forwarding interface.
▪ Rate,kbit/s: Set limited max rate.
▪ Burst,kBytes: Set burst byte length.
▪ Action: Add, delete, and edit corresponding rules.
ECHO MANUAL v1.111 Page 36 of 47
2.5 SERVICES
Services Page is used for setting safe access, access management and so on, as Figure 2-40.
Figure 2-41 Services
2.5.1 Web Server
Web Server is used to set server port and session timeout of web server.

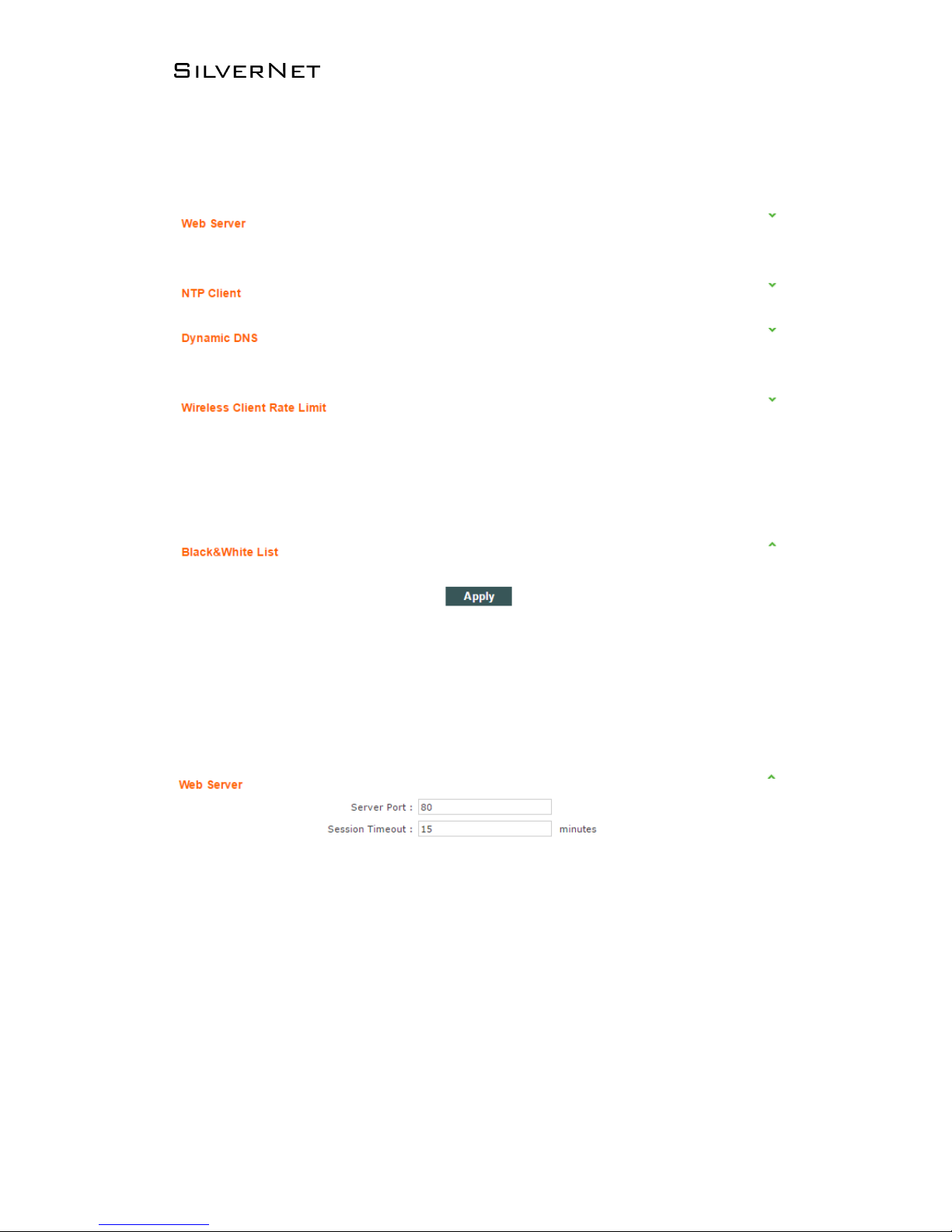

Figure 2-42 Web Server
▪ Server Port: Set server port of web service, the default is 80.
▪ Session Timeout: Set web session timeout, the default is 15 minutes.
ECHO MANUAL v1.111 Page 37 of 47
2.5.2 NTP Client
NTP means Network Time Protocol. NTP can set the time as the same on all units.

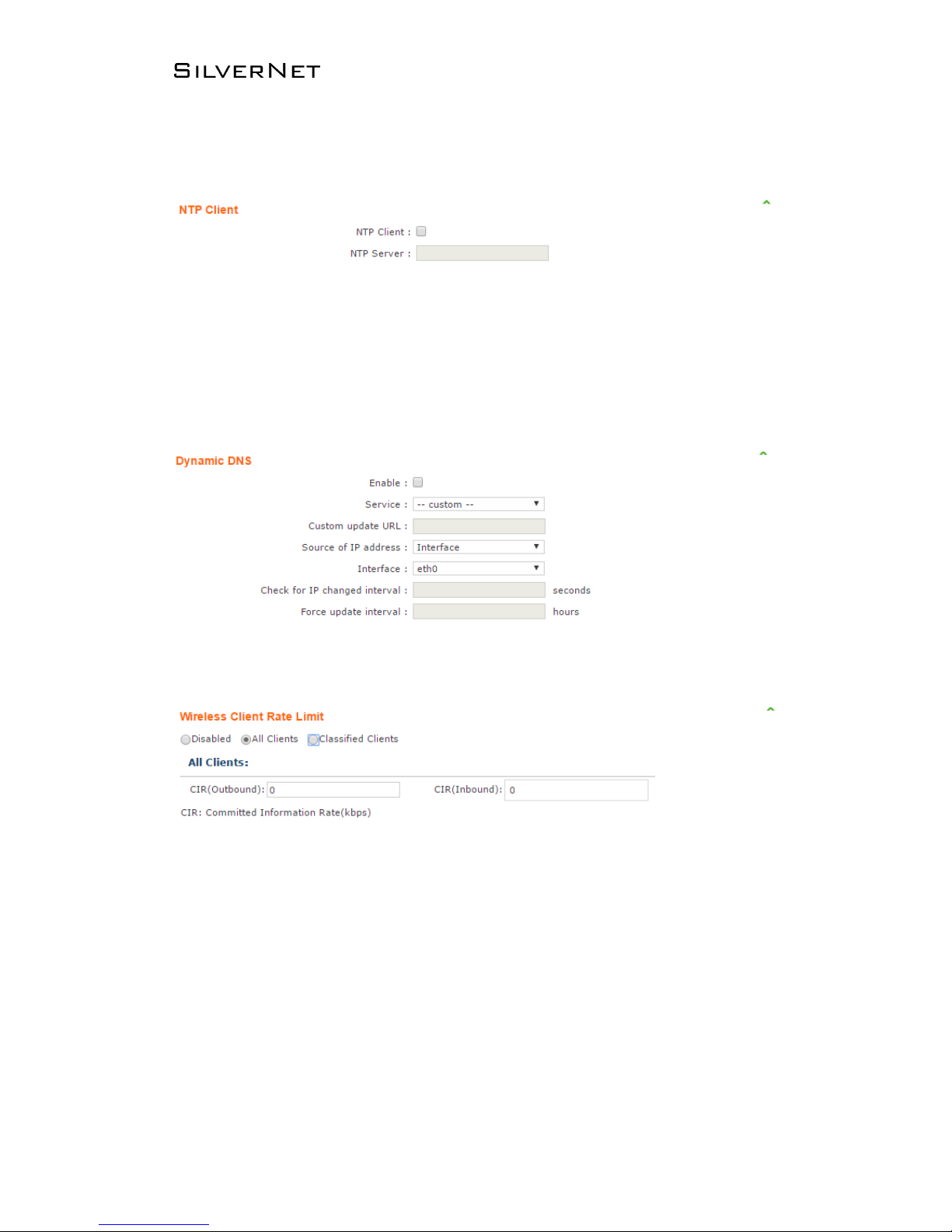

Figure 2-44 NTP Client
▪ NTP Client: Set NTP Client service as enable or disabled, the default is set to disabled.
▪ NTP Server: Set IP address or domain name of NTP Server.
2.5.3 Dynamic DNS
2.5.4 Wireless Client Rate Limit
Figure 2-46 Client Rate Limit-All Clients
▪ CIR: CIR means Committed Information Rate in other words bandwidth rate limit, kbps is the
unit of measure.
▪ Outbound: Set the outbound rate limit value this is the limited rate of Transmitting.
▪ Inbound: Set the inbound speed limit value this is the limited rate of the receiving RF.
ECHO MANUAL v1.111 Page 38 of 47

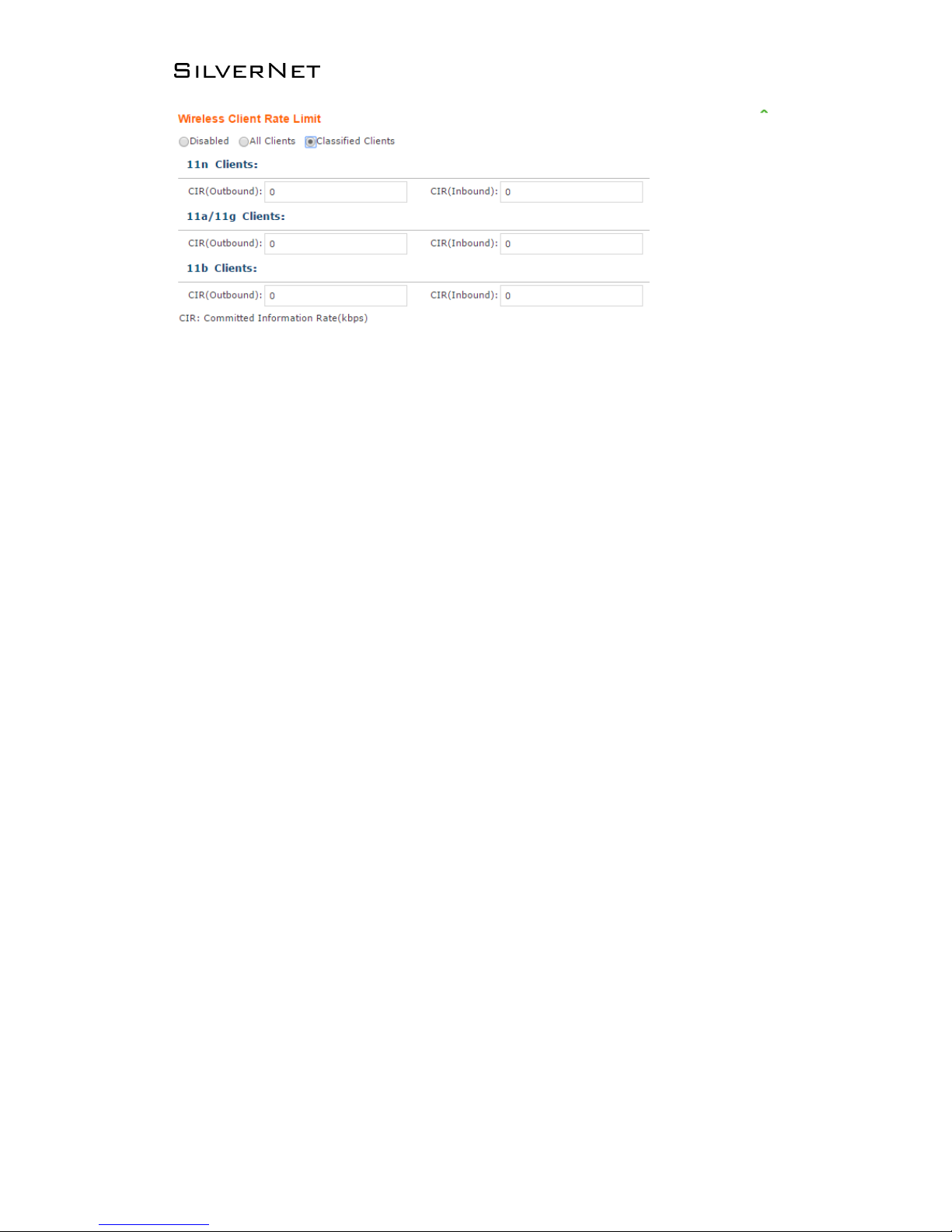

Figure 2-47 Client Rate Limit-Classified Clients
▪ 11n Clients: Set the inbound and outbound rate limit of 802.11n clients.
▪ 11a/11g Clients: Set the inbound and outbound rate limit of 802.11a/802.11g clients.
▪ 11b Clients: Set the inbound and outbound rate limit of 802.11b clients.
ECHO MANUAL v1.111 Page 39 of 47
2.5.5 MAC Control
MAC Control means to restrict Internet access by computer MAC address, and manage access and visit
of users by supporting blacklist or white list. Don’t open MAC control in the case of the default, that is to
say, all computers can visit Internet without limit, as Figure 2-51.

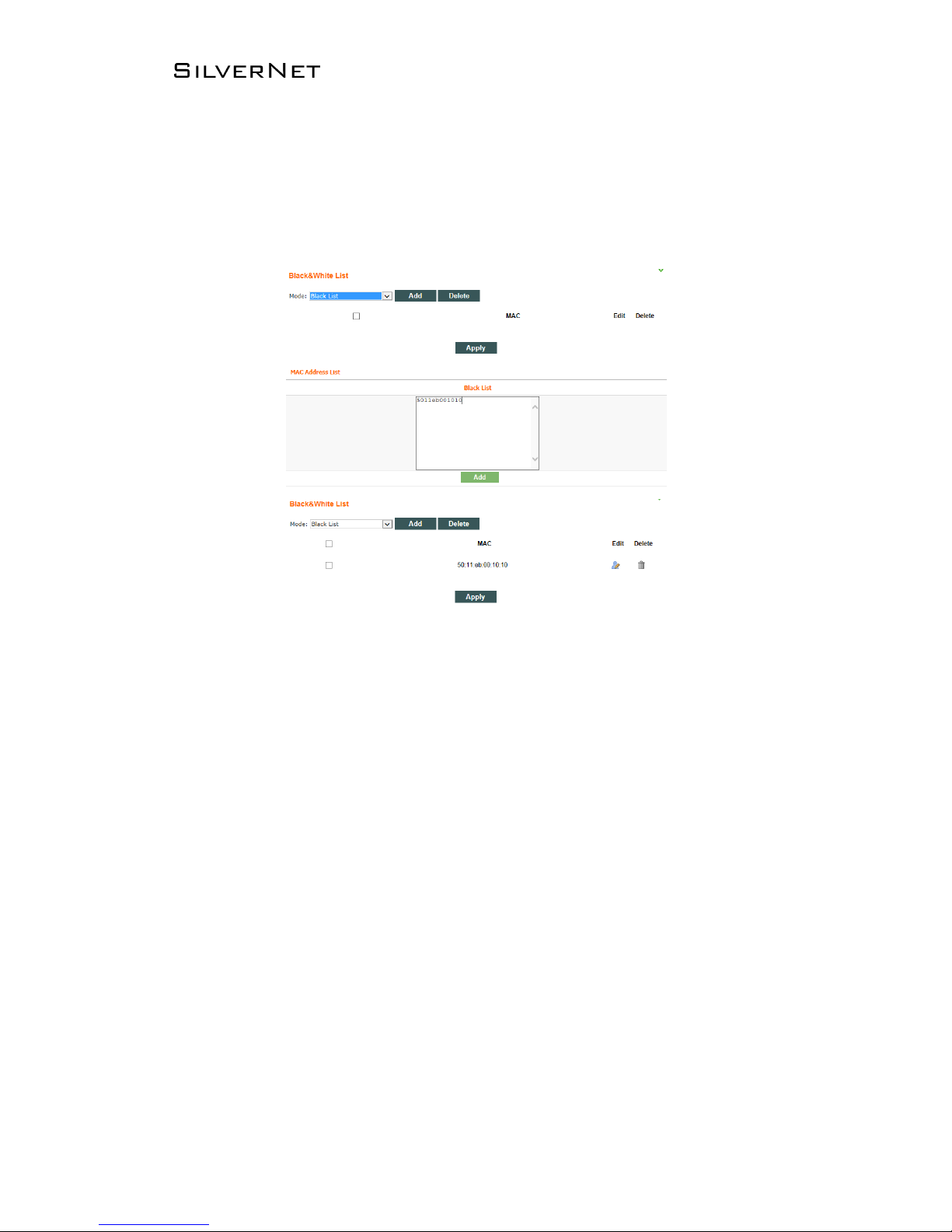

Figure 2-52 MAC Control
• Mode: This can be set to either Blacklist or Whitelist, this will deny or allow specific MAC
addresses.
• Mac Address List: Input MAC address, Add.
ECHO MANUAL v1.111 Page 40 of 47
2.6 SYSTEM
System Page is mainly used for settings relating to device management, as Figure 2-49.
Figure 2-53 System Page
2.6.1 Device

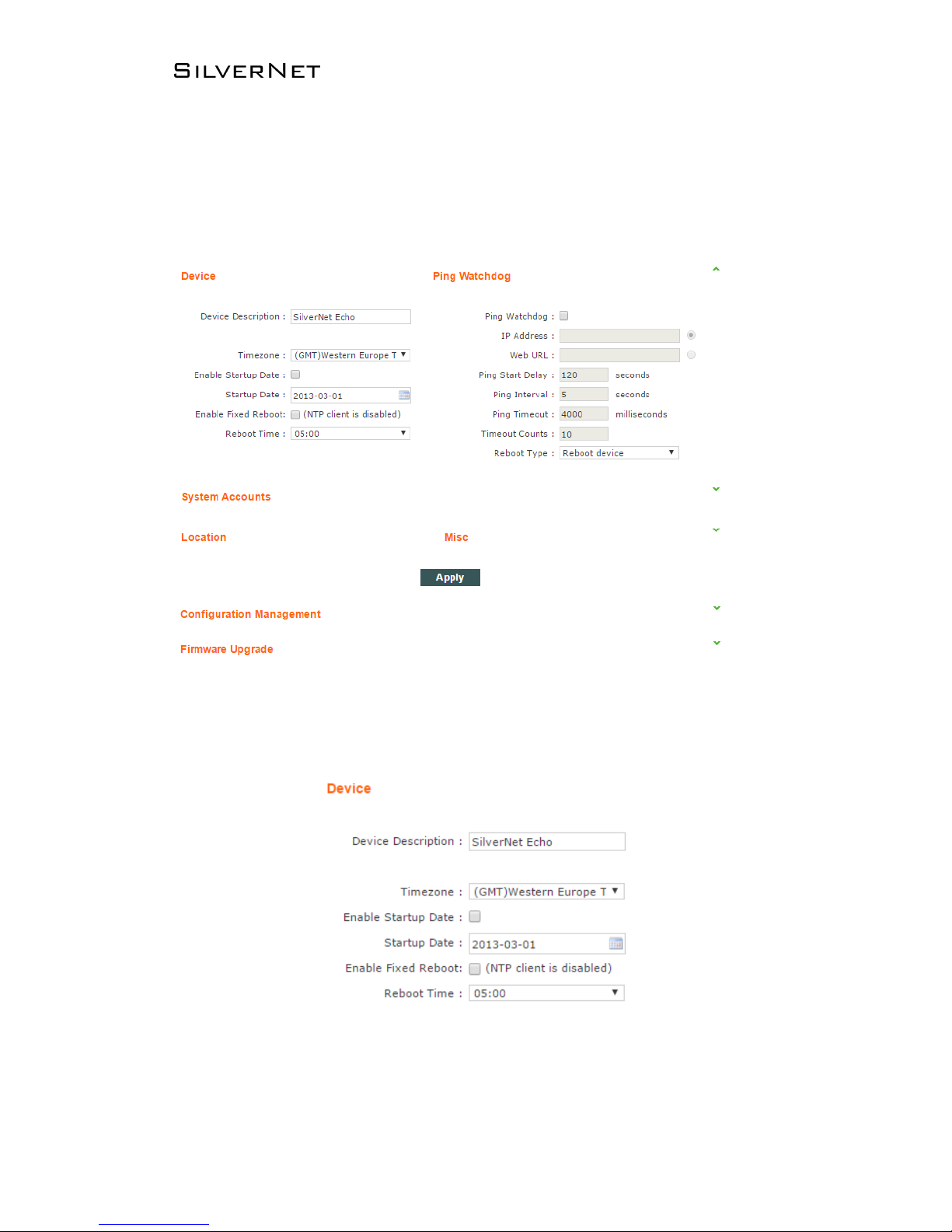

Figure 2-54 Device
▪ Device Description: Set the device description.
▪ Enable Startup Date: Set to enable startup date, the default is disabled.
ECHO MANUAL v1.111 Page 41 of 47
▪ Startup Date: Set the device startup date.
▪ Time zone: Set the device time zone.
2.6.2 Ping Watchdog

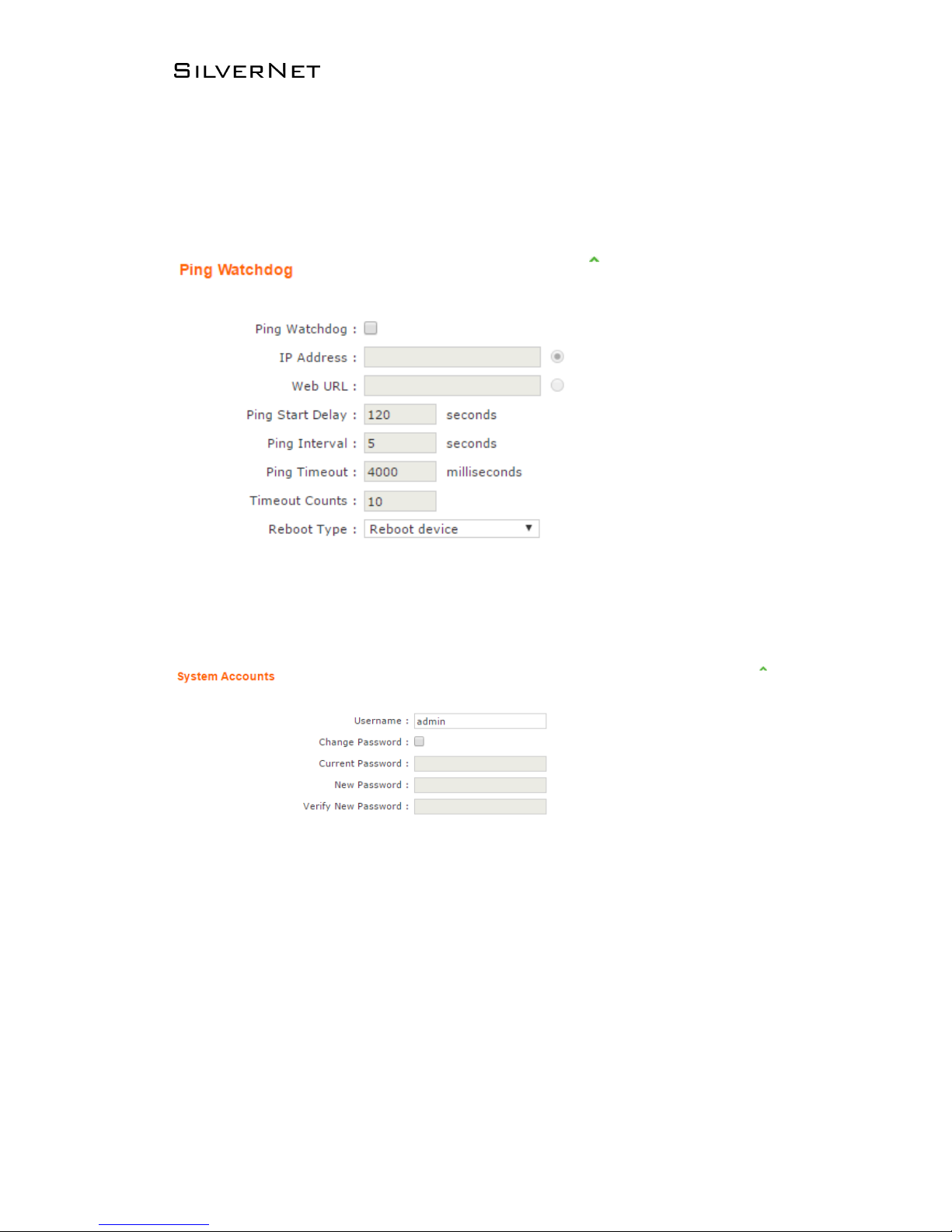

Figure 2-55 Ping Watchdog
2.6.3 System Accounts
Figure 2-56 System Accounts
▪ Username: Set the admin username.
▪ Current Password: Input current password.
▪ New Password: Set a new password.
▪ Verify New Password: Verify the new password.
ECHO MANUAL v1.111 Page 42 of 47
2.6.4 Configuration Management
Figure 2-57 Location Page
▪ Latitude: Set device latitude.
▪ Longitude: Set device longitude.
Figure 2-58 Configuration Management
Figure 2-59 Restore Factory-default settings
Figure 2-60 Import the configuration file
ECHO MANUAL v1.111 Page 43 of 47
Figure 2-61 Device Reboot
▪ Restore Factory defaults: Restore to factory default.
▪ Export Configuration: Export current configuration.
▪ Import Configuration: Import configuration into device.
▪ Reboot: Reboot device.
2.6.5 Firmware upgrade
Figure 2-62 Firmware Upgrade
Firmware upgrade is used for upgrading software of the device.
▪ Version: displays the current version of firmware.
▪ Update File: Choose update file.
ECHO MANUAL v1.111 Page 44 of 47
2.7 Tools
2.7.1 Ping
The ping test is usually used for measuring the network latency and performance.
Figure 2-63 Network Ping
▪ Destination IP: The target IP address.
▪ Packet Count: Number of the pings.
▪ Packet Size: Define the ping/ICMP packet size, the larger size of the packet the higher latency
for the ping.
2.7.2 Traceroute
Figure 2-64 Network Traceroute
▪ Destination host: The target IP address/domain for tracing.
▪ Resolve IP Address: Allows IP address to be entered
ECHO MANUAL v1.111 Page 45 of 47
2.7.3 Site survey
Figure 2-65 Scan List
▪ MAC Address: BSSID address of the wireless service.
▪ SSID: BSSID name of wireless service, also called ESSID.
▪ Auth_mode: Authentication method of the wireless service.
▪ Encryption: Encryption type of the wireless service.
▪ Signal/Noise: Signal strength and noise of wireless service.
▪ Frequency：The frequency of the wireless service.
▪ Channel: The channel of the wireless service.
2.7.4 Speed Test
Figure 2-66 Network Speed Test
▪ Destination IP ：The target IP address is often the IP of the opposite radio.
▪ Web Port: Default is 80
▪ Username: Default is admin
▪ Password: Default is admin
▪ Type: Transmit/receive/duplex speed performance of wireless
▪ Test Result: The end of test results.
ECHO MANUAL v1.111 Page 46 of 47
Contact Us
SilverNet Ltd
2 Vermont Place
Tongwell
Milton Keynes
MK15 8JA
Online Resources
If you need any further assistance go to our website
download centre:
www.silvernet.com/downloadcentre/
View our troubleshooting guide:
http://www.silvernet.com/support/frequently-asked-questions/
Use our online ticket support:
www.silvernet.com/support/
Email us at support@silvernet.com
www.silvernet.com
CE Mark Warning
ECHO MANUAL v1.111 Page 47 of 47
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Loading...
